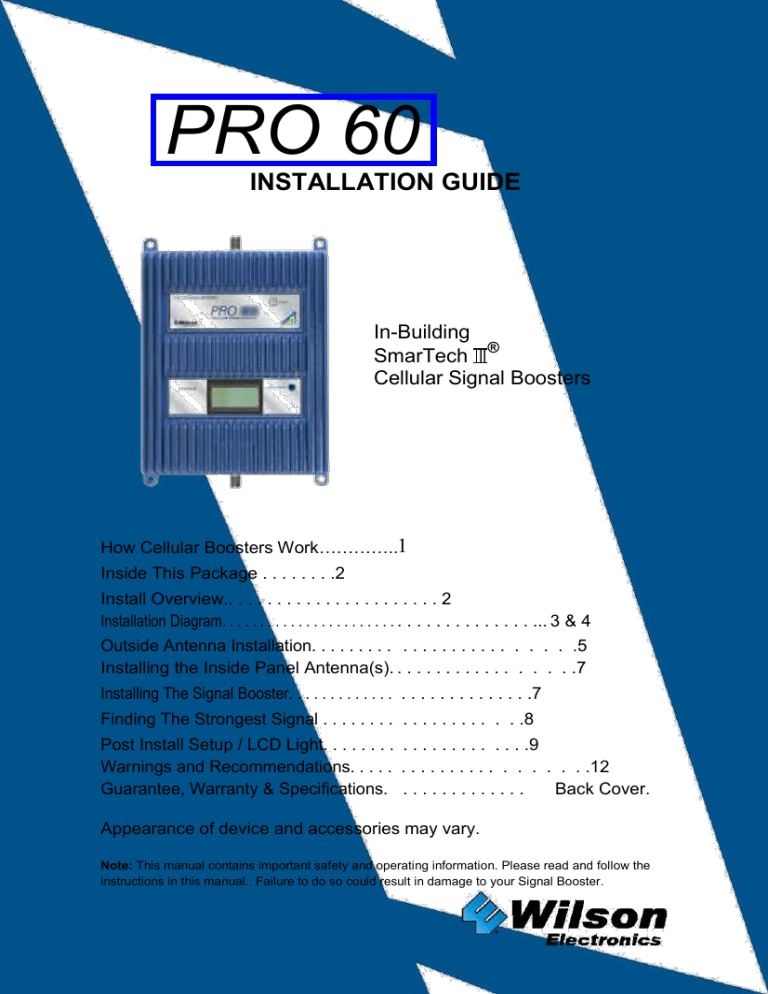

PRO 60 - Cell Phone Signal Booster

PRO 60

INSTALLATION GUIDE

In-Building

®

SmarTech

Cellular Signal Boosters

Contents:

How Cellular Boosters Work

…………..

1

Inside This Package . . . . . . . .2

Install Overview.. . . . . . . . . . . . . . . . . . . . . . 2

Installation Diagram. . . . . . . . . . . . . . . . . . . . . . .

. . . . . . . . . . . . . . ...

3 & 4

Outside Antenna Installation. . . . . . . . .

. . . . . . . . . . . . . . . .5

Installing the Inside Panel Antenna(s).

. . . . . . . . . . . . . . . . .7

Installing The Signal Booster. . . . . . . . . . . . .

. . . . . . . . . . . . . .7

Finding The Strongest Signal . . . . . . . .

. . . . . . . . . . . .8

Post Install Setup / LCD Light. . . . . . . .

. . . . . . . . . . . . .9

Warnings and Recommendations. . . . .

. . . . . . . . . . . . . . . . .12

Guarantee, Warranty & Specifications.

. . . . . . . . . . . . .

Back Cover.

Appearance of device and accessories may vary.

Note: This manual contains important safety and operating information. Please read and follow the instructions in this manual.. Failure to do so could result in damage to your Signal Booster.

How a Cellular Booster Better Indoor Signals

The working mode of weBoost cellular signal booster system includes: an outdoor antenna is placed on the roof or pole where it can get some cell signal, this antenna receives that signal and sends the weak signal through the coax cable back to the internal antenna(s) that then rebroadcasts the signal that has been amplified within one or different areas where the amplified signal is needed. Signal produced by the indoor cell device(s) are also picked by the antenna(s) that is inside, which is then amplified by the signal booster and send back to the cell tower through the antenna that is outside. The enhanced signal makes reliable connections for indoor users.

About Gain and Improved Signal Area

When a cell booster is amplified, it directory have effect on the area of improved

Signal coverage inside the home. There are several gains rating available for weBoost booster so that signal level can be better matched at user’s homes satisfying user imagination. The little signal power at the antenna that is outside or the better network requirement, the bigger the gain that will be required and leads to a higher charge. Also the more signal power available outside, the bigger the network coverage area is going to be. It is vital to face the outside antenna towards the source of signal. Although the length from the coax cable reduces the gain of both the antenna inside and outside, this also have effect on the region of high coverage.

The internal antenna also has its own directional features. Coverage area inside the house will also be affect by coverage region.

One other vital factor that influence signal area is insufficient isolation between the antenna outside and inside. These boosters are made to bring down indoor gain so as to hinder any feedback “oscillations” if not monitored properly will have effect on operation of close-by cell site. The front display on the booster is useful in the determination of whether a booster is working at a high gain for cell band. One way to get this high gain is by increasing antenna isolation, till a gain is displayed on the

LCD indicator. If this required separation is disturbed by any structure, it will affect the gain. A cell site that doesn’t provide users any service can make the booster automatic signal protection circuit to lessen gain or switch-off some of the bands in the booster in order to prevent network overload to cell site that are close by. The

LCD display integrated on the booster can help in knowing if this situation is occurring.

When a cell booster is amplified, it directory have effect on the area of improved

Signal coverage inside the home. There are several gains rating available for weBoost booster so that signal level can be better matched at user’s homes satisfying user imagination. The little signal power at the antenna that is outside or the better network requirement, the bigger the gain that will be required and leads to a higher charge. Also the more signal power available outside, the bigger the network coverage area is going to be. It is vital to face the outside antenna towards the source of signal. Although the length from the coax cable reduces the gain of both

the antenna inside and outside, this also have effect on the region of high coverage.

The internal antenna also has its own directional features. Coverage area inside the house will also be affect by coverage region.

One other vital factor that influence signal area is insufficient isolation between the antenna outside and inside. These boosters are made to bring down indoor gain so as to hinder any feedback “oscillations” if not monitored properly will have effect on operation of close-by cell site. The front display on the booster is useful in the determination of whether a booster is working at a high gain for cell band. One way to get this high gain is by increasing antenna isolation, till a gain is displayed on the

LCD indicator. If this required separation is disturbed by any structure, it will affect the gain. A cell site that doesn’t provide users any service can make the booster automatic signal protection circuit to lessen gain or switch-off some of the bands in the booster in order to prevent network overload to cell site that are close by. The

LCD display integrated on the booster can help in knowing if this situation is occurring.

1

Contact CellPhoneSignalbooster.us Technical Support Team with any questions at

800-501-3153 or email: [email protected]

Inside this Package

Note:

Kits may contain different accessories

To

Purchase Expansion Kits call CellPhoneSignalBooster.us Sales Department at:

800-501-3153

Signal

Booster

Wide Band Directional Wide Band Panel Antenna

Antenna 75’ RG11 Cable 50’ RG11 Cable

2’ RG11 Cable

(951122)

AC/DC

Power Supply

Lightning Surge

Protector

(314475-1175) (311155-1150)

12V/3A (859900)

(859992)

For additional antenna options see pages 13 & 14.

Install Overview

Refer to Installation Diagram on page 3 & 4. Contact CellPhoneSignalbooster.us support

Team with any questions at 800-501-3153.

1.

Choose a structure where you will mount the antenna

2.

Pick a region to mount the signal booster far from heat, moisture or direct sunlight, airy position. An area with less amount of ventilation is not recommended. This booster should be very near to the antenna outside so that losses will be reduced as a result of the length of the cable that goes to the antenna outside.

3.

The cable should be connected from the antenna outdoor to the signal booster connector of the antenna outside.

4.

A spot for the antenna indoor should be picked, ensure you select a position in the middle of the area that requires the improved signal. Know that the separation between the outside and inside antenna is important for proper functioning. About

50 to 75 feet of horizontal isolation is needed away from the outdoor antenna.

Vertical distance will also contribute to increased isolation. Other ways of separation are also possible. You can contact us for more suggestion of isolation techniques. Contact CellPhoneSignalbooster.us Tech Support at 800-501-3153

5.

Make a connection from the indoor antenna to the signal booster’s indoor antenna connector. You can refer to page 6 for more detail on how to run cable. Cable length has to be as short as possible in order to limit the loss of signal in the system.

6.

Make sure that both the outdoor and indoor antenna are connected very well before the signal booster should be switched-on. And make sure all the connections are very tight.

Refer to page 9. Note: take extra care when connecting the connectors so that the pin at the

center of the connector will not bend

7.

Switch-on the booster by connecting it into the power source. If a green light is displayed, please refer to page 9-11

Contact CellPhoneSignalbooster.us Technical Support Team with any questions at

800-501-3153 or email: [email protected]

2

Installation Diagram

Note: A weBoost Lightning Surge

Protector (859992) is recommended for all building installations. Make sure the protector is installed outside the building at point of entry connected to a suitable ground and in line between the Outside Antenna and the Signal Booster.

Outside Antenna

(Wide Band Directional

Antenna shown)

Spacing Critical

Inside Antenna

Inside Antenna

Preferred Method: Place the Inside Antenna in the ceiling facing down for the best coverage..

Power Supply

Surge Protector

Power Strip

3

Contact CellPhoneSignalbooster.us Technical Support Team with any questions at

800-501-3153 or email: [email protected]

Optional Splitter

2-way or 3-way, when using multiple inside antennas for increased coverage

Optional Inside

Antenna for added coverage

Signal

Booster

Contact CellPhoneSignalbooster.us Technical Support Team with any questions at

800-501-3153 or email: [email protected]

4

Selecting a Location for the Outside Antenna

Wide Band Antenna

Cell Tower

The antenna that is outdoor should be installed in a location outside the house, where there is a strong cell signal. The weBoost signal that comes with the booster can be used in achieving this. Another device that can be used for finding the spot where there is the strongest signal is the cell phone that is test mode. Make sure the outside antenna is very high in the direction where the region of the cell tower and facing away the expected location of the antenna that is indoor.

Outside Antenna Installation

Mount the antenna as shown in the image in Figure 1. The bracket used for mounting the antenna is adjustable and will accommodate pipe diameters from 1.25 inches to 2 inches. Make sure the antenna has about 3 feet of space of clearance in all direction around it. Ensure the antenna is pointing away from your roof or towards the inside antenna because this will make the circuit for the cell site protection to turn-off the signal booster.

CORRECT INSTALLATION

Point antennas away from each other

INCORRECT INSTALLATION

Never point antennas toward each other

Inside Panel

Antenna

Outdoor

Antenna

Inside Panel

Antenna

Outdoor

Antenna

Signal Booster Signal Booster

Figure 1

5

Figure 2

Contact CellPhoneSignalbooster.us Technical Support Team with any questions at

800-501-3153 or email: [email protected]

Installing Lightning Protection

Warning: Protection against lightning is important when installing the antenna

(#859992-75 Ohm, shown below)

Be careful so that you or the antenna does not go near any electrical power line. Fix the LSP (Lightning surge protection outside), in line with the coax cable from the outdoor antenna, beside where the coax cable from the antenna that is outdoor will pass into the house. The outside antenna cable should be connected to one of the connector on the surge protector. The other connector should be fixed to the other LSP to the coax cable entering the house. The LSP should be properly grounded near the LSP as possible

To Outside

Antenna

Lightning

Surge Protector

(859992)

Warning: Protection against lightning is important when installing the antenna (#859992-75 Ohm, shown below)

Be careful so that you or the antenna does not go near any electrical power line. Fix the LSP (Lightning surge protection outside), in line with the coax cable from the outdoor antenna, beside where the coax cable from the antenna that is outdoor will pass into the house. The outside antenna cable should be connected to one of the connector on the surge protector. The other connector should be fixed to the other LSP to the coax cable entering the house. The LSP should be properly grounded near the LSP as possible.

To Inside

Antenna

Ground Wire

Running Outside Antenna Cable

When installing the antenna outdoor to the wall of the house, the best way to go about it is by running the cable on the outside of the wall and fix it to the outside of your home. Make a hole on the wall of the building where you want the cable to show inside the house. But before making any hole, be sure that there are no electrical outlets, or any pipe or other electrical wiring in the wall where you want to make the hole, because this may result into damage to the wall or the house. Note: Television

cable serving other purposes cannot be shared alongside the installation of the cell booster.

When you have made the hole for the cable, pass the cable inside and seal it up with a silicone-type sealant to cover the whole that has been created. Sometimes it will be possible to pass the cable up into the fascia of the attic overhang. In cases like this the cable will be available in for further routing.

6

Installing the Inside Panel Antenna(s)

A good spot for the internal antenna should be picked, most especially in the middle where the signal needs to the boosted. A separation distance of around 20 vertical feet and/or 50 horizontal feet between the indoor and outdoor antenna Is essential so as to get a full booster gain and hence gives more optimum indoor signal. Supposing the antenna cannot attain an optimum gain, then a horizontal separation of about of

75 feet may be needed, or a mechanical separation between both antennas. Refer to installation diagram on pages 3 & 4

Inside

Antenna

Ceiling

Rafters

Ceiling

Drywall

Other installation that needs improvement in far areas in bigger homes may require many internal antenna and splitters. For instance, supposing signal is improved in many areas of a building, but still there is poor signal in other area, the signal from the booster can be split to two or more different indoor antennas by using a splitter that you can buy separately. Refer to the configuration on pages 3 & 4

Additional Inside Panel

Antenna

(311155-0630, sold separately)

Splitter Options:

Multiple mounting options available

see pages 13 & 14

2-way

For additional antenna options

(859993)

3-way 4-way

(859994)

(859981)

Installing the Signal Booster

Pick a region for the signal booster that is far from much heat or sunlight, moisture, an area with a very cool temperature. An airy environment is preferable for the booster. Installation location that is recommended for the indoor boosters are inside a shelf or closet where there is power source. Attic installation may cause the booster to high temperature.

Note: Don’t mount in area that has a temperature that is more than150 °F.

Note: Keep a minimum of 6 inches away from any objects around. Take extra care when fixing the connector in order not to spoil the pins that is at the middle of the connectors.

Pass the outdoor antenna cable to the signal booster and fix it to the connector tha t has the labeled “Outside Antenna” on it. Pass the internal antenna cable to the signal booster and fix it to the connector that is labeled “Inside Antenna” on the signal Booster.

Note: so as to keep the FCC guideline, lengths of cable and antennas sent as a kit the signal booster must be utilized, it shouldn’t be cut and shortened. Contact our tech support for cable kits to be used in cases that requires long cable runs.

Note: It is very vital to power your signal booster with the help of a surge protected AC power strip with a minimum 1000 Joule rating. If you fail to do this your warranty will be void. The warranty given to you in case of a power surge or lightning strike

Contact CellPhoneSignalbooster.us Technical Support Team with any questions at

800-501-3153 or email: [email protected]

.

7

Finding the Strongest Signal

You have to target your outdoor antenna towards a good signal source from your carrier during the installation of the signal booster. Using the weBoost signal

Meter and accessory directional antenna is the best way of acquiring a very strong signal. Another way of is by getting someone to the roof to turn the outdoor antenna, that is fixed to the signal booster.

Rotate the antenna at an angle of 45degrees at a time, when the person in inside the house will be monitoring the signal strength on a signal meter or probably on a phone in test mode. This will help you in reading the strength of the signal from the cell tower. Make sure the phone is in test mode so as to get the actual strength of the signal, because bars are not always correct. Visit http://cellphonesignalbooster.us/ blog/field-test-mode-an-overview-enabling-it-on-your-phone/ for assistance on finding the test mode for your cell phone. Make sure the person inside the house allow the signal strength to register on the phone for at least 30 seconds so that the phone will update the signal reading.

The reading of the signal usually appear as a negative number. The signal is stronger when the reading is closer to zero

Cell Signal

Signal Strength Graph

EXCELLENT GOOD POOR NO

SIGNAL

Cell Tower

Outside

Antenna

0 dBm-50 dBm -60 dBm -70 dBm-80 dBm -90 dBm -100dBm -110dBm

Signal readings usually appear as a negative number (for example, -86).. The closer the number to zero, the stronger the signal (see Signal Srength Graph above)..

Contact CellPhoneSignalbooster.us Technical Support Team with any questions at

800-501-3153 or email: [email protected]

8

Post Install Setup

The Pro 6 signal booster is made with an advanced internal programming that enables the booster to adjust itself automatically for different conditions and still improve signals that are not strong. When the amplified installation has finished, the push button on the lower panel that is on the pro 60 booster is useful in the verification of the final gain that the booster adjust itself to produce when antenna has been mounted. You can also use the display to re-adjust antennas so the booster can give optimum gain and thereby increasing it coverage. The status for each band will be displayed on the LCD and the installer will be informed when any bands may have had their gain reduced by the booster internal programming. Furthermore, the overall status of the booster will be shown by the indicator light on the booster upper panel by displaying in different colors. This will be covered in the pages below

Understanding the LCD Screen

1.. Four bands can be individually selected:

The 700 MHz LTE Bands (B12/17 and B13)

A 700

A OK

The 800 MHz Band The 1900 MHz

– Cell Band – PCS Band

A 800

A OK

A PCS

A OK

1700/2100 MHz

– AWS Band

A AWS

A OK

The single “BAND SELECT” button is useful in scrolling the display via the four cellular bands so as to verify that each band is working very well. This is normally carried out various times when installing and setting up process to identified and remove any cell site proximity gain reduction (“OVL” display) and/or oscillation detection (“OSC” display) that might have been commanded by the booster’s network protection circuitry, as will be explained in the subsequent paragraphs. Also, an asterisk that is located close to the band that is selected will flash if some bands have been turned down/off by the boosters control circuitry as a result of strong close by cell site signal overload or oscillation from antennas that is nearby.

9

Contact CellPhoneSignalbooster.us Technical Support Team with any questions at

800-501-3153 or email: [email protected]

Understanding the Upper Panel Indicator Light

As the display on the LCD being toggled around the four cellular bands, the upper indicator light (power) is going to display green, orange, red, or different colors on each band that is selected, this depends on how the booster is working on each band as explained below.

Green shows the unit is powered, working properly at full gain.

Red shows the booster turnoff due to too much oscillation or feedback.

Orange shows that the booster has turn-off due to too much signal overload.

This is as a result of being extremely nearer to a cell tower.

It also has two major light features, green with an alternating red, and green with an alternating orange. These two colors show that the booster is functioning right although at a reduced gain

IMPORTANT NOTE: low gain lessens the indoor coverage region. Your installation will only be complete If the amount of network area is sufficient.

Flashing Green and Orange shows that the booster has noticed an overload from a close-by cell site and has automatically lower its gain so as to keep on working without having effect on the site that are close by.

Flashing Green and Red show that the booster has noticed feedback oscillation that normally occur by placing the antenna in an incorrect way and has reduced its gain automatically so as to stop any cell site blockage.

Note: the two scenario above can occur, but the signal booster will pick the light option that pertains to the highest reduction in gain..Green shows the unit is powered, working properly at full gain.

Red shows the booster turnoff due to too much oscillation or feedback.

Orange shows that the booster has turn-off due to too much signal overload.

This is as a result of being extremely nearer to a cell tower.

It also has two major light features, green with an alternating red, and green with an alternating orange. These two colors show that the booster is functioning right although at a reduced gain.

IMPORTANT NOTE: low gain lessens the indoor coverage region. Your installation will only be complete If the amount of network area is sufficient.

Flashing Green and Orange shows that the booster has noticed an overload from a close-by cell site and has automatically lower its gain so as to keep on working without having effect on the site that are close by.

Flashing Green and Red show that the booster has noticed feedback oscillation that normally occur by placing the antenna in an incorrect way and has reduced its gain automatically so as to stop any cell site blockage.

Note: The two scenarios above can occur, but the signal booster will pick the light option that pertains to the highest reduction in gain.

Fixing Red Light Issues

If some of the light displayed on the booster are red

1. Ensure that every connection is intact

2. If the area cover by the network is not very large with a reduced gain and alternating green and red lights, the region that in-between the outdoor and indoor antenna has to be increased by moving them horizontally and/or vertically away from each other. When this is done, you will have to reset the booster by removing it from power source and then connecting it back again. If a green light is displayed after the antennas have been separated, this means you have reached the optimum coverage.

3. After separating the antennas and you are still having a small coverage area, contact the CellPhoneSignalbooster.us Support Team for assistance: 866-839-9361.

Fixing Orange Light Issues

When the indicator light displayed on one or more bands:

1 If with this reduced gain condition and you still have a low coverage area, it is better to turn the outdoor antenna from the strong cellular signal that is close by in little increments until the light changes to green. If the Signal

Booster does not give any respond, then you will have to change the position of the outside antenna.

2 When an orange light is still being displayed then this means that the coverage area is still very small, contact the cellPhoneSignalbooster.us

Support Team for assistance at 866-839-9361.

If some of the light displayed on the booster are red

1. Ensure that every connection are intact

2.

If the area cover by the network is not very large with a reduced gain and alternating green and red lights, the region that in-between the outdoor and indoor antenna has to be increased by moving them horizontally and/or vertically away from each other. When this is done, you will have to reset the booster by removing it from power source and then connecting it back again. If a green light is displayed after the antennas have been separated, this means you have reached the optimum coverage.

3.

After separating the antennas and you are still having a small coverage area, contact the CellPhoneSignalbooster.us Support Team for assistance: 866-

839-9361.

Fixing Orange Light Issues

When the indicator light displayed on one or more bands:

3 If with this reduced gain condition and you still have a low coverage area, it is better to turn the outdoor antenna from the strong cellular signal that is close by in little increments until the light changes to green. If the Signal

Booster does not give any respond, then you will have to change the position of the outside antenna.

4 When an orange light is still being displayed then this means that the coverage area is still very small, contact the cellPhoneSignalbooster.us

Support Team for assistance at 866-839-9361.

About CellPhoneSignalbooster.us

For over one decade now, CellPhoneSignalbooster.us is the leading brand in the wireless communications industry. They sell signal boosters, antennas and other related components that are used to boost cellular phone signal network and also the transmission in different type of applications, mobile (marine, RV, vehicles) and in-building (home, office, machine to machine)

. With a vast knowledge in antenna and Signal Booster research and development, the manufacturers engineering team make use of a modern laboratory, with an anechoic chamber and network analyzers, to fine-tune antenna designs and performance. For its Signal Boosters, they use a double electrically shielded RF enclosure and cell tower simulators for compliance testing.

11

Visit http://cellphonesignalbooster.us or contact Technical Support Team with any q uestions at

800-501-3153 or email: [email protected]

Warnings and Recommendations

Warning: The outside antenna must always be located so the back or side points to the inside antenna.. Never point the front of the outside antenna toward the inside antenna

– this is to prevent booster oscillation shut down..

.Warning: Use only the correct manufacturers power supply . Use of a non-Wilson Electronics product may damage your equipment .

Warning: RF Safety: Any Inside Antenna used with this device must be located at least 8 inches from all persons..

Warning: The Outside Antenna must be installed no higher than 10 meters

(32’9”) above ground..

Warning: To uphold compliance with network protection standards, all active wireless devices must maintain at least 6 feet of separation from the panel and dome antennas, and 4 feet from desktop antennas..

This is a CONSUMER device.

BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider.

You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person.

You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider..

WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device..

Note: Dome Antennas are not recommended with these Signal Booster(s).

Note: For a complete list of antennas and cables approved for use with these boosters see pages 15 & 16.

This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by manufacturer could void the authority to operate this equipment .

Contact CellPhoneSignalbooster.us Technical Support Team with any questions at

800-501-3153 or email: [email protected]

12

Inside Antenna Options For Multi Antenna Installation

(Contact Technical Support for assistance)

Kit 309900-50N

• 2- Wall Panel antennas

• 1- 50 ohm 3-Way Splitter

Kit 311155-0630

• 30’ RG6 Cable

Kit 311135-5820

• 75 Ohm Wall mount Panel Antenna

Kit 309905-50N

• 3 - Wall Panel Antennas

• 50 Ohm Wall mount Panel Antenna

• 20’ RG58 Cable

• 3 - 2-Way 50 Ohm Splitters

Kit 309902-75F

• 2

- Wall Panel Antennas

Kit 311135-40060

• 50 Ohm Wall mount Panel Antenna

• 60’ LMR400 Cable

• 1

- 3-Way 75 Ohm Splitter

Kit 309903-75F

• 3

- Wall Panel Antennas

• 3

- 2-Way 75Ohm Splitters

Kit 309904-75F

• 1 – Wall Panel Antenna

• 1- 2-Way 75 Ohm Splitter

Kit 311155-40060

• 75 Ohm Wall mount Panel Antenna

• 60’ LMR400 Cable

13

Contact CellPhoneSignalbooster.us Technical Support Team with any questions at

800-501-3153 or email: [email protected]

Outside Antenna Options For Multi Antenna Installation

(Contact Technical Support for assistance)

• 20’ LMR400 Cable

Kit 301111-0675

• Yagi Directional Antenna

• 75’ RG6 Cable

• N-Male to F-Female adapter

Kit 301111-400170

• Yagi Directional w/ N-Female

• 170’ LMR400

Kit 311201-0620

• Omni Directional w/ F-Female

• 20’ RG6 Cable

Kit 311129-400100

• 800 MHz Yagi Antenna

• 100’ LMR400 Cable

Kit 311124-0660

• 1900 MHz Yagi Directional

• 60’ RG6 Cable

• N-Male to F-Female adapter

Kit 314453-40075

• 50 Ohm Pole Mount Panel Antenna

• 75’ LMR400 Cable

Kit 311129-0650

• 800 MHz Yagi Directional

• 50’ RG6 Cable

• N-Male to F-Female adapter

Kit 314453-5825

• 50 Ohm Pole Mount Panel Antenna

• 25’ RG58 Cable

Kit 314411-5825

• 50 Ohm Wide Band Directional

• 25’ RG58 Cable

Kit 314473 -0640

• 75 Ohm Pole Mount Panel Antenna

• 40’ RG6 Cable

Kit 301111-5850

• Yagi Directional Antenna

• 50’ RG58 Cable

Kit 314475

– 0630

• 75 Ohm Wide Band Directional

• 30’ RG6 Cable

Kit 311124

– 5840

• 1900 MHz Yagi Directional

• 40’ RG58 Cable

Kit 311141 - 0620

• 75 Ohm Grey Brick Antenna

• 20’ RG6 Cable

Kit 311203-5820

• Omni-Directional Antenna

• 20’ RG58 Cable

Kit 314411-40075

• 50 Ohm Wide Band Directional

• 75’ LMR400 Cable

Kit 311129-5830

• 800 MHz Yagi Antenna

• 30’ RG58 Cable

Kit 311203-40020

• Omni-Directional Antenna

Mini-Mag - 301126

• 12..5 RG174 Cable

Contact CellPhoneSignalbooster.us Technical Support Team with any questions at

800-501-3153 or email: [email protected]

14

30-Day Money-Back Guarantee

.ll CellPhoneSignalbooster.us products are protected by 60-day money-back guarantee. If for any reason the performance of any product is not acceptable, simply return the product directly to the reseller with a dated proof of purchase.

3-Year Warranty

Signal Boosters are warranted for three (3) years against defects in workmanship and/or materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof of purchase.

Si gnal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material Authorization (RMA) number supplied by weBoost . weBoost shall, at its option, either repair or replace the product . weBoost will pay for delivery of the repaired or replaced product back to the original consumer if located within the continental U .S .

.his warranty does not apply to any Signal Booster determined by weBoost to have been subjected to misuse, abuse, neglect, or mishandling that alters or damages physical or electronic properties.

Failure to use a surge protected AC Power Strip with at least a 1000 Joule rating will void your warranty..

.MA numbers may be obtained by contacting Technical Support at 800-501-3153

Disclaimer: The information provided by weBoost is believed to be complete and accurate. However, no responsibility is assumed by weBoost for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use.

Copyright © 2015. CellPhoneSignalBooster.us. All rights reserved.

US Patent Nos.

– 7,221,967; 7,729,669; 7,486,929; 7,409,186; 7,783,318; 8,583,034; 8,583,033; 8,639,180

Signal Booster Specifications weBoost PRO 60 with 60db gain

461034

Model Number

FCC ID

Antenna connectors

Antenna Impedance

Dimensions

Weight

Frequency

3

Power output for single cell phone (dBm)

Uplink

Downlink

Noise Figure (typical downlink/uplink)

698-746 MHz, 746-787 MHz, 824-894 MHz, 1850-1995 MHz, 1710-1755/2110-2155 MHz

700 MHz

Band 12/17

23..2

-0..4

PWO460004

F-Female

75 Ohms

8..875 x 6..0 x 1..5 inch (22..5 x 15..2 x 3..8 cm)

2..8 lbs (1..270 kg)

700 MHz

Band 13

23..8

-2..1

800 MHz

25..2

-2..0

7 dB nominal

1900 MHz

22..1

-1..4

1700/2100 MHz

22..5

0..9

Isolation > 90 dB

Power Requirements

110-240 V AC, 50-60 Hz, 20 W

Each Signal Booster is individually tested and factory set to ensure FCC compliance.. The Signal Booster cannot be adjusted without factory reprogramming or disabling the hardware..

The Signal Booster will amplify, but not alter incoming and outgoing signals in order to increase coverage of authorized frequency bands only.. If the Signal Booster is not in use for five minutes, it will reduce gain until a signal is detected.. If a detected signal is too high in a frequency band, or if the Signal Booster detects an oscillation, the Signal Booster will automatically turn the power off on that band.. For a detected oscillation the Signal Booster will automatically resume normal operation after a minimum of 1 minute.. After 5 (five) such automatic restarts, any problematic bands are permanently shut off until the Signal Booster has been manually restarted by momentarily removing power from the Signal Booster..

Noise power, gain, and linearity are maintained by the S ignal Booster’s microprocessor..

CellPhoneSignalbooster.us

7598 Harwin Drive, Houston, TX 77036

For additional Technical Support visit: http://cellphonesignalbooster.us or email at: [email protected]

Phone: 800-501-3153

111474_Rev0P_08..28..14

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
