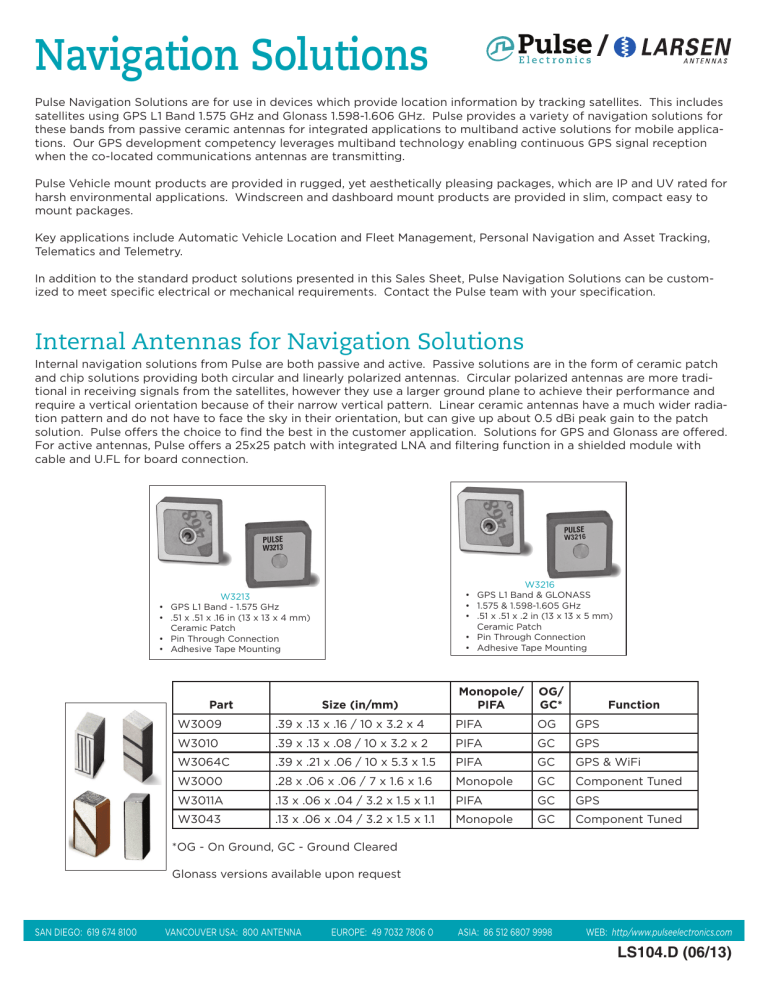

Navigation Solutions

Navigation Solutions
/
Navigation Solutions
Pulse Navigation Solutions are for use in devices which provide location information by tracking satellites. This includes
satellites using GPS L1 Band 1.575 GHz and Glonass 1.598-1.606 GHz. Pulse provides a variety of navigation solutions for
these bands from passive ceramic antennas for integrated applications to multiband active solutions for mobile applications. Our GPS development competency leverages multiband technology enabling continuous GPS signal reception
when the co-located communications antennas are transmitting.
Pulse Vehicle mount products are provided in rugged, yet aesthetically pleasing packages, which are IP and UV rated for
harsh environmental applications. Windscreen and dashboard mount products are provided in slim, compact easy to
mount packages.
Key applications include Automatic Vehicle Location and Fleet Management, Personal Navigation and Asset Tracking,
Telematics and Telemetry.
In addition to the standard product solutions presented in this Sales Sheet, Pulse Navigation Solutions can be customized to meet specific electrical or mechanical requirements. Contact the Pulse team with your specification.
Internal Antennas for Navigation Solutions
Internal navigation solutions from Pulse are both passive and active. Passive solutions are in the form of ceramic patch
and chip solutions providing both circular and linearly polarized antennas. Circular polarized antennas are more traditional in receiving signals from the satellites, however they use a larger ground plane to achieve their performance and
require a vertical orientation because of their narrow vertical pattern. Linear ceramic antennas have a much wider radiation pattern and do not have to face the sky in their orientation, but can give up about 0.5 dBi peak gain to the patch
solution. Pulse offers the choice to find the best in the customer application. Solutions for GPS and Glonass are offered.
For active antennas, Pulse offers a 25x25 patch with integrated LNA and filtering function in a shielded module with
cable and U.FL for board connection.
•
•
•
•
W3216
• GPS L1 Band & GLONASS
• 1.575 & 1.598-1.605 GHz
• .51 x .51 x .2 in (13 x 13 x 5 mm)
Ceramic Patch
• Pin Through Connection
• Adhesive Tape Mounting
W3213
GPS L1 Band - 1.575 GHz
.51 x .51 x .16 in (13 x 13 x 4 mm)
Ceramic Patch
Pin Through Connection
Adhesive Tape Mounting
Part
Size (in/mm)
Monopole/
PIFA
OG/
GC*
Function
W3009
.39 x .13 x .16 / 10 x 3.2 x 4
PIFA
OG
GPS
W3010
.39 x .13 x .08 / 10 x 3.2 x 2
PIFA
GC
GPS
W3064C
.39 x .21 x .06 / 10 x 5.3 x 1.5
PIFA
GC
GPS & WiFi
W3000
.28 x .06 x .06 / 7 x 1.6 x 1.6
Monopole
GC
Component Tuned
W3011A
.13 x .06 x .04 / 3.2 x 1.5 x 1.1
PIFA
GC
GPS
W3043
.13 x .06 x .04 / 3.2 x 1.5 x 1.1
Monopole
GC
Component Tuned
*OG - On Ground, GC - Ground Cleared
Glonass versions available upon request
SAN DIEGO: 619 674 8100
VANCOUVER USA: 800 ANTENNA EUROPE: 49 7032 7806 0
ASIA: 86 512 6807 9998
WEB: http/www.pulseelectronics.com
LS104.D (06/13)
/
Navigation Solutions
External & Outdoor Navigation Solutions
External and outdoor solutions are all active solutions including discrete LNA designs providing between 24 and 28 dB
GPS gain. Solutions are available in GPS only functionality and also including WAN connections to the Cellular network,
e,g, 3G, 4G, GSM etc. Additional connector type and cable length options are available including NMO. Full details are
found in the product search on Pulse WWW or contact your local representative for more details.
Adhesive Mounts
GPSSB800/2170
• Active GPS/Cellular
Blade Antenna
• 806-960/1710-2170/
1575 MHz
• Adhesive Mount
• Indoor or Outdoor
Applications
GPSGM800/2170
• Active GPS Plus 3G& GSM Antenna
• 1575 Plus 824-960/ 1710-2170 MHz
• Dashboard or Glass Adhesive
Mount
• Thin Elliptical Package
GPSGMSMA
• Active GPS Antenna
• 1575 MHz
• Dashboard or Glass Adhesive Mount
• Ultra Thin Elliptical Package
Direct Mounts
NMOHFGPS
• Direct mount with a GPS/LNA
module combined with an NMOHF
mount
• For use with most NMO mount
antennas
• Easily converts from low to high
frequency use
• Large center contact pin for better
VSWR in low frequency applications
• IP-65 rated and UV protected
SLPT NMO mount antenna
on an NMOHFGPS combines
a high performance GPS
antenna with durability of an
SLPTNMO.
GPSDM700/5800
• Roof mounted GPS/LTE/GSM/WIFI Antenna
• Cable 1: 698-960/1710-2170/2300-2700 MHz
Cable 2: 2400-2485/5150-5875 MHz
Cable 3: 1575.42 MHz
• IP-65 rated and UV protected
• Outdoor application
NMO Mounts
Shadow Low Profile Transit Series
• Low profile
• Frequencies from 698 MHz to
5.9 GHz
• Ideal for use on the NMOHFGPS
mount
• Single and dual band models
• Industrial form factor
• NMO mount
GPSNMO
• Active GPS 1575 MHz
Antenna
• NMO mount
• 2.9” Dia x 1.3” (74 mm
Dia x 33 mm)
