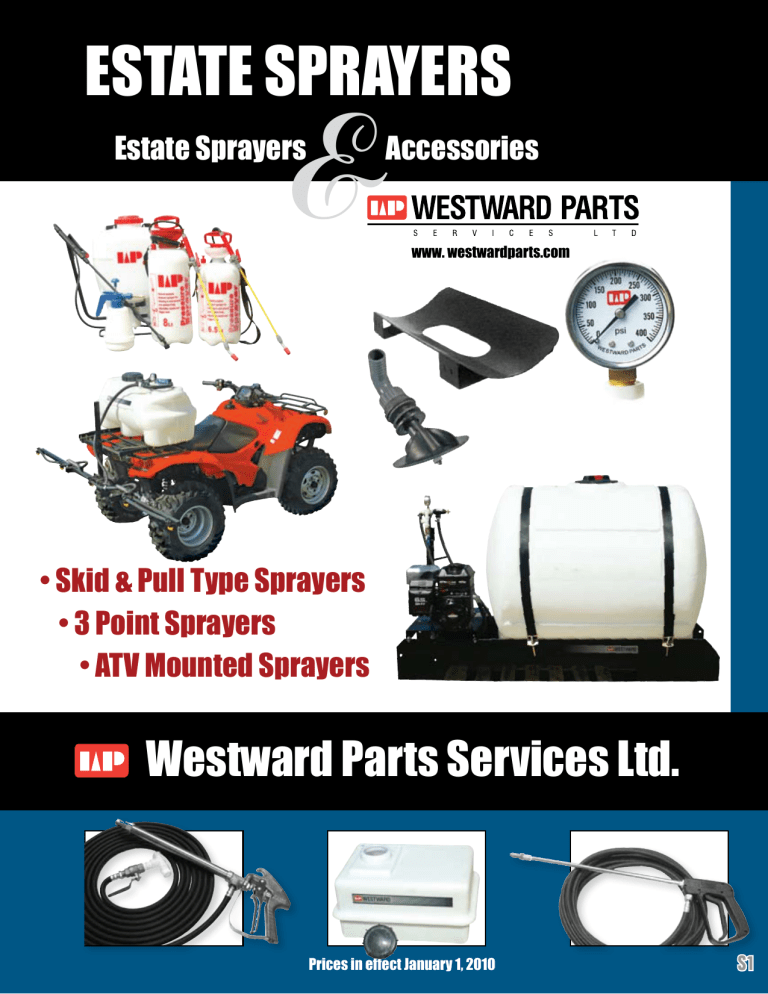

ESTATE SPRAYERS
&
Estate Sprayers
Accessories
www. westwardparts.com
• Skid & Pull Type Sprayers
• 3 Point Sprayers
• ATV Mounted Sprayers
Westward Parts Services Ltd.
Prices in effect January 1, 2010
Prices in effect January 1, 2010
S1
CHEMICAL APPLICATOR
Chemical Applicator
SPW WP47-CHEMROLL For a weed free lawn!
SPECIFICATIONS
•100% no drift!
•46" coverage.
•Adjustable roller for gauging distance above ground.
•20 gallon capacity.
•5 acres coverage with just one fill!
•4–5 mph for proper coverage.
Part No.
Description
List Price
SPW WP47-CHEMROLL
Chemical Applicator
549.99
SKID TYPE SPRAYERS
SPW WP15
15 US Gallon
SPW WP15 15 US gallon (56.8 litre)
W Products Made In Canada!
Standard Features
•12 Volt automatic demand pump diaphragm.
•1 gpm.
•40 psi.
•15 ft. handgun hose.
•18" Lever handgun with adjustable tip.
•Bottom drain.
•Full length drain sump.
•5" vented fill lid.
•Both gallon and litre fluid volume indicator on tank.
•15 ft. handgun hose.
15 Gallon Tank
Part No.
Description
SPW WP15
15 US Gallon Sprayer
278.13
SPW WP24
25 US Gallon
SPW WP24 25 US gallon (94.6 litre)
W Products Made In Canada!
Standard Features
•12 Volt automatic demand pump diaphragm.
•1 gpm.
•40 psi.
•15 ft. handgun hose.
•18" Lever handgun with adjustable tip.
•Bottom drain.
•Full length drain sump.
•5" vented fill lid.
•Both gallon and litre fluid volume indicator on tank.
•15 ft. handgun hose.
S2
List Price
25 Gallon Tank
Part No.
Description
SPW WP24
25 US Gallon Sprayer
Prices in effect January 1, 2010
List Price
317.88
BOOMLESS SPRAYERS
SPW WP23QD
25 US Gallon - ATV Mount
W Products Made In Canada!
SPW WP23QD 25 US gallon (94.6 litre) tank
Standard Features
•Molded handgun hose holder.
•5" Filler cap to reduce spillage.
•SHURflo 12 Volt 60 psi pump with
internal bypass, on-off switch
& fuse holder.
•7.2 amp draw at 60 psi.
•Front facing controls.
•Nozzle at 32" high, sprays approximately 10 ft @ 30 psi.
•Application rate @ 30 psi, 1 US gallon (every 75 seconds)
@ 5 mph, 9.34 gallons per acre, @ 6 mph, 7.72 gallons per acre.
•Pressure gauge standard.
•Plumbed for optional handguns.
•No special mounting brackets required.
•Return for full agitation.
25 US Gallon - Pull Type
W
Products Made In Canada!
Part No.
SPW WP26TR
Description
25 US Gallon Sprayer
List Price
639.25
Part No.
Description
SPW WP23QD
25 US Gallon Sprayer
List Price
728.07
SPW WP26TR
SPW WP26TR 25 US gallon (94.6 litre) tank
Standard Features
•Molded handgun hose holder.
•13/5.00 x 6 pneumatic tires
for full flotation.
•5" Filler cap to reduce spillage.
•4" x 6" bottom sump for complete
tank drainage and positive delivery of fluid to pump.
•SHURflo 12 volt 60 psi pump with internal bypass,
fuse holder & on–off switch, 7.2 amp draw at 60 psi.
•Pump mounted on hitch member improves suction
and reduces cavitation.
•Tank bottom return line for full agitation.
•Pressure gauge standard.
•Plumbed for optional handguns.
•Nozzle at 32" high sprays approximately 10 ft. @ 30 psi.
•Application rate @ 30 psi 1 US gallon (every 75 seconds)
@ 5 mph 9.34 gallons per acre, @ 6 mph 7.72 gallons per acre.
Prices in effect January 1, 2010
S3
PULL TYPE SPRAYERS
SPW WP1540
80" Coverage Boom
W Products Made In Canada!
SPW WP1540 15 US gallon (56.8 litre) with 40" boom
Standard Features
•Molded handgun hose holder
and heavy duty boom support.
•5" Filler cap to reduce spillage.
•40" x 11⁄4" x 11⁄4" (1,016 x 32 x 32 mm)
Steel boom with 2 flood nozzles
For 80" (2,032 mm) coverage.
•4.10/3.50 x 4 pneumatic tires for full flotation.
•4" x 6" (102 x 152 mm) bottom sump for complete
tank drainage and positive delivery of fluid to pump.
•SHURflo 12 Volt 60 psi pump with internal bypass,
fuse holder and on–off switch, 7.2 amp draw at 60 psi.
•Pump mounted on hitch member improves suction
and reduces cavitation.
• Tank bottom return line for full agitation.
•Pressure gauge standard for accurate application.
•Plumbed for optional handguns.
•Shipping weight 40 lbs. (18.14 kg).
Part No.
Description
SPW WP1540 15 US Gallon Sprayer
2 flood nozzles
for 80" coverage
15 Gallon Tank
List Price
571.47
SPW WP25100
100" Coverage Boom
W Products Made In Canada!
SPW WP25100 25 US gallon (94.6 litre) with 80" boom
Standard Features
•Molded hand gun hose holder
and heavy duty boom support.
•5" Filler cap to reduce spillage.
•80" x 11⁄4" x 11⁄4" (2,032 X 32 x 32 mm)
three section folding boom with
five flat fan nozzles for 100" (25.40 mm) coverage.
•13/5.00 x 6 Pneumatic tires for full flotation.
•4" x 6" (102 x 152 mm) Bottom sump
for complete tank drainage and
positive delivery of fluid to pump.
•SHURflo 12 volt 60 psi pump with internal bypass, fuse holder and on–off switch, 7.2 amp draw at 60 psi.
•Pump mounted on hitch member improves suction
and reduces cavitation.
•Tank bottom return line for full agitation.
•Pressure gauge standard for accurate application.
•Plumbed for optional hand guns.
•Shipping weight 77 lbs. (34.92 kg).
S4
Part No.
Description
SPW WP25100
15 US Gallon Sprayer
5 flat fan nozzles
for 100" coverage
25 Gallon Tank
List Price
723.40
Prices in effect January 1, 2010
PULL TYPE SPRAYERS
SPW WP2540
80" Coverage Boom
SPW WP2540 25 US gallon
W Products Made In Canada!
(94.6 litre) with 40" boom
Standard Features
•Molded hand gun hose holder and heavy duty boom support.
•5" Filler cap to reduce spillage.
•40" x 11⁄4" x 11⁄4" (1,016 x 32 x 32 mm)
steel boom with 2 flood nozzles for 80" (2,032 mm) coverage.
•13/5.00 x 6 pneumatic tires for full flotation.
•4" x 6" (102 x 152 mm) bottom sump for complete
tank drainage and positive delivery of fluid to pump.
•SHURflo 12 volt 60 psi pump with internal bypass, fuse holder
and on–off switch, 7.2 amp draw at 60 psi.
•Pump mounted on hitch member improves suction and
reduces cavitation.
•Tank bottom return line for full agitation.
•Pressure gauge standard for accurate application.
•Plumbed for optional hand guns.
•Shipping weight 49 lbs. (22.2 kg).
Part No.
Description
List Price
SPW WP2540 25 US Gallon Sprayer
2 flood nozzles
for 80" coverage
25 Gallon Tank
639.25
SPW WP20
140" Coverage Boom
SPW WP20 20 US gallon (75.7 litre) • SPW WP140 140" (508 mm) Coverage Boom • SPW WP20T Trailer Kit
W Products Made In Canada!
FEATURES AS SHOWN
•20 US gallon (75.7 litre) tank with wrap around
support saddle.
•5" filler cap to reduce spillage.
•122" x 11⁄4" x 11⁄4" (3,100 x 32 x 32 mm)
3 section folding boom with seven ComboJet
diaphragm nozzles for 140" (508 mm) coverage.
•4.10/3.50 x 6 pneumatic tires.
•4" x 6" (102 x 152 mm) bottom sump for complete
tank drainage and positive delivery of fluid to pump.
•SHURflo 12 volt 60 psi pump with internal bypass,
fuse holder and on–off switch, 7.2 amp draw at 60 psi.
•Pump mounted on tank saddle improves suction
and reduces cavitation.
•Return line for full agitation.
•Pressure gauge standard for accurate application.
•Shipping weight 102 lbs. ( 46.27 kg).
Part No.
Description
SPW WP20
20 US Gallon Sprayer
524.73
SPW WP140
140" Coverage Boom
357.61
SPW WP20T
Trailer Kit
Combined Units List Price
List Price
179.97
1,062.31
*Order all 3 numbers for this sprayer.
3 section folding boom
with 7 Combo-Jet
diaphragm nozzles
20 Gallon Tank
Prices in effect January 1, 2010
S5
SKID OR PULL TYPE SPRAYERS
SPW WP62
62 US Gallon
SPW WP62 62 US gallon (235 litre) Skid Sprayer
W Products Made In Canada!
Part No.
Description
SPW WP62
62 US Gallon Sprayer
List Price
396.18
Standard Features
SPW WP62T
Trailer Kit
•62 US gallon (235 litre) tank.
SPW WP140
Boom Assembly
•5" filler cap to reduce spillage.
SPW WP62-4R
Engine & Pump Kit
•5" x 8" (127 x 203 mm) bottom sump
Combined Units List Price
for complete tank drainage.
•Rigid skid with formed 6" (152 mm) side channels.
OPTIONAL EQUIPMENT
SPW WP62-4R Engine & Pump Kit
SPW WP62T Trailer Kit
•4 H.P. Honda engine.
•15/600 x 6 pneumatic tires.
•4 roller pump.
•Park stand.
•Suction line filter.
SPW WP140 Boom Assembly
•Pressure regulator valve.
•122" x 11⁄4" x 11⁄4"
•Pressure gauge.
(3,200 x 32 x 32 mm)
•Adams pistol grip handgun.
3 section folding boom with
7 Combo–Jet diaphragm nozzles •3⁄8" x 25' (7.62 m)
handgun hose.
for 140" (508 mm) coverage.
•Hose and gun holder.
•Positive shut-off valve.
279.31
357.61
980.50
2,013.60
Shown with optional WP62T, WP140, WP62-4R
SPW WP150-4R
Gas Driven
SPW WP150-4R 150 US gallon (567 litre), Gas Driven Pump
W Products Made In Canada!
Standard Features
•9" filler cap to reduce spillage.
•5" x 8" (127 x 203 mm)
bottom sump for complete
tank drainage.
•Rigid skid with 101⁄2" (268 mm)
formed side channels.
•4 H.P. Honda engine.
•4 roller pump.
•Suction line filter.
•Pressure regulator valve.
•Pressure gauge.
•Adams pistol grip handgun.
• 3⁄8" x 25' (7.62 m) handgun hose.
•Hose and gun holder.
Part No.
Description
SPW WP150-4R
150 US Gallon Sprayer
SPW WP21150FT
21' 3 Section Folding Boom
840.26
SPW WP150T
Trailer Kit
454.61
Combined Units List Price
S6
OPTIONAL EQUIPMENT
SPW WP21150FT Boom Assembly
•21' (6.4 m) 3 section folding boom
w/ 13 Combo–Jet diaphragm nozzles.
•Heavy duty mount with varied
height adjustment.
SPW WP150T Trailer Kit
•14 x 5 four bolt rims
(tires not included).
•Park stand.
List Price
Shown with optional WP150T trailer & WP21150FT boom assy
2,055.66
3,350.53
Prices in effect January 1, 2010
SKID OR PULL TYPE SPRAYERS
SPW WP62-12V Pump Kit
•SHURflo 12 volt 60 psi pump with internal bypass,
fuse holder, on–off switch, 7.2 amp draw at 60 psi
•Suction line filter.
•Pressure regulator valve.
•Pressure gauge.
•Adams pistol grip handgun.
•3⁄8" x 25' handgun hose.
•Hose and gun holder.
Part No.
Description
SPW WP62-12V
Pump Kit
4 H.P. Honda engine
included in optional
WP62-4R pump kit.
List Price
361.12
Adams Pistol Grip Handgun
included in optional
WP62-4R or WP62-12V
pump kit.
3 section folding boom
with 7 Combo–Jet
diaphragm nozzles
in optional WP140
boom assembly.
Pump included
in optional
WP62-4R pump kit.
Shown with optional WP150T trailer & WP21150FT boom assy
Prices in effect January 1, 2010
S7
SKID OR PULL TYPE SPRAYERS
SPW WP200-8R
Gas Driven
W Products Made In Canada!
SPW WP200-8R 200 US gallon (757 litre), Gas Driven Pump
Standard Features
•9" filler cap to reduce spillage.
•5" x 8" (127 x 203 mm)
bottom sump for
complete tank drainage.
• Rigid skid with 101⁄2" (268 mm) formed side channels.
• 61⁄2 H.P. Briggs & Stratton engine.
• 8 roller pump.
• Suction line filter.
• Pressure regulator valve.
• Pressure gauge.
OPTIONAL EQUIPMENT
SPW WP150T Trailer Kit
•14 x 5 four bolt rims
(tires not included).
•Park stand.
SPW WP200-HRK Hose Reel
•Hose reel kit w/300' (91.44 m)
of 1⁄2" hose,
WP handgun, handgun holder.
SPW WP21150FT Boom Assembly
•21' (6.4 m) three section folding boom with 13 Combo–Jet diaphragm nozzles.
SPW WP200-FE Frame Extensions
•Required to fit a boom.
Shown with optional WP200-HRK hose reel kit
61⁄2 H.P. Briggs & Stratton engine.
Part No.
Description
SPW WP200-8R
200 US Gallon Sprayer
SPW WP150T
Trailer Kit
454.61
SPW WP200-HRK Hose Reel
740.99
SPW WP21150FT
Boom Assembly
840.26
SPW WP200-FE
Frame Extensions
220.88
Combined Units List Price
S8
List Price
2,801.25
5,057.99
Prices in effect January 1, 2010
SKID OR PULL TYPE SPRAYERS
SPW WP200-9202CE
Gas Driven
SPW WP200-9202CE
200 US Gallon (757 litre) Skid c/w Boomless Nozzles
6 HP Honda Engine
Standard Features
•6 HP Honda engine.
•9203 Hypro centrifugal pump.
•Texas Industrial Remcor electric controls.
•Pressure regulator valve.
•Pressure gauge.
•Suction line filter.
•Boominator RH & LH nozzles.
•WP pistol grip handgun w/50' (15.24 m) hose.
Part No.
Description
List Price
SPW WP200-9202CE 200 US Gallon Sprayer
4,571.76
4
6
Manual Boomless
3
5
SPW WP2 Manual Boomless Nozzle Kit
Manual Boomless Nozzle Kit
Ref. Number
Part Number
Description
1
78365
Receiver Insert
2
78366
Adjustable Bracket
3
72510
Boomless Nozzle
4
73459
3
5
73497
3
6
75273
Clamp
7
73018
3
n/s
73515
Swivel Nut
n/s
73521
3
n/s
73644
Washer
Part No.
Description
SPW WP2
Manual Boomless Nozzle Kit
7
2
⁄4" Coupling
⁄4" Hose Barb
⁄4" Hose Per Ft.
1
⁄4" Swivel
List Price
349.43
Prices in effect January 1, 2010
Shown mounted with WP150-4R
S9
3 POINT FIELD SPRAYERS
Variety of Sizes
W Products Made In Canada!
Standard Features
•9" filler cap to reduce spillage.
•5" x 8" bottom sump for complete
tank drainage.
•Suction line filet.
•Pressure regulator valve.
•Booms have dripless diaphragm
Combo–Jet nozzles.
Dripless Nozzles
AGITATOR KITS
SPW WP814H
List Price 49.09
Single agitator kit (bottom tank mounting).
SPW WP812H
List Price 64.28
Dual agitator kit (bottom tank mounting).
110
Gallon Unit
SPW WP110150C
SPW WP110S
SPW 78980
150
Gallon Unit
Carrier
Saddle
Tank
SPW WP110150C
SPW WP150S
SPW 78981
Shown with optional 21' boom
Order: (WP110150C, WP110S, 78980, WP21FT)
S10
Part No.
Description
WP110150C
Carrier
WP110S
CARRIER
SADDLE
TANK Shown with optional 28' boom
Order: (WP110150C, WP150S, 78981, WP28FT)
Part No.
Description
557.45
SPW WP110150C
Carrier
557.45
Saddle
284.49
SPW WP150S
Saddle
273.46
SPW 78980
Tank
337.91
SPW 78981
Tank
SPW WP21FT
21' Boom
880.28
SPW WP28FT
28' Boom
Combined Units List Price
List Price
2,060.13
Combined Units List Price
Prices in effect January 1, 2010
List Price
362.84
1,044.33
2,238.08
3 POINT FIELD SPRAYERS
SPW WP21Ft 21 feet wide SPW WP28ft 28 feet wide SPW WP35FT 35 feet wide BOOMS
Booms
fit all units.
PUMP KITS
SPW Wp715-A-LP
SPW WP715-A-WP
SPW WP118WP
SPW WP119
SPW WP716-LP
SPW WP716-WP
List Price 880.28 TRAILER KITS
List Price 1,044.33 These do not require a carrier.
List Price 1,259.81 SPW WP12T List Price 1,249.29
Fits 110, 150, 200 Gallon
SPW WP3T
List Price 1,459.65
Fits 300 Gallon
List Price 392.67
List Price 723.40
PTO pump kit
without pump
PTO kit with roller pump
6 roller pump & coupler
with handgun kit.
Kit to convert 118-WP to
boom operation.
Hardware & hoses
for centrifugal
pump less pump.
Centrifugal pump
(Ace PTOC600-10-6SP) with hardware & hoses.
List Price 438.25
List Price 184.64
List Price 412.53
See Page 'S32' for Handgun Kits.
List Price 1,354.47
200
Gallon Unit
300
Gallon Unit
SPW WP200300C
Carrier
SPW WP200S or SPW WP200SHD Saddle
SPW 78982
TANK
Shown with optional 28' boom
Order: (WP200300C, WP200S, 78982, WP28FT)
Part No.
Description
SPW WP200300C
Carrier
SPW WP200S
Saddle
SPW 78982
Tank
SPW WP28FT
28' Boom
Combined Units List Price
List Price
SPW WP200300C
SPW WP300SHD
SPW 78983
Carrier
Saddle
Tank
Shown with optional 35' boom
Order: (WP200300C, WP300SHD, 78983, WP35FT)
Part No.
Description
851.95
SPW WP200300C
Carrier
851.95
295.67
SPW WP300SHD
Saddle
695.25
450.54
SPW 78983
Tank
1,044.33
SPW WP35FT
28' Boom
2,642.49
Combined Units List Price
Prices in effect January 1, 2010
List Price
614.60
1,259.81
3,421.61
S11
3 POINT FIELD SPRAYERS
SPW WP62140
SPW WP6RC For WP31140 & WP62140 PTO 6 Roller Pump Kit
Part No.
Description
SPW WP6RC
Roller Pump Kit
31 US Gallon
W Products Made In Canada!
SPW WP31140 31 US gallon tank, (25 Imperial gallons)
Standard Features
•5" filler cap to reduce spillage.
•5" x 8" bottom sump for complete tank drainage.
•Hose & fittings to fit most roller pumps (pump not included).
•Tank bottom return line for full agitation.
•Relief valve & pressure gauge included.
•Category I – 3 point carrier.
•Lever valve boom control.
•Seven nozzle 3 section boom — 140" coverage.
•Plumbed for optional handguns.
•Shipping weight 100 lbs.
S12
Part No.
Description
SPW WP31140
31 US Gallon Sprayer
List Price
863.64
31
Gallon Unit
Prices in effect January 1, 2010
List Price
200.53
3 POINT FIELD SPRAYERS
SPW WP31140
Pressure Gauge
7 Nozzle 3 section boom
Pressure Relief Valve
62 US Gallon
W Products Made In Canada!
SPW WP62140 62 US gallon tank, (50 Imperial gallons)
Standard Features
•5" filler cap to reduce spillage.
•5" x 8" bottom sump for complete tank drainage.
•Hose & fittings to fit most roller pumps (pump not included).
•Tank bottom return line for full agitation.
•Relief valve & pressure gauge included.
•Category I – 3 point carrier.
•Lever valve boom control.
•Seven nozzle 3 section boom – 140" coverage.
•Plumbed for optional handguns.
•Shipping weight 111 lbs.
Part No.
Description
SPW WP62140
62 US Gallon Sprayer
List Price
922.07
SPW WP623PT Same sprayer as above, less boom.
Part No.
Description
SPW WP623PT
62 US Gallon Sprayer
62
Gallon Unit
List Price
781.83
Prices in effect January 1, 2010
S13
PORTABLE BACKPACK, HANDHELD & KNAPSACK SPRAYERS
SPW AP-20 Knapsack Garden Sprayer
SPW AP-2 Handheld Garden Sprayer
•Lever action piston pump.
•15 to 90 psi.
•Quick fitting harness.
•20 litre capacity.
•2 litre automatic compression sprayer.
Part No.
Description
SPW AP-20 Knapsack Garden Sprayer
List Price
Part No.
Description
SPW AP-2
Handheld Garden Sprayer
List Price
25.66
171.41
SPW SRS-540 Propack Model
RECHARGEABLE ELECTRIC BACKPACK SPRAYER
Propack™ eliminates the need for the operator to continually “pump
up” the sprayer to maintain a constant and steady spray pattern as
with manually powered sprayers, making spraying faster and
easier than ever. The ProPack's micro–processor control
allows the operator to select one of four pump speeds.
The unique battery pack can be charged in place, or easily removed
without the use of tools for remote charging. The lightweight
ergonomically designed tank, fully breathable pack pad, thick
resilient shoulder pads, and waist belt make the ProPack™
comfortable even with a full load.
S14
Part No.
Description
SPW SRS-540
Rechargeable Electric Backpack Sprayer
Convenient battery pack
charges in place
or removes in seconds
for remote charging.
List Price
342.30
FEATURES
• Sprays up to 120 gallons (454 Liters) on a single charge.
• High performance chemical resistant SHURflo pump.
• Advanced microprocessor pump control.
• Variable speed and adjustable nozzle for light or heavy duty spraying.
• Ultra comfortable ergonomic design, full back pad, and thickly
padded shoulder harness.
• 24" (61 cm) spray lance provides easy reach for accurate spraying.
• Adjustable spray tip provides a uniform cone pattern.
• When in the maximum open position the tip delivers a long range stream for easy spraying of hard to reach areas.
• Heavy duty hand lever can be locked in the open position
reducing operator fatigue on big jobs.
TECHNICAL SPECIFICATIONS
• Tank Material
Polyethylene
• Tank Capacity
4 US gallons
• Battery
12 Volt, 7.0 amp/hour sealed lead/acid
• Charger
Automatic sealed lead acid 120 volt
• Pump
12 VDC, 1.0 GPM max 40 psi demand switch
• Pump Material
Of Construction
Polypropylene pump body, Viton valves,
Santoprene Diaphragm
• Duty Cycle
Intermittent
• Spray Hose
Reinforced/Braided PVC
• Spray Wand
Brass Tip, Adjustable cone/stream pattern
Prices in effect January 1, 2010
PORTABLE BACKPACK, HANDHELD & KNAPSACK SPRAYERS
Westward
Handheld &
Knapsack
Sprayers
SPW HH12 1.2 litre Handheld Sprayer List Price 5.29
The easy to use handheld sprayer ensures precise application.
SPW HH65 6.5 litre Handheld Sprayer List Price 16.73
Our lightweight handheld sprayers ensure reliable
application of products like liquid fertilizer,
and pest control.
SPW HH8 8.0 litre Handheld Sprayer List Price 19.50
Our lightweight handheld sprayers ensure reliable
application of products like liquid fertilizer,
and pest control.
SPW BP15 15.0 litre Backpack Sprayer List Price 46.20
The Backpack Sprayer is ideal for use as a lawn sprayer,
garden sprayer, weed sprayer, chemical sprayer, spot sprayer,
and fertilizer sprayer. Prices in effect January 1, 2010
S15
ATV MOUNTED SPRAYERS
15 US Gallon 100" Coverage Boom
W Products Made In Canada!
SPW WP14
SPW WP14 15 US gallon (56.8 litre) • SPW WP100 100" (2,540 mm) Coverage Boom • SPW WP1 Mount
*Order all 3 numbers for this sprayer.
Standard Features
•15 US gallon (56.8 litre) tank with molded handgun hose holder.
•5" filler cap to reduce spillage.
•SHURflo 12 volt 60 psi pump with internal bypass,
on–off switch & fuse holder, 7.2 amp draw at 60 psi.
•Front facing controls.
•80" x 11⁄4" x 11⁄4" (2,032 x 32 x 32 mm)
3 section folding boom
with 5 flat fan nozzles for 100" (2,540 mm) coverage.
•Pressure gauge standard for accurate application.
•Plumbed for optional handguns.
•Universal ATV mount kit.
•Return line for full agitation.
Part No.
Description
List Price
SPW WP14
15 US Gallon Sprayer
372.80
SPW WP100
100" Coverage Boom
230.22
SPW WP1
Mount
40.91
Combined Units List Price
643.93
25 US Gallon 100" Coverage Boom
W Products Made In Canada!
SPW WP25 25 US gallon
(94.6 litre) SPW
WP100 100"
Standard Features
•25 US gallon (94.6 litres) tank with molded
handgun hose holder.
•5" filler cap to reduce spillage.
•Shurflo 12 volt 60 psi pump with internal bypass, on–off switch & fuse holder, 7.2 amp draw at 60 psi.
•Front facing controls.
•80" x 11⁄4" x 11⁄4" (2,032 x 32 x 32mm)
3 section folding boom
with 5 flat fan nozzles for 100" (2,540 mm) coverage.
•Pressure gauge standard for accurate application.
•Plumbed for optional handguns.
•No special mounting brackets required.
•Return line for full agitation.
Part No.
Description
SPW WP25
25 US Gallon Sprayer
495.51
SPW WP100
100" Coverage Boom
230.22
Combined Units List Price
S16
Order: WP14, WP100, WP1
SPW WP25
(2,540 mm) Coverage Boom
*Order both numbers for this sprayer.
List Price
725.73
Prices in effect January 1, 2010
Order: WP25, WP100
ATV MOUNTED SPRAYERS
20 US Gallon 140" Coverage Boom
W Products Made In Canada!
SPW WP20
SPW WP20 20 US gallon (75.7 litre) • SPW WP140 140" (3,556 mm) Coverage Boom
Standard Features
•20 US gallon (75.7 litre) tank with wrap around saddle.
•122" x 11⁄4" x 11⁄4" (3,100 x 32 x 32 mm)
3 section folding boom with
7 Combo–Jet diaphragm nozzles for 140" coverage.
•4" x 6" bottom sump for complete tank drainage
and positive delivery of fluid to pump.
•SHURflo 12 volt 60 psi pump with internal bypass,
fuse holder and on–off switch, 7.2 amp draw at 60 psi.
•Pump mounted on tank saddle improves suction
and reduces cavitation.
•Return line for full agitation.
•Pressure gauge standard for accurate application.
•Plumbed for optional handguns.
•No special mounting brackets required.
*Order both numbers for this sprayer.
Part No.
Description
SPW WP20
20 US Gallon sprayer
524.73
SPW WP140
140" Coverage Boom
357.61
Combined Units List Price
Order: WP20, WP140
List Price
Featuring
Wilgers'
Spray Nozzles
882.34
Ranging from 15 to 25 US gallons, these ATV mounted
sprayers offer ease of application and a range of coverage.
The sprayer booms are ideal for getting into areas of weed
spraying where field access is a concern. The durable
high quality ATV sprayer mounts easily on most all terrain
vehicles. The sprayer boom folds to the rear for transport
or storage. Pressure gauges are standard equipment to
ensure accurate application.
Our ATV mounted sprayers come equipped with
Wilger's patented all–in–one Tip–Cap & snap–in strainer!
To get the most effective application you need to ensure you
have the right spray nozzles working at their optimum.
Spray pattern distortion, drift or improper droplet size
means wasted chemical dollars.
Prices in effect January 1, 2010
S17
E-Z ATV SPRAYERS
Sprayer with Boomless Nozzles
SPW 75132 Includes 4.0 gpm 12 volt pump
Standard Features
•24 US gallon (90.85 litre) low profile tank.
•4.0 gpm 12 volt pump
•Trigger style handgun with adjustable brass nozzle,
pressure control.
•Conveniently located left and right control valves
for a pair of mounted boomless stainless nozzles.
•Total spray width with both nozzles is 25 feet (7.62 m).
•GPA ranges from 20 GPA at 3 mph
to 6.6 GPA at 9 mph.
SPW 75132
The EZ ATV Sprayer was designed with the operator in mind for
ease of operation and functional ability and safety.
The unique wrap around design allows for a low center of gravity
for better machine balance, complete drainage from twin sumps,
and easy mounting and dismounting of sprayer as controls and
booms are mounted to the tank and not the ATV rack.
Allowing the legs of the tank to wrap around the fenders of the
ATV gives the sprayer dual sumps to give maximum drainage
and the ability to run on side hills without losing its prime.
The pump, strainer, and main shut-off are mounted underneath
the tank in a protected cavity, which also serves as a dual slosh
baffle. The top of the tank is designed with a fill catch area to
prevent chemical from getting on the operator.
All models are standard with a 12 volt pump, no drip hand gun
with 12 ft (3.66 m) hose, in–line strainer, and main line valve.
Part No.
Description
List Price
SPW 75132 Sprayer with Boomless Nozzles
Sprayer w/12 ft. Boom & Handgun
SPW 75133 Includes 12 foot boom and handgun
Standard Features
•24 US gallon (90.85 litre) low profile tank.
•4.0 gpm 12 volt pump.
•Trigger style handgun with adjustable brass nozzle,
pressure control.
•Conveniently located on–off control valve for boom.
•12' (3.66 m) boom features spring loaded hinges to protect
it from collisions .
•Boom folds for transport.
•Boom is plumbed for flood nozzles on 40" spacing and
is shipped with one set of #2 floods.
•Boom is easily removed by removing 2 lock pins.
S18
1,784.76
SPW 75133
Part No.
Description
List Price
SPW 75133 Sprayer w/12 ft. Boom & Handgun
Prices in effect January 1, 2010
12 foot boom
1,731.01
E-Z ATV SPRAYERS
Sprayer w/18 ft. Boom & Handgun
SPW 75134 Includes 18 foot boom and handgun
SPW 75134
Standard Features
•24 US gallon (90.85 litre) low profile tank.
•4.0 gpm 12 volt pump.
•Trigger style handgun with adjustable brass
nozzle, pressure control.
•Conveniently located on–off control valve for 18' boom.
•Boom features spring loaded hinges to protect it from collisions .
•Boom folds for transport.
•Boom is plumbed for flood nozzles on 40" spacing and
is shipped with one set of #2 floods.
•Boom is easily removed by removing 2 lock pins.
Part No.
Description
18 foot boom
List Price
SPW 75134 Sprayer with 18 ft. Boom & Handgun
1,842.83
Specifically designed for ATV's
SPW 75137
Sprayer with Handgun
SPW 75137 Spot sprayer unit
SPW 75136 OPTIONAL FOR ALL E-Z SPRAYERS
16 gallon add-on
Standard Features
•1.4 gpm 12 volt demand pump.
• Trigger style handgun with adjustable brass nozzle,
pressure control and gauge.
•24 US gallon (90.85 litre) low profile tank.
The E–Z is fitted with a 4 gpm SHURflo pump and a quality Tee–Jet
trigger style handgun in the convenient control panel at your side.
Part No.
Description
SPW 75137 Spot Sprayer Unit
List Price
1,030.00
Standard Features
•Works with all E–Z sprayers.
•Front mount
•16 gallon add–on tank for extra capacity.
•Weight balance.
•Longer spraying time.
•Plumbing included.
Part No.
Description
SPW 75136 16 gallon add–on
Prices in effect January 1, 2010
List Price
430.06
S19
SPW 78969 12 gallon (45.2 litre) rectangular tank
List Price 106.58
Standard Features
•12 gallon (45.2 litre) rectangular tank
18" (457 mm) long, 14" (356 mm) wide,
12" (305 mm) high, 3⁄4" fitting.
•Lid size 5" (Part # SPP 75690).
•Weight approximately 6 lbs.
SPW 78970 14 gallon (53 litre) oval tank List Price 94.99
12 gallon rectangular tank
Standard Features
•14 gallon (53 litre) oval w/flat bottom
31" (787 mm) long, 14" (356 mm) wide,
14" (356 mm) high.
•Lid size 5" (Part # SPP 79107).
•Weight approximately 8 lbs. (3.6 kg).
SPW 78971 25 gallon (94.64 litre) oval tank List Price 120.89
Tank equipped with pump mount inserts.
Standard Features
SPW 78970 fits WP14 Westward Sprayer
•25 gallon (94.64 litre) oval
SPW 78971 fits WP25 Westward Sprayer
w/flat bottom
34" (864 mm) long, 18" (457 mm) wide,
17" (864 mm) high.
•Lid size 5" (Part # SPP 79107).
•Weight approximately 12 lbs. (5.44 kg)
SPW 79001 15 gallon (56.78 litre) oval tank 14 or 25 gallon flat bottom tank
comes with pump mount
List Price 107.13
Standard Features
•15 gallon (56.78 litre) oval w/flat bottom
31" (787 mm) long, 14" (356 mm) wide,
14" (356 mm) high, 1⁄2" fitting.
•Lid size 5" (Part # SPP 79118).
•Weight approximately 11 lbs. (5.0 kg)
SPW 79000 25 gallon (94.64 litre) oval tank List Price 133.69
15 or 25 gallon oval flat bottom tank
comes with sump, no pump mount
Standard Features
•25 gallon (94.64 litre) oval w/flat bottom
36" (457 mm) long, 18" (457 mm) wide,
17" high, ½" fitting.
•Lid size 5" (Part # SPP 79118).
•Weight approximately 18 lbs. ( 8.2 kg)
SPW 79001 fits WP1540 Westward Sprayer
SPW 79000 fits WP2540 Westward Sprayer
and WP25100 Westward Sprayer
Polyethylene Tanks
SPW 75130 16 gallon (15.14 litre) Polyethylene Sprayer Tank List Price 301.59
• Designed for ATV's.
• Front mount.
S20
Prices in effect January 1, 2010
SPW 74860 15 gallon (56.78 litre) oval tank List Price 64.54
Standard Features
•15 gallon (56.78 litre) oval w/flat bottom
34" (864 mm) long, 16" (406 mm) wide,
13" (330 mm) high.
•Lid size 5" (Part # SPP 79107)
•Weight approximately 8 lbs. (3.6 kg)
SPW 74861 25 gallon (94.64 litre) oval tank List Price 114.88
Standard Features
•25 gallon (94.64 litre) oval w/flat bottom
351⁄2" (902 mm) long, 18" (457 mm) wide,
17" (432 mm) high.
•Lid size 5" (Part # SPP 79107)
•Weight approximately 12 lbs. (5.4 kg)
SPW 79042 20 gallon (75.7 litre) tank Oval Sprayer Tank with flat bottom
Comes with pump mount. 5" fill opening
Drain outlet with cap and tether
List Pricr 99.62
SPW 79042 fits WP20 Westward Sprayer
Standard Features
•20 gallon (75.7 litre) tank
261⁄2" (673 mm) long, 19" (483 mm) wide,
123⁄4" (324 mm) high.
•Lid size 5" (Part # SPP 79118)
•Weight approximately 15 lbs. (6.8 kg).
• 1⁄2" fitting.
SPW 79011 31 gallon (117.35 litre) tank List Price 132.22
Standard Features
•31 gallon (117.35 litre) round tank 18" (457 mm) long, 23" (584 mm) diameter.
•Lid size 5" (Part # SPP 79118)
•Weight approximately 17 lbs. (7.7 kg)
• 3⁄4" x 11⁄4" fitting.
SPW 79008 62 gallon (234.7 litre) tank List Price 177.41
Standard Features
•62 gallon (234.7 litre) round tank
37" (940 mm) long, 23" (584 mm) diameter.
•Lid size 5" (Part # SPP 79118)
•Weight approximately 27 lbs. (12.3 kg).
• 3⁄4" x 11⁄4" fitting.
31 or 62 gallon round tank
comes with sump
Polyethylene Tanks
SPW 75131 24 gallon (22.71 litre) Polyethylene Sprayer Tank List Price 331.28
• Designed for ATV's.
• Rear mount.
Prices in effect January 1, 2010
S21
SADDLES & STRAPS FOR TANKS
Saddles & Straps for Round Horizontal Sprayer Tanks
SPW WP110S Saddle for 65 & 110 gallon tank (30" diameter)
SPW WP200SHD HD saddle for 200 gallon tank (38" diameter)
• Hardware bags for saddles - SPP 78269
• Hardware bags for saddles - SPP 78326
SPW WP150S Saddle for 150 gallon tank (32" diameter)
SPW WP300SHD HD saddle for 300 gallon tank (38" diameter)
• Hardware bags for saddles - SPP 78270
• Hardware bags for saddles - SPP 78326
SPW WP200S Saddle for 200 gallon tank (38" diameter)
SPW 79331 Saddle for 400 gallon tank (42" diameter)
• Hardware bags for saddles - SPP 78326
• Hardware bags for saddles - SPP 78322
SPW 79332 Saddle for 500 gallon tank (48" diameter)
Part No.
Description
SPW WP110S
Saddle for 65 & 110 Gallon Tank
284.49
SPW WP150S
Saddle for 150 Gallon Tank
273.46
SPW WP200S
Saddle for 200 Gallon Tank
295.67
SPW WP200SHD
HD Saddle for 200 Gallon Tank
524.65
SPW WP300SHD
HD Saddle for 300 Gallon Tank
695.25
SPW 79331
Saddle for 400 Gallon Tank
633.63
SPW 79332
Saddle for 500 Gallon Tank
642.76
• Hardware bags for saddles - SPP 78322
List Price
ROUND TANKS WITH SUMP
Part No.
Description
Weight
Size of
Fitting
SPW 78980
110 Gallon (416 litre) Tank 49" x 30" (1,245 x 762 mm) length x dia.
36 lbs. (16.3 kg)
1
⁄4" x 11⁄4"
337.91
8" (SPP 79129)
53.27
SPW 78981
150 Gallon (568 litre) Tank 55" x 32" (1,397 x 813 mm) length x dia.
45 lbs. (20.4 kg)
1
⁄2" x 11⁄4"
362.84
8" (SPP 79129)
53.27
SPW 78982
200 Gallon (757 litre) Tank 51" x 38" (1,295 x 9665 mm) length x dia.
56 lbs. (25.4 kg)
1
⁄4" x 11⁄4"
450.54
8" (SPP 79129)
53.27
SPW 78974
200 Gallon (757 litre) Tank 70" x 32" (1,778 x 813 mm) length x dia.
56 lbs. (25.4 kg)
1
⁄4" x 1 ⁄4"
450.54
8" (SPP 79129)
53.27
SPW 78983
300 Gallon (1,136 litre) Tank 72" x 38" (1,829 x 965 mm) length x dia.
82 lbs. (37.2 kg)
1
⁄4" x 11⁄4"
614.60
8" (SPP 79129)
53.27
1
List
Price
List
Price
for Lid
SPW 78975
400 Gallon (1,514 litre) Tank 80" x 42" (2,032 x 1,067 mm) length x dia.
101 lbs. (45.8 kg)
1
⁄4" x 1 ⁄4"
971.81
10" (SPP 75700)
25.08
SPW 78984
500 Gallon (1,893 litre) Tank 74" x 48" (1,880 x 1,219 mm) length x dia.
110 lbs. (49.9 kg)
1
⁄4" x 11⁄4"
803.14
16" (SPP 78998)
69.79
SPW 78985
750 Gallon (2,839 litre) Tank 82" x 54" (2,083 x 1,312 mm) length x dia.
165 lbs. (74.8 kg)
1
⁄4" x 11⁄4"
1,145.95
16" (SPP 78998)
69.79
SPW 78976
1,000 Gallon (3,785 litre) Tank 87" x 65" (2,210 x 1,651 mm) length x dia.
225 lbs. (102.1 kg)
1
⁄4" x 1 ⁄4"
1,918.35
16" (SPP 78998)
69.79
1
1
Polyethylene Sprayer Tanks [US Gallons]
S22
Lid Size
Part No.
Prices in effect January 1, 2010
SADDLES & STRAPS FOR TANKS
Saddles & Straps for Elliptical Horizontal Sprayer Tanks
SPW 79556 Saddle for 300 gallon elliptical tank
• Hardware bags for saddles - SPP 78325
SPW 79557 Saddle for 500 gallon elliptical tank
• Hardware bags for saddles - SPP 78324
SPW 79559 Saddle for 750 gallon elliptical tank
• Hardware bags for saddles - SPP 78327
Part No.
Description
SPW 79556
Saddle for 300 Gallon Elliptical Tank
List Price
525.89
SPW 79557
Saddle for 500 Gallon Elliptical Tank
1,128.48
SPW 79559
Saddle for 750 Gallon Elliptical Tank
1,852.26
ELLIPTICAL TANKS WITH SUMP
Part No.
Description
Weight
Size of
Fitting
SPW 78977
300 Gallon (1,136 litre) Tank
30" x 48" x 66"
(762 x 1,219 x 1,676 mm) H x W x L
81 lbs. (36.7 kg)
2"
SPW 78978
500 Gallon (1,893 litre) Tank
36" x 57" x 82" (914 x 1,448 x 2,083 mm) H x W x L
126 lbs. (57.2 kg)
SPW 78979
750 Gallon ( 2,839 litre) Tank 42" x 69" x 88"
(1,067 x 1,753 x 2,235 mm) H x W x L
231 lbs. (104.8 kg)
SPW 78986
1,000 Gallon (3,785 litre) Tank
49" x 78" x 90"
(1,245 x 1,981 x 2,286 mm) H x W x L
271 lbs. (122.9 kg)
3
SPW 78987
1,300 Gallon (4,921 litre) Tank
60" x 86" x 90"
(1,524 x 2,184 x 2,286 mm) H x W x L
351 lbs.(113.9 kg)
3
SPW 78988
1,600 Gallon (6,057 litre) Tank
49" x 78" x 138" (1,244 x 1,981 x 3,505 mm) H x W x L & baffle
420 lbs. (190.5 kg)
3
SPW 78989
2,600 Gallon (9,842 litre) Tank
69" x 88" x 142" (1,753 x 2,235 x 3,607 mm) H x W x L
c/w one 3" poly bolt together fitting & 2 baffles
549 lbs. (249 kg)
List
Price
Lid Size
Part No.
List Price
for Lid
826.89
10"
(SPP75693)
25.53
⁄4" x 11⁄4"
1,118.94
10"
(SPP74754)
25.53
2"
1,523.63
16"
(SPP74756)
33.08
⁄4" x 11⁄4"
1,918.35
16"
(SPP74756)
33.08
⁄4" x 11⁄4"
2,553.50
10"
(SPP75693)
25.53
⁄4" x 11⁄4"
4,346.63
16"
(SPP74756)
33.08
3"
5,745.58
16"
(SPP75700)
25.08
3
Polyethylene Sprayer Tanks [US Gallons]
Prices
Prices in
in effect
effect January
January 1,
1, 2010
2010
S23
Polyethylene Storage Tanks (US Gallons)
Part No.
Description
List
Price
Lid
Size
SPW 78992
125 Gallon (473 litre) Mini-Bulk Storage Tank
42" x 28 1⁄2" (1,066 mm x 724 mm) width x height
390.56
5"
SPW 78993
200 Gallon (757 litre) Mini-Bulk Storage Tank
42" x 42 1⁄2" (1,066 x 1,080 mm) width x height
453.55
Approx. Weight
Lid
Part No.
List Price
of Lid
41 lbs. (18.6 kg)
SPP 75691
25.98
5"
55 lbs. (24.9 kg)
SPP 75691
25.98
5" fill opening - One 2" top fitting for pump. Does not include pump.
Part No.
Description
List
Price
Lid
Size
Approx. Weight
Lid
Part No.
List Price
of Lid
SPW 78990
200 Gallon (757 litre) cut-a-way Tank 44" x 24" x 60"
(1,117.6 x 609.6 x 1,524 mm) height x width x length
662.03
10"
66 lbs. ( 29.93 kg)
SPP 75700
25.08
Part No.
Description
List
Price
Lid
Size
Approx. Weight
Lid
Part No.
List Price
of Lid
SPW 78994
550 Gallon Poly Storage Tank
52" x 66" (1,321 x 1,676 mm) diameter x height
859.45
8"
116 lbs. (52.6 kg)
SPP 74758
70.19
SPW 78995
1,050 Gallon Poly Storage Tank
85" x 52" (2,159 x 1,321 mm) diameter x height
1,253.96
16"
190 lbs. (86.2 kg)
SPP 74756
33.08
SPW 78997
1,300 Gallon Poly Storage Tank
84" x 65" (2,134 x 1,651 mm) diameter x height 1,525.08
16"
205 lbs. (93 kg)
SPP 74756
33.08
SPW 78900
1,600 Gallon Poly Storage Tank
84" x 78" (2,134 x 1,981 mm) diameter x height
1,588.61
16"
276 lbs. (125.2 kg)
SPP 74756
33.08
SPW 78996
2,500 Gallon Poly Storage Tank
90" x 100" (2,286 x 2,540 mm) diameter x height
2,726.50
16"
420 lbs. (190.5 kg)
SPP 74756
33.08
Polyethylene Tanks [US Gallons]
Chemical Mix-Fill Kit
15, 30 & 60 GALLON
Tapered funnel design ensures complete drainage. Gallonage indicator marked on side of tank.
Ease in filling sprayer tank. 2" bottom drain fitting. Install in suction line of sprayer.
S24
Part No.
Description
List Price
Lid
Size
Approx. Weight
SPW 78905
15 Gallon (57 litre) Poly Tank (Cone Shaped)
144.88
12"
10 lbs. (4.5 kg) SPP 74760
34.04
SPW 78907
30 gallon ( 114 litre) Poly Tank (Cone Shaped)
182.94
12"
14 lbs. (6.4 kg) SPP 74760
34.04
SPW 78908
60 gallon (227 litre) Poly Tank (Cone Shaped)
244.13
12"
22 lbs. (10 kg)
34.04
SPW 78909
Free Standing Tank Holder for 15 Gallon (57 Litre) Tank
c/w Hardware
146.63
-
12 lbs. (5.4 kg) -
SPW 78910
Free Standing Tank Holder for 30 Gallon (114 Litre)
and 60 Gallon (227 litre) Tank c/w Hardware
145.55
-
15 lbs. (6.8 kg)
Prices in effect January 1, 2010
Lid
Part No.
SPP 74760
List Price
of Lid
Polyethylene Storage Tanks (US Gallons)
Part No.
Description
List
Price
SPW 78906
65 Gallon (246 Litre) Vertical Tank 23" x 42"
(584 x 1,067 mm) High, 1" Fitting
231.40
SPW 79330
65 Gallon (246 Litre) 3 Point Carrier
Includes Strap
377.73
Lid Approx. Weight
Size
5"
Lid
Part No.
List Price
of Lid
25 lbs. (11.3 kg) SPP 79107
12.54
60 lbs. (27.2 kg)
Polyethylene Pick-up Tanks
Part No.
Description
List
Price
Lid
Size
Approx. Weight
Lid
Part No.
List Price
of Lid
SPW 78911
300 Gallon (1,136 Litre) Round Pick–up Tank
30" x 65" (762 x 1,651 mm) height x diameter,
48 1/2" (1,232 mm) Base
497.07
8"
70 lbs. (31.8 kg)
SPP 79129
53.27
SPW 78912
500 Gallon (1,893 Litre) Round Pick–up Tank
45" x 65" (1,143 mm x 1,651 mm) height x diameter,
48 1/2" (1,232 mm) Base
820.28
8"
115 lbs. (52.2 kg) SPP 79129
53.27
Polyethylene Tanks [US Gallons]
Molded-in legs
act as “baffles” to
reduce sloshing.
Polyethylene Leg Tanks (US Gallons)
Part No.
Description
List Price Lid
Size
Approx. Weight
Lid Part No.
List
Price
Of Lid
SPW 78913
125 Gallon (473 Litre) Leg Tank 29" x 45"
(737 mm x 1,143 mm) width x length
374.64
8"
45 lbs. (20.4 kg)
SPP 79129
53.27
SPW 78914
200 Gallon ( 757 Litre) Leg Tank 38" x 51"
(965 mm x 1,295 mm) width x length
482.37
8"
65 lbs. (29.5 kg)
SPP 79129
53.27
SPW 78915
400 Gallon (1,514 Litre) Leg Tank 42" x 78"
(1,067 mm x 1,981 mm) width x length
705.20
16"
110 lbs. (49.9 kg)
SPP 78998
69.79
SPW 78916
625 Gallon (2,366 Litre) Leg Tank 48" x 83"
(1,219 mm x 2,108 mm) width x length
905.98
16"
152 lbs. (68.9 kg)
SPP 78998
69.79
SPW 78917
1,025 Gallon (3,880 Litre) Leg Tank 49" x 139"
(1,245 mm x 3,531 mm ) width x length
2,654.52
16"
302 lbs. (137 kg)
SPP 74761
35.29
582.34
-
-
Note: SPW 78917 leg tank requires support bands and requires full length
support. Four support bands required.
(Part # SPP 74770.) Warranty void if bands not used.
SPW 74770
Steel Band Galvanized (Set of 4)
Prices in effect January 1, 2010
S25
•Made for safe transport — these tanks are the best way
Designed for larger volume applicator needs, the Norwesco
to haul large volumes of fluids.
elliptical tanks feature a low profile design and a low center of
•Provides the greatest capacity with the lowest
gravity for excellent visibility in the field and increased stability
centre–of–gravity for maximum stability.
when towed. A deep sump permits complete drainage and the tanks
•Low profile and molded–in legs for maximum visibility
feature an 16" fill-opening.
and stability during transport.
•Flow–through baffles reduces surging without
“trapping” liquids in the tank.
•Domed ends provide maximum strength and further
reduce effects of surging.
•Interior siphon on bulkhead fittings to maximize drainage.
•All elliptical leg tanks require support bands.
Premium Weight
Part No.
Description
List
Price
Lid
Size
Fitting
Size
No.of
Bands
Lid
Part No.
SPW 78918
1,035 Gallon (3,917 litre) Leg Tank 79" x 89" x 54"
2,314.30
16"
2"
3
SPP 74761
35.29
SPW 78919
1,235 Gallon (4,675 litre) Leg Tank 66" x 128" x 53"
2,907.06
16"
2"
4
SPP 74761
35.29
SPW 79313
1,635 Gallon (6,189 litre) Leg Tank 71" x 142" x 58"
4,300.43
16"
2"
4
SPP 74761
35.29
SPW 79315
2,035 Gallon (7,703 litre) Leg Tank 84" x 142" x 56"
5,197.39
16"
2"
4
SPP 74761
35.29
SPW 79317
2,635 Gallon (9,975 litre) Leg Tank 90" x 140" x 72"
7,467.70
16"
3"
4
SPP 74761
35.29
SPW 79319
3,135 Gallon (11,867 litre) Leg Tank 88" x 150" x 80"
9,080.46
16"
3"
4
SPP 74761
35.29
(2,007 mm x 2,261 mm x 1,372 mm) width x length x height
(1,676 mm x 3,251 mm x 1,346 mm) width x length x height
(1,803 mm x 3,607 mm x 1,473 mm) width x length x height
(2,134 mm x 3,607 mm x 1,422 mm) width x length x height
(2,286 mm x 3,556 mm x 1,829 mm) width x length x height
(2,235 mm x 3,819 mm x 2,032 mm) width x length x height
List Price
of Lid
Norwesco Elliptical Leg Tanks
Heavy Duty
S26
Part No.
Description
List
Price
Lid
Size
Fitting
Size
No. of
Bands
Lid
Part No.
SPW 79314
1,635 Gallon (6,189 litre) Leg Tank 71" x 142" x 57"
(1,803 mm x 3,607 mm x 1,448 mm) width x length x height
4,887.12
16"
2"
4
SPP 74761
35.29
SPW 79316
2,035 Gallon (7,703 litre) Leg Tank 84" x 142" x 57"
(2,134 mm x 3,607 mm x 1,448 mm) width x length x height
5,906.02
16"
2"
4
SPP 74761
35.29
SPW 79318
2,635 Gallon (9,975 litre) Leg Tank 90" x 140" x 71"
(2,286 mm x 3,556 mm x 1,803 mm) width x length x height
9,152.08
16"
3"
4
SPP 74761
35.29
SPW 79320
3,135 Gallon (11,867 litre) Leg Tank 88" x 151" x 76"
(2,235 mm x 3,835 mm x 1,930 mm) width x length x height
10,822.87
16"
3"
4
SPP 74761
35.29
Prices in effect January 1, 2010
List Price
of Lid
• Performs two functions:
• Secures tank to truck or trailer deck.
• Supports tank walls for extra service life.
• Custom–manufactured heavy–duty steel pipe
especially to fit Norwesco tanks.
• Bands are galvanized for extra protection against corrosion.
• Welded–on “feet” to secure to truck or trailer platform.
• Tank warranty may be voided if bands are not used with
elliptical leg tanks.
Secure and support tank
with steel support bands.
Steel Support Bands
Part No.
No. Required
Tank Size (US Gal)
For Elliptical Leg Tanks No.
Description
List Price
SPW 74771
3
1035
SPW 78918
Steel Bands (Galvanized)
641.75
SPW 74772
4
1235
SPW 78919
Steel Bands (Galvanized)
855.27
SPW 74773
4
1635
SPW 78313, SPW 79314
Steel Bands (Galvanized)
864.97
SPW 74774
4
2035
SPW 79315, SPW 79316
Steel Bands (Galvanized)
1,397.50
SPW 74775
4
2635
SPW 79317, SPW 79318
Steel Bands (Galvanized)
1,981.71
Steel Bands (Galvanized)
2,227.15
SPW 74776
4
3135
SPW 79319, SPW 79320
SPW 74777
1 opt.
3135
Fits SPW 79319, SPW 79320 Ladder
448.82
SPW 74778
1 opt.
3135
Fits SPW 79319, SPW 79320 Ladder Adapter*
111.78
Note: We do not recommend the use of winch straps to tie-down elliptical leg tanks
- they will distort them, reducing the useful life of the tank.
*Adapter must be ordered with ladder when ordering ladder for SPW 74776 elliptical leg.
Norwesco Elliptical Leg Tanks
SPW 79315 (Premium Weight)/SPW 79316 (Heavy Duty)
shown with required support bands SPW 74774
Elliptical Style Leg Tanks are used for a wide variety of applications including the storage and/or transport of potable water, most
liquid agricultural chemicals, and a wide range of industrial chemicals. Elliptical leg tanks are designed to provide the largest capacity
available while maintaining the lowest center of gravity and are ideal for transporting larger volumes of liquid. The low profile design is
excellent for driving visibility in the field and increased stability when towed on a trailer.
Elliptical polyethylene (poly) leg tanks are manufactured by means of the rotational molding process, which produces a one–piece,
seamless, watertight tank. Elliptical poly leg tanks are UV stabilized and will not breakdown under harsh outdoor weather conditions.
A pre-installed outlet drain fitting on one end makes plumbing hookup easy. Elliptical leg tanks have molded–in legs to help reduce
sloshing and allow for easy securing of the tank to the truck. All bands are custom fabricated to support the tanks and are galvanized
for added corrosion protection.
Whether using the tank in a stationary position or for transport, these tanks require full–length bottom support and bands to ensure
that the tank retains its shape and integrity.
Prices in effect January 1, 2010
S27
Indoor Drinking Water Storage Tanks
Polyethylene Indoor Water and Storage Tanks
E-15W
E-25W
E-50W
E-75W
E-200W
E-125W
E-250PV
Part No.
Model
Capacity
Diameter Height List Price
SPW 79321
E-15W
15 gal (68 L)
15½" (387mm)
22½" (572 mm)
115.08
SPW 79322
E-25W
25 gal (114 L)
19¼" (489 mm)
19¼" (489 mm)
151.81
SPW 79323
E-50W
50 gal (227 L)
21½" (546 mm)
37¼" (946 mm)
208.13
SPW 79324
E-75W
75 gal (340 L)
28½" (724 mm)
47½" (1,206 mm)
301.18
SPW 79325
E-125W
125 gal (568 L)
29½" (749 mm)
64" (1,625 mm)
372.19
SPW 79326
E-200W
200 gal (910 L)
58" (1,473 mm)
30" (762 mm)
744.37
SPW 79327
E-250PV
250 gal (1,135 L)
36" (915 mm)
84" (2,130 mm)
692.96
SPW 79328
E-250WS
250 gal (1,135 L)
61" (1,549 mm)
48" (1,219 mm)
964.74
SPW 79329
E-325W
325 gal (1,476 L)
61" (1,549 mm)
60" (1,524 mm)
1,197.36
18" lid
Standard Features
•Approved for potable water.
•Designed to fit through most doorways.
•Steel frame for structural support
- powder coated black (some models)
•One–piece molded tank — will not leak.
•Flat mounting areas for fittings of choice
(not included).
•Ideal tank for indoor water storage to feed
pressure systems.
Many other sizes of tanks are
available including septic tanks,
low profile water storage tanks
and two piece bolt together tanks.
E-250WS
E-325W
Sprayer Accessories
For Agricultural and Industrial Applications
Foam Markers
S28
New row markers provide uniform sprayer application
by helping to prevent spray overlapping or skipping in
the field. Westward Foam Markers are fully assembled, ready
to use, compact 12 volt systems designed for dependable, low
cost combines air and foam solution at the end of the boom
and are recommended for booms 60' and longer. This unit
includes a switch box with 10' battery leads and 20' cable to the
foamer module. This foamer features molded mounting lugs in
the bottom end and strapping areas to allow easy
installation on any sprayer. We recommend Westward Foam
Marker Concentrate be used with this marking system.
Where conditions require other than white foam, add
Westward concentrate to produce bright blue or pink foam.
Note: Unit is complete with hosing for 96' booms. For longer
booms, appropriate length of 3⁄4" EVA tubing must be added.
Example: For 110' boom add 7' of tubing to each end of the unit.
SPW FM25 Super Foamer 25 US gallon Prices in effect January 1, 2010
List Price 1,709.50
Foam & Dye For Markers
Hitex Agfoam Concentrate is a biodegradeable, surfactant,
concentrated, liquid manufactured for use with agricultural foam
generating equipment to provide a high yield, dense, stable foam at
high and low temperatures. The foam is used as a Field Row Marker
for fertilizing and spraying applications.
Hitex Agfoam Concentrate generates a dense stable foam that has
excellent non-wetting properties so that the foam dissipates very
slowly, even in extreme hot and cold weather conditions.
Hitex Agfoam Concentrate is safe for use with all types of
agricultural foam generating equipment used for row marking.
It incorporates a sequestering agent for hard water applications.
Hitex Agfoam is easily biodegradeable and quickly becomes a part
of the natural environment after use.
ONE U.S. PINT OF COLOR CONCENTRATE TREATS
50 US GALLONS OF WATER
Foam & Dye for Markers
Part No.
Replaces
Description
List Price
SPP 74800 AGFOAM
Foam Solution for Markers
(4L)
39.36
SPP 74810 5173005
Red Dye for Markers
- to be mixed with water
( 1 pint to 30 gallons)
33.75
Red Dye for Markers
- to be mixed with diesel fuel
(1⁄2 pint to 10 gallons)
73.93
SPP 74812 5173008
SPP 74810
SPP 74800
Foam Mix Ratio - Soft Water
Unit
Agfoam Concentrate
Soft Water
Metric
Add 1.25 Litres - 1.5 Litres
to 50 Litres
U.S.
Measure
Add 32 fluid oz. - 40 fluid oz. to 10 U.S. Gallons
Imperial
Measure
Add 40 fluid oz. - 48 fluid oz. to 10 Imperial Gallons
Unit
Agfoam Concentrate
Hard Water
Metric
Add 1.75 Litres - 2 Litres
to 50 Litres
U.S.
Measure
Add 46 fluid oz. - 52 fluid oz.
to 10 U.S. Gallons
Imperial
Measure
Add 56 fluid oz. - 64 fluid oz.
to 10 Imperial Gallons
Foam Mix Ratio - Hard Water
Sprayer Accessories
For Agricultural and Industrial Applications
Field Sprayer Calibrator
SPP 75050 Spray–Check (Replaces 5167014) List Price 11.25
Direct reading calibration scale tells exactly how many gallons per
acre is being applied. No complex calibration table, charts, etc.
Directions:
• Attach Spray–Check to any nozzle outlet.
• Travel a test run of 150 feet.
• Read actual “spray rate per acre” on scale.
Prices in effect January 1, 2010
S29
USE THESE BOOMS
TO RETROFIT SPRAYERS
IN THE FIELD.
Sprayer Boom Assemblies
Sprayer Boom Assemblies
Part No.
Boom Width
Number
of
Nozzles
SPW WP80
40" (1,016 mm) Boom, 80" (2,032 mm) Coverage
2
SPW WP100
80" (2,032 mm) Boom, 100" (2,540 mm) Coverage
SPW WP140
SPW WP21150FT
Nozzle Type
Number
of Boom
Sections
List
Price
FloodJet
1
92.33
5
Combo–Jet, Flat Fan
3
230.22
120" (3,048 mm) Boom, 140" (3,556 mm) Coverage
7
Combo–Jet Diaphragm, Flat Fan
3
357.61
21' (6,401 mm) Boom, Small Centre
13
Combo–Jet Diaphragm, Flat Fan
3
840.26
SPW WP21FT
21' (6,401 mm) Boom, Large Centre
13
Combo–Jet Diaphragm, Flat Fan
3
880.28
SPW WP28FT
28' (8,534 mm) Boom, Large Centre
17
Combo–Jet Diaphragm, Flat Fan
3
1,044.33
SPW WP35FT
35' (10,668 mm) Boom, Large Centre
21
Combo–Jet Diaphragm, Flat Fan
5
1,259.81
Sprayer Tank Rinse Nozzle
SPP 75618 Sprayer Tank Rinse Nozzle (Replaces PW-R15)
RotaFlush Rinse Nozzles mount to top of tank. Allows fast double or triple
rinse using a fraction of the water used to fill–flush. Used in conjunction
with clean water tank. Minimal installation time. Permits tank spray–out in
the field. Less operator exposure. Less downtime during spraying season.
Less water hauling. Includes nozzle, washers, back nut, elbow for 1" hose.
Part No.
Description
SPP 75618
Sprayer Tank Rinse Nozzle
Most sprayers will require
2 RotaFlush nozzles.
List Price
148.86
Sprayer Accessories
SPP 75619 Chemwash Emergency Wash Kit (Replaces MH-CW/Y)
For Agricultural and Industrial Applications
SPW WPERC 12 Volt Remote Control Kit List Price 71.28
•Allows the operator the convenience of turning the
12 Volt sprayer on or off from the tractor seat.
•Electric remote control switch box with 8 feet wire.
SPW WPGHW Grasshopper Lawn Mower Bracket List Price 88.82
• Accepts WP14, WP15, WP24, WP25 sprayers.
S30
Prices in effect January 1, 2010
W Products Made In Canada!
Chemwash Emergency Wash Kit
SPP 75619 Chemwash Kit
List Price 157.28
Chemwash Emergency Wash Kit - for agricultural or industrial
applications. The Chemwash has a large 20 litre (5.25 US gallon)
reservoir to provide a source of clean water on site at the sources
for potential spills or accidents. Comes complete with a lidded
compartment of gloves/goggles, and a heavy duty universal
C-frame for bolting or welding onto an applicator. Breakaway
hose for rapid gravity–feed. Spigot for controlled flow uses.
20" x 93⁄4" x 131⁄2" (508 mm x 248 mm x 343 mm) length x width x height
Parts for Chemwash Emergency Wash Kit
Part No.
Description
SPP 75615
Screw On Lid
List Price
12.71
SPP 75614
Flip Up Lid
38.19
SPP 75617
Kit c/w Hose, Hose Bard,
Elbow, Clamp and Spigot
36.41
Sprayer Accessories
For Agricultural and Industrial Applications
SPW WP4 Electronic kit c/w in cab control
List Price 513.04
Includes Texas Industrial RC-1B Sprayer Control, 1999A Solenoid
valve, fittings and hose clamps.
Prices in effect January 1, 2010
S31
Optional Handgun Kits
… for precise spraying, Westward offers optional handgun kits.
W Products Made In Canada!
SPW WP304
Part No.
Description
List Price
SPW WP304
Handgun Kit
104.01
SPW WP300
• Handgun kit with J.E. Adams pistol grip handgun,
gun holder, 3⁄8" x 121⁄2' hose assembly.
Description
List Price
SPW WP302
Handgun Kit
150.76
Description
List Price
SPW WP300
Handgun Kit
220.88
• Handgun kit with Spraying Systems pistol grip handgun,
shutoff valve, 3⁄8" x 25' hose assembly.
SPW WP302
Part No.
Part No.
SPW WP303
• Handgun kit with Hamilton twist adjust handgun,
shutoff valve, 3⁄8" x 25' hose assembly.
Part No.
Description
List Price
SPW WP303
Handgun Kit
80.64
• Handgun kit with Spraying Systems
polypropylene lever handgun, 1⁄4" x 121⁄2' hose assembly.
SPW WP308
Part No.
Description
List Price
SPW WP308
Handgun Kit
127.39
• Handgun kit with J.E. Adams pistol grip
handgun, hose & gun holder, 3⁄8" x 25' hose assembly.
6517, 67 St.
Red Deer, AB T4P 1A3
Ph: 403-347-2200
Fx: 1-800-661-4508
S32
201 Henderson Dr.
Regina, SK S4N 7E2
Ph: 306-721-2113
Fx: 1-800-721-2977
1435 St. James St.
Winnipeg, MB R3H 0W9
Ph: 204-697-2444
Fx: 1-800-257-8338
Printed in Canada
Sold by:
Specifications subject to change without notice or obligation.
Prices are subject to change without notice (E. & O.E.). Prices do not include GST or PST.
www. westwardparts.com
Prices in effect January 1, 2010
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
