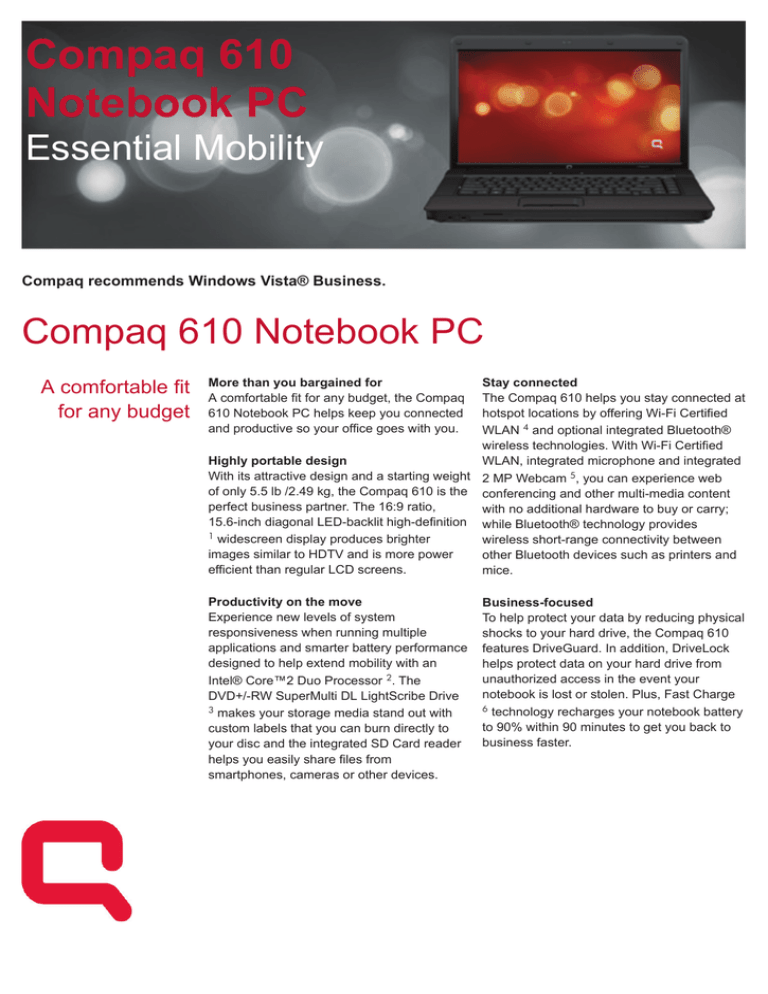

Compaq 610
Notebook PC
Essential Mobility
Compaq recommends Windows Vista® Business.
Compaq 610 Notebook PC
A comfortable fit
for any budget
More than you bargained for
A comfortable fit for any budget, the Compaq
610 Notebook PC helps keep you connected
and productive so your office goes with you.
Stay connected
The Compaq 610 helps you stay connected at
hotspot locations by offering Wi-Fi Certified
WLAN 4 and optional integrated Bluetooth®
wireless technologies. With Wi-Fi Certified
Highly portable design
WLAN, integrated microphone and integrated
With its attractive design and a starting weight 2 MP Webcam 5, you can experience web
of only 5.5 lb /2.49 kg, the Compaq 610 is the conferencing and other multi-media content
perfect business partner. The 16:9 ratio,
with no additional hardware to buy or carry;
15.6-inch diagonal LED-backlit high-definition while Bluetooth® technology provides
1 widescreen display produces brighter
wireless short-range connectivity between
images similar to HDTV and is more power
other Bluetooth devices such as printers and
efficient than regular LCD screens.
mice.
Productivity on the move
Experience new levels of system
responsiveness when running multiple
applications and smarter battery performance
designed to help extend mobility with an
Intel® Core™2 Duo Processor 2. The
DVD+/-RW SuperMulti DL LightScribe Drive
3 makes your storage media stand out with
custom labels that you can burn directly to
your disc and the integrated SD Card reader
helps you easily share files from
smartphones, cameras or other devices.
Business-focused
To help protect your data by reducing physical
shocks to your hard drive, the Compaq 610
features DriveGuard. In addition, DriveLock
helps protect data on your hard drive from
unauthorized access in the event your
notebook is lost or stolen. Plus, Fast Charge
6 technology recharges your notebook battery
to 90% within 90 minutes to get you back to
business faster.
Compaq 610 Notebook PC
Compaq recommends Windows Vista® Business.
Operating system
Genuine Windows Vista® Business 32-bit
Genuine Windows Vista® Home Basic 32-bit
Genuine Windows Vista® Home Premium 32-bit
Genuine Windows Vista® Business with downgrade to Windows XP Professional custom installed
FreeDOS
Processor
Intel® Celeron® Processor 560 (2.13 GHz, 533 MHz FSB, 1 MB L2 cache) or Intel® Core™2 Duo Processor
T5870 (2.00 GHz, 800 MHz FSB, 2 MB L2 cache)
Chipset
Mobile™ Intel® GLE960 Express Chipset or Mobile™ Intel® GME965 Express Chipset
Memory
DDR2 800 MHz, 1024, 2048 or 3072 MB; 2 SODIMM slots supporting dual channel memory; Upgradeable to
4096 MB maximum
Software
HP Recovery Manager, HP SoftPaq Download Manager, HP Webcam Software, Roxio Creator Business
HP Wireless Assistant, Windows Live Messenger, Windows Media Player 11, PDF Complete, HP Help and
Support Center, Microsoft Office Ready with 60-day Office Professional 2007 Trial Edition (select models),
McAfee Total Protection for Small Business software with free 60-day trial period, Intervideo WinDVD-DVD
Player
Hard drive
SATA hard drive 160 or 320 GB (5400 rpm), HP 3D DriveGuard
Optical device
SATA DVD+/-RW SuperMulti DL LightScribe Drive
Display
15.6" LED HD 16:9 widescreen Anti-Glare (1366 x 768 resolution) or 15.6" LED HD 16:9 widescreen
BrightView (1366 x 768 resolution), 2 MP webcam
Graphics
Mobile™ Intel® Graphics Media Accelerator X3100; Up to 384 MB shared system memory
Dimensions (W x D x H) 37.18 x 25.43 x 3.20 (at front) cm
Weight
Starting at 2.49 kg
Power
6-cell (47 WHr) Li-Ion battery; External 65W HP AC Adapter, HP Fast Charge
Battery life
Up to 5h (6-cell battery)
Audio
High Definition Audio, mono speaker, stereo headphone/line out, stereo microphone in, integrated microphone
Wireless support
Intel 802.11a/b/g or Broadcom 802.11b/g, optional Bluetooth® 2.1+EDR (Russia and Ukraine Bluetooth® 2.0),
HP Wireless Assistant
Communications
56K modem; Marvell Ethernet (10/100 NIC)
Expansion slots
Slots available for additional devices: 1 ExpressCard/34 slot, 1 Secure Digital (SD)/MultiMedia Card (MMC) slot
I/O ports and connectors 3 USB 2.0 ports, VGA, stereo microphone in, stereo headphone/line out, power connector, RJ-45, optional
RJ-11
Keyboard
Full-sized keyboard
Pointing device
Touchpad with scroll zone
Security
HP Disk Sanitizer, DriveLockMcAfee Security Solution, Kensington Lock slot
Docking solutions
HP USB 2.0 Docking Station, HP Essential USB Port Replicator, HP Basic Adjustable Stand (all sold
separately)
Warranty
1 year pick-up and return (upgrades available, sold separately), 1 year warranty on primary battery
For more information, please visit www.hp.com/eur/notebooks
Compaq 610 Notebook PC
Compaq recommends Windows Vista® Business.
Recommended accessories and services
HP Mobile Productivity
Bundle
Mobile product essentials like case and optical USB mouse bundled for enhanced
mobile productivity.
Product number: AQ729AA
HP USB 2.0 Docking
Station
Optimizes your workspace by leveraging easy expansion to dual video options and
connect to your external monitor and other peripherals like keyboard, mouse, printer
etc. through one simple USB 2.0 connection to your notebook.
Product number: FQ834AA
HP Basic Adjustable
Notebook Stand
The HP Basic Adjustable Notebook Stand can be used to turn your HP Business
Notebook into a desktop solution.
Product number: AL549AA
HP 8-cell 63Wh Li-Ion
Primary Battery
Looking for more power autonomy? Keep on working, playing, or watching movies for
an extended period of time with this compact, lightweight battery.
Product number: NZ375AA
HP Mobile Audio Speakers
Compact and lightweight, HP Mobile Speakers are designed for easy portability and
optimal stereo enjoyment of DVDs, CDs and digital audio, producing a rich high quality
sound for notebook PC users.
Product number: FS944AA
3 years Next Business Day
Onsite, HW Support
Receive next business day onsite repair from an HP-qualified technician for your
computing device, if the issue cannot be solved remotely. Offers easy-to-purchase,
easy-to-use onsite hardware repair service for your HP product.
Product number: UK704E
For more information, please visit www.hp.com/eur/hpoptions
Compaq 610 Notebook PC
Compaq recommends Windows Vista® Business.
1
HD content required to view HD images
2
Dual Core is a new technology designed to improve performance of certain software products. Not all customers or
software applications will necessarily benefit from use of this technology. 64-bit computing on Intel architecture requires
a computer system with a processor, chipset, BIOS, operating system, device drivers and applications enabled for
Intel® 64 architecture. Processors will not operate (including 32-bit operation) without an Intel 64 architecture-enabled
BIOS. Performance will vary depending on your hardware and software configurations
3
Do not copy copy-right protected materials. Intended for creation and storage of your original material and other
lawful uses. Double Layer discs can store more data than single layer discs. Double-layer discs burned with this drive
may not be compatible with many existing single-layer DVD drives and players. LightScribe creates a monochrome
image. LightScribe media required and sold separately. Note that DVD-RAM cannot read or write to 2.6 GB Single
Sided/5.2 GB Double Sided – Version 1.0 media
4
WiFi access point and Internet service required and not included. Availability of public wireless access points limited.
VoIP requires a separately purchased service contract
5
Sold separately or purchased as an optional feature
6
Fast Charge recharges your primary battery up to 90% within 90 minutes when the system is off.
© 2009 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and
services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional
warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Bluetooth is a trademark of its proprietor and used by Hewlett-Packard
Company under license.
Certain Windows Vista® product features require advanced or additional hardware. See http://www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and
http://www.microsoft.com/windowsvista/getready/capable.mspx for details. Windows Vista® Upgrade Advisor can help you determine which features of Windows Vista®
will run on your computer. To download the tool, visit www.windowsvista.com/upgradeadvisor.
Bluetooth is a trademark of its proprietor and used by Hewlett-Packard Company under license. Microsoft, Windows and Windows Vista are trademarks of the Microsoft
group of companies. Intel and Core are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the U.S. and other countries.
4AA2-6359EEE. July 2009
