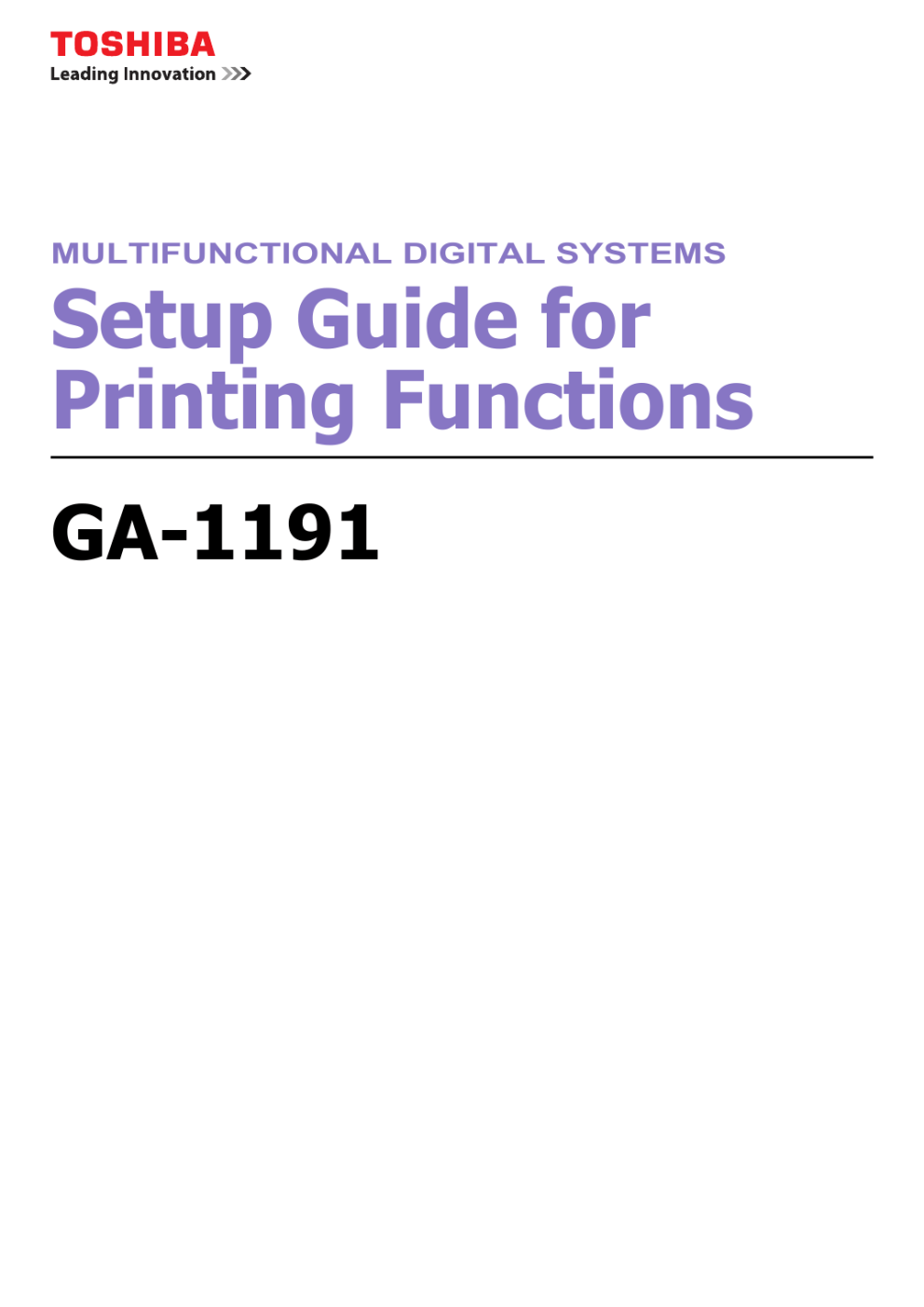

Setup Guide for Printing Functions
MULTIFUNCTIONAL DIGITAL SYSTEMS
Setup Guide for
Printing Functions
GA-1191
Preface
Thank you for purchasing the TOSHIBA multifunctional digital system e-STUDIO165/205, e-STUDIO167/207/237 or e-STUDIO182/212/242.
This Setup Guide for Printing Functions is a manual for the e-STUDIO165/205, e-STUDIO167/207/237 or e-STUDIO182/212/242 when the following option is installed: y Network Printer Kit
This Setup Guide for Printing Functions describes the following: y Printer-related settings using the control panel of this equipment y Settings and management of this equipment from a computer using TopAccess
Be sure to read this manual before using the e-STUDIO165/205, e-STUDIO167/207/237 or e-STUDIO182/212/242 with the options above. Keep this manual handy and retain it for future reference.
Preface 1
Software License Agreement
INSTALLING OR OTHERWISE USING THIS SOFTWARE PRODUCT CONSTITUTES YOUR
ACCEPTANCE OF THE FOLLOWING TERMS AND CONDITIONS (UNLESS A SEPARATE
LICENSE IS PROVIDED BY THE SUPPLIER OF APPLICABLE SOFTWARE IN WHICH CASE
SUCH SEPARATE LICENSE SHALL APPLY). IF YOU DO NOT ACCEPT THESE TERMS, YOU
MAY NOT INSTALL OR USE THIS SOFTWARE, AND YOU MUST PROMPTLY RETURN THE
SOFTWARE TO THE LOCATION WHERE YOU OBTAINED IT.
THE SOFTWARE INSTALLED ON THIS PRODUCT INCLUDES NUMEROUS INDIVIDUAL
SOFTWARE COMPONENTS, EACH HAVING ITS OWN APPLICABLE END USER LICENSE
AGREEMENT (“EULA”). INFORMATION RELATING TO THE EULAS MAY BE FOUND IN AN
ELECTRONIC FILE INCLUDED ON THE USER DOCUMENTATION CD-ROM INCLUDED
HEREWITH; HOWEVER, ALL SOFTWARE AND DOCUMENTATION DEVELOPED OR CRE-
ATED BY OR FOR TOSHIBA TEC CORPORATION (“TTEC”) ARE PROPRIETARY PROD-
UCTS OF TTEC AND ARE PROTECTED BY COPYRIGHT LAWS, INTERNATIONAL TREATY
PROVISIONS, AND OTHER APPLICABLE LAWS.
Grant of License
This is a legal agreement between you, the end-user (“You”), and TTEC and its suppliers. This software, fonts (including their typefaces) and related documentation (“Software”) is licensed for use with the system CPU on which it was installed (“System”) in accordance with the terms contained in this Agreement. This Software is proprietary to TTEC and/or its suppliers.
TTEC and its suppliers disclaim responsibility for the installation and/or use of this Software, and for the results obtained by using this Software. You may use one copy of the Software as installed on a single System, and may not copy the Software for any reason except as necessary to use the Software on a single System. Any copies of the Software shall be subject to the conditions of this Agreement.
You may not, nor cause or permit any third party to, modify, adapt, merge, translate, reverse compile, reverse assemble, or reverse engineer the Software. You may not use the Software, except in accordance with this license. No title to the intellectual property in the Software is transferred to you and full ownership is retained by TTEC or its suppliers. Source code of the
Software is not licensed to you. You will be held legally responsible for any copyright infringement, unauthorized transfer, reproduction or use of the Software or its documentation.
Term
This license is effective until terminated by TTEC or upon your failure to comply with any term of this Agreement. Upon termination, you agree to destroy all copies of the Software and its documentation.
You may terminate this license at any time by destroying the Software and its documentation and all copies.
2 Software License Agreement
Disclaimer of Warranty
THIS SOFTWARE IS PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER
EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND NON-
INFRINGEMENT. TTEC AND ITS SUPPLIERS DISCLAIM ANY WARRANTY RELATING TO
THE QUALITY AND PERFORMANCE OF THE SOFTWARE. IF THE SOFTWARE PROVES
DEFECTIVE, YOU (AND NOT TTEC OR ITS SUPPLIERS) SHALL BE RESPONSIBLE FOR
THE ENTIRE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION. TTEC
AND ITS SUPPLIERS DO NOT WARRANT THAT THE FUNCTIONS CONTAINED IN THE
SOFTWARE WILL MEET YOUR REQUIREMENTS OR THAT THE OPERATION OF THE
SOFTWARE WILL BE UNINTERRUPTED OR ERROR FREE.
ALL INFORMATION CONTAINED HEREIN THAT IS PROVIDED BY TTEC AND ITS AFFILI-
ATES PURSUANT TO A EULA IS PROVIDED “AS IS” WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESS OR IMPLIED.
Limitation of Liability
IN NO EVENT WILL TTEC OR ITS SUPPLIERS BE LIABLE TO YOU FOR ANY DAMAGES,
WHETHER IN CONTRACT, TORT, OR OTHERWISE (EXCEPT PERSONAL INJURY OR
DEATH RESULTING FROM NEGLIGENCE ON THE PART OF TTEC OR ITS SUPPLIERS),
INCLUDING WITHOUT LIMITATION ANY LOST PROFITS, LOST DATA, LOST SAVINGS OR
OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES ARISING OUT OF THE
USE OR INABILITY TO USE THE SOFTWARE, EVEN IF TTEC OR ITS SUPPLIERS HAVE
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, NOR FOR THIRD PARTY
CLAIMS.
U.S. Government Restricted Rights
The Software is provided with RESTRICTED RIGHTS. Use, duplication or disclosure by the
U.S. Government is subject to restrictions set forth in subdivision (b) (3) (ii) or (c) (i) (ii) of the
Rights in Technical Data and Computer Software Clause set forth in 252.227-7013, or 52.227-19
(c) (2) of the DOD FAR, as appropriate. Contractor/Manufacturer is TOSHIBA TEC Corporation,
2-17-2, Higashigotanda, Shinagawa-ku, Tokyo, 141-8664, Japan.
General
You may not sublicense, lease, rent, assign or transfer this license or the Software. Any attempt to sublicense, lease, rent, assign or transfer any of the rights, duties or obligations hereunder is void. You agree that you do not intend to, and will not ship, transmit (directly or indirectly) the
Software, including any copies of the Software, or any technical data contained in the Software or its media, or any direct product thereof, to any country or destination prohibited by the United
States Government. This license shall be governed by the laws of Japan or, at the election of a
Supplier of TTEC concerned with a dispute arising from or relating to this Agreement, the laws of the Country designated from time to time by the relevant Supplier of TTEC. If any provision or portion of this Agreement shall be found to be illegal, invalid or unenforceable, the remaining provisions or portions shall remain in full force and effect.
YOU ACKNOWLEDGE THAT YOU HAVE READ THIS LICENSE AGREEMENT AND THAT
YOU UNDERSTAND ITS PROVISIONS. YOU AGREE TO BE BOUND BY ITS TERMS AND
CONDITIONS. YOU FURTHER AGREE THAT THIS LICENSE AGREEMENT CONTAINS THE
COMPLETE AND EXCLUSIVE AGREEMENT BETWEEN YOU AND TTEC AND ITS SUPPLI-
ERS AND SUPERSEDES ANY PROPOSAL OR PRIOR AGREEMENT, ORAL OR WRITTEN,
OR ANY OTHER COMMUNICATION RELATING TO THE SUBJECT MATTER OF THIS
LICENSE AGREEMENT.
TOSHIBA TEC Corporation, 2-17-2, Higashigotanda, Shinagawa-ku, Tokyo, 141-8664, Japan.
Software License Agreement 3
Before Reading This Manual
Lineup of our manuals
These manuals are provided for the operation of the e-STUDIO165/205, e-STUDIO167/207/237 or e-STUDIO182/212/242. Select and read the manual best suited to your needs. This manual is the Setup Guide for Printing Functions.
Basic functions
Operator’s Manual for Copying Functions (Booklet)
This manual describes the basic operations, mainly copying functions, of this equipment. It also describes safety precautions to ensure correct and safe use of this equipment. Be sure to read this before you use the equipment.
Facsimile functions
The Fax Kit GD-1221 (optional) is necessary for using the Fax functions.
Operator’s Manual for Facsimile Function (Booklet)
This manual describes how to use the Fax functions. Various functions both basic and advanced regarding Fax transmission/reception are available.
Printing functions
The Network Printer Kit GA-1191 (optional) is necessary for using the printing functions.
Quick Start Guide for Printing Functions (Booklet)
This manual gives basic information regarding the printing functions, such as the GA-1191 accessories, necessary environmental conditions and outline of network connections as well as troubleshooting. Be sure to read this before using the printing functions.
Network Administration Guide for Printing Functions (PDF file)
This manual describes the operation necessary for configuring a network and using the printing functions, such as connecting to a network and setting components.
Setup Guide for Printing Functions (PDF file, This manual)
This manual consists of the following two parts.
Control panel: This part describes how to configure the printer-related settings using the
TopAccess: control panel of the equipment.
This part describes how to use the co-packed utility “TopAccess”. The settings and management of the equipment can be done using a Web browser.
Printing Guide (PDF file)
This manual describes the operation necessary for printing data from a computer, such as the installation of the client software and the use of the printer driver.
Network Fax Guide (PDF file)
This manual describes the operation necessary for sending a Fax from a computer via a network, such as the installation of the client software, use of the N/W-Fax driver and the copacked application software “AddressBook Viewer”.
4 Before Reading This Manual
Scanning functions
The Scanner Upgrade Kit GA-1201 (optional) is necessary for using the scanning functions.
Quick Start Guide for Scanning Functions (PDF file)
This manual gives the basic information regarding the scanning functions, such as the
GA-1201 accessories, necessary environmental conditions and outline of network connections as well as troubleshooting. Be sure to read this before using the scanning functions.
Network Administration Guide for Scanning Functions (PDF file)
This manual describes the operation necessary for configuring a network and using the scanning functions, such as connecting to a network and setting components.
Setup Guide for Scanning Functions (PDF file)
This manual consists of the following two parts.
Control panel: This part describes how to configure the scanner-related settings using the
TopAccess: control panel of the equipment.
This part describes how to use the co-packed utility “TopAccess”. The settings and management of the equipment can be done using a Web browser.
Scanning Guide (PDF file)
This manual describes the operation necessary for using the scanning functions, such as the installation and the use of the TWAIN driver.
To read manuals in the PDF file format
The operator's manual in the PDF (Portable Document Format) can be displayed/printed using
Adobe Reader or Adobe Acrobat Reader. If neither is installed in your computer, download one of them. This can be done via the website of Adobe Systems Incorporated.
Before Reading This Manual 5
How to read this manual
Symbols in this manual
In this manual, some important items are descried with the symbols shown below. Be sure to read these items before using this equipment.
Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury, partial damage of the equipment or surrounding assets, or loss of data.
Indicates information to which you should pay attention when operating the equipment.
Describes handy information that is useful to know when operating the equipment.
Pages describing items related to what you are currently doing. See these pages as required.
Trademarks
y The official name of Windows 2000 is Microsoft Windows 2000 Operating System.
y The official name of Windows XP is Microsoft Windows XP Operating System.
y The official name of Windows Vista is Microsoft Windows Vista Operating System.
y The official name of Windows Server 2003 is Microsoft Windows Server 2003 Operating
System.
y The official name of Windows Server 2008 is Microsoft Windows Server 2008 Operating
System.
y Microsoft, Windows, Windows NT, and the brand names and product names of other
Microsoft products are trademarks of Microsoft Corporation in the US and other countries.
y Apple, AppleTalk, Macintosh, Mac, Mac OS, Safari, and TrueType are trademarks of Apple
Inc. in the US and other countries.
y PostScript is a trademark of Adobe Systems Incorporated.
y Mozilla, Firefox and Firefox logo are trademarks or registered trademarks of Mozilla Foundation in the U.S. and other countries.
y Netscape is a trademark of Netscape Communications Corporation.
y IBM, AT and AIX are trademarks of International Business Machines Corporation.
y NOVELL, NetWare, and NDS are trademarks of Novell, Inc.
y TopAccess is a trademark of Toshiba Tec Corporation.
y Other company names and product names in this manual are the trademarks of their respective companies.
©2009 TOSHIBA TEC CORPORATION All rights reserved
This manual is protected by copyright laws. No part of this manual shall be duplicated or reproduced without the permission of TOSHIBA TEC CORPORATION. TOSHIBA TEC CORPORA-
TION shall not be liable in terms of granting patents for any use of information contained in this manual by third parties.
6 Before Reading This Manual
CONTENTS
Software License Agreement ......................................................................2
Before Reading This Manual .......................................................................4
Chapter 1 OVERVIEW
Use environments of TopAccess.............................................................14
Chapter 2 BASIC OPERATIONS ON SCREENS
(EQUIPMENT)
Basic Operations on Each Screen ............................................................18
To select mode main screen ...................................................................18
Chapter 3 CANCELING PRINT JOBS AND PRINTING FONT LISTS
(EQUIPMENT)
Chapter 4 PRINTING LISTS (EQUIPMENT)
Chapter 5 CONFIGURING NETWORKS (EQUIPMENT)
Network Configuration from Equipment ..................................................32
CONTENTS 7
Chapter 6 TopAccess OVERVIEW
Accessing TopAccess from Your Computer ...........................................50
Accessing TopAccess .............................................................................50
TopAccess screen structure ....................................................................53
Chapter 7 TopAccess DEVICE TAB PAGE
TopAccess Device Tab Page.....................................................................56
Chapter 8 TopAccess REGISTRATION TAB PAGE
Managing Address Book ...........................................................................60
Managing contacts in the address book ..................................................60
Managing groups in the address book ....................................................64
Setting up an Open Mailbox ....................................................................68
Deleting an Open Mailbox .......................................................................74
Chapter 9 TopAccess COUNTER TAB PAGE
Displaying the total counter .....................................................................78
Displaying the department counter..........................................................79
Chapter 10 TopAccess ADMINISTRATION TAB PAGE - SETUP MENU
(Printing Function)
Setting up the device information ............................................................84
Setting up the energy save......................................................................85
Setting up the time and date ...................................................................85
Setting up the Web general setting .........................................................85
Setting up Network Settings (Printing Function) ....................................86
Setting up the IPX/SPX ...........................................................................89
Setting up the AppleTalk .........................................................................89
Setting up the DNS session.....................................................................91
Setting up the DDNS session ..................................................................92
8 CONTENTS
Setting up the NetWare session ..............................................................93
Setting up the HTTP network service ......................................................94
Setting up the SNMP network service .....................................................95
Setting up the copier settings ..................................................................98
Setting up the Fax settings ....................................................................101
Setting up the general setting................................................................106
Setting up the default Raw job setting ...................................................107
Setting up the Raw job setting...............................................................108
Setting up Print Service Settings (Printing Function)...........................111
Setting up the Raw TCP print ................................................................112
Setting up the LPD print ........................................................................113
Setting up the NetWare print .................................................................114
Displaying Version Information ..............................................................115
Chapter 11 TopAccess ADMINISTRATION TAB PAGE -
MAINTENANCE MENU
About the Maintenance Functions..........................................................118
Restoring Data from Backup File............................................................124
Importing Address Book Data.................................................................127
Exporting Address Book Data.................................................................130
Importing Department Code Data ...........................................................132
Exporting Department Code Data ...........................................................134
Chapter 12 MANAGING DEPARTMENT CODES ON TopAccess
(FOR ADMINISTRATORS)
Managing Department Codes (For Administrators) ..............................138
Chapter 13 TROUBLESHOOTING
TopAccess Error Messages ....................................................................140
CONTENTS 9
Chapter 14 APPENDIX
10 CONTENTS
1.
OVERVIEW
This chapter describes the contents of this manual and the required use environments of TopAccess.
1 OVERVIEW
Overview
Contents
This manual consists of the following 2 parts: y Printer-related settings using the control panel of this equipment y Settings and management of this equipment from a computer using TopAccess
Printer-related settings using the control panel of this equipment
The former part of this manual describes how to set up printer-related items and how to print lists using the PRINTER] and [USER FUNCTIONS] buttons of the control panel.
See the following chapters for your reference:
Chapter 2 BASIC OPERATIONS ON SCREENS (EQUIPMENT)
Describes the basic operations on the control panel screens of this equip-
Chapter 3 ment.
P.15 “BASIC OPERATIONS ON SCREENS (EQUIPMENT)”
CANCELING PRINT JOBS AND PRINTING FONT LISTS (EQUIPMENT)
Describes how to cancel a print job in process and how to print font lists,
Chapter 4
Chapter 5 using the control panel of this equipment.
P.23 “CANCELING PRINT JOBS AND PRINTING FONT LISTS
PRINTING LISTS (EQUIPMENT)
Describes how to print printer-related-lists from the control panel of this equipment.
P.27 “PRINTING LISTS (EQUIPMENT)”
CONFIGURING NETWORKS (EQUIPMENT)
Describes how to configure networks using the control panel of this equipment.
P.31 “CONFIGURING NETWORKS (EQUIPMENT)”
Printer-related settings and management of this equipment using
TopAccess
The latter part of this manual describes how to set up and manage this equipment from your computer through a network using a co-packed utility TopAccess. TopAccess has 2 access levels; the end user level and administrator level. All the setting and maintenance functions of
TopAccess can be utilized in the administrator level.
The following functions of this equipment are described: y Printing functions set and managed from the TopAccess screens y Fax functions set and managed from the TopAccess screens (only when the Fax Kit
(optional) is installed)
See the following pages for your reference:
Chapter 6 TopAccess OVERVIEW
Describes the overview of TopAccess and how to access TopAccess.
Chapter 7
Chapter 8
TopAccess DEVICE TAB PAGE
Describes the device information on the Device tab page of TopAccess.
P.55 “TopAccess DEVICE TAB PAGE”
TopAccess REGISTRATION TAB PAGE
Describes how to manage the address book and Mailboxes on the TopAccess Registration tab page.
P.59 “TopAccess REGISTRATION TAB PAGE”
12 Overview
Chapter 9
Chapter 10
Chapter 11
Chapter 12
TopAccess COUNTER TAB PAGE
Describes how to display total counters on the TopAccess Counter tab page.
P.77 “TopAccess COUNTER TAB PAGE”
TopAccess ADMINISTRATION TAB PAGE - SETUP MENU
Describes the various items set by the TopAccess administrator.
P.81 “TopAccess ADMINISTRATION TAB PAGE - SETUP MENU
TopAccess ADMINISTRATION TAB PAGE - MAINTENANCE MENU
Describes the maintenance of TopAccess performed by the TopAccess administrator.
P.117 “TopAccess ADMINISTRATION TAB PAGE - MAINTENANCE
MANAGING DEPARTMENT CODES ON TopAccess (FOR ADMINISTRA-
TORS)
Describes how to manage the department code by an administrator.
P.137 “MANAGING DEPARTMENT CODES ON TopAccess (FOR
y For troubleshooting, see “TROUBLESHOOTING”.
y For the lists printed by this equipment, see “Appendix”.
Overview 13
1 OVERVIEW
Use environments of TopAccess
This section describes the use environment of a co-packed utility TopAccess that comes with this equipment. Systems shown below enable you to access the TopAccess using your web browser so that you can set up or manage this equipment from a computer on the network.
Network
Before using the TopAccess, this equipment must be properly connected to the network, and also TCP/IP and HTTP must be properly configured on this equipment. See the following manuals for the details: y
Quick Start Guide for Printing Functions
Chapter 3 "CONNECTING TO A COMPUTER"
"Connecting to the Network" y
Setup Guide for Printing Functions (This manual)
Chapter 5 "CONFIGURING NETWORKS (EQUIPMENT)"
Web browser
TopAccess supports the following web browsers under Windows, Macintosh or UNIX environments:
Windows: Microsoft Internet Explorer 5.5 SP2 or later
Mozilla Firefox 1.5.0.4 or later
Macintosh: Safari 2.0 (412.2) or later
Mozilla Firefox 1.5.0.4 or later
UNIX: Mozilla Firefox 1.5.0.4 or later
Settings on equipment side and settings/management of this equipment using
TopAccess:
Equipment's settings
Settings/management of this equipment using
TopAccess
TopAccess
Windows
Windows
Macintosh
UNIX
14 Overview
2.
BASIC OPERATIONS ON SCREENS
(EQUIPMENT)
This chapter describes the basic operations on the control panel screens of this equipment.
2 BASIC OPERATIONS ON SCREENS (EQUIPMENT)
Various Screens
Major screens appearing on the control panel LCD of this equipment are shown below.
Ready screen (“Copy mode” main screen)
This screen appears a few tenths of a second after you turn the power of this equipment ON.
The copying functions can be used.
This screen appears also when you have pressed the [COPY] button to switch the equipment into the copy mode from other modes.
READY
100% SORT
ZOOM FINISHING EDIT
1
If the ready screen is set for the Fax functions, the screen below appears after you turn the power ON.
Ready screen for Fax functions (“Fax mode” main screen):
ENTER TEL NUMBER(MAX128):
MAR 24-2006 11:30AM M:100%
RESOLUTION:STANDARD
COMM. OPTION
Mode main screens
The mode selection main screens are 4 screens; the “copy mode” main screen, “printer mode” main screen, “user functions mode” main screen and “Fax mode” main screen. In these main screens, menus selectable in the subject mode appear.
To select and operate the mode selection main screen for the printer mode, see the following pages:
P.18 “To select mode main screen”
Example of “printer mode” main screen:
PRINTER MODE
1.CANCEL JOB
2.PCL FONT LIST
3.PS FONT LIST
16 Various Screens
Menu selection screen
This screen appears when you select desired menus or items. The name of the menus, submenus or items are displayed in this screen.
Example of “YES/NO” selection screen:
CANCEL ?
1.YES
2.NO
Digit entry screen
This screen appears when you key in any digits. Enter digits using the digital keys on the control panel.
DEPARTMENT CODE
ENTER DEPARTMENT NUMBER(1-99):
6
Error message screen
This screen appears when an error has occurred.
DRAWER1 empty
Open DRAWER1
Load paper
Close DRAWER1
Various Screens 17
2 BASIC OPERATIONS ON SCREENS (EQUIPMENT)
Basic Operations on Each Screen
To select mode main screen
When you press the mode selection button (= [PRINTER] or [USER FUNCTIONS]) in the ready screen displayed after power-ON, the main screen for each mode appears.
Ready screen ("Copy mode" main screen)
READY
100% SORT
ZOOM FINISHING EDIT
1
[PRINTER] button
"Printer mode" main screen
PRINTER MODE
1.CANCEL JOB
2.PCL FONT LIST
3.PS FONT LIST
"User functions mode" main screen
[USER FUNCTIONS] button
USER FUNCTIONS
01.DEFAULT SETTINGS
02.LISTS
03.INITIAL SETUP
1216
If the ready screen is set for the Fax functions, the “Fax mode” main screen appears as the ready screen.
[USER FUNCTIONS] button and screen transition:
y When you press the [USER FUNCTIONS] button while you are operating the copy or printer menu, the screen shifts to the “user function” main screen.
y When you press the [USER FUNCTIONS] button while you are operating the user functions menu, the screen returns to the previously selected main screen, i.e. the ready screen (“copy mode” main screen) or “printer mode” main screen.
Also, if you press the [FUNCTION CLEAR] button when the “user function” main screen is displayed, the screen returns to the previously selected main screen.
[PRINTER] button and screen transition:
When you press the [PRINTER] button while you are operating each menu, the screen shifts to the “printer mode” main screen.
For example, when you press it while you are operating the user functions menu, the “printer mode” main screen appears.
To return to main screen for each mode:
If you press the [FUNCTION CLEAR] button while you are operating each menu, the screen returns to the main screen for the current mode.
18 Basic Operations on Each Screen
To select each menu
You can select the desired menu or item in the menu selection screen.
[CANCEL] button
/ buttons
[ENTER] button
Button
/
[ENTER]
[CANCEL]
Function
Press these buttons to select menus or items. The cursor moves to the menu or item selected. The selected menu or item is highlighted.
When you press down.
, the cursor scrolls up. When you press , it scrolls
Press this button to execute the selected menu or item.
Press this button to cancel the selected operation. The screen returns to the previous one.
(If you press this several times, the screen returns to the main screen for the current mode.)
The menus displayed in the screen differ depending on which options are installed. Some menus displayed in the menu selection screen shown in this manual may not be displayed in the actual screen, if the corresponding option is not installed.
Basic Operations on Each Screen 19
2 BASIC OPERATIONS ON SCREENS (EQUIPMENT)
Example of menu selection
The menu selection procedure to cancel a print job in the “printer mode” main screen is shown below.
PRINTER MODE
1.CANCEL JOB
2.PCL FONT LIST
3.PS FONT LIST
[ENTER] button or a digital key [1]
*1
When you press , the cursor scrolls up.
When you press , the cursor scrolls down.
The selected menu is executed and the screen returns to the previous one.
CANCEL ?
1.YES
2.NO
[ENTER] button or a digital key [1]
*1
[CANCEL] button
The selected menu is canceled and the screen returns to the previous one.
*1 Each menu in this equipment has a serial number. When you key in the first 1 or 2 digits of the serial number, you can immediately select this menu. (In other words, this procedure substitutes for the entry by pressing / and the [ENTER] button.) With this function, you can select a menu located at the bottom of the hierarchical menu-tree structure by entering a series of numbers (e.g. “03” “03” “02”).
20 Basic Operations on Each Screen
To key in digits
You can enter digits using the digital keys.
/ buttons
[ENTER] button
Digital keys
[CLEAR/STOP] button
Button /Digital key
Digital Keys
[ENTER]
/
[CLEAR/STOP]
Function
Press these keys to enter digits when the digit entry screen is displayed.
Press this button to determine the digits keyed in.
Press these buttons to move the cursor to the right or left.
When you press , the cursor moves to the left. When you press , it moves to the right.
When you want to correct a digit already keyed in, move the cursor to the digit and then key in a new digit. The digit is replaced with a new one.
Digits keyed in are all cleared.
Basic Operations on Each Screen 21
3.
CANCELING PRINT JOBS AND
PRINTING FONT LISTS (EQUIPMENT)
This chapter describes how to cancel a print job in process and how to print font lists, using the control panel of this equipment.
3 CANCELING PRINT JOBS AND PRINTING FONT
LISTS (EQUIPMENT)
To Cancel Print Jobs
You can cancel a print job in process using the [PRINTER] button. Canceling print jobs is required usually in the following cases: y A print job in process needs to be discarded y Paper has run out during printing and you want to discard the rest of the job The message screen shown below appears when paper has run out.
DRAWER1 empty
Open DRAWER1
Load paper
Close DRAWER1
Canceling print jobs is possible only when this equipment is actually printing a job. If you attempt to cancel a print job when this equipment is not doing so, “Not allowed now” appears in the screen.
1
Press the [PRINTER] button when the ready screen is displayed.
The “printer mode” main screen appears.
2
Press or to select CAN-
CEL JOB, and then press the
[ENTER] button.
PRINTER MODE
1.CANCEL JOB
2.PCL FONT LIST
3.PS FONT LIST
3
Press or to select YES, and then press the [ENTER] button.
The print job is canceled and “Operation
Completed” appears. The screen returns to the “printer mode” main screen shown in step 2.
CANCEL ?
1.YES
2.NO
24 To Cancel Print Jobs
To Print PCL/PS Font List
You can print the following font lists using the [PRINTER] button: y PCL font list y PS font list
The lists are printed on A4 (LT) or A4-R (LT-R) size paper. Check that paper of the specified size is set.
For each font list printed, see the following page:
PCL font list / PS font list
You can print lists for the internal PCL font and PS font to be used for printing.
1
Press the [PRINTER] button when the ready screen is displayed.
The “printer mode” main screen appears.
2
Press and then press the [ENTER] button.
or to select PCL
FONT LIST or PS FONT LIST,
PRINTER MODE
1.CANCEL JOB
2.PCL FONT LIST
3.PS FONT LIST
“Printing accepted” appears and the selected internal font list is printed out.
The screen returns to the “printer mode” main screen shown in step 2.
PRINTER MODE
1.CANCEL JOB
2.PCL FONT LIST
3.PS FONT LIST
To Print PCL/PS Font List 25
4.
PRINTING LISTS (EQUIPMENT)
This chapter describes how to print printer-related lists from the control panel of this equipment.
4 PRINTING LISTS (EQUIPMENT)
To Print Lists
You can print the printer-related lists shown below using the [USER FUNCTIONS] button.
y Configuration page y NIC status page
The lists are printed on A4 (LT) or A4-R (LT-R) size paper. Check that paper of the specified size is set.
y For each list mentioned above, see the following page:
y You can see the printer-related user settings by printing the Function List. See the Opera-
tor’s Manual for Copying Functions.
y You can see the printer-related menu list by printing the Menu List. See the Operator’s Man-
ual for Copying Functions.
Configuration page
You can print out the setting status of the Network Printer Kit (optional).
See the following Operator’s Manual for details of the setting items regarding printing functions.
Quick Start Guide for Printing Functions
Default Setting List
Chapter 5 “APPENDIX”
"Default settings for NETWORK SETTING"
"Default settings for PRINT SERVICE SETTING"
1
Press the [USER FUNCTIONS] button.
The “user functions mode” main screen appears.
2
Press or to select LISTS, and then press the [ENTER] button.
USER FUNCTIONS
01.DEFAULT SETTINGS
02.LISTS
03.INITIAL SETUP
1216
28 To Print Lists
3
Press or to select CON-
FIGURATION PAGE, and then press the [ENTER] button.
“Printing accepted” appears and the configuration page is printed out.
LISTS
4.ITU MAILBOX
5.CONFIGURATION PAGE
6.NIC STATUS PAGE
NIC status page
You can print out the setting status of the NIC (Network Interface Card) of the Network Printer Kit
(optional).
1
Press the [USER FUNCTIONS] button.
The “user functions mode” main screen appears.
2
Press or to select LISTS, and then press the [ENTER] button.
USER FUNCTIONS
01.DEFAULT SETTINGS
02.LISTS
03.INITIAL SETUP
3
Press or to select NIC
STATUS PAGE, and then press the [ENTER] button.
“Printing accepted” appears and the NIC status page is printed out.
LISTS
4.ITU MAILBOX
5.CONFIGURATION PAGE
6.NIC STATUS PAGE
1216
To Print Lists 29
5.
CONFIGURING NETWORKS
(EQUIPMENT)
This chapter describes how to configure networks using the control panel of this equipment.
5 CONFIGURING NETWORKS (EQUIPMENT)
Network Configuration from Equipment
You can perform the following network configurations using the [USER FUNCTIONS] button:
P.42 “AppleTalk Configuration”
To use TopAccess:
Before using a web-based utility TopAccess, TCP/IP protocol and HTTP network server service must be configured in this equipment.
When TCP/IP and HTTP have been configured, you can use TopAccess on your computer.
Once TopAccess is enabled, all the network configurations including the reconfiguration of TCP/
IP and HTTP can be executed from TopAccess screen. For the network configurations using
TopAccess, see the following page:
P.86 “Setting up Network Settings (Printing Function)”
32 Network Configuration from Equipment
Ethernet Configuration
You can specify the link speed and communication mode of Ethernet.
1
Press the [USER FUNCTIONS] button when the ready screen is displayed.
The “user functions mode” main screen appears.
2
Press or to select INI-
TIAL SETUP, and then press the [ENTER] button.
USER FUNCTIONS
01.DEFAULT SETTINGS
02.LISTS
03.INITIAL SETUP
00001216
3
Press or to select NET-
WORK, and then press the
[ENTER] button.
INITIAL SETUP
03.DRAWER SET POP-UP
04.TERMINAL ID
05.NETWORK
4
Press or to select ETH-
ERNET, and then press the
[ENTER] button.
NETWORK
01.COMPLETE
02.ETHERNET
03.TCP/IP
5
Press or to select LINK
SPEED/DUPLEX MODE, and then press the [ENTER] button.
ETHERNET
01.LINK SPEED/DUPLEX MODE
6
Press or to select the desired link speed and communication mode.
LINK SPEED/DUPLEX MODE
1.AUTO
2.10BASE/HALF
3.10BASE/FULL
LINK SPEED/DUPLEX MODE
3.10BASE/FULL
4.100BASE/HALF
5.100BASE/FULL
Ethernet Configuration 33
5 CONFIGURING NETWORKS (EQUIPMENT)
AUTO: Detects the Ethernet link speed automatically.
10BASE/HALF: Uses 10BASE-T half-duplex communication mode.
10BASE/FULL: Uses 10BASE-T full-duplex communication mode.
100BASE/HALF: Uses 100BASE-TX half-duplex communication mode.
100BASE/FULL: Uses 100BASE-TX full-duplex communication mode.
y When you select other than AUTO above, refer to the specifications of the network to which this equipment is connected.
y If you are not sure of the most appropriate link speed or communication mode, select AUTO.
7
Press the [ENTER] button.
The screen returns to the shown in step 5.
8
Press the [CANCEL] button once to return the screen to the NETWORK menu screen.
NETWORK
01.COMPLETE
02.ETHERNET
03.TCP/IP
If you press the [CANCEL] button more than twice and exit the NETWORK menu, the
NIC initialization operation in the next step becomes ineffective. In this case, repeat the procedure from step 1.
9
Press or to select COM-
PLETE, and then press the
[ENTER] button.
The initialization starts and “Initializing” appears. When it is completed,
“Operation Completed” appears and the screen returns to the one shown in step
3.
NETWORK
01.COMPLETE
02.ETHERNET
03.TCP/IP
10
Press the [CANCEL] button once or press the [FUNCTION CLEAR] button to return the screen to the “user function mode” main screen.
If the network connection is still unstable even after following the procedure above, turn the power of this equipment OFF and then back ON.
34 Ethernet Configuration
TCP/IP Configuration
You can configure TCP/IP protocol. This TCP/IP configuration includes address assignment method selection, IP address, subnet mask, and default gateway assignment (manual assignment).
y The configuration of TCP/IP protocol differs depending on your network environments.
y Before using a web-based utility TopAccess, TCP/IP protocol and HTTP network server service must be configured in this equipment. For HTTP configuration, see the following page:
Configuring TCP/IP using DHCP or Auto IP function:
If you are not sure of the proper TCP/IP configuration method to assign an address to this equipment, select “DYNAMIC” for the address assignment method. When you select “DYNAMIC”, this equipment obtains an IP address, subnet mask and gateway from a DHCP server, if your network supports DHCP. If your network does not support it, the Auto IP function will assign a proper IP address to this equipment.
Configuring TCP/IP using only DHCP:
When you connect this equipment to a local area network including a DHCP server and configure TCP/IP for this equipment using only DHCP, without the Auto IP function, select “NO
AUTOIP” for the address assignment method. When you select “NO AUTOIP”, this equipment obtains an IP address, subnet mask and gateway from the DHCP server. The automatic IP address assignment with the Auto IP function is disabled.
Connecting to local area network requiring static IP addresses:
When you connect this equipment to a local area network requiring a static IP address, select
“STATIC IP” for the address assignment method and specify the IP address manually. Subnet mask and default gateway should also be configured as required.
Automatic IP address assignment
1
Press the [USER FUNCTIONS] button when the ready screen is displayed.
The “user functions mode” main screen appears.
2
Press or to select INI-
TIAL SETUP, and then press the [ENTER] button.
USER FUNCTIONS
01.DEFAULT SETTINGS
02.LISTS
03.INITIAL SETUP
00001216
TCP/IP Configuration 35
5 CONFIGURING NETWORKS (EQUIPMENT)
3
Press or to select NET-
WORK, and then press the
[ENTER] button.
INITIAL SETUP
03.DRAWER SET POP-UP
04.TERMINAL ID
05.NETWORK
4
Press or to select TCP/
IP, and then press the [ENTER] button.
NETWORK
01.COMPLETE
02.ETHERNET
03.TCP/IP
5
Press or to select
ADDRESS MODE, and then press the [ENTER] button.
TCP/IP
01.ADDRESS MODE
02.IP ADDRESS
03.SUBNET MASK
6
Press or to select the desired method of automatic
IP address assignment.
ADDRESS MODE
1.STATIC IP
2.DYNAMIC
3.NO AUTOIP
DYNAMIC: Obtains an IP address automatically using the Auto IP function and
DHCP.
NO AUTOIP: Obtains an IP address automatically using DHCP.
7
Press the [ENTER] button.
The screen returns to the shown in step 5.
8
Press the [CANCEL] button once to return the screen to the NETWORK menu screen.
NETWORK
01.COMPLETE
02.ETHERNET
03.TCP/IP
If you press the [CANCEL] button more than twice and exit the NETWORK menu, the
NIC initialization operation in the next step becomes ineffective. In this case, repeat the procedure from step 1.
9
Press or to select COM-
PLETE, and then press the
[ENTER] button.
The initialization starts and “Initializing” appears. When it is completed,
“Operation Completed” appears and the screen returns to the one shown in step
3.
NETWORK
01.COMPLETE
02.ETHERNET
03.TCP/IP
36 TCP/IP Configuration
10
Press the [CANCEL] button once or press the [FUNCTION CLEAR] button to return the screen to the “user function mode” main screen.
You can check the configuration status and the obtained value if you print out the NIC status page.
Manual IP address assignment
1
Press the [USER FUNCTIONS] button when the ready screen is displayed.
The “user functions mode” main screen appears.
2
Press or to select INI-
TIAL SETUP, and then press the [ENTER] button.
USER FUNCTIONS
01.DEFAULT SETTINGS
02.LISTS
03.INITIAL SETUP
00001216
3
Press or to select NET-
WORK, and then press the
[ENTER] button.
INITIAL SETUP
03.DRAWER SET POP-UP
04.TERMINAL ID
05.NETWORK
4
Press or to select TCP/
IP, and then press the [ENTER] button.
NETWORK
01.COMPLETE
02.ETHERNET
03.TCP/IP
5
Press or to select
ADDRESS MODE, and then press the [ENTER] button.
TCP/IP
01.ADDRESS MODE
02.IP ADDRESS
03.SUBNET MASK
TCP/IP Configuration 37
5 CONFIGURING NETWORKS (EQUIPMENT)
6
Press or to select
STATIC IP, and then press the
[ENTER] button.
The screen returns to the one shown in step 5.
ADDRESS MODE
1.STATIC IP
2.DYNAMIC
3.NO AUTOIP
7
Press or to select IP
ADDRESS, and then press the
[ENTER] button.
TCP/IP
01.ADDRESS MODE
02.IP ADDRESS
03.SUBNET MASK
8
Enter the IP address, and then press the [ENTER] button.
The screen returns to the one shown in step 7.
IP ADDRESS
XXX.XXX.XXX.XXX
9
Press or to select SUB-
NET MASK, and then press the
[ENTER] button.
TCP/IP
01.ADDRESS MODE
02.IP ADDRESS
03.SUBNET MASK
10
Key in the subnet mask value as required, and then press the
[ENTER] button.
The screen returns to the one shown in step 9.
SUBNET MASK
XXX.XXX.XXX.XXX
11
Press or to select
DEFAULT GATEWAY, and then press the [ENTER] button.
TCP/IP
02.IP ADDRESS
03.SUBNET MASK
04.DEFAULT GATEWAY
12
Key in the default gateway value as required, and then press the [ENTER] button.
DEFAULT GATEWAY
XXX.XXX.XXX.XXX
13
Press the [CANCEL] button once to return the screen to the NETWORK menu screen.
NETWORK
01.COMPLETE
02.ETHERNET
03.TCP/IP
If you press the [CANCEL] button more than twice and exit the NETWORK menu, the
NIC initialization operation in the next step becomes ineffective. In this case, repeat the procedure from step 1.
38 TCP/IP Configuration
14
Press or to select COM-
PLETE, and then press the
[ENTER] button.
The initialization starts and “Initializing” appears. When it is completed,
“Operation Completed” appears and the screen returns to the one shown in step
3.
NETWORK
01.COMPLETE
02.ETHERNET
03.TCP/IP
15
Press the [CANCEL] button once or press the [FUNCTION CLEAR] button to return the screen to the “user function mode” main screen.
TCP/IP Configuration 39
5 CONFIGURING NETWORKS (EQUIPMENT)
IPX/SPX Configuration
You can configure IPX/SPX protocol. The IPX/SPX protocol is configured usually to communicate with a NetWare file server.
1
Press the [USER FUNCTIONS] button when the ready screen is displayed.
The “user functions mode” main screen appears.
2
Press or to select INI-
TIAL SETUP, and then press the [ENTER] button.
USER FUNCTIONS
01.DEFAULT SETTINGS
02.LISTS
03.INITIAL SETUP
00001216
3
Press or to select NET-
WORK, and then press the
[ENTER] button.
INITIAL SETUP
03.DRAWER SET POP-UP
04.TERMINAL ID
05.NETWORK
4
Press or to select IPX/
SPX, and then press the
[ENTER] button.
NETWORK
04.IPX/SPX
05.APPLE TALK
06.HTTP
5
Press or to select IPX/
SPX, and then press the
[ENTER] button.
IPX/SPX
01.IPX/SPX
02.FRAME TYPE
6
Press or to select
ENABLE, and then press the
[ENTER] button.
The screen returns to the one shown in step 5.
7
Press or to select
FRAME TYPE, and then press the [ENTER] button.
IPX/SPX
1.ENABLE
2.DISABLE
IPX/SPX
01.IPX/SPX
02.FRAME TYPE
40 IPX/SPX Configuration
8
Press or to select the desired frame type.
FRAME TYPE
1.AUTO SENCE
2.IEEE802.2
3.IEEE802.3
FRAME TYPE
3.IEEE802.3
4.ETHERNET II
5.IEEE802.3 SNAP
AUTO SENSE:
IEEE802.2:
IEEE802.3:
ETHERNET II:
Detects the most appropriate frame type automatically.
Selects a frame type compatible with IEEE802.2.
Selects a frame type compatible with IEEE802.3.
Selects a frame type compatible with Ethernet II.
IEEE802.3 SNAP: Selects a frame type compatible with IEEE802.3 SNAP.
If you are not sure of the most appropriate frame type, select AUTO SENSE.
9
Press the [ENTER] button.
The screen returns to the one shown in step 7.
10
Press the [CANCEL] button once to return the screen to the NETWORK menu screen.
NETWORK
04.IPX/SPX
05.APPLE TALK
06.HTTP
If you press the [CANCEL] button more than twice and exit the NETWORK menu, the
NIC initialization operation in the next step becomes ineffective. In this case, repeat the procedure from step 1.
11
Press or to select COM-
PLETE, and then press the
[ENTER] button.
The initialization starts and “Initializing” appears. When it is completed,
“Operation Completed” appears and the screen returns to the one shown in step
3.
NETWORK
01.COMPLETE
02.ETHERNET
03.TCP/IP
12
Press the [CANCEL] button once or press the [FUNCTION CLEAR] button to return the screen to the “user function mode” main screen.
IPX/SPX Configuration 41
5 CONFIGURING NETWORKS (EQUIPMENT)
AppleTalk Configuration
AppleTalk protocol must be enabled when AppleTalk printing from Macintosh computers needs to be enabled.
Set the device name of this equipment and AppleTalk zone using TopAccess as required.
See the following page:
P.89 “Setting up the AppleTalk”
1
Press the [USER FUNCTIONS] button when the ready screen is displayed.
The “user functions mode” main screen appears.
2
Press or to select INI-
TIAL SETUP, and then press the [ENTER] button.
USER FUNCTIONS
01.DEFAULT SETTINGS
02.LISTS
03.INITIAL SETUP
00001216
3
Press or to select NET-
WORK, and then press the
[ENTER] button.
INITIAL SETUP
03.DRAWER SET POP-UP
04.TERMINAL ID
05.NETWORK
4
Press or to select
APPLETALK, and then press the [ENTER] button.
NETWORK
04.IPX/SPX
05.APPLE TALK
06.HTTP
5
Press or to select
APPLETALK, and then press the [ENTER] button.
APPLE TALK
01.APPLE TALK
6
Press or to select
ENABLE for enabling Apple-
Talk, or select DISABLE for disabling it. Then press the
ENTER button.
The screen returns to the one shown in step 5.
APPLE TALK
1.ENABLE
2.DISABLE
42 AppleTalk Configuration
7
Press the [CANCEL] button once to return the screen to the NETWORK menu screen.
NETWORK
04.IPX/SPX
05.APPLE TALK
06.HTTP
If you press the [CANCEL] button more than twice and exit the NETWORK menu, the
NIC initialization operation in the next step becomes ineffective. In this case, repeat the procedure from step 1.
8
Press or to select COM-
PLETE, and then press the
[ENTER] button.
The initialization starts and “Initializing” appears. When it is completed,
“Operation Completed” appears and the screen returns to the one shown in step
3.
NETWORK
01.COMPLETE
02.ETHERNET
03.TCP/IP
9
Press the [CANCEL] button once or press the [FUNCTION CLEAR] button to return the screen to the “user function mode” main screen.
AppleTalk Configuration 43
5 CONFIGURING NETWORKS (EQUIPMENT)
HTTP Configuration
To use a web-based utility TopAccess, HTTP network server service must be enabled. This service must be enabled also for IPP printing.
1
Press the [USER FUNCTIONS] button when the ready screen is displayed.
The “user functions mode” main screen appears.
2
Press or to select INI-
TIAL SETUP, and then press the [ENTER] button.
USER FUNCTIONS
01.DEFAULT SETTINGS
02.LISTS
03.INITIAL SETUP
00001216
3
Press or to select NET-
WORK, and then press the
[ENTER] button.
INITIAL SETUP
03.DRAWER SET POP-UP
04.TERMINAL ID
05.NETWORK
4
Press or to select HTTP, and then press the [ENTER] button.
NETWORK
04.IPX/SPX
05.APPLE TALK
06.HTTP
5
Press or to select HTTP
SERVER, and then press the
[ENTER] button.
HTTP
01.HTTP SERVER
02.PRIMARY PORT NUMBER
03.SECONDARY PORT NUMBER
6
Press or to select
ENABLE for enabling HTTP network server, or select DIS-
ABLE for disabling it. Then press the [ENTER] button.
The screen returns to the one shown in step 5.
7
Press or to select PRI-
MARY PORT NUMBER, and then press the [ENTER] button.
HTTP SERVER
1.ENABLE
2.DISABLE
HTTP
01.HTTP SERVER
02.PRIMARY PORT NUMBER
03.SECONDARY PORT NUMBER
44 HTTP Configuration
8
Key in the port number (normally “80”) to access HTTP, and then press the [ENTER] button.
The screen returns to the one shown in step 7.
PRIMARY PORT NUMBER
ENTER THE PORT NUMBER:
Port number “80” is set by default. If you want to change it, press the [Clear/Stop] button and key in the desired port number.
9
Press or to select SEC-
ONDARY PORT NUMBER, and then press the [ENTER] button.
HTTP
01.HTTP SERVER
02.PRIMARY PORT NUMBER
03.SECONDARY PORT NUMBER
10
Key in the port number (normally “8080”) to access
TopAccess, and then press the
[ENTER] button.
The screen returns to the one shown in step 9.
SECONDARY PORT NUMBER
ENTER THE PORT NUMBER:
Port number “8080” is set by default. If you want to change it, press the [Clear/Stop] button and key in the desired port number.
11
Press the [CANCEL] button once to return the screen to the NETWORK menu screen.
NETWORK
04.IPX/SPX
05.APPLE TALK
06.HTTP
If you press the [CANCEL] button more than twice and exit the NETWORK menu, the
NIC initialization operation in the next step becomes ineffective. In this case, repeat the procedure from step 1.
12
Press or to select COM-
PLETE, and then press the
[ENTER] button.
The initialization starts and “Initializing” appears. When it is completed,
“Operation Completed” appears and the screen returns to the one shown in step
3.
NETWORK
01.COMPLETE
02.ETHERNET
03.TCP/IP
13
Press the [CANCEL] button once or press the [FUNCTION CLEAR] button to return the screen to the “user function mode” main screen.
HTTP Configuration 45
6.
TopAccess OVERVIEW
This chapter describes the overview of TopAccess and how to access TopAccess.
Accessing TopAccess from Your Computer ........................................................50
6 TopAccess OVERVIEW
TopAccess Overview
TopAccess has two access levels: the end user level and the administrator level. The administrator can configure all settings available and can perform maintenance operations.
y For detailed explanation on TopAccess, see the following page:
P.14 “Use environments of TopAccess”
y Display and setting items for Fax are available only when the Fax Kit (optional) is installed in this equipment.
When the setting or operation given in this manual is performed, do not turn the power of the equipment OFF until the TopAccess screen is automatically updated.
End user mode
The following settings and management are available in the end user mode: y Checking device status (Device tab page)
On the Device tab page, you can view the various types of device information of this equipment, messages and alerts, current paper size and remaining status in each drawer, and option installation status.
P.55 “TopAccess DEVICE TAB PAGE”
y Managing address book (Registration tab page)
On the Registration tab page, you can add or edit destinations (contact names) of the address book.
P.59 “TopAccess REGISTRATION TAB PAGE”
y Managing counters (Counter tab page)
On the Counter tab page, you can view the current values of the total counters.
P.77 “TopAccess COUNTER TAB PAGE”
48 TopAccess Overview
Administrator mode
Only a person who has an administrator privilege can access this mode. To use the administrator mode, the administrator’s password should be entered.
y Various settings and maintenance operations by the administrator (Administrator tab)
Setup menu:
- General settings
- Network settings
- Copier settings
- Fax setting
- Printer settings
- Print service settings
P.81 “TopAccess ADMINISTRATION TAB PAGE - SETUP MENU (Printing Function)”
Maintenance menu:
- Installation of language
- Backup (Address book)
- Restore (Address book)
- Import (Address book)
- Export (Address book, Department code data)
P.117 “TopAccess ADMINISTRATION TAB PAGE - MAINTENANCE MENU”
y Managing department codes (Counter tab page)
The administrator can view all of the registered department codes. The total counter of each code is displayed in the department code list.
P.137 “MANAGING DEPARTMENT CODES ON TopAccess (FOR ADMINISTRATORS)”
TopAccess Overview 49
6 TopAccess OVERVIEW
Accessing TopAccess from Your Computer
You can access TopAccess using your computer.
y If TopAccess does not start on your computer at its first use, see the following pages to check if the TCP/IP protocol and HTTP network service have been correctly set:
y Since TopAccess requires cookies to store data on your computer, cookies must be set in the web browser on your computer in advance.
y When TopAccess does not work properly, delete the cookies and try again.
y Do not perform the same setting in TopAccess from one computer at the same time using more than one web browser.
Accessing TopAccess
The procedures to access a TopAccess on your computer are shown below. The procedures are explained separately in both the end user mode and the administrator mode.
Do not run more than one TopAccess at a time on your computer.
TopAccess access procedure
1
Start the web browser on your computer and enter the URL shown below in the address field.
http://<IP Address> or http://<Device Name>
For example
When the IP address of the equipment is “10.10.70.105”: http://10.10.70.105
When the device name of this equipment is “mfp-00c67861”: http://mfp-04391122
2
The TopAccess top page for end users is displayed.
50 Accessing TopAccess from Your Computer
3
Click each tab to display each main page.
The following function tabs are provided: y Device tab
The Device tab page is displayed. See the following page for the explanation on the
Device tab page:
P.55 “TopAccess DEVICE TAB PAGE”
y Registration tab
The Registration tab page is displayed. See the following page for the explanation on the Registration tab page:
P.59 “TopAccess REGISTRATION TAB PAGE”
y Counter tab
The Counter tab page is displayed. See the following page for the explanation on the
Counter tab page:
P.77 “TopAccess COUNTER TAB PAGE”
y Administration tab
The Login page is displayed.
Proceed to the next step.
4
When you click the Administrator tab, enter the administrator password in the “Password” field. Then click [Login].
The Setup menu page is displayed.
y Do not change the login name in the User Name field. It must be always “Admin” to log into the administrator mode.
y The default administrator password is “123456”. The administrator should change the password as required. The changed password should be well managed by the administrator on the administrator’s responsibility.
See the following page on how to change the password:
P.83 “Setting up Device Settings”
Accessing TopAccess from Your Computer 51
6 TopAccess OVERVIEW
5
Click the menu name to display the desired page.
The following 2 menus are provided. When you click a menu, the associated menu page is displayed.
y Setup menu
The Setup menu page is displayed. See the following page for the explanation on the
Setup menu page:
P.81 “TopAccess ADMINISTRATION TAB PAGE - SETUP MENU (Printing Function)”
y Maintenance menu
The Maintenance menu page is displayed. See the following page for the explanation on the Maintenance menu page:
P.117 “TopAccess ADMINISTRATION TAB PAGE - MAINTENANCE MENU”
To log out of the administrator mode, click the Logout link displayed on the upper right.
52 Accessing TopAccess from Your Computer
TopAccess screen structure
When you access TopAccess, the Device tab page is displayed:
1
1) Function
This provides access to the main pages of TopAccess for each function. When you click each tab, the corresponding tab page is displayed.
- Device tab
- Registration tab
- Counter tab
- Administration tab
Menu display:
The basic TopAccess menu page contains the following items:
1
2
3 4
1) Menu bar
This provides access to each menu page under the selected function tab.
2) Submenu bar
This provides access to each submenu page under the selected menu and function tab.
3) Top link
Click this to display the top of the page currently shown.
4) Help link
Click this to display Online Help.
Accessing TopAccess from Your Computer 53
6 TopAccess OVERVIEW
The TopAccess Online Help cannot be displayed in the following browsers.
Safari 2.0
54 Accessing TopAccess from Your Computer
7.
TopAccess DEVICE TAB PAGE
This chapter describes the device information on the Device tab page of TopAccess.
7 TopAccess DEVICE TAB PAGE
TopAccess Device Tab Page
When TopAccess opens, the Device tab page is displayed. (The Device tab page is also displayed when you click the Device tab.)
1
2
3
4
On this page, the following device information is included:
1) REFRESH icon
Refreshes the information on the page.
2) Device Information
The Device Information list shows the following information:
- Status — Displays the device status.
- Name — Displays the name of this equipment.
- Location — Displays the equipment’s location.
- Copier Model— Displays the model name of this equipment.
- Contact Information — Displays the contact name of the person responsible for managing this equipment.
- Phone Number — Displays the phone number of the person responsible for managing this equipment.
- Message — Displays the administrative message.
- Alerts — Displays the alert message. Errors are shown in red and warnings are shown in yellow.
3) Paper
The Paper list shows the drawer status.
- Drawer — Lists the installed drawers.
- Size — Displays the paper size set in each drawer.
- Type — Displays the paper type set in each drawer.
- Capacity — Displays the maximum paper capacity that can be set in each drawer.
- Status — Displays the paper consumption status in each drawer.
Set the paper size in the drawer on the control panel of the equipment. It cannot be set on
TopAccess. See the Operator's Manual for Copying Functions for details.
56 TopAccess Device Tab Page
1
2
4) Options
The Options list shows the status of options.
- Fax Kit— Displays the installation status of the Fax Kit.
- Network Printer Kit— Displays the installation status of the Network Printer Kit.
- Scanner Upgrade Kit— Displays the installation status of the Scanner Upgrade Kit.
- Automatic Duplexing Unit— Displays the installation status of the Automatic Duplexing
Unit.
Error display:
If an error occurs, a device status indicator and an error message will be displayed on the
Device tab page.
1) Device status indicators
The device status indicators (icons) are displayed here. When more than one error is occurring at the same time, an indicator for the first error is displayed. For the details, see the following page:
P.140 “Device status indicator list”
2) Alerts
The error messages are displayed here. For the details, see the following page:
TopAccess Device Tab Page 57
8.
TopAccess REGISTRATION TAB PAGE
This chapter describes how to manage the address book and Mailboxes on the TopAccess Registration tab page.
8 TopAccess REGISTRATION TAB PAGE
Managing Address Book
This equipment comes with the address book feature that enables users to manage who receives fax transmission.
In the Address Book menu page at the Registration tab in TopAccess, you can add, edit, and delete recipient information. You can also create groups that multiple contacts can be assigned.
P.60 “Managing contacts in the address book”
P.64 “Managing groups in the address book”
Address Book can be also managed using the Control Panel. See the Operator’s Manual for
Facsimile Functions.
Managing contacts in the address book
You can add or edit a contact by entering recipient information. You can also delete the contact from the Address Book.
P.60 “Adding or editing a contact”
Adding or editing a contact
1
Click the Registration tab and the Address Book menu.
The Address Book menu page is displayed.
2
Click [Add Address] to add new contact, or click the contact link that you want to edit in the contacts list.
The Contact Properties page is displayed.
When a telephone number with a PIN code (charge code) is registered on an abbreviated number or a one touch dial number from this equipment, the PIN code is displayed in "$". On the TopAccess screens the PIN code is displayed as it is.
60 Managing Address Book
3
Enter following items to specify the recipient information.
Name — Enter the name of the recipient. You can enter up to 20 letters.
Fax Number — Enter the fax number of the recipient. You can enter up to 128 letters.
(“Space” and parentheses “ ( ” or “ ) ” cannot be used.)
2nd Fax Number — Enter the 2nd fax number of the recipient. You can enter up to 128 letters. (“Space” and parentheses “ ( ” or “ ) ” cannot be used.)
“2nd Fax Number” is an alternative Fax number used when communication cannot be made by redialing the Fax number entered in “Fax Number”.
ABB Number — Key in the abbreviated number of the recipient. (Up to 300 abbreviation numbers. You can specify a different number between 1 to 999.)
One Touch Number — Key in the one-touch number of the recipient. (Up to 75 different numbers.) y To register contact information, you must enter both “Name” and “Fax Number”. Also you must key in either of “ABB. Number” or “One Touch Number”. y Usually, enter the Fax number in “Fax Number” and “2nd Fax Number” without a hyphen ( - ). If a hyphen is entered, a pause is set making a dial gap of approx. 3 sec.
y For “ABB Number” and "One Touch Number”, if "One Touch Number” is registered first, “ABB Number” cannot be added afterward.
y For Fax transmission of originals, the Fax Kit (optional) is necessary. Without this kit,
Fax transmission cannot be made even if Fax numbers are set.
y You can clear the entered values in each field by clicking [Reset].
y You can cancel adding or editing a contact by clicking [Cancel].
4
Click [Fax Setting].
The Fax Settings page is displayed.
Managing Address Book 61
8 TopAccess REGISTRATION TAB PAGE
5
Enter following items according to the capabilities of recipient facsimile, and click [Save].
SUB — Enter the mailbox number if you want to send originals to the mailbox in the recipient facsimile. You can enter up to 20 letters including numbers and #, *.
SEP — Enter the mailbox number if you want to retrieve a document from the mailbox in the recipient facsimile. You can enter up to 20 letters including numbers and #, *.
PWD — Enter the password to retrieve a document from the mailbox in the recipient facsimile. You can enter up to 20 letters including numbers and #, *.
Delayed Transmit — You can specify the time (00:00 to 23:59) to transmit documents.
Quality Transmit — Select if you want to send documents in the Quality TX mode. This feature sends documents at a slower speed than a normal so that the transmission will be less affected by line condition. Select the value from 4800/9600/14400bps. The smaller the value is, the slower the speed becomes.
Line Monitor — Selects whether to monitor a tone of the line with the speaker.
Transmission Report — Selects whether to print the transmission report after completion of the fax transmission.
If you want to clear the fax settings of the contact, click [Reset].
62 Managing Address Book
6
In the Contact Properties page, click [Save] to add new contact.
A message notifying you that an abbreviated number or a one touch number you keyed in is already registered may be displayed. In this case, click [Return] and key in the correct number.
Deleting a contact
1
Click the Registration tab and the Address Book menu.
The Address Book menu page is displayed.
2
Click the link that you want to delete in the contacts list.
The Contact Properties page is displayed.
Managing Address Book 63
8 TopAccess REGISTRATION TAB PAGE
3
Click [Delete].
The contact is deleted from the Address Book.
Managing groups in the address book
You can create groups that contain the multiple recipients. This enables you to specify the groups for the destinations instead of specifying each recipient separately when operating fax transmission. You can also delete groups.
P.64 “Adding or editing a group”
Adding or editing a group
1
Click the Registration tab and the Address Book menu.
The Address Book menu page is displayed.
2
Click the Group submenu.
The Group submenu page is displayed.
64 Managing Address Book
3
Click [New] to add new group, or click the group link that you want to edit in the groups list.
The Group Properties page is displayed.
4
Enter following items to specify the group properties.
Group Number — Enter the group number.
Group Name — Enter the group name.
Group Type — Select “Fax”. (You can select only “Fax”.)
One Touch Number — Key in the one-touch number of the group. (Up to 75 different numbers.) y You can clear the entered values in each field by clicking [Reset].
y You can cancel adding or editing a group by clicking [Cancel].
5
Check the Fax boxes of users to add the Fax recipients.
Managing Address Book 65
8 TopAccess REGISTRATION TAB PAGE
6
Click [OK].
The group is created.
A message notifying you that a one touch number you keyed in is already registered may be displayed. In this case, click [Return] and key in the correct number.
Deleting a group
1
Click the Registration tab and the Address Book menu.
The Address Book menu page is displayed.
2
Click the Group submenu.
The Group submenu page is displayed.
3
Click the group link that you want to delete in the groups list.
The Group Properties page is displayed.
4
Click [Delete].
Selected group is deleted.
66 Managing Address Book
Managing Mailboxes
This equipment supports the ITU-T compatible mailboxes that allow storage and retrieval of documents via mailboxes that are already set up in a mailbox hub.
Using TopAccess, you can set up, edit, and delete mailboxes on this equipment.
The following three types of Mailboxes are available:
Confidential Mailbox
The Confidential Box allows a one-time document retrieval from the mailbox. Once a document is retrieved, it is cleared. If a new document is sent to the same box number where another document is stored, it is added to the existing box. You can also set up a password requirement for accessing the Confidential Box for document retrieval, to prevent unauthorized retrieval of documents.
Bulletin Board mailbox
The Bulletin Board Box allows multiple document retrievals from the same mailbox. Once a document is retrieved, it is not cleared. If a new document is sent to the same Box, it replaces the existing one. You can set up a password requirement for accessing the Bulletin Board Box for document reservation.
Forward Mailbox
The Forward mailbox allows you to transmit a received Fax to various destinations, using the following agent:
Internet/Fax (Relay) Agent
When a document has been sent to a mailbox, this equipment can call up the remote Fax via the public switched telephone network according to the destinations registered in the mailbox. After the relay transmission, the transmission result list will be sent to the specified remote Fax. It is also possible to set up a password requirement.
y Mailboxes can be managed only when the optional Fax Kit (optional) is installed.
y Sending and storage of documents to a mailbox hub and retrieval of documents from a mailbox hub is possible only on an ITU-T compliant facsimile. Only ITU-T compliant facsimiles can be used as Mailbox hubs. This equipment is provided with mailbox hub functions.
Mailboxes can be managed using the control panel of this equipment. See the Operator’s Man-
ual for Facsimile Functions.
Managing Mailboxes 67
8 TopAccess REGISTRATION TAB PAGE
Setting up an Open Mailbox
To carry out ITU-T communications, you must first set up an Open Mailbox in the mailbox hub.
You can set up a maximum of 100 mailboxes.
1
Click the Registration tab and the MailBoxes menu.
The Mailboxes menu page is displayed.
2
Click [New] to set up new mailbox, or click the box number link that you want to edit in the mailboxes list.
y If you click [New], skip to step 5.
y
If you click the box number link that is not protected by a password, skip to step 4.
y If you click the box number link that is protected by a password, go to the next step.
3
Enter the password for the mailbox and click [OK].
4
Click [Edit].
68 Managing Mailboxes
5
Select agents and click [Select Agent].
Confidential — Select this to create a Confidential mailbox.
Bulletin Board — Select this to create a Bulletin Board mailbox.
Forward — Select this to create a relay station mailbox.
Internet/Fax(Relay) — Select this to create a Forward mailbox of Fax (Relay) agent.
The “Internet/Fax (Relay)” will be selected automatically when “Forward” is selected.
6
Click the button of each item to set the mailbox properties.
[MailBox Setting] — Click this to specify the mailbox settings.
[Destination Setting] — Click this to specify the destinations to be sent. This can be set only when creating the Fax(Relay) agent.
P.71 “Destination setting (Mailbox)”
[Relay End Terminal Report] — Click this to specify where the transmission result list will be sent. This can be set only when creating the Fax(Relay) agent.
P.73 “Relay end terminal report”
7
After configuring the desired mailbox properties, click [Save].
The mailbox properties are registered.
Managing Mailboxes 69
8 TopAccess REGISTRATION TAB PAGE
MailBox setting
In the MailBox Setting page, specify the box number and password.
1
2
1) Box Number
Enter the box number of the mailbox. You can enter up to 20 letters (numbers only).
2) Password
Enter the box password if you want to protect the mailbox by the password. You can enter up to 20 letters including numbers, sharp marks (#), and asterisks (*).
1
Click [Mailbox Setting] to open the Mailbox Setting page.
2
Enter the box number. (Enter the box password as required.)
3
Click [Save].
Mailbox setting is made.
70 Managing Mailboxes
Destination setting (Mailbox)
In the Recipient List page, you can specify the destinations of the IFax (Relay).
You can specify the recipients by selecting recipients from the address book or by selecting recipient groups from the address book.
Selecting the recipients from the address book
By this method, you can select recipients from the address book in this equipment.
1
Click [Destination Setting] to open the Recipient List page.
2
Click [Address Book].
The Address Book page is displayed.
3
Check the Fax recipients, and check the Fax boxes of users you want to add as the Fax recipients.
4
Click [ADD].
Selected recipients are added in the Recipient List page.
You can remove the contacts that you added in the recipient list before submitting the destination settings.
P.73 “Removing the contacts from the recipient list”
5
Click [Save].
The contacts are added as the destinations.
Managing Mailboxes 71
8 TopAccess REGISTRATION TAB PAGE
Selecting the groups from the address book
By this method, you can select groups from the address book.
1
Click [Destination Setting] to open the Recipient List page.
2
Click [Address Group].
The Address Group page is displayed.
3
Check the Group boxes that contains the desired recipients.
4
Click [ADD].
All recipients in the selected groups are added in the Recipient List page.
You can remove the contacts that you added in the recipient list before submitting the destination settings.
P.73 “Removing the contacts from the recipient list”
5
Click [Save].
The contacts are added as the destinations.
72 Managing Mailboxes
Removing the contacts from the recipient list
1
Check the check boxes of the contacts that you want to remove from the recipient list, and click [Delete].
The selected contacts are removed from the recipient list.
Relay end terminal report
In the Relay End Terminal Report page, you can specify a recipient that the transmission result list will be sent.
1
Click [Relay End Terminal Report].
The Relay End Terminal Report page is displayed.
2
Enter the fax number, or select Fax option button of a user that you want to send the transmission result list.
You can clear the selected option button by clicking [Reset].
You cannot specify more than 1 recipient for the destination of the Relay End Terminal
Report.
3
Click [Add].
The selected recipient is set for the transmission result list destination.
Managing Mailboxes 73
8 TopAccess REGISTRATION TAB PAGE
Deleting an Open Mailbox
You can delete an existing Open Mailbox from TopAccess.
If you want to delete an Open Mailbox, the document must first be retrieved, printed, or canceled from the Open Mailbox.
1
Click the Registration tab and the MailBoxes menu.
The MailBoxes menu page is displayed.
2
Click the box number link that you want to delete in the mailboxes list.
y If you click the box number link that is not protected by a password, skip to step 4.
y
If you click the box number link that is protected by a password, go to the next step.
3
Enter the password for the mailbox and click [OK].
The MailBoxes Properties page is displayed.
4
Click [Delete].
The confirmation dialog box appears.
74 Managing Mailboxes
5
Click [OK].
Selected mailbox is deleted.
Managing Mailboxes 75
9.
TopAccess COUNTER TAB PAGE
This chapter describes how to display total counters on the TopAccess Counter tab page.
9 TopAccess COUNTER TAB PAGE
Viewing Counters
This equipment maintains a set of counters that keep track of the number of pages printed, copied and scanned. These statistics can be displayed in totals or broken down by department. This topic describes how to display the statistics and manage the department counters.
P.78 “Displaying the total counter”
P.79 “Displaying the department counter”
Displaying the total counter
In the Total Counter menu page, you can display the total counter information for each copy/print counter of small paper and copy/print counter of large paper.
1
Click the Counters tab and the Total Count menu.
The Total Count menu page is displayed.
2
You can check the total counter in this page.
The shown above is the details of the values of the print counter and the scan counter.
Note that these values are unresettable.
Print Counter
Copy: Displays the number of pages printed with copying operations.
Fax: Displays the number of pages printed with the reception of fax data.
Printer: Displays the number of pages printed with the receptions of the InternetFax or printing operations.
List: Displays the number of list pages printed.
Total: Displays the total number of pages printed.
Scan Counter
Copy:
Fax:
Total:
Displays the number of pages scanned with copying operations.
Displays the number of pages scanned with the transmissions of fax data.
Displays the total number of pages scanned.
78 Viewing Counters
Displaying the department counter
In the Department menu page, you can display the counter information of a specific department.
If you want to display the department counter, you must enter the department code.
Displaying the department counter is available only when a department code is set by using this equipment.
The administrator can view all departments including respective counter information.
P.138 “Managing Department Codes (For Administrators)”
1
Click the Counters tab and the Department menu.
The Department menu page is displayed.
2
Enter a department code that you want to display the counter in the
“Department Code” field and click [Enter].
The department counter for specified department is displayed.
Viewing Counters 79
10.
TopAccess ADMINISTRATION TAB PAGE
- SETUP MENU (Printing Function)
This chapter describes the various items set by the TopAccess administrator.
Setting up Network Settings (Printing Function).................................................86
Setting up Print Service Settings (Printing Function) ....................................... 111
Setting up Device Settings
In the General submenu page in the Setup menu, an administrator can configure the general settings such as Device Information, Energy Save, Date and Time, and Web General Setting.
Some settings may not apply to the LCD of this equipment as soon as you save the settings.
The settings will be updated by pressing the [FUNCTION CLEAR] button on the Control Panel or after an Auto Clear time period.
Setting the device settings
1
Access TopAccess in the administrator mode.
2
Click the Setup menu and General submenu.
The General submenu page is displayed.
3
In the General submenu page, set the device settings as required.
In the General submenu page, you can set the following:
P.84 “Setting up the device information”
P.85 “Setting up the energy save”
P.85 “Setting up the time and date”
P.85 “Setting up the Web general setting”
Setting up Device Settings 83
10 TopAccess ADMINISTRATION TAB PAGE - SETUP
MENU (Printing Function)
4
Click [Save].
The confirmation dialog box appears.
If you want to restore the current settings without saving the changes, click [Cancel].
Clicking [Cancel] cannot restore the defaults. This can only clear the changes and restore the current settings before saving the changes.
5
Click [OK] to apply the changes.
When using the Internet Explorer, the settings that are displayed in each field may not be changed even if you change the settings and click [Save]. However, the settings have been changed in the equipment. In that case, click the General submenu then the page displays the current settings in each field.
Setting up the device information
You can set the device information displayed in the Device tab page.
7
8
5
6
1
2
3
4
1) Name
This displays the equipment’s device name.
2) Copier Model
This displays the equipment’s model name.
3) Location
Enter the name of the department or site. This is displayed in the Device tab page that appears first when accessing the TopAccess web site for users.
4) Contact Information
Enter the name or title of the contact person for this equipment. This is displayed in the
Device tab page that appears first when accessing the TopAccess web site for users.
5) Service Phone Number
Enter the phone number for service on this equipment. This is displayed in the Device tab page that appears first when accessing the TopAccess web site for users.
6) Administrative Message
Enter the message about this equipment for all users to read. This is displayed in the Device tab page that appears first when accessing the TopAccess web site for users.
84 Setting up Device Settings
7) Administrator’s Password
If you want to change the administrator’s password used to log in functions from the TopAccess, enter a new password. You can enter alphanumeric letters of 6 or more and 10 or less for the administrator’s password. You cannot leave this field blank.
8) Confirm Password
Enter a new password that you entered in the “Administrator’s password” field.
Setting up the energy save
You can set the time to enter the Auto Clear, Auto Power Save and Auto Power Off mode.
1
2
3
1) Auto Clear
Select how long this equipment can remain inactive before the LCD of this equipment automatically returns to the default display and settings.
2) Auto Power Save
Select how long this equipment can remain inactive before entering the power save mode.
3) Sleep/Auto Shut Off
Select how long this equipment can remain inactive before entering the sleep mode or auto shut off mode.
Setting up the time and date
You can set the date, time, time zone, and date format.
1
2
1) Date/Time
To adjust the date, select year in the first field, select month in the second field, and enter date in the third field.
To adjust the time, enter hour in the fourth field, and enter time in the fifth field.
2) Time Zone
Select the time zone where this equipment is located.
Setting up the Web general setting
You can set the session timer to automatically log out from the administrator mode.
1
1) Session Timer
Enter how long you want this equipment to preserve the session data of TopAccess. You can enter any integer between 5 to 999.
Setting up Device Settings 85
10 TopAccess ADMINISTRATION TAB PAGE - SETUP
MENU (Printing Function)
Setting up Network Settings (Printing Function)
In the Network submenu page in the Setup menu, an administrator can configure the network settings such as TCP/IP, IPX/SPX, AppleTalk, Bonjour, DNS Session, DDNS Session, NetWare
Session, HTTP Network Service, and SNMP Network Service.
Setting the network settings
1
Access TopAccess in the administrator mode.
2
Click the Setup menu and Network submenu.
The Network submenu page is displayed.
3
In the Network submenu page, click link or scroll the page to find the setting table, and click the button of the setting to set the network settings as required.
In the Network submenu page, you can set the following:
P.89 “Setting up the AppleTalk”
P.91 “Setting up the DNS session”
P.92 “Setting up the DDNS session”
P.93 “Setting up the NetWare session”
P.94 “Setting up the HTTP network service”
P.95 “Setting up the SNMP network service”
86 Setting up Network Settings (Printing Function)
4
Click [OK].
The confirmation dialog box appears.
If you want to restore the current settings without saving the changes, click [Cancel].
Clicking [Cancel] cannot restore the defaults. This can only clear the changes and restore the current settings before saving the changes.
5
Click [OK] to save the settings and close the sub window.
6
Click [Save].
The confirmation dialog box appears.
7
Click [OK] to apply the changes.
This equipment starts initializing the NIC (Network Interface Card) to apply the changes.
When using the Internet Explorer, the settings that are displayed in each field may not be changed even if you change the settings and click [Save]. However, the settings have been changed in the equipment. In that case, click the General submenu then the page displays the current settings in each field.
Setting up Network Settings (Printing Function) 87
10 TopAccess ADMINISTRATION TAB PAGE - SETUP
MENU (Printing Function)
Setting up the TCP/IP
You can set the TCP/IP protocol to enable communication over TCP/IP. The TCP/IP must be configured to enable TopAccess, Raw TCP or LPR printing, and IPP printing.
1
2
3
4
5
1) Address Mode
Select how to set the IP address.
- Static IP — Select this to assign the static IP address manually. When this is selected, enter the static IP address in the IP Address field.
- No AutoIP — Select this to assign the IP address using the DHCP with Auto-IP addressing disabled. When this is selected, the IP address, subnet mask and default gateway can be automatically obtained from the DHCP server if the network supports the DHCP, but the IP address will not be assigned if the network does not support the DHCP.
- Dynamic — Select this to assign the IP address using the DHCP with Auto-IP addressing enabled. When this is selected, the IP address, subnet mask and default gateway can be automatically obtained from the DHCP server if the network supports the DHCP, and the IP address can be also assigned using Auto-IP addressing even if the network does not support the DHCP.
2) IP Address
Enter the static IP address that is assigned to this equipment when “Static IP” is selected in the “Address Mode” drop down box.
3) Subnet mask
Enter the subnet mask if required when “Static IP” is selected in the “Address Mode” drop down box.
4) Default Gateway
Enter the gateway address if required when “Static IP” is selected in the “Address Mode” drop down box.
5) IP Filtering
When you want to set the IP filtering, specify the range of IP addresses in the Start Address and End Address fields.
When you specify the range of IP addresses, only the client that the specified IP address range is assigned can access the equipment.
88 Setting up Network Settings (Printing Function)
Setting up the IPX/SPX
You can set the IPX/SPX protocol to enable the communication over IPX/SPX.
The IPX/SPX must be configured to enable Novell printing with NetWare server 5.1/6.0/6.5 over
IPX/SPX.
1
2
3
1) Enable IPX/SPX
Select whether the IPX/SPX protocol is enabled or disabled. Please enable this when configuring Novell printing over the IPX/SPX network.
2) Frame Type
Select the desired frame type for IPX/SPX.
- Auto Sense — Select this to use an appropriate frame type that the equipment found first.
- IEEE 802.3/Ethernet II/IEEE 802.3 Snap/IEEE802.2 — Instead of “Auto Sense”, select the frame types to be used from these options.
3) Actual Frame
This displays the actual frame type of the equipment.
Setting up the AppleTalk
You can set the protocol to enable communication over AppleTalk. The AppleTalk must be configured to enable AppleTalk printing from Macintosh computers.
1
2
3
1) Enable Apple Talk
Select whether the AppleTalk protocol is enabled or disabled. Please enable this when configuring AppleTalk printing.
2) Device Name
Enter the device name of the equipment that will be displayed in the AppleTalk network.
3) Desired Zone
Enter the zone name where the equipment will connect — if required. If you leave an asterisk in this field, the equipment will connect to the default zone.
Setting up Network Settings (Printing Function) 89
10 TopAccess ADMINISTRATION TAB PAGE - SETUP
MENU (Printing Function)
Setting up the Bonjour
In Bonjour, you can enable or disable the Bonjour networking that is available for Mac OS X
10.3.x/10.4.x//10.5.x.
1
2
3
1) Enable Bonjour
Select whether the Bonjour is enabled or disabled.
2) Link-Local Host Name
Enter the DNS host name of this equipment.
3) Service Name
Enter the device name of this equipment that will be displayed in the Bonjour network.
90 Setting up Network Settings (Printing Function)
Setting up the DNS session
In DNS Session, you can specify the DNS server to enable the FQDN (Fully Qualified Domain
Name) rather than the IP address on specifying each server address.
When the DNS service is enabled and the DNS server supports the dynamic DNS service, please set the DDNS Session as well.
P.92 “Setting up the DDNS session”
1
2
3
1) Enable DNS
Select whether the DNS server is used or not.
2) Primary DNS Server Address
Specify the IP address of the primary DNS server when the DNS service is enabled.
3) Secondary DNS Server Address
Specify the IP address of the secondary DNS server when the DNS service is enabled, as you require.
Setting up Network Settings (Printing Function) 91
10 TopAccess ADMINISTRATION TAB PAGE - SETUP
MENU (Printing Function)
Setting up the DDNS session
In DDNS Session, you can enable the Dynamic DNS service if the DNS server supports the dynamic DNS.
y When using DDNS and the IP address is assigned using DHCP, enter “006 DNS Servers” and “015 DNS Domain Name” in the DHCP Client to register the A record and PTR record of the equipment automatically using DDNS.
y When using DDNS, make sure the “Allow dynamic updates?” option is set to “Yes” (for Windows 2000 Server) or “Nonsecure and Secure” (for Windows Server 2003 / Windows Server
2008) for the Forward Lookup Zones and Reversed Lookup Zones. If "Secure" mode or
"None" is selected in Windows Server 2003 / Windows Server 2008, be sure to add the host name of the equipment to "Forward Lookup Zones" and "Reversed Lookup Zones".
Windows 2000 Server
(Forward Lookup Zones)
Windows Server 2003
(Forward Lookup Zones)
1
2
3
1) Enable DDNS
Select whether the dynamic DNS service is enabled or disabled.
2) Host Name
Enter the host name that will be added to the DNS server using DDNS.
92 Setting up Network Settings (Printing Function)
3) Domain Name
Enter the domain name that will be added to the DNS server using DDNS.
Setting up the NetWare session
In NetWare Session, you can set the NetWare Bindery or NDS service. This must be set when configuring a Novell printing environment.
3
4
1
2
5
1) Enable Bindery
Select whether the NetWare Bindery mode for Novell printing is enabled or disabled. When you configure a Novell printing environment with the NetWare server in bindery mode, you must enable this.
2) Enable NDS
Select whether the NetWare NDS mode for Novell printing is enabled or disabled. When you configure a Novell printing environment with the NetWare server in NDS mode, you must enable this. When this is enabled, you should also specify the context and tree for the NDS.
3) Context
Enter the NDS context that the NetWare print server for this equipment is located.
4) Tree
Enter the NDS tree.
5) Search root
Enter the NetWare server name that this equipment preferentially searches for the queues.
Setting up Network Settings (Printing Function) 93
10 TopAccess ADMINISTRATION TAB PAGE - SETUP
MENU (Printing Function)
Setting up the HTTP network service
In HTTP Network Service, you can enable or disable Web-based services such as TopAccess and IPP printing.
1
2
3
1) Enable HTTP Server
Select whether the Web-based TopAccess and IPP printing are enabled or disabled.
2) Primary Port Number
Enter the port number for the NIC HTTP server. Generally “80” is used for this port.
3) Secondary Port Number
Enter the port number for TopAccess. Generally “8080” is used for this port.
94 Setting up Network Settings (Printing Function)
Setting up the SNMP network service
In SNMP Network Service, you can enable or disable the SNMP to monitor the device status using a network monitoring utility. If an administrator wants to monitor the device status with a monitoring utility, programmed to fit the MIB, you must enable the SNMP and SNMP Traps.
5
6
3
4
1
2
7
8
1) Enable SNMP
Select whether the SNMP monitoring with MIB is enabled or disabled. This must be enabled to allow users to connect using the AddressBook Viewer.
2) Read Community
Enter the trap community name for the SNMP Traps.
If you specify a community name other than “public” for the Read Community, the applications that use MIB (AddressBook Viewer) will be unavailable. The SNMP communication of the printer driver also will be unavailable, so that the obtaining the configurations and confirming the department code will be disabled.
3) Read Write Community
Enter the Read Write community name for the SNMP Traps.
If you specify a community name other than “private” for the Read Write Community, the applications that use MIB (AddressBook Viewer) will be unavailable. The SNMP communication of the printer driver also will be unavailable, so that the obtaining the configurations of this equipment and confirming the department code will be disabled.
4) Enable Authentication Trap
Select whether sending a SNMP Traps when this equipment is accessed using SNMP from a different read community.
Setting up Network Settings (Printing Function) 95
10 TopAccess ADMINISTRATION TAB PAGE - SETUP
MENU (Printing Function)
5) Enable Alerts Trap
Select whether sending a SNMP Traps when an alert condition occurs.
6) IP Trap Address 1-10
Enter the IP address where the SNMP Traps will be sent. You can specify up to 10 addresses.
7) IP Trap Community
Enter the trap community name for the IP Traps.
8) IPX Trap Address
Enter the IPX address where the SNMP Traps will be sent.
96 Setting up Network Settings (Printing Function)
Setting up Copier Settings
In the Copier submenu page in the Setup menu, an administrator can configure the copier settings that initially apply to copy operations.
Some settings may not apply to the LCD of this equipment as soon as you save the settings.
The settings will be updated by pressing the [FUNCTION CLEAR] button on the Control Panel or after an Auto Clear time period.
Setting the copier settings
1
Access TopAccess in the administrator mode.
2
Click the Setup menu and Copier submenu.
The Copier submenu page is displayed.
3
In the Copier submenu page, set the copier settings as required.
To set the Copier Settings, see the following:
P.98 “Setting up the copier settings”
4
Click [Save].
The confirmation dialog box appears.
If you want to restore the current settings without saving the changes, click [Cancel].
Clicking [Cancel] cannot restore the defaults. This can only clear the changes and restore the current settings before saving the changes.
Setting up Copier Settings 97
10 TopAccess ADMINISTRATION TAB PAGE - SETUP
MENU (Printing Function)
5
Click [OK] to apply the changes.
When using the Internet Explorer, the settings that are displayed in each field may not be changed even if you change the settings and click [Save]. However, the settings have been changed in the equipment. In that case, click the Copier submenu then the page displays the current settings in each field.
Setting up the copier settings
In Copier Settings, you can set the default copier settings that apply for copy operation from the
LCD of this equipment.
Depending on the settings in this equipment, some copier setting items may not be displayed.
1
2
3
4
1) APS/AMS
Select whether to give priority to APS or AMS, or to disable the priority.
- APS (Automatic Paper Selection) — Automatically detects the size of the originals and selects the drawer in which paper of the same size as the originals is used.
- AMS (Automatic Magnification Selection) — Automatically sets the reproduction ratio to match the scanned original data to the paper size in the selected drawer.
- No — Disable priority.
2) Original Mode
Select the default original mode for black/white originals.
3) Exposure
Select the type of image density for black and white copy.
- Auto — Select this to set the Auto mode as the default exposure for black and white copy. The Auto mode automatically detects the density of the original to make copies at the optimum exposure.
- Manual — Select this to set the density level manually within 7 stages.
4) Sorter Mode Priority
Select the default sort mode for copying.
98 Setting up Copier Settings
Setting up Fax Settings
In the Fax submenu page in the Setup menu, an administrator can configure the fax device settings and the settings initially apply to fax operations.
y Some settings may not apply to the LCD of this equipment as soon as you save the settings.
The settings will be updated by pressing the [FUNCTION CLEAR] button on the Control
Panel or after an Auto Clear time period.
y The Fax submenu page in the Setup menu is available only when the optional Fax unit is installed.
Setting the fax settings
1
Access TopAccess in the administrator mode.
2
Click the Setup menu and Fax submenu.
The Fax submenu page is displayed.
3
In the Fax submenu page, set the fax settings as required.
To set the Fax Settings, see the following:
P.101 “Setting up the Fax settings”
Setting up Fax Settings 99
10 TopAccess ADMINISTRATION TAB PAGE - SETUP
MENU (Printing Function)
4
Click [Save].
The confirmation dialog box appears.
If you want to restore the current settings without saving the changes, click [Cancel].
Clicking [Cancel] cannot restore the defaults. This can only clear the changes and restore the current settings before saving the changes.
5
Click [OK] to apply the changes.
y If a valid value is not set to both “Interval” and “Counter” for redialing, the error message “Please enter a valid value.” is displayed. Click [OK] on the error dialog box and enter valid values.
y When using the Internet Explorer, the settings that are displayed in each field may not be changed even if you change the settings and click [Save]. However, the settings have been changed in the equipment. In that case, click the Fax submenu then the page displays the current settings in each field.
100 Setting up Fax Settings
Setting up the Fax settings
In Fax Settings, you can set the default fax settings that apply to fax operation from the LCD of this equipment.
Depending on the settings in this equipment, some Fax setting items may not be displayed.
1
7
8
9
2
3
4
5
6
18
27
28
29
30
31
32
33
34
19
20
21
22
23
24
25
26
10
11
12
13
14
15
16
17
1) Terminal ID
Enter the terminal ID name (company name) to identify this equipment. The name will be printed at the leading edge of all documents transmitted.
2) Fax Number
Enter the fax number of this equipment. This fax number will be printed at the leading edge of all documents transmitted from Line 1.
3) Ringer Volume
Selects the volume of the ringer.
Setting up Fax Settings 101
10 TopAccess ADMINISTRATION TAB PAGE - SETUP
MENU (Printing Function)
4) Monitor Volume
Select the volume of the line monitor during transmission.
5) Alarm Volume
Selects the volume of the alarm.
6) Reception Mode
Select how this equipment activates when a fax is received.
- Auto — Select this to automatically receive incoming originals when the bell rings. Select this when the line is being used exclusively by the fax transmission.
- Manual — Select this to manually receive incoming originals after pressing the Start button on the Control Panel.
7) Resolution
Select the default resolution for sending faxes.
- Standard — Select this to set the Standard mode as the default resolution appropriate for the originals in which the text is regular size.
- Fine — Select this to set the Fine mode as the default resolution appropriate for the originals in which the text is small or a detailed drawing is contained.
- Ultra Fine — Select this to set the Ultra-Fine mode as the default resolution appropriate for the originals in which the text is particularly small or a precision drawing is contained.
8) Receive Interval
Selects the interval of transmissions. Transmissions are forcibly paused every 4 times to receive incoming faxes during each interval. This interval can be set from 0 to 15 minutes.
9) Redial Mode
Selects redialing intervals and the number of times to redial when the line is busy.
- Interval — Selects the redialing interval from 0 to 15 minutes.
- Counter — Selects the number of times to redial from 0 to 14.
10) Memory TX
Selects whether the fax data are temporarily stored in the memory before transmission or not.
11) Security TX
Checks whether the number you dialed matches that of a destination or not and determines whether the fax data should be transmitted or not. If these numbers do not match, the fax data will not be transmitted to prevent inadvertent data transmission caused by dialing mistakes or misconnection of a telephone switchboard. You can select whether to enable or disable this function.
12) TTI
Select whether printing a transmission header (TTI) to identify the sender of received faxes.
13) RTI
Select whether printing a reception header (RTI) on received faxes to clearly identify the time, date, and page count of received faxes.
14) ECM
Select whether enabling or disabling the ECM (Error Correction Mode) to automatically resend any portion of the document affected by phone line noise or distortion.
15) Discard
Select whether discarding the lower portion of the received fax image if it is larger than the recording paper.
16) Reduction
Select whether reducing the received fax image if it is larger than the effective printing area of the recording paper.
17) Recovery Transmit
Select whether re-transmitting a fax after failing the initially specified number of redial attempts. When this is enabled, select the stored time length from 1 to 24 hours.
102 Setting up Fax Settings
18) Send after Scan
Selects whether to temporarily store all the scanned fax data before transmission or not.
- Dial During Scan — Transmits the data without storing them in the memory before transmission.
- Dial After Scan — Scans and stores the data in the memory before transmission.
When you select “Dial After Scan”, you can further select in the memory-full status whether you send the fax data scanned and stored so far in the memory or not.
19) When Memory Full
Select the fax transmission method when memory full occurs.
- Delete Scan Pages – Deletes the stored data and stops the transmission.
- Send Scan Pages – Transmits the data stored before the memory-full status.
20) Account Code
Selects whether to enable or disable the entry of the account code for each transmission.
When this function is enabled, you can figure out in a transmission journal how many faxes have been transmitted to each destination.
21) Separator Page
Selects whether to print separator pages which automatically separate a stack of faxes received from one destination or not. When this function is enabled, you can easily sort the received faxes.
22) Memory RX
Selects whether the received fax data are stored in the memory before printing them or not when any printing problems have occurred (e.g. running out of recording paper, a recording paper jam).
23) Privileged RX
Selects whether to receive faxes from only limited senders or not, such as the ones registered in the abbreviated number list or the one touch dial number list.
24) Journal Auto Print
Select whether automatically printing a transmission and reception journal after every transmission is completed.
25) Transmission Report
Selects how the transmission report is printed out.
- OFF — Does not print out the transmission report.
- Always — Prints out the transmission report at the completion of each transmission.
- ON ERROR — Prints out the transmission report only when a transmission error has occurred.
26) Memory Transmission Report
Select how to print a result report after a memory transmission.
- OFF — Select this to not print a memory transmission report.
- Always — Select this to print a memory transmission report with all page images for each memory transmission is completed.
- ON ERROR — Select this to print a memory transmission report with all page images only when the memory transmission is not successfully completed.
- Always (Print 1st Page Image) — Select this to print a memory transmission report with the 1st page image for each memory transmission is completed.
- ON ERROR (Print 1st Page Image) — Select this to print a memory transmission report with the 1st page image only when the memory transmission is not successful.
27) Multi Transmission Report
Select how to print a result report after a multi-address transmission.
- OFF — Select this to not print a multi-address transmission report.
- Always — Select this to print a multi-address transmission report with all page images for each multi-address transmission is completed.
Setting up Fax Settings 103
10 TopAccess ADMINISTRATION TAB PAGE - SETUP
MENU (Printing Function)
- ON ERROR — Select this to print a multi-address transmission report with all page images only when the multi-address transmission is not successfully completed.
- Always (Print 1st Page Image) — Select this to print a multi-address transmission report with the 1st page image for each multi-address transmission is completed.
- ON ERROR (Print 1st Page Image) — Select this to print a multi-address transmission report with the 1st page image only when the multi-address transmission is not successful.
28) Polling Report
Select how to print a result report after a multi-polling reception.
- OFF — Select this to not print a multi-polling report.
- Always — Select this to print a multi-polling report for each multi-polling reception.
- ON ERROR — Select this to print a multi-polling report only when the multi-polling reception is not successful.
29) Relay Originator
Select how to print a result report after a relay transmission.
- OFF — Select this to not print a relay station report.
- Always — Select this to print a relay station report with all page images for each relay transmission is completed.
- ON ERROR — Select this to print a relay station report with all page images only when the relay transmission is not successful.
- Always (Print 1st Page Image) — Select this to print a relay station report with the 1st page image for each relay transmission is completed.
- ON ERROR (Print 1st Page Image) — Select this to print a relay station report with the
1st page image only when the relay transmission is not successful.
30) Relay Station Report
Selects how the relay station report is printed out.
- OFF — Does not print out the relay station report.
- Always — Prints out the relay station report at the completion of each transmission.
- ON ERROR — Prints out the relay station report only when a transmission error has occurred.
- Always (Print 1st Page Image) — Prints out the relay station report with the 1st page of the original at the completion of each transmission.
- ON ERROR (Print 1st Page Image) — Prints out the relay station report with the 1st page of the original only when a transmission error has occurred.
31) Relay End Report
Selects how the relay end report is printed out.
- OFF — Does not print out the relay end report.
- Always — Prints out the relay end report at the completion of each transmission.
- ON ERROR — Prints out the relay end report only when a transmission error has occurred.
- Always (Print 1st Page Image) — Prints out the relay end report with the 1st page of the original at the completion of each transmission.
- ON ERROR (Print 1st Page Image) — Prints out the relay end report with the 1st page of the original only when a transmission error has occurred.
32) Local Mailbox List
Selects whether to print out the mailbox list of your fax unit for each transmission automatically or not.
33) Remote Mailbox List
Selects whether to print out the mailbox list of other fax units for each transmission automatically or not.
34) Relay Reception List
Selects whether to print out a list for the content of the received fax for each reception automatically or not.
104 Setting up Fax Settings
Setting up Printer Settings
In the Printer submenu page in the Setup menu, an administrator can configure how the printer works and the printer options needed for the raw print jobs.
Setting the printer settings
1
Access TopAccess in the administrator mode.
2
Click the Setup menu and Printer submenu.
The Printer submenu page is displayed.
3
In the Printer submenu page, set the Printer settings as required.
To set the Printer Settings, see the following:
P.106 “Setting up the general setting”
P.107 “Setting up the default Raw job setting”
P.108 “Setting up the Raw job setting”
4
Click [Save].
The confirmation dialog box appears.
If you want to restore the current settings without saving the changes, click [Cancel].
Clicking [Cancel] cannot restore the defaults. This can only clear the changes and restore the current settings before saving the changes.
Setting up Printer Settings 105
10 TopAccess ADMINISTRATION TAB PAGE - SETUP
MENU (Printing Function)
5
Click [OK] to apply the changes.
When using the Internet Explorer, the settings that are displayed in each field may not be changed even if you change the settings and click [Save]. However, the settings have been changed in the equipment. In that case, click the Printer submenu then the page displays the current settings in each field.
Setting up the general setting
In General Setting, you can specify the printer related options.
1
2
3
1) LT<-->A4/LD<-->A3
Select whether printing a document intended for that one paper size can be printed on paper of a different size. For example, you can print a document set up for Letter size on A4 paper.
When disabled, this equipment will prompt users for the correct paper size.
2) Wide A4 Mode (for PCL)
Select whether the width of the printable area of copy paper is widened or not when you are printing PCL print job on A4 paper.
Select [Enable] to widen it for approx. 3.5 mm / 0.14 inch (when in a portrait direction) and approx. 1.5 mm / 0.06 inch (when in a landscape direction). Thus more data can be printed for each line.
3) Print Startup Page
Select whether printing the startup page every time this equipment is powered on. The startup page is the NIC Status page.
106 Setting up Printer Settings
Setting up the default Raw job setting
In Default Raw Job Setting, you can specify the default raw job setting, which applies a raw job that no queue name is specified or specified queue name does not exist.
You can also add LPR queue names and specify the raw job setting for each queue.
P.108 “Setting up the Raw job setting”
10
11
8
9
6
7
1
2
3
4
5
1) Raw jobs - Duplex Printing
Select whether a raw job will be printed on both sides of the paper.
The “Raw jobs - Duplex Printing” option is available only when the Automatic Duplexing Unit is installed.
2) Raw jobs - Default Paper Size
Select the default paper size that applies to a raw job.
3) Raw jobs - Default Paper Type
Select the default paper type that applies to a raw job.
4) Raw jobs - Default Orientation
Select the default orientation that applies to a raw job.
5) PCL Form Line
Enter the number of lines printed per page.
6) PCL Font Pitch
Enter the font pitch when the selected font number represents a fixed pitch scalable font.
Pitch is measured by letters per inch, so a 10-pitch is ten letters per inch.
7) PCL Font Point Size
Enter the font size when the selected font number represents a proportionally spaced scalable font. The Font Size option allows you to determine the point size (height) of the default font.
8) PCL Font Number
Enter the font number of the internal PCL font to be used as the default font for printing. You can check the font numbers and internal PCL fonts in the Internal PCL Font List. Please see the Printing Guide for the font number of internal PCL fonts,
9) PCL Line Termination
Select the type of the line termination.
10) Symbol set
Select the symbol set that applies to a raw job.
Setting up Printer Settings 107
10 TopAccess ADMINISTRATION TAB PAGE - SETUP
MENU (Printing Function)
11) Paper Source
Select the paper source that applies to a raw job.
Setting up the Raw job setting
In Raw Job Setting, you can add up to 16 LPR queue names and specify the raw job setting for each queue. These queue names can be used when printing without a printer driver, such as printing from UNIX workstation.
You can add, edit, or delete a LPR queue.
P.108 “Adding or editing a LPR queue”
Adding or editing a LPR queue
1
To add a new LPR queue, click [Add] in Raw Job Setting.
To edit an existing LPR queue, select a radio button of a queue that you want to edit and click [Edit].
The Add New LPR Queue page is displayed.
108 Setting up Printer Settings
2
Enter following items as required.
Queue Name — Enter the queue name using up to 31 alphanumeric letters. The queue name is case sensitive so that “Queue1” and “queue1” will be added as different queues.
Raw jobs - Duplex Printing — Select whether a raw job will be printed on both sides of the paper.
Raw jobs - Default Paper Size — Select the default paper size that applies to a raw job.
Raw jobs - Default Paper Type — Select the default paper type that applies to a raw job.
Raw jobs - Default Orientation — Select the default orientation that applies to a raw job.
PCL Form Line — Enter the number of lines printed per page.
PCL Font Pitch — Enter the font pitch when the selected font number represents a fixed pitch scalable font. Pitch is measured by letters per inch, so a 10-pitch is ten letters per inch.
PCL Font Point Size — Enter the font size when the selected font number represents a proportionally spaced scalable font. The Font Size option allows you to determine the point size (height) of the default font.
PCL Font Number — Enter the font number of the internal PCL font to be used as the default font for printing. You can check the font numbers and internal PCL fonts in the
Internal PCL Font List. Please see the Printing Guide for the font number of internal
PCL fonts.
PCL Line Termination — Select the type of the line termination.
Symbol set — Select the symbol set that applies to a raw job.
Paper Source — Select the paper source that applies to a raw job.
3
Click [Save].
The queue name is added in the list.
Setting up Printer Settings 109
10 TopAccess ADMINISTRATION TAB PAGE - SETUP
MENU (Printing Function)
Deleting a LPR queue
1
Select a radio button of a queue that you want to delete and click
[Delete].
The confirmation dialog box appears.
2
Click [OK].
The selected queue is deleted.
110 Setting up Printer Settings
Setting up Print Service Settings (Printing Function)
In the Print Service submenu page in the Setup menu, an administrator can configure such print services as Raw TCP Print, LPD Print, IPP Print, and NetWare Print.
Some settings may not apply to the LCD of this equipment as soon as you save the settings.
The settings will be updated by pressing the [FUNCTION CLEAR] button on the Control Panel or after an Auto Clear time period.
Setting the print service settings
1
Access TopAccess in the administrator mode.
2
Click the Setup menu and Print Service submenu.
The Scan to Print Service submenu page is displayed.
3
In the Print Service submenu page, set the Print Service settings as required.
In the Print Service submenu page, you can set the following:
P.112 “Setting up the Raw TCP print”
P.113 “Setting up the LPD print”
P.113 “Setting up the IPP print”
P.114 “Setting up the NetWare print”
Setting up Print Service Settings (Printing Function) 111
10 TopAccess ADMINISTRATION TAB PAGE - SETUP
MENU (Printing Function)
4
Click [Save].
The confirmation dialog box appears.
If you want to restore the current settings without saving the changes, click [Cancel].
Clicking [Cancel] cannot restore the defaults. This can only clear the changes and restore the current settings before saving the changes.
5
Click [OK] to apply the changes.
When using the Internet Explorer, the settings that are displayed in each field may not be changed even if you change the settings and click [Save]. However, the settings have been changed in the equipment. In that case, click the Print Service submenu then the page displays the current settings in each field.
Setting up the Raw TCP print
In Raw TCP Print, you can enable or disable the Raw TCP print service.
1
2
3
1) Enable Raw TCP
Enable or disable Raw TCP print service.
2) Port Number
If enabling the Raw TCP, enter the Raw TCP port number for the Raw TCP print. Generally
“9100” is used.
3) Enable Raw bi-directional
Enable or disable Raw bi-directional communication.
112 Setting up Print Service Settings (Printing Function)
Setting up the LPD print
In LPD Print, you can set the LPD print options to enable the LPD/LPR print service.
1
2
3
1) Enable LPD
Enable or disable LPD print service.
2) Port Number
If enabling the LPD, enter the LPD port number. Generally “515” is used.
3) Banners
Select whether printing a banner page for each print job using LPR printing.
When printing from Macintosh computer using LPR printing, the PostScript code will be printed instead of a banner page. If any users will print from Macintosh computers using LPR printing, please disable the “Banners” option.
Setting up the IPP print
In IPP Print, you can set the IPP Print options to enable the IPP print service.
6
7
8
3
4
5
1
2
9
1) Enable IPP
Enable or disable IPP print service.
2) Port80 Enable
Enable or disable the Port80 for IPP printing. Port631 is usually used for the IPP access so users must specify to the URL, i.e. “http://<IP address or DNS name>:631/Print”, for the IPP port. When this is enabled, this equipment allows IPP access through the Port80, which is the default port for the HTTP access so users do not have to specify the port number in the
IPP port, i.e. “http://<IP address or DNS name>/Print”.
3) Port Number
If enabling the IPP, enter the IPP port number. Generally “631” is used.
4) URL
Display the URL for IPP printing. You cannot change the URL for IPP printing. This URL should be set as the print port when users set up the printer driver for IPP printing.
Setting up Print Service Settings (Printing Function) 113
10 TopAccess ADMINISTRATION TAB PAGE - SETUP
MENU (Printing Function)
5) Administrator’s Name
Enter the administrator’s user name to be allowed to perform the [Cancel All Documents] function. The user who log in to the computer using this administrator’s name can delete all jobs in the IPP queue by selecting [Cancel All Documents] command in the [File] menu of printer queue dialog box on Windows.
6) Administrator’s Password
Enter the password of user to be allowed to perform the [Cancel All Documents] function.
7) Authentication
Enable or disable the authentication for creating the IPP queue on the client computers.
When this is enabled, the dialog box to enter a user name and password will be displayed when a user creates the IPP print port.
- Disable — Select this to disable the authentication.
- Basic — Select this to enable the authentication.
To enable the authentication, be sure to select “Basic”. If “Digest” or “Basic Digest” is selected, users no longer create the IPP print port, because “Digest” or “Basic Digest” is not supported for Windows.
8) User Name
Enter the user name for authentication.
9) Password
Enter the password for authentication. “123456” has been set as the default.
Setting up the NetWare print
In NetWare Print, you can set the NetWare print options to enable the Novell print service.
1
2
3
1) Login Name
Enter the print server name that is created in the NetWare file server.
2) Password
Enter the password that is set to the print server, if required.
3) Print Queue Scan Rate
Enter how frequently to scan the print queues for print jobs. This should be entered in second. You can enter between 1 to 255.
114 Setting up Print Service Settings (Printing Function)
Displaying Version Information
An administrator can display the system software version information of this equipment.
The version information can be displayed from the Setup menu page.
1
Access TopAccess in the administrator mode.
2
Click the Setup menu and Version submenu.
The Version submenu page is displayed.
3
In the Version submenu page, you can confirm the version information of the system software.
Displaying Version Information 115
11.
TopAccess ADMINISTRATION TAB PAGE
- MAINTENANCE MENU
This chapter describes the maintenance of TopAccess performed by the TopAccess administrator.
11 TopAccess ADMINISTRATION TAB PAGE -
MAINTENANCE MENU
About the Maintenance Functions
In the Maintenance menu of the TopAccess administrator mode, an administrator can perform the following maintenance:
Install Language
The administrator can change the language displayed in the TopAccess screen.
Backing up data
An administrator can create backup files of address book.
Restoring data from the backup files
An administrator can restore the address book from the backup files.
P.124 “Restoring Data from Backup File”
Importing address book data
This equipment allows you to import address book data in CSV format.
P.127 “Importing Address Book Data”
Exporting address book data
The address book data can be exported in a CSV format.
P.130 “Exporting Address Book Data”
Exporting department code data
The department code data can be exported in a CSV format.
P.134 “Exporting Department Code Data”
When the address book data of the equipment are backed up, restored or imported/exported, updating the data may take a while depending on their data size. Do not turn the power of the equipment OFF until the data are updated.
118 About the Maintenance Functions
Switching Languages
You can switch the currently-used language to the desired one by uploading the language of
TopAccess in the Client Utilities CD-ROM to this equipment.
When the Scanner Upgrade Kit (optional) has been installed, upload the TopAccess language data stored in the Scan Utilities CD-ROM (included in the Scanner Upgrade Kit) in order to switch TopAccess languages according to the Setup Guide for Scanning Functions. The
TopAccess language data are also provided in the Client Utilities CD-ROM (included in the Network Printer Kit), which is described in this guide. However, they do not support the scanning function.
1
Insert the Client Utilities CD-ROM into a client PC.
When inserting the Client Utilities CD-ROM, the installer may automatically start. Click
[Cancel] to make the installer exit and continue the operation.
2
Access TopAccess in the administrator mode.
3
Click the Maintenance menu and Install Language submenu.
The Install Language submenu page is displayed.
4
Select the desired language in the “Select” drop down box.
Switching Languages 119
11 TopAccess ADMINISTRATION TAB PAGE -
MAINTENANCE MENU
5
Click [Browse] and then select the TOPACCESS folder in the Client
Utilities CD-ROM. Then select the desired language file and click
[Open].
TopAccess language:
[Client Utilities CD-ROM]: \TOPACCESS\<Language>
If the language selected in the drop down box and the one selected from the Client Utilities CD-ROM differ, the error message dialog box shown below appears. Click [OK] in this message dialog box and then select the correct language.
6
Click [Upload].
Uploading starts. When it is completed, the language is switched.
120 Switching Languages
Backing up Data
The administrator can create backup files of the address book data. The backup files can be used to restore or upload to other e-STUDIO165/205, e-STUDIO167/207/237 or e-STUDIO182/
212/242 compatible equipments.
1
Access TopAccess in the administrator mode.
2
Click the Maintenance menu and Backup submenu.
The Backup submenu page is displayed.
3
Click [Create New File] for the data that you want to backup.
“Backup or restoration process in progress.” appears and the backup process begins.
Backing up Data 121
11 TopAccess ADMINISTRATION TAB PAGE -
MAINTENANCE MENU
4
Click [REFRESH] on the right side.
A backup file is created and its name and size will be displayed.
If the screen is not refreshed by clicking the [REFRESH] icon, please wait a while and then try again. Creating the backup file may take a few minutes depending on its size.
5
Right-click the File Name link and select [Save Target As...].
The Save As dialog box appears.
122 Backing up Data
6
Select the file location and select “All Files” in the “Save as type” drop down box.
It is recommended to save the backup file as it is named. If you change the file name, the equipment cannot restore the data from the backup files. The file name of each backup data must be the following name:
- Address Book: BACKUP_ADDR<date>.tbf
7
Click [Save].
The backup file is saved in the selected location.
If you turn the power of the equipment OFF, the export files in the equipment will be lost.
Backing up Data 123
11 TopAccess ADMINISTRATION TAB PAGE -
MAINTENANCE MENU
Restoring Data from Backup File
An administrator can restore the address book data using the backup files. This maintenance feature is used to restore data from backup files, to recover the original environments.
Before restoring the data from backup files, please confirm that there is no print job, no scan job, and no fax job. The backup files cannot be restored if there are any jobs that have been processed.
1
Access TopAccess in the administrator mode.
2
Click the Maintenance menu and Restore submenu.
The Restore submenu page is displayed.
3
Click [Browse] in the data section that you want to restore.
The Choose File dialog box appears.
124 Restoring Data from Backup File
4
Select a backup file and click [Open].
If the backup file name is not the name as shown below, the equipment cannot restore the data from the backup files.
- Address Book: BACKUP_ADDR<date>.tbf
5
Click [Upload].
The Restore screen displays the backup file information.
Restoring Data from Backup File 125
11 TopAccess ADMINISTRATION TAB PAGE -
MAINTENANCE MENU
6
Check the box of Address Book and click [Restore].
“Backup or restoration process in progress.” appears and the restoration process begins.
7
Click [REFRESH] on the right side.
The address book data are restored in this equipment.
If the screen is not refreshed by clicking the [REFRESH] icon, please wait a while and then try again. Restoration may take a few minutes depending on the file size.
126 Restoring Data from Backup File
Importing Address Book Data
You can import the address book data in a CSV format to TopAccess. The data need to be comma-deliminated CSV files complying with the address book data format of TopAccess. Create the file in the following format:
"NAME","Email Address","Tel Number","ABB_ID","OT_ID","Search Letter"
"Use01","[email protected]","000000000001","1","1","A"
"Use02","[email protected]","000000000002","","2","B"
"Use03","[email protected]","000000000003","2","","A"
Each item in the address book data is imported to TopAccess under the following item names:
Item Names in
Address Book
NAME
Email Address
Tel Number
ABB_ID
OT_ID
Item Names in TopAccess
Name
(Import disabled)
Fax Number
ABB. Number
One Touch Number
Maximum Number of letters
Acceptable
20 one-byte letters / 10 two-byte letters
-
128 one-byte letters
(Digits and signs “ * ”, “#”, “ - ”)
3 one-byte letters
(Digits from 001 to 999)
2 one-byte letters
(Digits from 1 to 75)
Search Letter Search Letter 1 one-byte letters
(Capital letters, digits, signs) y Be sure to enter “NAME” and “Tel Number”, or the data will not be imported.
y Data with letters exceeding the maximum number shown above cannot be imported.
y Be sure to enter either “ABB_ID” or “OT_ID”.
y A maximum of 300 abbreviated numbers (“ABB_ID”) and a maximum of 75 one-touch numbers (“OT_ID”) can be imported.
y If an abbreviated number (“ABB_ID”) already registered for one user is used for another, only the data of the user first registered in this abbreviated number will be imported. (The same procedure is taken in one-touch numbers (“OT_ID”).) y For letters accepted for “Search Letter”, see the Operator’s Manual for Facsimile Func-
tion.
Importing Address Book Data 127
11 TopAccess ADMINISTRATION TAB PAGE -
MAINTENANCE MENU
Before importing the address book data, confirm that this equipment meets the conditions shown below. If this equipment does not meet any of the following conditions, the address book data will not be imported: y The main screen of any operation modes (e.g. copy mode) is displayed or this equipment has entered into the energy saving mode from the status displaying the main screen of any operation modes.
y No reserved jobs or jobs in process exist.
1
Access TopAccess in the administrator mode.
2
Click the Maintenance menu and Import submenu.
The Import submenu page is displayed.
3
Click [Browse...] in the Address Book area.
The Choose File dialog box appears.
4
Select the CSV file that contains address book data and click
[Open].
128 Importing Address Book Data
5
Click [Import].
“Backup or restoration process in progress.” appears and the import process begins.
6
Click [REFRESH] on the right side.
The address book data are imported from the CSV file to this equipment.
If the screen is not refreshed by clicking the [REFESH] icon, please wait a while and then try again. Import may take a few minutes depending on the file size.
Importing Address Book Data 129
11 TopAccess ADMINISTRATION TAB PAGE -
MAINTENANCE MENU
Exporting Address Book Data
The address book data can be exported in a CSV format. For the formats of the address book data and each item, see the following page:
P.127 “Importing Address Book Data”
1
Access TopAccess in the administrator mode.
2
Click the Maintenance menu and the Export submenu.
The Export submenu page is displayed.
3
Click [Create New File] in the Address Book area.
The information of the address book data (CSV file name) is displayed.
130 Exporting Address Book Data
4
Right-click the link of the file name, and select [Save Target As ...].
The Save As dialog box is displayed.
5
Specify where the file is to be saved, and select "All Files" in the
"Save as type" drop down box.
6
Click [Save].
The address book data file in a CSV format is saved in the location you specified.
If you turn the power of the equipment OFF, the export files in the equipment will be lost.
Exporting Address Book Data 131
11 TopAccess ADMINISTRATION TAB PAGE -
MAINTENANCE MENU
Importing Department Code Data
You can import the department code data in a CSV format that were previously exported.
Before importing the department code data, confirm that this equipment meets the conditions shown below. If this equipment does not meet any of the following conditions, the department code data will not be imported: y The department code function is enabled.
y The department code entry screen is displayed or this equipment has entered into the energy saving mode from the status displaying the department code entry screen.
y No reserved jobs or jobs in process exist.
1
Access the TopAccess in the administrator mode.
2
Click the Maintenance menu and Import submenu.
The Import submenu page is displayed.
3
Click [Browse...] in the Department Code area.
The Choose File dialog box appears.
132 Importing Department Code Data
4
Select CSV file of the department code data that were exported previously, and then click [Open].
5
Click [Import].
"Backup or restoration process in progress." appears and the import process begins.
6
Click the [REFRESH] on the right side.
The department code data are imported from the CSV file to this equipment.
If the screen is not refreshed by clicking the [REFRESH], wait for a while and then try again. Import may take a few minutes depending on the file size.
Importing Department Code Data 133
11 TopAccess ADMINISTRATION TAB PAGE -
MAINTENANCE MENU
Exporting Department Code Data
The department code data can be exported in a CSV format.
y Before importing the department code data, confirm that the department code function is enabled. If disabled, the data will not be imported.
y The purpose of this procedure is backing up the department code data to prepare for failure.
Do not edit or delete the exported data because they will be needed at the time of importing them back.
1
Access TopAccess in the administrator mode.
2
Click the Maintenance menu and the Export submenu.
The Export submenu page is displayed.
3
Click [Create New File] in the Department Code Export area.
The information of the department code data (CSV file name) is displayed.
134 Exporting Department Code Data
4
Right-click the link of the file name, and select [Save Target As ...].
The Save As dialog box is displayed.
5
Specify where the file is to be saved, and select "All Files" in the
"Save as type" drop down box.
6
Click [Save].
The department code data file in a CSV format is saved in the location you specified.
If you turn the power of the equipment OFF, the export files in the equipment will be lost.
Exporting Department Code Data 135
12.
MANAGING DEPARTMENT CODES ON
TopAccess (FOR ADMINISTRATORS)
This chapter describes how to have department codes managed by an administrator.
Managing Department Codes (For Administrators) ..........................................138
12 MANAGING DEPARTMENT CODES ON TopAccess
(FOR ADMINISTRATORS)
Managing Department Codes (For Administrators)
On the Department menu page at the Counter tab, by entering the master code, the administrator can display the department list that contains the counter information for each department.
Displaying the department counter is available only when a department code is set by using this equipment.
To register or delete the department codes, use the control panel of this equipment. For department code settings in this equipment, see Operator’s Manual for Copying Functions.
1
Click the Counters tab and the Department menu.
The Department menu page is displayed.
2
Enter the master code in the “Department Code” field and click
[Enter].
The Department Management page is displayed.
3
The departments list containing the counter information is displayed.
You can display the desired department code information by entering that code.
138 Managing Department Codes (For Administrators)
13.
TROUBLESHOOTING
This chapter describes the most common TopAccess errors, and provides procedures to resolve the conditions. If the problem persists after you have followed all of the steps, make sure to note what you were trying to do and any error messages appear, etc. — and then contact your service representative.
13 TROUBLESHOOTING
TopAccess Error Messages
Device status indicator list
When an error occurs, the Device status indicator will be displayed on the Device tab page of
TopAccess. For details, see the following page:
P.56 “TopAccess Device Tab Page”
y Printer Error
The above printer error icon indicates:
- You need to remove paper from the receiving tray.
- Non-recommended toner is being used.
For information on how to resolve the error condition, see “Replacing Toner Cartridge” in the Operator’s Manual for Copying Functions.
y
Cover Open
The Cover Open error icon indicates that you need to close the cover.
y Toner Empty
The Toner Empty icon indicates the empty status of the toner cartridge. For information on how to resolve the error condition, see “Replacing Toner Cartridge” in the Operator’s
Manual for Copying Functions.
y Paper Empty
The Paper Empty icon indicates that one of the drawers is opened. You must close the opened drawer to resume printing or copying. This icon also indicates the empty status of the drawer. This status does not immediately stop a print job or a copy job. If the automatic paper selection (APS) function is enabled, the print or copy job may continue by selecting paper of the same size in the other drawer. For information on how to resolve the error condition, see “When this message appears” in the Operator’s Manual for Copying Func-
tions.
When paper has run out, you can cancel a print job in process from the control panel of this equipment. See the following page for how to cancel a print job:
y Paper Jam
The Paper Jam icon indicates that you must remove jammed paper from the equipment. For information on how to resolve the error condition, see “Paper Jams” in the Operator’s
Manual for Copying Functions.
y Service calls
The Service Call error icon indicates that you must call for service. Contact your service technician.
140 TopAccess Error Messages
Error message list
The error message will be displayed in “Alerts” field on the Device tab page of TopAccess.
For the details, see the following page:
P.56 “TopAccess Device Tab Page”
TopAccess Message
Main Motor Error - Please Contact Service
Technician.
Fuser Error - Please Contact Service Technician.
Scanner Error - Please Contact Service
Technician.
Toner Not Recognized - Please Check
Toner.
Fatal Error - Please Contact Service Technician.
Paper Jam in Automatic Duplexing Unit -
Please Clear Paper Path.
Paper Jam in Printer - Please Clear Paper
Path.
Paper Insertion Jam - Please Clear Paper
Path.
Front Cover Open - Please Close Cover.
Paper Feeding Cover Open - Please Close
Cover.
Lower Side Cover Open - Please Close
Cover.
Transfer/Transport unit Cover Open - Please
Close Cover.
Black Toner Empty - Please Refill.
Corrective Action
Contact your service representative.
Contact your service representative.
Contact your service representative.
Check and adjust the toner cartridge.
Contact your service representative.
Remove jammed paper.
Remove jammed paper.
Remove jammed paper.
Close the Front cover.
Close the Paper Feeding cover.
Close the Lower Side cover.
Close the Transfer/Transport unit cover.
Replace the toner. Refer to the Operator's
Manual for Copying Functions for instruction.
Prepare the toner cartridge.
Black Toner Cartridge Depleted - Please
Install New Cartridge Before System is
Empty.
Paper Empty in Drawer 1 - Please Add
Paper.
Paper Empty in Drawer 2 - Please Add
Paper.
Paper Empty in Drawer 3 - Please Add
Paper.
Paper Empty in Drawer 4 - Please Add
Paper.
Set paper in the drawer 1.
Set paper in the drawer 2.
Set paper in the drawer 3.
Set paper in the drawer 4.
TopAccess Error Messages 141
14.
APPENDIX
This chapter has been prepared to give additional information.
14 APPENDIX
List Print Format
Configuration Page (Example)
C O N F I G U R AT I O N PA G E
S/N : XXXXXXXXXX
F/W Ver. : XXXXXXXXXXX
GENERAL
MEMORY SIZE
OPTIONAL FUNCTIONAL KIT
NETWORK SETTING
GENERAL PRODUCT
GENERAL
ETHERNET SPEED/DUPLEX MODE
NETWORK
TCP/IP
ADDRESS MODE
IP ADDRESS
SUBNET MASK
DEFAULT GATEWAY
IPX/SPX
ENABLE IPX/SPX
FRAME TYPE
APPLE TALK
ENABLE APPLE TALK
DEVICE NAME
DESIRED ZONE
SESSION
DNS SESSION
ENABLE DNS
PRIMARY DNS SERVER ADDRESS
SECONDARY DNS SERVER ADDRESS
DDNS SESSION
ENABLE DDNS
HOST NAME
DOMAIN NAME
NETWARE SESSION
ENABLE BINDERY
ENABLE NDS
CONTEXT
TREE
SEARCH ROOT
BONJOUR SESSION
ENABLE BONJOUR
LINK LOCAL HOST NAME
TIME : '07-04-10 09:30
: 256MB
: NOT INSTALLED
: 10BASE FULL
: DYNAMIC
: XXX.XXX.XXX.XXX
: XXX.XXX.XXX.XXX
: 0. 0. 0. 0
: ENABLE
: AUTO SENSE
: DISABLE
: XXXXXXXXXXXX
: *
: ENABLE
: 0. 0. 0. 0
: 0. 0. 0. 0
:
: ENABLE
: XXXXXXXXXXXX
:
:
:
: ENABLE
: ENABLE
: ENABLE
: MFP 00000376
144 List Print Format
NIC Status Page (Example)
U n i t S e r i a l N o : X X X X X X X X
N e t w o r k A d d r e s s : X X ; X X ; X X ; X X ; X X ; X X
N e t w o r k To p o l o g y : E t h e r n e t C o n n e c t o r : R J 4 5
N e t w o r k M o d e : A U T O
N o v e l l N e t w o r k I n f o r m a t i o n e n a b l e d
P r i n t S e r v e r N a m e : X X X X X X X X X X X X
S e a r c h R o o t n o t d e f i n e d
D i r e c t o r y S e r v i c e s T r e e n o t d e f i n e d
D i r e c t o r y S e r v i c e C o n t e x t n o t d e f i n e d
S c a n R a t e : 5
F r a m e Ty p e : A u t o S e n s e
T C P / I P N e t w o r k I n f o r m a t i o n e n a b l e d
I P A d d r e s s
: XX . XXX . XXX . XX
S u b n e t M a s k
D e f a u l t G a t e w a y
P r i m a r y D N S S e r v e r
: XXX . XXX . X . X
: XX . XXX . XXX . X
: XXX . XX . XXX . XX
D N S N a m e
:
H o s t N a m e
: XXXXXXXXXXXX
I P P N e t w o r k I n f o r m a t i o n e n a b l e d
I n t e r n e t P r i n t i n g P r o t o c o l : X X X X X X X X X X
A p p l e Ta l k N e t w o r k I n f o r m a t i o n d i s a b l e d
N o v e l l C o n n e c t i o n I n f o r m a t i o n
C o u l d n ' t a t t a c h t o s e r v e r
A p p l e Ta l k C o n n e c t i o n I n f o r m a t i o n
A p p l e Ta l k P r i n t e r N a m e : XXXXXXXXXXXX
R a w S o c k e t C o n n e c t i o n I n f o r m a t i o n
P o r t N u m b e r : 9 1 0 0
List Print Format 145
14 APPENDIX
PS Font List (Example)
146 List Print Format
PCL Font List (Example)
List Print Format 147
INDEX
Numerics
2nd Fax Number
......................................... 61
A
ABB Number
.............................................. 61
Accessing TopAccess
................................. 50
Account Code
........................................... 103
Actual Frame
.............................................. 89
Add Address
.............................................. 60
Address Book
............................................. 71
Address Group
........................................... 72
Address Mode
............................................ 88
Administration tab
....................................... 51
Administrative Message
............................... 84
Administrator mode
..................................... 49
Administrator’s Name
................................ 114
Administrator’s Password
Alarm Volume
........................................... 102
Alerts
...................................................56
AppleTalk
................................................... 89
Authentication
.......................................... 114
Auto Clear
.................................................. 85
Auto Power Save
........................................ 85
Automatic Duplexing Unit
............................. 57
Automatic IP address assignment
B
Backup
.................................................... 121
Banners
................................................... 113
Basic Operations on Each Screen
Bonjour
...................................................... 90
Box Number
............................................... 70
Bulletin Board
............................................. 69
Bulletin Board mailbox
................................. 67
C
Capacity
.................................................... 56
Confidential
................................................ 69
Confidential Mailbox
.................................... 67
Configuration page
...................................... 28
Confirm Password
....................................... 85
Contact
Adding
.................................................... 60
Deleting
.................................................. 63
Contact Information
...............................56
Context
...................................................... 93
Copier Model
........................................56
Copier Settings
.....................................97
Counter tab
................................................ 51
D
DDNS Session
........................................... 92
Default Gateway
......................................... 88
Default Raw Job Setting
............................ 107
Delayed Transmit
........................................ 62
Department Code
........................................79
Department Counter
....................................79
Desired Zone
..............................................89
Destination Setting
............................... 69
Device Information
............................... 56
Device Name
..............................................89
Device Settings
...........................................83
Device status indicators
...............................57
Device tab
..................................................51
Device Tab Page
.........................................56
Discard
....................................................102
DNS Session
..............................................91
Domain Name
.............................................93
Drawer
.......................................................56
E
ECM
........................................................102
Enable Alerts Trap
.......................................96
Enable Apple Talk
.......................................89
Enable Authentication Trap
Enable Bindery
............................................93
Enable Bonjour
...........................................90
Enable DDNS
.............................................92
Enable DNS
................................................91
Enable HTTP Server
....................................94
Enable IPP
...............................................113
Enable IPX/SPX
..........................................89
Enable LPD
..............................................113
Enable NDS
................................................93
Enable Raw bi-directional
...........................112
Enable Raw TCP
.......................................112
Enable SNMP
.............................................95
End user mode
............................................48
Energy Save
...............................................85
Error message list
.....................................141
Export
............................................. 130
Exposure
....................................................98
F
Fax Kit
.......................................................57
Fax Number
....................................... 61
Fax Setting
.................................................61
Fax Settings
...................................... 99
First Name
..................................................61
Forward
......................................................69
Forward Mailbox
..........................................67
Frame Type
................................................89
G
General
Device Information
...................................84
Energy Save
............................................85
Web General Setting
................................85
General Setting
.........................................106
INDEX 149
Group
Adding
.................................................... 64
Deleting
.................................................. 66
Editing
.................................................... 64
Group Name
.............................................. 65
Group Number
............................................ 65
H
Help link
..................................................... 53
Host Name
................................................. 92
HTTP Network Service
................................ 94
I
Import
...................................................... 128
Internet/Fax (Relay) Agent
........................... 67
Internet/Fax(Relay)
..................................... 69
IP Address
................................................. 88
IP Filtering
.................................................. 88
IP Trap Address 1-10
.................................. 96
IP Trap Community
..................................... 96
IPX Trap Address
....................................... 96
IPX/SPX
.................................................... 89
ITU-T
......................................................... 67
J
Journal Auto Print
..................................... 103
L
Line Monitor
............................................... 62
Link-Local Host Name
................................. 90
List Print
.................................................. 144
Local Mailbox List
..................................... 104
Location
...............................................56
Login Name
.............................................. 114
LT<-->A4/LD<-->A3
.................................. 106
M
MailBox Setting
.....................................69
Maintenance
Backup
................................................. 121
Import
................................................... 128
Restore
................................................. 124
Maintenance Functions
.............................. 118
Maintenance menu
..................................... 52
Managing
Address Book
.......................................... 60
Mailboxes
............................................... 67
Manual IP address assignment
Memory RX
.............................................. 103
Memory Transmission Report
Memory TX
.............................................. 102
Menu bar
................................................... 53
Message
.................................................... 56
Monitor Volume
........................................ 102
Multi Transmission Report
N
Name
.................................................. 56
NetWare Session
........................................93
Network
AppleTalk
................................................89
Bonjour
...................................................90
DDNS Session
.........................................92
DNS Session
...........................................91
HTTP Network Service
.............................94
IPX/SPX
..................................................89
NetWare Session
.....................................93
SNMP Network Service
.............................95
TCP/IP
....................................................88
Network Configuration from Equipment
AppleTalk Configuration
............................42
Ethernet Configuration
..............................33
HTTP Configuration
..................................44
IPX/SPX Configuration
..............................40
TCP/IP Configuration
................................35
Network Printer Kit
......................................57
Network Settings
.........................................86
NIC status page
..........................................29
O
One Touch Number
.....................................61
Open Mailbox
Deleting
...................................................74
Setting up
................................................68
Options
......................................................57
Original Mode
.............................................98
P
Paper
.........................................................56
Paper Source
................................... 108
Password
.......................................... 70
PCL Font Number
............................ 107
PCL Font Pitch
................................. 107
PCL Font Point Size
PCL Form Line
................................. 107
PCL Line Termination
PCL/PS Font List
.........................................25
Phone Number
............................................56
Polling Report
...........................................104
Port Number
.................................... 112
Port80 Enable
...........................................113
Primary DNS Server Address
Primary Port Number
...................................94
Print Jobs
...................................................24
Print Queue Scan Rate
..............................114
Print Service
IPP Print
................................................113
LPD Imaging
..........................................113
NetWare Imaging
...................................114
Raw TCP Print
.......................................112
Print Service Settings
.................................111
150 INDEX
Print Startup Page
..................................... 106
Printer Settings
......................................... 105
Privileged RX
........................................... 103
PWD
......................................................... 62
Q
Quality Transmit
......................................... 62
Queue Name
............................................ 109
R
Raw Job Setting
....................................... 108
Raw jobs - Default Orientation
Raw jobs - Default Paper Size
Raw jobs - Default Paper Type
Raw jobs - Duplex Printing
Read Community
........................................ 95
Read Write Community
................................ 95
Receive Interval
........................................ 102
Reception Mode
....................................... 102
Recovery Transmit
.................................... 102
Redial Mode
............................................. 102
Reduction
................................................ 102
REFRESH icon
........................................... 56
Registration tab
.......................................... 51
Relay End Report
..................................... 104
Relay End Terminal Report
Relay Originator
........................................ 104
Relay Reception List
................................. 104
Relay Station Report
................................. 104
Remote Mailbox List
.................................. 104
Resolution
................................................ 102
Restore
.................................................... 124
Ringer Volume
.......................................... 101
RTI
.......................................................... 102
S
Scanner Upgrade Kit
................................... 57
Screen
Digit entry screen
..................................... 17
Error message screen
.............................. 17
Menu selection screen
.............................. 17
Mode main screens
.................................. 16
Ready screen
.......................................... 16
Search root
................................................ 93
Secondary DNS Server Address
Secondary Port Number
.............................. 94
Security TX
.............................................. 102
Send after Scan
........................................ 103
SEP
........................................................... 62
Separator Page
........................................ 103
Service Name
............................................. 90
Service Phone Number
................................ 84
Session Timer
............................................ 85
Setup
Copier
.....................................................97
Fax
.........................................................99
General
...................................................83
Network
...................................................86
Print Service
..........................................111
Printer
...................................................105
Version
.................................................115
Setup menu
................................................52
Size
...........................................................56
Sleep/Auto Shut Off
.....................................85
SNMP Network Service
................................95
Sorter Mode Priority
.....................................98
Status
........................................................56
SUB
...........................................................62
Submenu bar
..............................................53
Subnet mask
...............................................88
Switching Languages
.................................119
Symbol set
...................................... 107
T
TCP/IP
.......................................................88
Terminal ID
...............................................101
To Print Lists
...............................................28
Top link
......................................................53
TopAccess
.................................................14
TopAccess Overview
...................................48
TopAccess screen structure
Total Counter
..............................................78
Transmission Report
........................... 62
Tree
...........................................................93
TTI
...........................................................102
Type
..........................................................56
U
URL
.........................................................113
W
Web General Setting
...................................85
When Memory Full
....................................103
INDEX 151
