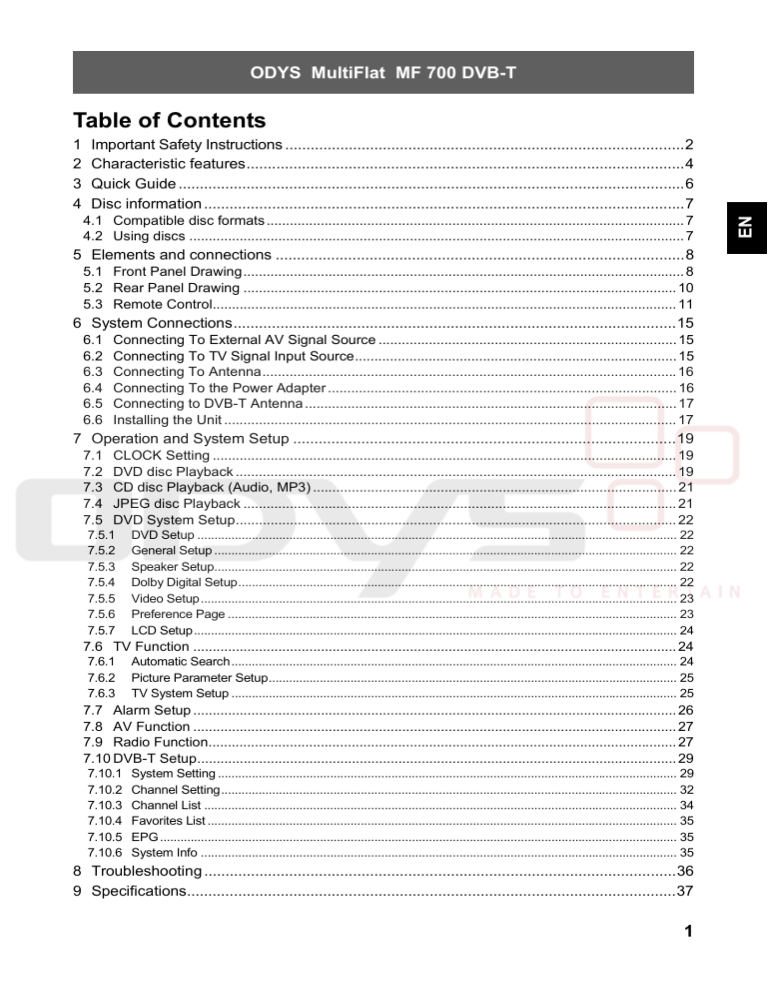

ODYS MultiFlat MF 700 DVB-T
Table of Contents
Important Safety Instructions ..............................................................................................2
Characteristic features.......................................................................................................4
Quick Guide .......................................................................................................................6
Disc information .................................................................................................................7
4.1 Compatible disc formats ............................................................................................................ 7
4.2 Using discs ................................................................................................................................ 7
5 Elements and connections ................................................................................................8
5.1 Front Panel Drawing.................................................................................................................. 8
5.2 Rear Panel Drawing ................................................................................................................ 10
5.3 Remote Control........................................................................................................................ 11
6 System Connections........................................................................................................15
6.1
6.2
6.3
6.4
6.5
6.6
Connecting To External AV Signal Source ............................................................................. 15
Connecting To TV Signal Input Source................................................................................... 15
Connecting To Antenna........................................................................................................... 16
Connecting To the Power Adapter .......................................................................................... 16
Connecting to DVB-T Antenna ................................................................................................ 17
Installing the Unit ..................................................................................................................... 17
7 Operation and System Setup ..........................................................................................19
7.1
7.2
7.3
7.4
7.5
CLOCK Setting ........................................................................................................................ 19
DVD disc Playback .................................................................................................................. 19
CD disc Playback (Audio, MP3) .............................................................................................. 21
JPEG disc Playback ................................................................................................................ 21
DVD System Setup.................................................................................................................. 22
7.5.1
7.5.2
7.5.3
7.5.4
7.5.5
7.5.6
7.5.7
DVD Setup ............................................................................................................................................. 22
General Setup ........................................................................................................................................ 22
Speaker Setup........................................................................................................................................ 22
Dolby Digital Setup................................................................................................................................. 22
Video Setup............................................................................................................................................ 23
Preference Page .................................................................................................................................... 23
LCD Setup.............................................................................................................................................. 24
7.6 TV Function ............................................................................................................................. 24
7.6.1
7.6.2
7.6.3
Automatic Search................................................................................................................................... 24
Picture Parameter Setup........................................................................................................................ 25
TV System Setup ................................................................................................................................... 25
7.7 Alarm Setup ............................................................................................................................. 26
7.8 AV Function ............................................................................................................................. 27
7.9 Radio Function......................................................................................................................... 27
7.10 DVB-T Setup............................................................................................................................ 29
7.10.1
7.10.2
7.10.3
7.10.4
7.10.5
7.10.6
System Setting ....................................................................................................................................... 29
Channel Setting...................................................................................................................................... 32
Channel List ........................................................................................................................................... 34
Favorites List .......................................................................................................................................... 35
EPG ........................................................................................................................................................ 35
System Info ............................................................................................................................................ 35
8 Troubleshooting ...............................................................................................................36
9 Specifications...................................................................................................................37
1
EN
1
2
3
4
ODYS MultiFlat MF 700 DVB-T
1
Important Safety Instructions
Thank you for choosing our product. Please read this manual carefully and observe all
EN
safety and operating instructions. Store the manual in a safe place for later reference.
The device is a class 1 laser product. The corresponding label is
located on the rear side of the device. When the housing has been
opened and the lock is not engaged, visible laser radiation can
escape. Avoid looking into the laser beam by all means.
Caution
The product contains a low-power laser device. In order to ensure the safety of
the laser device, do not remove any cover and attempt to repair the unit. If any
service is needed, please contact the distributor or its authorized service center.
To reduce the risk of electric shock, do not remove the cover (or back). No userserviceable parts inside. Refer servicing to qualified service personnel. Unplug
the product from the wall outlet before servicing or when it is unused for a long
period of time.
The manufacturer should not hold responsibility for the damage caused by any
substitutions and modifications of the product without authorization from the
manufacturer or authorized unit.
2
ODYS MultiFlat MF 700 DVB-T
Caution
• Read, keep and follow these instructions and heed all warnings.
EN
• Do not use this apparatus near water.
• Clean only with dry cloth.
• Do not block any ventilation openings. Maintain well ventilated conditions around the
product. Do not put product on bed, sofa or anything that blocks ventilation. Install
according to the manufacturer’s instructions.
• Do not install near any heat sources such as radiators, heat registers, stoves or other
apparatus (including amplifiers) that produce heat.
• Read, heed and follow all instructions to ensure correct and safe installation and
interconnection of the apparatus;
• The apparatus shall not be exposed to dripping or splashing and that no objects filled
with liquids, such as vases, shall be placed on the apparatus;
• The mains socket-outlet shall be installed near the apparatus and the mains plug shall
remain readily operable;
• Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
• Only use attachments/accessories specified by the manufacturer.
• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus. When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-over.
• Unplug the apparatus during lightning storms or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
• The apparatus shall be connected to a mains socket outlet with a protective earthing
connection.
3
ODYS MultiFlat MF 700 DVB-T
2
Characteristic features
EN
This product incorporates a DVD player, LCD display, TV receiver, Radio function and
DVB-T function in one system. It is designed for convenient use in the kitchen. Please
refer to chap. 5.6 for the installation instructions
Multiple Mode:
• DVD
• TV
• Radio
• External Audio & Video Input Mode
• DVB-T
TV Functions:
• Clear TV signal reception.
• Search for TV channels automatically.
• Automatically memorize the channels.
Radio Functions:
• Clear AM/FM signal reception.
• Search for radio stations automatically.
• Store radio stations easily.
• Search for radio stations in high or low frequency range
LCD (Liquid Crystal Display) Screen: Color video screen designed with LCD technology
clearly shows video data.
Amplifier Function: Built-in 2x 5w stereo amplifier with left and right speakers
Switching Power Adapter: Automatically adapts to the voltage required
AV Input: External Audio、Video input can be connected to most external AV sources.
Compatibility: Plays DVD, Audio-CD , CD-MP3, JPEG
On-Screen Display: Displays your choices of English, French, Spanish, German, etc.
Playback Functions: Multi-speed, fast forward, fast reverse, slow play and repeat
playback, Search By Time.
Zoom Function: Allows the viewer to enlarge in the picture.
Support
URL: http://www.odys.de
See our website for the latest information on this DVD player, on other products by our
company and on our company itself. If you have questions or problems, please read the
FAQs on our website or contact our customer support service [email protected]
4
ODYS MultiFlat MF 700 DVB-T
Contents of package
1 x TV/DVD Kitchen TV MultiFlat MF 700 DVB-T
EN
1 x Remote control
1 x mains cable with power supply unit
1 x a/v cable
1 x audio cable
1 x DVB-T antenna
1 x FM antenna
1 x AM antenna
1 x installation material
1 x operating manual
1 x warranty card
Note
Accessories and their corresponding part numbers are subject to change without
notice due to technological progress.
5
ODYS MultiFlat MF 700 DVB-T
EN
3
Quick Guide
1. Connect the device to an appropriate power source
2. Only use the power supply unit provided.
3. Use the “Power Switch“ to turn the player on then select the desired source. Attention:
The DVD tray can only be open when in DVD mode.
4. Depending on your area, the antenna provided may not be strong enough. If such is
the case use a stronger antenna, available at most electronics shop.
5. Some of the device’s keys have more than one function. If you wish to use an alternate
function, shortly press the “MENU” key twice to activate the key pad.
6. Settings
In DVD Mode: DVD/DVB Setup key
In DVB-T Mode: DVD/DVB Setup key
In TV Mode:
LCD/Setup key
TV System: Great Britain, Ireland –
PAL I
West Europe –
PAL B/G (except France)
East Europe –
PAL D/K
NOTE:
Insure that DVB-T reception is available for your area. DVB-T radio in particular is very
limited and not available in most locations.
Depending on your region and building structure, a stronger antenna may be requires in
order to receive DVB-T stations. The antenna provided is only designed for reception
when close to the DVB-T transponder. Metal buildings and the geographic location of the
transponder may have a strong effect on the reception. Please note that this is not a
device defect; merely specific specifications for the reception of DVB-T.
Appropriate antennas may be obtained from your local specialty stores.
Active antennas may be powered with an external power source. Refer to the special
specifications of the antenna.
Display
To effectively use the size of the display, the standard setting for all formats has been set
to full screen. Changing this setting is not possible.
Region Code
DVD players and discs are coded by region. These regional codes must match the
played discs. If the codes don’t match, the disc cannot be played. This player’s default
code is region 2.
6
ODYS MultiFlat MF 700 DVB-T
4
Disc information
4.1 Compatible disc formats
Diameter
12 cm
DVD
8 cm
Running time
(sides - layers))
133 min (SS-SL)
242 min (SS-DL)
266 min (DS-SL)
484 min (DS-DL)
41 min (SS-SL)
75 min (SS-DL)
82 min (DS-SL)
150 min (DS-DL)
12 cm
74 min
8 cm
20 min
600 min
EN
DISC LOGO
CD
MP3
(MPEG-1 Audio
Layer 3)
12 cm
JPEG
(high-resolution
still image)
12 cm
The discs' mode of operation depends on the manufacturer. Observe the corresponding
notes for the respective disc.
4.2 Using discs
Handling, Cleaning and Storage
When inserting or removing a disc, do not touch the surface
(see illustration). Do not affix paper or labels on the disc.
Fingerprints and other contaminations can reduce the quality of the sound
and the video. Use a soft, clean cloth for cleaning that can be moistened
with a neutral, diluted cleaning agent if the disc is very contaminated.
Do not wipe in circular motion (risk of static noises); instead, always wipe
from the centre of the disc toward the outer edge (see illustration).
Do not expose the discs to direct sunlight or high temperatures.
CAREFULLY READ THE FOLLOWING INSTRUCTIONS BEFORE TURNING ON THE
DVD PLAYER FOR THE FIRST TIME.
7
ODYS MultiFlat MF 700 DVB-T
5
Elements and connections
EN
5.1 Front Panel Drawing
1.
2.
3.
4.
5.
6.
7.
8.
8
Power button
Press to enter or exit the STANDBY mode.
Disc Tray
Used to load disc
EJECT Button
Press to open or close the disc tray.
PLAY/PAUSE Button
Press to start or pause playback under DVD mode.
(STOP) Button
Press to stop playback under DVD mode.
PREV Button
Under DVD mode, press once to go to beginning of the current track/chapter. Press twice to
go to the previous track/chapter.
NEXT Button
Press to go to the next track under DVD mode.
REV SCAN
Under radio mode, press once to fine tune frequency backward. Press for about 1.5 seconds
to search radio stations backward automatically.
Press to activate fast backward playback under DVD mode.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
FWD SCAN
Under radio mode, press once to fine tune frequency forward. Press for about 1.5 seconds to
search radio stations forward automatically.
Under DVD mode, press to activate fast forward playback.
Remote Sensor
Receives remote control signal for operation.
SOURCE Button
Press to shift among DVD, TV, AV, FM, AM and DVB-T mode.
MUTE Butto
Press to turn the speaker output on or off. The corresponding information will be displayed on
the display panel.
SET Button
Press to enter or exit the ALARM setup menu. Press to memorize the selected radio stations
under AM/FM status.
Display Panel
Displays the time, status, radio frequency and radio station number.
When adjusting volume, the VOL and volume level will be displayed on the display panel for
several seconds.
▼/CH- Button
Press to select items in the setup menu; to select the channels or radio stations backward
under TV or radio mode; to adjust the value downward when setting the time on the display
panel.
▲/CH+ Button
Press to select items in the setup menu; to select the channels or radio stations forward under
TV or radio mode; to adjust the value upward when setting the time on the display panel.
◄/VOL- Button
Press to select items in the setup menu; to decrease the volume -; to decrease the value in the
picture setup menu.
►/VOL+ Button
Press to select items in the setup menu; to decrease the volume +; to decrease the value in
the picture setup menu.
Press to enter the menu items in the DVB-T setup menu.
TIME / OK Button
Press it once to display the time on the display panel. In standby status, the time is still displayed on the panel. Press it again to set the time on the display panel. Use the buttons
to select the editing position of hour or minute, and then use the buttons to adjust the
value of the hour or minute upward and downward. Press to confirm selections in setup menu.
TV/LCD SETUP Button
Press once to enter the LCD setup menu. Then press the button to enter the TV Setup
menu in TV mode.
LCD Screen
Presents high resolution picture.
9
EN
ODYS MultiFlat MF 700 DVB-T
ODYS MultiFlat MF 700 DVB-T
EN
5.2 Rear Panel Drawing
1. ANT INPUT Jack
Connected to external antenna to receive the TV program in TV mode
2. DVB-T Antenna Jack
3. FM 75 Ω Coaxial Antenna Jack
4. AM Antenna Jack
5. Left/Right AUDIO Input Jack: Connection for audio input
6. VIDEO Input Jack: Connection for video input.
7. Direct Current 12 V Input Jack
Display Panel Drawing
1. FM radio status indicator
2. AM radio status indicator
3. Hour or character indicators
4. Minute or character indicators
5. Character indicators
6. FM frequency unit of MHz indicator
7. AM frequency unit of KHz indicator
10
ODYS MultiFlat MF 700 DVB-T
5.3 Remote Control
Preparation of the Remote Control
EN
1. Refer to the drawing and remove the empty battery receptacle.
2. Insert the battery into the receptacle. Make sure the polarity
matches the marks inside the component.
3. Insert the receptacle into the remote control.
Using Of Remote Control
Point the remote control towards the main unit when operating. The remote control works
best at a distance less than 7 m and at an angle of up to 60° to the front of the unit. No
obstacles may stand in the way between remote control and infrared sensor.
The battery normally lasts for about six months. This depends on how often and for what
operations the remote control is used.
If the remote control unit fails to work even when it is operated near the player, replace the
battery.
If the remote control is not used for a long period of time, please remove the battery from
the compartment, to prevent damage by leakage.
11
ODYS MultiFlat MF 700 DVB-T
EN
Remote Control Drawing
1. POWER Button
Press to access to or exit the STANDBY mode.
2. SUBTITLE Button
Press to select a subtitle language or to turn
subtitles off when a DVD disc with multisubtitles is playing.
3. DVD Button
Press to enter DVD mode
4. TV Button
Press to enter TV mode.
5. AV Button
Press to shift to external AV input mode.
6. FM/AM Button
Press to shift to FM/AM signal input mode
7. DVB-T Button
Press to shift to DVB-T mode.
8. OK Button
12
Press to confirm selections.
9. ,,/CH+,/CH- Buttons
Press to select menu items or settings.
Press buttons to adjust value in the picture
setup menu. Press buttons to select
channels or radio stations forward and
backward in TV and radio mode. Press to
adjust the value of time when setting time on
the display panel.
10. SET Button
Press to enter or exit the ALARM setup menu.
Press to memorize the selected radio stations
under AM/FM status.
11. /SEEK - Button
Under radio mode, press once to fine tune
frequency backward. Press for about 1.5
seconds to search radio stations backward
automatically.
Under DVD mode, press to activate fast
backward playback.
12. /SEEK + Button
Under radio mode, press once to fine tune
frequency forward. Press for about 1.5 seconds
to search radio stations forward automatically.
Under DVD mode, press to activate fast
forward playback.
13. X (PLAY) Button
Press to start playback under DVD mode.
14. (STOP) Button
Press to stop playback under DVD mode.
15. TITLE/EPG Button
Press to display titles if present on the disc
under DVD mode. Press to enter the channel
schedule in the DVB-T mode.
16. MENU/FAV Button
Press to access the disc menu under DVD
mode. In the DVB-T mode, press to enter the
favorite list, then use the direction button
to select, then press the OK button to confirm
and start playback
17. REPEAT/EXIT Button
Press to repeat a title, chapter or the entire disc
under DVD mode. Press to return to the
previous menu in the DVB-T setup menu
18. A-B/TVR Button
Used to play a section of the DVD from point “A”
to point “B”. Press once to select the starting
point (A), press again to select the end point (B).
Press the third time to stop the A-B repeat. In
the DVB-T mode, press to realize the switch
function between TV mode and radio mode.
19. EJECT Button
Press to open or close the disc tray.
20. AUDIO Button
Press to access various audio languages when
the DVD disc contains multiple audio languages.
21. 0-9 number Buttons
Select numbers by pressing these buttons.
22. GOTO Button
Press to select the desired disc starting Time,
Track or Title under DVD mode
23. +10 Button
Select numbers greater than 9 by pressing the
(+10) button first, and then additional number
buttons are needed
24. TIME Button
Press it once to display the time on the display
panel. In standby status, the time is still
displayed on the display panel. Press it twice to
set the time on the display panel. Use the and buttons to select the editing position
of hour or minute and to adjust the value of the
hour or minute upward and downward.
25. DVD/DVB Button
Press to enter the DVD or DVB-T setup menu.
26. SLOW Button
Press to activate slow playback in DVD mode.
27. LCD ON/OFF Button
Press to turn the LCD screen display On or Off.
28. LCD SETUP Button
Press once to enter the LCD setup menu. Then
press the X button to enter the TV Setup menu
in TV mode.
29. NEXT Button
Press to go to the next track under DVD mode.
30. PREV Button
Under DVD mode, press to go to beginning of
current track or chapter. Press twice repeatedly
to go to beginning of a previous track or chapter.
31. MUTE Button
Press to turn on/off the speaker output. The
corresponding information will be displayed on
the display panel.
32. (PAUSE) Button
Press to pause playback in DVD mode
33. ZOOM/TTX Button
Press to enter and cycle through zoom
functions, use the direction buttons to pan
around the screen. Press to display the teletext
information in the DVB-T mode
34. VOL+/- Button
Press to increase or decrease the speaker
volume level.
35. INFO Button
13
EN
ODYS MultiFlat MF 700 DVB-T
ODYS MultiFlat MF 700 DVB-T
EN
Press to display detailed playback information
under DVD or DVB-T mode or to display
14
additional information or to turn the information
display Off.
ODYS MultiFlat MF 700 DVB-T
6
System Connections
Do not connect the power cord until all other connections have been made.
Each time you restart the unit, it remembers the last function used.
•
Please make all the connections before installing the unit in the kitchen.
EN
•
•
6.1 Connecting To External AV Signal Source
Connections should be made as follows:
Connect the L/R audio cables according to the marks on the rear panel of the unit: Left
audio cable is plugged into the upper jack; the right audio cable is plugged into the lower
jack.
6.2 Connecting To TV Signal Input Source
Connect the cable of the TV signal source in the 75 Ohm ANT input on the rear panel of
the unit.
TV Signal Input
15
ODYS MultiFlat MF 700 DVB-T
6.3 Connecting To Antenna
EN
Connect the supplied AM/FM antennas to listen to the radio. In order to improve the signal,
move AM loop antenna away from system and other equipment. Extend FM antenna fully
and keep it as horizontal as possible after connection. When connecting the supplied AM
loop antenna, connect two black cords to AM and ground jacks as shown below.
AM antenna
FM antenna
If the FM reception is poor, use a 75Ω coaxial cable (not supplied) to connect system to an
outdoor FM antenna as above. If you connect the system with outdoor FM antenna, you
should earth the system in order to avoid lightning strike. Do not connect the earth wire to
gas pipe to prevent gas explosion.
outdoor FM antenna
Earth
6.4 Connecting To the Power Adapter
This unit is powered via the switching power adapter (supplied). Connect the AC adapter
to jack marked with “DC 12V IN” on the rear panel of the unit. Plug the two-prong end of
the power cord to the grounded electrical socket.
Note
When not using the unit, turn off the power of the unit first, and then unplug the power
supply to prevent malfunctions.
16
ODYS MultiFlat MF 700 DVB-T
6.5 Connecting to DVB-T Antenna
EN
The unit is designed with an antenna input jack. Plug the DVB-T antenna into the DVB-T
jack on the rear panel of the unit to receive TV signal, then press DVB-T button on the
remote control to switch to the DVB-T mode, as shown below (see chap. 6.9).
DVB-T Signal Input
6.6 Installing the Unit
Note
Before installing the unit in the kitchen, please make all the connection.
Installing the unit under a cabinet
The player unit may be installed in the kitchen with or without the spacer. The suggested
mounting position of the unit is under a wall cabinet. See drawings below.
Quick hints
•
•
Since the unit is rather heavy, be careful while doing the installation work.
To reduce risk of fire, do not place any heating or cooking appliance beneath the unit,
especially while the LCD screen is open for viewing.
17
ODYS MultiFlat MF 700 DVB-T
•
There should be at least 35 mm distance between the unit and the wall.
•
Mount the unit so that its AC power cord can be plugged directly to a wall outlet. Do not
•
Be sure that the AC power cord has no slack when the player is working, because the
cord acts as an FM wire antenna. If the AC power cord has some slack, wind it up to
EN
use a converter or extension cord.
the cord hook until the cord has no slack.
Installing Steps
1. Mark the position of the 4 holes by using the supplied paper template. Drill four holes
with diameter of 8 mm.
2. If the cabinet door overhangs the shelf and obstructs the unit, adjust the unit or the
shelf height for clearance.
3. As shown in the following figures, install the unit with the supplied mounting screws and
spacers step by step.
4. Keep the paper template for a later application.
using the supplied paper
template and drill four holes
with diameter of 8 mm
18
install the unit with the
supplied mounting screws
step by step
ODYS MultiFlat MF 700 DVB-T
7
Operation and System Setup
7.1 CLOCK Setting
1. Insure that the device is switched off.
EN
2. Press the “TIME“ button on the device or on the remote control.
The display should start to blink.
3. Use the , buttons to set the hour.
4. Press theorto switch to the minute settings and continue as in step 3.
5. Press the “TIME” button again when finished.
The clock operates in 24 hour mode.
The settings will automatically end if no button is pressed within 10 seconds.
7.2 DVD disc Playback
Region Code
DVD players and discs are coded by region. These regional codes must match the
played discs. If the codes don’t match, the disc cannot be played. This player’s default
code is region 2.
Preparation
1. After connecting the unit to the AC power, turn on the unit’s power by pressing the
POWER button on the front panel or the remote control.
2. Press the DVD button on the remote control or the SOURCE button on the front panel
to shift to DVD mode.
3. Press the
EJECT button on the front panel or the remote control to open the disc
tray.
4. Load the disc with the labeled side facing up.
5. Press the EJECT button again to close the disc tray. The player will automatically
search for the disc and start playback.
Menu
Normally there is a selecting menu for DVD discs. You can press the MENU button on the
remote control to enter the root menu during DVD disc playback, and use the direction
buttons to highlight an item you would like to select. Press the OK button to select it.
Title & Chapter
Normally there are several titles in a DVD disc, and several chapters (sections) in a title.
You can select any title or chapter quickly by entering the relevant number.
Audio
DVD discs can contain up to 8 audio bit streams. For Example: German, English, French,
Spanish, etc. To select the audio bit stream you prefer press the AUDIO button on the
remote control during playback. The DVD player will play the next audio bit stream every
time you press the AUDIO button in succession.
19
ODYS MultiFlat MF 700 DVB-T
EN
Note: This function is only available for discs that have several audio bit streams recorded
onto it.
Subtitle
A DVD disc can be recorded with up to 32 subtitles. Press the SUBTITLE button on the
remote control during playback to select the one you prefer. This function is only available
on DVD discs that are recorded with multi-subtitles.
Stop
During playback, press the STOP button once to stop playback of a disc. Press the PLAY
button and the DVD Player will resume playback of the disc from the point where it was
stopped.
Pause
Press the (PAUSE) button on remote control or the (PLAY/PAUSE) on the front panel
to pause playback. Press this button again or press the X(PLAY) button to resume normal
playback.
Zoom
Press the ZOOM button on the remote control to cycle through the different zoom setting.
Fast Playback
Press the or button on the remote control to activate fast forward or fast backward
playback.
Slow Playback (DVD)
Press the SLOW button to activate slow playback. (There is no slow playback for CD discs
and JPEG discs.)
Previous and Next.
Press the PREV button once to return to the beginning of current Chapter or Track.
Press the PREV button twice repeatedly and playback will start from the previous
Chapter or Track.
Press the NEXT button twice and playback of the disc will start from the next Chapter or
Track.
Search By Time
During DVD disc playback, press the GOTO button on the remote control once, there will
be a menu displayed on the screen. You can set or select items for your preference. Use
the , direction buttons to select items, press the OK button to enter and use the ,
direction buttons to select the desired item. Press the direction button to return. When
select the Title or Chapter, use number buttons to input desired title or chapter number.
Some DVD discs do not support the search function.
Repeat
20
To repeat a Title, Chapter or Track , press the REPEAT button on the remote control.
Continually pressing the REPEAT button will display a menu as follows:
Repeat Chapter – Repeat Title – Repeat All
You can temporarily select a section of a DVD that you would like to play repeatedly. You
do this by marking the start and the end of the section using the A-B button. During
playback, press the A-B button on the remote control at the beginning of the segment
(point A) you wish to play repeatedly. Press the A-B button again to mark the end of the
segment (point B).
The DVD player will automatically return to point A and repeat playback of the selected
segment (A-B). To resume normal playback, press the A-B button again.
7.3 CD disc Playback (Audio, MP3)
The player will play all tracks on a CD disc by default. You can use the and (PREV/NEXT skip) buttons, or number buttons to select a track.
The button functions described in chap. 6.1 (DVD disc Playback) are applied accordingly.
7.4 JPEG disc Playback
JPEG is a common picture format that requires small amounts of storage per image and
has low loss in resolution. Hundreds of pictures can be stored on a disc in this format. In
order to view JPEG photo albums, you can ask your film development company to make a
”PICTURE CD” when they develop your film.
Normal Playback
Load a JPEG disc in. For JPEG disc, there will be a root menu displayed on the screen.
Use the OK button and the , direction button to select a submenu with pictures, and
then use the, direction button to select the contents. Many discs have other contents
besides pictures. Many discs have other contents besides pictures.
Picture Rotation
This can be used only when the picture is normally displayed. Once another picture is
selected, rotation will be cancelled automatically.
During playback, use the direction buttons to rotate the picture.
Zoom and Move
The ZOOM button is used to turn on/off the zoom and move functions. When this function
is turned on, use the / (REV/FWD SCAN) buttons to control zoom proportion and the
screen will display the relevant proportion.
When the picture is zoomed in, you can use the direction buttons to move the picture.
When this function is turned off by pressing the ZOOM button again, the picture will
resume normal size. Press the MENU button to return to menu page.
Some JPEG discs may not support rotation or zooming functions.
21
EN
ODYS MultiFlat MF 700 DVB-T
ODYS MultiFlat MF 700 DVB-T
7.5 DVD System Setup
EN
7.5.1
DVD Setup
You can customize the set up menu to your own preference.
Press the “DVD /DVB SETUP” button on the remote control to display the setup menu.
The menu will include “General Setup Page”, “Speaker Setup Page”, “Dolby Digital Setup”,
“Video Setup Page”, and “Preference Page”. Press the direction buttons to select a
category. All the items in the category will appear on the screen. Press the “OK” button to
enter the category.
Category
When you enter a category all the items under this category will appear, the highlighted
category is the current set up.
Press the right direction button () on the remote control to select another category (new
selection will be highlighted). Press the “OK” button for confirmation.
Press the left direction button () to enter the other setup menu(s).
7.5.2
General Setup
TV Display
• Select Normal/PS or Normal/LB when a 4:3 TV is connected.
• Select WIDE when using a 16:9 screen on the unit or when a wide screen TV is
connected to the video output.
OSD Lang
There are several different OSD languages for selection. You can select English, French,
Spanish, German, etc.
Screen Saver
When activated, under stop mode, the unit will go into screen saver mode if the same
image remains on the screen for several minutes.
7.5.3
Speaker Setup
Downmix
Select “Lt/Rt” in DOWNMIX, the player will output the audio signal in mixed mono.
Select “Stereo”, then the player will output a stereo signal.
7.5.4
Dolby Digital Setup
Dual Mono
The function is used to select from Stereo, L-Mono, R-Mono and Mix-Mono.
Dynamic
22
ODYS MultiFlat MF 700 DVB-T
Use this item to adjust linear dynamic compression rate to get different signal compression
effects.
7.5.5
Video Setup
7.5.6
EN
Use this setting to adjust the sharpness, brightness and contrast level.
Preference Page
TV Type
You can select TV type from PAL, Multi and SECAM.
Audio, Subtitle, Disc Menu
This setting allows you to hear or read the subtitles of a DVD disc in your choice of
German, English, French, Spanish, etc. if the disc contains multiple languages..
Parental
The parental function is applicable to DVD discs which are equipped with the child lock
function. By parental lock, the selected senses or playback of the disc can be locked.
Access parental control by pressing the up, down arrow buttons on the remote control and
then press the OK button to enter. The Default Password is 1369.
Password
Parental control features are password protected. The original setting is unlocked. This
setting allows you to use number buttons to input any password. This password is always
effective even after you have selected your own password and changed it. To avoid the
possibility of others using the default password to set the parental level and change the
password, you can record this default password in another area and delete it from this
manual. Some discs can be limited depending on the age of users while some discs
cannot.
Default Reset
Use this function to reset all the settings.
Note: For preference setting, the unit must be in the stop mode.
23
ODYS MultiFlat MF 700 DVB-T
7.5.7
LCD Setup
Under DVD mode, press the LCD SETUP button on the remote control or the TV/LCD
SETUP button on the front panel once, there will be menu displayed on the screen:
EN
•
•
•
•
Use the ▼,▲ buttons to select the item you want
to set (Brightness, Contrast, Color).
Use the ►,◄ buttons to adjust, you can adjust
the items between 0 and 20.
Use the ▼,▲ buttons to select the Language,
press the ►, ◄ buttons to select German,
English, French or Spanish, etc.
Select Reset and press the OK button to resume
the original status.
• First use the ▼, ▲ buttons to highlight the PICTURE, then press the ◄ button on the
remote control to exit from the setup menu.
7.6 TV Function
Connect the antenna to the antenna jack on the rear panel. After connecting the antenna,
connect the power supply cord. If the player is in standby mode, press the POWER button
to turn on the power.
Press the TV button on the remote control or the SOURCE button on the front panel to
shift to TV mode.
7.6.1
Automatic Search
1. Insure that the antenna is properly connected to the port labelled ”ANT” on the back of
the device.
2. While in the TV-Mode, press the “LCD SETUP“ button of the remote control or the
“TV/LCD” SETUP” button on the device.
3. Use the ► button to enter the TV-SETUP mode.
4. To start the automatic search, select the option “AUTO MEMORY“ and confirm by
pressing the “OK“ button.
5. Wait until the automatic search has completed.
Press the ▼, ▲ buttons to select the desired channel.
To go to a channel directly, first press the number buttons on the remote control for input
and then press the OK button for confirmation. You may also wait for a moment without
pressing the OK button and the unit will go to the selected channel.
Some preferences can be preset:
24
ODYS MultiFlat MF 700 DVB-T
7.6.2
Picture Parameter Setup
• Use the ▼,▲ buttons to select the item you want to
set (Brightness, Contrast, Color).
• Use the ►, ◄ buttons to adjust, you can adjust the
items between 0 and 20.
• Use the ▼, ▲ buttons to select the Language,
press the ►, ◄ buttons to select German, English,
French or Spanish, etc.
• To restore a setting to the original value, use the
▼,▲ buttons to select Reset, then press the OK
button to confirm the change.
•
To exit the setup menu, first use the ▼, ▲buttons to highlight PICTURE, then press
the ◄ direction button. Press the ► direction button to enter TV Setup menu.
7.6.3
TV System Setup
When the ► button is pressed, the TV system setup menu will appear.
• Use the ▼,▲ buttons to select the item you want to
set.
• Use the ►,◄ buttons to select the item and enter it.
• First use the ▼,▲ buttons to highlight the TV
SETUP, then press the ► button on the remote
control to exit from the setup menu.
• Press the ◄ button to return to the PICTURE setup
menu.
System
Use the ►, ◄direction button to select TV system type.
Great Britain, Ireland
West Europe
East Europe
–
–
–
PAL I
PAL B/G (except France)
PAL D/K
Channel
Use the ►, ◄ buttons to change the channel.
Skip
When the ► button is pressed to turn the function ON, it will skip the current channel when
using ▼,▲ to select channels. When the ◄ button is used to turn the function OFF, it will
play the channels in sequence when selecting under normal playback status.
Swap
Use the ►, ◄ buttons to select SWAP, press the number buttons on the remote control to
input the channel number, then the channel will be swapped to selected channel.
25
EN
Press the LCD SETUP button on the remote control or the TV/LCD SETUP button on the
front panel once to enter PICTURE setup menu, and screen display as shown:
ODYS MultiFlat MF 700 DVB-T
EN
Blue Screen
This function is only available when there is no input signal.
Use the ► button to turn the function ON, use the ◄ button to turn the function OFF.
Fine Tunig
Use the ▼,▲ buttons to select Fine Tuning, and then press the ►, ◄ buttons to tune
forward or backward from the current channel.
Auto Memory
Use the ▼,▲ buttons to select Auto Memory, press the OK or ► button to enter auto
memory mode:
The auto memory will take a few minutes. The unit will
search channels from the lowest channel to the highest
channel in the standard channel list. When tuning
operations are complete the unit will exit and store the
channels by sequence in the memory. During tuning,
press the ◄ button to exit the auto memory.
Use the ▼,▲ direction buttons to select the desired channel from those in memory.
7.7 Alarm Setup
Press the SET button on the remote control or the front panel to enter ALARM SET menu,
the screen will display as below.
• Use the ▼,▲ and ►,◄ buttons to select the item
you want to set and to enter the item and to select.
• Use the number buttons to select.
• Press the SET button again to exit from the setup
menu.
Use the ►,◄. direction buttons to select ON or OFF. This function allows you to set the
alarm clock time of this unit.
To set the alarm clock time, first press any number button to enter the time input state.
Then use number buttons to input the desired alarm time in sequence of hour, minute.
Press the ►,◄. direction buttons to switch between am and pm.
You can silence the alarm in three ways: (1) Press any key on the front panel for a longer
moment. (2) Press OK button on the remote control. (3) Set the Alarm to OFF in the
ALARM SET menu. If no key is pressed the alarm will stop after three minutes
26
ODYS MultiFlat MF 700 DVB-T
The player has an additional AV input so it can function as a monitor for a DVD player,
video cassette player, satellite receiver, video game, etc. When an AV source is
connected, press the AV button on the remote control or the SOURCE button on the front
panel to enter external input AV mode. The Picture Parameter Setup you can set as
shown in chap. 6.5.1.
Under AV mode, if there is no signal, the LCD screen will be blue.
When connected to an AV signal source, make sure the type of the selected AV signal
source is PAL.
7.9 Radio Function
Press the FM / AM button on the remote control or the SOURCE button on the front panel
to enter FM or AM radio mode. Then press the SEEK+/- button on the remote control or
the / buttons on the front panel for about 1.5 seconds to start searching
forward/backward from the current frequency. Press the SEEK+/- or / buttons again to
stop searching. Radio frequency will be displayed on the display panel.
Fine Tuning
Press the SEEK+/- button on the remote control or the / buttons on the front panel
once to fine tune the frequency forward/backward under radio mode.
Semi-memorizing radio stations
If you like a radio station and want to store it for later listening, press the SET button to
memorize it. “SAVE XX” will be displayed on the display panel, “X X” represents the
default station number.
There are two methods to organize the memorized stations:
• Use the ▼,▲ buttons to adjust the channel number for your preference, and then press
the SET button again, the station will be memorized with the coded station number
• Press the SET button again, the station will be automatically memorized with the default
station number in sequence
You can store radio stations from 0 to 19, total 20FM or 20AM radio stations.
If no buttons are pressed within 3 seconds of pressing the SET button first time, the
frequency will appear on the display panel again, and the station will not be stored.
27
EN
7.8 AV Function
ODYS MultiFlat MF 700 DVB-T
Accessing memorized radio stations
• First use the number buttons on the remote control to input, then press the OK button
for confirmation to go to the selected radio station directly; Or without pressing any button
EN
and wait a moment, it also goes to the selected radio station.
• Press the▲,▼buttons on the remote control or front panel to select the radio stations
forward and backward.
When selecting the stations, the “CH XX” will appear on the display panel, where the “XX”
is the channel number of the stored radio station. After a few seconds, the “CH XX”
disappears and the radio frequency will be displayed once again.
28
ODYS MultiFlat MF 700 DVB-T
7.10DVB-T Setup
Preparation
1. Connect the unit to the power.
2. Press the DVB-T button on the remoter control to enter DVB-T mode.
EN
3. Press the DVD/DVB button on the remote control to enter the DVB-T setup menu.
4. You can take steps below to go on with the setup:
Main Menu
Press the DVD/DVB button, the screen will display as left:
In the main menu, press the ▼,▲ direction buttons to select the
item you want to set up.
Press the OK button to enter the item. Press the DVD/DVB or
EXIT button to exit the menu.
7.10.1
System Setting
Press the ▼,▲ direction buttons to select System Setting. Press
the OK button to enter the item, screen will display as left.
In the menu, press the ▼,▲ buttons to select the item you want
to set up, press the OK button to enter the item. Press the
DVD/DVB or EXIT button to return to the previous menu.
Time Setting
You can set the timezone or display timer.
Press the ▼,▲ buttons to select Time Setting, press the OK button
to enter the Time Setting menu, the screen will display as left.
In the menu, press the ▼,▲ buttons to select Time Zone Setting or
Display Timer Setting. Press the EXIT button to return.
29
ODYS MultiFlat MF 700 DVB-T
1. Time Zone Setting
Select Time Zone Setting, press the OK button to enter the item, then press the ► button
to select different time zone, press the OK button to confirm selection. During setting,
press the EXIT button to return.
EN
Europe (with exception to: Portugal and England) GMT+1 Setting
It may be necessary to switch to the GMT +2 setting during European daylight savings
time (summer time).
Portugal and England: GMT+0 (GMT+1, daylight savings time)
2. Display Timer Setting
Select Display Timer Setting, press the OK button to enter the item, then press the ►
button to select different display time, press the OK button to confirm selection. During
setting, press the EXIT button to return.
Language Setting
You can set the menu or audio language.
Press the ▼,▲ buttons to select Language Setting, press the OK
button to enter the Language Setting menu, the screen will display
as left.
In the menu, press the ▼,▲ buttons to select Menu Lang or Audio
Lang. Press the EXIT button to return.
1. Menu Language
Select Menu Lang, press the ► button to
select different menu language, press the
press the EXIT button to return.
2. Audio Language
Select Audio Lang, press the ► button to
select different audio language, press the
press the EXIT button to return.
enter the item, then press the ▼,▲ buttons to
OK button to confirm selection. During setting,
enter the item, then press the ▼,▲ buttons to
OK button to confirm selection. During setting,
A/V Setting
This item is used to set the audio and video items.
Press the▼,▲buttons to select A/V Setting, press the OK button to
enter, the screen will display as left.
In the menu, press the ▼,▲buttons to select items, press the
◄,► buttons to adjust or enter. Press the EXIT button to return.
30
ODYS MultiFlat MF 700 DVB-T
1. Bright&Contrast
Select the Bright&Contrast, press the ◄,► buttons to adjust the value.
3. Conversion
Select the Conversion, press the ► button to enter, then press the ▼,▲ buttons to select
16 : 9, 4 : 3 LB or 4 : 3 PS. Press OK button to confirm and return. Press the ◄ or EXIT
button to return。
Advance Setting
Press the ▼,▲ buttons to select Advance Setting, press the OK
button to enter, the screen will display as left
In the menu, use the number buttons to input the pin code, press
the OK button to confirm. The default code is:888888
When input the PIN code, press the OK button to enter the menu
shown as left.
In the menu, press the ▼,▲ button to select item. Press OK
button to enter. Press the EXIT button to return
1. Change Pin Code
In the menu, press the ▼,▲ buttons to select Change Pin Code, press the OK button to
enter the menu shown as below.
In the menu, according to the indication to input the pin code.
Press the EXIT button to return.
2. CensorShip
Press the ▼,▲ buttons to select CensorShip, press the OK button to enter the setup
menu, then press the ► button to enter, press the ▼,▲ buttons to select items, press the
OK button to confirm the selection,press EXIT button to return.
31
EN
2. Saturation
Select the Saturation, press the ◄,► buttons to adjust the value..
ODYS MultiFlat MF 700 DVB-T
3. Restore Setting
Press the ▼,▲ buttons to select Restore Setting, then press the OK button to return to the
default status, or press the EXIT button to return.
EN
4. Clear Channels
Press the ▼,▲ buttons to select Clear Channels, then press the OK button to clear all the
channels, or press EXIT button to return.
7.10.2
Channel Setting
Select the Channel Setting, press the OK button to confirm and
enter the channel setting menu, shown as left.
In the channel setting menu, press the ▼,▲ direction buttons to
select the item you want to set up, press the OK button to enter
the item. Press the EXIT button to return to the previous menu.
Channel Search
‘
Use the ▼,▲ direction buttons to select Channel Search, press
the OK button to confirm, the screen will display as left.
In the channel search menu, press the ▼,▲ direction buttons to
select the item you want to set up, press the ► button to enter
the item. Press the EXIT button to return to the previous menu.
1. Search Type
Select the Search Type, press the ► button to enter, then press the ▼,▲ direction buttons
to select Automatic, Manual or By NIT, press OK button to confirm. Press the EXIT or ◄
button to return.
2. Channel No.
Select the Channel No, use the number buttons to input the channel number, press the ◄
button to delete the incorrect input. Press the button to enter the character and number
list. In the list, press the direction buttons to select character or number, press the OK
button to confirm input, press the EXIT button to return.
This item is not available when the Search Type is Auto Search.
32
ODYS MultiFlat MF 700 DVB-T
3. TPS
Select the TPS, use the number buttons to input, press the ◄ button to delete the
incorrect input. Press the button to enter the character or number list. In the list, press
the direction buttons to select character or number, press the OK button to confirm input,
EN
press the EXIT button to return. This item is not available when the Search Type is Auto
Search.
4. BandWidth
Select the BandWidth, press the ► button to enter, then press the ▼,▲ direction buttons
to select items, press OK button to confirm, press the EXIT or ◄ button to return.
5. Encrypted Service
Select the Encrypted Service, press the ► button to enter, and then press the ▼,▲
direction buttons to select Save or No Save, press OK button to confirm, press the EXIT or
◄ button to return.
6. Update Mode
Select the Update Mode, press the ► button to enter, and then press the ▼,▲ direction
buttons to select Append or Replace, press OK button to confirm, press the EXIT or ◄
button to return.
After setting these items, use the ▼,▲ direction buttons to highlight the Start Search, and
press the OK button to start searching. During searching, press the DVD/DVB button or
EXIT button to stop searching
Sort Channel (see chap. 6.5.2)
Select Sort Channel, press the OK button to enter, the screen will
display as left.
In the menu, press the ▼,▲ direction buttons to select the
desired item, press the OK button to confirm. Press the EXIT
button to return to the previous menu
This setting is used to name up ,name down or encrypt the
selected channel.
33
ODYS MultiFlat MF 700 DVB-T
7.10.3
Channel List
EN
Select the Channel List, press the OK button
to confirm and enter, the screen will display
as left.
For the first time setting, you should add some programs into the channel list. Press the
OK button to start playback, press the button to select TV or Radio, press the ► right
direction button to display a menu.
Add Channel
Press the ► button to enter Add menu,
press the OK confirm, the screen will display
as left.
Press the direction buttons to select the
desired item, press the ► button to enter, or
use the number buttons to input, press the
button to enter the character and number
list.
In the list, press the direction buttons to select character or number, press the ◄button to
delete the incorrect input, press the OK button to confirm input, press the EXIT button to
return.
Repeat the above procedure, you can set many programs. In the channel list, the set
program will be displayed with the name and Index. You can go on with some operation on
the set program. First press the ► button, then use the ▼,▲ buttons to select Add,
Modify, Delete, Lock/Unlock or Move. Select Modify to modify the information of the
program, Delete to delete the program, Lock/Unlock to lock or unlock the program, you
should input the pin code and Move to change the sequence of this channel.
34
ODYS MultiFlat MF 700 DVB-T
7.10.4
Favorites List
EN
Select the Favorites List, press the OK button to enter, the
screen will display as left.
In the menu, press the button to select different Fav Group.
Add Favorite
Press the ► button to enter, press the OK button, the screen will
display as left.
During initial setting, you should set the channel list at first (see
chap. 6.9.3). Then you can select channels from the channel list,
and add the channel into the favorites list. You can also delete
the channel from the favorites list
Press the ► direction button to enter, and then use the ▼,▲ direction buttons to select
channels, press the OK button to add, press the EXIT button to return.
7.10.5
EPG
Select EPG, press the OK button to enter,
the screen will display as left.
Use the ▼,▲ button to select channel, press
the OK button to booking channel, press the
EXIT button to return.
7.10.6
System Info
Select System Info, press the OK button to enter, the screen will
display as left.
In the menu, press the ▼,▲ direction buttons to select the item,
press the OK button to enter. Press the EXIT button to return to
the previous menu.
35
ODYS MultiFlat MF 700 DVB-T
8 Troubleshooting
EN
Problems
Causes and Solutions
•
•
•
The player cannot play. •
Make sure a disc is loaded.
Make sure the disc is loaded with label side up.
Disc should be clean, not dirty or warped.
Player’s region code should be the same as the region code of the
DVD disc.
• Make sure water condensation has not occurred. If it has, remove
the disc and keep the player power on until the moisture evaporates.
There is no sound
•
•
•
•
Make sure system connection is correct.
Make sure the player is not under muting mode.
Make sure the volume is adjusted to the lowest.
Is your disc dirty or warped? Clean or replace it.
There is no picture or
• Make sure the video type of the AV signal source is PAL.
picture is unsteady.
• Make sure system connection is correct.
Position of the picture is
• Is your disc dirty or warped? Clean or replace it.
incorrect.
Cannot continue to play • Make sure the player is not in A-B repeat status. Press A-B button to
and plays a section
cancel A-B repeat status
repeatedly.
• Is your disc dirty or warped? Clean or replace it.
• Make sure there are no obstructions between the remote control and
the player.
The remote control does
• Make sure the remote control is pointing at the player.
not work.
• Make sure batteries are inserted correctly (check polarity).
• Replace weak batteries.
Other possible causes for problems:
Static discharges or other external interferences can cause the DVD player to malfunction.
When this happens, disconnect the power plug from the mains socket and plug it back in.
If the problem persists, disconnect the device from the mains again and contact Customer
Service or a repair shop.
36
ODYS MultiFlat MF 700 DVB-T
LCD Screen Size
7 inches
Laser Wavelength
780/650 nm
Video System
PAL
Frequency Response
20 Hz – 20 kHz ± 2.5 dB
Audio Signal-to-Noise
≥ 85 dB
Audio Distortion + Noise
≤ -70 dB (1 kHz)
Channel Separation
≥ 70 dB (1 kHz)
Dynamic Range
≥ 80 dB (1 kHz)
System
Radio
Frequency
Range
EN
9 Specifications
PLL
MW-AM
531 – 1602 kHz
UKW-FM
87.5 – 108 MHz
Power
AC 100 – 240 V, 50/60 Hz
Power Consumption
< 30 W
Dimensions
287 mm x 372 mm x 79 mm (D x W x H)
Weight
about 3.1 kg
DESIGN AND SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
Confidential unpublished works. © 1992 -1997 Dolby Laboratories, Inc.
All rights reserved.
37
ODYS MultiFlat MF 700 DVB-T
Warranty condition
EN
The following conditions comprise the requirements and scope of our warranty conditions and do not affect our legal and
contractual warranty obligations.
EN
We offer a warranty on our products in accordance with the following conditions:
1. Odys products are covered by a 24 month warranty. We will resolve damages or defects on Odys products free of charge within
12 months of the purchase date under the following warranty conditions. For any damage or defect determined later than 12
months after the purchase date, proof of a manufacturing fault must be submitted for repair under warranty.
The warranty does not cover batteries and other parts, which are considered consumables, parts that break easily such as glass
or plastic or defects based on normal wear and tear. There is no warranty obligation in the event of marginal differences
compared to the target appearance and workmanship provided these have a negligible effect on the product's fitness for use, in
the event of damage caused by chemical or electrochemical effects, by water or generally from abnormal conditions.
2. The warranty will be performed in such a way that we shall decide whether to repair the defective parts or to replace them with
working parts free of charge. AXDIA reserves the right to exchange the product for a replacement product of equal value if the
product that is sent in cannot be repaired within a reasonable time or at reasonable cost. The product can also be exchanged for
a different model of the same value. Requests cannot be made for repairs to be carried out on site. Parts that have been replaced
or exchanged become our property.
3. The warranty claim does not apply if repairs or other work is carried out by unauthorized persons or if our products are equipped
with additional parts or accessories that are not approved for our products.
4. Warranties that have been activated do not cause the warranty period to be extended, nor do they trigger a new warranty period.
The warranty period for any replacement parts installed ends with the warranty period for the entire product.
5. Any other or further claims are excluded, especially those for replacement due to damage caused outside of the product, provided
there is no obligatory legal liability. We therefore accept no liability for accidental, indirect or other consequential damage of any
kind, which leads to usage restrictions, data loss, loss of earnings or interruption to business.
Asserting a warranty claim
1. To make use of the warranty service, you must contact the AXDIA Service Center by e-mail, fax or phone (see below for contact
details). You can also use the service form on our website or on the back of the warranty conditions.
2. AXDIA Service Center will try to diagnose and solve your problem. If it is determined that a warranty claim exists, you will be
given an RMA number (Return Material Authorization) and you will be asked to send the product to AXDIA.
IMPORTANT: AXDIA will only accept parcels that have an RMA number.
Please observe the following when sending the product:
1. Send the product suitably packaged with carriage and insurance paid. Do not enclose any accessories with the products (no
cables, CD's, memory cards, manuals, etc.), unless the AXDIA Service Centre specifies otherwise.
2. Mark the RMA number on the outside of the package in such a way that it is visible and clearly legible.
3. You must enclose a copy of the sales slip as proof of purchase.
4. Once AXDIA has received the product, it will meet its warranty obligations in accordance with the warranty conditions and will
return the product to the sender with carriage and insurance paid.
Service outside of warranty
AXDIA can refuse any service claim made that is not covered by the warranty. If AXDIA agrees to provide a service
outside the warranty, the customer will be invoiced for all repair and transport costs.
AXDIA will not accept any packages that have not first been approved by AXDIA by means of an RMA (Return Material
Authorization).
38
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
