MODEL SE-912

MODEL SE-912

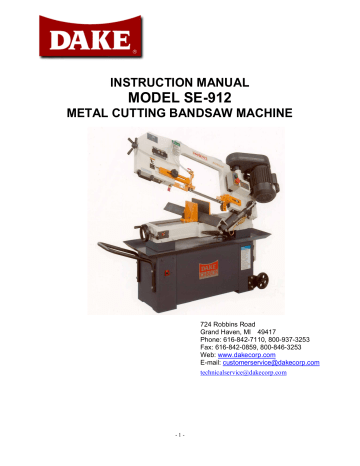

INSTRUCTION MANUAL

MODEL SE-912

METAL CUTTING BANDSAW MACHINE

724 Robbins Road

Grand Haven, MI 49417

Phone: 616-842-7110, 800-937-3253

Fax: 616-842-0859, 800-846-3253

Web: www.dakecorp.com

E-mail: [email protected]

[email protected]

- 1 -

Table of Contents Page No

1 Warning ….………………………………………………………………..… 3

2 Safety rules for all tools...……………………………………………………

3

3 Specification ………………………………………………………………… 7

4 Transportation of machine ………………………………………………..… 7

5 Installation …………………………………………………………………… 7

6 Minimum Room Space for Machine Operation …………………………… 8

7 Make proper tooth selection ……………………………………………….… 8

8 BI-Metal speeds and feeds. 10

9 Assembly ……………………………………………………………………. 12

10 Operation …………………………………………………………………. 13

11 Blade guide bearing adjustment …..……………………………………… 16

12 Blade track adjustment. 18

13 Maintenance …………………..………………………………………………. 18

14 Lubrication ……………………………………………………………………. 19

15 Trouble Shooting ……………………………………………………………... 20-21

16 Circuit Diagram ……………………….……………………………………… 22/24

17 Electrical Specification Chart ………..……………………………………….23/25

18 Parts Lists …………………………………………………………………… 26-32

- 2 -

Interlock switch

Guide adjustable knob

Switch

Blade adjustable knob

Motor pulley cover

Hand vise wheel

Vise jaw bracket

Stop block

Cylinder

Blade adjustable handle

Interlock switch

Guide adjustable knob

Switch

Gear box

Hand vise wheel

Vise jaw bracket

Stop block

Cylinder

- 3 -

WARNING: FAILURE TO FOLLOW THESE RULES

MAY RESULT IN SERIOUS PERSONAL INJURY

As with all machinery there are certain hazards involved with operation and use of the machine.

Using the machine with respect and caution will considerably lessen the possibility of personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to the operator may result.

This machine was designed for certain applications only. We strongly recommend that this machine

NOT be modified and/or used for any application other than for which it was designed. If you have any questions relative to its application DO NOT use the machine until you contact with us and we have advised you.

Your machine might not come with a power socket or plug. Before using this machine, please

Do ask your local dealer to install the socket or plug on the power cable end.

SAFETY RULES FOR ALL TOOLS

A. USER:

(1). WEAR PROPER APPAREL. No loose clothing, gloves, rings, bracelets, or other jewelry to get caught in moving parts.

Non-slip foot wear is recommended. Wear protective hair covering to contain long hair.

(2). ALWAYS WEAR EYE PROTECTION. Refer to ANSLZ87.1 standard for appropriate recommendations.

Also use face or dust mask if cutting operation is dusty.

(3). DON'T OVERREACH. Keep proper footing and balance at all times.

(4). NEVER STAND ON TOOL. Serious injury could occur if the tool is tipped or if the cutting tool is accidentally contacted.

(5). NEVER LEAVE TOOL RUNNING UNATTENDED. TURN POWER OFF. Don't leave tool until it comes to a complete stop.

(6). DRUGS, ALCOHOL, MEDICATION. Do not operate tool while under the influence of drug, alcohol or any medication.

(7). MAKE SURE TOOL IS DISCONNECTED FROM POWER SUPPLY. While motor is being mounted, connected or reconnected.

(8). ALWAYS keep hands and fingers away from the blade.

(9). STOP the machine before removing chips.

(10). SHUT- OFF power and clean the BAND SAW and work area before leaving the machine.

B. USE OF MACHINE:

(1). REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to see that

- 4 -

keys and adjusting wrenches are removed from tool before turning it "on".

(2). DON'T FORCE TOOL. It will do the job better and be safer at the rate for which it was designed.

(3). USE RIGHT TOOL. Don't force tool or attachment to do a job for which it was not designed.

(4). SECURE WORK. Use clamps or a vise to hold work when practical. It's safer than using your hand frees both hands to operate tool.

(5). MAINTAIN TOOLS IN TOP CONDITION. Keep tools sharp and clean for best and safest performance. Follow instructions for lubricating and changing accessories.

(6). USE RECOMMENDED ACCESSORIES. Consult the owner's manual for recommended accessories. The use of improper accessories may cause hazards.

(7). AVOID ACCIDENTAL STARTING. Make sure switch is in “OFF” position before plugging in power cord.

(8). DIRECTIONOF FEED. Feed work into a blade or cutter against the direction of rotation of the blade or cutter only.

(9). ADJUST AND POSITION the blade guide arm before starting the cut.

(10). KEEP BLADE GUIDE ARM TIGHT, A loose blade guide arm will affect sawing accuracy.

(11). MAKE SURE blade speed is set correctly for material being cut.

(12). CHECK for proper blade size and type.

(13). STOP the machine before putting material in the vise.

(14). ALWAYS have stock firmly clamped in vise before starting cut.

(15). GROUNDALL TOOLS. If tool is equipped with three-prong plug, it should be plugged into a three-hole electrical receptacle. If an adapter is used to accommodate a twoprong receptacle, the adapter lug must be attached to a known ground. Never remove the third prong.

C. ADJUSTMENT:

MAKE all adjustments with the power off. In order to obtain the machine. Precision and correct ways of adjustment while assembling, the user should read the detailed instruction in this manual.

D. WORKING ENVIRONMENT:

(1). KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents.

(2). DON'T USE IN DANGEROUS ENVIRONMENT. Don't use power tools in damp or wet locations, or expose them to rain. Keep work area well-lighted.

(3). KEEP CHILEREN AND VISITIORS AWAY. All children and visitors should be kept a safe distance from work area.

(4). DON’T install & use this machine in explosive, dangerous environment.

- 5 -

E. MAINTENANCE:

(1). DISCONNECT machine from power source when making repairs.

(2). CHECK DAMAGED PARTS. Before further use of the tool, a guard or other part that is damaged should be carefully checked to ensure that it will operate properly and perform its intended function check for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced.

(3). DISCONNECT TOOLS before servicing and when changing accessories such as blades, bits, cutters, etc.

(4). MAKE SURE that blade tension and blade tacking are properly adjusted.

(5). RE-CHECK blade tension after initial cut with a new blade.

(6). TO RPOLONG BLADE LIFE ALWAYS release blade tension at the end of each work day.

(7).CHECK COOLANT DAILY Low coolant level can cause foaming and high blade temperatures. Dirty or week coolant can clog pump, cause crooked. Cause, low cutting rate and permanent blade failure. Dirty coolant can cause the growth of bacteria with ensuing skin irritation.

(8). WHEN CUTTING MAGNESIUM NEVER use soluble oils or emulsions (oil-water mix) as water will greatly intensify any accidental magnesium chip fire. See your industrial coolant supplier for specific coolant recommendations when cutting magnesium.

(9). TO PRNMT corrosion of machined surfaces when a soluble on is used as coolant, pay particular attention to wiping dry the surfaces where fluid accumulates and does not evaporate quickly, such as between the machine bed and vise.

F. SPECTIFIED USAGE:

This machine is used only for general metals cutting within the range of cutting capacity.

G. NOISE:

A weighted sound pressure level: under 80 dB.

H. SAFETY DEVICE:

By the time the saw arm cover is opened, the interlock switch will function to stop the

Machine. Do not remove this switch from machine for any reason, and check its function frequently.

- 6 -

1.SPECIFICATION

MOTOR

3∮O.75KW(1HP) 1∮1.1KW(1-1/2HP)

912G.912GDR 60Hz 158 213 308 50Hz 130 177 255

Saw Blade Speed

(FPM)

912B.912DR 60Hz

98 164 246 328 50Hz 81 135 203 270

Blade Size

Dimension LxWxH (mm)

19.05x0.8x2655 ( Carbon Blade )

1325x630x1050(G) 1380x460x1050(B) 1350x650x1100(DR.GDR)

N.W / G.W (kgs)

Working Capacity

±45°

155 / 180(G.DR.GDR) 140/165(B)

○(mm)

□(mm)

230(9”)

□(mm)

178x305(7”x12”)(G.B) 127x300(5”x12”)(DR.GDR)

○(mm)

150(6”)(G.B) 165(6-1/2”)(DR.GDR)

127x150(5”x6”)(G.B) 100x200(4’x8’)(DR.GDR)

Packing Measurement (mm) LxWxH

1420x690x1100(G) 1420x530x1100(B) 1450x740x1140(DR.GDR)

Overall height (w/o stand)

Noise

1600mm(63")

80 dB MAX

2.TRANSPORTATION OF MACHINE:

Unpacking

1. Transportation to desired location before unpacking, please use lifting jack.(Fig. B)

2. Transportation after unpacking, please use heavy duty fiber belt to lift up the machine.

Fig. B

ALLWAYS KEEP PROPER FOOTING & BALANCE WHILE MOVING THIS MACHINE.

Installation:

This machine weighs 155 kg. It is recommended that the machine shall be transported, with help of lifting jack.

Transportation Recommendation:

(1). Tighten all locks before operation.

(2). ALWAYS Keep proper footing & balance while moving this 155kgs machine, and only use heavy duty fiber belt to lift the machine as Fig. A

- 7 -

(3). TURN OFF the power before wiring, & be sure machine in proper grounding, Overload & circuit breaker is recommended for safety wiring.

(4). CHECK carefully if the saw blade is running in

Counter-clockwise direction, if not reverse the

Wiring per circuit diagram then repeat the running

Test.

(5). KEEP machine always out from sun, dust, wet, raining area.

912(B.G)

3. MINIMUM ROOM SPACE FOR MACHINE OPERATION

912(DR.GDR)

4. MAKE PROPER TOOTH SELECTION

For maximum cutting efficiency and lowest cost per cut, it is important to select the blade with the right number of teeth per inch (TPI) for the material being cut. The material size and shape dictate tooth selection.

- 8 -

TOOTH

SELECTION

You need to consider:

1. The width of the cut. That is, the distance in the cut that each tooth must travel from the point it

Enters the work piece until it leaves the work piece, and

2.The shape of the work piece.

Squares, Rectangles, Flats (Symbol :)

Locate the width of cut on the chart. (Inches on the outer circle and millimeters on the inner circle.) Select the tooth pitch on the ring marked with the square shape which aligns with the width of cut.

EXAMPLE: 6" (150mm) square, use a 2/3 Vari-Tooth.

Round Solids (Symbol : ●)

Locate the diameter of your work piece on the chart. Select the tooth pitch on the ring marked with the round shape which aligns with the size of stock you are cutting.

EXAMPLE: 4" (100mm) round, use a 3/4 Vari-Tooth.

Tubing, Pipe, Structurals( Symbol : O H ^ )

Determine the average width of cut by dividing the area of the work piece by the distance the saw blade must travel to finish the cut. Locate the average width of cut on the chart.

Select the tooth Ditch on the ring marked with the tubing and structural shape which aligns with the average width you are cutting.

EXAMPLE: 4"(100mm) outside diameter, 3"(75mm) inside diameter tubing.

4"(100mm) OD =12.5 sq.ln. (79cm

2

)

3"(75 mm) ID = 7.0 sq.ln. (44cm

2

)

Area = 5.5 sq.ln. (35cm

2

)

5.5 sq.ln. (35cm

2

) / 4" (100mm) distance =1.38(35mm) average width

1.38" (35mm), use a 4/6 Vari-Tooth

NOTE: The band speed and cutting rate recommendations presented on this chart are approximations and are to be used as a starting point for most applications. For exact sawing parameters' consult your saw blade supplier.

- 9 -

5. BI-METAL SPEEDS AND FEEDS

These figures are a guide to cutting 4"(100mm) material (with a 314 Vari-Tooth) when using a cutting fluid.

Increase Band Speed: 15% When cutting 1/4"(6.4mm) material (l0/l4 Vari-Tooth)

12% When cutting 3/4"(19 mm) material (6/10 Vari-Tooth)

10% When cutting 1-1/4"(32 mm) material (5/8 Vari-Tooth)

5% When cutting 2-1/2" (64 mm) material (4/6 Vari-Tooth)

Decrease Band Speed: 12% When cutting 8"(200mm) material (2/3 Vari-Tooth)

MATERIAL ALLOY

ASTM NO.

BAND SPEED

FT./MIN M/MIN

Copper

Alloy

173,932

330,365

623,624

230,260,272

280,264,632,655

314

284

264

244

244

96

87

81

74

74

Carbon

Steel

Ni-Cr-Mo

Alloy Steel

101,102,110,122,172

1751,182,220,510

625,706,715,934

630

811

1117

1137

1141,1144

1141 HI STRESS

1030

1008,1015,1020,1025

1035

1018,1021,1022

1026,1513

A36(SHAPES),1040

1042,1541

1044,1045

1060

1095

8615,8620,8622

4340,E4340,8630

299

299

269

249

219

199

184

339

289

279

279

329

319

309

234

234

234

229

214

239

219

91

91

82

76

67

61

56

103

88

85

85

100

97

94

71

71

71

70

65

73

67

- 10 -

Ni-Cr-Mo

Alloy Steel

Tool Steel

8640,

E9310

A-6

A-2

A-10

D-2

H-11,H-12,H-13

199

174

199

179

159

90

189

61

53

61

55

49

27

58

Stainless

Steel

420

430

410,502

414

431

440C

304,324

304L

347

316,316L

416

120

115

110

100

189

189

149

140

115

95

80

TELLTALE CHIPS

Chips are the best indicator of correct feed force. Monitor chip information and adjust feed accordingly.

Thin or powdered chips – increase feed rate or reduce band speed.

Burned heavy chips – reduce feed rate and/or band speed.

Curly silvery and warm chips – optimum feed rate and band speed.

36

35

33

30

58

58

46

43

35

29

24

- 11 -

6. ASSEMBLY

A 1 HP, motor, split phase or capacitor-start it recommended for best economical performance.

Counterclockwise rotation is required. Note that rotation can be reversed by allowing directions

Given on terminal or nameplate.

(1). Assemble the motor Mounting plate to the head using the long bolt Note that the flat side of the plate faces up.

(2). Assemble the guard plate to the head using the screw and Lock Washer and the Carriage Bolt

Washer and Wing Nut are used to secure the motor mounting plate to the Guard plate through the slotted hole in the Guard plate. These components also serve to position and lock the motor in place for proper speed/ belt adjustment.

(3). Place the spacer over the long Bolt and secure it wit the nut.

(4). Secure the Motor to the Motor Mounting plate with the four bolts and nuts. Note; the motor shaft is placed through the large opening in the Guard plate and must be parallel with the drive

Shaft.

(5). Assemble the Motor Pulley, the smaller of the two provided, to the motor shaft Note, the larger diameter must be closest to the motor.

Do not tighten the set screw.

(6). Assemble the Driven Pulley, the larger of the two provided, to the protruding drive Shaft Note the small diameter must be closest to the bearing.

Do not tighten the set screw.

(7).Place the belt into one of the pulley grooves and the other end into the respective grooves of the second pulley.

(8) Line up the belt and both pulleys such that the belt is running parallel in the pulley grooves.

(9).Tighten the set screws of both pulleys in this position.

(10). Place the belt into proper pulley combination for proper blade speed. See material cutting

Chart.

(11). Adjust the position of the Motor to obtain approximately 1/2" depression in the belt when applying pressure with your thumb.

(12). Tighten the head screw Holding the Motor Mounting plate to the Guard plate.

(13). Connect the Electrical Harness to the motor terminal box. The motor should be protected with a time delay fuse or circuit breaker with rated amperage slightly greater than the full load amperage of the motor.

- 12 -

7. OPERATION

WORK SET UP

(1). Raise the saw head to the highest position.

(2). Open vise to accept the Piece to be cut by rotating the wheel at the end the base.

(3). Place work piece on saw bed. If the piece is long, support the end.

(4). Clamp work pieced securely in vise.

WORK STOP ADJUSTMENT

(1). Loosen the thumb screw holding the work stop casting to the shaft.

(2). Adjust the work stop casting to the desired length position.

(3). Rotate the work stop to as close to the bottom of the cut as possible.

(4). Tighten thumbscrew.

(5). DO NOT ALLOW the blade to rest on the work while the motor is shut off.

BLADE SPEEDS

When using your Band saw always change the blade speed to best suit the material being cut the material Cutting Shirt givers suggested settings for several materials.

Speed F.P.M

912(G.GDR)

Belt Groove Used

912(B.DR)

Material

60Hz 50Hz 60Hz 50Hz

Motor

Pulley

Saw

Pulley

Tool, Stainless

Alloy Steels

Bearing Bronze

158 130 98 81 Small

Medium to High

Carbon Steels

Hard Brass or Bronze

Low to Medium

Carbon Steel

Soft Brass

213 177

164

246

135

203

Medium

Large

Aluminum Plastic 308 255 328 270 Largest

MANUAL OF GEAR TYPE SPEED CHANGING

(1) Select the proper cutting speed according to the material of work-pieces

And blade select chart.

(2) Turn the speed-changing handle directly for the necessary speed.

(3) Changing speed during cutting is prohibited.

(4) But changing speed when machine is stopped and running (before cutting)

Is available.

- 13 -

Largest

Large

Medium

Small

BLADE DIRECTION OF TRAVEL

Be sure the Made is assembled to the pulleys such that the vertical edge engages the work piece first.

BLADE MOVEMENT

Blade Direction

STARTING SAW

Switch button function description

(Emergency Push Button)

(Start Button)

(Stop Button)

(Coolant Selection Switch)

CAUIION: NEVER OPERATE SAW WITHOUT BLADE GUARDS IN PLACE.

Be sure the blade is not in contact with the work when the motor is started. Start the motor, allow the saw to come to full speed, and then begin the cut by letting the head down slowly onto the work.

DO NOT DROP OR FORCE. Let the weight of the saw head provide the cutting force. The saw automatically shuts off at the end of the cut.

BLADE SELECTION

An 8-tooth per inch, general-use blade is furnished with this metal Cutting Band Saw. Additional blades in 4, 6, 8, and 10 tooth sizes are available. The choice of blade pitch is governed by the thinness of the work to be cut: the thinner the work piece, the more teeth advised. A minimum of three (3) teeth should engage the work piece at all times for proper cutting if the teeth of the Blade

- 14 -

are so far apart that they straddle the work, severe damage to the work piece and to the Made can result.

CHANGING BLADE

Raise saw head to the highest position and open the blade guards. Loosen tension screw knob sufficiently to allow the saw blade to slip off the wheels. Install the new blade with teeth slanting toward the motor as follows:

(1). Place the blade in between each of the guide bearings.

(2). Slip the blade around the motor pulley (bottom) with the left hand and hold in position.

(3). Hold the blade taut against the motor pulley by pulling the blade upward with the right hand

Which is placed at the top of the Made?

(4). Remove left hand from. Bottom pulley and place is at the top aide of the Made to continue the

Application on the upward pull on the blade.

(5). Remove right hand from blade and adjust the position of the top pulley to permit left hand to slip the blade around the pulley using the thumb, index and little finger as guides.

(6). Adjust the blade tension knob clockwise until it is just right enough so no blade slippage occurs. Do not tighten excessively.

(7). Replace the blade guards.

(8). Place 2-3 drops of oil on the blade.

USAGE OF THE OUICK VISE

The work piece is placed between the vise jaws with the amount to be cut-off extending out past the blade. Your machine is equipped with a "quick action" vise jaw which allows you to instantly position the moveable vise jaw (B).

Simply turn Handwheel (A) counterclockwise 1/2 turn and move the vise jaw (B) to the desired position. Then tighten the vise jaw (B) against the work-piece by turning hand-wheel clockwise.

QUICK VISE ADJUSTMENT FOR ANGLE CUT (912B.912G)

(1). Loosen the A. B. C. D. Screw.

(2). Adjust rear vise to the threaded hole position. (E)

(3). Set the scale to the desired angle.

(4). Adjust the front vise (F) to parallel the rear vise (E)

(5). Tighten the A. B. C. D. Screw.

- 15 -

QUICK VISE ADJUSTMENT FOR ANGLE CUT (912DR.912GDR)

(1). Pull out plastic knob (A).turn and lock the plastic knob.

(2). Loosen grip (B).Then rotates the Body Frame for the desired angle. Be aware the blade

Position is higher than the Vise Table by pulling up the Body Frame when counter-clockwise

Rotation for miter cutting. And for clockwise rotation for angle cutting higher the Body

Frame and keep the blade position higher than the vise. Then pull forward the vise Jaw

Bracket (Front) to a proper location.

(4). Fasten the grip (B) when the cutting angle is reached.

(5). There is angle set-screw for ±45°rotation

A

B

8. BLADE GUIDE BEARING ADJUSTMENT

ATTENTION: This is the most important adjustment on your saw. It is impossible to get satisfactory work from your saw if the blade guides are not properly adjusted. The blade guide bearings on your metal. Cutting Band Saw are adjusted and power tested with several test cuts before leaving the factory to insure proper setting The need for adjustment should rarely occur when the saw is used properly. If the guides do get out of adjustment though, it is extremely important to readjust immediately. If improper adjustment in maintained, the blade will not cut straight, and if the situation is not corrected it will cause serious blade damage. Because guide adjustment is a critical factor in the performance of your saw, it is always best to try a new blade to see if this will correct poor cutting before beginning to adjust. If a blade becomes dull on one side sooner than the other, for example, it will begin cutting crooked. A blade change will correct this problem the guide adjustment will not. If a new blade does not correct the problem, check the blade

- 16 -

guides for proper spacing.

NOTE: There should be from 000 (just touching) 001 clearance between the blade and guide bearings to obtain this clearance adjust as follows:

1. The inner guide bearing is fixed and cannot be adjusted.

2. The outer guide bearing is mounted to an eccentric bushing and can be adjusted.

3. Loosen the nut while holding the bolt with an Alien wrench.

4. Position the eccentric by turning the bolt to the desired position of clearance.

5. Tighten the nut.

6. Adjust the second blade guide bearing in the same manner.

REMARK:

1. Adjust the tension of blade until the back of the blade (A) against the blade wheel (front) lightly.

2. Be sure the nut (E) is tightened.

3. Turn the eccentric shaft (B) counterclockwise, when the bearing (D) touches the saw blade properly; tighten the nut (E).

4. To adjust, loosen set screw(F) and move the blade adjustable up or down until it lightly

Touches the back of the blade (A).

5. The carbide blade guides(L)Fig.1,should also be adjusted so they lightly touch the blade by loosening screws (M).

6. Repeat 1. 2, 3, 4and 5 steps to adjust the other side's blade guide bearings (G).

7. Correct the base and blade to be a vertical position with a scale. If necessary, loosen set screw (F).

8. Set down the blade frame, correct the jaw vise (H) and blade to be a vertical position with a

Scale then tighten the set screws (I).

9. Loosen set screw (K), move front jaw vise (J) to against rear jaw vise (H) tightly. Finish

Correcting by tightening set screw (K)

M

A

C

G

Fig.1

L

D

- 17 -

Fig.2

9. BLADE TRACK ADJUSTMENT

(1). Open the blade guard.

(2). Remove the blade guide assemblies (top and bottom)

(3). Loosen the hex head screw in the tilting mechanism to a point where it is loose but snug.

(4). with the machine running, adjust both the set crew and blade tension knob simultaneously to keep constant tension on the blade. The set screw and blade tension knob are always turned in opposite directions, i.e., when one is turned clockwise the other is turned counterclockwise.

The blade is tracking properly when the back side just touches the shoulder of pulley or a slight gap appears near the center line of the pulley. Care should be taken not to over-tighten the saw blade since this will give a false adjustment and limit life of the blade.

(5). Tighten the hex head screw in tilting mechanism. IMPORTANT: Sometimes in trying to make this critical adjustment it is possible to cause the basic setting to be misaligned. Should this occur, proceed as follows:

a. Loosen the set screw and back it out as far as it can go and still remain in the threaded hole.

b. Turn the hex head screw clockwise until it stops (do not tighten). c. Turn the set screw clockwise until it bottoms, then continue for half a turn and check the tracking by turning on the machine. d. If further adjustment is required, go back to step 4.

(6). Turn off power to the machine.

(7). Replace the clad guide assemblies--it may be necessary to loosen the blade tension lightly.

(8). Adjust the vertical position of blade guide bearing assemblies so that the back side of the blade just touches the ball bearing.

(9). Make a final run to check tracking. It required, touch up adjustment (See stop 4)

(10). Replace the blade guards.

Hydraulic Feed Adjustment

(1) To adjust the feeding rate when in cutting, turn the volume valve (A) clockwise for faster feeding, counterclockwise for slower feeding.

(2) When cutting feed is too fast, raise the saw arm, then slower the feed rate to prevent blade damage.

10. MAINTENANCE

CAUTION: MAKE CERTAIN THAT THE UNIT IS DISCONNECTED FROM THE POWER

SOURCE BEFORE ATTEMPTING TO SE RV ICE OR REMOVE ANY COMPONENT.

That's easier to keep machine in good condition or best performance by means of maintaining it at any time than remedy it after it is out of order.

- 18 -

(1) Daily Maintenance (by operator)

(a) Fill the lubricant before starting machine everyday.

(b) If the temperature of spindle caused over-heating or strange noise, stop machine immediately to cheek it for keeping accurate performance.

(c) Keep work area clean; release vise, cutter, work-piece from table; switch off power source; take chip or dust away from machine and follow instructions lubrication or coating rust proof oil before leaving.

(2) Weekly Maintenance

(a) Clean and coat the leading screw with oil.

(b) Check to see if sliding surface and turning parts lack of lubricant. If the lubricant is insufficient, fill it.

(3) Monthly Maintenance

(a) Check if the fixed portion llave been loose.

(b) Lubricate bearing, worm, and worm shaft to avoid the wearing.

(4) Yearly Maintenance

(a) Adjust table to horizontal position for maintenance of accuracy.

(b) Check electric cord, plugs, switches at least once a year to avoid loosening or wearing.

LUBRICATION

Lubricate the following components using SAE-30 oil as noted.

(1). Ball-bearing none.

(2). Driven pulley bearing 6-8 drops a week.

(3). Vise lead screw as needed.

(4). the drive gears run in an oil bath and will not require a lubricant change more often than once a year, unless the lubricant is accidentally contaminated or a leak occurs because of improper

Replacement of the gear box covers. During the first few days of operation, the worm gear drive will run hot. Unless the temperature exceeds 200F. there is no cause for alarm.

The following lubricants may be used for- the gear box:

Atlantic Refinery Co. Mogul Cyl. Oil

Cities Service Gptimus No. 6

Gulf Refinery Co Medium Gear Oil

- 19 -

11. TROUBLE SHOOTING

Symptom Possible Cause(s)

Excessive Blade

Breakage

1. Materials loosen in vise.

2. Incorrect speed or feed

3.Blade teeth spacing too large

4. Material too coarse

5. Incorrect blade tension

6.Teeth in contact with material before saw is started

7. Blade rubs on wheel flange

8. Miss-aligned guide bearings

9. Blade too thick

10 Cracking at weld

Premature Blade Dulling 1. Teeth too coarse

2. Too much speed

3. Inadequate feed pressure

4.Hard spots or scale on material

5. Work hardening of material.

6.Blade twist

7. Insufficient blade

8. Blade slide

Unusual Wear on

Side/Back of Blade

Teeth Ripping from

Blade.

1.Blade guides worn.

2.Blade guide bearings not adjust properly

3.Blade guide bearing bracket is loose

1. Tooth too coarse for work

2. Too heavy pressure; too slow

- 20 -

Corrective Action

1. Clamp work securely

2. Adjust speed or feed

3. Replace with a small teeth spacing blade

4. Use a blade of slow speed and small teeth spacing

5. Adjust to where blade just does not slip on wheel

6. Place blade in contact with work after motor is starred

7. Adjust wheel alignment

8. Adjust guide bearings

9. Use thinner blade

10. Weld again, note the weld skill.

1. Use finer teeth

2. Decrease speed

3. Decrease spring tension on side of saw

4. Reduce speed, increase feed pressure

5. Increase feed pressure by reducing spring tension

6. Replace with a new blade, and adjust blade tension

7. Tighten blade tension adjustable knob

8. Tighten blade tension

1.Replace.

2.Adjust as per operators manual

3.Tighten.

1. Use finer tooth blade.

2. Decrease pressure, increase

speed.

3. Vibrating work-piece.

4. Gullets loading

Motor running too hot 1. Blade tension too high.

2. Drive belt tension too high.

3. Blade is too coarse for work

4. Blade is too fine for work

Bad Cuts (Crooked)

Bad Cuts (Rough)

Blade is twisting speed

3. Clamp work piece securely

4. Use coarser tooth blade or brush to remove chips.

1. Reduce tension on blade.

2. Reduce tension on drive belt.

3. Use finer blade.

4. Use coarse blade.

5. Gears aligned improperly

6. Gears need lubrication

7. Cut is binding blade

1. Feed pressure too great.

2. Guide bearings not adjusted properly

5. Adjust gears so that worm is in center of gear.

6. Check oil path.

7. Decrease reed anti speed

1. Reduce pressure by increasing spring tension on side of saw

2. Adjust guide bearing, the clearance can not greater than 0.001.

3. Inadequate blade tension.

4. Dull blade.

3. Increase blade tension by adjust blade tension

4. Replace blade

5. Speed incorrect.

6. Blade guides spaced out too much 6. Adjust guides space.

7. Blade guide assembly loose

5. Adjust speed

7. Tighten

8. Blade truck too far away from wheel flanges

1. Too much speed or feed

2. Blade is too coarse

3. Blade tension loose

1. Cut is binding blade.

2. Too much blade tension.

8. Re-track blade according to operating instructions.

1. Decrease speed or feed.

2. Replace with finer blade.

3. Adjust blade tension.

1. Decrease reed pressure.

2. Decrease blade tension.

- 21 -

ELECTRICAL SPECIFICATION

Part name

Coolant switch

Green start button

Red stop button

E-stop button

Part number

716558

716540

716539

716538

- 22 -

ELECTRICAL SPECIFICATION

Part number

301461

301462

301795

300828

302409

73326011

Part name

Electrical box complete

Contactor 24volt

Overload

Relay orange

Motor reset button

Transformer

Qty Part number

1

1

1

1

716558

716540

716539

7165387

1

1

- 23 -

300733

Part name Qty.

Coolant on/off button 1

Green start button

Red stop button

1

1

E-stop button

Limit switch end of cut

1

1

- 24 -

- 25 -

- 26 -

26

27

28

22

24

25

19

20

21

13

14

15

16

17

18

29

30

31

32

33

34

6

7

9

10

11

12

ITEM

1

2

3

4

5

MODEL SE 912B

(After S/N 172344 or 02/2001)

300911

78833

301269

301270

301271

43331

43916

300907

301288

43881

301289

301290

301291

301292

DAKE NO.

301266

301267

300906

300907

300908

300751

300752

301268

300755

300989

300910

REF NO. DESCRIPTION

192012A Swivel Base

192009A Acme Screw or 300756

K03

W002

S607

Key

Washer

Hex. Socket Headless

191202

3027-1

Wheel

Handle Knob

181138B Acme Nut

181604

181605

W203

Acme Nut

Button

Spring Washer

191206

S721

181266

W008

192015

S410

Retainer

Cross Round Head Srew

Fixed Bolt

Spring Washer

Vise Jaw Bracket(Front)

Hex. Socket Head Screw

N001

W002

S501

Hex. Nut

Spring Washer

Carriage Screw

S003

192008

S708

Hex. Head Screw

Vise Jaw Bracket(Rear)

Cross Round Head Screw

W007

192044

Spring Washer

Scale

181117-1 Spring or 300943

181118

192040

W016

S022

W014

N005

Spring Adjusting Screw

Spring Handle Bracket

Spring Washer

Hex. Head Screw

Spring Washer

Hex. Nut

SPECIFICATION

3/8"x25xt2

3/8"x1-1/2"L

1/2"

1/2"x28xt2

1/2"x2"L

1/2"x2"L

3/16"x3/8"L

3/16"x12xt0.8

5/16"x23xt2

5/16"x3/4"L

3/8"x23xt2

3/8"

- 27 -

59

60

61

62

63

53

54

55

56

57

58

47

48

49

50

51

52

40

41

42

43

44

45

46

ITEM

35

36

37

38

39

64

65

66

301690

43881

DAKE NO.

301293

301294

301295

301296

301297

301298

301299

301688

301300

300945

300733

300730

MODEL SE 912B

(After S/N 172344 or 02/2001)

REF. NO. DESCRIPTION

192051 Bushing

192042A Support Rod

S022

192003

181270

Hex. Head Screw

Pivot Bracket

Washer

S012 Hex. Head Screw

ET2108 Wire Nipple

192033 Cylinder Protector

W018

S022

Spring Washer

Hex. Head Screw

181301-2 Cylinder Lower Support

W016 Spring Washer

S018

191224

S022

Hex. Head Screw

Thumb Screw

Hex. Head Screw

3021

181125

Stock Stop Rod

Distance Set Bracket

ET1624 Limit Switch

181431

181420

S708

192011

W005

S019

Gear Box Gasket

Cover

Cross Round Head Screw

Fixed Plate

Spring Washer

Hex. Head Screw

S014 Hex. Head Screw

181112A Support Plate

S022 Hex. Head Screw

W017

N005

181304-2

S412

W013

Spring Washer

Hex. Nut

Cylinder Complete Set or

300750

Hex. Socket Head Screw

Spring Washer

SPECIFICATION

36

5/16"x3/4"L

3/8"x1-1/2"L

5/8"

5/16"x23xt3

5/16"x3/4"L

5/16"x19xt1.5

5/16"x1/2"L

5/16"x3/4"L

3/16"x3/8"L

1/4"x16xt1.5

5/16"x1-1/2"L

3/8"x1-3/4"L

5/16"x3/4"L

5/16"x18xt1.5

3/8"

RF-712N

3/8"x2-1/4"L

3/8"x20xt2

- 28 -

94

95

96

97

97-1

98

99

100

90

91

92

93

86

87

88

89

81

82

84

85

77

78

79

80

ITEM

67

69

70

72

73

74

75

76

MODEL SE 912B

(After S/N 172344 or 02/2001)

300962

300961

300754

300742

300953

301404

301284

301285

301286

DAKE NO.

301191

REF. NO. DESCRIPTION

181302-2 Cylinder Upper Support

N005 Hex. Nut

S017 Hex. Head Screw

192045S Stand Complete Assembly

S017 Hex. Head Screw

W017

N007

S013

Spring Washer

Hex. Nut

Hex. Head Screw

N005 Hex. Nut

191106A Filter

S708 Cross Round Head Screw

ET1401 Toggle Switch

3131

181932

192019

W019

Switch Cover

Toggle Switch Cover

Wheel Setting Bracket

Spring Washer

S016

192022

P202

181129

N007

W015

S022

192039

Hex. Head Screw

Wheel Rod

Cotter Pin

Wheel

Hex. Nut

Spring Washer

Hex. Head Screw

Knob W/Shaft

N005

W014

S013

181256

Hex. Nut

Spring Washer

Hex. Head Screw

Coolant Tank

Filter

MB13103 Pump

W004 Spring Washer

S701 Cross Round Head Screw

SPECIFICATION

3/8"

5/16"x1"L

5/16"x1"L

5/16"x18xt1.5

5/16"

3/8"x1-1/4"L

3/8"

3/16"x3/8"L

5/8”x40xt3

3/8”x3/4”L

∮3x25L

5/16”

5/16”x12xt2

5/16”x3/4”L

3/8”

3/8”x23xt2

3/8”x1-1/4”L

1/8HP/ 110/220V/60HZ/1PH

1/4"x19xt1.5

1/4"x1/2"L

- 29 -

208

209

210

211

212

213

214

215

193

194

195

196

112

190

191

192

ITEM

101

102

103

105

106

109

110

111

203

204

205

206

197

200

201

202

MODEL SE 912B

(After S/N 172344 or 02/2001)

43881

301287

301826

DAKE NO.

301454

301694

301456

43881

301455

300343

43881

301172

REF. NO. DESCRIPTION

181854 Hose

181852 Coupler

S708

181856

Hose

Cross Round Head Screw

Valve 1/8” NTP

181401

S708

Electrical Box

Cross Round Head Screw

ET2107 Wire Nipple

181402

101073

Cover

3 Way Valve

1341089 Hose Fitting

192056 Hose

S475

192053

192058

192057

Hex. Socket Head Screw

Valve

Hose

Hose

101079

192001

W204

S013

Hose Bib

Body Frame

Spring Washer

Hex. Head Screw

192041

W005

Support Plate

Spring Washer

S201

S608

S708

W007

Cross Round Head Screw

Hex. Socket Headless Screw

Cross Round Head Screw ( For

CE Only )

Spring Washer ( For CE Only )

192023A Switch Cut Off Tip

W005

S201

Spring Washer

Cross Round Head Screw

1965052 Knob

S414

W008

Hex. Socket Head Screw

Spring Washer

SPECIFICATION

OD16mmxID13mmx260m

3/8"PT

3/16"x3/8"L

3/16"x3/8"L

1/2"

1/4PTx1/4"

OD8xID6x1100L

1/4"x1-1/4"L

1/4"PTx5/16"

OD12xID8x14000L

OD8xID6x400L

3/8"

3/8"x1-1/4"L

1/4"x16xt1.5

1/4"x1/2"L

5/16"x3/4"L

3/16"x3/8"L

3/16"x12xt0.8

1/4"x16xt1.5

1/4"x1/2"L

5/16"x1"L

3/8"x25xt2

- 30 -

MODEL SE 912B

(After S/N 172344 or 02/2001)

300748

300748R

301467

301468

300693

301699

DAKE NO.

302329

301372

301373

301606

301606

301606

301433

300934

43314

302330

43315

302331

43317

301705

302324

300734

301841

242

243

244

244-261

245

246

247

248

228

229

230

231

224

225

226

227

ITEM

216

217

218

219

220

221

222

223

232

233

235

238

239

240

241

181210

192026

S608

W205

S020

W015

S019

193051

REF. NO. DESCRIPTION

192038A Blade Tension Bar

P003 Pin

192037A Handle Body

3027-1

193050

Knob

Blade Wheel Shaft

P005

193052

192052

Pin

Sliding Plate Draw Block

Blade Tension Sliding Block

Sliding Plate or 300737

Spring

Hex. Socket Headless Screw

Spring Washer

Hex. Head Screw

Spring Washer

Hex. Head Screw

Bushing

HCR06 C-Retainer Ring

CA6205 Ball Bearing (6202LLB)

192016A Idler Wheel

W017 Spring Washer

S022 Hex. Head Screw

192050A Blade

192014

Gear Box Protector(For CE

Only)

W005

S704

Spring Washer ( For CE Only )

Cross Round Head Screw ( For

CE Only )

181216-1AS Gear Box Casting

181216-1 Gear Box Assembly

Gear box rebuilt

181219-1 Transmission Wheel shaft

K015 Key

6205-FRS Bearing, Sealed

181217-1 Bushing

- 31 -

SPECIFICATION

∮3x20L

∮4x22L

5/16"x3/4"L

5/16"

5/16"×1"L

5/16"x12xt2

5/16"x1-1/2"L

R52

6205

5/16"x18xt1.5

5/16"x3/4"L

27x0.9x2655x5-8T

1/4"x16xt1.5

1/4"x3/8"L

6 x 6 x 20mm

25 x 52 x 15mm

266

267

268

273

274

275

276

277

269

270

271

272

278

279

280

281

282

256

258

259

260

261

262

ITEM

249

250

251

254

263

264

265

301708

300740

301374

301375

300878

MODEL SE 912B

(After S/N 172344 or 02/2001)

DAKE NO.

301471

301683

76827

43412

301839

300853

301476

43574

300495

300958

42323

301470

43881

REF. NO. DESCRIPTION

181218-1 Bushing

181220-1 Worm gear

C110 Retaining ring 25mm

S201 Hex Head Screw

192010 Worm shaft

6003 Bearing, Sealed

181224 Bearing bushing

S607

C002

Set Screw 43562

Retaining Ring

181226B Spindle Pulley gear box input

S604 Hex. Socket Headless Screw 301451

192017A Drive Wheel

S604

181991

S449

S708

Hex. Socket Headless Screw

Emergency Switch Bracket(For CE

Only)

Hex. Socket Head Screw ( For CE

Only )

Cross Round Head Screw ( For CE

Only )

M6x15L

3/16"x3/8"L

SPECIFICATION

1/4 x 1/2

17 x 35mm

17mm

1/4"x3/8"L

1/4"x3/8"L

192034 Motor Mount Bracket

W016 Spring Washer

S022

S022

Hex. Head Screw

Hex. Head Screw

W018 Spring Washer

181234A Motor Mount Plate

N007

S021

S503

Hex. Nut

Hex. Head Screw

Carriage Screw

M301-1 Motor 12.5 amps

Motor Fan

W016

Motor Cover

Spring Washer

N007 Hex. Nut

181235B Motor Pulley

S604 Hex. Socket Headless Screw

5/16"x23xt2

5/16"x3/4"L

5/16"x3/4"L

5/16"x23xt3

5/16"

5/16"x2"L

5/16"x1"L

1HP/110V/60HZ/1PH

5/16"x23xt2

5/16"

1/4"x3/8"L

- 32 -

297A

298

299

299A

300

N/A

N/A

301

318

319

320

321

326

327

329

302

303

306

307

308

316

316A

317

293

295

296

297

288

289

290

291

ITEM

283

284

285

286

301873

300743

43412

301619

300735

302073

301605

300747

300738

MODEL SE 912B

(After S/N 172344 or 02/2001)

DAKE NO.

300877

301873

300744

43645

300504

300745

302216

300746

300744

10026-01

300477

301684

REF. NO. DESCRIPTION

K008 Key

181237I Motor Pulley Cover

W202

S006

Spring Washer

Hex. Head Screw

3058 Plum Screw

192004S Adjustable Bracket Assembly (Rear)

W008

S013

Spring Washer

Hex. Head Screw

CA6000ZZ Bearing

W208 Spring Washer

N006 Hex. Nut

181244 Guide Pivot (Right) holds two bearings

New style holds three bearings for 1”

181243 blade

Bearing Shaft holds two bearings for

¾” blade

CA600ZZ Bearing 8mm for 1” blade new style

Bearing 10mm for ¾” blade old style

Clip 301447

Complete guide assembly left side

SPECIFICATION

5x5x30L

1/4"

1/4"x1/2"L

3/8"x25xt2

3/8"x1-1/4"L

3/8"

3/8”UNF

This is a set eccentric and concentric

For 1” blade

W017

Complete guide assembly right side

Spring Washer

W205

S416

Spring Washer

Hex. Socket Head Screw

191331 Carbide Guide

S401 Screw ¼-20 – ½”

192027S Brush Assembly Items 308-316

181241A Brush only brass

Brush only Steel

192005S Adjustable Bracket Assembly (Front)

W008

3066-3

Spring Washer

Blade Adjustable Knob

181231A Blade Cover(Front)

S711 Cross Round Head Screw

181874 Belt

192002B Blade Back Cover

W005 Spring Washer

For 1” blade

5/16”x18xt1.5

5/16”

5/16”x1-1/4”L

3/8"x25xt2

5/32"x1/4"L

3Vx270

1/4"x16xt1.5

- 33 -

344

364

365

366

367

368

369

340

341

342

342

343

374

375

376

377

370

371

372

373

ITEM

330

331

332

334

335

337

338

339

MODEL SE 912B

(After S/N 172344 or 02/2001)

301272

301273

301274

43450

DAKE NO.

301534

301700

300907

301748

301275

301276

300973

300972

301277

301278

301279

301280

REF. NO. DESCRIPTION

S701 Cross Round Head Screw

W005 Spring Washer

181202 Knob

181246 Bearing Cover

S712

N016

Screw

Nut

W002 Spring Washer

192049 Bushing

181306 Bracket

S720 Cross Round Head Screw

181305 Switch base

181305A Switch base

W023 Spring Washer

S721

3027-1

Cross Round Head Screw

Knob

193057 Knob

S601 Hex. Socket Headless Screw

193055 Pressure Lump

HW007 Spring Washer

S013 Hex. Head Screw

W013

HP018

Spring Washer

Pin

193056 Pressure Shaft

193059 Knob W/Shaft

290086 Plastic Round Knob

CA51101 Bearing

193063 Washer

193058 Spring

SPECIFICATION

1/4"x1/2"L

1/4"x16xt1.5

5/32 x 3/8

1/2"

1/2"x28xt2

M4x5L

For Special Request

M5

M5x10L

1/4"x1/2"L

M12xt2

3/8"x1-1/4"L

3/8"x20xt2

∮5X20L

- 34 -

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
