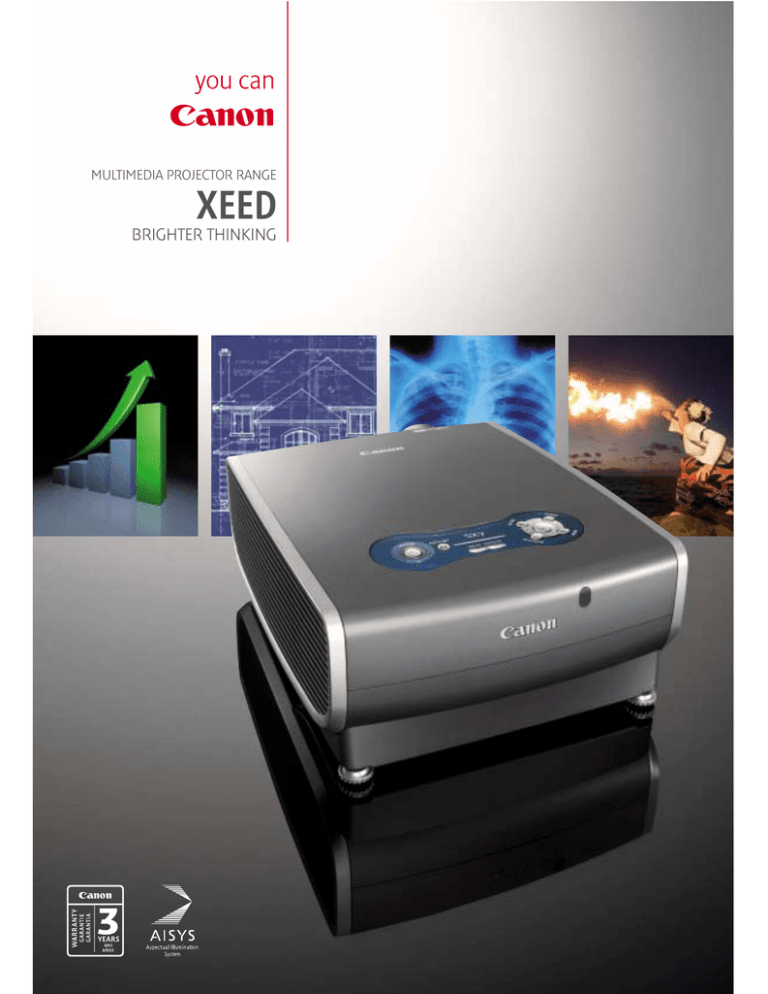

MULTIMEDIA PROJECTOR RANGE
BRIGHTER THINKING
• CONFERENCE VENUES
• EXHIBITION CENTRES
• BOARDROOMS
AND MEETING
FACILITIES
• PHOTOGRAPHY
PROFESSIONALS
Think XEED
Designed with professionals in mind, XEED stands for highimpact imaging. Each XEED offers pin-sharp projection, thanks
to the revolutionary application of advanced Canon optics and
LCOS technology. For ultra-portable projection with professional
image quality – think XEED.
• GRAPHIC DESIGN
INDUSTRY
PROFESSIONAL RESOLUTION
AND COLOUR
• MEDICAL IMAGING
Since professional presentation requires
a professional level of detail, the XEED SX7,
XEED SX6 and XEED SX60 all boast SXGA+
resolution. Each projector is capable of
displaying highly detailed images – ideal
for CAD drawings and medical images.
For designers, printers and other graphics
professionals, the XEED SX7 and XEED SX6
both support the Adobe RGB colour space.
• SIMULATION
• PUBLIC DISPLAYS
• ENTERTAINMENT,
NIGHTLIFE AND
EVENTS INDUSTRY
• THEATRE AND
SPECIAL EFFECTS
SEAMLESS LCOS IMAGES
Free from the unsightly ‘lattice’ and ‘rainbow’ effects all too familiar to
users of LCD and single-chip DLP projectors, the XEED range uses LCOS
panels to harness the best of both technologies, while cleverly avoiding
the drawbacks of each. Images are smooth and flawless, with high
contrast and faithful colour reproduction.
Original Image
LCD technology
XEED LCOS technology
Revolutionary optical
technology
Canon brings 70 years of optical innovation to
the creation of XEED. Original Canon lenses and
advanced optics make XEED the highest performance
ultra-portable projectors available today.
BRILLIANT AISYS IMAGING
QUIET AND COMPACT
Canon AISYS (Aspectual Illumination System) produces high resolution, seamless
LCOS images from an ultra-portable projector. AISYS optimises the light path within the
projector body, enabling all four XEED models to deliver astounding levels of brightness –
4000 lumens from the XEED SX7 and XEED X700, 3500 lumens from the XEED SX6 and
2500 lumens from the XEED SX60.
Despite their compact form, XEED projectors
offer performance comparable to many
heavyweight installation projectors.
Advanced AISYS technology achieves
a more efficient illumination system,
so less cooling is required and fan noise
is reduced. In Quiet Mode the XEED SX60
is virtually silent at 27dBA – the XEED SX7,
XEED SX6 and XEED X700 operate at just
31dBA in Quiet Mode.
GENUINE CANON OPTICS
Each XEED model is equipped with a wide-angle Canon 1.7x zoom lens, allowing for
flexible projector placement. The 1.7x zoom enables a greater range of throw distances,
while the wide-angle lens creates large images from short range. Each powered lens is
operable via the projector’s control panel and remote control, for ultimate ease of use.
20
OUTSTANDING CONTRAST
High contrast helps to bring each projected image to life. The advanced colour separation
and recombination system in every XEED model gives a contrast ratio of 1000:1 for vivid
colours and deeper darker blacks. In Home Cinema mode, the XEED SX60 drops to quiet
operation and boosts contrast to 2000:1, for faithful projection of High Definition movies.
dB(A)
30
dB(A)
40
dB(A)
50
dB(A)
Clock ticking
27dB(A)
XEED SX60
Human whisper
Birdsong
31dB(A)
XEED SX7,
XEED SX6,
XEED X700
Air conditioning
Noise level of common sounds
AUTOMATIC INTELLIGENCE
Auto Input Selection detects the active
Auto Focus automatically sets the projector
input terminal and configures itself accordingly.
focus to the optimum position, taking into
account throw distance and projection angle.
Auto Screen Colour Correction automatically
compensates for the colour of the projection
Auto Vertical Keystone Correction
surface to deliver perfect images with natural-
compensates for projector tilt up to +/– 20
looking colours.
degrees, ensuring a rectangular image
Without Auto Focus
and Keystone Correction
is projected.
Original Image
Screen Colour Correction Off
Screen Colour Correction On
Focus and Keystone are adjusted
automatically, in a matter of seconds
BRIGHTER THINKING
Superior brightness.
Perfect detail.
The flagship model of the range - the XEED SX7 - is ideal for boardrooms,
large venues and AV installations. Delivering an ultra-bright 4000 lumens
projection at SXGA+ resolution, the XEED SX7 incorporates Canon’s
unique AISYS optical system for high brightness, high contrast images
with seamless LCOS quality.
• Native SXGA+ resolution and LCOS
• Canon powered wide-angle 1.7x zoom lens
technology for seamless, lattice-free images
• Canon’s Advanced AISYS Optical System
for flexible projector placement
• Just 31dBA operation in Quiet Mode
delivers an ultra-bright 4000 lumens for
• HD Ready, with HDCP-enabled DVI-port
clear projection, even in daylight and
for pin-sharp images from digital sources,
larger venues
including encrypted content
• 1000:1 contrast ratio for vivid colours
• Support for Adobe RGB and sRGB colour
and deep blacks
spaces, with new bright sRGB mode
• Fully automatic setup: Auto Focus,
• Optional Ethernet network adaptor
Auto Keystone Correction, Auto Screen
Colour Correction and Auto Input Selection
CONNECTIVITY
ACCESSORIES
VIDEO INPUT AND OUTPUT
1. DVI-I 29-pin
Digital RGB / Digital Video /
Analogue RGB Input 1
3. Mini D-sub 15-pin
Analogue RGB (Monitor) Output
4. Mini DIN 4-pin
S-Video Input
2. Mini D-sub 15-pin
Analogue RGB Input 2
(Component/SCART via adaptor cable)
1
2
5. RCA x 1
Composite Video Input
AUDIO INPUT AND OUTPUT
6,7,8. 3.5mm² mini-jack x3
Stereo Audio Input 1 / Input 2 /
Input 3
3
6
9
7
In-Box Accessories
Remote Control
Optional Accessories
9. 3.5mm² mini-jack
Stereo Audio Output (Variable level)
8
PROJECTOR CONTROL
10. USB Type ‘B’
USB Mouse Control
11
4
5
10
11. Mini-DIN 8-pin
Service Port
Remote Control (with batteries)
Soft Case
DVI-I Computer Connection Cable
Component Video Cable
AC Mains Power Cable
USB Cable
Lens Cap
Ceiling Attachment
Replacement Lamp: RS-LP04
Ceiling Mounting Bracket: RS-CL06
SCART cable: LV-CA31
RS-232C control cable: RS-CA01
VGA extension cable: LC-CA02
Network Adaptor: RS-NA01
BRIGHTER THINKING
Superior projection for
enhanced presentations.
Packed with powerful technology, the XEED SX6 is the ideal projector for
maximum impact, high quality presentations. LCOS technology
combines with SXGA+ resolution and Canon’s unique AISYS optical
system to provide detailed, seamless projection. The XEED SX6 offers
advanced colour reproduction for graphics specialists.
• Native SXGA+ resolution and LCOS
technology for seamless, lattice-free images
• Canon’s Advanced AISYS Optical System
delivers a bright 3500 lumens, for clear
projection even in daylight conditions
and medium-sized venues
• Canon powered wide-angle 1.7x zoom lens
for flexible projector placement
• Just 31dBA operation in Quiet Mode
• HD Ready, with HDCP-enabled DVI-port
for pin-sharp images from digital sources,
including encrypted content
• 1000:1 contrast ratio for vivid colours
and deep blacks
• Support for Adobe RGB and sRGB
colour spaces
• Fully automatic setup: Auto Focus,
• Optional Ethernet network adaptor
Auto Keystone Correction, Auto Screen
Colour Correction and Auto Input Selection
CONNECTIVITY
ACCESSORIES
VIDEO INPUT AND OUTPUT
1. DVI-I 29-pin
Digital RGB / Digital Video /
Analogue RGB Input 1
2. Mini D-sub 15-pin
Analogue RGB Input 2
(Component / SCART via adaptor cable)
2
1
3
In-Box Accessories
3. Mini D-sub 15-pin
Analogue RGB (Monitor) Output
4. Min-DIN 4-pin
S-Video Input
5. RCA×1
Composite Video Input
Soft Case
AUDIO INPUT AND OUTPUT
6. 3.5mm² mini-jack
Stereo Audio Input
Optional Accessories
PROJECTOR CONTROL
7. USB Type ‘B’
USB Mouse Control
8. Mini-DIN 8-pin
Service Port
6
5
4
7
8
Remote Control (with batteries)
Soft Case
DVI-I Computer Connection Cable
Component Video Cable
AC Mains Power Cable
USB Cable
Lens Cap
Replacement Lamp
Replacement Lamp: RS-LP02
Ceiling Mounting Bracket: RS-CL06
SCART cable: LV-CA31
RS-232C control cable: LV-CA34
VGA extension cable: LV-CA02
Network adaptor: RS-NA01
BRIGHTER THINKING
Maximum impact,
minimum noise.
The XEED SX60 delivers bright, high contrast projection for crystal clear
presentations and video playback. Operating at just 27dBA in Quiet
mode, it offers near silent projection. A dedicated Home Cinema mode
delivers superb moving image quality to business users and film
enthusiasts alike.
• Native SXGA+ resolution and LCOS
technology for seamless, lattice-free images
• Canon's AISYS optical system delivers
• Canon powered wide-angle 1.7x zoom lens
for flexible projector placement
• Fully automatic setup: Auto Focus,
a bright 2500 lumens, for clear projection
Auto Keystone Correction, Auto Screen
even in daylight conditions
Colour Correction and Auto Input Selection
• Home Cinema mode with 2000:1 contrast
ratio, for enhanced images during movie
playback
• HD Ready, with HDCP-enabled DVI-port
for pin-sharp images from digital sources,
including encrypted content
• 1000:1 contrast ratio for vivid images
and deep colours
• Support for sRGB colour space
• Optional Ethernet network adapter
• Virtually silent operation, just 27dBA in
Quiet Mode
CONNECTIVITY
ACCESSORIES
VIDEO INPUT AND OUTPUT
1. DVI-I 29-pin
Digital RGB / Digital Video /
Analogue RGB Input 1
2. Mini D-sub 15-pin
Analogue RGB input 2
(Component / SCART via adaptor cable)
2
1
3. Mini D-sub 15-pin
Analogue RGB (Monitor) output
4. Min-DIN 4-pin
S-Video Input
5. RCA×1
Composite Video Input
AUDIO INPUT AND OUTPUT
6. 3.5mm² mini-jack
Stereo Audio Input
3
In-Box Accessories
Component
Video Cable
Optional Accessories
PROJECTOR CONTROL
7. USB Type ‘B’
USB Mouse Control
8. Mini-DIN 8-pin
Service Port
6
5
4
7
8
Remote Control (with batteries)
Soft Case
DVI-I Computer Connection Cable
Component Video Cable
AC Mains Power Cable
USB Cable
Lens cap
Scart Cable
Replacement Lamp: RS-LP03
Ceiling Mounting Bracket: RS-CL06
SCART cable: LV-CA31
RS-232C control cable: RS-CA01
VGA extension cable: LV-CA02
Network adaptor: RS-NA01
BRIGHTER THINKING
Startling brightness.
Seamless clarity.
When brightness and image quality are essential, the XEED X700
provides 4000 lumens at XGA resolution. Smooth LCOS imaging,
enhanced by Canon’s unique AISYS technology, make the XEED X700
ideal for medium to large spaces, including spaces with high levels of
ambient light.
• Native XGA resolution and LCOS technology
• Just 31dBA operation in Quiet Mode
for seamless images
• HDCP-enabled DVI port for pin-sharp
• Canon Advanced AISYS Optical System
images from digital sources, including
delivers an ultra-bright 4000 lumens for
encrypted content
clear projection, even in daylight and
• Support for sRGB colour space
larger venues
• Optional Ethernet network adaptor
• 1000:1 contrast ratio for vivid colours
and deeper blacks
• Fully automatic setup: Auto Focus,
Auto Keystone Correction, Auto Screen
Colour Correction and Auto Input Selection
• Canon powered wide-angle 1.7x zoom lens
for flexible projector placement
CONNECTIVITY
ACCESSORIES
VIDEO INPUT AND OUTPUT
1. DVI-I 29-pin
Digital RGB / Digital Video /
Analogue RGB Input 1
3. Mini D-sub 15-pin
Analogue RGB (Monitor) output
4. Mini DIN 4-pin
S-Video Input
2. Mini D-sub 15-pin
Analogue RGB Input 2
(Component/SCART via adaptor cable)
1
2
5. RCA x 1
Composite Video Input
9
7
DVI-I Computer
Connection Cable
AUDIO INPUT AND OUTPUT
6,7,8. 3.5mm² mini-jack x3
Stereo Audio Input 1 / Input 2 /
Input 3
3
6
In-Box Accessories
Optional Accessories
9. 3.5mm² mini-jack
Stereo Audio Output (Variable level)
8
PROJECTOR CONTROL
10. USB Type ‘B’
USB Mouse Control
11
4
5
10
11. Mini-DIN 8-pin
Service Port
Remote Control (with batteries)
Soft Case
DVI-I Computer Connection Cable
Component Video Cable
AC Mains Power Cable
USB Cable
Lens cap
Network Adaptor
Replacement Lamp: RS-LP04
Ceiling Mounting Bracket: RS-CL06
SCART cable: LV-CA31
RS-232C control cable: RS-CA01
VGA extension cable: LC-CA02
Network adaptor: RS-NA01
Specifications
MULTIMEDIA PROJECTOR
Product Class
LCD PANEL
Type
Size and Number
Aspect Ratio
Native Resolution
OPTICS
Lamp Type
Lens F Number and Focal Length
Zoom Magnification and Control
Focus Control
Lens Shift
IMAGE AND AUDIO
Brightness
Brightness Uniformity
Contrast Ratio
Projection Distance Coverage
Screen Size
Digital Zoom Magnification
Keystone Correction Range
Digital RGB Compatibility
Analogue RGB Compatibility
Component Video Scan Systems
Video / S-Video Colour Systems
Scanning Frequency
Display Modes
Image Enhancement
Built-In Audio
CONNECTORS
Digital RGB / Analogue RGB Input 1
Analogue RGB Input 2
Analogue RGB Output
Component Video Input
S-Video Input
Composite Video Input
Audio Input 1
Audio Input 2
Audio Input 3
Audio Output
Mouse Control
Service Port / Projector Control
MECHANISMS
Front Elevation Mechanism
Maximum Elevation Angle
RATINGS
Dimensions (W x H x D)
Weight
Rated Supply Voltage
Power Consumption
Noise Level
Operating Environment
Storage Environment
Warranty
XEED SX7
XEED SX6
XEED SX60
XEED X700
Ultra-Portable
Ultra-Portable
Ultra-Portable
Ultra-Portable
LCOS Reflective Display, TFT Active Matrix
0.7” diagonal (15mm x 11mm), 3 panels
4:3
1400 x 1050 (SXGA+), 1470000 pixels
LCOS Reflective Display, TFT Active Matrix
0.7” diagonal (15mm x 11mm), 3 panels
4:3
1400 x 1050 (SXGA+), 1470000 pixels
LCOS Reflective Display, TFT Active Matrix
0.7” diagonal (15mm x 11mm), 3 panels
4:3
1400 x 1050 (SXGA+), 1470000 pixels
LCOS Reflective Display, TFT Active Matrix
0.7” diagonal (15mm x 11mm), 3 panels
4:3
1024 x 768 (XGA), 786432 pixels
275W NSH (AC)
F1.85 – F2.5; f=21.7 – 35.8mm
1.7x Motorised
Motorised Auto Focus
9:1, fixed
270W NSH
F1.85 – F2.5; f=21.7 – 35.8mm
1.7x Motorised
Motorised Auto Focus
9:1, fixed
180W NSH
F1.85 – F2.5; f=21.7 – 35.8mm
1.7x Motorised
Motorised Auto Focus
9:1, fixed
275W NSH (AC)
F1.85 – F2.5, f=21.7 – 35.8mm
1.7x Motorised
Motorised Auto Focus
9:1, fixed
4000 lumens
88%
1000:1 (full on / full off)
3500 lumens
88%
1000:1 (full on / full off)
4000 lumens
88%
1000:1 (full on / full off)
1.2m – 9.0m (3.0m -4.9m for 100" image)
40” – 300” (81 x 61cm - 610 x 457cm)
1x – 12x
Vertical: +/- 20° (Auto / Manual)
Horizontal: +/- 20° (Manual)
D-SXGA+ / D- SXGA / D-WXGA / D-XGA /
D-SVGA / D-VGA
UXGA (compressed) / SXGA+ / SXGA / WXGA /
XGA / SVGA / VGA
1.2m – 9.0m (3.0m -4.9m for 100" image)
40” – 300” (81 x 61cm - 610 x 457cm)
1x – 12x
Vertical: +/- 20° (Auto / Manual)
Horizontal: +/- 20° (Manual)
D-SXGA+ / D- SXGA / D-WXGA / D-XGA /
D-SVGA / D-VGA
UXGA (compressed) / SXGA+ / SXGA / WXGA /
XGA / SVGA / VGA
2500 lumens
88%
1000:1 (full on / full off)
2000:1 (full on / full off) in Home Cinema Mode
1.2m – 9.0m (3.0m - 4.9m for 100" image)
40” – 300” (81 x 61cm - 610 x 457cm)
1x – 12x
Vertical: +/- 20° (Auto / Manual)
Horizontal +/- 20° (Manual)
D-SXGA+ / D- SXGA / D-WXGA / D-XGA /
D-SVGA / D-VGA
UXGA (compressed) / SXGA+ / SXGA / WXGA /
XGA / SVGA / VGA
1080i / 1035i / 720p / 575p / 575i /
480p / 480i
PAL / PAL-M / PAL-N / NTSC / NTSC4.43 /
SECAM
Horizontal: 15-100kHz, Vertical: 50-100Hz,
Clock: 170MHz
Standard, Presentation, Movie & Photo,
Adobe RGB, sRGB
12-bit Digital Gamma Correction,
6-axis Colour Adjust
1.0W RMS, Monaural
1080i / 1035i / 720p / 575p / 575i /
480p / 480i
PAL / PAL-M / PAL-N / NTSC / NTSC4.43 /
SECAM
Horizontal: 15-100kHz, Vertical: 50-100Hz,
Clock: 170MHz
Standard, Presentation, Movie & Photo,
Adobe RGB, sRGB
12-bit Digital Gamma Correction,
6-axis Colour Adjust
1.0W RMS, Monaural
1080i / 1035i / 720p / 575p / 575i /
480p / 480i
PAL / PAL-M / PAL-N / NTSC / NTSC4.43 /
SECAM
Horizontal: 15-100kHz, Vertical: 50-100Hz,
Clock: 170MHz
Standard, Presentation, Movie, Home Cinema,
sRGB
12-bit Digital Gamma Correction,
6-axis Colour Adjust
1.0W RMS, Monaural
DVI-I 29-pin (HDCP compatible)
Mini D-Sub 15-pin
Mini D-Sub 15-pin
Via 3x RCA adaptor cable (supplied)
Mini-DIN 4-pin
RCA x 1
3.5mm² stereo mini-jack
3.5mm² stereo mini-jack
3.5mm² stereo mini-jack
3.5mm² stereo mini-jack (variable level)
USB Type B
Mini-DIN 8-pin
DVI-I 29-pin (HDCP compatible)
Mini D-Sub 15-pin
Mini D-Sub 15-pin
Via 3x RCA adaptor cable (supplied)
Mini-DIN 4-pin
RCA x 1
3.5mm² stereo mini-jack
USB Type B
Mini-DIN 8-pin
DVI-I 29-pin (HDCP compatible)
Mini D-Sub 15-pin
Mini D-Sub 15-pin
Via 3x RCA adaptor cable (supplied)
Mini-DIN 4-pin
RCA x 1
3.5mm² stereo mini-jack
USB Type B
Mini-DIN 8-pin
DVI-I 29-pin (HDCP compatible)
Mini D-Sub 15-pin
Mini D-Sub 15-pin
Via 3x RCA adaptor cable (supplied)
Mini-DIN 4-pin
RCA x 1
3.5mm² stereo mini-jack
3.5mm² stereo mini-jack
3.5mm² stereo mini-jack
3.5mm² stereo mini-jack (variable level)
USB Type B
Mini-DIN 8-pin
One-touch mechanical foot
10°
One-touch mechanical foot
10°
One-touch mechanical foot
10°
One-touch mechanical foot
10°
266 x 114 x 336mm
4.8kg
100V – 240V AC, 50/60Hz
Normal Mode: 360W / Quiet Mode: 290W /
Standby: 7W
Normal Mode: 35dBA / Quiet Mode: 31dBA
+5°C to +35°C
-30°C to +60°C
3 years
266 x 114 x 336mm
4.7kg
100V – 240V AC, 50/60Hz
Normal Mode: 355W / Quiet Mode: 290W /
Standby: 7W
Normal Mode: 35dBA / Quiet Mode: 31dBA
+5°C to +35°C
-30°C to +60°C
3 years
266 x 114 x 336mm
4.6kg
100V – 240V AC, 50/60Hz
Normal Mode: 250W / Quiet Mode: 225W /
Standby: 7W
Normal Mode: 30dBA / Quiet Mode: 27dBA
+5°C to +35°C
-30°C to +60°C
3 years
266 x 114 x 336mm
4.8kg
100V – 240V AC, 50/60Hz
Normal Mode: 360W / Quiet Mode: 290W /
Standby: 7W
Normal Mode: 35dBA / Quiet Mode: 31dBA
+5°C to +35°C
-30°C to +60°C
3 years
1.2m – 9.0m (3.0 - 4.9m for 100" image)
40” – 300” (81 x 61cm - 610 x 457cm)
1x – 12x
Vertical: +/- 20° (Auto / Manual)
Horizontal +/- 20° (Manual)
D-XGA / D-SVGA / D-VGA
UXGA (compressed) / SXGA+ (compressed) /
SXGA (compressed) / WXGA (compressed) /
XGA / SVGA / VGA
1080i / 1035i / 720p / 575p / 575i / 480p /
480i
PAL / PAL-M / PAL-N / NTSC / NTSC4.43 /
SECAM
Horizontal: 15-100kHz, Vertical: 50-100Hz,
Clock: 170MHz
Standard, Presentation, Movie, sRGB
12-bit Digital Gamma Correction,
6-axis Colour Adjust
1.0W RMS, Monaural
Some images are simulated for clarity of reproduction. All data is based on Canon’s standard testing methods.
Specifications are subject to change without notice. ™ and ®: All company and/or product names are trademarks and/or registered trademarks of their respective manufacturers in their markets and/or countries.
TRUE THROW DISTANCES FOR THE XEED PROJECTOR RANGE
Screen Size
inches
40
60
80
100
cm
81 x 61
122 x 91
163 x 122 203 x 152
Projection
Distance
Zoom max
1.2m
1.8m
2.4m
3.0m
Zoom min
2.0m
2.9m
3.9m
4.9m
Height, H1
55cm
82cm
110cm
137cm
Height, H2
6cm
9cm
12cm
15cm
8.9 (29.2')
300"
5.9 m (19.4')
150
305 x 229
200
406 x 305
300
610 x 457
4.5 m (14.8')
2.4 m (7.9')
1.2 m (3.9')
4.5m
7.4m
206cm
23cm
5.9m
274cm
30cm
8.9m
411cm
46cm
200"
150"
Zoom (max.)
182"
Zoom (min.)
90"
40"
48"
H2
H1:H2=9:1
Optical axis when image is projected at right angle to the screen.
Screen
To learn more about the XEED multimedia projector range, visit www.canon-europe.com/xeed
Canon Inc.
www.canon.com
Canon Europa N.V.
www.canon-europe.com
English-UK Edition
© Canon Europa N.V., 2007 (0807)
Canon (UK) Ltd
Woodhatch, Reigate
Surrey RH2 8BF
Telephone No: 08000 353535
Facsimile No: 01737 220022
www.canon.co.uk
H1
120"
80"
Canon Ireland
Arena Road,
Sandyford Industrial Estate
Dublin 18, Ireland
Telephone No: 01-2052400
Facsimile No: 01-2958141
www.canon.ie
© 1986 Panda symbol WWF
® WWF Registered Trademark
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
