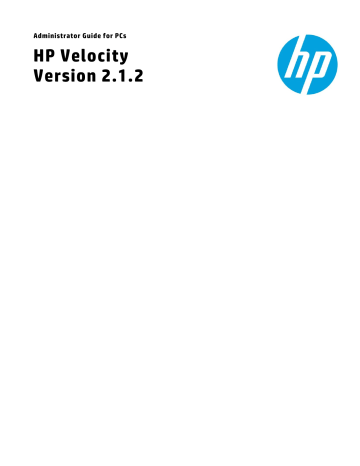

Administrator Guide for PCs

HP Velocity

Version 2.1.2

Copyright © 2015 LiveQoS Incorporated All Rights Reserved

Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

VMware and Horizon View are registered trademarks or trademarks of VMware, Inc. in the United States and/or other jurisdictions.

Confidential computer software. Valid license from HP required for possession, use or copying. Consistent with FAR 12.211 and 12.212,

Commercial Computer Software, Computer Software Documentation, and Technical Data for Commercial Items are licensed to the U.S.

Government under vendor's standard commercial license.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

First Edition: July 2015

Document Part Number: 833273-001

Contents

HP Velocity functional overview ......................................................................................................................................1

HP Velocity installation......................................................................................................................................................2

System requirements....................................................................................................................................................2

Hardware requirements................................................................................................................................................2

Kaspersky Lab security products.................................................................................................................................3

HP Velocity license key activation ...............................................................................................................................3

Attended installation .....................................................................................................................................................4

Silent installation............................................................................................................................................................5

Offline license activation...............................................................................................................................................6

HP Velocity operation ........................................................................................................................................................7

HP Velocity operational modes....................................................................................................................................7

Activating the HP Velocity license key after installation..........................................................................................8

Setting the HP Velocity operational mode.................................................................................................................9

Identifying the HP Velocity version..............................................................................................................................9

HP Velocity configuration............................................................................................................................................... 10

HP Velocity Policy Engine........................................................................................................................................... 10

Adding an HP Velocity Administrative Template to a GPO............................................................................... 10

Configuring HP Velocity using the Group Policy Object .................................................................................... 11

HP Velocity configuration settings ........................................................................................................................... 12

Management Application Mode............................................................................................................................ 12

System settings....................................................................................................................................................... 13

Boot settings............................................................................................................................................................ 14

Policy Filter (Port & IP) settings ............................................................................................................................ 15

LiveQ Packet Loss Protection settings ................................................................................................................ 17

LiveTCP Latency Mitigation settings .................................................................................................................... 19

Logging settings...................................................................................................................................................... 21

HP Velocity account privileges.................................................................................................................................. 22

HP Velocity management .............................................................................................................................................. 23

Network statistics ....................................................................................................................................................... 23

Network Statistics operations............................................................................................................................... 25

Network Monitor graph .............................................................................................................................................. 26

Flow information......................................................................................................................................................... 27

Latency and throughput data ............................................................................................................................... 28

Flow Information operations ................................................................................................................................ 29

Configuration settings................................................................................................................................................ 29

Restoring default configuration settings............................................................................................................ 30

Generating the HP Velocity Configuration Report ............................................................................................. 30

FAQs................................................................................................................................................................................... 32

All HP Velocity application flows are blocked......................................................................................................... 32

Protected flows are not established........................................................................................................................ 32

TCP-based VPNs are not protected ......................................................................................................................... 32

Administrator Guide for PCs | HP Velocity

HP Velocity functional overview

Real-time applications delivered over data networks can be compromised by packet loss and transmission latency. This results in stop-and-go behavior, loss of interactivity, and an overall reduction in the throughput of an application.

HP Velocity is a Quality of Service (QoS) software engine that integrates seamlessly and, when protecting application flows, enhances the user’s Quality of Experience (QoE) by managing packet loss, congestion, and the impact of network latency.

HP Velocity easily integrates with existing systems to provided either single-sided or bookend protection. It automatically ensures the best end-user QoE by optimizing the use of the underlying network to meet the requirements of bandwidth-intensive applications over wired and wireless, managed and unmanaged networks.

HP Velocity continuously monitors end-to-end network conditions to select the most appropriate data-delivery mechanism. Rich reporting capabilities enable HP Velocity to provide end-to-end visibility to key flow information. The system’s network monitoring and reporting tools capture in-depth statistics and make them accessible for further analysis and troubleshooting.

1

Administrator Guide for PCs | HP Velocity

HP Velocity installation

This section provides information about installing HP Velocity and covers the following information:

System requirements

HP Velocity license key activation

Kaspersky Lab security products

Attended installation

Silent installation

Note:

During installation, HP Velocity resets the system network interfaces, briefly interrupting network connections. If HP Velocity is installed over a remote connection, network connectivity might be disrupted.

System requirements

Component

CPU

Memory

Disk space

Windows OS

OS variants

Requirement

Any

40 MB

10 MB

Windows 7

64-bit

Note:

Memory requirements are proportional to the number of simultaneously protected flows supported by HP Velocity.

2

Administrator Guide for PCs | HP Velocity

Kaspersky Lab security products

Certain Kaspersky Lab security products might prevent HP Velocity from installing or uninstalling

correctly, resulting in a warning message (see Figure 1

). If any of the following Kaspersky security products is installed and enabled on the computer where HP Velocity will be installed, disable the

Kaspersky Self-Defense feature before installing or uninstalling HP Velocity. After installation, the feature can be safely re-enabled.

• Kaspersky Internet Security

• Kaspersky PURE Security

• Kaspersky Anti-Virus

• Kaspersky Small Office Security

• Kaspersky Endpoint Security for Business

• Kaspersky Total Security

• Kaspersky Endpoint-Windows-Used-On-Workstations

Figure 1: Kaspersky Anti-Virus warning

HP Velocity license key activation

Operation of HP Velocity requires activation to validate the software’s license key against its version number. Activation can be performed during installation or afterward. For information about

activating the license key after HP Velocity is installed, see “Activating the HP Velocity license key after installation” on page 8 .

3

Administrator Guide for PCs | HP Velocity

Attended installation

Note:

This procedure assumes that the device on which you are installing HP Velocity is connected to the Internet. If the device is not connected to the Internet and you want to activate the software’s license during installation, perform steps 1 to 8 of this procedure and then proceed to

“Offline license activation” on page 6

.

1. Log on to the system where HP Velocity will be installed.

Note:

Only users with Administrator privileges can install HP Velocity.

2. Select the correct installation package for the operating system, and start the installer.

Important:

See the Release Notes to ensure that the correct installation package is available and selected for installation.

The Welcome to the HP Velocity Setup Wizard starts.

3. Click Next.

The License Agreement appears.

4. Read the end-user license agreement, select I Agree, and click Next.

Note:

Selecting Cancel ends the installation.

5. Navigate to the location where HP Velocity will be installed, or accept the default location.

6. Enable one of the following radio buttons:

• Everyone: Install HP Velocity for all user accounts and administrators

• Just Me: Install HP Velocity for only the current user account

7. Click Next.

The Confirm Installation screen appears.

8. Click Next.

The HP Velocity License Activation prompt appears.

9. Do one of the following:

• To activate the license immediately, enter a valid license key provided by HP, and click Activate.

• To continue the installation without activating the license, click Later. HP Velocity will remain

inactivated until a license key is activated. For information, see “HP Velocity operational modes” on page 7 .

4

Administrator Guide for PCs | HP Velocity

A notification reflecting the option selected appears.

Note: If there is an issue with the license key, an error message appears. Click OK to display the

HP Velocity License Activation dialog, and try entering the license key again.

The Installation Complete screen appears when the installation completes.

10. Click Close.

The HP Velocity notification icon appears in the Windows notification area (see

“HP Velocity operational modes” on page 7

).

Silent installation

Note:

This procedure assumes that the device on which you are installing HP Velocity is connected to the Internet and that you have a valid license key on hand. If you do not yet have a license key or if the device on which you are installing HP Velocity is not connected to the Internet, HP Velocity will remain inactivated until a license key is activated. For information, see

“HP Velocity operational modes” on page 7

.

1. In a command line window, enter the following command: msiexec /i <msi name> /qn /norestart ALLUSERS=<0/1> license=

<license key> where:

<msi name>

is the name of the HP Velocity installation file

ALLUSERS

is 0 (Just Me) or

1

(Everyone)

<license key>

is a valid license key provided by HP.

2. Press Enter.

The HP Velocity notification icon appears in the Windows notification area (see

“HP Velocity operational modes” on page 7

).

5

Administrator Guide for PCs | HP Velocity

Offline license activation

Note:

This procedure assumes that the device on which you want to activate an HP Velocity License key is not connected to the Internet and that you have performed either steps 1 to 8 of the procedure

“Attended installation” on page 4

or steps 1 and 2 of the procedure

“HP Velocity operational modes” on page 7 . It also assumes that you have access to a separate device that is connected to the

Internet, as well as a portable drive that you can use to transfer files from one device to the other.

1. Enter the license key and click Activate.

The Create Offline Request and Activate Offline Request buttons appear in the dialog.

2. Click Create Offline Request to generate an offline activation request file, and save it to the portable drive.

3. Click OK in the message dialog.

4. Connect the portable drive to a device with Internet access.

5. Open an Internet browser, and go to the

HP Velocity License Key Portal

.

6. On the Offline HP Velocity Activation page, click the Browse button to navigate to and submit the offline activation request file.

An activation response file is generated.

7. Save the activation response file to the portable drive.

8. Connect the portable drive to the device where you want to activate the HP Velocity license key, and click Activate Offline Request to browse to and submit the activation response file.

9. Click OK.

6

Administrator Guide for PCs | HP Velocity

HP Velocity operation

This section covers the following information:

HP Velocity operational modes

Activating the HP Velocity license key after installation

Note: If there is an issue with the license key, an error message appears. Click OK to display the

Configuration dialog, and try entering the license key again.

Identifying the HP Velocity version

HP Velocity operational modes

The HP Velocity notification icon appears in the Windows notification area in one of four colors that

correspond to the HP Velocity operational modes ( Table 1 ).

Figure 2: HP Velocity notification icon on Windows

Table 1: HP Velocity notification icon color codes

Icon Color Mode Description

Green Protect

Blue

Orange

Protect

Monitor

HP Velocity is enabled and protecting one or more flows between HP

Velocity-enabled endpoints.

In this mode, HP Velocity continuously monitors end-to-end network conditions to activate and adjust enabled HP Velocity optimizers (i.e., LiveQ

Packet Loss Protection, LiveWiFi, and LiveTCP Latency Mitigation).

HP Velocity is enabled and ready to protect, but flows have not been established.

HP Velocity is profiling present and trending network conditions but will not apply enabled HP Velocity optimizers.

Note: HP Velocity server-to-server flows are only monitored.

Gray Off HP Velocity is manually disabled or the license key is not activated.

Note:

Positioning the cursor over the HP Velocity notification icon when HP Velocity is operating in

Protect mode displays a tooltip indicating the number of active connections.

7

Administrator Guide for PCs | HP Velocity

Activating the HP Velocity license key after installation

Operation of HP Velocity requires activation to validate the software’s license key against its version number. Activation can be performed during installation or afterward. Perform the following procedure to activate the HP Velocity license key if it was not activated during installation.

Note:

This procedure assumes that the device on which you are using HP Velocity is connected to the

Internet. If the device is not connected to the Internet, perform steps 1 and 2 of this procedure and

then proceed to “Offline license activation” on page 6 .

1. Right-click the HP Velocity notification icon, and click Management.

2. Click the Configuration tab.

3. Enter the license key, and click Activate.

A message confirming the license activation appears.

Note: If there is an issue with the license key, an error message appears. Click OK to display the

Configuration dialog, and try entering the license key again.

8

Administrator Guide for PCs | HP Velocity

Setting the HP Velocity operational mode

Once set, the HP Velocity operational mode should be changed only at the following times:

• During troubleshooting to set the operational mode to Off

• After troubleshooting to set the operational mode to Protect

• When instructed by HP Support

Note:

Only users with Administrator privileges can set the HP Velocity operational mode.

1. Click the HP Velocity notification icon (see Figure 2

).

2. On the HP Velocity Mode selector, enable the radio button for an operational mode.

3. Click Close.

The color of the HP Velocity notification icon changes to reflect the selected operational mode

(see

Table 1

).

Identifying the HP Velocity version

• Right-click the HP Velocity notification icon, and click About.

The About HP Velocity dialog appears, displaying the HP Velocity version number, release number, and product edition information. Licensing information is also provided; i.e., U, for unrestricted (valid), and R for restricted (invalid, unlicensed).

9

Administrator Guide for PCs | HP Velocity

HP Velocity configuration

HP Velocity is installed with a default configuration suitable for most deployments. This section provides information about using the HP Velocity Policy Engine to create a custom HP Velocity configuration on a supported Windows platform and covers the following information:

HP Velocity Policy Engine

HP Velocity configuration settings

HP Velocity account privileges

Note:

For information about accessing a report that describes the current configuration, see

“Generating the HP Velocity Configuration Report” on page 30 . For information about specifying

configuration settings that apply only temporarily (i.e., until a system restart), see

“HP Velocity management” on page 23

.

HP Velocity Policy Engine

The HP Velocity Policy Engine uses Microsoft Group Policy, which provides centralized management and configuration of users and computers in a Windows Active Directory (AD) environment.

Group policy settings are contained in a group policy object (GPO), which can be used to centrally manage and propagate new settings for HP Velocity over an entire Windows AD domain.

To create a GPO, use the Group Policy Management Console (GPMC), which is available for download from the

Microsoft Download Center

web site. After the GPO is created, add the HP Velocity

Administrative Template to it (see

“Adding an HP Velocity Administrative Template to a GPO” on page 10 ).

Each HP Velocity Administrative Template consists of policies that allow administrators to create a

custom configuration for HP Velocity (see “Configuring HP Velocity using the Group Policy Object” on page 11 ). They also specify which registry keys are set when a custom configuration is created.

Adding an HP Velocity Administrative Template to a GPO

Note:

The HP Velocity Administrative Templates are included with the HP Velocity installation packages available at http://www.hp.com/support

.

1. Open the applicable Group Policy Editor:

• For local group policy administration, use gpedit.msc

.

• For domain group policy administration, use gpmc.msc

and select the applicable GPO.

2. Click Computer Configuration.

3. Right-click Administrative Templates, and click Add/Remove Templates.

4. Click Add.

5. Browse to and select hp_velocity_configuration_REL#-R#.adm

, where

REL#

is the software release number and

R#

is the revision number of the template that matches the release number of the HP Velocity installation.

The HP Velocity Group Policy Administrative Template is applied to the GPO.

6. Click Close.

10

Administrator Guide for PCs | HP Velocity

Configuring HP Velocity using the Group Policy Object

Note:

HP recommends that HP Velocity settings be changed on all systems in an organizational unit

(OU). This ensures that all installations in the OU use the same settings.

Note:

You must have Windows Administrator privileges to configure HP Velocity. For information,

see “HP Velocity account privileges” on page 22 .

1. Open the GPO in the Group Policy Management Editor.

2. Click Computer Configuration > Administrative Templates.

3. Click Classic Administrative Templates (ADM) > HP Velocity.

4. In the Setting list, double-click a configuration setting.

5. Specify the parameters as required (see

“HP Velocity configuration settings” on page 12 ), and

click Apply.

6. Click Next Setting or Previous Setting to access the parameters for another configuration setting, or click Close to close the template.

Note:

Group Policy Engine configuration changes will be applied immediately to HP Velocity endpoints on which the HP Velocity Management application is running. If the HP Velocity

Management application is not running, changes to the HP Velocity Administrative Template will be applied to those endpoints after a system restart. For information about the HP Velocity

Management application, see “HP Velocity management” on page 23

.

11

Administrator Guide for PCs | HP Velocity

HP Velocity configuration settings

The HP Velocity Administrative Templates provide access to configuration parameters for the following settings, which can be modified to create a custom configuration:

Management Application Mode

System settings

Boot settings

Policy Filter (Port & IP) settings

LiveQ Packet Loss Protection settings

LiveTCP Latency Mitigation settings

Logging settings

Note:

Administrators can use the HP Velocity Management application to temporarily modify

configuration settings. For information, see “HP Velocity management” on page 23 .

Management Application Mode

The HP Velocity Management application provides a toolset for monitoring and debugging

HP Velocity-protected flows, as well as the ability to temporarily override configuration settings.

Table 2: Management Application Mode settings

Parameter Default

Advanced Management Application Mode

Options

• Enabled

• Disabled

Enabled

Figure 3: Management Application Mode settings

12

Administrator Guide for PCs | HP Velocity

System settings

System settings (

Table 3 ) specify the following parameters:

• Operational Mode: Set the HP Velocity operational mode.

• LiveQ - Packet Loss Protection: Provide packet loss protection to application flows. For more

information, see “LiveQ Packet Loss Protection settings” on page 17 .

• LiveTCP - Latency Mitigation: Provide latency mitigation to protected application flows. For more

information, see “LiveTCP Latency Mitigation settings” on page 19

.

• LiveWiFi - Prioritization: Accelerate application flows by leveraging Wi-Fi multimedia standards to minimize latency and prioritize HP Velocity traffic. This ensures that HP Velocity-protected flows experience lower latency and jitter, and higher throughput.

• IP Option Beacon [UDP Flows]: Use the IP Option beacon (0x880477FB) for UDP flows.

• TCP Option Beacon [TCP Flows]: Use the TCP Option beacon (0x01000000 & 0x00000000) for

TCP flows.

• Network MTU: The MTU that can be processed within the network.

Table 3: System settings

Parameter Default

Operational Mode

LiveQ - Packet Loss Protection

LiveTCP - Latency Mitigation

LiveWiFi - Prioritization

IP Option Beacon (UDP Flows)

TCP Option Beacon (TCP Flows)

Network MTU

Options

• Protect: Provide session establishment, session statistics, packet loss protection, Wi-Fi optimization, and latency mitigation.

• Monitor: Continuously profile end-to-end network conditions over established flows. (HP Velocity network optimizers are not applied.)

• Off: Pass all application flows transparently and do not perform any monitoring or optimization.

• Enabled

• Disabled

• Enabled

• Disabled

• Enabled

• Disabled

• Enabled

• Disabled

• Enabled

• Disabled

750 to 1500 bytes

Protect

Enabled

Enabled

Enabled

Disabled

Enabled

1492

13

Administrator Guide for PCs | HP Velocity

Figure 4: System settings

Boot settings

Boot settings ( Table 4

) specify the following parameters:

• Number of Protected Flows: The number of simultaneously protected flows allowed.

Note:

If the default Protected Flows setting is changed, the system must be restarted for the change to take effect.

Note:

LiveTCP will provide latency mitigation for up to 32 simultaneously protected flows.

• Local System Information Collection: Allow the local endpoint to send its system information and per-flow statistics to the remote endpoint.

• Remote System Information Collection: Allow the local endpoint to process and display remote endpoint system information and per-flow statistics received.

For more information, see

“Flow information” on page 27

.

Table 4: Boot settings

Parameter Options Default

Number of Protected flows

Local System Information Collection

Remote System Information Collection

16 to 1024

• Enabled

• Disabled

• Enabled

• Disabled

32

Enabled

Enabled

14

Administrator Guide for PCs | HP Velocity

Figure 5: Boot settings

Policy Filter (Port & IP) settings

Global policy filters (

Table 5

) allow administrators to filter and optimize application flows on the basis of port number, destination IP address, or both. When multiple policy filters are configured, they are evaluated in a predefined order.

The Policy Filter (Port & IP) settings specify the following parameters:

• Transparent Ports TCP, UDP: The TCP and UDP port numbers whose application flows HP Velocity will not protect, but will instead pass on transparently.

• Special TCP, UDP Ports: The TCP and UDP port numbers to which HP Velocity will provide support for certain protocols (see

Table 6

).

• Whitelist TCP, UDP Ports: The TCP and UDP ports whose application flows HP Velocity will protect when the following criteria are met:

- The destination IP address for the application flow is not specified in the IP Blacklist filter.

- The destination IP address for the application flow is specified in the IP Whitelist filter.

• IP Address Blacklist: The destination IP addresses of application flows that HP Velocity will not protect, but will instead pass on transparently.

• IP Address Whitelist: The destination IP addresses of application flows that HP Velocity will protect.

Important:

When the IP Whitelist filter is configured, HP Velocity protects an application flow only if its destination IP address matches an address included in this filter.

Note:

If the IP Whitelist filter includes subnet destination IP addresses, the IP Blacklist filter can be used to filter IP addresses in that subnet whose application flows HP Velocity will not protect.

15

Administrator Guide for PCs | HP Velocity

Table 5: Policy Filter (Port & IP) settings

Parameter

Transparent TCP, UDP Ports

Special TCP, UDP Ports

Whitelist TCP, UPD Ports

IP Address Blacklist

IP Address Whitelist

TCP: 21 53 1194 1723 2869 9100 17500

UDP: 53 67 68 123 161 500 1194 4500 17500

42966

TCP: 554 1720 5060

UDP: 554 5060

All ports

255.255.255.255/32

All IP addresses

4

5

3

1

2

Note:

Use the CIDR format for IP addresses. To enter multiple IP addresses or port numbers in a field, use a space-separated list; for example, 192.168.1.0/24 145.76.53.3/32 or 80 1750 1751.

Table 6: Special Port Filter default settings

Protocol Supported Special TCP Port Filter

RTSP

H.323

SIP

554

1720

5060

Special UDP Port Filter

554

5060

Note:

When the Special Port Policy filter configuration includes ports not recognized by HP Velocity, those ports are ignored.

16

Administrator Guide for PCs | HP Velocity

Figure 6: Policy Filters (Port & IP) settings

LiveQ Packet Loss Protection settings

LiveQ Packet Loss Protection applies a mathematical transformation to original input packets. The transformation outputs one or more segments for each original packet received as input. Each segment logically represents a portion of the input packet and might carry additional information, such as redundancy data. The number of logical segments used to represent an original packet varies based on current network-loss conditions.

Target Loss Rate policy filters can be used to specify the IP addresses and ports of application flows to which a specific level of packet loss protection is applied.

LiveQ Packet Loss Protection configuration settings (

Table 7

and Table 8 ) specify the following

parameters:

• Global Target Loss Rate: The Target Loss Rate (TLR) that HP Velocity will attempt to achieve for

HP Velocity-protected flows.

Note:

TLR refers to the amount of packet loss that an application can tolerate while still delivering an acceptable QoE. The recommended TLR for applications is 0.04%.

• Congestion Avoidance: Analyze network links to identify those with bandwidth constraints, and then automatically adjust packet-loss protection to accommodate the constraints.

• Bandwidth Control: The encoding level applied to HP Velocity-protected flows. HP Velocity constantly monitors network loss and automatically applies the protection mode required to reduce network loss to the default TLR. The protection mode used at any given time depends on the real-time loss measured in the network.

• Burst Loss Protection (BLP): Protect against correlated (sequential) loss in the network that can otherwise prevent HP Velocity from reconstructing source packets at the remote endpoint.

17

Administrator Guide for PCs | HP Velocity

Note:

The net effect of BLP is added resiliency against burst loss. Its success depends on the number of source packets that are encoded by HP Velocity and the sequential loss duration. BLP might degrade performance for highly latency-sensitive applications.

• BLP Buffer: The amount of packet buffering (in milliseconds) that HP Velocity can use when protecting against bursty or correlated loss.

• Target Loss Rate Policy Filters: The TLR that HP Velocity will attempt to achieve for all protected flows whose destination IP address, TCP port number, or UDP port number are included in this policy filter.

Table 7: LiveQ Packet Loss Protection settings

Parameter Default

Target Loss Rate

Congestion Avoidance

Bandwidth Control

Burst Loss Protection

BLP Buffer

Options

• 0.04%

• 0.1%

• 0.2%

• 0.4%

Note: An aggressive TLR might not be achievable in high-loss networks. After modifying the TLR, refer to the Network

Monitor graph (see

“Network Monitor graph” on page 26 ) to

verify whether the rate specified is being achieved.

• Disabled

• Enabled

Note: When Congestion Avoidance is enabled and bandwidth constraints are detected, the bandwidth and default TLR settings are overridden to ensure the best network performance possible.

• Dynamic: Maximize performance while minimizing the required bandwidth (recommended for environments where bandwidth is not constrained).

• Low: Cap the estimated HP Velocity protection overhead at or below 27% (recommended for environments where bandwidth is very constrained).

• Medium: Cap the estimated HP Velocity protection overhead at or below 40% (recommended for environments where bandwidth is moderately constrained).

• High: Maximize performance in environments where bandwidth is not constrained, but network loss is high. When

HP Velocity is at the far end, High mode uses aggressive encoding without first measuring the loss in the network.

Note: Higher encoding levels protect against greater network loss, but require more bandwidth.

• Off

• On

• Auto: Allow HP Velocity to determine whether BLP is required.

10 ms to 100 ms (in increments of 10 ms)

0.04%

Enabled

Dynamic

Auto

20 ms

18

Administrator Guide for PCs | HP Velocity

Table 8: LiveQ Target Loss Rate Policy Filter settings

Parameter

Target Loss Rate IP Filters (0.4%, 0.2%, 0.1%, 0.04%)

Target loss Rate TCP Ports (0.4%, 0.2%, 0.1%, 0.04%)

Target loss Rate UDP Ports (0.4%, 0.2%, 0.1%, 0.04%)

Default

All IP addresses

All TCP ports

All UDP ports

Note:

Use the CIDR format for IP addresses. To enter multiple IP addresses or port numbers in a field, use a space-separated list.

Figure 7: LiveQ Packet Loss Protection settings

LiveTCP Latency Mitigation settings

As HP Velocity observes the network and detects packet loss, the LiveTCP congestion control algorithm dynamically adapts to changing network conditions, boosting QoE in high-latency networks.

Note:

LiveTCP Latency Mitigation configuration settings are included only in the HP Velocity

Administrative Template.

LiveTCP Latency Mitigation settings (

Table 9

) specify the following parameters:

• Latency Threshold: Activate LiveTCP Latency Mitigation once the specified delay threshold (in milliseconds) is exceeded.

• Congestion Control: The level of congestion control required. LiveTCP adapts its algorithm to automatically provide congestion control that is optimized independently for each TCP flow (LAN, remote network, Wi-Fi) and the conditions in the network.

19

Administrator Guide for PCs | HP Velocity

• Advanced Congestion Detection: Apply advanced tuning that detects and reacts to packet loss.

• Peering Filters: The port numbers on HP Velocity-enabled endpoints to which the LiveTCP algorithm is applied to application flows.

• Non-Peering Filters: The port numbers for which the LiveTCP algorithm is applied to application flows being transported from an HP Velocity-enabled endpoint to a non-HP Velocity-enabled endpoint. The algorithm will not be applied to application flows being transported from the non-HP Velocity-enabled endpoint to the HP Velocity-enabled endpoint.

Table 9: LiveTCP Latency Mitigation settings

Parameter Options Default

Latency Threshold

Congestion Control

Advanced Congestion

Detection

Peering Filters

20 ms to 2000 ms

• Standard: Handle the effects of a high-latency network

• TCP-Friendly: Use the standard TCP-like congestion control algorithm

• Enabled

• Disabled

20 ms

Standard

Enabled

Non-Peering Filters

1498 2598 3389

42966

1 - 65535

Note:

Use a space-separated list to enter multiple port numbers in the Peering Filters field.

Figure 8: LiveTCP Latency Mitigation settings

20

Administrator Guide for PCs | HP Velocity

Logging settings

HP Velocity logs provide detailed network statistics per endpoint and per-flow statistics, facilitating diagnostics.

Logging settings ( Table 10 ) specify the following parameters:

• Statistics Logging: Collect endpoint network statistics at the specified interval.

• Flow Logging: Collect per-flow network statistics at the specified interval.

• Flow Records: Create a flow record when a flow is terminated. Each record provides detailed flow information, including system information.

Table 10: Logging settings

Setting Options Default

Statistics Logging

Flow Logging

Flow Records

• Disabled

• Every 5 Seconds

• Every Minute

• Every Five Minutes

• Disabled

• Every 5 Seconds

• Every Minute

• Every Five Minutes

• Disabled

• Enabled

Disabled

Disabled

Disabled

Figure 9: Logging settings

21

Administrator Guide for PCs | HP Velocity

HP Velocity account privileges

Table 11: Administrator account privileges on Windows

Information Read Write

Flow Information

Network Monitoring graphs

Network Statistics

Configuration values

Policy Filters configuration values

X

X

X

X

X

X

X

X

Export

X

X

X

Table 12: Non-administrator account privileges on Windows

Information Read Write

Flow Information X

Network Monitoring graphs

Network Statistics

Configuration values

Policy Filters configuration values

X

X

X

X

Export

X

X

X

22

Administrator Guide for PCs | HP Velocity

HP Velocity management

The HP Velocity Management application is a Windows-based application that provides HP Velocity administrators a toolset for monitoring and troubleshooting HP Velocity-protected flows and for working with configuration parameters.

The HP Velocity Management application automatically starts on system startup and runs in the background.To access the application toolset, right-click the HP Velocity notification icon, and click

Management. To stop the Management application, right-click the HP Velocity notification icon, and click Exit. To restart it, expand the HP Velocity folder on the Windows Start menu, and click

HP Velocity Management Application.

Note:

mode.

Stopping the HP Velocity Management application does not affect the HP Velocity operational

This section covers the following information:

Network statistics

Network Monitor graph

Flow information

Configuration settings

Network statistics

HP Velocity collects real-time data on HP Velocity-protected flows and makes available basic and advanced statistics on how the network is performing.

To access basic statistics ( Table 13 ), click the Network Statistics tab in the HP Velocity Management

application to display the Statistics view. To access Advanced statistics (

Table 14 ), select the

Advanced check box on the Statistics view. For information about working with network statistics,

see “Network Statistics operations” on page 25

.

Figure 10: Statistics view showing basic and advanced statistics

Note:

Statistics are accumulated in time-incremented bins (Total, 5 Seconds, 1 Minute, and 5

Minutes columns). The Total column represents the accumulated statistics since either the system was started or statistics were last cleared.

23

Administrator Guide for PCs | HP Velocity

Table 13: Basic statistics

Statistic name

Loss - Without Velocity

Loss - With Velocity

Tx Loss

Encoded Data Sent

Encoded Data Received

Total Active Flows

Protected Flows

Description

The actual received packet loss rate measured by HP Velocity.

The received packet loss rate after correction by HP Velocity.

The amount (percentage) of transmit network loss.

The bytes of encoded data, in Kb/s for intervals or MB/KB for cumulative totals, sent by HP Velocity to each remote HP

Velocity-enabled endpoint.

The bytes of segment data, in Kb/s for intervals or MB/KB for cumulative totals, received by HP Velocity from each remote

HP Velocity-enabled endpoint.

The number of currently active, unique application flows detected by

HP Velocity as an endpoint.

The number of currently active, unique, and protected application flows detected by HP Velocity as an endpoint.

Table 14: Advanced statistics

Statistic name

Packets Encoded

Segments Sent

Segments ReTx

Segments Received

Segments Lost

Packets Decoded

Packets Lost

Full Packets Lost

High Loss Events

Non-accelerated Packets Sent

Description

The number of IP packets that were encoded by HP Velocity into segments.

The number of encoded segments sent by HP Velocity to each remote HP Velocity-enabled endpoint.

The number of encoded segments that HP Velocity retransmitted.

The number of encoded segments received by HP Velocity from each remote HP Velocity-enabled endpoint.

The number of encoded segments that were not received by

HP Velocity due to packet loss in the network.

The number of IP packets that HP Velocity successfully reconstructed from the received encoded segments.

The number of IP packets that HP Velocity was unable to reconstruct from the received encoded segments due to excessive loss in the network.

The number of IP packets that HP Velocity was unable to reconstruct because it did not receive any encoded segments for the encoded packet.

Note: Together with the Packets Lost counter, this counter is an indicator of burst loss.

The number of times that HP Velocity detected difficulty communicating with the remote HP Velocity-enabled endpoints due to extremely high packet loss in the network.

The number of unprotected IP packets sent.

24

Administrator Guide for PCs | HP Velocity

Statistic name Description

Non-accelerated Packets Received The number of unprotected IP packets received.

Packet Flows Monitored

Accelerated Packet Flows

Monitored

Accelerated Requests Unfulfilled

The number of unique application flows detected by HP Velocity.

The number of unique application flows protected by HP Velocity.

Packets Encoded (Throughput)

The number of data-flow requests that cannot be fulfilled due to resource limitations.

The number of bytes of IP packet data, in Kb/s for intervals or KB/MB for cumulative totals, received from each application encoded into

HP Velocity segments or monitored by HP Velocity .

Packets Decoded (Throughput) The number of bytes of IP packet data, in Kb/s for intervals or KB/MB for cumulative totals, received from the network that were successfully reconstructed or monitored by HP Velocity .

Non-accelerated Throughput (Tx) The number of number of bytes of all transmitted unprotected IP packet data, in Kb/s for intervals or KB/MB for cumulative totals.

Non-accelerated Throughput (Rx) The number of bytes of all received non-protected IP packet data in

Kb/s for intervals or KB/MB for cumulative totals.

Network Statistics operations

Operation

Logging Interval

Save Log History

Save Log Snapshot

Clear Statistics

Description

Set the interval at which statistics are saved to the log file:

• Disabled (no logging)

• Every 5 Seconds

• Every Minute

• Every 5 Minutes

Export the statistics log to a comma-separated value (CSV) file.

Note: This operation is available only when a logging is not disabled.

Save the current 5-second, 1-minute, and 5-minute statistics to a file with the same column order as the log history file.

Reset statistic counts and collection time to zero.

Note: When this operation is performed, the throughput data on the Network

Monitor graph (see

“Network Monitor graph” on page 26

) drops momentarily.

Note:

HP Velocity maintains the statistics history for up to seven days. Logs are stored in the temporary folder for the current user. For example,

C:\Users\<username>\AppData\Local\Temp

. The log filename format is

HPVelocity_logtype_yymmdd.log

25

Administrator Guide for PCs | HP Velocity

Network Monitor graph

HP Velocity collects information about endpoint network conditions ( Table 15 ) and presents the

data in a graph.

To view the Network Monitor graph, click the Network Monitor tab in the HP Velocity Management application.

Figure 11: Network Monitor graph

Table 15: Network monitoring data

Data

Throughput (blue line)

With Velocity (green bars)

Without Velocity (red bars)

Network Loss

Network Throughput

Peak

With Velocity

Without Velocity

Peak

Current

Description

The received throughput over the most recent interval. The right axis indicates the throughput in Kbps or Mbps.

The corrected packet loss seen by applications for which HP Velocity is protecting flows. The left axis indicates the loss as a percentage.

The packet loss in the network. The left axis indicates the loss as a percentage.

The highest packet loss for the duration of the graph.

The corrected loss over the most recent interval.

Note: Low corrected loss is optimal when sufficient bandwidth is available.

The packet loss over the most recent interval.

The highest received throughput for the duration of the graph.

The received throughput for the most recent interval.

26

Administrator Guide for PCs | HP Velocity

Flow information

HP Velocity facilitates end-to-end monitoring of network flows and the associated systems by collecting and reporting information on protected endpoints and individual protected flows.

HP Velocity also provides endpoint and per-flow data on latency (see

“Latency and throughput data” on page 28 ), as well as information about local and remote systems.

To view flow information, click the Flow Information tab in the HP Velocity Management application.

The Flow Information view shows data for protected endpoint parameters (

Table 16

) and protected

flow parameters ( Table 17 ). For information about working with flow information, see

“Flow

Information operations” on page 29 .

Figure 12: Flow Information view

Table 16: Protected Endpoint information

Parameter Description

Remote Host The IP address of the remote host.

Product

CPU Usage

Memory Usage

Link

The product name as defined in the System BIOS.

The percentage of CPU in use.

The percentage of memory in use.

The type of network link in use.

Table 17: Protected Flow information

Parameter Description

Remote IP

Remote Port

Local IP

Local Port

The remote IP address for the protected flow.

The remote TCP or UDP port number for the protected flow. If the port number is a well-known protocol, the protocol name also appears.

The local IP address for the protected flow.

The local TCP or UDP port number for the protected flow. If the port number is a well-known protocol, the protocol name also appears.

27

Administrator Guide for PCs | HP Velocity

Parameter

Protocol

IPQ

LiveTCP

LiveQ

TLR

Description

The protocol (such as TCP or UDP) used by the protected flow.

Indicates the active mode of the HP Velocity driver: Protect or Off

The LiveTCP status: Protect, Inspect, or Off.

The LiveQ status: Protect or Off.

The TLR applied to the protected flow as a percentage that HP Velocity will attempt to achieve.

The encoding level applied to the protected flow.

Encoding

To view information (OS description, Vendor Name, Product Name, etc.) about local and remote systems (

Figure 13 ), click the Local or Remote button on the Flow Information tab.

Figure 13: Local System Information dialog

Latency and throughput data

The Flow Information view also provides graphs that represent Local Rx throughput, Remote Rx throughput, or plotting latency for a protected endpoint or application flow.

To view a graph, click an entry for a protected endpoint or data point in the Flow Information view.

Figure 14: Latency graph for a protected endpoint

28

Administrator Guide for PCs | HP Velocity

Flow Information operations

Operation

Logging Interval

Save Log Snapshot

Flow Records

Save Flow Record

Description

Set the interval at which flow information is saved to the log file:

• Disabled (no logging)

• Every 5 Seconds

• Every Minute

• Every 5 Minutes

Save the current 5-second, 1-minute, and 5-minute interval flow information to a file.

Enable or disable flow-records collection.

Export the flow-records log to a CSV file.

Configuration settings

The HP Velocity Management application provides access to current configuration settings (see

“HP Velocity configuration settings” on page 12 ), which users can export to a configuration report.

Administrators can also use the HP Velocity Management application to temporarily modify configuration settings.

To access a configuration dialog, click the Configuration tab in the HP Velocity Management application, and click a setting in the navigation tree.

Note:

Management Application Mode settings and Logging settings are accessible only via the

HP Velocity Administrative Template. Boot settings can be viewed with the HP Velocity Management application, but can be modified only via the HP Velocity Administrative Template.

Figure 15: System Settings configuration dialog

Note:

A system restart will automatically restore all configuration settings modified using the

HP Velocity Management application to either the system default values or, if applicable, custom configuration values (see

“HP Velocity configuration” on page 10

).

29

Administrator Guide for PCs | HP Velocity

This section covers the following information:

Restoring default configuration settings

Generating the HP Velocity Configuration Report

Restoring default configuration settings

To restore default configuration settings, click the Configuration tab in the HP Velocity Management application, and click General in the navigation tree. In the General view, click Reset Configuration To

Factory Defaults, and then click Yes to confirm the reset.

Figure 16: Restore default configuration

Note:

When group policies are in effect, the system configuration reset is temporary. It will be overridden at the next system restart.

Generating the HP Velocity Configuration Report

To generate a configuration report, click the Configuration tab in the HP Velocity Management application, and click General in the navigation tree. In the General view, click Export Current

Configuration To File.

A detailed configuration report (

Table 18 ) is automatically generated and opened in a text editor

(e.g., Windows Notepad) so that it can be saved locally.

30

Administrator Guide for PCs | HP Velocity

Figure 17: HP Velocity configuration report

Table 18: Configuration report parameters

Parameter Description

Driver Configuration Current configuration and internal driver settings of HP Velocity.

Local System Metrics

OS Information

Registry Keys

Statistics

Protected Flows

Monitored Flows

Statistics on host system performance.

Operating system type, configuration, and performance information for the system on which HP Velocity is installed.

Registry key values configured by the Group Policy Engine.

Snapshot of current network statistics.

List of current protected flows.

List of current monitored flows.

31

Administrator Guide for PCs | HP Velocity

FAQs

This section provides information for the following scenarios:

All HP Velocity application flows are blocked

Protected flows are not established

TCP-based VPNs are not protected

All HP Velocity application flows are blocked

HP Velocity uses the IP ID value 0x420B and the IP option 0x880477FB in IP headers, and the TCP option 0x01000000 & 0x00000000 in TCP headers.

Intrusion Detection Systems (IDS) and firewall systems might require configuration to support

HP Velocity-enabled traffic so that devices will not block it. Consult your device manuals to configure these settings.

Protected flows are not established

Architectures that require devices to access servers via a proxy service provided by a connection broker (such as VMware View Manager) must have HP Velocity installed on the connection broker.

This ensures that protected flows are established for connections to a VMware desktop where HP

Velocity is installed.

TCP-based VPNs are not protected

HP Velocity does not provide protection for point-to-point connections for the Secure Socket

Tunneling Protocol (SSTP) VPN type.

32

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
