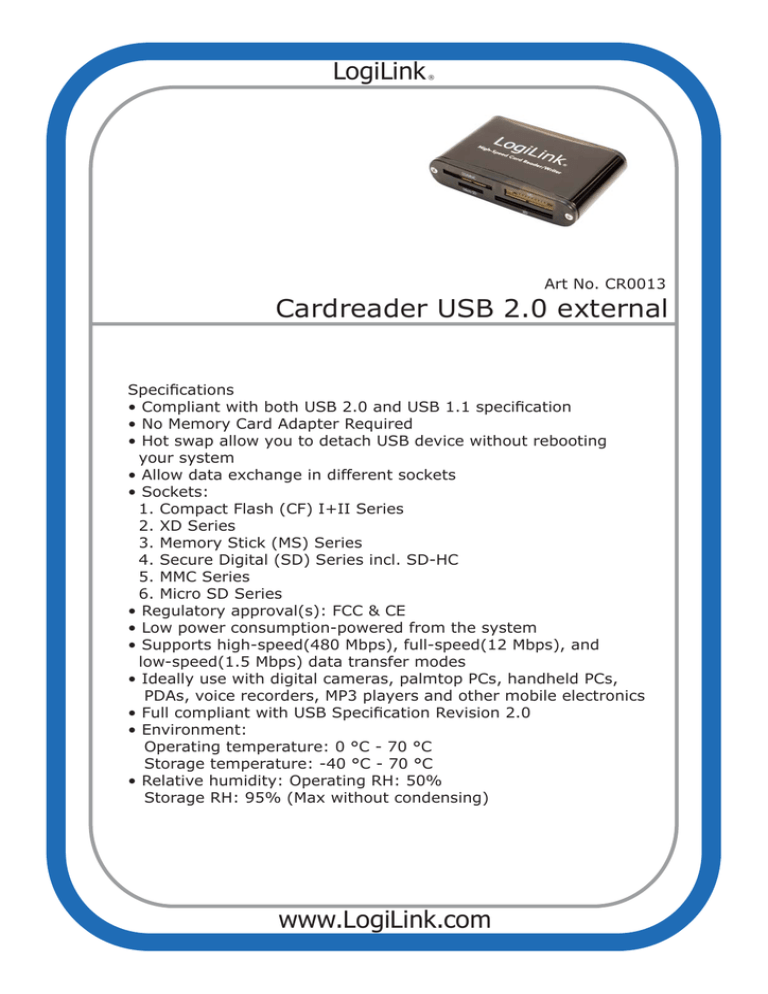

LogiLink CR0013 Datasheet

LogiLink CR0013 Datasheet
LogiLink
®
Art No. CR0013
Cardreader USB 2.0 external
Specifications
• Compliant with both USB 2.0 and USB 1.1 specification
• No Memory Card Adapter Required
• Hot swap allow you to detach USB device without rebooting
your system
• Allow data exchange in different sockets
• Sockets:
1. Compact Flash (CF) I+II Series
2. XD Series
3. Memory Stick (MS) Series
4. Secure Digital (SD) Series incl. SD-HC
5. MMC Series
6. Micro SD Series
• Regulatory approval(s): FCC & CE
• Low power consumption-powered from the system
• Supports high-speed(480 Mbps), full-speed(12 Mbps), and
low-speed(1.5 Mbps) data transfer modes
• Ideally use with digital cameras, palmtop PCs, handheld PCs,
PDAs, voice recorders, MP3 players and other mobile electronics
• Full compliant with USB Specification Revision 2.0
• Environment:
Operating temperature: 0 °C - 70 °C
Storage temperature: -40 °C - 70 °C
• Relative humidity: Operating RH: 50%
Storage RH: 95% (Max without condensing)
www.LogiLink.com
