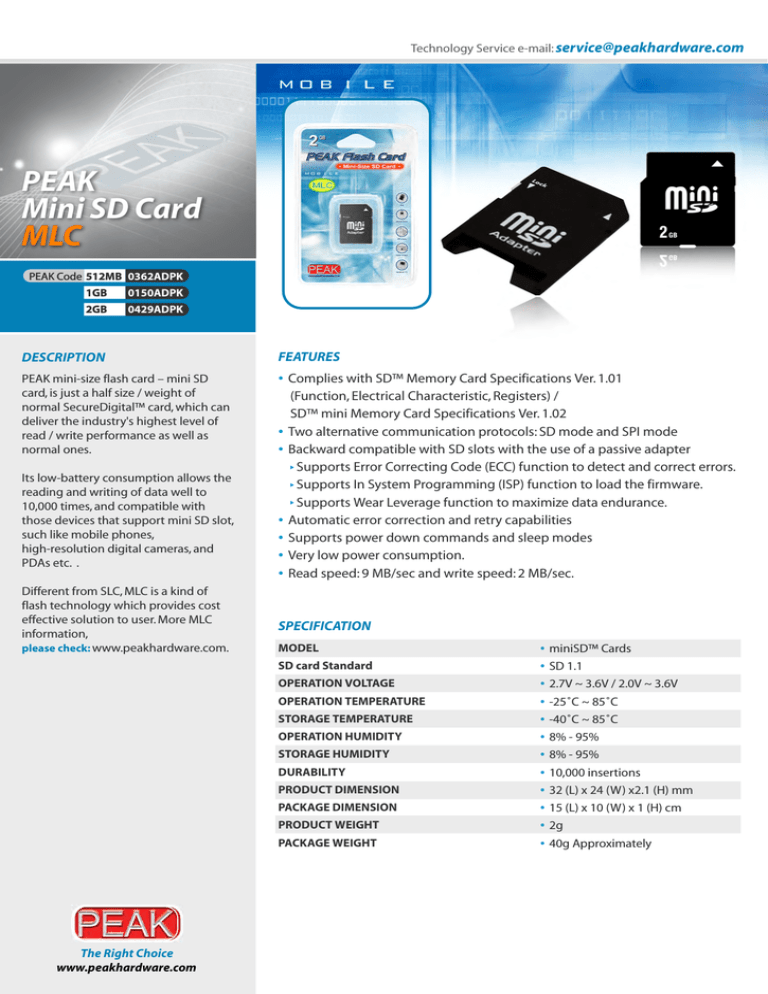

PEAK 0362ADPK Datasheet

PEAK 0362ADPK Datasheet
Technology Service e-mail: [email protected]
PEAK
Mini SD Card
MLC
PEAK Code 512MB 0362ADPK
1GB
0150ADPK
2GB
0429ADPK
DESCRIPTION
FEATURES
PEAK mini-size flash card – mini SD
card, is just a half size / weight of
normal SecureDigital™ card, which can
deliver the industry's highest level of
read / write performance as well as
normal ones.
• Complies with SD™ Memory Card Specifications Ver. 1.01
(Function, Electrical Characteristic, Registers) /
SD™ mini Memory Card Specifications Ver. 1.02
• Two alternative communication protocols: SD mode and SPI mode
• Backward compatible with SD slots with the use of a passive adapter
Supports Error Correcting Code (ECC) function to detect and correct errors.
Supports In System Programming (ISP) function to load the firmware.
Supports Wear Leverage function to maximize data endurance.
• Automatic error correction and retry capabilities
• Supports power down commands and sleep modes
• Very low power consumption.
• Read speed: 9 MB/sec and write speed: 2 MB/sec.
Its low-battery consumption allows the
reading and writing of data well to
10,000 times, and compatible with
those devices that support mini SD slot,
such like mobile phones,
high-resolution digital cameras, and
PDAs etc. .
Different from SLC, MLC is a kind of
flash technology which provides cost
effective solution to user. More MLC
information,
please check: www.peakhardware.com.
SPECIFICATION
MODEL
SD card Standard
OPERATION VOLTAGE
OPERATION TEMPERATURE
STORAGE TEMPERATURE
OPERATION HUMIDITY
STORAGE HUMIDITY
DURABILITY
PRODUCT DIMENSION
PACKAGE DIMENSION
PRODUCT WEIGHT
PACKAGE WEIGHT
The Right Choice
www.peakhardware.com
•
•
•
•
•
•
•
•
•
•
•
•
miniSD™ Cards
SD 1.1
2.7V ~ 3.6V / 2.0V ~ 3.6V
-25˚C ~ 85˚C
-40˚C ~ 85˚C
8% - 95%
8% - 95%
10,000 insertions
32 (L) x 24 (W) x2.1 (H) mm
15 (L) x 10 (W) x 1 (H) cm
2g
40g Approximately
