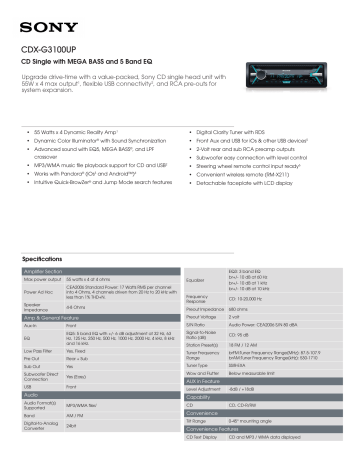

CDX-G3100UP

CDX-G3100UP
CDX-G3100UP
CD Single with MEGA BASS and 5 Band EQ
Upgrade drive-time with a value-packed, Sony CD single head unit with
55W x 4 max output1, flexible USB connectivity2, and RCA pre-outs for
system expansion.
• 55 Watts x 4 Dynamic Reality Amp1
• Digital Clarity Tuner with RDS
• Dynamic Color Illuminator® with Sound Synchronization
• Front Aux and USB for iOs & other USB devices5
• Advanced sound with EQ5, MEGA BASS®, and LPF
• 2-Volt rear and sub RCA preamp outputs
crossover
• Subwoofer easy connection with level control
• MP3/WMA music file playback support for CD and USB
• Steering wheel remote control input ready6
• Works with Pandora® (iOs3 and Android™)4
• Convenient wireless remote (RM-X211)
• Intuitive Quick-BrowZer® and Jump Mode search features
• Detachable faceplate with LCD display
2
Specifications
Amplifier Section
Max power output
55 watts x 4 at 4 ohms
Power Ad Hoc
CEA2006 Standard Power: 17 Watts RMS per channel
into 4 Ohms, 4 channels driven from 20 Hz to 20 kHz with
less than 1% THD+N.
Speaker
Impedance
4-8 Ohms
Equalizer
EQ3: 3 band EQ
br+/- 10 dB at 60 Hz
br+/- 10 dB at 1 kHz
br+/- 10 dB at 10 kHz
Frequency
Response
CD: 10-20,000 Hz
Preout Impedance
680 ohms
Amp & General Feature
Preout Voltage
2 volt
Aux-In
Front
S/N Ratio
Audio Power: CEA2006 S/N 80 dBA
EQ
EQ5: 5 band EQ with +/- 6 dB adjustment at 32 Hz, 63
Hz, 125 Hz, 250 Hz, 500 Hz, 1000 Hz, 2000 Hz, 4 kHz, 8 kHz
and 16 kHz.
Signal-to-Noise
Ratio (dB)
CD: 95 dB
Station Preset(s)
18 FM / 12 AM
Low Pass Filter
Yes, Fixed
Pre Out
Rear + Sub
Tuner Frequency
Range
brFM:Tuner Frequency Range(MHz): 87.5-107.9
brAM:Tuner Frequency Range(kHz): 530-1710
Sub Out
Yes
Tuner Type
SSIR-EXA
Wow and Flutter
Below measurable limit
Subwoofer Direct
Connection
Yes (Easy)
USB
Front
Audio
AUX in Feature
Level Adjustment
-8dB / +18dB
Capability
Audio Format(s)
Supported
MP3/WMA files1
Band
AM / FM
Digital-to-Analog
Converter
24bit
CD
CD, CD-R/RW
Convenience
Tilt Range
0-45° mounting angle
Convenience Features
CD Text Display
CD and MP3 / WMA data displayed
Dimmer Adjust
Selectable Auto/on/off
Key Illumination
Switchable: Blue / Green
On-Screen Clock
12H
-Ability to use all forms of USB devices may vary as not
all devices are compatible.
Display
Display Color
Black color / Negative
Display
Technology
LCD
Text Displayed
Source, artist, track, playback time, menu and clock
Text Lines
1 line of information
Digital Audio
Input(s)
Display Panel
Auto off mode
Yes
Dimmer Adjust
Manual
Key Illumination
Initial
Variable
Panel Design
Display color
(Color Variation/
Nega or Posi)
Black color/Negative
Display Device
(LCD/FL/OEL/TFT)
LCD
brThis unit can be connected to the following iPods.
Update your iPod to the latest software before you use
it.
br iPod Nano 1st generation*
br iPod Nano 2nd generation (aluminum)
br iPod Nano 3rd generation (video)
br iPod 5th generation (video)*
br iPod Classic
br iPod Touch
br iPhone
brThis unit is compliant with MSC (Mass Storage Class)
and MTP (Media Transfer Protocol) type USB devices
compliant with the USB standard.
br This unit cannot recognize USB devices via a USB hub.
br If you have any questions or problems concerning
your unit that are not covered in the owners manual,
consult your nearest Sony dealer
Infrared Port
Wireless remote
RCA Audio
Output(s)
Rear and Subwoofer RCA pre-amp outputs
Remote Jack
Optional wired remote input terminal
USB Port(s)
Front
Key Illumination
Variable (rainbow)
Panel finish color
Black / Carbon Fiber
iPod Control Feature
USB Shutter
Yes
CODEC (for iPod)
Depend on iPod® content
List Browsing
(Folders / Files)
Yes
Pandora Link (USB)
Yes
Passenger Control
Yes
Pause
Yes
Repeat
All, Track
Resume Play
Yes
Shuffle
Off, Track
USB Mass Strage Device Control Feature
CODEC (for USB)
MP3, WMA
Jump Mode
Yes
List Browsing
(Folders/Files)
Yes
Pause
Yes
Repeat
ALL / TRACK/ ALBUM
Resume Play
Yes
Shuffle
OFF/ALBUM/DEVICE
USB-capable
USB Mass Storage
Device
General
Yes
CEA2006 output
power
17
Power
CEA2006 S/N
80
Current Drain
3 - 5 amps
Input Voltage
12 V DC car battery (negative ground)
Output Power
55W x4 Watts Max Power - CEA2006 Standard Power
Output: 17 Watts RMS per channel into 4 Ohms, 4
channels driven from 20 Hz to 20 kHz with less than 1%
THD+N.
Maximum output
power (4ohm,
1kHz, 16V)(W)
55
Preout impedance
(ohms)
680
Preout output
level (V)
2
Weight (kg)
1.2
Inputs and Outputs
12V Trigger
Output(s)
brPower antenna
brAmplifier turn on
Antenna
Terminal(s)
AM/FM Antenna Input Terminal
Audio In
brFront Aux with variable level: -8dB ~ +18dB
brFront USB input
Other features
Card Remote ( ):
Option
RM-X211 included
CD lock mode
Yes
Clock
12H
Detachable Panel
Detachable face
Rotary
commander (
):Option
Yes
Tuner
FM: Channel
separation (dB)
50 dB at 1 kHz
FM: Frequency
response (Hz)
20 - 15k
Weights and Measurements
FM: Intermediate
frequency (MHz)
25 KHz
Dimensions
(Approx.)
178 x 50 x 177 mm, 7.125 x 2 x 7 inch (w/h/d)
Mounting dimension: 182 x 53 x 160 mm (w/h/d)
FM: S/N ratio
(mono) (dB)
73 dB (mono)
Dimensions
(Approx) Depth
7" (177 mm)
FM: Selectivity (400
kHz) (dB)
75 dB
Dimensions
(Approx) Height
2" (50 mm)
FM: Tuning range
(MHz)
87.5-107.9
Dimensions
(Approx) Width
7.125" (178 mm)
FM: Usable
sensitivity (75 ohm)
(dBf)
Weight (Approx.)
1.2 kg (2 lb. 11 oz.)
7 dBf
MW: Tuning
range(kHz)
530-1710
MW/LW/SW:
Sensitivity (75 ohm)
MW/LW/SW(uV)
26/-/-
Accessories
Supplied
Accessories
brParts for installation and connections (1 set)
brRM-X211 wireless remote
Optional Accessories
Optional
Accessories
USB connection cable for iPod®: RC-100IP
1. Rated Power: CEA2006 Standard Power Output: 17 Watts RMS × 4 at 4 Ohms 1% THD+N SN Ratio: 80 dBA (reference: 1 Watt into 4 Ohms).
2. Not all files may playback due to file variations. Copyright protected ACC-LC files not supported.
3. Works with iPod touch (2nd – 5th generations), iPod nano (1st – 7th generations), iPod classic, and iPhone 3G, 3GS, 4, 4S, 5, 5C, and 5S via USB input, cables sold separately.
4. Not available in some regions.
5. MSC (Mass Storage Class) and MTP (Media Transfer Protocol) type USB devices, such as a USB flash drive, digital media player, iOs device, or Android™ phone compliant with the USB
standard can be used.
6. Compatibility varies as not all vehicles are compatible; please consult with each interface manufacturer for details.
© 2015 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Sony, MEGA BASS, Quick-BrowZer, Dynamic Color Illuminator and
their respective logos are trademarks of Sony Corporation. iPod, iPod touch, iPod nano, iPod classic, iPhone, and iTunes are trademarks of Apple Inc. PANDORA, the PANDORA logo,
and the Pandora trade dress are trademarks or registered trademarks of Pandora Media, Inc., used with permission. Android, is a trademark of Google Inc. All other trademarks are
trademarks of their respective owners. Features and specifications are subject to change without notice. Updated: May 24, 2016
