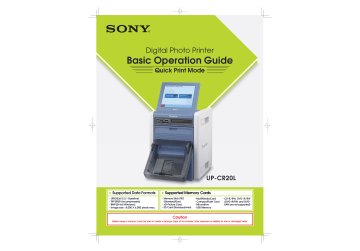

Basic Operation Guide

Basic Operation Guide
Digital Photo Printer
Basic Operation Guide
Quick Print Mode
UP-CR20L
Supported Data Formats
- JPEG(Exif 2.2.1 Baseline)
- TIFF(RGB Uncompressed)
- BMP(24-bit Windows)
- Image size : 8,000 X 6,000 pixels max.
Supported Memory Cards
- Memory Stick PRO
(Standard/Duo)
- xD-Picture Card
- SD Card (Standard/mini)
- MultiMediaCard
- CompactFlash Card
- Microdrive
- USB Memory
- CD-R/RW, DVD-R/RW
(DVD+R/RW and DVDRAM are not supported)
Caution
Before using a memory card, be sure to create a backup copy of its contents. Sony assumes no liability for lost or damaged data.
Select & Print
1
Touch the screen.
6
Select the print size.*
2
Select your
language.*
3
7
Select your picture
source (Memory
Card or CD/DVD).
4
Insert your memory card or disc.
Touch the image you want to
print.
5
Crop & Rotate
Move the
cropping area.
Displays an
enlarged
view of the
image.
Zoom in or out.
Rotate the image 90 degrees clockwise.
Closes the popup display.
Sets the number of prints.
Sets the print finish (glossy or matte) and whether or
not to print dates or show file names.
8
Select any other images that you
want to print.
9
When you finish setting and
editing the image, touch “OK.”
Select “Select & Print.”
10
After verifying the number of prints and
the price, select the print finish (glossy
or matte) and touch “Print Start.”
11
Enter the password.*
Printing begins!
Do not remove your memory card until a message
appears asking you to do so.
Make sure not to forget your prints or memory card.
* This may not be necessary in some cases.
Express Print
1
Touch the screen.
5
Maintenance Guide ———For Store Clerks———
Select “Express Print.”
Precautions
2
3
Select your language.*
6
Select your picture source (Memory
Card or CD/DVD).
7
Select the print size.*
After verifying the number of prints and
the price, select the print finish (glossy or
matte) and touch “Print Start.”
 Be sure to replace both the ink ribbon and
the paper roll as a set.
 Immediately after printing, the thermal head
inside the unit will be hot. When loading
the ink tray, do not insert your hand into the
opening of the unit, to prevent the risk of
burns.
 Always use a designated print pack.
 Do not touch the printing surface of the
paper roll or the ink ribbon . Fingerprints and
other pollutants can lead to reduced print
quality.
Replacing the Paper Roll
1
Open the paper door.
2
Remove the paper roll.
3
Pull the paper core out of the old paper roll.
4
Insert the paper core into the new paper roll.
Replacing the Paper Roll and
Ink Ribbon
Unlocking the Ribbon Door
4
Insert your memory card or disc.
8
1
Touch the top left corner of the error message
screen twice in succession.
2
Enter the administrator password using the
.
numeric keypad, and touch
Enter the password.*
Printing begins!
Do not remove your memory card until a message
appears asking you to do so.
Make sure not to forget your prints or memory card.
The ribbon door unlocks.
* This may not be necessary in some cases.
Troubleshooting
5
6
7
Load the paper roll.
* Be sure to load the paper roll with the arrow on the
seal pointing inside the unit.
Remove the seal affixed to the paper roll.
* Be sure to remove the seal completely. In addition,
remove the seal slowly to avoid leaving parts of the
adhesive on the paper.
3
Remove the ink ribbon.
4
Detach the white spool of the ink ribbon from
the black spool.
5
Gently unravel the ribbon without loosening it,
and place it in the ribbon tray.
Cause/Remedy
The printer does not
feed the correct
amount of paper
automatically when
you close the paper
door and ribbon door
after loading the
paper roll and ink
ribbon.
The printer may be turned off.
Turn on the printer.
The paper roll may have been
loaded with its left and right
sides reversed.
Load the paper roll in the
proper direction.
Cannot load ink
ribbon.
You may be trying to load
the ink ribbon spools into the
wrong holders.
Load each spool into its
proper holder on the ribbon
tray.
Cannot load paper
roll.
You may be trying to load a
printing pack that is 152 mm
(6 inches) in width (2UPC-R204/
C26/R206 series) while the
paper adapters are attached.
Remove the adaptors and
then load the paper roll.
Paper roll was
loaded, but “no
paper” message
appears.
Paper roll may not have been
loaded correctly.
Ensure that paper roll is
loaded correctly.
Ink ribbon was
loaded, but “no ink
ribbon” message
appears.
Ribbon may not have been
loaded correctly.
Ensure that ribbon is loaded
correctly.
Close the paper door.
Replacing the Ink Ribbon
1
Symptom
Open the ribbon door.
6
Hold the center of the ribbon tray, and load it
into the unit.
This is not a defect. Some spare
Out of paper
paper will be left over.
message appears,
but there is still paper
Remove the leftover paper
in the unit.
and load a new ink ribbon
and paper roll.
2
Remove the ribbon tray.
7
Close the ribbon door.
You may be trying to load a
There is a white
margin on the printed printing pack that is 127 mm
(5 inches) in width (2UPC-R203/
image.
R205 series) without the paper
adapters attached.
Attach the paper adapters.
Dust may have accumulated
A vertical white
stripe appears on the on the thermal head.
printout.
Clean the interior of the
printer.
Symptom
Cause/Remedy
Display not on or
difficult to see.
Depending on the display
angle, the display may not be
visible or may be difficult to
see.
The display angle can be
adjusted. Adjust the angle
of the display to improve
the display appearance.
Image data cannot
be read.
A mounted memory card does
not contain any data.
Insert a memory card that
contains image data.
Data has been recorded in a
format that the unit does not
recognize.
Be sure to store image data
in a format that the unit can
recognize.
The memory card may not be
properly inserted.
Make sure that the memory
card is fully inserted.
The memory card may not
be inserted in the correct
direction.
Set the memory card in
the direction shown on the
operation screen.
Distributed by
MK10574V1PSG09MAR
© 2009 Sony Corporation. All rights reserved.
Reproduction in whole or in part without written permission is
prohibited.
Features and specifications are subject to change without
notice.
Sony is a registered trademark of Sony Corporation.
Memory Stick, Memory Stick Duo, Memory Stick PRO, Memory
Stick PRO Duo, Print by Sony, Snap Lab and Pro Matte are
trademarks of Sony Corporation.
All other trademarks are the property of their respective owners.
