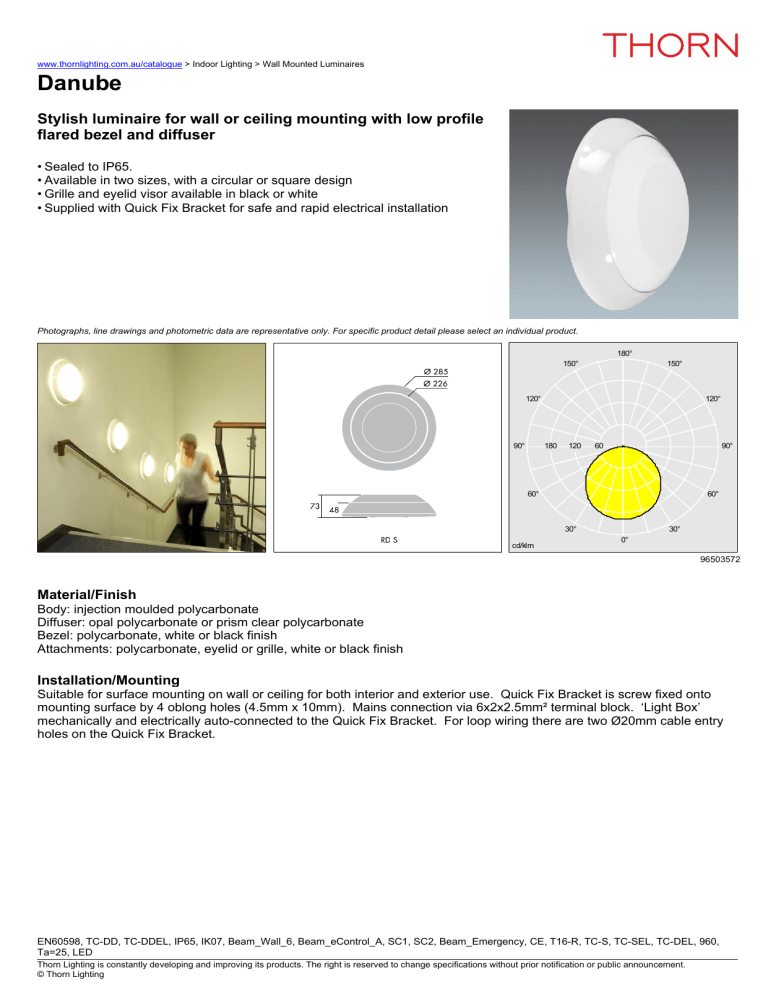

Danube
Stylish luminaire for wall or ceiling mounting with low profile
flared bezel and diffuser
• Sealed to IP65.
• Available in two sizes, with a circular or square design
• Grille and eyelid visor available in black or white
• Supplied with Quick Fix Bracket for safe and rapid electrical installation
Photographs, line drawings and photometric data are representative only. For specific product detail please select an individual product.
180°
150°
150°
120°
90°
120°
180
120
60
90°
60°
60°
30°
cd/klm
30°
0°
96503572
Material/Finish
Body: injection moulded polycarbonate
Diffuser: opal polycarbonate or prism clear polycarbonate
Bezel: polycarbonate, white or black finish
Attachments: polycarbonate, eyelid or grille, white or black finish
Installation/Mounting
Suitable for surface mounting on wall or ceiling for both interior and exterior use. Quick Fix Bracket is screw fixed onto
mounting surface by 4 oblong holes (4.5mm x 10mm). Mains connection via 6x2x2.5mm² terminal block. ‘Light Box’
mechanically and electrically auto-connected to the Quick Fix Bracket. For loop wiring there are two Ø20mm cable entry
holes on the Quick Fix Bracket.
EN60598, TC-DD, TC-DDEL, IP65, IK07, Beam_Wall_6, Beam_eControl_A, SC1, SC2, Beam_Emergency, CE, T16-R, TC-S, TC-SEL, TC-DEL, 960,
Ta=25, LED
Thorn Lighting is constantly developing and improving its products. The right is reserved to change specifications without prior notification or public announcement.
© Thorn Lighting
