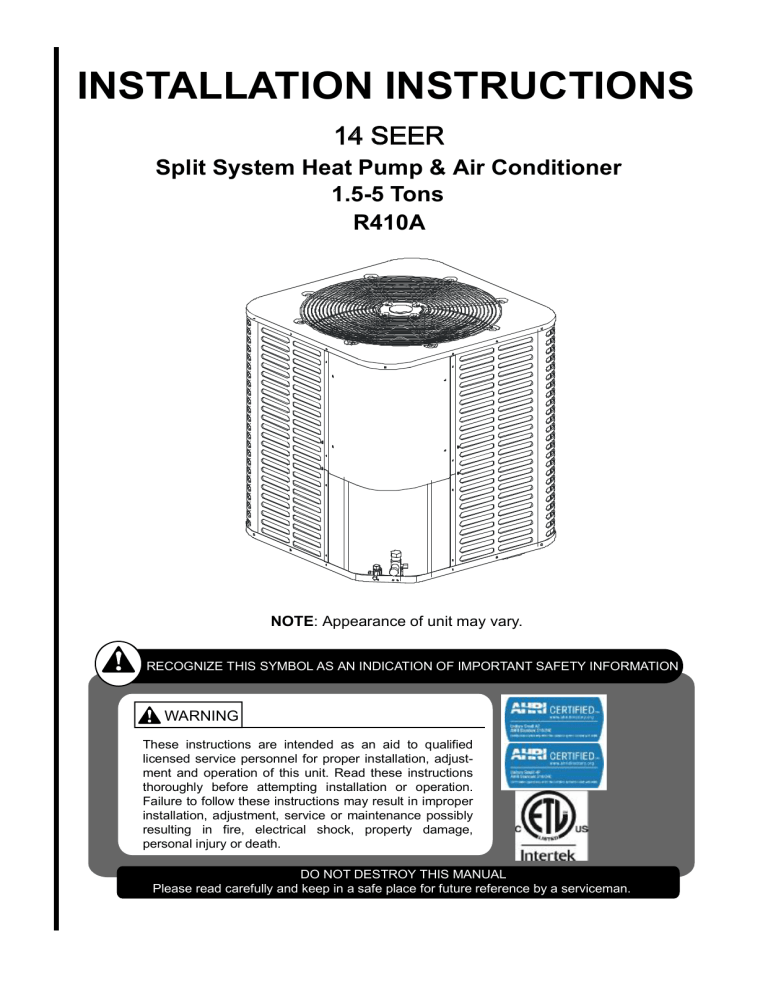

Installation Manual

INSTALLATION INSTRUCTIONS

14 SEER

Split System Heat Pump & Air Conditioner

1.5-5 Tons

R410A

NOTE: Appearance of unit may vary.

RECOGNIZE THIS SYMBOL AS AN INDICATION OF IMPORTANT SAFETY INFORMATION

WARNING

These instructions are intended as an aid to qualified licensed service personnel for proper installation, adjustment and operation of this unit. Read these instructions thoroughly before attempting installation or operation.

Failure to follow these instructions may result in improper installation, adjustment, service or maintenance possibly resulting in fire, electrical shock, property damage, personal injury or death.

DO NOT DESTROY THIS MANUAL

Please read carefully and keep in a safe place for future reference by a serviceman.

2

TABLE OF CONTENTS

1.0 SAFETY..................................................................................................................3

1.1 INSPECTION....................................................................................................4

1.2 LIMITATIONS....................................................................................................4

2.0 GENERAL..............................................................................................................4

3.0 UNIT INSTALLATION............................................................................................6

3.1 LOCATION.......................................................................................................6

3.2 GROUND INSTALLATION...............................................................................6

3.3 ROOF INSTALLATION.....................................................................................6

3.4 UNIT PLACEMENT..........................................................................................6

3.5 PRECAUTIONS DURING LINE INSTALLATION.............................................7

3.6 PRECAUTIONS DURING BRAZING OF LINES..............................................8

3.7 PRECAUTIONS DURING BRAZING SERVICE VALVE..................................9

3.8 UNIT MOUNTING...........................................................................................10

3.9 FACTORY-PREFERRED TIE-DOWN METHOD............................................11

4.0 ELECTRICAL CONNECTIONS...........................................................................12

4.1 GENERAL INFORMATION & GROUNDING .................................................12

4.2 FIELD CONNECTIONS POWER WIRING ....................................................12

4.3 REMOVING THE TOP PANEL AND MOTOR................................................13

5.0 EVACUATION......................................................................................................14

6.0 INTERCONNECTING TUBING............................................................................14

6.1 VAPOR AND LIQUID LINES .........................................................................14

6.2 MAXIMUM LENGTH OF LINES ....................................................................14

6.3 VERTICAL SEPARATION .............................................................................14

7.0 SYSTEM OPERATION........................................................................................15

7.1 COMPRESSOR CRANKCASE HEATER (CCH)...........................................15

7.2 REVERSING VALVE INTRODUCTION .......................................................15

7.3 PROTECTION FUNCTION INTRODUCTION...............................................16

7.4 DEFROST MODE INTRODUCTION.............................................................16

8.0 CHECKING REFRIGERANT CHARGE .............................................................17

8.1 CHARGING BY LIQUID PRESSURE............................................................17

8.2 CHARGING BY WEIGHT ..............................................................................17

8.3 FINAL LEAK TESTING .................................................................................17

9.0 WARRANTY.........................................................................................................17

10.0 WIRING DIAGRAM............................................................................................18

This document is customer property and is to remain with this unit.

These instructions do not cover all the different variations of systems nor does it provide for every possible contingency to be met in connection with installation.

All phases of this installation must comply with NATIONAL, STATE, AND LOCAL

CODES. If additional information is required please contact your local distributor.

1.0 SAFETY

This is a safety alert symbol. When you see this symbol on labels or in manuals, be alert to the potential for personal injury.

This is an attention alert symbol. When you see this symbol on labels or in manuals, be alert to the potential for personal injury.

Understand and pay particular attention to the signal words DANGER, WARNING, or

CAUTION.

DANGER indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury.

WARNING indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

CAUTION indicates a potentially hazardous situation, which, if not avoided may result in minor or moderate injury. It is also used to alert against unsafe practices and hazards involving only property damage.

WARNING

Improper installation may create a condition where the operation of the product could cause personal injury or property damage.

Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to this manual for assistance or for additional information, consult a qualified contractor, installer or service agency.

CAUTION

This product must be installed in strict compliance with the installation instructions and any applicable local, state, and national codes including, but not limited to building, electrical, and mechanical codes.

WARNING

FIRE OR ELECTRICAL HAZARD

Failure to follow the safety warnings exactly could result in serious injury, death or property damage.

A fire or electrical hazard may result causing property damage, personal injury or loss of life.

CAUTION

If using existing refrigerant lines make certain that all joints are brazed, not soldered.

CAUTION

Scroll compressor dome temperatures may be hot. Do not touch the top of compressor; it may cause minor to severe burning.

3

4

1.1 INSPECTION

As soon as a unit is received, it should be inspected for possible damage during transit.

If damage is evident, the extent of the damage should be noted on the carrier's delivery receipt. A separate request for inspection by the carrier's agent should be made in writing. See Local distributor for more information.

Requirements For Installing/Servicing R410A Equipment

Gauge sets, hoses, refrigerant containers, and recovery system must be designed

to handle the POE or PVE type oils.

Manifold sets should be 800 PSIG high side and 250 PSIG low side with 550 PSIG

Iow side restart.

All hoses must have a 700 PSIG service pressure rating.

Leak detectors should be designed to detect R410A.

Recovery equipment (including refrigerant recovery containers) must be specifi-

cally designed to handle R410A.

Do not use an R-22 TXV.

A liquid-line filter drier is required on every unit. see the Fig.1

NOTE

It will be more convenient to open the Service valve after removing

the Underside Clapboard.

LARGE SERVICE VALVE

SMALL SERVICE VALVE

LIQUID-LINE FILTER-DRIER

FIELD SUPPLIED AND INSTALLED

Fig.1 Filter-Drier installation

1.2 LIMITATIONS

The unit should be installed in accordance with all National, State, and Local Safety

Codes and the limitations listed below:

1.Limitations for the indoor unit, coil and appropriate accessories must also be observed.

2.The outdoor unit must not be installed with any duct work in the air stream. The outdoor fan is the propeller type and is not designed to operate against any additional external static pressure.

3.The maximum and minimum conditions for operation must be observed to assure a system that will give maximum performance with minimum service.

4.This unit is not designed to operate with a low ambient kit. Do not modify the control system to operate with any kind of Iow ambient kit.

5.The maximum allowable line length for this product is 150 feet.

2.0 GENERAL

The outdoor units are designed to be connected to a matching indoor coil with braze connect lines. Units are factory charged with refrigerant for a matching indoor coil plus 25 feet of field supplied lines.

Matching indoor coils are available with a thermostatic expansion valve or an orifice for the most common usage. The orifice size and/or refrigerant charge may need to be changed for some indoor-outdoor unit combinations, elevation differences or total line lengths.

AIR DISCHARGE: ALLOW 60

MINIMUM CLEARANCE.

W

SERVICE ACCESS

ALLOW 24

” CLEARANCE

DETAIL A

POWER WIRING

SEE DETAIL A

KNOCKOUT

1-11/32

” (34.5mm)

AIR INLETS

LOUVERED PANELS

ALLOW 18

MINIMUM

CLEARANCE

NOTE: GRILL APPEARANCE

MAY VARY.

CONTROL WIRING

7/8

” (22.2mm)

HOLE

1-3/32

” (27.8mm)

SERVICE

FITTING

LIQUID LINE

CONNECTION

VAPOR LINE

CONNECTION

SERVICE

FITTING

FIG.2 DIMENSIONS

DIMENSIONAL DATA

MODEL SIZE

18HP,24

18AC,30HP

30AC,36

42

48

60

Dimensions (Inches)

Refrigerant Connection

Service Valve Size

"H" in. [mm] "W" in. [mm] "L" in. [mm] Liquid in.

Vapor in.

24-15/16[633]

23-5/8[600] 23-5/8[600]

3/8

3/4

24-15/16[633]

28[710] 28[710]

3/8

3/4

24-15/16[633]

29-7/8[759]

33-3/16[843]

33-3/16[843]

29-1/8[740]

28[710]

28[710]

29-1/8[740]

29-1/8[740]

28[710]

28[710]

29-1/8[740]

3/8

3/8

3/8

3/8

3/4

3/4

7/8

7/8

NOTES: 1.AC: Air Conditioner; HP: Heat Pump

5

6

3.0 UNIT INSTALLATION

3.1 LOCATION

Before starting the installation, select and check the suitability of the location for both the indoor and outdoor unit. Observe all limitations and clearance requirements. The outdoor unit must have sufficient clearance for air entrance to the condenser coil, for air discharge and for service access. See Fig.2

NOTE

For multiple unit installations, units must be spaced a minimum of 18 inches apart. (Coil face to coil face.)

If the unit is to be installed on a hot sun exposed roof or a black-topped ground area, the unit should be raised sufficiently above the roof or ground to avoid taking the accumulated layer of hot air into the outdoor unit.

Provide an adequate structural support.

3.2 GROUND INSTALLATION

The unit may be installed at ground level on a solid base that will not shift or settle, causing strain on the refrigerant lines and possible leaks. Maintain the clearances shown in

Fig.2 and install the unit in a level position.

Normal operating sound levels may be objectionable if the unit is placed directly under windows of certain rooms (bedrooms, study, etc.).

Top of unit discharge area must be unrestricted for at least 60 inches above the unit.

WARNING

The outdoor unit should not be installed in an area where mud or ice could cause personal injury or system damage.

Elevate the unit sufficiently to prevent any blockage of the air entrances by snow in areas where there will be snow accumulation. Check the local weather bureau for the expected snow accumulation in your area. Isolate the unit from rain gutters to avoid any possible wash out of the foundation.

3.3 ROOF INSTALLATION

When installing units on a roof, the structure must be capable of supporting the total weight of the unit, including a padded frame unit, rails, etc., which should be used to minimize the transmission of sound or vibration into the conditioned space.

3.4 UNIT PLACEMENT

1. Provide a base in the pre-determined location.

2. Remove the shipping carton and inspect for possible damage.

3. Compressor tie-down nuts should remain tightened.

4. Position the unit on the base provided.

CAUTION

This system uses R410A refrigerant which operates at higher pressure than

R-22. No other refrigerant may be used in this system. Gauge sets, hoses, refrigerant containers, and recovery system must be designed to handle

R410A. If you are unsure, consult the equipment manufacturer.

The outdoor unit must be connected to the indoor coil using field supplied refrigerant grade copper tubing that is internally clean and dry. Units should be installed only with the tubing sizes for approved system combinations. The charge given is applicable for total tubing lengths up to 25 feet.

NOTE

Using a larger than specified line size could result in oil return problems. Using too small a line will result in loss of capacity and other problems caused by insufficient refrigerant flow. Slope horizontal vapor lines at least 1" every 20 feet toward the outdoor unit to facilitate proper oil return.

3.5 PRECAUTIONS DURING LINE INSTALLATION

1. Install the lines with as few bends as possible. Care must be taken not to damage

the couplings or kink the tubing. Use clean hard drawn copper tubing where no

appreciable amount of bending around obstruction is necessary, if soft copper must

be used, care must be taken to avoid sharp bends which may cause a restriction.

2. The lines should be installed so that they will not obstruct service access to the coil,

air handling system or filter.

3. Care must also be taken to isolate the refrigerant lines to minimize noise transmis-

sion from the equipment to the structure.

4. The vapor line must be insulated with a minimum of 1/2" foam rubber

insulation. Tape and suspend the refrigerant lines as shown. DO NOT allow tube

metal-to-metal contact. See Fig. 3.

5. Use PVC piping as a conduit for all underground installations as shown in Fig. 4.

Buried lines should be kept as short as possible to minimize the build up of liquid

refrigerant in the vapor line during long periods of shutdown.

6. Pack a sealing material such as perma gum around refrigerant lines where they

penetrate a wall to reduce vibration and to retain some flexibility.

7

8

Suggested

Sheet Metal Hanger

Insulated Vapor Line optional

Tape

Incorrect

Insulated Liquid Line

Fig.3 Tubing Hanger

TO

INDOOR

BLOWER

TO

POWER

SUPPLY

TO

COIL

Fig.4 Underground Installation

WEATHERPROOF

DISCONNECT

SWITCH

Seal opening(s) with permagum or equivalent

NOTE:All outdoor wiring must be weather proof

Fig.5 Typical Installation

3.6 PRECAUTIONS DURING BRAZING OF LINES

All outdoor unit and evaporator coil connections are copper-to-copper and should be brazed with a phosphorous-copper alloy material such as Silfos-5 or equivalent. DO

NOT use soft solder. The outdoor units have reusable service valves on both the liquid and vapor connections. The total system refrigerant charge is retained within the outdoor unit during shipping and installation. The reusable service valves are provided to evacuate and charge per this instruction.

Serious service problems can be avoided by taking adequate precautions to assure an internally clean and dry system.

CAUTION

Dry nitrogen should always be supplied through the tubing while it is being brazed, because the temperature required is high enough to cause oxidation of the copper unless an inert atmosphere is provide. The flow of dry nitrogen should continue until the joint has cooled. Always use a pressure regulator and safety valve to insure that only low pressure dry nitrogen is introduced into the tubing.Only a small flow is necessary to displace air and prevent oxidation.

3.7 PRECAUTIONS DURING BRAZING SERVICE VALVE

Precautions should be taken to prevent heat damage to service valve by wrapping a wet rag around it as shown in Fig. 6. Also, protect all painted surfaces, insulation, during brazing. After brazing cool joint with wet rag.

The valve can be opened by removing the plunger cap and fully inserting a hex wrench into the stem and backing out counter-clockwise until valve stem just touches the chamfered retaining wall.

Connect the refrigerant lines using the following procedure:

1. Remove the cap and Schrader core from both the liquid and vapor service valve

service ports at the outdoor unit. Connect Iow pressure nitrogen to the liquid line

service port.

wet rag service valve

Fig.6 Heat Protection

2. Braze the liquid line to the liquid valve at the outdoor unit. Be sure to wrap the valve

body with a wet rag. Allow the nitrogen to continue flowing. Refer to the Tabular Data

Sheet for proper liquid line sizing.

3. Carefully remove the rubber plugs from the evaporator liquid and vapor connections

at the indoor coil.

4. Braze the liquid line to the evaporator liquid connection. Nitrogen should be flowing

through the evaporator coil.

5. Slide the plastic cap away from the vapor connection at the indoor coil. Braze the

vapor line to the evaporator vapor connection. Refer to the Table 1 for proper vapor

line sizing.

6. Protect the vapor valve with a wet rag and braze the vapor line connection to the

outdoor unit. The nitrogen flow should be exiting the system from the vapor service

port connection. After this connection has cooled, remove the nitrogen source from

the liquid fitting service port.

7. Replace the Schrader core in the liquid and vapor valves.

8. Leak test all refrigerant piping connections including the service port flare caps to be

sure they are leak tight. DO NOT OVER TIGHTEN (between 40 and 60 inch -lbs.

maximum).

9. Evacuate the vapor line, evaporator, and the liquid line, to 350 microns or less.

9

10

Table 1: Refrigerant Connections and Recommended Liquid and Suction Tube

Diameters (ln.)

MODEL SIZE

18

24

30

36

42

48

60

LIQUID

Tube Diameter

3/8

3/8

3/8

3/8

3/8

3/8

3/8

SUCTION

Tube Diameter

3/4

3/4

3/4

3/4

3/4

7/8

7/8

10. Replace cap on service ports. Do not remove the flare caps from the service ports

except when necessary for servicing the system.

11. Release the refrigerant charge into the system. Open both the liquid and vapor

valves by removing the plunger cap and with an hex wrench back out counter

-clockwise until valve stem just touches the chamfered retaining wall.

12. Replace plunger cap finger tight, then tighten an additional 1/12 turn (1/2 hex flat).

Cap must be replaced to prevent leaks.

WARNING

Never attempt to repair any brazed connections while the system is under pressure. Personal injury could result.

See "System Charge" section for checking and recording system charge.

3.8 UNIT MOUNTING

If elevating the heat pump, either on a flat roof or on a slab, observe the following guidelines.

1.The base pan provided elevates the heat pump 2

” above the base pad.

2. If elevating a unit on a flat roof , use 4

”× 4”(or equivalent) stringers positioned to distribute unit weight evenly and prevent noise and vibration

(See fig. 7) .

NOTE:Do not block drain openings shown in fig.7.

3. If unit must be elevated because of anticipated snow fall, secure unit and elevating stand such that unit and/or stand will not tip over or fall off.

NOTE: To tie down unit, see 3.9.

BASE PAN (BOTTOM VIEW) DO NOT

OBSTRUCT DRAIN HOLES

(SHADED)

BASE PAD

(CONCRETE OR

OTHER SUITABLE

MATERIAL)

ELEVATION ABOVE ANTICIPATED

SNOW IS NECESSARY

Fig.7 RECOMMENDED ELEVATED INSTALLATION

3.9 FACTORY-PREFERRED TIE-DOWN METHOD

Step 1: Prior to installing clear pad of debris.

IMPORTANT

Then cement pad must meet local codes and must be the proper thickness to

accommodate fasteners.

Step 2: Center and level unit onto pad.

Step 3: Using field supplied L-shaped bracket to locate holes on concrete and drill pilot

holes which is at least 1/4

” deeper than fastener being used.

IMPORTANT

Self drilling screws to base pan should not exceed 3/8

” long to avoid damaging

coil.

Step 4: Using conventional practices to install brackets, tighten concrete fasteners and

self-tapping screws (See Fig.8).

NOTE: 1. One bracket for each side. For extra stability, 2 brackets for each side.

2. Do not over-tighten the concrete fastener to avoid weakening the concrete.

IMPORTANT NOTE:

These instructions are intended to provide a method to tie-down system to cement slab as a securing procedure for high wind areas. It is recommended to check Local Codes for tie-down methods and protocols.

11

12

The dimension see FIG.2

SEE DETAIL B

Brackets:

2

” width, 1/16” thickness, height as required.

Available from distributor or in market place.

#7 X 3/8

” Self Tapping Screws

(Don

’t Exceed 3/8” long)

1/4

” Χ 1-1/2” Hex Washer Head Concrete Screws

(3/16

” Pilot Hole Needed. Pilot Hole Should Be1/4” Deeper

Than The Fastener Embedment)

DETAIL B

4.0 ELECTRICAL CONNECTIONS

4.1 GENERAL INFORMATION & GROUNDING

Check the electrical supply to be sure that it meets the values specified on the unit nameplate and wiring label.

Power wiring, control (Iow voltage) wiring, disconnect switches and over current protection must be supplied by the installer. Wire size should be sized per requirements.

CAUTION

All field wiring must USE COPPER CONDUCTORS ONLY and be in accordance with Local, National Fire, Safety & Electrical Codes. This unit must be grounded with a separate ground wire in accordance with the above codes.

The complete connection diagram and schematic wiring label is located on the inside surface of the unit service access panel and this instruction.

4.2 FIELD CONNECTIONS POWER WIRING

1. Install the proper size weatherproof disconnect switch outdoors and within sight of

the unit.

2. Remove the screws at the side of the corner panel. Slide corner panel down and

remove from unit. See Fig. 9.

3. Run power wiring from the disconnect switch to the unit.

4. Route wires from disconnect through power wiring opening provided and into the

unit control box.

5. Install the proper size time-delay fuses or circuit breaker, and make the power

supply connections.

6. Energize the crankcase heater if equipped to save time by preheating the compres-

sor oil while the remaining installation is completed.

NOTE: When changing the motor, remove top cover first.

CORNER

PANEL

HIGH VOLTAGE WIRING

LOW VOLTAGE WIRING

Fig.9 Typical Field Wiring

4.3 REMOVING THE TOP PANEL AND MOTOR

1/2

” nut

NOTE:

Damage will occur to condenser unit if you remove fan nuts prior to cover removal.

5/16

” nuts

Fig.10 COVER AND FAN

When motor requires changing follow the steps below:

Step 1: Go into electrical panel, disconnect motor power lines.

IMPORTANT NOTE

Disconnect main power to unit. Severe burns and electrical shock will occur if

you do not disconnect main power.

Step 2: Remove cover (be careful of motor wires)

Step 3: Be sure to place fan cover unit on the ground as indicated in Fig. 10

IMPROTANT NOTE

Do not place or lean fan blades on ground or against surface.

Step 4: Remove fan motor by removing 5/16

” nuts from cover.

Step 5: Remove fan blade from motor by removing 1/2

” nut and place fan on the ground.

Step 6: Reverse removal process to reinstall the fan and motor.

IMPROTANT NOTE

When connecting motor wires be sure to check motor direction.

13

14

5.0 EVACUATION

It will be necessary to evacuate the system to 350 microns or less. If a leak is suspected, leak test with dry nitrogen to locate the leak. Repair the leak and test again.

To verify that the system has no leaks, simply close the valve to the vacuum pump suction to isolate the pump and hold the system under vacuum. Watch the micron gauge for a few minutes. If the micron gauge indicates a steady and continuous rise, it's an indication of a leak. If the gauge shows a rise, then levels off after a few minutes and remains fairly constant, its an indication that the system is leak free but still contains moisture and may require further evacuation if the reading is above 500 microns.

6.0 INTERCONNECTING TUBING

6.1 VAPOR AND LIQUID LINES

Keep all lines sealed until connection is made.

Make connections at the indoor coil first.

Refer to Line Size Information in Tables 2 and 3 for correct size and multipliers to be used to determine capacity for various vapor line diameters and lengths of run. The losses due to the lines being exposed to outdoor conditions are not included.

The factory refrigerant charge in the outdoor unit is sufficient for the unit and 25 feet of standard size interconnecting liquid and vapor lines. For different lengths,adjust the charge as indicated below.

1/4

” ± .3 oz. per foot

5/16

” ± .4 oz. per foot

3/8

” ± .6 oz. per foot

1/2

” ± 1.2 oz. per foot

6.2 MAXIMUM LENGTH OF LINES

The maximum length of interconnecting line is 150 feet.

Always use the shortest length possible with a minimum number of bends.

NOTE: Excessively long refrigerant lines cause loss of equipment capacity.

6.3 VERTICAL LIFT

Keep the vertical lift to a minimum. Use the following guidelines when installing the unit:

1. DO NOT exceed the vertical lift as indicated on Table 3.

2. It is recommended to use the smallest liquid line size permitted to minimize sys tem charge which will maximize compressor reliability.

3. Table 3 may be used for sizing horizontal runs.

LINE SIZING

TABLE 2: SUCTION LINE LENGTH/SIZE VS CAPACITY MULTIPLIER(R410A)

System Capacity

Suction Line Connection Size

Suction Line Run Feet

25'

50'

100'

Optional

Standard

Optional

Standard

Optional

Standard

1 1/2 Ton 2 Ton 2 1/2 Ton 3 Ton 3 1/2 Ton 4 Ton

3/4" O.D.

3/4" O.D.

3/4" O.D.

3/4" O.D.

3/4" O.D.

7/8" O.D.

5/8 Opt.

5/8 Opt.

5/8 Opt.

5/8 Opt.

5/8 Opt.

3/4 Opt.

3/4* Std.

3/4* Std.

3/4* Std.

3/4* Std.

3/4* Std.

7/8* Std.

1.00

1.00

0.97

0.98

0.94

0.95

1.00

1.00

0.97

0.98

0.94

0.95

1.00

1.00

0.97

0.98

0.94

0.96

1.00

1.00

0.97

0.99

0.94

0.97

150'

Optional

Standard

0.90

0.92

0.90

0.92

0.90

0.93

NOTES:

* Standard size

Using suction line larger than shown in chart will result in poor oil return and is not recommended.

0.90

0.96

1.00

1.00

0.98

0.98

0.95

0.97

0.91

0.96

1.00

1.00

0.98

0.98

0.95

0.97

0.92

0.96

5 Ton

7/8" O.D.

1 1/8 Opt.

7/8* Std.

1.00

0.99

0.99

0.98

0.98

0.94

0.97

0.90

TABLE 3 :LIQUID LINE SIZE (R410A)

System

Capacity

1 1/2 Ton

2 Ton

2 1/2 Ton

3 Ton

3 1/2 Ton

4 Ton

5 Ton

Line Size

Connection Size

(Inch O.D.)

Compressor

Type

Line Size

Connection And

Line Size

(Inch O.D.)

3/8"

3/8"

3/8"

3/8"

3/8"

3/8"

3/8"

NOTES:

* Standard line size

N/A Application not recommended.

Scroll

Scroll

Scroll

Scroll

Scroll

Scroll

Scroll

1/4

5/16

3/8*

1/4

5/16

3/8*

1/4

5/16

3/8*

3/8*

1/2

3/8*

1/2

5/16

3/8*

5/16

3/8*

25

25

25

25

25

25

25

25

25

25

25

25

23

25

25

25

25

25

Liquid Line Size

Outdoor unit above or below indoor coil

Total Equivalent Length - Feet

46

50

50

50

50

50

23

50

50

75 100

Maximum Vertical Separation - Feet

125

40

25 9

N/A

50

50

60

60

58

60

40

40

N/A

36

50

N/A

29

60

N/A

23

60

N/A

16

40

N/A

49

50

N/A

38

60

N/A

27

60

N/A

17

40

38

56

56

60

37

60

4

43

30

55

44

60

22

60

N/A

36

22

40

32

40

7

40

N/A

30

150

N/A

30

30

N/A

9

30

N/A

6

30

15

30

20

30

N/A

30

N/A

24

7.0 SYSTEM OPERATION

7.1 COMPRESSOR CRANKCASE HEATER (CCH) (Heat pump only)

Refrigerant migration during the off cycle can result in a noisy start up. Add a crankcase heater to minimize refrigeration migration, and to help eliminate any start up noise or bearing

“wash out”.

All heaters must be located on the lower half of the compressor shell. Its purpose is to drive refrigerant from the compressor shell during long off cycles, thus preventing damage to the compressor during start-up.

The crankcase heating start condition:

1.The crankcase heating start must meet two conditions:

A. Outdoor temperature 37.4

° F.

B. Compressor stops working more than 3 hours.

2. Outdoor temperature 37.4

° F and just connected to the power source.

The crankcase heating stop must meet condition:

Outdoor temperature 44.6

° F or compressor start.

Compressor crankcase heater:

Model

18/24/30/36HP

42/48/60HP

PN-COMPRESSOR CRANKCASE HEATER

202403100320

202495030151

7.2 REVERSING VALVE INTRODUCTION (Heat pump only)

Reversing valve energizes at the heating conditions, and cut off at the cooling condition.

15

16

7.3 PROTECTION FUNCTION INTRODUCTION

(Heat pump only)

Sensor T3 (condenser pipe temperature) and T4 (outdoor ambient temperature)

When open-circuit, compressor, outdoor fan motor and reverse valve will be OFF.

T3 149

°

F ,compressor stop working ; T3 140

°

F ,compressor start working.

When T4 < 5

°

F, compressor will stop.If the electrical heater kit is installed in the

indoor unit, the outdoor unit would provide a signal to drive up the heater.

When T4 > 10.4

°

F, compressor will restart.

Discharge temperature protection

When discharge temp. > 275

°

F, compressor will stop.

When discharge temp. < 194

°

F, compressor will restart.

High pressure protection

When high pressure > 638 PSIG, compressor and outdoor fan motor will stop.

When high pressure < 464 PSIG, compressor and outdoor fan motor will restart

(3 minutes delay necessary).

Low pressure protection

Low pressure < 21 PSIG, compressor and outdoor fan motor will stop.

Low pressure > 44 PSIG, compressor and outdoor fan motor will restart

(3 minutes delay necessary).

In stand-by status, the compressor will not start in low pressure protection.

Within 30 mins, if 4 protection cycles occurs.The system will be locked. It will be restore after power cycle.

7.4 DEFROST MODE INTRODUCTION (Heat pump only)

Start-up conditions of defrost mode:

When JUMP switch is set to

“1”(See in Fig 11), the mode will start up in either of the two following conditions:

1. Compressor operating, when T4 is > 28.4

°F and T3 is < 32 °F last for 40 minutes;

2. Compressor operating, when T4 is < 28.4

°F and T3 is < 32 °F last for 50 minutes.

When JUMP switch is set to

“0”:

Compressor operating, when T3 is < 32

°F last for 30 minutes.

Shut-down conditions of defrost mode:

The mode will shut down in either of the two following conditions:

1. The defrosted time lasting for 10 minutes;

2. T3 is

≥ 77 °F.

JUMP Switch

Fig.11 JUMP Switch Location in the PCB Board

Troubleshooting see TABLE5

8.0 CHECKING REFRIGERANT CHARGE

Charge for all systems should be checked against the Charging Chart inside the access corner panel .

IMPORTANT:Do not operate the compressor without charge in system. Addition of

R-410A will raise pressures (vapor, liquid and discharge).

8.1 CHARGING BY LIQUID PRESSURE

In order to properly charge the system, the following conditions must be met: 1) Outdoor temperature above 60F. 2) Indoor temperature between 70F to 100F. 3)Installation must be complete with brazed joints and drier visually inspected. 4) The unit electrical installation must be checked and unit powered for one (I) hour if crank case heat is used or five (5) minutes if no crank case heat is used.

Follow these steps: 1. Run in cooling mode at least 10 minutes. 2. Measure OUTDOOR

AMBIENT TEMPERATURE within 6 inches of coil. 3. Measure SUCTION LINE PRES-

SURE. 4. Find the TARGET LIQUID PRESSURE at the intersection between the

SUCTION LINE PRESSURE and the OUTDOOR AMBIENT TEMPERATURE, if falls between rows or columns then estimate the TARGET LIQUID PRESSURE or SUC-

TION LINE PRESSURE falls between rows or columns then estimate the TARGET

LIQUID PRESSURE between the rows and columns. 5. Compare the measured LIQUID

LINE PRESSURE to the TARGET LIQUID PRESSURE, add charge to raise the pressure or recover charge to lower it. 6. After running unit for 10 minutes if the SUCTION

LINE PRESSURE changes, go back to step 2 otherwise remove test equipment and cover the valves.

8.2 CHARGING BY WEIGHT

For a new installation,evacuation of interconnecting tubing and indoor coil is adequate; otherwise,evacuate the entire system. The factory refrigerant charge in the outdoor unit is sufficient for the unit and 25 feet of standard size interconnecting liquid and vapor lines. For tube lengths over 25ft add the additional refrigerant see 6.1.

With an accurate scale (+/- 1 oz.) adjust charge difference between that shown on the unit data plate and that calculated for the new system Installation. if the entire system has been evacuated, add the total calculated charge.

8.3 FINAL LEAK TESTING

After the unit has been properly evacuated and charged, a halogen leak detector should be used to detect leaks in the system. All piping within the condensing unit, evaporator, and interconnecting tubing should be checked for leaks. If a leak is detected, the refrigerant should be recovered before repairing the leak. The Clean Air

Act prohibits releasing refrigerant into the atmosphere.

9.0 WARRANTY

Assist owner with processing Warranty cards and/or online registration.

17

18

9.1 MAINTENANCE

1.

in the air circuit. Clean as often as necessary to keep the unit clean. Use a brush,

vacuum cleaner attachment, or other suitable means.

2. The outdoor fan motor is permanently lubricated and does not require periodic oiling.

3. Refer to the furnace or air handler instructions for filter and blower motor maintenance.

4. The indoor coil and drain pan should be inspected and cleaned regularly to assure

proper drainage.

CAUTION

It is unlawful to knowingly vent, release or discharge refrigerant into the open air during repair, service, maintenance or the final disposal of this unit. When the system is functioning properly and the owner has been fully instructed, secure the owner

’s approval.

10.0 WIRING DIAGRAM

CAUTION

These units must be wired and installed in accordance with all National and

Local Safety Codes.

CC COMPRESSOR CONTACTOR

COMP COMPRESSOR

RC 1

RC 2

RUN CAPACITOR 1

RUN CAPACITOR 2

RC 3 RUN CAPACITOR 3

LINE VOLTAGE

FACTORY STANDARD

FIELD INSTALLED

FACTORY OPTIONAL

LOW VOLTAGE

FACTORY STANDARD

FIELD INSTALLED

FACTORY OPTIONAL

USE COPPER CONDUCTORS ONLY

WARNING :

CABINET MUST BE PERMANMENTLY GROUNDED

AND ALL WIRING TO CONFORM TO I.E.C, N.E.C,

C.E.C, C.L.C, AND LOCAL CODES AS APPLICABLE

REPLACEMENT WIRE MUST BE THE SAME GAUGE

AND INSULATION TYPE AS ORIGINAL WIRE.

RC 1

A1

CC

RC 3

L1

L2

A2

L1

L2

Fig.12 Outdoor Unit Wiring Diagram for A/C Systems(208/230V 1P 60Hz).

C

Y

THERMOSTAT

24C

24RC

W1 HEAST

(Note 1)

W2/O

Y1 Comp

(Note 2)

G Fan

G R C

W1

INDOOR UNIT

W2

Y C

OUTDOOR UNIT

Fig.13 Control Wiring for A/C systems

CC COMPRESSOR CONTACTOR

CCH

COMP

DFC

T4

T3

CRANKCASE HEATER

COMPRESSOR

DEFROST CONTROL

AMBIENT TEMPERATURE

PIPE TEMPERATURE

HPC HIGHT PRESSURE CUT-OUT CONTROL

L PC LOW PRESSURE CUT-OUT CONTROL

OFM OUTDOOR FAN MOTOR

RC 1 RUN CAPACITOR 1

RC 2 RUN CAPACITOR 2

RC 3 RUN CAPACITOR 3

RV REVER SING VALVE

GND GROUND CHASSIS

HGS HOT GAS SENSOR

LINE VOLTAGE

FACTORY STANDARD

FIELD INSTALLED

FACTORY OPTIONAL

LOW VOLTAGE

FACTORY STANDARD

FIELD INSTALLED

FACTORY OPTIONAL

USE COPPER CONDUCTORS ONLY

WARNING :

CABINET MUST BE PERMANMENTLY

GROUNDED AND ALL WIRING TO CONFORM TO

I.E.C, N.E.C, C.E.C, C.L.C, AND LOCAL CODES AS

APPLICABLE REPLACEMENT WIRE MUST BE THE SAME

GAUGE AND INSULATION TYPE AS ORIGINAL WIRE.

Fig.14 Outdoor Unit Wiring Diagram for H/P Systems(208/230V 1P 60Hz).

19

20

THERMOSTAT

W1 HEAT

(Note 1)

W2/O

24C

24RC

Y1 Comp

(Note 2)

G Fan

G R C W1

INDOOR UNIT

W2

R

C Y B

OUTDOOR UNIT

D

Fig.15 Control Wiring for H/P systems.

TABLE 4: Electrical Data:

Model

18AC

18HP

24AC/HP

30AC/HP

36AC/HP

42AC/HP

48AC/HP

60AC/HP

Minimum Circuit Ampacity(A) Maximum Circuit Protector(A)

12.3

11.9

17.5

18.7

21.9

24.1

29.0

34.7

20

20

30

30

35

40

50

60

NOTES: 1.AC: Air Conditioner; HP: Heat Pump

REFRIGERANT CHARGE FOR AC SYSTEM

Cooling

Mode

177

173

169

165

161

157

153

149

145

141

137

133

129

125

121

117

55

189

187

185

183

181

179

177

175

173

171

169

113

167

105

165

60 65

225

207 223

205 221

203 219

201 217

199 215

197 213

195 211

193 209

191 207

189 205

187 203

185 201

183 199

206 223

14 SEER R410A AC Charge Chart 1.5 TON

70

Outdoor Ambient Temperature(℉)

75 80 85 90 95 100 105 110

Liquid Pressure at Small Service Valve(psig)

283 304 324 344 369 394 418

261

243 259

241 257

239 255

237 253

235 251

281

279

277

275

273

271

302

300

298

296

294

292

322

320

318

316

314

312

342

340

338

336

334

332

367

365

363

361

359

357

392

390

388

386

384

382

416

414

412

410

408

406

233 249

231 247

229 245

227 243

225 241

223 239

221 237

219 235

217 233

215 231

240 261

269

267

265

263

261

259

257

255

253

290

288

286

284

282

280

278

276

274

251 272

280

270

310

308

306

304

302

300

298

296

294

292

330

328

326

324

322

320

318

316

314

312

355

353

351

349

347

345

343

341

339

337

380

378

376

374

372

370

368

366

364

362

404

402

400

398

396

394

392

390

388

386

14 SEER R410A AC Charge Chart 2 TON

Outdoor Ambient Temperature()

115

Cooling

Mode

137

133

129

125

121

117

113

109

177

173

169

165

161

157

153

149

145

141

55

165

161

157

153

149

234

145

232

141

230

137

229

133

227

129

225

125

222

121

219

117

216

113

214

109

211

105

209

Cooling

Mode

60

256

254

252

251

249

248

246

245

243

241

339

236

233

231

229

227

65

276

273

270

268

266

264

262

260

258

256

254

252

250

248

246

244

70 75 80 85 90 95 100

Liquid Pressure at Small Service Valve(psig)

293

290

312

310

332

329

351

328

372

368

396

394

417

415

287

285

283

307 326

305 323

303 320

325

342

339

365

362

360

392

389

385

412

409

406

281

279

277

275

300 318

298 316

296 314

294 312

337

335

333

331

358

356

354

352

382

380

378

376

404

402

400

398

273

271

269

267

265

263

291

289

286

284

283

281

310

307

305

303

300

298

329

327

325

323

320

318

350

348

346

344

342

340

374

371

369

367

366

362

396

393

390

387

383

380

261 279 296 316 337 358 377

14 SEER R410A AC Charge Chart 2.5 TON

105

441

438

336

434

432

430

428

425

422

419

416

413

410

407

404

401

110

467

464

461

458

456

454

452

450

448

445

443

439

436

432

429

426

115

Outdoor Ambient Temperature(℉)

55 60 65 70 75 80 85 90 95 100 105 110 115

Liquid Pressure at Small Service Valve(psig)

303 324 344 364 389 414 438 463

281 301 322 342 362 387 412 436 461

263 279 299 320 340 360 385 410 434 459

245 261 277 297 318 338 358 383 408 432 457

227 243 259 275 295 316 336 356 381 406 430 455

209 225 241 257 273 293 314 334 354 379 404 428 453

207 223 239 255 271 291 312 332 352 377 402 426 451

205 221 237 253 269 289 310 330 350 375 400 424 449

203 219 235 251 267 287 308 328 348 373 398 422 447

201 217 233 249 265 285 306 326 346 371 396 420 445

199 215 231 247 263 283 304 324 344 369 394 418 443

197 213 229 245 261 281 302 322 342 367 392 416 441

195 211 227 243 259 279 300 320 340 365 390 414 439

193 209 225 241 257 277 298 318 338 363 388 412 437

191 207 223 239 255 275 296 316 336 361 386 410 435

189 205 221 237 253 273 294 314 334 359 384 408 433

187 203 219 235 251 271 292 312 332 357 382 406 431

185 201 217 233 249 269 290 310 330 355 380 404 429

14 SEER R410A AC Charge Chart 3 TON

443

441

439

437

435

433

431

429

427

425

423

421

419

417

415

413

411

494

491

489

486

484

481

479

477

474

471

467

463

461

456

454

451

Cooling

Mode

55 60 65

267

70

Outdoor Ambient Temperature(℉)

75 80 85 90 95

Liquid Pressure at Small Service Valve(psig)

100

288 309 330 351 371 392 418

105

445

110

471

115

497

165

161

157

153

149

145

141

213

137

211

133

209

129

207

125

205

121

203

117

201

113

199

109

197

105

195

240

238

236

234

232

230

228

226

224

222

220

218

216

265

263

261

259

257

255

253

251

249

247

245

243

241

239

237

286

284

282

280

278

276

274

272

270

268

266

264

262

260

258

307

305

303

301

299

297

295

293

291

289

287

285

283

281

279

328

326

324

322

320

318

316

314

312

310

308

306

304

302

300

349

347

345

343

341

339

337

335

333

331

329

327

325

323

321

369

367

365

363

361

359

357

355

353

351

349

347

345

343

341

390

388

386

384

382

380

378

376

374

372

370

368

366

364

362

416

414

412

410

408

406

404

402

400

398

396

394

392

390

388

443

441

439

437

435

433

431

429

427

425

423

421

419

417

415

469

467

465

463

461

459

457

455

453

451

449

447

445

443

441

495

493

491

489

487

485

483

481

479

477

475

473

471

469

467

21

22

Cooling

Mode

55 60 65

14 SEER R410A AC Charge Chart 3.5 TON

Outdoor Ambient Temperature( )

70 75 80 85 90 95 100

Liquid Pressure at Small Service Valve(psig)

105 110 115

165

161

157

153

149

145

141

137

133

129

125

121

117

113

109

105

137

133

129

125

121

117

113

109

105

165

161

157

153

149

145

141

230

227

225

222

219

215

211

207

203

201

248

245

243

241

239

236

233

229

225

222

219

216

213

267

265

263

261

258

256

254

252

250

248

245

241

237

235

232

229

282

279

277

274

272

270

268

295

293

291

289

287

285

283

333

331

329

327

325

323

321

337

335

332

330

328

326

324

363

361

359

357

355

353

351

407

405

403

401

399

396

394

266

264

261

258

255

252

250

281

278

276

273

270

268

266

319

317

314

311

308

306

304

322

320

318

316

313

311

309

349

347

345

343

340

338

336

391

389

387

385

383

380

378

248 264 302 307 333 375 387

245 262 300 304 330 372 384

14 SEER R410A AC Charge Chart 4 TON

406

403

401

399

396

394

391

423

421

419

417

415

412

409

449

447

444

442

440

437

433

430

427

423

420

418

416

414

410

406

Cooling

Mode

165

161

157

153

55 60

230

65

Outdoor Ambient Temperature( )

70 75 80 85 90 95 100 105

Liquid Pressure at Small Service Valve(psig)

110 115

253 270 287 304 327 350 373 401 429 459 486

251

249

247

268

266

264

285

283

281

302

300

298

325

323

321

348

346

344

371

369

367

399

397

395

427

425

423

457

455

453

483

480

478

149

145

228 245 262 279 296 319 342 365 393 421 450 476

226 243 260 277 294 317 339 363 390 418 447 473

141

207 224 241 258 275 292 315 337 360 387 415 443 470

137

205 222 239 256 273 290 313 335 358 385 412 439 467

133

203 220 237 254 271 288 311 333 355 382 409 436 464

129

200 218 235 251 268 285 309 330 352 378 405 431 458

125

197 215 232 248 265 283 307 328 348 374 401 426 452

121

195 213 229 245 263 281 305 325 346 371 397 422 446

117

192 209 226 243 260 279 303 323 343 368 393 418 442

113

190 207 223 241 257 277 301 321 341 366 391 416 438

109

188 205 221 238 255 275 299 319 339 364 389 414 435

105

185 202 219 236 253 273 297 317 337 362 387 412 433

14 SEER R410A AC Charge Chart 5 TON

Cooling

Mode

55 60 65 70

Outdoor Ambient Temperature( )

75 80 85 90 95 100

Liquid Pressure at Small Service Valve(psig)

105 110 115

454

451

449

447

445

442

438

434

430

475

473

470

468

465

462

458

482

478

475

472

469

466

462

459

456

502

500

495

493

490

487

485

239

227

213

203

202

201

200

197

195

190

279

270

261

250

237

228

220

218

217

216

214

211

207

310

316

322

290

280

271

261

248

243

237

234

232

232

230

227

225

329

321

310

299

288

280

272

259

257

254

250

248

248

247

243

242

333

326

316

308

299

294

287

277

276

273

271

269

268

270

263

262

337

330

323

318

311

308

302

296

295

293

291

289

289

293

283

282

341

335

329

327

322

322

317

315

314

313

312

309

309

316

304

302

352

347

343

340

336

334

331

330

328

327

326

323

322

324

316

313

374

369

366

363

360

357

355

354

352

351

350

347

345

343

337

334

395

390

389

386

383

379

379

379

376

376

374

371

368

362

359

355

418

413

413

410

408

404

404

403

400

398

397

392

390

383

380

376

440

436

436

434

432

429

428

427

425

421

420

414

413

405

401

397

473

469

470

468

467

464

463

461

459

454

452

446

445

436

431

427

REFRIGERANT CHARGE FOR HP SYSTEM.

55

55

55

Cooling

Mode

55

165

161

157

153

149

145

141

213

137

211

133

209

129

207

125

205

121

203

117

201

113

199

109

197

105

195

137

133

129

125

121

117

113

109

105

165

161

157

153

149

145

141

211

209

207

205

203

201

199

197

193

191

Cooling

Mode

165

161

157

153

149

145

141

137

133

129

125

121

117

113

109

105

Cooling

Mode

165

161

157

153

149

145

141

137

133

129

125

121

117

113

109

105

Cooling

Mode

234

232

230

229

227

225

222

219

216

214

211

209

211

209

207

205

203

201

199

197

195

193

191

189

60

224

222

220

218

216

214

212

210

208

206

236

234

232

230

228

226

60

60

234

232

230

228

226

224

222

220

218

216

214

211

208

240

238

236

234

232

230

228

226

224

222

220

218

216

60

256

254

252

251

249

248

246

245

243

241

339

236

233

231

229

227

265

263

261

259

257

255

253

251

249

247

245

243

241

239

249

247

245

243

241

239

237

235

233

231

14 SEER R410A HP Charge Chart 1.5 TON (Cooling mode)

65

253

251

70

Outdoor Ambient Temperature( )

75 80 85 90 95 100

Liquid Pressure at Small Service Valve(psig)

270

268

291

289

310

308

334

332

355

353

378

376

401

399

105

425

422

266

264

262

260

258

256

254

252

250

248

287

285

283

281

279

277

275

273

271

269

306

304

302

300

298

296

294

292

290

288

329

327

325

323

321

319

317

315

313

311

351

349

347

345

343

341

339

337

335

333

374

372

370

368

366

364

362

360

358

355

397

395

393

391

389

387

385

382

380

378

420

418

417

415

413

411

409

407

404

402

110

455

452

450

448

446

444

229

227

225

246

244

242

267

265

263

286

284

282

309

307

305

331

329

327

353

351

349

376

374

371

400

397

394

223 240 261 280 303 325 347 369 392

14 SEER R410A HP Charge Chart 2 TON (Cooling mode)

Outdoor Ambient Temperature()

442

440

438

435

433

430

428

425

421

418

115

251

249

247

245

243

241

239

237

235

233

231

228

225

65

276

273

270

268

266

264

262

260

258

256

254

252

250

248

70 75 80 85 90 95 100

Liquid Pressure at Small Service Valve(psig)

293

290

287

285

283

281

279

277

275

273

271

269

267

265

312

310

307

305

303

300

298

296

294

291

289

286

284

283

332

329

326

323

320

318

316

314

312

310

307

305

303

300

351

328

325

342

339

337

335

333

331

329

327

325

323

320

372

368

365

362

360

358

356

354

352

350

348

346

344

342

396

394

392

389

385

382

380

378

376

374

371

369

367

366

417

415

412

409

406

404

402

400

398

396

393

390

387

383

105

441

438

336

434

432

430

428

425

422

419

416

413

410

407

110

467

464

461

458

456

246

244

263

261

281

279

298

296

318

316

340

337

362

358

380

377

404

401

429

426

65

257

255

253

14 SEER R410A HP Charge Chart 2.5 TON (Cooling mode)

Outdoor Ambient Temperature( )

105 110 70 75 80 85 90 95 100

Liquid Pressure at Small Service Valve(psig)

274 291 309 328 350 372 394

272

270

289

287

307

305

326

324

348

346

370

368

392

390

416

414

412

440

437

435

454

452

450

448

445

443

439

436

432

268

266

264

262

260

258

256

254

252

250

248

245

242

285

283

281

279

277

275

273

271

269

267

265

262

259

303

301

298

296

294

292

290

288

286

284

282

279

276

321

319

316

313

311

309

306

304

302

300

298

297

295

343

341

338

335

333

331

328

326

324

322

320

319

317

365

363

360

357

355

353

350

348

346

344

342

341

339

387

385

382

379

377

375

372

370

368

366

364

363

361

409

407

404

401

399

397

394

392

390

388

386

385

383

433

431

426

424

422

420

417

415

413

410

408

407

405

14 SEER R410A HP Charge Chart 3 TON (Cooling mode)

Outdoor Ambient Temperature(℉)

65 70 75 80 85 90 95 100 105

Liquid Pressure at Small Service Valve(psig)

267 288 309 330 351 371 392 418 445

110

471

115

115

115

497

481

479

477

474

471

467

463

461

456

454

451

494

491

489

486

484

452

450

448

444

442

439

437

435

433

467

464

462

460

458

456

454

471

469

466

463

461

459

456

453

449

446

484

482

479

477

475

473

286

284

282

280

278

276

274

272

270

268

266

264

262

260

307

305

303

301

299

297

295

293

291

289

287

285

283

281

328

326

324

322

320

318

316

314

312

310

308

306

304

302

349

347

345

343

341

339

337

335

333

331

329

327

325

323

369

367

365

363

361

359

357

355

353

351

349

347

345

343

390

388

386

384

382

380

378

376

374

372

370

368

366

364

416

414

412

410

408

406

404

402

400

398

396

394

392

390

443

441

439

437

435

433

431

429

427

425

423

421

419

417

469

467

465

463

461

459

457

455

453

451

449

447

445

443

495

493

491

489

487

485

483

481

479

477

475

473

471

469

237 258 279 300 321 341 362 388 415 441 467

23

24

165

161

157

153

149

145

141

137

133

129

125

121

117

113

109

105

Cooling

Mode

165

161

157

153

149

145

141

137

133

129

125

121

117

113

109

105

Cooling

Mode

55

230

227

225

222

219

215

211

207

203

201

55

60

248

245

243

241

239

236

233

229

225

222

219

216

213

65

14 SEER R410A HP Charge Chart 3.5 TON (Cooling mode)

70

Outdoor Ambient Temperature( )

75 80 85 90 95 100 105 110

267

265

263

261

258

256

254

252

Liquid Pressure at Small Service Valve(psig)

282

279

277

274

295

293

291

289

333

331

329

327

337

335

332

330

363

361

359

357

407

405

403

401

423

421

419

417

272

270

268

266

287

285

283

281

325

323

321

319

328

326

324

322

355

353

351

349

399

396

394

391

415

412

409

406

449

447

444

442

440

437

433

430

475

473

470

468

465

462

458

454

250

248

245

241

237

235

232

229

264

261

258

255

252

250

248

278

276

273

270

268

266

264

317

314

311

308

306

304

302

320

318

316

313

311

309

307

347

345

343

340

338

336

333

389

387

385

383

380

378

375

403

401

399

396

394

391

387

427

423

420

418

416

414

410

451

449

447

445

442

438

434

245 262 300 304 330 372 384

Outdoor Ambient Temperature( )

406

14 SEER R410A HP Charge Chart 4 TON (Cooling mode)

430

115

165

161

157

153

149

145

228 245 262 279 296 319 342 365 393 421 450 476

226 243 260 277 294 317 339 363 390 418 447 473

141

207 224 241 258 275 292 315 337 360 387 415 443 470

137

205 222 239 256 273 290 313 335 358 385 412 439 467

133

203 220 237 254 271 288 311 333 355 382 409 436 464

129

200 218 235 251 268 285 309 330 352 378 405 431 458

502

500

495

493

490

487

485

482

478

475

472

469

466

462

459

456

60 65 70 75 80 85 90 95 100 105 110 115

Liquid Pressure at Small Service Valve(psig)

253 270 287 304 327 350 373 401 429 459 486

251 268 285 302 325 348 371 399 427 457 483

249 266 283 300 323 346 369 397 425 455 480

230 247 264 281 298 321 344 367 395 423 453 478

125

197 215 232 248 265 283 307 328 348 374 401 426 452

121

195 213 229 245 263 281 305 325 346 371 397 422 446

117

192 209 226 243 260 279 303 323 343 368 393 418 442

113

190 207 223 241 257 277 301 321 341 366 391 416 438

109

188 205 221 238 255 275 299 319 339 364 389 414 435

105

185 202 219 236 253 273 297 317 337 362 387 412 433

Cooling

Mode

55 60 65

14 SEER R410A HP Charge Chart 5 TON (Cooling mode)

Outdoor Ambient Temperature( )

70 75 80 85 90 95 100

Liquid Pressure at Small Service Valve(psig)

105 110 115

239

227

213

203

202

201

200

197

195

190

279

270

261

250

237

228

220

218

217

216

214

211

207

310

316

322

290

280

271

261

248

243

237

234

232

232

230

227

225

329

321

310

299

288

280

272

259

257

254

250

248

248

247

243

242

333

326

316

308

299

294

287

277

276

273

271

269

268

270

263

262

337

330

323

318

311

308

302

296

295

293

291

289

289

293

283

282

341

335

329

327

322

322

317

315

314

313

312

309

309

316

304

302

352

347

343

340

336

334

331

330

328

327

326

323

322

324

316

313

374

369

366

363

360

357

355

354

352

351

350

347

345

343

337

334

395

390

389

386

383

379

379

379

376

376

374

371

368

362

359

355

418

413

413

410

408

404

404

403

400

398

397

392

390

383

380

376

440

436

436

434

432

429

428

427

425

421

420

414

413

405

401

397

473

469

470

468

467

464

463

461

459

454

452

446

445

436

431

427

TABLE 5. Troubleshooting

SYSTEM FAULTS

REFRIGERANT CIRCUIT

Head Pressure Too High

Head Pressure Too Low

Suction Pressure Too High

Suction Pressure Too Low

Liquid Refrig. Floodback

(TXV)

I.D. Coil Frosting

Compressor Runs Inadequate or

No Cooling/Heating

ELECTRICAL

Compressor & O.D. Fan Won

Compressor Will Not Start But

O.D. Fan Runs

O.D. Fan Won

’t Start

I.D. Blower Won

’t Start

’t Start

Compressor Hums But Won

’t Start

C

H

C

C

H

C

H

H

C

H

C

H

C

H

H

C

H

C

H

C

C

H

C

H

DEFROST

Unit Won

’t Initiate Defrost

Defrost Terminates on Time

Unit Icing Up

C

H

C

H

C

H

P

P

P

P

P

P

P

P

P

P

P

P

S

S

P

P

P

P

P

P

P

P

S

S

S

S

S

S

S

S

P

P

P

P

S

S

S

S

P P

P

P

S

S

C- Cooling H - Heating P - Primary Causes S - Secondary Causes

P

P

P

P

S

S

P

P

P

P

P

P

P

P

S

S

S

S

P

P

P

P

P P

P

S

S

P S

S S

P

P

S

S

S

S

S

S

S

S

S S

P

S

S

S

S

S

S

P

P

S

P

P

P

P S

S S

P

P

S S

S

S S

S

S

P

P

S

S

S

S

S

S

S

S

P

P

S S S S S

S

S

P

P

P

S

S

S

TABLE 6. Operational And Checkout Procedures

Final phases of this installation are the unit Operational and Checkout Procedures. To obtain proper performance, all units must be operated and charge adjustments made in accordance with procedures found in the Service Facts of the Outdoor Unit.

After installation has been completed, it is recommended that the entire system be checked against the following list:

1.

Be sure unit suspension(if used) is secure and that thereare no tools or loose debris in or around or on top of the unit......................................................

2.

3. Properly secure and isolate all refrigerant lines...

4. Verify that all electrical connections are tight. .....

5.Check all duct outlets; they must be open and unrestricted.

6.Check drain lines and be sure all joints are tight...............

8.Operate complete system in each mode to verify proper

performance. Verify operation of supplementary electric

heater. ...............................................................................

25

Base Limited Warranty

Single Phase R-410A Outdoor Units, Single Phase R-22 Outdoor Units, Air Handlers,

Furnaces, Cased Coils, and Specific Terms for Commercial Applications.

Subject to the terms and conditions of this limited warranty, Ingersoll Rand (

“Company”) extends a limited warranty against manufacturing defects for the product(s) identified in Table 1 attached hereto (

“Products”) that are installed in a residential application (personal, family or household purposes) under normal use and maintenance in the United States and Canada.

In order to maximize the available benefits under this limited warranty, the Purchaser (as defined below ) should read it in its entirety. All repairs of Product parts covered under this limited warranty must be made with authorized service parts and by a licensed HVAC service provider. Additionally, commercial applications are treated differently under this limited warranty as stated in Table 1 attached hereto. For purposed of this limited warranty,

“commercial applications” shall mean any application other than for personal, family, or household use.

TERM: The limited warranty period for Products is as stated in Table 1 attached hereto. If the Purchaser properly registers the Products, the limited warranty period shall be extended as stated in Table 1 attached hereto, Regardless of registration, the Commencement Date for a limited warranty period shall be the date that the original installation is complete and all Product start-up procedures have been properly completed and verified by an installer

’s invoice. If the installation and start-up sate cannot be verified by the installer

’s invoice, the Commencement Date shall be sixty (60) days after the factory manufacture date which is verified by the

Product serial number. Where a Product is installed in a newly constructed home, the Commencement Date is the date the Purchaser purchased the residence from the builder. Proof of Product purchase, installation, and/or closing date of the residence may be required to confirm the Commencement Date.

The installation of Product replacement parts under this limited warranty shall not extend the original warranty period. The warranty period for any Product part replaced under this limited warranty is the applicable warranty period remaining under the original Product warranty.

WHO IS COVERED: This limited warranty is provided only to the original owner and his or her spouse (

“Purchaser”) of the residence where the Products are originally installed. This warranty is not transferable except according to terms stated on the applicable website identified below under Registration Requirements.

Company has the right to request any and all proof of Product purchase or installation and/or closing date of the residence.

WHAT COMPANY WILL DO: Company may request proof of Product purchase and/or installation in order to provide Product parts under this limited warranty.

As Company

’s only responsibility and Purchaser’s only remedy under this limited warranty, Company will furnish a replacement part to the licensed HVAC service provider, without charge for the part only, to replace any Product part that fails due to a manufacturing defect under normal use and maintenance. The Purchaser must pay for any and all shipping and handling charges and other costs of warranty service for the replacement part. If a Product part is not available, Company will, at its option, provide a free suitable substitute part or provide a credit in the amount of the then factory selling price for a new suitable substitute part to be used by the

Purchaser towards the retail purchase price of a new Company product. Any new Product purchase shall be at Purchaser

’s sole cost and expense including, but not limited to, all shipping, removal, and installation costs and expenses.

REGISTRATION REQUIREMENTS: All Products must be properly registered online by the Purchaser within sixty (60) days after the Commencement Date to receive the registered limited warranty terms. To register online, go to: http://www.ameristarac.com

and click

“Begin Online Registration.” If a Purchaser does not register within this stated time period, the base limited warranty terms shall apply.

ELIGIBILITY REQUIREMENTS: The following items are required in order for the Products to be covered under this limited warranty:

• The Products must be in the same location where they were originally installed.

• The Products must be properly installed, operated, and maintained by a licensed HVAC service provider in accordance with the Product specifications or installation, operation, and maintenance instructions provided by Company with each Product. Failure to conform to such specifications and/or instructions shall void this limited warranty. Company may request written documentation showing the proper preventative maintenance.

• All Product parts replaced by Company under this limited warranty must be given to the servicing provider for return to Company.

• Air handlers, air conditioners, heat pumps, cased or uncased coils and stand-alone furnaces must be part of an Air Conditioning, Heating, and Refrigeration

Institute rated and matched system or a specification in a Company provided bulletin or otherwise approved in writing by a Company authorized representative.

EXCLUSIONS: The following are not covered by this limited warranty:

• Labor costs including, but not limited to, costs for diagnostic calls or the removal and reinstallation of Products and/or Product parts.

• Shipping and freight expenses required to ship Product replacement parts.

• Failures, defects, or damage (including, but not limited to, any loss of data or property) caused by (1) any third party product, service, or system connected or used in conjunction with the Products; (2) any use that is not designed or intended for the Products; (3) modification, alteration, abuse, misuse, negligence, or accident; (4) improper storage, installation, maintenance, or operation including, but not limiter to, operation of electrical equipment at voltages other than the range specified on the Product nameplate; (5) any use in violation of written instructions or specifications provided by Company; (6) any acts of God including, but not limited to, fire, water, storms, lightning, or earthquakes; or any theft or riots; or (7) a corrosive atmosphere or contact with corrosive materials such as, but not limited to, chlorine, fluorine, salt, sulfur, recycled waste water, urine, fertilizers, rust, or other damaging substances or chemicals.

• Products purchased direct including, but not limited to, Internet or auction purchases and purchases made on an uninstalled basis.

• Cabinets or cabinet pieces that do not affect product performance, air filters, refrigerant, refrigerant line sets, belts, wiring, fuses, surge protection devices, non-factory installed driers, and Product accessories.

• Increased utility usage costs.

REFRIGERANT POLICY: Beginning on January 1 2010.R-22 refrigerant will no longer be used as a manufacturer-installed refrigerant as required by federal regulation. Any and all expenses or costs associated with replacing Product parts that are not R-410A compatible will not be covered by the terms and conditions of this limited warranty. In addition, all Products containing R-410A refrigerant include a liquid line filter drier which must be replaced when a compressor replacement is necessary. A suction line filter drier must be added for compressors defined as burnouts. Failure to comply with such filter drier requirements or the use of contaminated or alternate refrigerant or any non-approved refrigerant system additives including, but not limited to, dyes, will void this limited warranty.

ADDITIONAL TERMS

THIS LIMITED WARRANTY AND LIABILITY SET FORTH HEREIN ARE IN LIEU OF ALL OTHER WARRANTIES AND LIABILITIES, WHETHER IN

CONTRACT OR IN NEGLIGENCE, EXPRESS OR IMPLIED, IN LAW OR IN FACT. THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A

PARTICULAR PURPOSE ARE LIMITED TO THE DURATION OF THE APPLICABLE PRODUCT WARRANTY. COMPANY DOES NOT AUTHORIZE ANY PERSON

TO CREATE FOR IT ANY OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCTS.

NOTWITHSTANDING ANYTHING IN THIS LIMITED WARRANTY TO THE CONTRARY, COMPANY SHALL NOT BE LIABLE FOR ANY INCIDENTAL,

CONSEQUENTIAL.INDIRECT, SPECIAL AND/OR PUNITIVE DAMAGES, WHETHER BASED ON CONTRACT, WARRANTY, TORT INCLUDING, BUT NOT

LIMITED TO, STRICT LIABILITY OR NEGLIGENCE), PATENT INFRINGEMENT, OR OTHERWISE.EVEN IF ADVISED OF THE POSSIBILITY OF SUCH

DAMAGES. COMPANY

’S MAXIMUM LIABILITY HEREUNDER IS LIMITED TO THE ORIGINAL PURCHASE PRICE OF THE PRODUCTS.

No action arising out of any claimed breach of this limited warranty may be brought by a Purchaser more than one (1) year after the cause of action has arisen.

This limited warranty gives you specific legal rights, and you may also have other rights as otherwise permitted by law. If this Product is considered a consumer product, please be advised that some local laws do not allow limitations on incidental or consequential damages, how long a warranty lasts based on registration. or how long an implied warranty lasts, so that the above limitations may not fully apply. Refer to your local laws for your specific rights under this limited warranty.

Ingersoll Rand

11819 N. Pennsylvania Street

Carmel, IN 46032

Attn: Customer Relations

GW-659-041 2

TABLE 1: Warranty Time Periods

COVERAGE TERMS FOR RESIDENTIAL APPLICATIONS: Pursuant to the Ingersoll Rand(

“Company”) limited warranty terms and conditions. the following Products are covered for the base time periods as stated below

“Base

Limited Warranty Period

”). If registered, the Base Limited Warranty Periods for certain Products will be extended as stated below

“Registered Limited Warranty Period” .

FURNACES:

M801P, M951P

Base Limited Warranty Period: Parts - five 5 years, Heat Exchanger - twenty 20 years.

Registered Limited Warranty Period Parts-ten 10 years, Heat Exchanger: twenty 20 years.

AIR HANDLERS:

M4AH3, M4AH4

Base Limited Warranty Period: Indoor Coil and Parts - five 5 years.

Registered Limited Warranty Period: Indoor Coil and Parts - ten 10 years.

ELECTRIC HEATERS, installed in M4A3/4 AIR HANDLERS

MAYHTE1A

Base Limited Warranty Period: Parts - five 5 years.

Registered Limited Warranty Period: Parts - ten 10 years.

SINGLE PHASE R410 OUTDOOR UNITS

M4AC3, M4HP3, M4AC4, M4HP4

Base Limited Warranty Period: Compressor, Outdoor coil, Parts: five 5 years.

Registered Limited Warranty Period Compressor, Outdoor coil, Parts-ten 10 years.

SINGLE PHASE R22 OUTDOOR UNITS

M2AC3, M2HP3

Base Limited Warranty Period: Compressor, Outdoor coil, Parts - one 1 year.

Registered Limited Warranty Period Compressor, Outdoor Coil, Parts - five 5 years.

CASED COILS

M4CXC

Base Limited Warranty Period: Coil, Parts - five 5 years.

Registered Limited Warranty Period Coil and Parts - ten 10 years.

SPECIFIC TERMS FOR COMMERCIAL APPLICATIONS

Base Limited Warranty Period Applies

© 2012 ingersoll Rand

GW-659-0412

2020001B0141 V1.0

此页不出菲林

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
