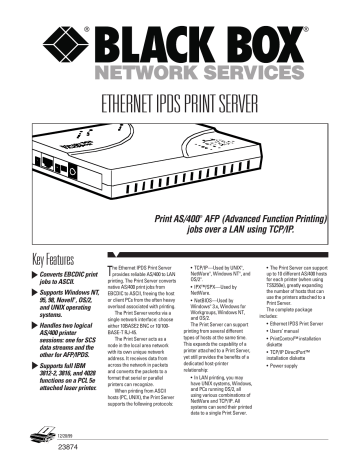

ETHERNET IPDSPRINT SERVER

ETHERNET IPDSPRINT SERVER
ETHERNET IPDS PRINT SERVER
®
Print AS/400 AFP (Advanced Function Printing)
jobs over a LAN using TCP/IP.
Key Features
Converts EBCDIC print
jobs to ASCII.
Supports Windows NT,
95, 98, Novell , OS/2,
and UNIX operating
systems.
®
Handles two logical
AS/400 printer
sessions: one for SCS
data streams and the
other for AFP/IPDS.
Supports full IBM
3812-2, 3816, and 4028
functions on a PCL 5e
attached laser printer.
12/20/99
23874
he Ethernet IPDS Print Server
provides reliable AS/400 to LAN
printing. The Print Server converts
native AS/400 print jobs from
EBCDIC to ASCII, freeing the host
or client PCs from the often heavy
overload associated with printing.
The Print Server works via a
single network interface: choose
either 10BASE2 BNC or 10/100BASE-T RJ-45.
The Print Server acts as a
node in the local area network
with its own unique network
address. It receives data from
across the network in packets
and converts the packets to a
format that serial or parallel
printers can recognize.
When printing from ASCII
hosts (PC, UNIX), the Print Server
supports the following protocols:
T
• TCP/IP—Used by UNIX ,
NetWare , Windows NT , and
OS/2 .
• IPX™/SPX—Used by
NetWare.
• NetBIOS—Used by
Windows 3.x, Windows for
Workgroups, Windows NT,
and OS/2.
The Print Server can support
printing from several different
types of hosts at the same time.
This expands the capability of a
printer attached to a Print Server,
yet still provides the benefits of a
dedicated host-printer
relationship:
• In LAN printing, you may
have UNIX systems, Windows,
and PCs running OS/2, all
using various combinations of
NetWare and TCP/IP. All
systems can send their printed
data to a single Print Server.
®
®
®
®
®
• The Print Server can support
up to 10 different AS/400 hosts
for each printer (when using
TS5250e), greatly expanding
the number of hosts that can
use the printers attached to a
Print Server.
The complete package
includes:
• Ethernet IPDS Print Server
• Users’ manual
• PrintControl™ installation
diskette
• TCP/IP DirectPort™
installation diskette
• Power supply
Specifications
Ethernet Connections Supported —
10BASE-T and 100BASE-TX
(autosensing)
Operating Systems Supported —
Novell (NDS, NetWare Bindery),
OS/2, OS/2 Warp, UNIX,
Windows 95/98, Windows NT,
Windows for Workgroups
®
Printer Ports — (1) Bidirectional
Centronics parallel
®
Printers Supported — Any PCL
5e printer
Printing Protocols —
AS/400: AnyNet (SNA over
TCP/IP), SNA (APPC), TCP/IP
(TN5250e, LPR/LPD);
LAN (ASCII): IPX™/SPX,
NetBIOS, PSERVER,
RPRINTER, TCP/IP (LPR/LPD),
Windows 95/98 Peer-to-Peer
Twinax Emulation —
IPDS: IBM 4028 AS1, 3812-2/
3816-1D/S;
SCS: IBM 3812-1
Size — 3.3 x 19.8 x 14 cm
Weight — 0.7 kg
Ordering Information
ITEM
CODE
Ethernet IPDS Print Server .......................................PC430A
Remember to order cable…
Category 5 Patch Cable, 100-MHz, 4-Pair,
Straight-Pinned, PVC, Beige .............................EVMSL05
Parallel Printer Cable, Male/Male...........................EYN600
23874
