New Hampshire
Residential Energy Code Application
for Certification of Compliance for New Construction, Additions and/or Renovations
(EC-1 Form)
Minimum Provisions
Effective Date: April 1, 2010
Owner/Owner Builder: Company Name: (if applicable)
General Contractor: Company Name:
Name:
Name:
Mail Address:
Mail Address:
Town/City:
State:
Phone:
Cell:
Zip:
E-Mail:
Town/City:
State:
Phone:
Cell:
Zip:
E-Mail:
Location of Proposed Structure:
Tax Map #:
Type of Construction:
 Residential
 Small Commercial
 New Building  Renovation  Addition
 Thermally Isolated Sunroom
 Modular Home: the site contractor must submit this
Lot #:
Street:
form detailing supplementary rooms and Floor and/or
Basement insulation unless the floor insulation is installed or
provided by the manufacturer and no heated space is added.
County:
Town/City:
 Cheshire, Hillsborough, Rockingham or
Strafford except the town of Durham
Zone 6  All other counties and the town of Durham
Total New Conditioned* Floor Area:
Heating System: (if new system is being installed)
Basement or Crawl Space: (*a conditioned space is
one being heated or cooled, containing un-insulated ducts or with a
fixed opening into a conditioned space. Walls must be insulated)
Zone 5
Annual Fuel Use Efficiency (AFUE):
%
Fuel Type(s):  Oil
 Natural Gas  Propane (LP)
 Electric  Wood  Other _______________
Heating System Type:
 Hot Water  Hot Air
 Stove  Resistance  Heat Pump  Geothermal
Structure is EXEMPT because:


Mobile Home

On an historic register
Low energy use (less than 1 watt/ ft2 )
2
_________________________ft
Conditioned?
 Yes (Walls must be insulated)  No
 Full Basement
 Slab on Grade
 Walk Out Basement
 Other ____________
Form Submitted by:
 Owner  Builder  Designer  Other ________
Architects must certify plans meet code; no form required
02/11
I hereby certify that all the information contained in this application is true and correct, and construction shall comply in all respects with the terms and
specifications of the approval given by the Public Utilities Commission and with the New Hampshire Code for Energy Conservation in New Building
Construction.
Signature__________________________ Print Name____________________________ Date_____________
Official Use Only
Date Complete Application Received:
Approval Number:
Approved by:
Date:
Stamp:
R
O




R
Ottthhheeerrr:::___________________________________________________
O
 333 
 222 
 111 
Reeeaaasssooonnn::: 
N
D
m

m

N
Daaattteee:::______________________________________________________
m D
 vvvm
maaaiiilll 
 eee---m
Noootttiiiccceee::: 

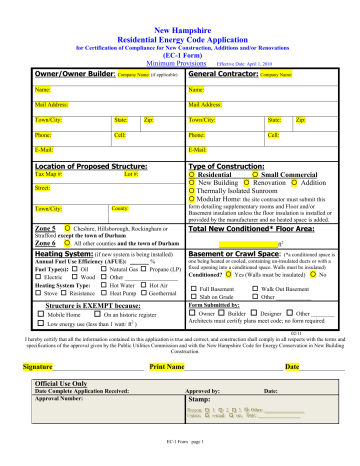

EC-1 Form page 1
New Hampshire Energy Code EC-1
Certification No.:
Code effective April, 2010
Directions: Complete the “Your Proposed Structure” columns. No measurements or calculations are needed. If you at least meet the
New Hampshire Energy Code requirements, your project will be approved. Write N/A in any section that does not apply to your
project. Submit pages 1 and 2 only. If your planned structure cannot meet these requirements, consider downloading REScheck from
http://www.energycodes.gov/rescheck/download.stm and use trade-offs to prove compliance.
You are encouraged to build with higher R-values and lower U-values than you report here. The “Required R or U Values” are the worst permitted in NH.
Building Section
Required R or U Values
Window U
Factor
U .35 (maximum) U-.31 (if log walls)
U .50 (Thermally Isolated Sunrooms only)
(lower U is better)
Skylights
YOUR PROPOSED STRUCTURE
Write Planned
Brands / Models / insulation type and
R and U Values
thickness (if known)
Write in U-Value Window Type:
 Low-e  Low-e Argon
Check if:  Sunroom
U .60
Write in R-Value
Flat Ceiling i
or
Flat Ceiling
with Raised or
Energy
Trusses
R-value
Sloped or
Cathedral
Ceiling
Above Grade
Wall ii
R-value
R-38 (Zone 5)
R-49 (Zone 6)
R-30 (Zone 5)
R-38 (Zone 6)
if using the above
construction
technique
if maintaining the
full R value over
the plates
R-30 or 38 if more than 500 ft sq or
If using only R30 in Zone 5 or
R-38 in Zone 6
you must check
this box
 By checking this box, I certify that this
structure is being built with a raised energy
truss or that the full R-value of the ceiling
insulation will be maintained over the
outside plates.
Write in R-Value
20% of total ceiling area
 Check if Sunroom
Write in R-Value
R-20
Cavity Insulation only or
R-13 plus R-5
Cavity plus Continuous Insulation
R-13 (Thermally Isolated Sunrooms only)
U .35 (maximum)
Floor R Value
R-30
Check if
 Sunroom  Log Walls
Write in R-Value
or Insulation sufficient to fill joist cavity
Basement or
Crawl Space
Wall R Value
R-13 Cavity Insulation or
R-10 Continuous Insulation (Zone 5)
R-19 Cavity Insulation or
R-15 Continuous Insulation (Zone 6)
R-10
Log walls must comply with ICC400, have an
average minimum wall thickness of 5” or greater
and must have overall glazing of U-.31 or lower
and heating AFUE of 90% (gas) or 84% (oil) and
meet all other energy code requirements.
Write in U-Value
(Basement ceiling)
2’ (Zone 5) 4’ (Zone 6)
Write in R-Value
If conditioning the basement you must
insulate Basement Walls. If not, you may
insulate either Floor or Basement Walls
and/or Slab Edge
Write in R-Value
(see drawing pg 3)
add R-5 if the Slab is heated
Planned Air Sealing
Air Sealing
→
NOTE: R-38 will be deemed to satisfy the
requirement for R-49 if the full R-38
insulation value is maintained over the
outside plates. If using only R-30 (Zone 5)
or R-38 (Zone 6), you must certify that
you’ll maintain R-38 over the plates by
checking the box below.
R-24 (Thermally Isolated Sunrooms only)
Door U-Value
Slab Edge iii
R Value
 Log Walls
Test Method
→
By checking this box, I certify that I understand
that I have two approaches to demonstrating
compliance with air sealing requirements.
 Blower Door
 Visual Inspect
The visual inspection certification must be
consistent with the requirements of Table 402.4.2
(page 4) and the method of compliance planned
and approved by the local jurisdiction
Submit pages 1 and 2 to: NH Public Utilities Commission, 21 South Fruit Street Ste 10, Concord NH 03301
Fax: 603.271.3878 e-mail: [email protected]
EC-1 Form page 2
Footnotes to Residential Energy Code Application for Certification of Compliance
i
Ceilings with attic spaces: R-30 in Zone 5 or R-38 in Zone 6 will be deemed to satisfy the
requirement for R-38 or R-49 respectively wherever the full height of uncompressed R-30 or R-38
insulation extends over the wall top plate at the eaves or the full R-value is maintained. This is
accomplished by using a raised heel or energy truss as shown in the diagram below or by using higher
R-value insulation over the plates.
ii
R-13 + R-5 means R-13 cavity insulation plus R-5 insulated sheathing. If structural sheathing
covers 25 percent or less of the exterior, R-5 sheathing is not required where the structural sheathing
is placed. If structural sheathing covers more than 25 percent of exterior, the structural sheathing
must be supplemented with insulated sheathing of at least R-2.
iii
Slab edge insulation must start at the top of the slab edge and extend a total of two (Zone 5) or four
feet (Zone 6). Insulation may go straight down, out at an angle away from the building, or along the
slab edge and then under the slab. A slab is a concrete floor within 1’ of grade level. See diagram
below.
The top edge of insulation installed between the exterior wall and the interior slab may be mitered at a
45 degree angle away from the exterior wall.
Allowable Slab Insulation Configurations
A or A+ B must equal two feet in Zone 5 or four feet in Zone 6
MODULAR HOMES must be certified by the NH Department of Safety. Unless the floor insulation
is provided by the manufacturer this form must be submitted. This form must also be submitted if the
basement is to be insulated or supplementary heated space is added to the home upon or after it is set.
EC-1 Form page 3
AIR BARRIER AND INSULATION INSPECTION COMPONENT CRITERIA
Required Elements Check List (see page 2 AIR SEALING) IECC Code section 402.4.2
√
This page must be provided to the building inspector at final inspection.
Check here
Certification No.:
Exterior thermal envelope insulation for framed walls is installed in
substantial contact and continuous alignment with building envelope
air barrier.
Breaks or joints in the air barrier are filled or repaired.
Air-permeable insulation is not used as a sealing material.
Air-permeable insulation is inside of an air barrier.
Air barrier in any dropped ceiling/soffit is substantially aligned with
Ceiling/attic
insulation and any gaps are sealed.
Attic access (except unvented attic), knee wall door, or drop down
stair is sealed.
Corners and headers are insulated.
Walls
Junction of foundation and sill plate is sealed.
Windows and doors Space between window/door jambs and framing is sealed.
Rim joists are insulated and include an air barrier.
Rim joists
Insulation is installed to maintain permanent contact with underside
Floors
(including above-garage
of sub floor decking.
and cantilevered floors)
Air barrier is installed at any exposed edge of insulation.
Insulation is permanently attached to walls.
Crawl space walls
Exposed earth in unvented crawl spaces is covered with Class I
vapor retarder with overlapping joints taped.
Shafts, penetrations Duct shafts, utility penetrations, knee walls and flue shafts opening
to exterior or unconditioned space are sealed.
Batts in narrow cavities are cut to fit, or narrow cavities are filled by
Narrow cavities
sprayed/blown.
Air sealing is provided between the garage and conditioned spaces.
Garage separation
Recessed light fixtures are air tight, IC rated, and sealed to drywall.
Recessed lighting
Exception—fixtures in conditioned space.
Insulation is placed between outside and pipes. Batt insulation is cut
Plumbing and
to fit around wiring and plumbing, or sprayed/blown insulation
wiring
extends behind piping and wiring.
Showers and tubs on exterior walls have insulation and an air barrier
Shower/tub on
separating them from the exterior wall.
exterior wall
Electrical/phone box Air barrier extends behind boxes or air sealed-type boxes are
installed.
on exterior walls
Air barrier and
thermal barrier
Common wall
Fireplace
Air barrier is installed in common wall between dwelling units.
HVAC register boots HVAC register boots that penetrate building
envelope are sealed to sub-floor or drywall.
Fireplace walls include an air barrier.
EC-1 Form page 4
NEW HAMPSHIRE ENERGY CODE
Summary of Basic Requirements See IECC 2009 Code Book for complete details
These 2 pages must be provided to the building inspector at final inspection or retained.
√ Check here
Certification No.:
Air Leakage
Code section 402.4
The building thermal
envelope must be durably
sealed to limit infiltration
Air Sealing and Insulation
Code Section 402.4.2
All joints, seams, penetrations and openings in the thermal envelope including those around
window and door assemblies, utility penetrations, dropped ceilings or chases, knee walls,
behind tubs and showers, separating unheated garages from the thermal envelope, common
walls between dwelling units, attic access, rim joist junction and all other openings in the
building envelope that are sources of air leakage must be caulked, gasketed, weather-stripped
or otherwise sealed.
Building envelope air tightness and insulation installation shall be demonstrated to comply with
requirements by Blower Door testing to less than 7 air changes/hr at 50 Pa or a visual
inspection per page 4 of this document. The local Building Official may require an
independent 3rd party to conduct the visual inspection. See page 4.
While the Blower Door Test and/or Visual Option are methods of demonstrating compliance many of the
general requirements as defined by this checklist (pages 5 & 6) must still be met.
Testing Option
Code Section 402.4.2.1
or
Visual Option
Code Section 402.4.2.1
Blower Door Test conducted by: _________________________________________
Result (at 50 Pa): __________CFM Interior Volume___________ CF ______________ACH
or
Structure passes Visual Inspection: _____________________signed ______________ date
Fireplaces
Code Section 402.4.3
New wood-burning fireplaces shall have gasketed doors and outdoor combustion air.
Recessed Lighting
Code Section 402.4.5
Recessed lights must be type IC rated and labeled as meeting ASTM E 283 and sealed with a
gasket or caulk between the housing and the interior wall or ceiling covering.
Electrical Power and
Lighting Systems
Code section 404
A minimum of 50% of the lamps in permanently installed lighting fixtures shall be high
efficacy lamps.
High-Efficacy Lamps
Code section 202
Compact fluorescent lamps, T-8 or smaller diameter linear fluorescent lamps, or lamps with
a minimum efficacy of:
1. 60 lumens per watt for lamps over 40 watts,
2. 50 lumens per watt for lamps over 15 watts to 40 watts, and
3. 40 lumens per watt for lamps 15 watts or less.
Materials and Insulation
Information
Code section 102.1
Materials and equipment must be identified so that code compliance can be determined.
Manufacturer manuals for all installed heating, cooling and service water heating equipment
must be provided. Insulation R-values, glazing and door U-values and heating and cooling
equipment efficiency must be clearly marked on the building plans, drawings or specifications.
Pull-Down Attic Stairs,
Attic Hatch, and Knee
Wall Doors
Code section 402.2.3
Should be insulated to a level equal to the surrounding surfaces and tightly sealed and weatherstripped at the opening.
EC-1 Form page 5
Full size Attic or
Basement Entry Doors
All doors leading from a conditioned space into an unconditioned attic or enclosed attic or
basement stairwell should be insulated and weather-stripped exterior rated door units. One
door is exempt.
Duct Insulation
Code section 403.2
Supply ducts in attics must be insulated to at least R-8. All other ducts must be insulated to at
least R-6. Exception: Ducts or portions thereof located completely inside the building thermal
envelope.
Duct Construction
Code sections 403.2.2 &.3
Ducts, air handlers, filter boxes, and building cavities used as ducts must be sealed. Joints and
seams must comply with Section M1601.4.1 of the International Residential Code. Building
framing cavities must not be used as supply ducts.
Duct Testing
Code sections 403.2.2 &.3
Duct tightness shall be verified by testing unless the air handler and all ducts are located within
the conditioned space. Test conducted by: _________________________________________
Duct test result at 25 Pa:___________ __Post construction or _______________Rough-in test
Temperature Controls
Code section 403.1 & .1.1
At least one thermostat must be provided for each separate heating and cooling system. Hot air
systems must be equipped with a programmable thermostat.
Heat pumps having supplementary electric-resistance heat must have controls that, except
during defrost, prevent supplemental heat operation when the heat pump compressor can meet
the heating load
Mechanical System Piping
Insulation
Code section 403.3
Mechanical system piping capable of conveying fluids at temperatures above 105°F or below
55°F must be insulated to R-3.
Circulating Hot Water
Systems
Code section 403.4 & NH
amendments
Circulating service water systems must include an automatic or readily accessible manual
switch that can turn off the hot water circulating pump when the system is not in use.
Mechanical Ventilation
Code section 403.5
Outdoor air intakes and exhausts must have automatic or gravity dampers that close when the
ventilation system is not operating.
Circulating domestic hot water system piping shall be insulated to R-4.
Equipment Sizing
Code section 403.6
Heating and cooling equipment must be sized in accordance with Section M1401.3 of the
International Residential Code.
Certificate
Code section 401.3
A permanent certificate, completed by the builder or registered design professional, must be
posted on or in the electrical distribution panel. It must list the R-values of insulation installed
in or on the ceiling, walls, foundation, and ducts outside the conditioned spaces; U-factors and
SHGC for fenestration. The certificate must also list the type and efficiency of heating, cooling
and service water heating equipment.
NEW HAMPSHIRE ENERGY CODE Summary of Basic Requirements Page 2
These 2 pages must be provided to the building inspector at final inspection or retained.
EC-1 Form page 6
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
