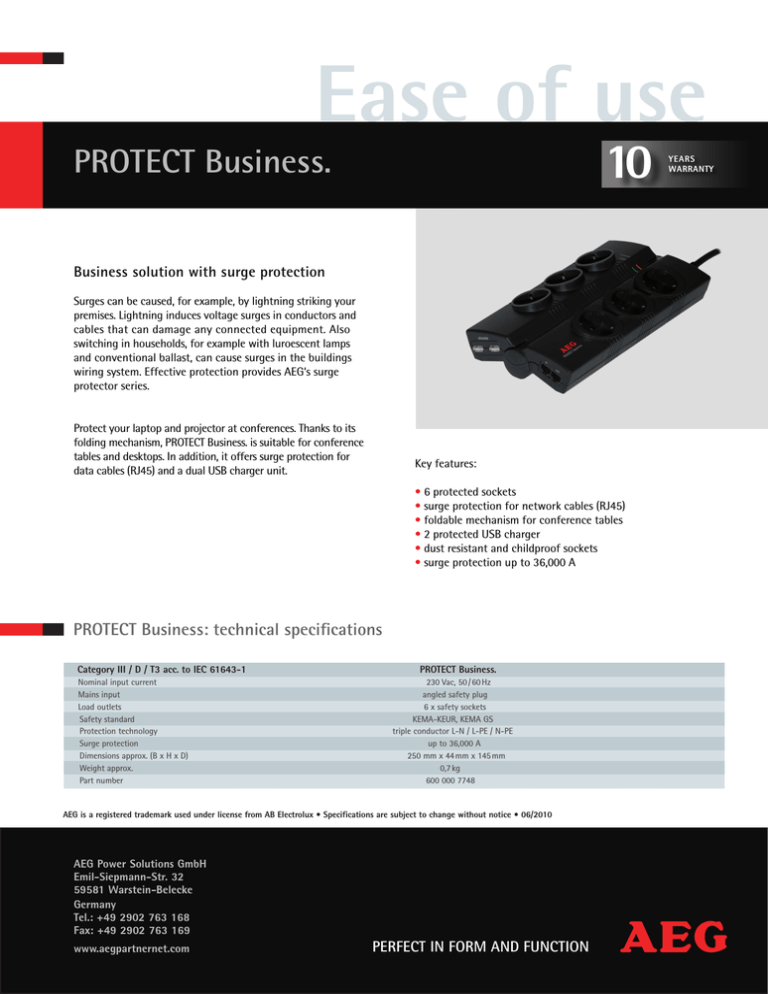

AEG 6000007748 Datasheet
Ease of use
PROTECT Business.
Business solution with surge protection
Surges can be caused, for example, by lightning striking your
premises. Lightning induces voltage surges in conductors and
cables that can damage any connected equipment. Also
switching in households, for example with luroescent lamps
and conventional ballast, can cause surges in the buildings
wiring system. Effective protection provides AEG‘s surge
protector series.
Protect your laptop and projector at conferences. Thanks to its
folding mechanism, PROTECT Business. is suitable for conference
tables and desktops. In addition, it offers surge protection for
data cables (RJ45) and a dual USB charger unit.
Key features:
• 6 protected sockets
• surge protection for network cables (RJ45)
• foldable mechanism for conference tables
• 2 protected USB charger
• dust resistant and childproof sockets
• surge protection up to 36,000 A
PROTECT Business: technical specifications
Category III / D / T3 acc. to IEC 61643-1
PROTECT Business.
Nominal input current
230 Vac, 50 / 60 Hz
Mains input
angled safety plug
Load outlets
6 x safety sockets
Safety standard
Protection technology
triple conductor L-N / L-PE / N-PE
Surge protection
up to 36,000 A
Dimensions approx. (B x H x D)
250 mm x 44 mm x 145 mm
Weight approx.
0,7 kg
Part number
600 000 7748
AEG is a registered trademark used under license from AB Electrolux • Specifications are subject to change without notice • 06/2010
AEG Power Solutions GmbH
Emil-Siepmann-Str. 32
59581 Warstein-Belecke
Tel.: +49 2902 763 168
Fax: +49 2902 763 169
