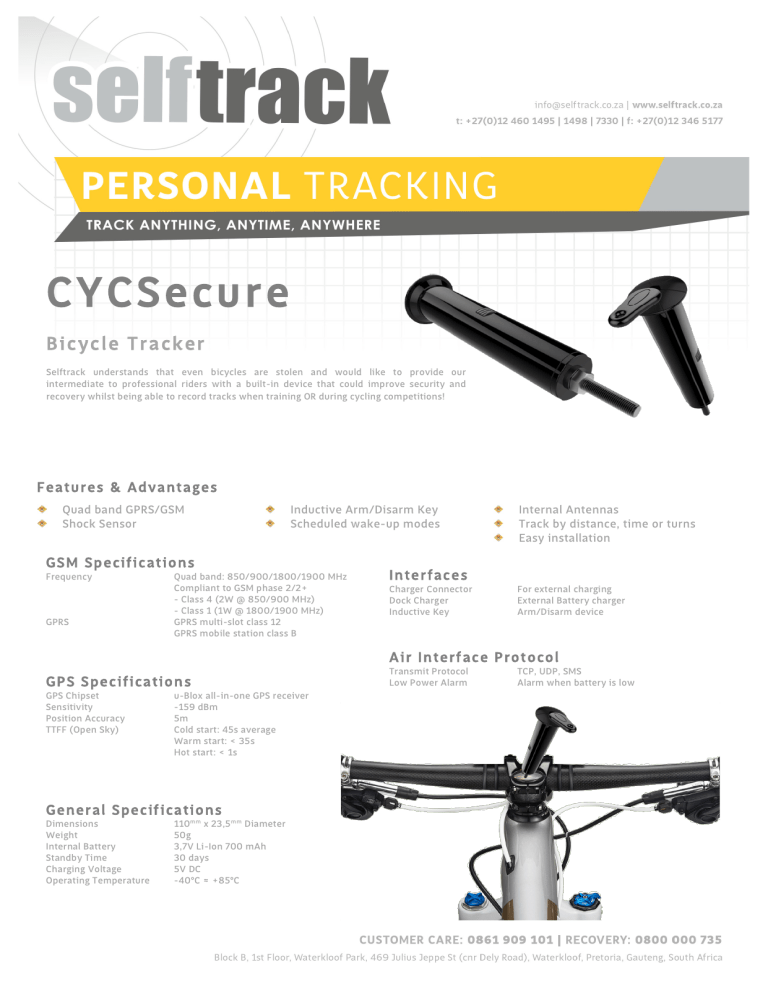

CYCSecure
Bicycle Tracker
Selftrack understands that even bicycles are stolen and would like to provide our
intermediate to professional riders with a built-in device that could improve security and
recovery whilst being able to record tracks when training OR during cycling competitions!
Features & Advantages
Quad band GPRS/GSM
Shock Sensor
Inductive Arm/Disarm Key
Scheduled wake-up modes
GSM Specifications
Frequency
GPRS
Quad band: 850/900/1800/1900 MHz
Compliant to GSM phase 2/2+
- Class 4 (2W @ 850/900 MHz)
- Class 1 (1W @ 1800/1900 MHz)
GPRS multi-slot class 12
GPRS mobile station class B
d
Interfaces
Charger Connector
Dock Charger
Inductive Key
Internal Antennas
Track by distance, time or turns
Easy installation
For external charging
External Battery charger
Arm/Disarm device
Air Interface Protocol
GPS Specifications
GPS Chipset
Sensitivity
Position Accuracy
TTFF (Open Sky)
u-Blox all-in-one GPS receiver
-159 dBm
5m
Cold start: 45s average
Warm start: < 35s
Hot start: < 1s
General Specifications
Dimensions
Weight
Internal Battery
Standby Time
Charging Voltage
Operating Temperature
110mm x 23,5mm Diameter
50g
3,7V Li-Ion 700 mAh
30 days
5V DC
-40°C ≈ +85°C
Transmit Protocol
Low Power Alarm
TCP, UDP, SMS
Alarm when battery is low
