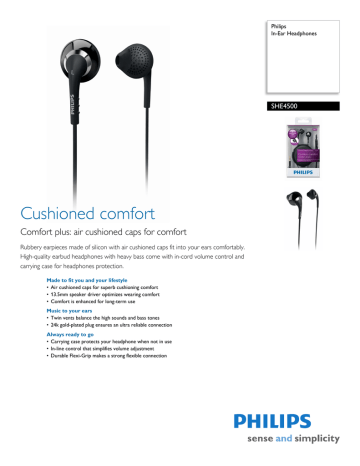

Philips SHE4500/28 User manual

Philips SHE4500/28 User manual
In-Ear Headphones
Cushioned comfort
Comfort plus: air cushioned caps for comfort
Rubbery earpieces made of silicon with air cushioned caps fit into your ears comfortably.
High-quality earbud headphones with heavy bass come with in-cord volume control and
carrying case for headphones protection.
Made to fit you and your lifestyle
• Air cushioned caps for superb cushioning comfort
• 13.5mm speaker driver optimizes wearing comfort
• Comfort is enhanced for long-term use
Music to your ears
• Twin vents balance the high sounds and bass tones
• 24k gold-plated plug ensures an ultra reliable connection
Always ready to go
• Carrying case protects your headphone when not in use
• In-line control that simplifies volume adjustment
• Durable Flexi-Grip makes a strong flexible connection
In-Ear Headphones
Acoustic system: open
Frequency response: 12 - 23 500 Hz
Magnet type: Neodymium
Voice coil: CCAW
Impedance: 16 ohm
Maximum power input: 50 mW
Sensitivity: 105 dB
Speaker diameter: 13.5 mm
Type: Dynamic
Cable Connection: two-parallel, symmetric
Cable length: 1.2 m
Connector: 3.5 mm
Finishing of connector: gold-plated
Type of cable: OFC
• Volume control
• Included: transport case
Inner Carton
Number of consumer packagings: 3
GTIN: 2 06 09585 18048 6
Gross weight: 0,502 lb
Gross weight: 0,228 kg
Inner carton (L x W x H): 7,3 x 4,1 x 4,1 inch
Inner carton (L x W x H): 18,5 x 10,5 x 10,4 cm
Nett weight: 0,09 kg
• Nett weight: 0,198 lb
• Tare weight: 0,304 lb
• Tare weight: 0,138 kg
Outer Carton
Number of consumer packagings: 24
GTIN: 1 06 09585 18048 9
Gross weight: 5,787 lb
Gross weight: 2,625 kg
Outer carton (L x W x H): 15,4 x 9,1 x 9,8 inch
Outer carton (L x W x H): 39,2 x 23,2 x 25 cm
Nett weight: 0,72 kg
Nett weight: 1,587 lb
Tare weight: 4,200 lb
Tare weight: 1,905 kg
Packaging dimensions
• Type of shelf placement: Dummy
• Packaging dimensions (W x H x D):
9,5 x 17,5 x 3 cm
• Gross weight: 0,075 kg
• Nett weight: 0,03 kg
• Number of products included: 1
• Packaging type: Dummy
• Tare weight: 0,045 kg
• Packaging dimensions (W x H x D):
3,7 x 6,9 x 1,2 inch
• Gross weight: 0,165 lb
• Nett weight: 0,066 lb
• Tare weight: 0,099 lb
• UPC: 6 09585 18048 2
Air cushioned caps
Air in between the cap and the driver gives you a soft
feel like a pillow as it reduces the pressure on your
13.5mm speaker driver
Small enough for optimum wearing comfort and big
enough to deliver undistorted sound, an ideal size for
listening enjoyment.
Comfortable to wear
This headphone is designed around the shape of your
ear for extra comfort and more enjoyment during
longer periods of listening.
Twin vents
Specially designed vents that channel the air balance
the high tones and bass for a more rounded listening
24k Gold-plated plug
Rest assured that the precious metal gold finishing on
the plug will give you a more reliable connection for
better quality audio.
Carrying Case
This case is the most convenient way to look after
your headphones and prevent cable tangling when not
in use.
In-line volume control
Adjust the volume to your preferred level without
having to go to the audio source unit.
Flexi-Grip design
A soft, flexible part protects the cable connection
from damage that otherwise would occur due to
repeated bending.
Issue date 2013-01-23
© 2013 Koninklijke Philips Electronics N.V.
All Rights reserved.
Version: 2.1.6
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
12 NC: 8670 000 58332
UPC: 6 09585 18048 2
