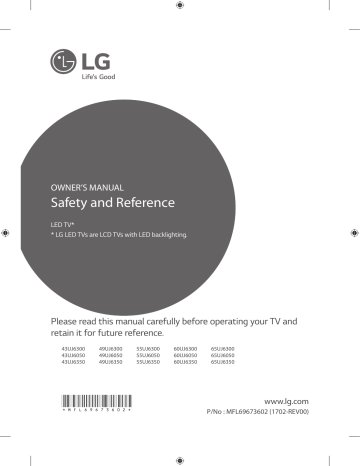

OWNER’S MANUAL

Safety and Reference

LED TV*

* LG LED TVs are LCD TVs with LED backlighting.

Please read this manual carefully before operating your TV and retain it for future reference.

43UJ6300

43UJ6050

43UJ6350

49UJ6300

49UJ6050

49UJ6350

55UJ6300

55UJ6050

55UJ6350

60UJ6300

60UJ6050

60UJ6350

65UJ6300

65UJ6050

65UJ6350

*MFL69673602*

www.lg.com

P/No : MFL69673602 (1702-REV00)

Warning! Important Safety instructions

Read these instructions. Keep these instructions.

Heed all warnings. Follow all instructions.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC

SHOCK DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE. REFER

TO QUALIFIED SERVICE PERSONNEL.

The symbol is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the device.

WARNING : TO REDUCE THE RISK OF FIRE

AND ELECTRIC SHOCK, DO NOT EXPOSE THIS

PRODUCT TO RAIN OR MOISTURE.

• Do not use this apparatus near water.

• Clean only with dry cloth.

• Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

• Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

• Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

• Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

• Only use attachments/accessories specified by the manufacturer.

• Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

• Unplug this apparatus during lightning storms or when unused for long periods of time.

• Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

• Do not press strongly upon the panel with a hand or a sharp object such as a nail, pencil, or pen, or make a scratch on it.

• Do not stick metal objects or any other conductive material into the power cord. Do not touch the end of the power cord while it is plugged in.

• Keep the packing anti-moisture material or vinyl packing out of the reach of children.

Anti-moisture material is harmful if swallowed.

If swallowed, induce vomiting and go to the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children.

2

WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Wash hands after handling.

• Concerning the Power Cord

(Can differ by country):

Check the specification page of this owner’s manual to be certain concerning current requirements. Do not connect too many devices to the same AC power outlet as this could result in fire or electric shock. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire.

Periodically examine the cord of your device, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the device, and have the cord replaced with an exact replacement part by an authorized servicer. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the device. Do not move the TV with the power cord plugged in. Do not use a damaged or loose power cord. Be sure do grasp the plug when unplugging the power cord. Do not pull on the power cord to unplug the TV.

• To reduce the risk of fire or electrical shock, do not expose this product to rain, moisture or other liquids. Do not touch the TV with wet hands. Do not install this product near flammable objects such as gasoline or candles, or expose the TV to direct air conditioning.

• Do not use high voltage electrical equipment near the TV (e.g., a bug zapper).

This may result in product malfunction.

• Do not expose to dripping or splashing and do not place objects filled with liquids, such as vases, cups, etc. on or over the apparatus (e.g., on shelves above the unit).

Grounding

(Except for devices which are not grounded.)

Ensure that you connect the earth ground wire to prevent possible electric shock (i.e., a TV with a three-prong grounded AC plug must be connected to a three-prong grounded AC outlet). If grounding methods are not possible, have a qualified electrician install a separate circuit breaker. Do not try to ground the unit by connecting it to telephone wires, lightning rods, or gas pipes.

• As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if the unit is turned off.

• Do not attempt to modify this product in any way without written authorization from LG

Electronics. Unauthorized modification could void the user’s authority to operate this product.

Outdoor Antenna Grounding

(Can differ by country):

If an outdoor antenna is installed, follow the precautions below. An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits as death or serious injury can occur. Be sure the antenna system is grounded to provide some protection against voltage surges and built-up static charges.

Section 810 of the National Electrical Code (NEC) in the U.S.A. provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode.

Antenna grounding according to the National

Electrical Code, ANSI/NFPA 70

Moving

Make sure the product is turned off, unplugged, and all cables have been removed. It may take 2 or more people to carry larger TVs. Do not press or put stress on the front panel of the TV.

Ventilation

Install your TV where there is proper ventilation.

Do not install in a confined space such as a bookcase. Do not cover the product with cloth or other materials while plugged. Do not install in excessively dusty places.

• Take care not to touch the ventilation openings.

When watching the TV for a long period, the ventilation openings may become hot. This does not affect the performance of the product or cause defects in the product.

• If you smell smoke or other odors coming from the TV, unplug the power cord and contact an authorized service center.

• If water or another substance enters the product (like an AC adapter, power cord, or TV), disconnect the power cord and contact the service center immediately. Otherwise, this may result in fire or electric shock.

• Do not install this product on a wall if it could be exposed to oil or oil mist. This may damage the product and cause it to fall.

3

4

• Use only an authorized AC adapter and power cord approved by LG Electronics.

Otherwise, this may result in fire, electric shock, malfunction, or product deformation.

• Never disassemble the AC adapter or power cord. This may result in fire or electric shock.

• Handle the adapter carefully to avoid dropping or striking it. An impact could damage the adapter.

• Never touch this apparatus or antenna during a lightning storm.

• When mounting a TV on the wall, make sure not to install the TV by hanging the power and signal cables on the back of the TV.

• Do not allow an impact shock, any objects to fall into the product, and do not drop anything onto the screen.

DISCONNECTING THE DEVICE FROM THE MAIN

POWER

The power plug is the disconnecting device.

In case of an emergency, the power plug must remain readily accessible.

• Make sure the power cord is connected securely to the power plug on the TV.

Batteries

Store the accessories (battery, etc.) in a safe location out of the reach of children.

• This apparatus uses batteries. In your community there might be regulations that require you to dispose of these batteries properly due to environmental considerations. Please contact your local authorities for disposal or recycling information.

• Do not dispose of batteries in a fire.

• Do not short circuit, disassemble, or allow the batteries to overheat.

Cleaning

When cleaning, unplug the power cord and wipe gently with a soft cloth to prevent scratching. Do not spray water or other liquids directly on the

TV as electric shock may occur. Do not clean with chemicals such as alcohol, thinners, or benzene.

Preparing

• When the TV is turned on for the first time after being shipped from the factory, initialization of the TV may take approximately one minute.

• Image shown may differ from your TV.

• Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.

• The available menus and options may differ from the input source or product model that you are using.

• New features may be added to this TV in the future.

• The items supplied with your product may vary depending upon the model.

• Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions.

• For an optimal connection, HDMI cables and

USB devices should have bezels less than 10 mm

(0.39 inches) thick and 18 mm (0.7 inches) width.

• Use an extension cable that supports USB 2.0 if the USB cable or USB flash drive does not fit into your TV’s USB port.

• Use a certified cable with the HDMI logo attached. If you do not use a certified HDMI cable, the screen may not display or a connection error may occur.

• Recommended HDMI cable types (3m or less)

- High-Speed HDMI®/™ cable

- High-Speed HDMI®/™ cable with Ethernet

B

B

A A

*A 10 mm (0.39 inches)

*B 18 mm (0.7 inches)

• Do not use any unapproved items to ensure the safety and lifespan of the product.

• Any damages or injuries by using unapproved items are not covered by the warranty.

• Some models appear to have a thin film on the screen. It is actually part of the screen; do not remove it.

• When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches.

• Make sure that the screws are fastened tightly.

(If they are not fastened securely enough, the TV may tilt forward after being installed.)

• Do not fasten the screws with excessive force otherwise they may be worn out and become loose.

• Make sure to wring any excess water or cleaner from the cloth.

• Do not spray water or cleaner directly onto the

TV screen.

• Make sure to spray just enough of water or cleaner onto a dry cloth to wipe the screen.

Lifting and Moving the TV

When moving or lifting the TV, read the following to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size.

• It is recommended to move the TV in the box or packing material that the TV originally came in.

• Before moving or lifting the TV, disconnect the power cord and all cables.

• When holding the TV, the screen should face away from you to avoid damage.

• Hold the top and bottom of the TV frame firmly.

Make sure not to hold the transparent part, speaker, or speaker grille area.

• Use at least two people to move a large TV.

• When transporting the TV by hand, hold the TV as shown in the following illustration.

• When transporting the TV, do not expose the TV to jolts or excessive vibration.

• When transporting the TV, keep the TV upright; never turn the TV on its side or tilt towards the left or right.

• When handling the TV, be careful not to damage the protruding buttons.

• Avoid touching the screen at all times, as this may result in damage to the screen.

• Do not place the product on the floor with its front facing down without padding.

Failure to do so may result in damage to the screen.

• Do not move the TV by holding the cable holders, as the cable holders may break, and injuries and damage to the TV may occur. (Depending upon model)

5

6

Using the Button

You can operate the TV functions, using the button.

Mounting on a Table

1 Lift and tilt the TV into its upright position on a table.

- Leave a 10 cm (4 inches) (minimum) space from the wall for proper ventilation.

10 cm

10 cm

(4 inches)

10 cm

10 cm

Basic Functions

Power On (Press)

Power Off

1

(Press and Hold)

Menu Control (Press 2 )

Menu Selection (Press and Hold

3

)

1 All running apps will close.

2 You can access and adjust the menu by pressing the button when TV is on.

3 You can use the function when you access menu control.

Adjusting the Menu

When the TV is turned on, press button one time.

You can adjust the Menu items using the button.

Turns the power off.

Changes the input source.

Scrolls through the saved channels.

Adjusts the volume level.

2 Connect the power cord to a wall outlet.

• Do not apply foreign substances (oils, lubricants, etc.) to the screw parts when assembling the product. (Doing so may damage the product.)

Securing the TV to a Wall

(Depending upon model)

1 Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV.

- If there are bolts inserted at the eye-bolts position, remove the bolts first.

2 Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV.

3 Connect the eye-bolts and wall brackets tightly with a sturdy rope or cable. Make sure to keep the rope parallel to the flat surface.

• Make sure that children do not climb on or hang on the TV.

• Use a platform or cabinet that is strong and large enough to support the TV securely.

• Brackets, bolts, and ropes are optional. You can obtain additional accessories from your local dealer.

Mounting on a Wall

An optional wall mount can be used with your

LG Television. Consult with your local dealer for a wall mount that supports the VESA standard used by your TV model. Carefully attach the wall mount bracket at the rear of the TV. Install the wall mount bracket on a solid wall perpendicular to the floor. If you are attaching the TV to other building materials, please contact qualified personnel to install the wall mount. Detailed instructions will be included with the wall mount. We recommend that you use an LG brand wall mount. The LG wall mount is easy to adjust or to connect the cables.

When you do not use LG’s wall mount bracket, use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. If you are using a non-adjustable mount, attach the mount to the wall. Attach the cables to the TV first, then attach the TV to the mount.

Model

43UJ6300

43UJ6050

43UJ6350

VESA (A x B)

200 x 200

Standard screw M6

Number of screws

4

Wall mount bracket

(optional)

LSW240B

MSW240

Model

60UJ6300

60UJ6050

60UJ6350

65UJ6300

65UJ6050

65UJ6350

VESA (A x B)

300 x 300

Standard screw M6

Number of screws

Wall mount bracket

(optional)

4

LSW350B

49UJ6300

49UJ6050

49UJ6350

55UJ6300

55UJ6050

55UJ6350

300 x 300

M6

4

LSW350B

MSW240

A

B

• Remove the stand before installing the TV on a wall mount by performing the stand attachment in reverse.

10 cm

10 cm

(4 inches)

10 cm

10 cm

Make sure to use screws and wall mounts that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table.

7

8

• When using the wall mount, it is recommended that you apply a piece of tape over the Stand holes to prevent dust and bugs from entering the holes. (Depending upon model)

Stand Hole

Connections (Notifications)

You can connect various external devices to the TV.

Supported external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices,

PC, gaming devices, and other external devices.

For more information on an external device’s connection, refer to the manual provided with each device.

• If you record a TV program on a DVD recorder or

VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR.

For more information about recording, refer to the manual provided with the connected device.

• The external device connections shown may differ slightly from illustrations in a manual.

• Connect external devices to the TV regardless about the order of the TV port.

• If you connect a gaming device to the TV, use the cable supplied with the gaming device.

• Refer to the external equipment’s manual for operating instructions.

• In PC mode, there may be noise associated with the resolution, vertical pattern, contrast, or brightness. If noise is present, change the PC output to another resolution, change the refresh rate to another rate, or adjust the brightness and contrast on the Picture menu until the picture is clear. Depending upon the graphics card, some resolution settings may not allow the image to be positioned on the screen properly.

• Some USB Hubs may not work. If a USB device connected through a USB Hub is not detected, connect it directly to the USB port on the TV.

• The TV may be capable of operating without a set-top from a multichannel video programming distributor (MVPD).

• When connecting via a wired LAN, it is recommended to use a CAT 7 cable.

Connecting to an Antenna or

Cable

Connect an antenna, cable, or cable box to watch

TV. The illustrations may differ from the actual items and an RF cable is optional.

• Make sure not to bend the copper wire of the RF cable.

Copper Wire

• Use a signal splitter to use 2 TVs or more.

• DTV Audio Supported Codec: MPEG,

Dolby Digital.

• This TV cannot receive ULTRA HD (3840 x 2160 pixels) broadcasts directly because the related standards have not been confirmed.

(Depending upon model)

Other Connections

Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable. Depending upon the model, a cable may not be provided.

• > > > General > HDMI ULTRA HD

Deep Color:

- On : Support 4K @ 60 Hz (4:4:4, 4:2:2, 4:2:0)

- Off : Support 4K @ 60 Hz 8bit (4:2:0)

• If the device connected to Input Port also supports ULTRA HD Deep Color, your picture may be clearer. However, if the device doesn’t support it, it may not work properly. In that case, connect the device to a different HDMI port or change the TV’s HDMI ULTRA HD Deep Color setting to Off.

- This feature is available only on certain models which support HDMI ULTRA HD Deep Color.

• HDMI Audio Supported Format:

DTS (44.1 kHz / 48 kHz), Dolby Digital /

Dolby Digital Plus (32 kHz / 44.1 kHz / 48 kHz),

PCM (32 kHz / 44.1 kHz / 48 kHz / 96 kHz /

192 kHz) (Depending upon model)

Remote Control

(Some buttons and services may not be provided depending on models or regions.)

The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. To install batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and ends to the label inside the compartment, and close the battery cover. Failure to match the correct polarities of the battery may cause the battery to burst or leak, resulting in fire, personal injury, or ambient pollution. To remove the batteries, perform the installation actions in reverse. This remote uses infrared light. When in use, it should be pointed in the direction of the TV’s remote sensor.

A

1 1

A

(Power) Turns the TV on or off.

(Input) Changes the input source.

Activates or deactivates the subtitles.

(User guide) Sees user-guide.

(Search) Shows the search mode.

Returns to the last TV channel.

Number button Enters numbers.

* You can access the application or Live

TV channel by using the number buttons as registered.

- (Dash) Inserts a dash between numbers such as

2-1 and 2-2.

Accesses the saved channel list.

Alternates between the two last channels selected (pressing repeatedly).

Adjusts the volume level.

9

Accesses your favorite channel list.

Shows information on the current program.

Mutes all sounds.

Scrolls through the saved channels.

Moves to the previous or next screen.

Licenses

Supported licenses may differ by model. For more information about licenses, visit www.lg.com.

1 1

B

10

B

1

Streaming service buttons Connects to the

Video Streaming Service.

(Home) Accesses the Home menu. (Pressing and holding the (Home) button displays the previous history.)

(Settings) Accesses the settings.

By zooming in on the selected area, you can view it in full screen.

Navigation buttons Scrolls through menus or options. (up/down/left/right)

Selects menus or options and confirms your input.

Returns to the previous screen.

Clears all on-screen displays and returns to TV viewing.

Enables SAP (Secondary Audio Program)

Feature.

Sets the length of time until the TV to turns off.

, , , , Control buttons for media contents

* Provides content related to the program you are currently watching.

, , , These access special functions in some menus.

* To use the button, press and hold for more than

3 seconds.

Open Source Software Notice

Information

To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is contained in this product, please visit http://opensource.lge.com.

In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to [email protected]. This offer is valid for three

(3) years from the date on which you purchased the product.

External Control Device Setup

To obtain the external control device setup information, please visit www.lg.com.

Troubleshooting

• Cannot control the TV with the remote control.

- Check if anything such as tape has been placed over the receiver.

- Check if there is any obstacle between the product and the remote control.

- Replace the batteries with new fresh ones.

• No image display and no sound is produced.

- Check if the product is turned on.

- Check if the power cord is connected to a wall outlet.

- Check if there is a problem in the wall outlet by connecting other products.

• The TV turns off suddenly.

- Check the power control settings.

The power supply may be interrupted.

- Check if the Timer Power Off / Sleep Timer feature is activated in the Timers settings.

- If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity.

Abnormal Display

- If the TV feels cold to the touch, there may be a small flicker when it is turned on. This is normal; there is nothing wrong with TV. Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have no adverse effect on the TV’s performance. Avoid touching the LCD screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen.

- This panel is an advanced product that contains millions of pixels. In a very few cases, you could see fine dots on the screen while you’re viewing the TV. Those dots are deactivated pixels and do not affect the performance and reliability of the TV.

- Displaying a still image for a prolonged period of time may cause an image sticking. Avoid displaying a fixed image on the TV screen for a extended length of time.

Generated Sound

- Cracking noise A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required.

- Electrical circuit humming/panel buzzing

A low level noise is generated from a highspeed switching circuit, which supplies a large amount of current to operate a product.

It varies depending upon the product.

This generated sound does not affect the performance and reliability of the product.

Specifications

Product specifications may be changed without prior notice due to upgrade of product functions.

Estimated yearly energy consumption indicated on the FTC label is measured in accordance with the

Test Procedures for Television Sets (USA only).

The actual energy consumption depends on the usage environment (The content watched, TV settings, etc.).

Television System

ATSC, NTSC-M, 64 & 256 QAM

Program Coverage

VHF 2-13, UHF 14-69, DTV 2-69, CATV 1-135,

CADTV 1-135

External Antenna Impedance

75 Ω

Environment condition

Operating Temperature

0 °C to 40 °C (32 °F to 104 °F)

Operating Humidity

Less than 80 %

Storage Temperature

-20 °C to 60 °C (-4 °F to 140 °F)

Storage Humidity

Less than 85 %

11

12

Wireless Module Specifications

Wireless module (LGSWFAC71) Specifications

Wireless LAN (IEEE 802.11a/b/g/n/ac)

Frequency Range Output Power(Max.)

2,400 to 2,483.5 MHz

5,150 to 5,725 MHz

5,725 to 5,850 MHz

15 dBm

14.5 dBm

14.5 dBm

• As band channels can vary per country, the user cannot change or adjust the operating frequency. This product is configured for the regional frequency table.

• For consideration of the user, this device should be installed and operated with a minimum distance of 20 cm (7.8 inches) between the device and the body.

• FCC ID: BEJLGSWFAC71

IC: 2703H-LGSWFAC71

Regulatory

FCC NOTICE

(For USA)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and the receiver.

- Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC

Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

FCC Radio Frequency Interference

Requirements (for UNII devices)

High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands.

These radar stations can cause interference with and/or damage this device. This device cannot be co-located with any other transmitter.

FCC RF Radiation Exposure Statement

[For having wireless function (WLAN, Bluetooth,...)]

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be colocated or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with minimum distance 20 cm (7.8 inches) between the radiator and your body. Users must follow the specific operating instructions for satisfying RF exposure compliance.

Industry Canada Statement

(For Canada)

[For having wireless function (WLAN, Bluetooth,...)]

This device complies with Industry Canada’s applicable licence-exempt RSSs. Operation is subject to the following two conditions:

(1) This device may not cause interference; and

(2) This device must accept any interference, including interference that may cause undesired operation of the device.

IC Radiation Exposure Statement

(For Canada)

[For having wireless function (WLAN, Bluetooth,...)]

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm (7.8 inches) between the antenna & your body.

NOTE : THE MANUFACTURER IS NOT RESPONSIBLE

FOR ANY RADIO OR TV INTERFERENCE CAUSED

BY UNAUTHORIZED MODIFICATIONS TO THIS

EQUIPMENT. SUCH MODIFICATIONS COULD

VOID THE USER’S AUTHORITY TO OPERATE THE

EQUIPMENT.

(For Canada)

[For product having the wireless function using 5

GHz frequency bands]

• The device for operation in the band 5150–5250

MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;

• For devices with detachable antenna(s), the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit;

• For devices with detachable antenna(s), the maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits specified for point-to-point and non-point-topoint operation as appropriate; and

• The worst-case tilt angle(s) necessary to remain compliant with the e.i.r.p. elevation mask requirement set forth in Section 6.2.2(3) shall be clearly indicated.(devices operating in the band

5250-5350 MHz with a maximum e.i.r.p. greater than 200 mW)

• High-power radars are allocated as primary users

(i.e. priority users) of the bands 5250–5350 MHz and 5650–5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.

NOTE TO CABLE/TV INSTALLER

(For USA and Canada)

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the

National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.

13

14

WARNING!

Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television set.

• Only using furniture that can safely support the television set.

• Ensuring the television set is not overhanging the edge of the supporting furniture.

• Not placing the television set on tall furniture

(for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.

• Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.

• Educating children about the dangers of climbing on furniture to reach the television set or its controls.

If your existing television set is being retained and relocated, the same considerations as above should be applied.

Symbols

Refers to alternating current (AC).

Refers to direct current (DC).

Refers to class II equipment.

Refers to stand-by.

Refers to “ON” (power).

Refers to dangerous voltage.

CHILD SAFETY:

PROPER TELEVISION PLACEMENT MATTERS

THE CONSUMER ELECTRONICS INDUSTRY CARES

• Manufacturers, retailers and the rest of the consumer electronics industry are committed to making home entertainment safe and enjoyable.

• As you enjoy your television, please note that all televisions – new and old- must be supported on proper stands or installed according to the manufacturer’s recommendations. Televisions that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests, carts, etc., may fall over, resulting in injury.

TUNE IN TO SAFETY

ALWAYS

follow the manufacturer’s recommendations for the safe installation of your television.

ALWAYS

read and follow all instructions for proper use of your television.

NEVER

allow children to climb on or play on the television or the furniture on which the television is placed.

NEVER

place the television on furniture that can easily be used as steps, such as a chest of drawers.

ALWAYS

install the television where it cannot be pushed, pulled over or knocked down.

ALWAYS

route cords and cables connected to the television so that they cannot be tripped over, pulled or grabbed.

WALL OR CEILING MOUNT YOUR TELEVISION

ALWAYS

contact your retailer about professional installation if you have any doubts about your ability to safely mount your television.

ALWAYS

use a mount that has been recommended by the television manufacturer and has a safety certification by an independent laboratory (such as UL, CSA, ETL).

ALWAYS

follow all instructions supplied by the television and mount manufacturers.

ALWAYS

make sure that the wall or ceiling where you are mounting the television is appropriate.

Some mounts are not designed to be mounted to walls and ceilings with steel studs or cinder block construction. If you are unsure, contact a professional installer.

• Televisions can be heavy. A minimum of two people is required for a wall or ceiling mount installation.

MOVING AN OLDER TELEVISION TO A NEW PLACE IN

YOUR HOME

• Many new television buyers move their older CRT televisions into a secondary room after the purchase of a flat-panel television. Special care should be made in the placement of older CRT televisions.

ALWAYS

place your older CRT television on furniture that is sturdy and appropriate for its size and weight.

NEVER

place your older CRT television on a dresser where children may be tempted to use the drawers to climb.

ALWAYS

make sure your older CRT television does not hang over the edge of your furniture.

CE.org/safety

Declaration of Conformity

Trade Name LG

Model 43UJ6300-UA, 49UJ6300-UA,

55UJ6300-UA, 60UJ6300-UA,

65UJ6300-UA, 43UJ6050-UC,

49UJ6050-UC, 55UJ6050-UC,

60UJ6050-UC, 65UJ6050-UC,

43UJ6350-UC, 49UJ6350-UC,

55UJ6350-UC, 60UJ6350-UC,

65UJ6350-UC

Responsible

Party

Address

TEL

LG Electronics Inc.

1000 Sylvan Ave. Englewood

Cliffs NJ 07632 U.S.A

201-266-2534

LG Customer Information Center

For inquires or comments, visit www.lg.com or call;

1-800-243-0000 USA, Consumer User

1-888-865-3026 USA, Commercial User

1-888-542-2623 CANADA

Register your product Online!

www.lg.com

The model and serial numbers of the TV are located on the back and on one side of the TV. Record them below should you ever need service.

MODEL

SERIAL

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
