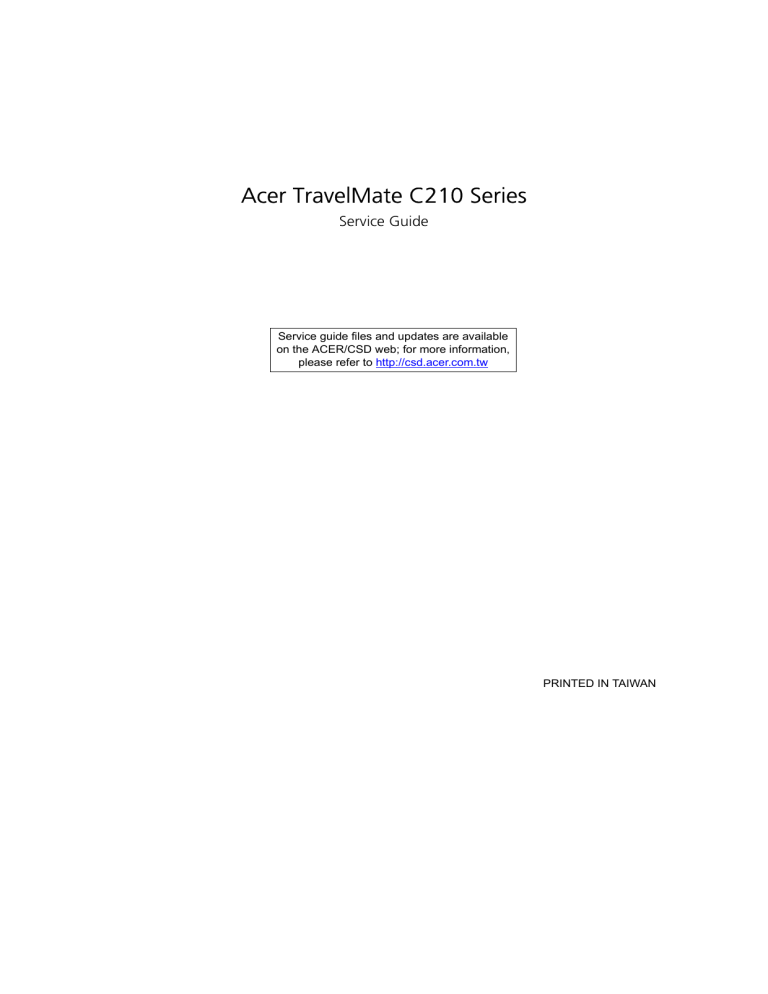

Acer TravelMate C210 Series

Service Guide

Service guide files and updates are available on the ACER/CSD web; for more information, please refer to http://csd.acer.com.tw

PRINTED IN TAIWAN

II

Revision History

Please refer to the table below for the updates made on TravelMate C210 service guide.

Date Chapter Updates

Copyright

Copyright © 2006 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of Acer Incorporated.

Disclaimer

The information in this guide is subject to change without notice.

Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software.

Acer is a registered trademark of Acer Corporation.

Intel is a registered trademark of Intel Corporation.

Pentium and Pentium II/III are trademarks of Intel Corporation.

Other brand and product names are trademarks and/or registered trademarks of their respective holders.

III

Conventions

The following conventions are used in this manual:

SCREEN MESSAGES

NOTE

WARNING

CAUTION

IMPORTANT

Denotes actual messages that appear on screen.

Gives bits and pieces of additional information related to the current topic.

Alerts you to any damage that might result from doing or not doing specific actions.

Gives precautionary measures to avoid possible hardware or software problems.

Reminds you to do specific actions relevant to the accomplishment of procedures.

IV

Preface

Before using this information and the product it supports, please read the following general information.

1.

This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION decided for Acer's "global" product offering. To better fit local market requirements and enhance product competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g. add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered in this generic service guide. In such cases, please contact your regional offices or the responsible personnel/channel to provide you with further technical details.

2.

Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available on your regional web or channel. If, for whatever reason, a part number change is made, it will not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer office may have a DIFFERENT part number code to those given in the FRU list of this printed Service

Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

V

VI

Table of Contents

Chapter 1 System Specifications 1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Board Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

A TravelMate Tour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Open front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Closed front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Left view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Right view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Rear view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Base view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Easy-launch buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Trackpoint and click buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Trackpoint basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Scrolling basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Using the keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Lock keys and embedded numeric keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Windows Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Hot Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Special keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Acer Empowering Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Empowering Technology password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Acer eNet Management (for selected models) . . . . . . . . . . . . . . . . . . . . . . . . . .20

Acer ePower Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Acer ePresentation Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Acer eDataSecurity Management (for selected models) . . . . . . . . . . . . . . . . . .25

Acer eLock Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Acer eRecovery Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Acer eSettings Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Acer ePerformance Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Hardware Specifications and Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Chapter 2 System Utilities 35

BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Navigating the BIOS Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Main . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Advanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

BIOS Flash Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Remove HDD/BIOS Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Chapter 3 Machine Disassembly and Replacement 47

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Disassembly Procedure Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Removing the Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

Removing the HDD Module/ODD Module/Memory/

VII

Table of Contents

Wireless LAN Card/ LCD Module and the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . .61

Removing the Hard Disk Drive Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Removing the Optical Disk Drive Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Removing the Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Removing the Wireless LAN Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Removing the LCD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

Removing the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Disassembling the Main Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

Separating the Main Unit into the Upper Case

And the Lower Case Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

Disassembling the Upper Case, the Lower Case and the Main Board Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Disassembling the LCD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Disassembling the External Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Disassembling the HDD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

Disassembling the Optical Disc Drive Module . . . . . . . . . . . . . . . . . . . . . . . . . .69

Chapter 4 Troubleshooting 63

System Check Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

External Diskette Drive Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

External CD-ROM Drive Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

Keyboard or Auxiliary Input Device Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

Memory check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Power System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73

Touchpad check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Power-On Self-Test (POST) Error Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

Index of Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

POST Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

Index of Symptom-to-FRU Error Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

Intermittent Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

Undetermined Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87

Chapter 5 Jumper and Connector Locations 81

Chapter 6

Appendix A

Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89

Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .90

FRU (Field Replaceable Unit) List 83

Model Definition and Configuration 94

TravelMate C210 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .106

Appendix B Test Compatible Components 95

Microsoft® Windows® XP Pro Environment Test . . . . . . . . . . . . . . . . . . . . . . . . . . .112

Microsoft® Windows® XP Home Environment Test . . . . . . . . . . . . . . . . . . . . . . . . .115

Appendix C Online Support Information 103

VIII

Chapter 1

System Specifications

Features

This computer was designed with the user in mind. Here are just a few of its many features:

Performance

T

Intel

®

Centrino

®

Duo mobile technology, featuring t

Intel

®

Core 2 Duo processor T5500/T5600 (2MB L2 cache, 1.66/1.83 GHz, 667 MHz FSB) and T7200/

T7400 (4 MB L2 cache, 2/2.16 GHz, 667 MHz FSB) t

Intel

®

Core Duo processor T2300/T2400/T2500/T2600 (2MB L2 cache, 1.66/1.83/2/2.16 GHz, 667 MHz

FSB) t

Mobile Intel

®

945GM /945PM +ICH7M

T

T

Intel

®

PRO/Wireless 3945ABG network connection (dual-band tri-mode 802.11a/b/g) or Intel

®

PRO/Wireless 3945BG network connection (dual-mode 802.11b/g) Wi-Fi CERTIFIED

TM

solution, supporting Acer SignalUp

TM

wireless technology

Up to 2 GB of DDR2 533/677 MHz system memory, upgradeable to 4 GB using two soDIMM modules (dual-channel support)

Display

T

T

T

T

T

T

T

T

T

12.1” XGA Thin-Film Transistor (TFT) liquid-crystal display (LCD) supporting pen-based input, with

16.7 million color at 1024X768 resolution

LCD slides to convert from notebook to tablet mode

NVIDIA

®

GeForce

®

Go 7300 up to 256 MB TurboCache (128 MB of dedicated GDDR2 VRAM, up to 128 MB of shared system memory), supporting Microsoft

®

DirectX 9.0, Shader Model 3.0,

OpenEXR High Dynamic Range (HDR) technology, NVIDIA

®

PowerMizer

TM

6.0 PCI Express

®

(for discrete models)

Mobile Intel

®

945GM Express chipset with integrated 3D graphics, featuring Intel

®

Graphics Media

Accelerator (GMA) 950, up to 224 MB of shared system memory, supporting Microsoft

®

DirectX

®

9.0 dual independent display (for UMA models)

Up to 2048 x 1536 resolution via non-interlaced CRT display

16.7 million colors

Simultaneous LCD and CRT display, with LCD panel refresh rate at 70Hz

MPEG-2/DVD hardware-assisted capability

DualView

TM

support

Storage subsystem

T

60/80/100/120/160 GB hard disk drive

T

T

Optical drive options: t

8X DVD-Super Multi double-layer, slot-loaded t

DVD/CD-RW combo (for selected models)

4-in 1 card reader, supporting Memory Stick

TM

(MS), Memory Stick PRO

TM

(MS PRO),

MultiMediaCard (MMC) and Secure Digital (SD)

Communication

T

Modem: 56K ITU V.92 with PTT approval; Wake-on-Ring ready

Chapter 1 1

T

T

T

LAN: gigabit Ethernet; Wake-on-LAN ready

WLAN: Intel

®

PRO/Wireless 3945ABG network connection (dual-band tri-mode 802.11a/b/g) or

Intel

®

PRO/Wireless 3945BG network connection (dual-mode 802.11b/g) Wi-Fi CERTIFIED

TM solution, supporting Acer SignalUp

TM

wireless technology

WPAN: integrated Bluetooth

®

2.0+EDR (Enhanced Data Rate)

Input devices

T

Biometric fingerprint reader provides the notebook with advanced security protection

T

T

T

T

T

T

T

84-/85-key keyboard with inverted “T” cursor layout

Built-in trackpoint with two buttons

12 function keys, four cursor keys, two Windows

®

key, hotkey controls, embedded numeric keypad, international language support

Four easy-launch buttons: Internet, email, Empowering Key, user-programmable button

Four tablet-mode buttons: Windows Security, Screen Rotate, Function, Escape

3-way scroll wheel (up/down/enter)

Electromagnetic Resonance (EMR) pen with eraser

Audio

T

T

T

Audio system with one built-in 1W speaker and microphone

Sound Blaster Pro

TM

and MS-Sound compatible

Intel

®

High-Definition audio support

I/O interface

T

T

T

T

T

T

T

T

T

T

T

T

T

T

124-pin Acer ezDock connector

PC card slot (Type II)

Biometric fingerprint reader

4-in-1 card reader (MS/MS PRo/MMC/SD)

Three USB 2.0 ports

IEEE 1394 port

Fast infrared (FIR) port

External display (VGA) port

Headphones/speaker/line-out jack

MIcrophone jack

Line-in jack

Ethernet (RJ-45) port

Modem (RJ-11) port

DC-in jack for AC adapter

Environment

T

Temperature: t

° t

°

°

T

°

Humidity (non-condensing): t operating: 20%~80% t

Non-operating: 20%~80%

2 Chapter 1

System Block Diagram

+1.8VSUS +0.9VSUS

Chapter 1 3

Board Layout

Top View

[01]

[02]

[03]

[04]

[05]

[07]

[06]

[08]

[55]

[09]

[10]

[20]

[21]

[14]

[11]

[18]

[12]

[13]

[15]

[16]

[17]

[19]

4

8

9

5

6

7

3

4

1

2

10

11

U17/

U19

U23

U22

CN6

U3

CN2

U4

CN1

U16

U10

CN3

Lan Controller

LCD Connector

VRAM1

Lid Switch

Super I/O Controller

DVI Trasmitter

PCI Debug Card Connector

(Reserved)

IDE Buffer

PCMCIA/1394/Card Reader

Controller

Track Point Controller

Keyboard Connector

19

20

16

17

18

12

13

14

15

21

55

CN5

U20

U29

CN7

CN8

CN9

CON1/

U34

CN10

Quick Button Board Connector

Clock Generator

EC (Keyboard Controller)

BT Connector

Jogdial Board Connector

Pen Switch Board Connector

BIOS ROM

Internal MIC

BT1

CN11

CN4

RTC Battery Connector

Intetnal Speaker

Track Point Connector

Chapter 1

Bottom View

[22]

[23]

[24]

[26]

[27]

[28] [29] [30]

[25]

[31]

[32]

[34] [33]

[35]

[53]

[43]

[54]

[42]

[44]

[36]

[38]

[39]

[37]

[41]

[56] [57]

34

35

36

30

31

32

33

26

27

28

29

22

23

24

25

Chapter 1

U44

CN18

CN19

U45

CN20

U46

CN22

CN13

CN12

CN15

CN14

CN16

CN17

JDIM1

JDIM2

EZ Docking Connector

AC Power Jack

RJ11/RJ45 Connector

CRT Connector

Modem Connector

Main Battery Connector

DDR Socket 1

DDR Socket 2

VRAM2

USB Dual Connector

1394 Connector

VGA Chip (NV72MV)

CD-ROM Board Connector

CPU Socket

Second Battery Connector

[45]

[46]

[58]

[47]

[59]

53

54

56

49

50

51

52

45

46

47

48

41

42

43

44

[51] [52]

CN27

CN29

U55

U56

SW4

SW5

LED3

CN30

J1

CN28

CN26

U54

CN24

U57

CN25

Memory Card Reader

MDC Connector

PCMCIA Board Connector

MINI Card Connector

South Bridge (ICH7)

PATA HDD Connector

FIR

External Line In

External MIC In

External Headphone

Speaker Amplifier (MAX9710)

Headphone (MAX4411)

Bluetooth Enable Switch

WLAN Enable Swtich

BT LED

[40]

[48]

[49]

[50]

5

37

38

39

40

CN21

U48

U52

CN23

FAN Connector

North Bridge (945GM/PM)

Audio Codec Controller

USB Connector

57

58

59

LED4

LED1

LED2

WLAN LED

Battery LED

HDD LED

6 Chapter 1

A TravelMate Tour

Now let us show you around the new TravelMate computer.

Top View

Just for Starters...

4

5

2

3

6

7

#

1

# Item

Item

Display screen

Tablet-mode button

Tablet-mode button

Tablet-mode button

Biometric fingerprint reader

Windows Security lock button

Power switch

Description

Description

Also called LCD (liquid-crystal display), displays computer output.

Electromagnetic resonate (EMR) stylus is used to input data in tablet mode. Use only an EMR-compatible stylus to input data on the screeen.

Escape button for use in tablet PC mode.

Function button for use in tablet PC mode.

Screen rotate button for use in tablet PC mode.

Provides fingerprint-verified access to operating system applications.

A tablet-mode button, it functions like

CLT-ALT-DEL

to lock the access to the operating system.

Turns the computer on and off.

Chapter 1 7

# Item Description

"Acer Protector Suite

QL fingerprint utility" on page 29

Open front view

4

5

6

7

#

1

2

3

# Item

Item

Keyboard

Built-in trackpoint

Click buttons (left and right)

Built-in microphone

Scroll wheel

Easy-launch buttons

Indicator lights

Description

Description

For entering data in notebook PC mode.

Touch-sensitive pointing device which functions likea computer mouse when used together with the click buttons.

Function like the left and right mouse buttons when used together with the center-keyboard trackpoint.

Internal microphone for sound recording.

For up, down and one-touch accelerated scrolling.

Buttons for launching frequently used programs.

Light up when Caps Lock or Num Lock are activated.

Closed front view

8

# Icon Item Description

Chapter 1

3

4

5

6

7

1

2

Left view

Wireless communication button/ indicator

Press to enable/disable the wireless function.

Lights to indicated the status of wireless LAN communication.

Bluetooth communication button/ indicator

Press to enable/disable Bluetooth functions.

Lights to indicated the status of Bluetooth communications.

Speaker

Battery indicator

Provides sound.

Lights up when battery is being charged.

Fast infrared (FIR) port Interfaces with infrared printers, computers and other FIR-aware devices.

HDD indicator Indicates when the hard disk drive is active.

Electromagnetic resonance (EMR) pen with eraser

For entering data in tablet PC mode.

2

3

4

5

6

#

1

Icon Item

Ethernet (RJ-45) port

Description

Connects to a gigabit Ethernet network.

Modem (RJ-11) port Connects to a phone line.

Optical drive eject button

LED indicator

Opticla drive

PC Card slot

Ejects the optical drive tray.

Lights up when the optical drive is active.

Accepts recordable DVDs and CDs, depending on teh drive type.

Accepts one Type II PC Card.

Chapter 1 9

7

8

PC Card slot eject button

4-in-1 card reader

Eject the PC Card from the slot.

Accepts Memory Stick, Memory Stick Pro,

MultiMediaCard (MMC), Secure Digital (SD).

Note: Only one card can operate at any given time.

Right view

10

5

6

7

2

3

4

#

1

Icon Item

Headphone/speakers line-out jack

Description

Connects to audio line-out devices.

Microphone/line-in jack Accepts audio line-in devices (e.g. microphone or audio CD player).

IEEE 1394 port

USB 2.0 port

Connects to IEEE 1394 devices.

Connects to USB 2.0 devices (e.g. USB mouse or camera).

Ventilation slots

USB 2.0 port

Keep computer cool during use.

Connects to USB 2.0 devices (e.g. USB mouse or camera).

External display (VGA) port

Connects to a display device (e.g. monitor or projector).

Chapter 1

Rear view

2

3

4

#

1

Base view

Icon Item

Kensington lock slot

Description

Connects to a Kensington-compatible computer security lock.

DC-in jack Connects to an AC adapter.

Latch

Acer ezDock port

Locks and release the LCD unit to convert from tablet to notebook mode.

Connects to an Acer ezDock (optional).

2

3

#

1

Item

Battery bay

Battery lock latch

Memory compartment

Chapter 1

Description

Houses the computer’s battery pack.

Locks the battery in place.

Houses the computer’s main memory (secured with two screws).

11

4

7

8

5

6

Cooling fan

Hard disk bay

Optical drive

Optical drive release latch

Battery lock latch

Cools computer during use.

Note: Do not cover or obstruct the opening of the fan.

Houses the computer’s hard disk (secured with two screws).

Internal optical drive (hot -swappable Acer MediaBay drive moudel is optional).

Release the optical drive module fo removal.

Locks the battery in place.

12 Chapter 1

Indicators

The computer has two easy-to-read status indicators to the right of the keyboard, and four on the front panel.

The power, media, Bluetooth and wireless communication status indicators are visible even when the LCD display is closed.

Icon

Icon

Caps Lock

Description

Description

Lights up when Caps Lock is activated.

Num Lock

HDD activity

Lights up when Num Lock is activated.

Indicates when the hard disk or optical drive is active.

Battery indicator Lights up when the computer is on.

Bluetooth Indicates the status of Bluetooth communication.

Wireless LAN Indicates the status of wireless LAN communication.

Chapter 1 13

1. ךሽխΚ

2.

ךሽݙฅΚ

Easy-launch buttons

Located to the righ tof hte keyboard are four buttons. These buttons are called easy-launch buttons. They are: mail, Web browser, Acer Empowering Key < >and one user-programmable button.

Press < run the Acer Launch Manager.

Manager ω

ร 38 ଄ऱ ψ Launch

.

᎘ᠾඔ೯᝶

Easy-launch button

P

ቃ๻ᚨش࿓ڤ

Default application

User-programmable

Acer Empowering Technology (user-programmable)

Mail

Internet browser (user-programmable)

Email application (user-programmable)

14 Chapter 1

Trackpoint and click buttons

The built-in trackpoint is a pointing device that senses movement on its surface. This means the cursor responds as you use your finger to move the trackpoint. Its central location on the move your finger on the surface of the touchpad. The central location on the palmrest provides optimal comfort and support.

NOTE:

If you are using an external USB mouse, you can press

Fn-F7

to disable the touchpad.

Trackpoint basics

The following items show you how to use the trackpoint and click buttons:

T

T

(1)

Using your finger, apply light, steady pressure on the trackpoint (1) to move the cursor.

Press the left (2) and right (3) buttons located below the keyboard to perform selection and execution functions. These two buttons are similar to the left and right buttons on a mouse.

Scrolling basics

.

The 3-way scroll wheel is enabled for tablet-and keyboard-mode use.

T

Use the job wheel (4) to scroll up or down on a page. A click on the job wheel executes the Enter function, similar to clicking the left click button or the left button of a mouse.

Function

Execute

Function

Quickly click twice

Select

Drag

Click once

Click and hold, then use finger on the trackpoint to drag the cursor.

Access context menu

Scroll

Right Button

button

Scroll wheel

Scroll Wheel

Click on the job wheel.

Click once

Use finger to roll scroll wheel lightly up or down in tablet or notebook mode.

NOTE:

When using these inputs, keep them - and your fingers - dry and and clean. The scroll wheel is sensitive to finger movement; hence, the lighter the touch, the better the response. Tapping harder will not increase click button responsiveness.

Chapter 1 15

Using the keyboard

Lock keys and embedded numeric keypad

The keyboard has full-sized keys with an embedded numeric keypad, as well as separate lock, cursor and

Windows keys, and hotkey controls.

Lock Key

Caps Lock

Num Lock

<Fn> + <F11>

Scroll Lock

<Fn> + <F12>

Description

When Caps Lock is on, all alphabetic characters typed are in uppercase.

When Num Lock is on, the embedded keypad is in numeric mode. The keys function as a calculator (complete with the arithmetic operators +, -, *, and /). Use this mode when you need to do a lot of numeric data entry. Another solution would be connect an external keypad.

When Scroll Lock is on, the screen moves one line up or down when you press the up or down arrow keys respectively. Scroll Lock does not work with some applications.

The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small characters located on the upper right corner of the keycaps. To simplify the keyboard legend, cursor-control key symbol are not printed on the keys.

Desired access

Number keys on embedded keypad

Cursor-control keys on embedded keypad

Main keyboard keys

Num Lock on

Type numbers in a normal manner.

Num Lock off

Hold

<Shift>

while using cursor-control keys. Hold <Fn> while using cursor-control keys.

Hold

<Fn>

keypad.

while typing letters on embedded Type the letters in a normal manner.

Windows Keys

The keyboard has two keys that perform Windows-specific functions.

16 Chapter 1

Key

Windows key

Application key

Icon Description

Pressed alone, this key has the same effect as clicking on the Windows Start button; it launches the

Start menu. It can also be used with other keys to provides a variety of functions:

+ <Tab>: Activates the next taskbar button

+ <E>: Opens the My Computer window.

+ <F1>: Opens Help and Support Center.

+ <F>: Opens the Search Results window.

+ <R>: Opens the Run dialog box.

+ <M>: Minimizes all windows.

<Shift> + windows action.

+ <M>: Undoes the minimize all

This key has the same effect as clicking the right mouse button; it opens the application’s context menu.

Hot Keys

The computer employs hotkeys or key combinations to access many computer controls, including screen brightness, volume output and the BIOS utility.

To activate hotkeys, press and hold the

<Fn>

key before pressing the other key in the hotkey combination.

Hot Key

<Fn> + <F1>

Icon Function

Hotkey help

Description

Displays help on hotkeys.

<Fn> + <F2>

<Fn> + <F3>

Acer eSettings Launches Acer eSettings in Acer Empowering

Technology.

Acer ePower

Management or

Power management

Display the Power Options Properties used by the computer (function available if supported by operating system).

See “Power management” on page 25.

Chapter 1 17

Hot Key

<Fn> + <F4>

<Fn> + <F5>

<Fn> + <F6>

<Fn> + <F7>

Icon

Sleep

Function

Display toggle

Screen blank

Touchpad toggle

Description

Puts the computer in Sleep mode.

See “Power management” on page 25.

Switches display output between the display screen, external monitor (if connected) and both the display screen and external monitor.

Turns the display screen backlight off to save power.

Press any key to return.

Turns the internal touchpad on and off.

<Fn> + <F8> Speaker toggle Turns the speakers on and off.

<Fn>+<

>

<Fn>+<

>

<Fn>+<

>

<Fn>+<

>

Volume up

Volume down

Brightness up

Brightness down

Increases the speaker volume.

Decreases the speaker volume.

Increases the screen brightness.

Decreases the screen brightness

Special keys

You can locate the Euro symbol and the US dollar sign at the upper-center and/or bottom-right of your keyboard.

The Euro symbol

1.

Open a text editor or word processor.

18 Chapter 1

2.

Either press < > at the bottom-right of the keyboard, or hold

<Alt Gr>

and then press the

<5>

key at the upper-center of the keyboard.

NOTE:

Some fonts and software do not support the Euro symbol. Please refer to www.microsoft.com/ typography/faq/faq12.htm for more information.

The US dollar sign

1.

Open a text editor or word processor.

2.

Either press < > at the bottom-right of the keyboard, or hold

<shift>

and then press the

<4>

key at the upper-center of the keyboard.

NOTE:

This function varies according to the language settings.

Chapter 1 19

Acer Empowering Technology

Acer’s innovative Empowering Technology makes it easy for you to access frequently used functions and manage your new Acer notebook. It features the following handy utilities:

T

T

T

T

T

T

T

T

Acer eNet Management (for selected models)

hooks up to location-based networks intelligently.

Acer ePower Management

extends battery power via versatile usage profiles.

Acer ePresentation Management

connects to a projector and adjusts display settings conveniently.

Acer eDataSecurity Management (for selected models)

protects data with passwords and advanced encryption algorithms.

Acer eLock Management (for slected models)

limits access to external storage media.

Acer eRecovery Management

backs up and recovers data flexibly, reliably and completely.

Acer eSettings Management

accesses system information and adjusts settings easily.

Acer ePerformance Management

improves system performance by optimizing disk space, memory and registry settings.

For more information, press the < > key to launch the Empowering Technology menu, then click on the appropriate utility and select the Help or Tutorial function.

Empowering Technology password

Before using Acer eLock Management and Acer eRecovery Management, you must initalize the Empowering

Technology password. Right-click on the Empowering Technology toolbard and select “Password Setup” to do so. If you do not initialize the Empowering Technology password, you will be prompted to do so when running

Acer eLock Management or Acer eRecovery Management for the first time.

Acer eNet Management (for selected models)

Acer eNet Management helps you to quickly and easily connect to both wired and wireless networks in a variety of locations. To access this utility, either click on the “

Acer eNet Management

” icon on your netebook, or start the program from the Start menu. You also have the option to set Acer eNet Management to start automatically when you boot up your PC.

Acer eNet Management automatically detects the best settings for a new location, while offering you the freedom to manually adjust the settings to match your needs.

20 Chapter 1

Acer eNet Management can save network settings for a location to a profile, and automatically switch to the appropriate profile when you move from one location to another. Settings stored include network connection settings (IP and DNS settings, wireless AP details, etc.), as well as default printer settings.

Security and safety concerns mean that Acer eNet Management does not store username and password information.

Chapter 1 21

Acer ePower Management

Acer ePower Management features a straightforward user interface. To launch it, select Acer ePower

Management from the Empowering Technology interface.

AC Mode (Adapter mode)

The default setting is “Maximum Performance.” You can adjust CPU speed, LCD brightness and other settings, or click on buttons to turn the following functions on/off: Wireless LAN, Bluetooth, CardBus, FireWire

(1394), Wired LAN and Optical Device if supported.

DC Mode (Battery mode)

There are four pre-defined profiles - Entertainment, Presentation, Word Processing, and Battery Life. You can also define up to three of your own.

To create new power profile

1.

Change power settings as desired.

4.

5.

2.

3.

Click “Save as...” to save to a new power profile.

Name the newly created profile.

Select whether this profile is for Adapter or Battery mode, then click OK.

The new profile will appear in the profile list.

22 Chapter 1

Battery status

For real-time battery life estimates based on current usage, referto the panel on the lower left-hand side of the window.

T

T

T

T

For additional options, click “

Settings

” to:

Set alarms.

Re-load factory defaults.

Select what actions will be taken when the cover is closed or the power button is pressed.

View information about Acer ePower Management.

Chapter 1 23

Acer ePresentation Management

Acer ePresentation Management lets you project your computer’s display to an external device or project using the hot key: Fn + F5. If auto-detection hardware is implemented in the system, your system display will be automatically switched out when an external display is connected to the system.

24 Chapter 1

Acer eDataSecurity Management (for selected models)

Acer eDataSecurity Management is handy file encryption utility that protexts your files from being accessed by unauthorized persons. It is conveniently integrated with Windows explorer as a shell extension for quick and easy data encryption/decryption and also supports on-the-fly file encryption for MSN Messager and Microsoft

Outlook.

The Acer eDataSecurity Management setup wizard will prompt you for a suvervisor password and default encryption. This encryption will be used to encrypt files by default, or you can choose to enter your won filespecific password when encrypting a file.

NOTE:

The password used encrypt a file is the unique key that the system needs to decrypt it. If you lose the password, the supervisor password is the only other key capable of decrypting the file. If you lose both passwords, there will be no way to decrypt your encryped file!

Be sure to safeguard all related passwords!

Chapter 1 25

26 Chapter 1

Acer eLock Management

Acer eLock Management is a security utility that allows you to lock your removable data, optical and floppy drives to ensure that data can’t be stolen while your notebook is unattended.

T

T

T

T

Removable data devices - includes USB disk drives, USB pen drives, USB flash drives, USB MP3 drives,

USB memory card readers, IEEE 1394 disk drives and any other removable disk drives that can be mounted as a file system when plugged into the system.

Optical drive deivces - includes any kind of CD-ROM or DVD-ROM drives.

Floppy disk drives - 3.5-inch disks only.

Interfaces - includes serial ports, parallel port, infrared (IR), and Bletooth.

To activate Acer eLock Management, a password must be set first. Once set, you can apply locks to any of the devices. Lock(s) will immediately be set without any reboot necessary, and will remain locked after rebooting, until unlocked.

NOTE:

If you lose your password, there is no method to reset it except by reformatting your notebook or taking your notebook to anAcer Customer Serivce Center. Be sure to remember or write down your password.

Chapter 1 27

Acer eRecovery Management

Acer eRecovery Management is a powerful utility that does away with the need for recovery disks provided by the manufacturer. The Acer eRecovery Management utility occupies space in a hidden partition on your system’s HDD. User-created backups are stored on D:\ drive. Acer eRecovery Management provides you with:

T

T

T

Password protection.

Recovery of applications and drivers.

Image/data backup:

T

T

Back up to HDD (set recovery point).

T

Back up to CD/DVD.

Image/data recovery tools:

T

T

T

Recover from a hidden partition (factory defaults).

Recover from the HDD (most recent user-defined recovery point).

Recover from CD/DVD.

28

For more information, please refer to “Acer eRecovery Management”

NOTE:

If your computer did not come with a Recovery CD or System CD, please use Acer eRecovery

Management’s “System backup to optical disk” feature to burn a backup image to CD or DVD. To ensure the best results when recovering your system using a CD or Acer eRecovery Management, detach all peripherals (except the external Acer ODD, if your computer has one), including your Acer ezDock.

Chapter 1

Acer eSettings Management

Acer eSettings Management allows you to inspect hardware specifications and to monitor the system health status. Furthermore, Acer eSettings Management enables you to optimize your Windows operating system, so your computer runs faster, smoother and better.

Acer eSettings Management also:

T

T

Provides a simple graphical user interface for navigating.

Displays general system status and advanced monitoring for power users.

Acer ePerformance Management

Acer ePerformance Management is a system optimization tool that boosts the performance of your Acer notebook. It provides and express optimization method to release unused memory and disk space quickly. The user can also enable advanced options for full control over the following option:

T

T

T

Memory optimization - releases unused memory and check usage.

Disk optimization - removes unneeded items and files.

Speed optimization - improves the usability and performance of your Windows XP system.

Chapter 1 29

30 Chapter 1

Hardware Specifications and Configurations

Processor

Item

CPU type

CPU package

CPU core voltage

Specification

Intel

®

Core 2 Duo processor T5500/T5600 (2MB L2 cache, 1.66/1.83 GHz,

667 MHz FSB) and T7200/T7400 (4 MB L2 cache, 2/2.16 GHz, 667 MHz

FSB)

Intel

®

Core Duo processor T2300/T2400/T2500/T2600 (2MB L2 cache,

1.66/1.83/2/2.16 GHz, 667 MHz FSB)

Intel 479 pin Micro-FCBGA

Vcc-Core:1.2875V (highest frequency mode) to 0.8375V (low frequency mode)

Vcc-Core: 0.75V (Deep sleep mode)

CPU Fan True Value Table

Level

BGN

Fan-off

Low

Middle

High

Full

Performance Mode

Fan Speed

(rpm)

0

0

3380

3910

4510

4800

Temperature

0

0

50

66

78

90

15.0

17.0

Average

Sound pressure level (dBA)

Left

14.9

16.6

15.0

17.3

Right

28.5

28.7

38.0

39.9

26.1

31.0

35.8

37.7

30.9

26.3

40.2

42.0

Throttling

40 dB(A)

38 dB(A)

28.7 dB(A)

28.5 dB(A)

45 50 55 66 70 78 85 90

Level 0 : Fan on =50C ; Fan Off =45C , Fan RPM= 3380

Level 1 : Fan on =66C ; Fan Off =55C , Fan RPM= 3910

Level 2 : Fan on =78C ; Fan Off =70C , Fan RPM= 4510

Level 3 : Fan on =90C ; Fan Off =85C , Fan RPM= 4800

92 100

Sound Pressure Level

Chapter 1 31

sound pressure level at different rpm

50

40

30

20

10

0

Low : 3380 rpm

Middle: 3910 rpm

High:4510 rpm

Full:4800 rpm

CPU speed

32

BIOS

Item

BIOS vendor

BIOS Version

BIOS ROM type

BIOS ROM size

BIOS package

Supported protocols

BIOS password control

Second Level Cache

Item

Cache controller

Cache size

1st level cache control

2st level cache control

Cache scheme control

System Memory

Item

Memory controller

Memory size

DIMM socket number

Supports memory size per socket

Supports maximum memory size

Supports DIMM type

Supports DIMM Speed

Supports DIMM voltage

Supports DIMM package

Specification

Phoenix

V1.00

Flash ROM (SST SST39VF080)

1Mbytes

TSOP

ACPI 1.0b,PC Card 95, SM BIOS 2.3, EPP/IEEE 1284, ECP/IEEE 1284

1.7 & 1.9, PCI 2.2, PnP 1.0a, DMI 2.0, PS/2 keyboard and mouse, USB

2.0, VGA BIOS, CD-ROM bootable, IEEE 1394

Set by setup manual

Specification

Built-in CPU

2MB for Intel

®

Pentium

®

M processor

1MB for Intel

®

Celeron

®

M processor

Always enabled

Always enabled

Fixed in write-back

Specification

Built in Intel 945PM/GM

0MB (no on-board memory)

2 sockets

256MB, 512MB, 1024MB

2GB (by two 1024MB DDRII RAM module) soDIMM

533/677 MHz

1.8V and 0.9V

200-pin soDIMM

Chapter 1

Memory Combinations

Slot 1 Slot 2 Total Memory

0MB

0MB

0MB

256MB

256MB

256MB

256MB

512MB

512MB

512MB

512MB

1024MB

1024MB

1024MB

256MB

512MB

1024MB

0MB

256MB

512MB

1024MB

0MB

256MB

512MB

1024MB

0MB

256MB

512MB

256MB

512MB

1024MB

256MB

512MB

768MB

1280MB

512MB

768MB

1024MB

1536MB

1024MB

1280MB

1536MB

1024MB 1024MB 2048MB

NOTE:

Above table lists some system memory configurations. You may combine DIMMs with various capacities to form other combinations. On above table, the configuration of slot 1 and slot 2 could be reversed.

Modem Interface

Item

Data modem data baud rate (bps)

Supports modem protocol

Modem connector type

Modem connector location

56K

V92 MDC

RJ11

Left side

Specification

LAN Interface

Item

Chipset

Supports LAN protocol

LAN connector type

LAN connector location

Bluetooth Interface

Item

Chipset

Data throughput

Protocol

Interface

Connector type

Specification

BroadCom BCM5787M/5789M

10/100/1000 Mbps

RJ45

Left side

Specification

Built-in ICH7M

723 bps (full speed data rate)

Bluetooth 1.1 (Upgradeable to Bluetooth 1.2 when SIG specification is ratified).

USB 1.1

Mini-USB

Chapter 1 33

34

Wireless Module 802.11a/b/g

Item

Chipset

Data throughput

Protocol

Interface

Four-in-One Card Reader

Item

Chipset

Data throughput

Protocol

Built-in ICH7M

11~54 Mbps

802.11a+b+g or 802.11b+g

PCI bus

Specification

Specification

Intetrated on TI PC7411

USB 1.1

Memory Stick (MS), MS PRO, MultiMediaCard, Secure Digital

(SD)

Hard Disk Drive Interface

Item

Vendor &

Model Name

HGST MORAGA+

HTS541060G9AT00

SEAGATE ST96812A

LF MERCURY

TOSHIBA

MK6034GAX

Specification

HGST MORAGA+

HTS541080G9AT00

ROHS F/W:A60A

SEAGATE ST98823A

LF MERCURY 2

TOSHIBA

MK8032GAX

HGST MORAGA+

HTS541010G9AT00

SEAGATE

ST9100824A LF

MERCURY

TOSHIBA

MK1032GAX

80

512

100

512

Capacity (GB)

Bytes per sector

Data heads

Logical heads

Logical sectors

60

512

2

16

63

Drive Format

Disks

Logical cylinders

Spindle speed

(RPM)

1

16383

5400 RPM

Performance Specifications

Buffer size 2MB

AT Interface ATA/ATAPI-6

ATA-5 for Toshiba

Data transfer rate (buffer to/ from media

Mbytes/s)

Data transfer rate

(host~buffer,

Mbytes/s)

350

100 MB/Sec.

Ultra DMA mode-5

DC Power Requirements

2/3

16

63

1/2

16383

5400 RPM

2MB

ATA/ATAPI-6

ATA-5 for Toshiba

350

100 MB/Sec.

Ultra DMA mode-5

3/4 for Toshiba

16

63

2/3 for Toshiba

16383

5400 RPM

8MB/2MB for Toshiba

ATA/ATAPI-6

ATA-5 for Toshiba

350/450

100 MB/Sec.

Ultra DMA mode-5

4

16

63

SEAGATE

ST9120821A

TOSHIBA

MK1234GAX

WD WD1200UE

120

512

2

16383

5400 RPM

8MB

ATA/ATAPI-6

350

100 MB/Sec.

Ultra DMA mode-5

Chapter 1

Hard Disk Drive Interface

Item

Voltage tolerance

5V(DC) +/- 5%

DVD/CDRW Interface

Item

Vendor & model name

Performance Specification

Transfer rate (KB/sec)

Data Buffer Capacity

Interface

Applicable disc format (for

SONY)

Applicable disc format (for

QSI)

Loading mechanism

Power Requirement

Input Voltage

5V(DC) +/- 5%

Specification

5V(DC) +/- 5% 5V(DC) +/- 5%

With CD Diskette

Specification

LITEON SSC-2485K,GBAS

PANASONIC UJDA-770, GBASE

With DVD Diskette

Sustained:

Max 3.6Mbytes/sec

128 KBytes

IDE/ATAPI (ATA/ATAPI-5)

Sustained:

Max 10.8Mbytes/sec

For Panasonic UJDA770:

CD: CD-DA, CD-ROM, CD-R, CD-RW, CD-ROM XA, Photo CD

(Multi session), Video CD, CD-Extra (CD+), CD-text

DVD:DVD-ROM, DVD-Video, DVD-RAM (2.6GB/4.7GB), DVD-

R, DVD-RW (ver. 1.1) (Supporting Multi Border) DVD+R,

DVD+RW (Supporting Multi Session)

DVD: DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R,

DVD-RW, DVD+R, DVD+RW, DVD-RAM (optional)

CD: CD-DA, CD-ROM/XA, CD-i, Karaoke CD, Video CD, Multisession Photo CD, Enhanced CD, itrax CD, CD extra, CD Plus,

CD-Text, CD-R and CD-RW discs

Load: Manual

Release: (a) Electrical Release (Release Button)

(b) Release by ATAPI command

(c) Emergency Release

5 V +/- 5 % (Operating)

DVD Super Multi Interface

Item

Vendor & model name

Performance Specification

Transfer rate (KB/sec)

Data Buffer Capacity

ATAPI Interface

Applicable disc format

Loading mechanism

Specification

PANASONIC UJ-85J

With CD Diskette

Sustained:

Max 3.6Mbytes/sec

128 KBytes

SFF-8020i, SFF8090 Ver5

With DVD Diskette

Sustained:

Max 10.8Mbytes/sec

Applicable disc format

CD: CD-DA, CD-ROM, CD-ROM XA, PhotoCD (multi-session),

Video CD, Cd-Extra (CD+), CD-text

DVD: DVD-VIDEO, DVD-ROM, DVD-R (3.9GB, 4.7GB) DVD-R

DL, DVD-RW, DVD-RAM, DVD+R, DVD+R DL, DVD+RW

Load: Manual

Release: (a) Electrical Release (Release Button)

(b) Release by ATAPI command

(c) Emergency Release

Power Requirement

Input Voltage 5 V +/- 5 % (Operating)

Chapter 1 35

36

Speaker

Number of speaker

Rated input

Connector type

Item

Video Interface

Item

Chipset

Interface

Supports ZV (Zoomed Video) port

Maximum resolution LCD

Maximum resolution CRT

Audio Interface

Item

Audio Controller

Audio onboard or optional

Mono or Stereo

Resolution

Compatibility

Sampling rate

Internal microphone

Internal speaker / Quantity

Video Memory

Fixed or Upgradeable

Item

Vendor

Memory size

Interface

USB Port

Item

Chipset

USB Compliancy Level

EHCI

Number of USB port

Specification

1

1W

Headphone out, microphone in and line-in

Specification

Intel 945GM (UMA) or Nvidia NV72MV (NVIDIA

®

GeForce

TM

Go

7300)

PCI-E

No

1600X1200 (UXGA)

[email protected]

Specification

Realtek ALC883 Azalia and Amplifier Maxim MAX9710 (for internal speaker) & MAX4411 (for headphone)

Built-in

Stereo

18 bit stereo full duplex

HD audio Interface; S/PDIF output for PCM or AC-3 content

1Hz resolution VSR (Variable Sampling Rate)

Yes

Yes/2 (1.5W speakers)

Specification

Fixed for UMA

Upgradeable for NVIDIA

®

NV44M-V (NVIDIA

®

GeForce

TM

Go

6200)

Intel/NVIDIA

®

UMA: up to 224MB (of system shared memory)

NVIDIA: up to 256MB turbocache(128 MB of dedicated GDDR2

VRAM, up to 128 MB of shared system meory)

PCI-E

Specification built-in ICH7-M

2.0

USB 2.0 (supporting data transfer rate up to 60MB per second)

3

Chapter 1

USB Port

Item

Serial port function control

IEEE 1394 Port

Item

Chipset

InterfaceUSB Compliancy Level

Number of IEEE 1394 port

Connector type

PCMCIA Port

Item

PCMCIA controller

Supports card type

Number of slots

Access location

Supports ZV (Zoomed Video) port

Supports 32 bit CardBus

System Board Major Chips

Item

Core logic

VGA

LAN

IEEE 1394

USB 2.0

Super I/O controller

MODEM

Blue tooth

Wireless 802.11 b

PCMCIA

Audio

Four-in-one card reader

Trackpoint

Keyboard

Item

Keyboard controller

Keyboard vendor & model name

Total number of keypads

Windows logo key

Chapter 1

Specification

Enable/Disable by BIOS Setup

Specification

TI 7411

IEEE 1394 1.0

1

IEEE 1394

Specification

TI PC7411

Type-II

One type-II

Left panel

No ZV support

Yes (IRQ10)

Controller

Intel

®

945GM/PM+ ICH7-M

Intel

®

945GM (UMA)

NVIDIA

®

NV72MV (NVIDIA

®

GeForce

TM

Go 7300)

Broad Com 5787M/5789M

TI PC7411

ICH7-M intergrated

PC 87391

Conexant MC3Z MDC1.5_Azalia

FOX_BRM_2.0

Intel 3945abg/Intel 3945bg

TI PC7411

Codec: Realtek ALC883

TI PC7411

EC NCD97551

Specification

EC NSC97551

DARFON

84/85/88

Yes

37

38

Keyboard

Item

Internal & external keyboard work simultaneously

Battery

Item

Vendor & model name

Battery Type

Pack capacity

Cell voltage

Number of battery cell

Package configuration

Package voltage

Specification

No

Note: Internal and external keyboard can not work simultaneously by software specification.

Specification

Sanyo

Sony

Li-ion

4000 MAH or 4800 MAH

3.7V/cell

6

3 cells in series, 2 series in parallel

14.8V

LCD

Item

Vendor & model name

Specification

12.1XGA TABLET HYDIS

HT12X21

Mechanical Specifications

LCD display area

(diagonal, inch)

12.1

Display technology

Resolution

TFT

XGA (1024x768)

262K Supports colors

Optical Specification

Brightness control

Contrast control keyboard hotkey

No

180 Typical White

Luminance

Contrast ratio

Response time

(msec)

Electrical Specification

450

40 (Tr+Td)

Supply voltage for

LCD display (V)

Viewing Angle

Range

3.0 (Min.), 3.3 (Typ.), 3.6

(Max.)

80 (left/right/down/up)

AC Adaptor

Model number

AC input

Output power

Item Specification

LiteOn PA-1650 19V 65W (3 PIN)

90~264V, 47Hz to 63Hz

65W, [email protected]

Chapter 1

System Power Management

ACPI mode

Mech. Off (G3)

Soft Off (G2/S5)

Working (G0/S0)

Suspend to RAM (S3)

Power Management

All devices in the system are turned off completely.

OS initiated shutdown. All devices in the system are turned off completely.

Individual devices such as the CPU and hard disk may be power managed in this state.

CPU set power down

VGA Suspend

PCMCIA Suspend

Memory Address Map

Memory Address

00100000h-000F0000h

000CFFFFh-000C0000h

00009FFFFh-00000000h

512 KB

640KB

Size Function

System BIOS

VGA BIOS

Conventional memory

I/O Address Map

I/O Address

0000-001F, 0081-008F, 0090-0091,

0093-009F, 00C0-00DF, 040B, 04D6

0D00-FFFF

0020-0021, 0024-0025, 0028-0029,

002C-002D, 0030-0031, 0034-0035,

0038-0039, 003C-003D, 00A0-00A1,

00A4-00A5, 00A8-00A9, 00AC-00AD,

00B0-00B1, 00B4-00B5, 00B8-00B9,

00BC-00BD, 00C0-00DF

0040-0043, 0050-0053

0060, 0064

002E-002F, 004E-004F, 0061, 0063,

0065, 0067, 0080, 0092, 00B2-00B3,

0200-020F, 0600-060F, 0700-070F,

0800-080F, 1000-107F, 1180-11BF,

0066

0070-0077

00F0

0170-0177, 0376

01F0-01F7, 03F6

0274-0277, 0279, 0A79,

0378-037F, 0778-077B

03B0-03BB, 03C0-03DF, 1800-1807,

06F8-06FF

1810-181F

1820-183F

1840-185F

1860-187F

1880-189F

DMA controller

Function

PCI bus

Programmable interrupt controller

System timer

Acer Tablet PC Keyboard Buttons (101/102 key)

Main board resources

Microsoft ACPI-Compliant Embedded Controller

System CMOS/real time clock

Numeric data processor

Secondary IDE Channel

Primary IDE Channel

ISAPNP Read Data Port

Printer Port (LPT1)

Intel (R) 82852/82855 GM/GME Graphics Controller

Wacom Serial Pen Tablet

Intel (R) 82801DBM Ultra ATA Storage Controller-24CA

Intel (R) 82801DB/DBM USB Universal Host Controller-24C2

Intel (R) 82801DB/DBM USB Universal Host Controller-24C4

Intel (R) 82801DB/DBM USB Universal Host Controller-24C7

Intel (R) 82801DB/DBM SMBus Controller-24C3

Chapter 1 39

40

I/O Address Map

I/O Address

18C0-18FF, 1C00-1CFF

2000-207F, 2400-24FF

FB00-FBFE

FC00-FCFF, FD00-FDFF, FE00-

FEFF, FF00-FFFF

IRQ Assignment Map

Interrupt Channel

IRQ08

IRQ09

IRQ10

IRQ11

IRQ12

IRQ13

IRQ14

IRQ15

IRQ00

IRQ01

IRQ02

IRQ03

IRQ04

IRQ05

IRQ06

IRQ07

DMA Channel Assignment

Item

00

01

02

03

Function

Cystal WDM AC97 Driver for ICH4

Agere System AC97 Modem

O2Micro SmartCardBus Reader

Generic Cardbus Controller

System timer

System time

Keyboard

Progammable Interrupt Controller

FIR

Communications Port (COM1)

Free

Wacom Serial Pen Tablet/Standard Floppy Disk Controller

ECP Printer Port (LPT1)/O2Micro Smart CardBus Reader

Real Time Clock

SCI

PCI Device (LAN, Audio, Modem...)

USB 1.1, USB 2.0, VGA

PS/2 Mouse

Numeric data processor

1st EIDE device (hard disk)

2nd EIDE device (optical drive)

Specification

PnP Audio System CODEC

Free

Standard Floppy Disck Controller

ECP Printer Port

Chapter 1

Chapter 2

System Utilities

BIOS Setup Utility

The BIOS Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/

Output System).

Your computer is already properly configured and optimized, and you do not need to run this utility. However, if you encounter configuration problems, you may need to run Setup. Please also refer to Chapter 4

Troubleshooting when problem arises.

To activate the BIOS Utility, press m

during POST (when “Press <F2> to enter Setup” message is prompted on the bottom of screen).

Press m

to enter setup. Press <F12> during POST to enter multi-boot menu. In this menu, user can change boot device without entering BIOS SETUP Utility.

Chapter 2 41

Navigating the BIOS Utility

There are six menu options: Information, Main, Advanced, Security, Boot, and Exit.

Follow these instructions:

T

T

To choose a menu, use the cursor left/right keys ( zx

).

To choose a parameter, use the cursor up/down keys ( wy

).

T

T

T

T

To change the value of a parameter, press p or q

.

A plus sign (+) indicates the item has sub-items. Press e

to expand this item.

Press

^

while you are in any of the menu options to go to the Exit menu.

In any menu, you can load default settings by pressing t

. You can also press u

to save any changes made and exit the BIOS Setup Utility.

NOTE:

You can change the value of a parameter if it is enclosed in square brackets. Navigation keys for a particular menu are shown on the bottom of the screen. Help for parameters are found in the Item

Specific Help part of the screen. Read this carefully when making changes to parameter values.

This menu provides you the information of the system.

42 Chapter 2

Information

Parameter

IDE1 Model Name

IDE1 Serial #

IDE2 Model Name

IDE2 Serial #

Serial Number

UUID Number

Description

Shows the Model name of HDD installed on Primary IDE master. The hard disk model name is automatically detected by the system. If there is no hard disk present or unknown type, “

None

” should be shown on this field.

This field display the Serial number of HDD installed on Primary IDE master. If no Hard disk or other devices are installed on Primary IDE master, then it will display a blank line.

This item will show the Model name of device installed on Secondary IDE master. The hard disk or CD-ROM model name is automatically detected by the system. If there is no hard disk or CD-ROM present or unknown type, “

None

” should be shown on this field.

This item will show the Serial number of HDD installed on Secondary IDE master. If no hard disk or other devices are installed on Primary IDE master, then it will display a blank line.

This field displays the serial number of this unit.

UUID=32bytes

Chapter 2 43

Main

The Main screen displays a summary of your computer hardware information, and also includes basic setup parameters. It allows the user to specify standard IBM PC AT system parameters.

NOTE:

The screen above is for reference only. Actual values may differ.

The table below describes the parameters in this screen. Settings in

boldface

are the default and suggested parameter settings.

Parameter

System Time

System Date

System Memory

Extended Memory

VGA Memory

Quiet Boot

Power on display

LCD Auto Dim

Description

Sets the system time.

Sets the system date.

Format/Option

Format: HH:MM:SS

(hour:minute:second) System Time

Format MM/DD/YYYY (month/day/ year)

System Date

This field reports the memory size of the system.

Memory size is fixed to 640MB

This field reports the memory size of the extended memory in the system.

Extended Memory size=Total memory size-1MB

Shows the VGA memory size. The default value is set to 8MB.

Note: 8MB is VGA memory size under DOS mode. Dynamic video memory allocation up to

64MB in Windows mode.

Determines if Customer Logo will be displayed or not; shows Summary Screen is disabled or enabled.

Enabled: Customer Logo is displayed, and

Summary Screen is disabled.

Disabled: Customer Logo is not displayed, and

Summary Screen is enabled.

Auto: During power process, the system will detect if any display device is connected on external video port. If any external display device is connected, the power on display will be in CRT

(or projector) only mode. Otherwise it will be in

LCD only mode.

Both: Simultaneously enable both the integrated

LCD screen and the system’s external video port

(for an external CRT or projector).

Determines if the system will automatically dim the LCD brightness in order to save power when

AC is not present.

Indicates that whether the notebook can boot from LAN or not.

Option:

Enabled

or Disabled

Option:

Auto

or Both

Option:

Enabled

or

Disabled

Option:

Enabled

or

Disabled

PXE (Preboot Execution

Environment) Boot From

LAN

F12 Boot Menu Determines if the OEM POST screen will have

“Press <F12> Change Boot Device” or not during user’s quite boot.

Option:

Enabled

or

Disabled

NOTE:

The sub-items under each device will not be shown if the device control is set to disable or auto. This is because the user is not allowed to control the settings in these cases.

44 Chapter 2

Advanced

The Advanced menu screen contains parameters involving your hardware devices. It also provides advanced settings of the system.

PhoenixBIOS Setup Utility

Information Main Advanced Security Boot Exit

Item Specific Help

Infrared/Serial port: : [Disabled]

F1 Help

↑ ↓

Select Item F5/F6 Change Values F9 Setup Defaults

Esc Exit

← →

Enter

4

Sub - Menu F10 Save and Exit

The table below describes the parameters in the screen. Settings in

boldface

are the default and suggested parameter settings.

Parameter

Infrared/Serial port

Description

Enables, disables the infrared/serial port.

Options

Enabled

/Disabled

Chapter 2 45

Security

The Security screen contains parameters that help safeguard and protect your computer from unauthorized use.

PhoenixBIOS Setup Utility

Information Main Advanced Security Boot Exit

Item Specific Help

User Password is

Supervisor Password is

Set User Password

Set Supervisor Password

Password on boot:

Clear

Clear

[Enter]

[Enter]

[Enabled]

Supervisor Password controls accesses of the whole setup utility.

It can be used to boot up when Password on boot is enabled.

F1 Help ↑ ↓ Select Item F5/F6 Change Values F9

Esc Exit

← →

Enter

4

Sub -Menu

Setup Defaults

F10 Save and Exit

The table below describes the parameters in this screen. Settings in

boldface

are the default and suggested parameter settings.

Parameter

User Password is

Supervisor Password is

Set User Password

Set Supervisor Password

Password on Boot

Description

Shows the setting of the uer password.

Shows the setting of the Supervisor password

Press Enter to set the user password. When set, this password protects the BIOS Setup

Utility from unauthorized access.

Press Enter to set the supervisor password.

When set, this password protects the BIOS

Setup Utility from unauthorized access.

Defines whether a password is required or not while the events defined in this group happened. The following sub-options are all requires the Supervisor password for changes and should be grayed out if the user password was used to enter setup.

Option

Clear

or Set

Clear

or Set

Disabled

or Enabled

NOTE:

When you are prompted to enter a password, you have three tries before the system halts. Don’t forget your password. If you forget your password, you may have to return your notebook computer to your dealer to reset it.

46 Chapter 2

Setting a Password

Follow these steps as you set the user or the supervisor password:

1.

Use the w

and y

keys to highlight the Set Supervisor Password parameter and press the

Set Supervisor Password box appears: e

key. The

2.

Type a password in the “Enter New Password” field. The password length can not exceeds 8 alphanumeric characters (A-Z, a-z, 0-9, not case sensitive). Retype the password in the “Confirm New

Password” field.

IMPORTANT:

Be very careful when typing your password because the characters do not appear on the screen.

3.

Press

e

.

After setting the password, the computer sets the User Password parameter to “Set”.

4.

If desired, you can opt to enable the Password on boot parameter.

5.

When you are done, press u

to save the changes and exit the BIOS Setup Utility.

Removing a Password

Follow these steps:

1.

Use the w

and y

keys to highlight the Set Supervisor Password parameter and press the

Set Password box appears: e

key. The

2.

3.

4.

Type the current password in the Enter Current Password field and press e

.

Press e

twice

without

typing anything in the Enter New Password and Confirm New Password fields.

The computer then sets the Supervisor Password parameter to “Clear”.

When you have changed the settings, press u

to save the changes and exit the BIOS Setup Utility.

Changing a Password

1.

Use the w

and y

keys to highlight the Set Supervisor Password parameter and press the e

key. The

Set Password box appears:

Chapter 2 47

48

2.

3.

4.

5.

6.

Type the current password in the Enter Current Password field and press e

.

Type a password in the Enter New Password field. Retype the password in the Confirm New Password field.

Press e

. After setting the password, the computer sets the User Password parameter to “Set”.

If desired, you can enable the Password on boot parameter.

When you are done, press u

to save the changes and exit the BIOS Setup Utility.

If the verification is OK, the screen will display as following.

The password setting is complete after the user presses u

.

If the current password entered does not match the actual current password, the screen will show you the

Setup Warning.

If the new password and confirm new password strings do not match, the screen will display the following message.

Chapter 2

Boot

This menu allows the user to decide the order of boot devices to load the operating system. Bootable devices includes the distette drive in module bay, the onboard hard disk drive and the CD-ROM in module bay.

PhoenixBIOS Setup Utility

Information Main Advanced Security Boot Exit

Item Specific Help

Hard Drive

Removable Device

CD-ROM Drive

Keys used to view or configure devices: <Enter> expnads or

Collapses Devices with a

+ or -

<Ctrl+Enter> expnads all

<Shift + 1> enables or disables a device.

<+> and <-> moves the device up or down.

<n> May move removable device between Hard Disk or

Removable Disk.

<d> Remove a device that is not installed.

F1 Help

Esc Exit

↑ ↓

← →

Select Item F5/F6 Change Values F9 Setup Defaults

Enter Select Sub -Menu F10 Save and Exit

Chapter 2 49

Exit

The Exit screen contains parameters that help safeguard and protect your computer from unauthorized use.

PhoenixBIOS Setup Utility

Information Main Advanced Security Boot Exit

Item Specific Help

Exit Saving Changes

Exit Discarding Changes

Load Setup Defaults

Discard Changes

Save Changes

Exit System Setup and save your changes to

CMOS.

F1 Help

↑ ↓

Select Item F5/F6 Change Values F9

Esc Exit

Select Menu Enter Select

4

Sub - Menu F10

Setup Defaults

Save and Exit

The table below describes the parameters in this screen.

Parameter

Exit Saving Changes

Exit Discarding Changes

Load Setup Default

Discard Changes

Save Changes

Description

Exit System Setup and save your changes to CMOS.

Exit utility without saving setup data to CMOS.

Load default values for all SETUP item.

Load previous values from CMOS for all SETUP items.

Save Setup Data to CMOS.

50 Chapter 2

BIOS Flash Utility

The BIOS flash memory update is required for the following conditions:

T

New versions of system programs

T

T

New features or options

Restore a BIOS when it becomes corrupted.

Use the Phlash utility to update the system BIOS flash ROM.

NOTE:

If you do not have a crisis recovery diskette at hand, then you should create a

Crisis Recovery

Diskette

before you use the Phlash utility.

NOTE:

Do not install memory-related drivers (XMS, EMS, DPMI) when you use the Phlash.

NOTE:

Please use the AC adaptor power supply when you run the Phlash utility. If the battery pack does not contain enough power to finish BIOS flash, you may not boot the system because the BIOS is not completely loaded.

2.

3.

Fellow the steps below to run the Phlash.

1.

Prepare a bootable diskette.

Copy the Phlash utilities to the bootable diskette.

Then boot the system from the bootable diskette. The Phlash utility has auto-execution function.

Chapter 2 51

Remove HDD/BIOS Utility

This section provide you with removing HDD/BIOS method:

Remove HDD Password:

T

If you key in wrong HDD password for three time, “HDD password error code” would display on the screen. See the image below.

T

1.

2.

3.

If you need to solve HDD password locked problem, you can run HDD_PW.EXE

Key in “hdd_pw 15494 0”

Select “2”

Choose one upper-case string

52

T

Reboot system and key in “0KJFN42” or “UVEIQ96” to HDD user password.

Chapter 2

Remove BIOS Password:

T

If you key in wrong Supervisor Password for three time, “System Disabled” would display on the screen. See the image below.

Chapter 2 53

T

1.

2.

If you need to solve BIOS password locked problem, you can run BIOS_PW.EXE

Key in “bios_pw 14452 0”

Choose one upper-case string

54

T

Reboot the system and key in “qjjg9vy” or “07yqmjd” to BIOS user password.

Chapter 2

Chapter 2 55

56 Chapter 2

Chapter 3

Machine Disassembly and Replacement

This chapter contains step-by-step procedures on how to disassemble the notebook computer for maintenance and troubleshooting.

To disassemble the computer, you need the following tools:

T

Wrist grounding strap and conductive mat for preventing electrostatic discharge

T

Philips screw drivers

T

Flat head screwdriver

NOTE:

The screws for the different components vary in size. During the disassembly process, group the screws with the corresponding components to avoid mismatch when putting back the components.

When you remove the middle cover, please be careful not to scrape the cover.

Chapter 3 57

General Information

Before You Begin

Before proceeding with the disassembly procedure, make sure that you do the following:

1.

Turn off the power to the system and all peripherals.

2.

Unplug the AC adapter and all power and signal cables from the system.

3.

Remove the battery pack.

NOTE:

TravelMate C210 series product uses tape to fasten the antenna/cable, you may need to tear the tape before you remove the antenna.

NOTE:

The disassembly is based on an engineering sample, therefore, the number of the screws and the color of the system may differ from a finish-good unit.

58 Chapter 3

Disassembly Procedure Flowchart

The flowchart on the succeeding page gives you a graphic representation on the entire disassembly sequence and instructs you on the components that need to be removed during servicing. For example, if you want to remove the system board, you must first remove the then disassemble the inside assembly frame in that order.

Start

Battery

M3L4*1

HDD Cover ODD Module

M2.5L6*1

Keyboard

*1

DIMM Cover

*2

Mini PCI

Cover

HDD Module

HDD Holder

Optical Drive

HDD Drive

M2L3*4

ODD Bracket

Hinge Covers

M2L8*3

M2L4*4

Keyboard

Support Plate

Middle Cover

Memory

(upgrade)

Memory/

MDC board

M2L4.5*2

Inverter

RTC Battery Button Board

M2L4.5*2

M2L4*2

Optical Device

Board

ODD

Connector

Touchpad

Upper

Assembly

Toucpad

Cover

Touchpad

Scroll Key

Touchpad

Cable

Wireless LAN

Card

Touchpad

Button

M2L4*2

Speaker

Module

M2L4.5*2

LED Board

Disconnect

Bluetooth

M2.5L5*4

LCD Module

Main Antenna

M2L4.5*2

M2.5L6*2

M2L6*12

Lower case left cover

LCD/w cable, brakets

Lower

Assembly

M2L4*2

Lower case right cover

M2L3*8 for CMO

LCD Brackets LCD

M2L4*1

Main Board

Assembly

M2L4*1

Extension

Board

Heatsink

Module

*4

CPU

LCD Panel

LCD Coaxial

Cable

Main Board

Chapter 3 59

Removing the Battery Pack

1.

2.

Release the battery lock.

Slide the battery latch then remove the battery.

60 Chapter 3

Removing the HDD Module/ODD Module/Memory/Wireless LAN Card/

LCD Module and the Keyboard

Removing the Hard Disk Drive Module

1.

2.

3.

Remove the two screws fastening the HDD cover.

Detach the HDD cover from the notebook.

Pull out the hard disk drive then detach it from the main unit.

Removing the Optical Disk Drive Module

1.

Slide the ODD latch then remove the ODD module from the main unit carefully.

Removing the Memory

1.

2.

3.

Remove the two screws that fasten the DIMM door.

Detach the DIMM door.

Pop out the memory then remove it.

Removing the Wireless LAN Card

1.

2.

Remove the two screws holding the wireless LAN cover.

Detach the wirless cover.

Chapter 3 61

3.

4.

Disconnect wireless main and auxiliary antenna.

Pop out the wireless LAN card then remove it.

Removing the LCD Module

1.

2.

Remove two screws holding the left and the right hinge cover.

Remove the right hinge cover.

3.

4.

5.

Remove the left hinge cover.

Turn over the entire LCD module as shown.

Disconnect the six screws fastening the middle cover.

62

6.

7.

Detach the middle cover carefully.

Then disconnect the LCD cable.

Chapter 3

8.

9.

Disconnect the wireless LAN antenna.

Remove the four screws fastening the LCD module to the main unit.

10.

Detach the LCD module from the main unit.

Removing the Keyboard

1.

2.

3.

Remove the screw fastening the keyboard on the bottom.

Disconnect the trackpoint cable.

Disconnect the keyboard cable then remove the keyobar.

Chapter 3 63

Disassembling the Main Unit

Separating the Main Unit into the Upper Case And the Lower Case Assembly

1.

2.

3.

Remove the 11 screws fastening the upper case and the lower case assembly.

Then remove the 10 screws holding the upper case and the lower case assembly on bottom side.

Disconnect the launch board FFC.

4.

5.

6.

Disconnect the joystick board FFC as shown.

Disconnect the bluetooth cable from the main board as shown.

Tear off the capton fastening the wireless LAN antenna set then pull out the wireless LAN antenna set.

7.

8.

9.

Detach the upper case assembly carefully.

Disconnect the dynamic board cable from the main board then remove it.

Remove the two screws fastening the dynamic board then detach the dynamic board from the main board.

64

10.

Disconnect the speaker cable from the main board.

11.

Detach the main board assembly from the lower case carefully.

Chapter 3

Disassembling the Upper Case, the Lower Case and the Main Board Assembly

1.

2.

3.

Remove the speaker from the lower case.

Remove the three screws fastening the launch board.

Then detach the launch board from the lower case.

4.

5.

6.

Disconnect the launch board FFC.

Remove the two screws fastening the joystick board.

Remove the joystick board assembly from the lower case.

7.

8.

9.

Disconnect the joystick board FFC.

Remove the two screws fastening the Bluetooth module.

Remove the Bluetooth module from the lower case carefully.

10.

Disconnect the Bluetooth cable from the Bluetooth module.

11.

Remove the eight screws fastening the thermal module.

Chapter 3 65

66

12.

Detach the thermal module from the main board and disconnect the fan cable then remove the thermal module.

13.

Use a flat-headed screwdriver to release the CPU lock.

14.

Remove the CPU from the socket carefully.

15.

Remove the three screws fastening the PCMCIA slot.

16.

Detach the PCMCIA slot from the main board.

17.

Remove the two screws fastening the modem board.

18.

Disconnect the modem board from then main board and disconnect the modem board cable then remove the board.

Chapter 3

Disassembling the LCD Module

1.

2.

3.

Remove the four LCD screw caps.

Then remove the six screws fastening the LCD bezel.

Remove one screw holding the LCD support on one side.

4.

5.

6.

Remove another screw holding the LCD support on the other side as shown.

Open the cover as shown.

Open the other cover protecting antenna set as shown then remove the LCD support.

7.

8.

9.

Detach the LCD bezel from the LCD module carefully.

Remove the four screws fastening the LCD assembly.

Remove the two screws fastening the finger board.

10.

Turn over the finger board and disconnect the cable then remove the finger board.

11.

Remove the two screws fastening the power board.

12.

Lift the LCD as shown to take out the power board.

Chapter 3 67

68

13.

Turn over the power board and disconnect the cable then remove the board.

14.

Remove the two screws fastening the launch board.

15.

Disconnect the launch board cable then remove the launch board.

16.

Disconnect the inverter cable then remove the inverter.

17.

Take out LCD assembly from the LCD panel (The LCD support has been removed in step 3 to step 6).

18.

Disconnect the LCD cable from the LCD then remove the cable.

19.

Remove the three screws fastening the digitizer.

20.

Then detach the digitizer as shown.

Chapter 3

Disassembling the External Modules

Disassembling the HDD Module

1.

2.

3.

Remove two screws fastening the HDD bracket on one side.

Remove another two screws holding the HDD bracket on another side.

Then remove the last screws fastening the HDD bracket.

4.

5.

Detach the HDD from the HDD bracket carefully.

Disconnect the HDD connector as shown.

Disassembling the Optical Disc Drive Module

1.

2.

3.

Remove two screws fastening the ODD holder on one side.

Remove another two screws holding the ODD holder on its rear side.

Then remove the last screws fastening the ODD holder.

4.

5.

Remove the ODD holder from the ODD.

Disconnect the ODD connector from the ODD.

Chapter 3 69

70 Chapter 3

Chapter 4

Troubleshooting

3.

4.

1.

2.

Use the following procedure as a guide for computer problems.

NOTE:

The diagnostic tests are intended to test this model. Non-Acer products, prototype cards, or modified options can give false errors and invalid system responses.

5.

Duplicate symptom and obtain the failing symptoms in as much detail as possible.

Distinguish symptom. Verify the symptoms by attempting to re-create the failure by running the diagnostic test or by repeating the same operation.

Disassemble and assemble the unit without any power sources.

If any problem occurs, you can perform visual inspection before you fellow this chapter’s instructions. You can check the following: power cords are properly connected and secured; there are no obvious shorts or opens; there are no obviously burned or heated components; all components appear normal.

Use the following table with the verified symptom to determine which page to go to.

Symptoms (Verified)

Power failure. (The power indicator does not go on or stay on.)

POST does not complete. No beep or error codes are indicated.

POST detects an error and displayed messages on screen.

Other symptoms (i.e. LCD display problems or others).

Symptoms cannot be re-created (intermittent problems).

Go To

“Power System Check” on page 73.

“Power-On Self-Test (POST) Error Message” on page 75

“Undetermined Problems” on page 87

“Error Message List” on page 76

“Power-On Self-Test (POST) Error Message” on page 75

Use the customer-reported symptoms and go to

“Power-On Self-Test (POST) Error Message” on page 75

“Intermittent Problems” on page 86

“Undetermined Problems” on page 87

Chapter 4 71

System Check Procedures

External Diskette Drive Check

Do the following to isolate the problem to a controller, driver, or diskette. A write-enabled, diagnostic diskette is required.

NOTE:

Make sure that the diskette does not have more than one label attached to it. Multiple labels can cause damage to the drive or cause the drive to fail.

2.

3.

Do the following to select the test device.

1.

Boot from the diagnostics diskette and start the diagnostics program.

See if FDD Test is passed as the program runs to FDD Test.

Follow the instructions in the message window.

1.

2.

If an error occurs with the internal diskette drive, reconnect the diskette connector on the system board.

If the error still remains:

3.

Reconnect the external diskette drive/DVD-ROM module.

Replace the external diskette drive/CD-ROM module.

Replace the main board.

External CD-ROM Drive Check

2.

3.

Do the following to isolate the problem to a controller, drive, or CD-ROM. Make sure that the CD-ROM does not have any label attached to it. The label can cause damage to the drive or can cause the drive to fail.

Do the following to select the test device:

1.

Boot from the diagnostics diskette and start the diagnostics program.

2.

3.

See if CD-ROM Test is passed when the program runs to CD-ROM Test.

Follow the instructions in the message window.

If an error occurs, reconnect the connector on the System board. If the error still remains:

1.

Reconnect the external diskette drive/CD-ROM module.

Replace the external diskette drive/CD-ROM module.

Replace the main board.

Keyboard or Auxiliary Input Device Check

1.

2.

3.

Remove the external keyboard if the internal keyboard is to be tested.

If the internal keyboard does not work or an unexpected character appears, make sure that the flexible cable extending from the keyboard is correctly seated in the connector on the system board.

If the keyboard cable connection is correct, run the Keyboard Test.

If the tests detect a keyboard problem, do the following one at a time to correct the problem. Do not replace a non-defective FRU:

Reconnect the keyboard cables.

Replace the keyboard.

Replace the main board.

72

The following auxiliary input devices are supported by this computer:

T

Numeric keypad

T

External keyboard

If any of these devices do not work, reconnect the cable connector and repeat the failing operation.

Chapter 4

Memory check

2.

3.

Memory errors might stop system operations, show error messages on the screen, or hang the system.

1.

Boot from the diagnostics diskette and start the doagmpstotics program (please refer to main board.

Go to the diagnostic memory in the test items.

Press F2 in the test items.

4.

Follow the instructions in the message window.

NOTE:

Make sure that the DIMM is fully installed into the connector. A loose connection can cause an error.

Power System Check

2.

3.

To verify the symptom of the problem, power on the computer using each of the following power sources:

1.

Remove the battery pack.

Connect the power adapter and check that power is supplied.

Disconnect the power adapter and install the charged battery pack; then check that power is supplied by the battery pack.

If you suspect a power problem, see the appropriate power supply check in the following list:

T

“Check the Battery Pack” on page 74

Chapter 4 73

Check the Battery Pack

1.

2.

To check the battery pack, do the following:

From Software:

Check out the Power Management in control Panel

In Power Meter, confirm that if the parameters shown in the screen for Current Power Source and Total

Battery Power Remaining are correct.

3.

4.

Repeat the steps 1 and 2, for both battery and adapter.

This helps you identify first the problem is on recharging or discharging.

From Hardware:

1.

Power off the computer.

2.

Remove the battery pack and measure the voltage between battery terminals 1(+) and 6(ground). See the following figure

3.

If the voltage is still less than 7.5 Vdc after recharging, replace the battery.

To check the battery charge operation, use a discharged battery pack or a battery pack that has less than 50% of the total power remaining when installed in the computer.

If the battery status indicator does not light up, remove the battery pack and let it return to room temperature.

Re-install the battery pack.

If the charge indicator still does not light up, replace the battery pack. If the charge indicator still does not light up, replace the DC/DC charger board.

Touchpad check

3.

4.

If the touchpad doesn’t work, do the following actions one at a time to correct the problem. Do not replace a non-defective FRU:

1.

2.

After rebooting, run Tracking Pad PS2 Mode Driver. For example, run Syn touch driver.

Run utility with the PS/2 mouse function and check if the mouse is working.

5.

If the the PS/2 mouse does not work, then check if the main board to switch board FPC is connected O.K.

If the main board to switch board FPC is connected well, then check if the FCC on touch pad PCB connects properly.

If the FFC on touch pad PCB connects properly, then check if LS851 JP1 Pin6=5V are pulese. If yes, then replace switch board. If no, then go to next step.

6.

7.

Replace touch pad PCB.

If the touch pad still does not work, then replace FPC on Track Pad PCB.

After you use the touchpad, the pointer drifts on the screen for a short time. This self-acting pointer movement can occur when a slight, steady pressure is applied to the touchpad pointer. This symptom is not a hardware problem. No service actions are necessary if the pointer movement stops in a short period of time.

74 Chapter 4

Power-On Self-Test (POST) Error Message

The POST error message index lists the error message and their possible causes. The most likely cause is listed first.

NOTE:

Perform the FRU replacement or actions in the sequence shown in FRU/Action column, if the FRU replacement does not solve the problem, put the original part back in the computer. Do not replace a non-defective FRU.

This index can also help you determine the next possible FRU to be replaced when servicing a computer.

If the symptom is not listed, see “Undetermined Problems” on page 87.

The following lists the error messages that the BIOS displays on the screen and the error symptoms classified by function.

NOTE:

Most of the error messages occur during POST. Some of them display information about a hardware device, e.g., the amount of memory installed. Others may indicate a problem with a device, such as the way it has been configured.

NOTE:

If the system fails after you make changes in the BIOS Setup Utility menus, reset the computer, enter

Setup and install Setup defaults or correct the error.

Chapter 4 75

Index of Error Messages

Error Message List

Struck Key

Error Messages

System CMOS checksum bad - Default configuration used

Real time clock error

Previous boot incomplete - Default configuration used

Invalid System Configuration Data

Operating system not found

FRU/Action in Sequence

See ““Keyboard or Auxiliary Input Device Check” on page 72

RTC battery

Run BIOS Setup Utility to reconfigure system, then reboot system.

RTC battery

Run BIOS Setup Utility to reconfigure system time, then reboot system.

Main board

“Load Default Settings” in BIOS Setup Utility.

RTC batter

Main baord.

“Load Default Settings” in BIOS Setup Utility.

Main board.

Enter Setup and see if fixed disk and drive A are properly identified.

Dikette drive

Hard disk drive

Main board.

76 Chapter 4

Error Message List

No beep Error Messages

Power-on indicator turns off and LCD is blank.

Power-on indicator turns on and LCD is blank.

Power-on indicator turns on and LCD is blank.

But you can see POST on an external CRT.

Power-on indicator turns on and a blinking cursor shown on LCD during POST.

FRU/Action in Sequence

Power source (battery pack and power adapter.) See “Power

System Check” on page 73

Ensure every connector is connected tightly and correctly.

Reconnect the DIMM.

Main board.

Power source (battery pack and power adapter.) See “Power

System Check” on page 73

Reconnect the LCD connector

Hard disk drive

LCD cable

LCD inverter

LCD

Main board

Reconnect the LCD connectors.

LCD cable

LCD inverter

LCD

Main board

Ensure every connector is connected tightly and correctly.

Main board

Chapter 4 77

POST Codes

Code

28h

29h

2Ah

2Ch

2Eh

20h

22h

24h

26h

17h

18h

1Ah

1Ch

12h

13h

14h

16h

08h

09h

0Ah

0Bh

02h

03h

04h

06h

0Ch

0Eh

0Fh

10h

11h

2Fh

30h

3Ch

3Dh

42h

45h

46h

32h

33h

36h

38h

3Ah

78

1-2-2-3

1-3-1-1

1-3-1-3

1-3-4-1

1-3-4-3

1-4-1-1

2-1-2-3

Beeps POST Routine Description

Verify Real Mode

Disable Non-Maskable Interrupt (NMI)

Get CPU type

Initialize system hardware

Initialize chipset with initial POST values

Set IN POST flag

Initialize CPU registers

Enable CPU cache

Initialize caches to initial POST values

Initialize I/O component

Initialize the local bus IDE

Initialize Power Management

Load alternate registers with initial POST values

Restore CPU control word during warm boot

Initialize PCI Bus Mastering devices

Initialize keyboard controller

BIOS ROM checksum

Initialize cache before memory autosize

8254 timer initialization

8237 DMA controller initialization

Reset Programmable Interrupt Controller

Test DRAM refresh

Test 8742 Keyboard Controller

Set ES segment register to 4 GB

Enable A20 line

Autosize DRAM

Initialize POST Memory Manager

Clear 215 KB base RAM

RAM failure on address line xxxx

RAM failure on data bits xxxx of low byte of memory bus

Enable cache before system BIOS shadow

RAM failure on data bits xxxx of high byte of memory bus

Test CPU bus-clock frequency

Initialize Phoenix Dispatch Manager

Warm start shut down

Shadow system BIOS ROM

Autosize cache

Advanced configuration of chipset registers

Load alternate registers with CMOS values

Initialize interrupt vectors

POST device initialization

Check ROM copyright notice

Chapter 4

7Eh

80h

81h

82h

70h

72h

76h

7Ch

83h

84h

85h

86h

87h

88h

89h

8Ah

8Bh

8Ch

5Ah

5Bh

5Ch

60h

52h

54h

58h

59h

4Ch

4Eh

50h

51h

48h

49h

4Ah

4Bh

68h

69h

6Ah

6Bh

62h

64h

66h

67h

6Ch

6Eh

Chapter 4

Code

2-2-3-1

Beeps POST Routine Description

Check video configuration against CMOS

Initialize PCI bus and devices

Initialize all video adapters in system

QuietBoot start (optional)

Shadow video BIOS ROM

Display BIOS copyright notice

Display CPU type and speed

Initialize EISA board

Test keyboard

Set key click if enabled

Test for unexpected interrupts

Initialize POST display service

Display prompt “Press F2 to enter SETUP”

Disable CPU cache

Test RAM between 512 and 640 KB

Test extended memory

Test extended memory address lines

Jump to User Patch1

Configure advanced cache registers

Initialize Multi Processor APIC

Enable external and CPU caches

Setup System Management Mode (SMM) area

Display external L2 cache size

Load custom defaults (optional)

Display shadow-area message

Display possible high address for UMB recovery

Display error messages

Check for configuration errors

Check for keyboard errors

Set up hardware interrupt vectors

Initialize coprocessor if present

Disable onboard Super I/O ports and IRQs

Late POST device initialization

Detect and install external RS232 ports

Configure non-MCD IDE controllers

Detect and install external parallel ports

Initialize PC-compatible PnP ISA devices

Re-initialize onboard I/O ports

Configure Motherboard Configurable Devices

(optional)

Initialize BIOS Area

Enable Non-Maskable Interrupts (NMIs)

Initialize Extended BIOS Data Area

Test and initialize PS/2 mouse

Initialize floppy controller

79

80

C3h

C4h

C5h

C6h

BFh

C0h

C1h

C2h

C7h

C8h

C9h

D2h

B5h

B6h

B9h

BAh

BBh

BCh

BDh

BEh

A4h

A8h

AAh

ACh

AEh

B0h

B2h

B4h

9Eh

9Fh

A0h

A2h

99h

9Ah

9Ch

9Dh

93h

95h

96h

97h

98h

8Fh

90h

91h

92h

Code

1-2

1

Beeps POST Routine Description

Determine number of ATA drives (optional)

Initialize hard-disk controllers

Initialize local-bus hard-disk controllers

Jump to UserPatch2

Build MPTABLE for multi-processor boards

Install CD ROM for boot

Clear huge ES segment register

Fixup Multi Processor table

Search for option ROMs. One long, two short beeps on checksum failure.

Check for SMART drive (optional)

Shadow option ROMs

Set up Power Management

Initialize security engine (optional)

Enable hardware interrupts

Determine number of ATA and SCSI drives

Set time of day

Check key lock

Initialize Typematic rate

Erase F2 prompt

Scan for F2 key stroke

Enter SETUP

Clear Boot flag

Check for errors

POST done- prepare to boot operating system

One short beep before boot

Terminate QuietBoot (optional)

Check password (optional)

Prepare Boot

Initialize DMI parameters

Initialize PnP Option ROMs

Clear parity checkers

Display MultiBoot menu

Clear screen (optional)

Check virus and backup reminders

Try to boot with INT 19

Initialize POST Error Manager (PEM)

Initialize error logging

Initialize error display function

Initialize system error handler

PnPnd dual CMOS (optional)

Initialize notebook docking (optional)

Initialize notebook docking late

Force check (optional)

Extended checksum (optional)

Unknown interrupt

Chapter 4

E8h

E9h

EAh

EBh

ECh

EDh

EEh

EFh

E4h

E5h

E6h

E7h

E0h

E1h

E2h

E3h

F4h

F5h

F6h

F7h

F0h

F1h

F2h

F3h

Code

1

Beeps For Boot Block in Flash ROM

Initialize the chipset

Initialize the bridge

Initialize the CPU

Initialize the system timer

Initialize system I/O

Check force recovery boot

Checksum BIOS ROM

Go to BIOS

Set Huge Segment

Initialize Multi Processor

Initialize OEM special code

Initialize PIC and DMA

Initialize Memory type

Initialize Memory size

Shadow Boot Block

System memory test

Initialize interrupt vectors

Initialize Run Time Clock

Initialize video

Initialize System Management Mode

Output one beep before boot

Boot to Mini DOS

Clear Huge Segment

Boot to Full DOS

Chapter 4 81

Index of Symptom-to-FRU Error Message

LCD-Related Symptoms

Symptom / Error

LCD backlight doesn't work

LCD is too dark

LCD brightness cannot be adjusted

Unreadable LCD screen

Missing pels in characters

Abnormal screen

Wrong color displayed

LCD has extra horizontal or vertical lines displayed.

Action in Sequence

First, plug a monitor to CRT port. Next, enter BIOS utility to running

“Load Default Settings” then reboot the system.

Reconnect the LCD connectors.

Keyboard (if the brightness function key doesn't work).

LCD cable

LCD inverter

LCD

Main board

Enter BIOS Utility to execute “Load Setup Default Settings”, then reboot system.

Reconnect the LCD connectors.

Keyboard (if the brightness function key doesn't work).

LCD cable

LCD inverter

LCD

Main board

Reconnect the LCD cable

LCD cable

LCD

Main board

Indicator-Related Symptoms

Symptom / Error

Indicator incorrectly remains off or on, but system runs correctly

HDD/CD-ROM active indicators cannot work

Main board

HDD/CD-ROM drive

Device driver

Main board

Action in Sequence

Power-Related Symptoms

Symptom / Error

Power shuts down during operation

The system cannot power-on.

The system cannot power-off.

Action in Sequence

Power source (battery pack and power adapter). See “Power

System Check” on page 73.

Battery pack

AC adapter

See if the thermal module is overheat (Heat sink or fan).

Main board

Power source (battery pack and power adapter). See “Power

System Check” on page 73.

Battery pack

Power adapter

CPU

Main board

In Windows XP operating system, hold and press the power switch for more than 4 seconds. If the system can power off, then the main board is OK. Verify OS in the HDD.

Main board

82 Chapter 4

Power-Related Symptoms

Symptom / Error

Battery can’t be charged or discharged

System hang during POST

Action in Sequence

See “Check the Battery Pack” on page 74.

Battery pack

Main board

ODD/HDD/FDD/RAM module

Main board

PCMCIA-Related Symptoms

Symptom / Error

System cannot detect the PC Card (PCMCIA)

PCMCIA slot pin is damaged.

PC Card cannot be inserted or ejected

Action in Sequence

PCMCIA slot assembly

Main board

PCMCIA slot assembly

Check if the PCMCIA slot is blocked

Main board

Memory-Related Symptoms

Symptom / Error

Memory count (size) appears different from actual size.

System can power on, but you hear two long beeps: “B--, B--” and the LCD is blank.

Action in Sequence

Enter BIOS Setup Utility to execute “Load Default Settings” then reboot system.

RAM module

Main board

Check BIOS revision

Reinsert DIMM

DIMM

Main board

Speaker-Related Symptoms

Symptom / Error

In Windows, multimedia programs, no sound comes from the computer.

Internal speakers make noise or emit no sound.

Microphone cannot work

Action in Sequence

OS volume control

Audio driver

Speaker

Main board

Speaker

Main board

Audio driver

Volume control in Windows XP

Main board

Power Management-Related Symptoms

Symptom / Error

The system will not enter hibernation mode

The system doesn’t enter standby mode after closing the lid of the portable computer.

Action in Sequence

Power option in Windows XP

Hard disk drive

Main board

Driver of Power Option Properties

Lid close switch in upper case

Main board

Chapter 4 83

84

Power Management-Related Symptoms

The system doesn't resume from hibernation/ standby mode.

Symptom / Error

The system doesn't resume from standby mode after opening the lid of the portable computer.

Battery fuel gauge in Windows doesn’t go higher than 90%.

System hangs intermittently.

Action in Sequence

Connect AC adapter then check if the system resumes from

Standby/Hibernation mode.

Check if the battery is low.

Hard disk drive

Main board

LCD cover switch

Main board

Refresh battery (continue use battery until power off, then charge battery).

Battery pack

Main board

Reconnect hard disk/CD-ROM drives.

Main board

Peripheral-Related Symptoms

Symptom / Error

System configuration does not match the installed devices.

External display does not work correctly.

USB does not work correctly

Print problems.

Parallel port device problems

Action in Sequence

Enter BIOS Setup Utility to execute “Load Setup defaults”, then reboot system.

Reconnect hard disk/CD-ROM drives/FDD or other peripherals.

Main board

Press Fn+F5, LCD/CRT/Both display switching

Keyboard

Main board

Main board

Enter BIOS Setup Utility to execute “Load Default Settings” then reboot the system.

Run printer self-test.

Printer driver

Printer cable

Printer

Main board

Enter BIOS Setup Utility to execute “Load Default Settings” then reboot the system.

Device driver

Device cable

Device

Main board

Keyboard/Touchpad-Related Symptoms

Symptom / Error

Keyboard (one or more keys) does not work.

Touchpad does not work.

Action in Sequence

Reconnect the keyboard cable.

Keyboard

Main board

Reconnect touchpad cable.

Touchpad board

Main board

Chapter 4

Modem/LAN-Related Symptoms

Symptom / Error

Internal modem does not work correctly.

Internal LAN does not work correctly

Action in Sequence

Phone cable

Driver

Reconnect the Internal modem cable to the main board tightly.

Main board

Lan cable

Driver

Main board

NOTE:

If you cannot find a symptom or an error in this list and the problem remains, see “Undetermined

Problems” on page 87.

Chapter 4 85

Intermittent Problems

2.

3.

Intermittent system hang problems can be caused by a variety of reasons that have nothing to do with a hardware defect, such as: cosmic radiation, electrostatic discharge, or software errors. FRU replacement should be considered only when a recurring problem exists.

When analyzing an intermittent problem, do the following:

1.

Run the diagnostic test for the system board in loop mode at least 10 times.

If no error is detected, do not replace any FRU.

If any error is detected, replace the FRU. Rerun the test to verify that there are no more errors.

86 Chapter 4

Undetermined Problems

6.

7.

4.

5.

1.

2.

3.

The diagnostic problems does not identify which adapter or device failed, which installed devices are incorrect, whether a short circuit is suspected, or whether the system is inoperative.

Follow these procedures to isolate the failing FRU (do not isolate non-defective FRU).

NOTE:

Verify that all attached devices are supported by the computer.

NOTE:

Verify that the power supply being used at the time of the failure is operating correctly. (See “Power

System Check” on page 73):

Power-off the computer.

Visually check them for damage. If any problems are found, replace the FRU.

Remove or disconnect all of the following devices:

T

Non-Acer devices

T

T

T

T

Printer, mouse, and other external devices

Battery pack

Hard disk drive

DIMM

T

PC Cards

Power-on the computer.

Determine if the problem has changed.

If the problem does not recur, reconnect the removed devices one at a time until you find the failing FRU.

If the problem remains, replace the following FRU one at a time. Do not replace a non-defective FRU:

T

System board

T

LCD assembly

Chapter 4 87

88 Chapter 4

Chapter 5

Jumper and Connector Locations

Top View

[01]

[02]

[03]

[04]

[05]

[07]

[06]

[08]

[55]

[10]

[09]

[21]

[20]

[14]

[11]

[18]

[12]

[13]

[15]

[16]

[17]

[19]

8

9

5

6

7

3

4

1

2

10

11

U17/

U19

U23

U22

CN6

U3

CN2

U4

CN1

U16

U10

CN3

Lan Controller

LCD Connector

VRAM1

Lid Switch

Super I/O Controller

DVI Trasmitter

PCI Debug Card Connector

(Reserved)

IDE Buffer

PCMCIA/1394/Card Reader

Controller

Track Point Controller

Keyboard Connector

19

20

16

17

18

12

13

14

15

21

55

CN5

U20

U29

CN7

CN8

CN9

CON1/

U34

CN10

Quick Button Board Connector

Clock Generator

EC (Keyboard Controller)

BT Connector

Jogdial Board Connector

Pen Switch Board Connector

BIOS ROM

Internal MIC

BT1

CN11

CN4

RTC Battery Connector

Intetnal Speaker

Track Point Connector

Chapter 5 89

Bottom View

[22]

[23]

[24]

[26]

[27]

[28] [29] [30]

[25]

[31]

[32]

90

[41]

[34] [33]

[53]

[43]

[54]

[42]

[44]

[36]

[56] [57]

[45]

[46]

[58]

[47]

[59]

[38]

[39]

[37]

[35]

[40]

[48]

[49]

[50]

[51] [52]

34

35

36

30

31

32

33

26

27

28

29

22

23

24

25

U44

CN18

CN19

U45

CN20

U46

CN22

CN13

CN12

CN15

CN14

CN16

CN17

JDIM1

JDIM2

EZ Docking Connector

AC Power Jack

RJ11/RJ45 Connector

CRT Connector

Modem Connector

Main Battery Connector

DDR Socket 1

DDR Socket 2

VRAM2

USB Dual Connector

1394 Connector

VGA Chip (NV72MV)

CD-ROM Board Connector

CPU Socket

Second Battery Connector

53

54

56

49

50

51

52

45

46

47

48

41

42

43

44

CN27

CN29

U55

U56

SW4

SW5

LED3

CN30

J1

CN28

CN26

U54

CN24

U57

CN25

Memory Card Reader

MDC Connector

PCMCIA Board Connector

MINI Card Connector

South Bridge (ICH7)

PATA HDD Connector

FIR

External Line In

External MIC In

External Headphone

Speaker Amplifier (MAX9710)

Headphone (MAX4411)

Bluetooth Enable Switch

WLAN Enable Swtich

BT LED

Chapter 5

37

38

39

40

CN21

U48

U52

CN23

FAN Connector

North Bridge (945GM/PM)

Audio Codec Controller

USB Connector

57

58

59

LED4

LED1

LED2

WLAN LED

Battery LED

HDD LED

Chapter 5 91

92 Chapter 5

Chapter 6

FRU (Field Replaceable Unit) List

This chapter gives you the FRU (Field Replaceable Unit) listing in global configurations of TravelMate C210 series products. Refer to this chapter whenever ordering for parts to repair or for RMA (Return Merchandise

Authorization).

Please note that WHEN ORDERING FRU PARTS, you should check the most up-to-date information available on your regional web or channel. For whatever reasons a part number change is made, it will not be noted on the printed Service Guide. For ACER AUTHORIZED SERVICE PROVIDERS, your Acer office may have a

DIFFERENT part number code from those given in the FRU list of this printed Service Guide. You MUST use the local FRU list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

NOTE:

To scrap or to return the defective parts, you should follow the local government ordinance or regulations on how to dispose it properly, or follow the rules set by your regional Acer office on how to return it.

Chapter 6 93

Exploded Diagram

NOTE:

The exploded diagram is not ready as the service guide released. We will update the section later.

NOTE:

The photos below are taken from an engineering sample. The cover of the engineering sample’s case is not what you would see on the finish-good shipping product.

NOTE:

TravelMate C210 FRU list is not ready as the service gide released. We will update the FRU list as soon as we got the spare part list.

TravelMate C200 FRU List

Picture No.

Adapter

Partname And Description Part Number

LITE-ON NB ADAPTER PA-1650-02QR, 19V, 3

PINS, 65W

LSE NB ADAPTER SLS0335A19A57LF 19V 3

PINS 65W

AP.06503.010

AP.06506.002

Battery

LI-ION SANYO 3S1P 2.0AH high rate W/O IND

(W/Z SANYO PACK CELLS)

LI-ION SANYO 3S2P 4.8AH W/O IND (W/Z

SANYO PACK CELLS)

LI-ION SANYO 3S3P 4.8AH W/O IND (W/Z

SANYO PACK CELLS)

BT.00303.003

BT.T4803.001

BT.00903.001

94 Chapter 6

TravelMate C200 FRU List

Picture No.

Partname And Description

MODEM BOARD

Part Number

54.TAKV7.001

BLUETOOTH MODULE W/ANTENNA 54.TADV7.001

WIRELESS LAN BOARD (802.11b+g) INTEL

WIRELESS LAN BOARD (802.11a/b/g) INTEL

EU

WIRELESS LAN BOARD (802.11a/b/g) INTEL

NA

WIRELESS LAN BOARD (802.11a/b/g) INTEL

RW

JOYSTICK BOARD

KI.CAX01.008

KI.CAX01.010

KI.CAX01.009

KI.CAX01.011

55.TADV7.001

PCMCIA SLOT MODULE 55.TADV7.002

LAUNCH BOARD

PEN SENSOR BOARD

55.TADV7.003

55.TADV7.004

Chapter 6 95

96

TravelMate C200 FRU List

Picture No.

Partname And Description

PEN SENSOR BOARD CABLE

Part Number

50.TADV7.001

FFC- JOYSTICK BOARD TO MB

FFC - LAUNCH BOARD TO MB

BLUETOOTH CABLE

50.TADV7.002

50.TADV7.003

50.TADV7.004

MODEM CABLE LEAD FREE

POWER CORD AF (3 PIN)

50.TADV7.005

27.T48V7.001

POWER CORD DANISH (3 PIN)

POWER CORD AU W/LABEL (3 PIN)

POWER CORD AF-S (INDIA)

POWER CORD UK (3 PIN)

POWER CORD PRC (3 PIN)

POWER CORD US (3 PIN)

POWER CORD KOERA ( Pin)

POWER CORD EU (3 PIN)

POWER CORD ITALIAN (3 PIN)

POWER CORD- SWISS

POWER CORD ISRAEL (3 PIN)

27.A03V7.006

27.A50V7.003

27.A50V7.001

27.A03V7.004

27.A03V7.003

27.A03V7.001

27.T23V7.006

27.A03V7.002

27.A03V7.005

27.A03V7.007

27.A50V7.002

Chapter 6

TravelMate C200 FRU List

Picture No.

Partname And Description

MIDDLE COVER

Part Number

42.TADV7.001

HINGE COVER R

HINGE COVER L

UPPER CASE W/ ANTENNA

42.TADV7.002

42.TADV7.003

60.TADV7.001

LOWER CASE W/ SPEAKER 60.TADV7.002

PCI DOOR

RAM DOOR

42.TADV7.004

42.TADV7.005

PCMCIA SUPPORT BRACKET 33.T

AD

V7.001

Chapter 6 97

CPU

TravelMate C200 FRU List

Picture No.

Partname And Description

ZE1 PCMCIA DUMMY Card

Celeron M 350 (1.3G 1M) C0

Celeron M 360 (1.4G 1M) C0

Celeron M 370 (1.5G 1M) C0

CELERON M 380 (1.6G 1M) C0

Pentium M 725 (1.6G 2M 400FSB)

Pentium M 730 (1.6G 2M 533FSB)

Pentium M 740 (1.73G 2M 533FSB)

Pentium M 750 (1.87G 2M 533FSB)

Pentium M 760 (2.0G 2M 533FSB)

Pentium M 770 (2.13G 2M 533FSB)

DVD CDRW COMBO

ASSY(PANASONIC)STNB/S

Part Number

42.TADV7.006

KC.NC001.350

KC.NC001.360

KC.NC001.370

KC.NC001.380

KC.N0001.725

KC.N0001.730

KC.N0001.740

KC.N0001.750

KC.N0001.760

KC.N0001.770

6M.TADV7.001

DVD/CDRW (COMBO) UJDA770AC-A KO.02406.013

ODD CONNECTOR BOARD

ODD HOLDER

DVD COMBO BEZEL ASSY

55.TADV7.005

42.TADV7.007

42.TADV7.008

98 Chapter 6

TravelMate C200 FRU List

Picture No.

Partname And Description Part Number

6M.TADV7.002

Chapter 6

DVD DUAL(DL), LITEON SOLW-831S, SLOT-IN,

F/W:WRT9

KU.00804.016

ODD CONNECTOR BOARD

ODD HOLDER

55.TADV7.005

42.TADV7.007

DVD DUAL LITE-ON SLOT IN BEZEL ASSY 42.TADV7.009

100G SEAGATE 2.5' 4200RPM

N2.2ST9100825A F/W:3.04

KH.10001.003

100G TOSHIBA 2.5' 4200RPM ARES

MK1031GAS (ROHS) F/W AA204A

100G HGST 2.5' 4200RPM HAKONE-A F/

W:A70G

40G TOSHIBA 2.5' 4200RPM PLUTO

MK4025GAS (ROHS) F/W KA100A

40G HGST 2.5' 4200RPM HAKONA-A F/W

:A70G

60G SEAGATE 2.5' 4200RPM N2.2ST960812A

F/W:3.04

60G HGST 2.5' 4200RPM HAKONE-A F/W

:A70G

KH.10004.001

KH.10007.002

KH.04004.005

KH.04007.013

KH.06001.003

KH.06007.009

99

TravelMate C200 FRU List

Picture No.

Partname And Description

80G SEAGATE 2.5' 4200RPM N2.2ST980829A

F/W:3.04

80G HGST 2.5' 4200RPM HAKONE-A F/

W:A70G

Part Number

KH.08001.013

KH.08007.011

40G SEAGATE 2.5 IN. 4200RPM

N2.1ST9402113A F/W:3.01

60G TOSHIBA 2.5 IN. 4200RPM PLUTO

MK6025GAS CZK(ROHS) F/W:KA200A

80G TOSHIBA 2.5 IN. 4200RPM PLUTO

MK8025GAS (ROHS) F/W:KA023A

HDD CONNECTOR

KH.04001.016

KH.06004.004

KH.08004.003

55.TADV7.006

HDD COVER 42.TADV7.010

HDD BRACKET 33.TADV7.002

Keyboard

TMC200 KEYBOARD DARFON US International KB.TAD07.001

100

TMC200 KEYBOARD DARFON Chinese

TMC200 KEYBOARD DARFON Thai

TMC200 KEYBOARD DARFON Czech

TMC200 KEYBOARD DARFON Brazilian

Protugese

TMC200 KEYBOARD DARFON Russian

TMC200 KEYBOARD DARFON Turkish

TMC200 KEYBOARD DARFON Belgium

TMC200 KEYBOARD DARFON Sweden

TMC200 KEYBOARD DARFON UK

TMC200 KEYBOARD DARFON French

TMC200 KEYBOARD DARFON German

TMC200 KEYBOARD DARFON Italian

TMC200 KEYBOARD DARFON Japanese

KB.TAD07.002

KB.TAD07.004

KB.TAD07.016

KB.TAD07.005

KB.TAD07.025

KB.TAD07.020

KB. TAD07.014

KB.TAD07.015

KB.TAD07.007

KB.TAD07.010

KB.TAD07.008

KB.TAD07.009

KB.TAD07.022

Chapter 6

TravelMate C200 FRU List

Picture No.

Partname And Description

TMC200 KEYBOARD DARFON Danish

TMC200 KEYBOARD DARFON Spanish

TMC200 KEYBOARD DARFON Arabic

TMC200 KEYBOARD DARFON Swiss/G

TMC200 KEYBOARD DARFON Portuguese

TMC200 KEYBOARD DARFON Norway

TMC200 KEYBOARD DARFON Korea

TMC200 KEYBOARD DARFON Hungaian

TMC200 KEYBOARD DARFON Canadian

French

TMC200 KEYBOARD DARFON Hebrew

TMC200 KEYBOARD DARFON Greek

Part Number

KB.TAD07.019

KB.TAD07.003

KB.TAD07.013

KB.TAD07.011

KB.TAD07.012

KB.TAD07.018

KB.TAD07.006

KB.TAD07.017

KB.TAD07.021

KB.TAD07.024

KB.TAD07.023

ZE1 LCD 12.1 IN. XGA ASSY HYDIS HT12X21 6M.TADV7.011

LCD(TFT) 12.1 IN. HYDIS HT12X21-220(XGA)

LF W/PROTECT COVER

56.TADV7.001

INVERTER BOARD LF

POWER BUTTON/B ASSY

TABLET BUTTON/B ASSY

19.TADV7.001

55.TADV7.007

55.TADV7.008

FINGER PRINT BOARD 55.TADV7.009

Chapter 6 101

102

TravelMate C200 FRU List

Picture No.

Partname And Description

CABLE ASSY - FINGER12.1(50/55P,1A)LF

Part Number

50.TADV7.006

LCD STAND

LCD BEZEL

33.TADV7.003

60.TADV7.003

LCD COVER W/ANTENNA - HYDIS 60.TADV7.004

DIGITIZER PANEL -WACOM SU-1201E-02X 56.TADV7.002

ZE1 LCD 12.1 IN. XGA ASSY HYDIS HT12X21

W/O FINGER

LCD(TFT) 12.1 IN. HYDIS HT12X21-220(XGA)

LF W/PROTECT COVER

6M.TADV7.021

56.TADV7.001

INVERTER BOARD LF

POWER BUTTON/B ASSY

19.TADV7.001

55.TADV7.007

TABLET BUTTON/B ASSY 55.TADV7.008

CABLE ASSY - W/O FINGER12.1(50/55P,1A)LF 50.TADV7.007

LCD STAND

LCD BEZEL W/O FINGER

LCD COVER W/ANTENNA - HYDIS

DIGITIZER PANEL -WACOM SU-1201E-02X

33.TADV7.003

60.TADV7.008

60.TADV7.004

56.TADV7.002

ZE1 LCD 12.1 IN. XGA ASSY TOSHIBA

LTD121KA0Q

LCD(TFT)12.1 IN. TOSHIBA LTD121KA0Q LF

W/PROTECT COVER

INVERTER BOARD LF

6M.TADV7.012

56.TADV7.002

19.TADV7.001

Chapter 6

TravelMate C200 FRU List

Picture No.

Partname And Description

POWER BUTTON/B ASSY

TABLET BUTTON/B ASSY

FINGER PRINT BOARD

CABLE ASSY - FINGER12.1(50/55P,1A)LF

LCD STAND

LCD BEZEL

LCD COVER W/ANTENNA - TOSHIBA

DIGITIZER PANEL -WACOM SU-1201E-02X

Part Number

55.TADV7.007

55.TADV7.008

55.TADV7.009

50.TADV7.006

33.TADV7.003

60.TADV7.003

60.TADV7.009

56.TADV7.002

ZE1 LCD 12.1 IN. XGA ASSY TOSHIBA

LTD121KA0Q W/O FINGER

LCD(TFT)12.1 IN. TOSHIBA LTD121KA0Q LF

W/PROTECT COVER

6M.TADV7.022

56.TADV7.002

INVERTER BOARD LF

POWER BUTTON/B ASSY

19.TADV7.001

55.TADV7.007

TABLET BUTTON/B ASSY 55.TADV7.008

CABLE ASSY - W/O FINGER12.1(50/55P,1A)LF 50.TADV7.007

LCD STAND

LCD BEZEL W/O FINGER

LCD COVER W/ANTENNA - TOSHIBA

DIGITIZER PANEL -WACOM SU-1201E-02X

33.TADV7.003

60.TADV7.008

60.TADV7.009

56.TADV7.002

MAINBOARD UMA W/MODEM CABLE, 4 IN 1

W/O CPU MEMORY

LB.TAD06.001

MAINBOARD NVIDIA NV44M64 W/MODEM

CABLE, 4 IN 1 W/O CPU MEMORY

RTC BATTERY - ML1220

MEMORY INFINEON DDRII533256M

HYS64T32000HDL-3.7-A 32X64 CL4

LB.TAU06.001

23.T42V7.001

KN.25602.023

SO-DIMM DDRII533 256MB

NT256T64UH4A0FN-37B LF

SO-DIMM DDRII533 256MB MT8HTF3264HDY-

53EB3 LF

MEMORY DDRII 533 256MB M470T3354CZ3-

CD5 (PB-FREE), SAMSUNG

SO-DIMM DDRII533 256MB HYMP532S64P6-

C4 LF

MEMORY SO-DIMM DDRII 533 256MB

HYMP532S64P6-C4, HYNIX

KN.25603.020

KN.25604.023

KN.2560B.016

KN.2560G.006

KN.51202.021

Chapter 6 103

104

TravelMate C200 FRU List

Picture No.

Partname And Description

MEMORY SO-DIMM DDRII 533 512MB

NT512T64UH8A0FN-37B, NANYA

SO-DIMM DDRII533 512MB M470T6554CZ3-

CD500 LF

SO-DIMM DDRII533 512MB HYMP564S64P6-

C4 LF

Part Number

KN.51203.018

KN.5120B.015

KN.5120G.005

SPEAKER SET

THERMAL MODULE

23.TADV7.001

60.TADV7.005

STYLUS 60.TADV7.006

LATCH RUBBER

LCD RUBBER

Note: Larger one is LCD rubber.

LCD RUBBER MID

Note: Smaller one is LCD rubber mid.

LOWER CASE RUBBER FOOT

47.TADV7.001

47.TADV7.002

47.TADV7.003

47.TADV7.004

WEIGHT SAVER

SCREW M2.0*2.5-I(NI)(NYLOK)

SCREW M2.0*5-I(NI)(NYLOK)

SCREW M2.5*4.0-I(NI)(NYLOK)

SCREW M2.0*6 I-BNI

SCREW M2.5*3-I(NI,NYLOK)

SCREW M2*5-I(BNI)(NYLOK)(D3H0.3)LF

Chapter 6

Chapter 6 105

Appendix A

Model Definition and Configuration

TravelMate C210 Series

Model

TMC213TMi China

RO

TMC213TMi

TMC213TMi

TMC213TMi

TMC213TMi

TMC213TMi

TMC213TMi

TMC213TMi

TMC213TMi

TMC213TMi

TMC213TMi

TMC213TMi

China

China

China

AAP

AAP

AAP

AAP

AAP

AAP

AAP

AAP

Country

China

Hong Kong

China

Hong Kong

Australia/New

Zealand

LX.TDG0E.006

Singapore

India

Indonesia

Philippines

Thailand

Vietnam

Malaysia

Acer Part no

LX.TDG0E.003

LX.TDG0E.001

LX.TDG0E.004

LX.TDG0E.002

LX.TDG0E.013

LX.TDG0E.009

LX.TDG0E.010

LX.TDG0E.012

LX.TDG0E.015

LX.TDG0E.016

LX.TDG0E.011

Description

TMC213TMi XPTSC8

G72MV128 2*512/

100/BT/6L+3H/

4R_abg

TMC213TMi XPTHK6

G72MV128 2*512/

100/BT/6L+3H/

4R_abg

TMC213TMi XPTSC8

G72MV128 2*512/

100/BT/6L+3H/

4R_abg_FP

TMC213TMi XPTHK6

G72MV128 2*512/

100/BT/6L+3H/

4R_abg_FP

TMC213TMi XPTAU1

G72MV128 2*512/

100/BT/6L+3H/

4R_abg

TMC213TMi XPTSG1

G72MV128 2*512/

100/BT/6L+3H/

4R_abg

TMC213TMi XPTIL1

G72MV128 2*512/

100/BT/6L+3H/

4R_abg

TMC213TMi XPTIN1

G72MV128 2*512/

100/BT/6L+3H/

4R_abg

TMC213TMi XPTPH1

G72MV128 2*512/

100/BT/6L+3H/

4R_abg

TMC213TMi XPTTH2

G72MV128 2*512/

100/BT/6L+3H/4R_bg

TMC213TMi XPTVN1

G72MV128 2*512/

100/BT/6L+3H/

4R_abg

TMC213TMi XPTMA2

G72MV128 2*512/

100/BT/6L+3H/

4R_abg

Group1

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

CPU

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

Appendix A 106

107

Model

TMC213TMi PA

RO

TMC213TMi

TMC215TMi

TMC215TMi

TMC215TMi

TMC215TMi

TMC215TMi

TMC215TMi

TMC215TMi

TMC215TMi

TMC215TMi

TMC215TMi

TMC213TMi

TMC213TMi

PA

PA

PA

AAP

AAP

AAP

AAP

AAP

AAP

AAP

AAP

EMEA

EMEA

Country

USA/Canada

ACLA-

Spanish

USA/Canada

ACLA-

Spanish

Thailand

Singapore

India

Indonesia

Philippines

Malaysia

Vietnam

Germany

Belgium

Acer Part no

LX.TDG0E.007

LX.TDG0E.008

LX.TDG0E.018

LX.TDG0E.019

Australia/New

Zealand

LX.TDG0E.017

LX.TDG0E.025

LX.TDG0E.024

LX.TDG0E.020

LX.TDG0E.021

LX.TDG0E.023

LX.TDG0E.022

LX.TDG0E.026

LX.TDG0E.060

LX.TDG0E.061

TMC215TMi XPTIL1

G72MV128 2*1G/160/

BT/6L+3H/

4R_abg_FP

TMC215TMi XPTIN1

G72MV128 2*1G/160/

BT/6L+3H/

4R_abg_FP

TMC215TMi XPTPH1

G72MV128 2*1G/160/

BT/6L+3H/

4R_abg_FP

TMC215TMi XPTMA2

G72MV128 2*1G/160/

BT/6L+3H/

4R_abg_FP

TMC215TMi XPTVN1

G72MV128 2*1G/160/

BT/6L+3H/

4R_abg_FP

TMC213TMi XPTDEC

G72MV128 2*512/

100/BT/6L+3H/

4R_abg_FP

TMC213TMi XPTBE7

G72MV128 2*512/

100/BT/6L+3H/

4R_abg_FP

Description

TMC213TMi XPTEN4

G72MV128 2*512/

100/BT/6L+3H/

4R_abg

TMC213TMi XPTES4

G72MV128 2*512/

100/BT/6L+3H/

4R_abg

TMC215TMi XPTEN4

G72MV128 2*1G/160/

BT/6L+3H/

4R_abg_FP

TMC215TMi XPTES4

G72MV128 2*1G/160/

BT/6L+3H/

4R_abg_FP

TMC215TMi XPTAU1

G72MV128 2*1G/160/

BT/6L+3H/

4R_abg_FP

TMC215TMi XPTTH2

G72MV128 2*1G/160/

BT/6L+3H/4R_bg_FP

TMC215TMi XPTSG1

G72MV128 2*1G/160/

BT/6L+3H/

4R_abg_FP

Group1

TMC213T

TMC213T

TMC215T

TMC215T

TMC215T

TMC215T

TMC215T

TMC215T

TMC215T

TMC215T

TMC215T

TMC215T

TMC213T

TMC213T

CPU

C2DT5500

C2DT5500

C2DT7200

C2DT7200

C2DT7200

C2DT7200

C2DT7200

C2DT7200

C2DT7200

C2DT7200

C2DT7200

C2DT7200

C2DT5500

C2DT5500

Appendix A

TMC213TMi EMEA

TMC213TMi EMEA

TMC213TMi EMEA

TMC213TMi EMEA

TMC213TMi EMEA

TMC213TMi EMEA

TMC213TMi EMEA

TMC213TMi EMEA

TMC213TMi EMEA

TMC213TMi EMEA

Model

TMC213TMi

RO

EMEA

TMC213TMi

TMC213TMi

TMC213TMi

TMC213TMi

TMC213TMi

EMEA

EMEA

EMEA

EMEA

EMEA

Country

Middle East

Germany

Belgium

Denmark

Middle East

France

Spain

Italy

Holland

Norway

Italy

Holland

Denmark

France

Spain

Portugal

Acer Part no

LX.TDG0E.049

LX.TDG0E.043

LX.TDG0E.038

LX.TDG0E.041

LX.TDG0E.030

LX.TDG0E.042

LX.TDG0E.032

LX.TDG0E.034

LX.TDG0E.039

LX.TDG0E.040

LX.TDG0E.047

LX.TDG0E.056

LX.TDG0E.055

LX.TDG0E.050

LX.TDG0E.051

LX.TDG0E.052

Description

TMC213TMi XPTARA

G72MV128 2*512/

100/BT/6L+3H/

4R_abg_FP

TMC213TMi XPTDEC

G72MV128 1*512/80/

BT/6L+3H/4R_abg

TMC213TMi XPTBE7

G72MV128 1*512/80/

BT/6L+3H/4R_abg

TMC213TMi XPTDK5

G72MV128 1*512/80/

BT/6L+3H/4R_abg

TMC213TMi XPTARA

G72MV128 1*512/80/

BT/6L+3H/4R_abg

TMC213TMi XPTFRD

G72MV128 1*512/80/

BT/6L+3H/4R_abg

TMC213TMi XPTESE

G72MV128 1*512/80/

BT/6L+3H/4R_abg

TMC213TMi XPTIT5

G72MV128 1*512/80/

BT/6L+3H/4R_abg

TMC213TMi XPTNL7

G72MV128 1*512/80/

BT/6L+3H/4R_abg

TMC213TMi XPTNO4

G72MV128 1*512/80/

BT/6L+3H/4R_abg

TMC213TMi XPTIT5

G72MV128 2*512/

100/BT/6L+3H/

4R_abg_FP

TMC213TMi XPTNL7

G72MV128 2*512/

100/BT/6L+3H/

4R_abg_FP

TMC213TMi XPTDK5

G72MV128 2*512/

100/BT/6L+3H/

4R_abg_FP

TMC213TMi XPTFRD

G72MV128 2*512/

100/BT/6L+3H/

4R_abg_FP

TMC213TMi XPTESE

G72MV128 2*512/

100/BT/6L+3H/

4R_abg_FP

TMC213TMi XPTPT4

G72MV128 2*512/

100/BT/6L+3H/

4R_abg_FP

Group1

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

CPU

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

Appendix A 108

109

Model

TMC213TMi

RO

EMEA

TMC213TMi EMEA

TMC213TMi EMEA

TMC213TMi EMEA

TMC213TMi EMEA

TMC213TMi EMEA

TMC213TMi EMEA

TMC213TMi EMEA

TMC213TMi EMEA

TMC213TMi EMEA

TMC213TMi EMEA

TMC213TMi EMEA

TMC213TMi EMEA

TMC213TMi EMEA

TMC213TMi EMEA

TMC213TMi EMEA

Country

Norway

Russia

Sweden/

Finland

Russia

Sweden/

Finland

South Africa

South Africa

Portugal

Switzerland

UK

Turkey

Eastern

Europe

Turkey

Switzerland

UK

Eastern

Europe

Acer Part no

LX.TDG0E.057

LX.TDG0E.058

LX.TDG0E.053

LX.TDG0E.035

LX.TDG0E.036

LX.TDG0E.059

LX.TDG0E.046

LX.TDG0E.033

LX.TDG0E.031

LX.TDG0E.028

LX.TDG0E.029

LX.TDG0E.037

LX.TDG0E.048

LX.TDG0E.044

LX.TDG0E.045

LX.TDG0E.054

TMC213TMi XPTPT4

G72MV128 1*512/80/

BT/6L+3H/4R_abg

TMC213TMi XPTSW5

G72MV128 1*512/80/

BT/6L+3H/4R_abg

TMC213TMi XPTUK6

G72MV128 1*512/80/

BT/6L+3H/4R_abg

TMC213TMi XPTTR4

G72MV128 1*512/80/

BT/6L+3H/4R_abg

TMC213TMi

XPTWW3 G72MV128

1*512/80/BT/6L+3H/

4R_abg

TMC213TMi XPTTR4

G72MV128 2*512/

100/BT/6L+3H/

4R_abg_FP

TMC213TMi XPTSW5

G72MV128 2*512/

100/BT/6L+3H/

4R_abg_FP

TMC213TMi XPTUK6

G72MV128 2*512/

100/BT/6L+3H/

4R_abg_FP

TMC213TMi

XPTWW3 G72MV128

2*512/100/BT/6L+3H/

4R_abg_FP

Description

TMC213TMi XPTNO4

G72MV128 2*512/

100/BT/6L+3H/

4R_abg_FP

TMC213TMi XPTRU7

G72MV128 2*512/

100/BT/6L+3H/

4R_abg_FP

TMC213TMi XPTSV4

G72MV128 2*512/

100/BT/6L+3H/

4R_abg_FP

TMC213TMi XPTRU7

G72MV128 1*512/80/

BT/6L+3H/4R_abg

TMC213TMi XPTSV4

G72MV128 1*512/80/

BT/6L+3H/4R_abg

TMC213TMi XPTSA3

G72MV128 2*512/

100/BT/6L+3H/

4R_abg_FP

TMC213TMi XPTSA3

G72MV128 1*512/80/

BT/6L+3H/4R_abg

Group1

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

TMC213T

CPU

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

C2DT5500

Appendix A

Model

TMC213TMi AAP

RO

TMC213TMi

TMC213TMi

TMC215TMi

AAP

AAP

AAP

Country

Singapore

Philippines

Acer Part no

LX.TDG0E.062

Australia/New

Zealand

LX.TDG0E.063

Australia/New

Zealand

LX.TDG0E.064

LX.TDG0E.065

Description

TMC213TMi XPTSG1

G72MV128 1*512/80/

BT/6L+3H/

4R_abg_FP

TMC213TMi XPTAU1

G72MV128 1*1G/120/

BT/6L+3H/4R_abg

TMC213TMi XPTAU1

G72MV128 1*1G/120/

BT/6L+3H/

4R_abg_FP

TMC215TMi XPTPH1

G72MV128 1*1G/160/

BT/6L+3H/

4R_abg_FP

Group1

TMC213T

TMC213T

TMC213T

TMC215T

CPU

C2DT5500

C2DT5500

C2DT5500

C2DT7200

Appendix A 110

Appendix B

Test Compatible Components

This computer’s compatibility is tested and verified by Acer’s internal testing department. All of its system functions are tested under Windows

®

XP Home, Windows

®

XP Pro environment.

Refer to the following lists for components, adapter cards, and peripherals which have passed these tests.

Regarding configuration, combination and test procedures, please refer to the TravelMate C210 series

Compatibility Test Report released by the Acer Mobile System Testing Department.

Appendix B 111

Microsoft

®

Windows

®

XP Pro Environment Test

CRT Port Test

CRT Monitor

LCD Monitor

Item

DVI Monitor

Projector

TV

Audio Jacks Port Test

Microphone

Head Phone

Printer

USB Port Test

USB 1.1-Mouse

USB 1.1-keyboard

USB 2.0-Speaker

USB 1.1-FDD

USB 1.1-Camera / CCD

USB 1.1-HUB

USB 1.1-Gamepad

USB 1.1-Card Reader

Specification

View Sonic E72f 17” PerfectFlat color CRT Area with 1280*1024

COMPAQ FP 7317 17” LCD area with 1024*768

Gateway FPD1730 17”(1280*1024)

CMV CM-930D (1280*1024)

BenQ FB8225

FERGUSON DV3

V008

TP-M06 R

HP Deskjet 840C

Logitech Wheel Mouse(Optical, USB|PS/2)

Huaerte USB Stroll Mouse 2-button HM-28

Microsoft Track Ball Explorer(USB|PS/2)

USB Stroll Mouse 2-button HM-28(Scroll, wheel)

Logitech(Optical)

Microsoft IntelliMouse optical ps2/USB

Microsoft IntelliMouse Explorer ps2/USB

Microsoft Optical Mouse Blue USB and PS/2 Compatible

Logitech Cordless TrackMan Fx(Trackball, Optical)

Microsoft Wireless Optical Mouse Blue(USB PS/2)

Microsoft Wheel Mouse Optical(USB|PS/2)

NewMen TECHNOLOGY Basic Keyboard

HP USB Keyboard

ViewSonic ViewMate Internet/Multimedia Keyboard

Chang yang Kb-MED-U T3A158

NMB The Right Touch!

SILITEK SK-6000

USB KeyPad: ZIPPY USB Keyboard TK323

JAZZ HIPSTER CORRPORATION MODELGJ 1301

USB OZAKI USB206

USB J-S J1321

TEAC FD-05PUB USB1.0 Device

YE-DATA USB1.1 Floppy Disk Drvie YU-8U10

SMSC USB1.1 external Floppy Drive

IBM USB1.1 external Floppy Drive

Logitech USB1.1 QuickCam for Notebooks pro

UNIONSTAR USB1.1 HUB 4 Port

Logitech WingMan Stike forcee 3D

Microsoft Gamepad

Logitech WingMan Force J-UA9

IWILL 6in1 USB1.1 Card Reader/Writer

HP USB 1.0 digital drive

112 Appendix B

USB 2.0-HDD

USB 2.0-DVD/CD-RW

USB 2.0-HUB

Item

USB 2.0-Cable

USB to LAN Cable

USB 2.0-Handy Drive

USB 2.0-Camera/CCD

USB 2.0-Scanner

PCMCIA Test

PCI Express Card

Istyle USB2.0/1394 HDD

NEWMAN USB2.0 HDD

ViPowER SmartFamily USB2.0 HDD

VP-6228V2 CDROMBOX

Specification

Highlight High-Speed 4-port USB 2.0 hub

D-Link DUB-H4 4-Port Hi-SPEED USB 2.0 Hub

Hi-Speed 4-Port USB 2.0 HUB( IOGEAR)

GoodMan USB Turbo Link

BUFFALD USB-10/100M Ethernet LUA-TX

Apacer USB2.0 Handy Drive

Logitech QuickCam 5.0.1(USB2.0 )

HP ScanJet 3500C USB2.0 digital flatbed Scanner

SCSI Card

Modem Card

32 bit Lan Card

1394 CardBus Card

Express card 5in1 adapter (YE-DATA YD-8V30)

Express Gigabit Lan Card (AboCom)

Ultra Slim SCSI 1480B

Ultra Slim SCSI 1460D billionton 56Kbps FAX Modem PC Card

Xircom CreditCard Modem 56-GlobalAccess

NETGEAR Gigabit PC card GA511

TDK10/100 Lan CardBus LAC-CB100x

D-Link DFE-690TXD 32bit 10/100Mb PC Card

VIA OHCI Compliant IEEE 1394 Host Controller e-sense PCMCIA 1394d CardBus 2 Ports

USB2.0 CardBus Card

Wireless Lan Card

ATA Card

IOGEAR USB 2.0 2-Port CardBus Card

USB 2.0 Hi-speed CardBus Adapter

INTOPIC USB 2.0 4-Port Notebook Card(CardBus)

BUFFALD 54M Wireless LAN PC Card WLI-CB-G54A

GIGABYTE GN-WMGA 802.11 b/g Wireless LAN PC Card

Gemtek Wireless LAN PC Card WL-211F 802.11b 2.4GHz

LINKSYS Wireless-B Notebook Adapter 2.4GHz

SanDisk 1G ATA PC Card

IBM Microdrive 1GB

PS/2 Port Test

Mouse Microsoft FCC ID:C3KKZB1

GS S100

TECH SWW-25

Logitech Serial Mouse M-M35

DELL PS2 keyboard Keyboard

COM/Serial Port Test

Mouse Logitech Serial Mouse M-M35

Memory Card Test (SD/MS/MMC/SM/CF/Microdrive/XD)

MMC Card ScanDisk 32MB MMC Card

Transcend 512MB MMC Card

Transcend 1GB MMC Card

Appendix B 113

SD Card

Item

MS Card

XD Card

CF Card

Card Reader

Specification

Panasonic 2.0G SD Card

Transcend 2.0G SD Card

Sandisk 256MB SD Card

Simpletech 128MB SD Card

Sandisk 1.0G SD Card

X Digital Media SD 256MB

Simpletech 512MB SD Card

Sony 128MB MS Card

SanDisk stick Pro 1GB

LEXAR 256MB MS Card

Sandisk 64MB MS Card

SONY 32MB MS Card

SONY 256MB MS Card

OLYMPUS XD Picture Card 256MB

OLYMPUS XD Picture Card 1GB

Prctec 256MB CF Card

Compact Flash Adapter 128MB

POW four-in-one memory media PCMCIA

114 Appendix B

Microsoft

®

Windows

®

XP Home Environment Test

CRT Port Test

CRT Monitor

LCD Monitor

Item

DVI Monitor

Projector

TV

Audio Jacks Port Test

Microphone

Head Phone

Printer

USB Port Test

USB 1.1-Mouse

USB 1.1-keyboard

USB 2.0-Speaker

USB 1.1-FDD

USB 1.1-Camera / CCD

USB 1.1-HUB

USB 1.1-Gamepad

USB 1.1-Card Reader

Specification

View Sonic E72f 17” PerfectFlat color CRT Area with 1280*1024

COMPAQ FP 7317 17” LCD area with 1024*768

Gateway FPD1730 17”(1280*1024)

CMV CM-930D (1280*1024)

BenQ FB8225

FERGUSON DV3

V008

TP-M06 R

HP Deskjet 840C

Logitech Wheel Mouse(Optical, USB|PS/2)

Huaerte USB Stroll Mouse 2-button HM-28

Microsoft Track Ball Explorer(USB|PS/2)

USB Stroll Mouse 2-button HM-28(Scroll, wheel)

Logitech(Optical)

Microsoft IntelliMouse optical ps2/USB

Microsoft IntelliMouse Explorer ps2/USB

Microsoft Optical Mouse Blue USB and PS/2 Compatible

Logitech Cordless TrackMan Fx(Trackball, Optical)

Microsoft Wireless Optical Mouse Blue(USB PS/2)

Microsoft Wheel Mouse Optical(USB|PS/2)

NewMen TECHNOLOGY Basic Keyboard

HP USB Keyboard

ViewSonic ViewMate Internet/Multimedia Keyboard

Chang yang Kb-MED-U T3A158

NMB The Right Touch!

SILITEK SK-6000

USB KeyPad: ZIPPY USB Keyboard TK323

JAZZ HIPSTER CORRPORATION MODELGJ 1301

USB OZAKI USB206

USB J-S J1321

TEAC FD-05PUB USB1.0 Device

YE-DATA USB1.1 Floppy Disk Drvie YU-8U10

SMSC USB1.1 external Floppy Drive

IBM USB1.1 external Floppy Drive

Logitech USB1.1 QuickCam for Notebooks pro

UNIONSTAR USB1.1 HUB 4 Port

Logitech WingMan Stike forcee 3D

Microsoft Gamepad

Logitech WingMan Force J-UA9

IWILL 6in1 USB1.1 Card Reader/Writer

HP USB 1.0 digital drive

Appendix B 115

116

USB 2.0-HDD

USB 2.0-DVD/CD-RW

USB 2.0-HUB

Item

USB 2.0-Cable

USB to LAN Cable

USB 2.0-Handy Drive

USB 2.0-Camera/CCD

USB 2.0-Scanner

PCMCIA Test

PCI Express Card

Istyle USB2.0/1394 HDD

NEWMAN USB2.0 HDD

ViPowER SmartFamily USB2.0 HDD

VP-6228V2 CDROMBOX

Specification

Highlight High-Speed 4-port USB 2.0 hub

D-Link DUB-H4 4-Port Hi-SPEED USB 2.0 Hub

Hi-Speed 4-Port USB 2.0 HUB( IOGEAR)

GoodMan USB Turbo Link

BUFFALD USB-10/100M Ethernet LUA-TX

Apacer USB2.0 Handy Drive

Logitech QuickCam 5.0.1(USB2.0 )

HP ScanJet 3500C USB2.0 digital flatbed Scanner

SCSI Card

Modem Card

32 bit Lan Card

1394 CardBus Card

Express card 5in1 adapter (YE-DATA YD-8V30)

Express Gigabit Lan Card (AboCom)

Ultra Slim SCSI 1480B

Ultra Slim SCSI 1460D billionton 56Kbps FAX Modem PC Card

Xircom CreditCard Modem 56-GlobalAccess

NETGEAR Gigabit PC card GA511

TDK10/100 Lan CardBus LAC-CB100x

D-Link DFE-690TXD 32bit 10/100Mb PC Card

VIA OHCI Compliant IEEE 1394 Host Controller e-sense PCMCIA 1394d CardBus 2 Ports

USB2.0 CardBus Card

Wireless Lan Card

ATA Card

IOGEAR USB 2.0 2-Port CardBus Card

USB 2.0 Hi-speed CardBus Adapter

INTOPIC USB 2.0 4-Port Notebook Card(CardBus)

BUFFALD 54M Wireless LAN PC Card WLI-CB-G54A

GIGABYTE GN-WMGA 802.11 b/g Wireless LAN PC Card

Gemtek Wireless LAN PC Card WL-211F 802.11b 2.4GHz

LINKSYS Wireless-B Notebook Adapter 2.4GHz

SanDisk 1G ATA PC Card

IBM Microdrive 1GB

PS/2 Port Test

Mouse Microsoft FCC ID:C3KKZB1

GS S100

TECH SWW-25

Logitech Serial Mouse M-M35

DELL PS2 keyboard Keyboard

COM/Serial Port Test

Mouse Logitech Serial Mouse M-M35

Memory Card Test (SD/MS/MMC/SM/CF/Microdrive/XD)

MMC Card ScanDisk 32MB MMC Card

Transcend 512MB MMC Card

Transcend 1GB MMC Card

Appendix B

SD Card

Item

MS Card

XD Card

CF Card

Card Reader

Specification

Panasonic 2.0G SD Card

Transcend 2.0G SD Card

Sandisk 256MB SD Card

Simpletech 128MB SD Card

Sandisk 1.0G SD Card

X Digital Media SD 256MB

Simpletech 512MB SD Card

Sony 128MB MS Card

SanDisk stick Pro 1GB

LEXAR 256MB MS Card

Sandisk 64MB MS Card

SONY 32MB MS Card

SONY 256MB MS Card

OLYMPUS XD Picture Card 256MB

OLYMPUS XD Picture Card 1GB

Prctec 256MB CF Card

Compact Flash Adapter 128MB

POW four-in-one memory media PCMCIA

Appendix B 117

118 Appendix B

Appendix C

Online Support Information

This section describes online technical support services available to help you repair your Acer Systems.

If you are a distributor, dealer, ASP or TPM, please refer your technical queries to your local Acer branch office. Acer Branch Offices and Regional Business Units may access our website. However some information sources will require a user i.d. and password. These can be obtained directly from Acer CSD Taiwan.

Acer's Website offers you convenient and valuable support resources whenever you need them.

In the Technical Information section you can download information on all of Acer's Notebook, Desktop and

Server models including:

T

T

T

T

Service guides for all models

User's manuals

Training materials

Bios updates

T

T

Software utilities

Spare parts lists

T

TABs (Technical Announcement Bulletin)

For these purposes, we have included an Acrobat File to facilitate the problem-free downloading of our technical material.

Also contained on this website are:

T

Detailed information on Acer's International Traveler's Warranty (ITW)

T

T

Returned material authorization procedures

An overview of all the support services we offer, accompanied by a list of telephone, fax and email contacts for all your technical queries.

We are always looking for ways to optimize and improve our services, so if you have any suggestions or comments, please do not hesitate to communicate these to us.

Appendix C 119

120 Appendix C

A

B

ACPI 1.0a 32

AFLASH Utility 51

Audio 36

Battery Pack 60

BIOS 32 package 32 password control 32

ROM size 32

ROM type 32 vendor 32

Version 32

BIOS Setup Utility 41

BIOS Supports protocol 32

BIOS Utility 41

Basic System Settings 45

Navigating 42

Onboard Device Configuration 47

Startup Configuration 46

System Information 42

System Security 50

Board Layout 4

Bottom View 5

Top View 4, 89

C

Cache controller 32 size 32

CardBus 37

CPU core voltage 31 package 31 type 31

CPU Fan True Value Table 31

D

DIMM

Combinations 33 external 61, 64 removing 61, 64

Disassembly

Battery Pack 59

Index

Index

LCD Module 67

Procedure Flowchart 59

Display 3

E

Easy-launch buttons 14

Error Symptom-to-Spare Part Index 75

External CD-ROM Drive Check 72

External Diskette Drive Check 72

F

Features 1

Flash Utility 51

Floppy Disk removing the 67

FRU (Field Replaceable Unit) List 93

H

Hard disk 34

HDD 34

I

Indicators 13

Intermittent Problems 86

J

Jumper and Connector Locations 89

Top View 89

Bottom View 90

K

L

M

L2 cache 32

Memory Check 73

Model Definition 106

Modem 33

O

Keyboard 37

Keyboard or Auxiliary Input Device Check 72

Online Support Information 119

121

P

Panel right 8

PC Card 37

PCMCIA 37

Power System Check 73

Battery Pack 74

Processor 31

R

RMA 93

S

Second Level Cache 32

System

Block Diagram 3

Layout 4

System Memory 32

System Utilities 41

T

Test Compatible Components 111

Touchpad Check 74

Troubleshooting 71

U

Undetermined Problems 87

USB 36, 37 utility

BIOS 41

V

W

View

Base view 11

Closed front view 8

Left view 9

Open front view 8

Rear view 11

Right view 10

Top View 7

Windows XP Pro Environment Test 112

Windows XP Home Environment test 115

122 Index

Index 123

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
