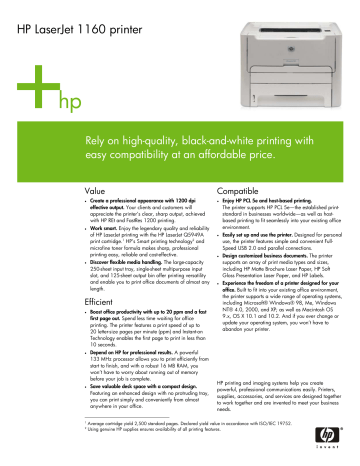

HP LaserJet 1160 printer

HP LaserJet 1160 printer
HP LaserJet 1160 printer
hp
Rely on high-quality, black-and-white printing with
easy compatibility at an affordable price.
Value
•
Create a professional appearance with 1200 dpi
effective output. Your clients and customers will
appreciate the printer’s clear, sharp output, achieved
with HP REt and FastRes 1200 printing.
•
Work smart. Enjoy the legendary quality and reliability
of HP LaserJet printing with the HP LaserJet Q5949A
print cartridge.1 HP’s Smart printing technology2 and
microfine toner formula makes sharp, professional
printing easy, reliable and cost-effective.
•
Discover flexible media handling. The large-capacity
250-sheet input tray, single-sheet multipurpose input
slot, and 125-sheet output bin offer printing versatility
and enable you to print office documents of almost any
length.
Efficient
•
Boost office productivity with up to 20 ppm and a fast
first page out. Spend less time waiting for office
printing. The printer features a print speed of up to
20 letter-size pages per minute (ppm) and Instant-on
Technology enables the first page to print in less than
10 seconds.
•
Depend on HP for professional results. A powerful
133 MHz processor allows you to print efficiently from
start to finish, and with a robust 16 MB RAM, you
won’t have to worry about running out of memory
before your job is complete.
•
Save valuable desk space with a compact design.
Featuring an enhanced design with no protruding tray,
you can print simply and conveniently from almost
anywhere in your office.
1
2
Compatible
•
Enjoy HP PCL 5e and host-based printing.
The printer supports HP PCL 5e—the established printstandard in businesses worldwide—as well as hostbased printing to fit seamlessly into your existing office
environment.
•
Easily set up and use the printer. Designed for personal
use, the printer features simple and convenient FullSpeed USB 2.0 and parallel connections.
•
Design customized business documents. The printer
supports an array of print media types and sizes,
including HP Matte Brochure Laser Paper, HP Soft
Gloss Presentation Laser Paper, and HP Labels.
•
Experience the freedom of a printer designed for your
office. Built to fit into your existing office environment,
the printer supports a wide range of operating systems,
including Microsoft® Windows® 98, Me, Windows
NT® 4.0, 2000, and XP; as well as Macintosh OS
9.x, OS X 10.1 and 10.2. And if you ever change or
update your operating system, you won’t have to
abandon your printer.
HP printing and imaging systems help you create
powerful, professional communications easily. Printers,
supplies, accessories, and services are designed together
to work together and are invented to meet your business
needs.
Average cartridge yield 2,500 standard pages. Declared yield value in accordance with ISO/IEC 19752.
Using genuine HP supplies ensures availability of all printing features.
HP LaserJet 1160 printer (Q5933A)
Technical specifications
Up to 20 ppm, letter (up to 19 ppm, A4)
Less than 10 seconds
1200 dpi effective output quality (600 by 600 dpi with HP REt and FastRes 1200 technology)
133 MHz Motorola V4 Coldfire
16 MB RAM
10,000 pages per month
Print speed
First page out
Resolution
Processor
Memory
Duty cycle
Media
Input
Output
Sizes
Weights
Types
Connectivity
Interfaces
Languages and fonts
Client operating systems
Dimensions (W by D by H)
Weight
What’s in the box
Single-sheet multipurpose input slot, 250-sheet input tray
125-sheet face down bin, rear output door for special media
3 by 5 in to 8.5 by 14 in (76 by 127 mm to 216 by 356 mm); letter, legal, executive, index card, envelopes (No. 10, Monarch);
A4, A5, A6, B5, B6, envelopes (C5, DL)
Single-sheet input slot: 16 to 43 lb bond (60 to 163 g/m2); 250 sheet tray: 16 to 28 lb bond (60 to 105 g/m2)
Paper (plain, recycled, light, heavy, bond, rough), heavy media, envelopes, transparencies, labels, cardstock
Full-Speed USB 2.0 port, IEEE 1284-B compliant parallel port
HP PCL 5e, host-based printing, 26 built-in and scalable fonts
Microsoft Windows 98, Me, NT 4.0 (printer driver only), 2000, Server 2003, XP 32-bit, XP 64-bit (printer driver only); Mac OS 9, OS 10.1, 10.2, 10.3
13.8 by 13.9 by 10.0 in (350 by 352 by 256 mm)
23.6 lb (10.7 kg)
HP LaserJet 1160 printer, HP LaserJet print cartridge, Getting Started Guide, CD (includes software and user’s guide), power cord
.
Ordering information
Operating environment
Operating temperature:
Storage temperature:
Relative humidity:
Acoustics2
Sound power:
Sound pressure:
Power specifications3
HP product
50 to 90.5 degrees F (10 to 32.5 degrees C)
32 to 104 degrees F (0 to 40 degrees C)
20 to 80 percent, non-condensing
Printing: 6.2 B(A)
Printing: 5.5 B(A), Bystander position: 4.8 B(A)
110-volt models: 110 to 127 V (± 10 percent), 60 Hz (± 2 Hz)
220-volt models: 220 to 240 V (± 10 percent), 50 Hz (± 2 Hz)
Power consumption (Energy Star® compliant)
Printing:
345 watts
Standby, PowerSave:
6 watts
Off:
< 1 watt
Product certifications
Safety certifications:
IEC 60950:1999 / EN 60950:2000; IEC 60825-1:1993 +A1:1997 +A2:2001 / EN 608251:1994 +A11:1996 +A2:2001 (Class 1 Laser/LED Product) GB4943-2001
EMC certifications:
CISPR 22:1997 / EN 55022:1998 Class B1); EN 61000-3-2:2000; EN 61000-3-3:1995 / A1;
EN 55024:1998; FCC Title 47 CFR, Part 15 Class B2) / ICES-003, Issue 3; GB9254-1998,
GB17625.1-1998 / CNS13438
Warranty
One-year, return to HP, limited warranty on HP hardware, accessories, and supplies; includes phone
support Monday through Friday during business hours
2
Declared per ISO 9296; values are subject to change. For current information see www.hp.com/support/lj1320
Power requirements are based on the country/region where the printer is sold. Do not convert operating voltages. This will damage the printer
and void the product warranty.
3
Output bin
Front door print
cartridge access
Single-sheet multipurpose input slot
LED status lights
Rear output tray
USB and parallel
ports
250-sheet input
tray
The Bluetooth trademarks are owned by its proprietor and used by Hewlett-Packard Company under license. Energy Star is a U.S. registered
mark of the United States Environmental Protection Agency. Microsoft, Windows, Windows NT, and Windows XP are U.S. registered
trademarks of Microsoft Corporation. HP and the invent signature are trademarks of the Hewlett-Packard Company.
© Copyright 2004 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the
express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional
warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
For more information visit our website at www.hp.com
0000-0000ENUC, 06/2004
HP LaserJet print cartridge: average cartridge yield 2,500 standard pages4
Cables
USB, 2-meter A to B cable
USB, 2-foot A to B cable
Parallel, 2-meter IEEE 1284-B cable
Parallel, 3-meter IEEE 1284-B cable
Connectivity
HP Jetdirect 170x Ethernet external print server (parallel)
HP Jetdirect 300x Fast Ethernet external print server (parallel)
HP Jetdirect 500x Fast Ethernet external print server (parallel)
HP Jetdirect en3700 Fast Ethernet external print server (USB)
HP Jetdirect ew2400 802.11g wireless and Fast Ethernet external print
server (USB)
HP bt1300 Bluetooth® wireless print adapter
Media
HP Multipurpose Paper, letter
HP Printing Paper, letter
HP LaserJet Paper, letter
HP Laser Paper, letter
HP Premium Choice Paper, letter
HP Cover Paper, letter
HP Matte Photo & Imaging Laser Paper, letter
HP Glossy Photo & Imaging Laser Paper, letter
HP Matte Brochure Laser Paper, letter
HP Soft Gloss Presentation Laser Paper, letter
HP Soft Gloss Laser Paper, letter
HP LaserJet Transparencies, letter
HP LaserJet Tough Paper, letter
HP LaserJet Paper, legal
HP Multipurpose Paper, legal
HP Printing Paper, A4
HP LaserJet Paper, A4
HP Laser Paper, A4
HP Premium Choice Paper, A4
HP Laser Photo Paper, Matte, A4
HP Laser Photo Paper, Glossy, A4
HP Laser Paper, Matte, A4
HP Laser Paper, Soft Gloss, A4
HP Soft Gloss Laser Paper, A4
HP LaserJet Transparencies, A4
HP LaserJet Tough Paper, A4
4
Declared yield value in accordance with ISO/IEC 19752.
Number
Q5949A
C6518A
8121-0549
C2950A
C2951A
J3258B
J3263A
J3265A
J5942A
J7951A
J6072A
HPM1120
HPP1122
HPJ1124
HPL285R
HPU1132
Q2413A
Q6549A
Q6545A
Q6543A
Q6541A
Q2415A
C2934A
Q1298A
HPJ1424
HPM1420
CHP210
CHP310
CHP350
CHP410
Q6550A
Q6547A
Q6544A
Q6542A
Q2417A
C2936A
Q1298B
