Canon 3550B007, 3550B005 Datasheet

Canon 3550B007, 3550B005 Datasheet

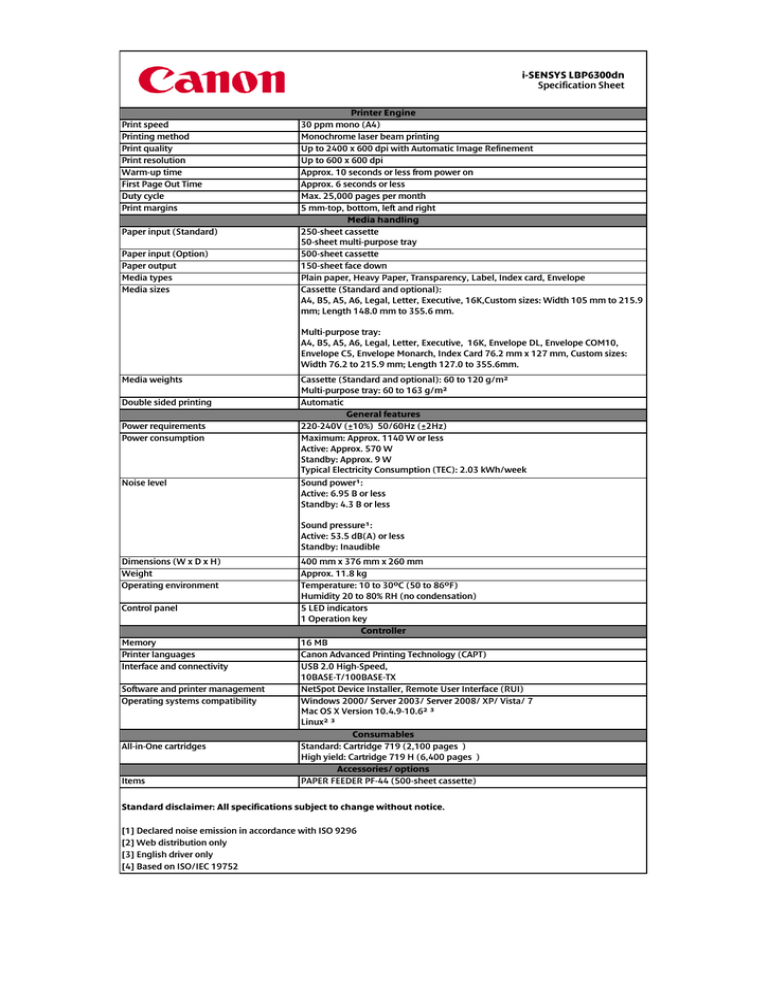

i-SENSYS LBP6300dn
Specification Sheet
Print speed
Printing method
Print quality
Print resolution
Warm-up time
First Page Out Time
Duty cycle
Print margins
Paper input (Standard)
Paper input (Option)
Paper output
Media types
Media sizes
Printer Engine
30 ppm mono (A4)
Monochrome laser beam printing
Up to 2400 x 600 dpi with Automatic Image Refinement
Up to 600 x 600 dpi
Approx. 10 seconds or less from power on
Approx. 6 seconds or less
Max. 25,000 pages per month
5 mm-top, bottom, left and right
Media handling
250-sheet cassette
50-sheet multi-purpose tray
500-sheet cassette
150-sheet face down
Plain paper, Heavy Paper, Transparency, Label, Index card, Envelope
Cassette (Standard and optional):
A4, B5, A5, A6, Legal, Letter, Executive, 16K,Custom sizes: Width 105 mm to 215.9
mm; Length 148.0 mm to 355.6 mm.
Multi-purpose tray:
A4, B5, A5, A6, Legal, Letter, Executive, 16K, Envelope DL, Envelope COM10,
Envelope C5, Envelope Monarch, Index Card 76.2 mm x 127 mm, Custom sizes:
Width 76.2 to 215.9 mm; Length 127.0 to 355.6mm.
Media weights
Double sided printing
Power requirements
Power consumption
Noise level
Cassette (Standard and optional): 60 to 120 g/m²
Multi-purpose tray: 60 to 163 g/m²
General features
220-240V (±10%) 50/60Hz (±2Hz)
Maximum: Approx. 1140 W or less
Active: Approx. 570 W
Standby: Approx. 9 W
Typical Electricity Consumption (TEC): 2.03 kWh/week
Sound power¹:
Active: 6.95 B or less
Standby: 4.3 B or less
Sound pressure¹:
Active: 53.5 dB(A) or less
Standby: Inaudible
Dimensions (W x D x H)
Operating environment
Control panel
Printer languages
Interface and connectivity
Software and printer management
Operating systems compatibility
All-in-One cartridges
400 mm x 376 mm x 260 mm
Approx. 11.8 kg
Temperature: 10 to 30ºC (50 to 86ºF)
Humidity 20 to 80% RH (no condensation)
5 LED indicators
1 Operation key
16 MB
Canon Advanced Printing Technology (CAPT)
USB 2.0 High-Speed,
NetSpot Device Installer, Remote User Interface (RUI)
Windows 2000/ Server 2003/ Server 2008/ XP/ Vista/ 7
Mac OS X Version 10.4.9-10.6² ³
Linux² ³
Standard: Cartridge 719 (2,100 pages )
High yield: Cartridge 719 H (6,400 pages )
Accessories/ options
PAPER FEEDER PF-44 (500-sheet cassette)
Standard disclaimer: All specifications subject to change without notice.
[1] Declared noise emission in accordance with ISO 9296
[2] Web distribution only
[3] English driver only
[4] Based on ISO/IEC 19752
