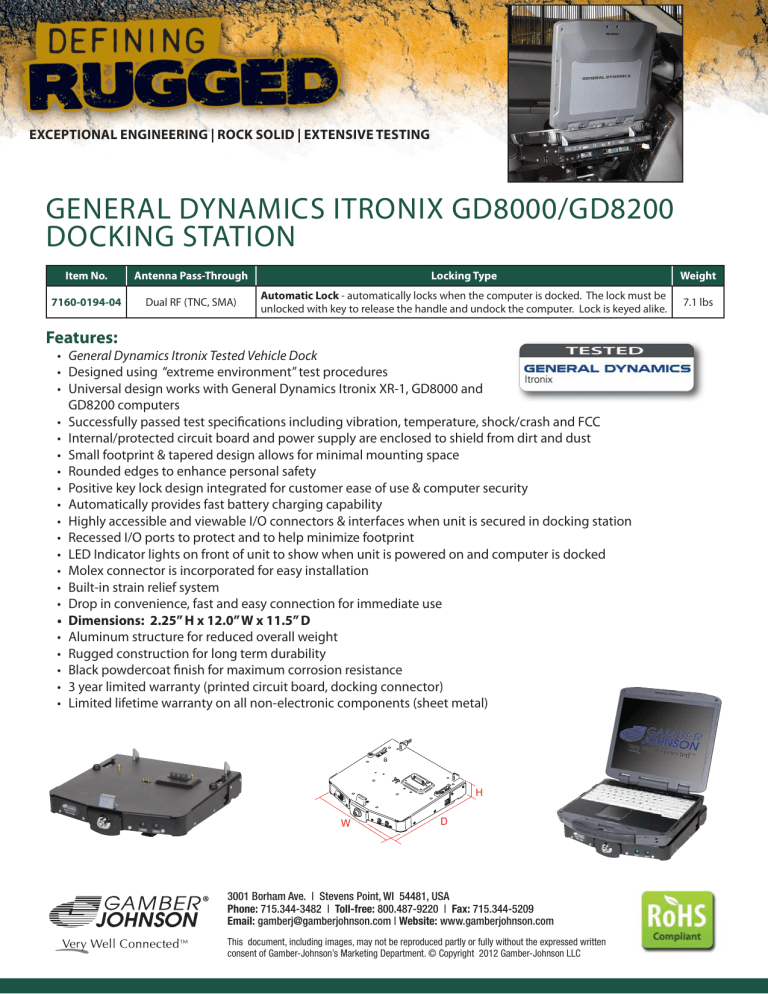

GENERAL DYNAMICS ITRONIX GD8000/GD8200
DOCKING STATION
Item No.
Antenna Pass-Through
Locking Type
Weight
7160-0194-04
Dual RF (TNC, SMA)
Automatic Lock - automatically locks when the computer is docked. The lock must be
unlocked with key to release the handle and undock the computer. Lock is keyed alike.
7.1 lbs
Features:
• General Dynamics Itronix Tested Vehicle Dock
• Designed using “extreme environment” test procedures
• Universal design works with General Dynamics Itronix XR-1, GD8000 and
GD8200 computers
• Successfully passed test specifications including vibration, temperature, shock/crash and FCC
• Internal/protected circuit board and power supply are enclosed to shield from dirt and dust
• Small footprint & tapered design allows for minimal mounting space
• Rounded edges to enhance personal safety
• Positive key lock design integrated for customer ease of use & computer security
• Automatically provides fast battery charging capability
• Highly accessible and viewable I/O connectors & interfaces when unit is secured in docking station
• Recessed I/O ports to protect and to help minimize footprint
• LED Indicator lights on front of unit to show when unit is powered on and computer is docked
• Molex connector is incorporated for easy installation
• Built-in strain relief system
• Drop in convenience, fast and easy connection for immediate use
• Dimensions: 2.25” H x 12.0” W x 11.5” D
• Aluminum structure for reduced overall weight
• Rugged construction for long term durability
• Black powdercoat finish for maximum corrosion resistance
• 3 year limited warranty (printed circuit board, docking connector)
• Limited lifetime warranty on all non-electronic components (sheet metal)
H
W
D
3001 Borham Ave. | Stevens Point, WI 54481, USA
Phone: 715.344-3482 | Toll-free: 800.487-9220 | Fax: 715.344-5209
Email: [email protected] | Website: www.gamberjohnson.com
This document, including images, may not be reproduced partly or fully without the expressed written
consent of Gamber-Johnson’s Marketing Department. © Copyright 2012 Gamber-Johnson LLC
EXCEPTIONAL ENGINEERING | ROCK SOLID | EXTENSIVE TESTING
GENERAL DYNAMICS ITRONIX GD8000/GD8200
DOCKING STATION
Port Replicator:
•
•
•
•
•
•
•
•
•
USB 2.0 (4)
Ethernet
Video VGA Out
Serial (2)
Headphone/speakers
Microphone
External keyboard/mouse
Remote Power On/Off
Antenna Pass-Through
4 pin
RJ45
D-sub 15 pin
D-sub 9 pin
Stereo phono jack
Mono phone jack
Mini-DIN 6 pin
3.5 mm Mini-Jack
TNC, SMA
Power Supply:
• Internal
Microphone Port
Headphone Port
USB Ports
Antenna Pass-Through (TNC)
Video Port
Ethernet Port
USB Ports
Antenna Pass-Through
(SMA)
Keyboard/Mouse Port
Serial Ports
Internal Power Supply
