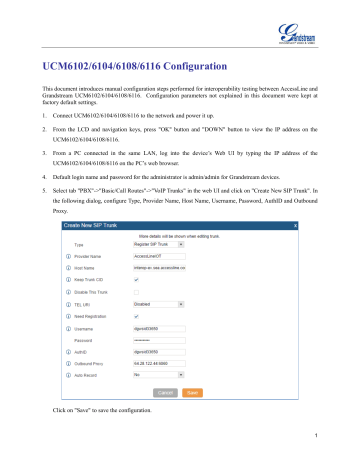

UCM6102/6104/6108/6116 Configuration

UCM6102/6104/6108/6116 Configuration

UCM6102/6104/6108/6116 Configuration

This document introduces manual configuration steps performed for interoperability testing between AccessLine and

Grandstream UCM6102/6104/6108/6116. Configuration parameters not explained in this document were kept at factory default settings.

1. Connect UCM6102/6104/6108/6116 to the network and power it up.

2. From the LCD and navigation keys, press "OK" button and "DOWN" button to view the IP address on the

UCM6102/6104/6108/6116.

3. From a PC connected in the same LAN, log into the device’s Web UI by typing the IP address of the

UCM6102/6104/6108/6116 on the PC’s web browser.

4. Default login name and password for the administrator is admin/admin for Grandstream devices.

5. Select tab "PBX"->"Basic/Call Routes"->"VoIP Trunks" in the web UI and click on "Create New SIP Trunk". In the following dialog, configure Type, Provider Name, Host Name, Username, Password, AuthID and Outbound

Proxy.

Click on "Save" to save the configuration.

1

6. Select tab "PBX"->"Basic/Call Routes"->"VoIP Trunks" in the web UI, click on icon

"AccessLineIOT". In the dialog, select the following codecs for codec preference:

for the SIP trunk

Click on "Save" to save the configuration.

7. Click on "Apply Changes" on the upper right of the web page to apply the configuration. A VoIP trunk is successfully created.

8. Select tab "PBX"->"Basic/Call Routes"->"Extensions" in the web UI, click on "Create New SIP Extension". In the following dialog, configure Permission (set to "Local" in this example). Enter Fist Name, Last Name and other information as needed.

2

Click on "Save" to save the configuration.

9. Repeat this step to create more extensions as needed. These extensions can be used to make outbound calls or answer inbound calls. Once done, click on "Apply Changes" on the upper right of the web page to apply the configuration. The created extensions in step 8 will be successfully applied on the PBX.

10. Select tab "PBX"->"Basic/Call Routes"->"Outbound Routes" in the web UI, click on "Create New Outbound

Rule". In the following dialog, configure Caller Rule Name, Pattern, select Privilege Level and Use Trunk.

3

Click on "Save" to save the configuration.

Please note:

If "Privilege Level" is set to "Local" in outbound rule, the extension that is used to make outbound call needs to have "Permission Level" set to "Local" or higher. The extension settings is under web UI->"PBX"->"Basic/Call

Routes"->"Extension" page, as described in step 8.

11. Select tab "PBX"->"Call Features"->"IVR" in the web UI, click on "Create New IVR". In the following dialog, configure Name, Extension, Dial Other Extensions and Key Pressing Events.

4

Click on "Save" to save the configuration.

12. Click on "Apply Changes" on the upper right of the web page to apply the configuration. The created IVR in step 11 will be successfully applied to the PBX.

13. Select tab "PBX"->"Basic/Call Routes"->"Inbound Routes" in the web UI, click on "Create New Inbound

Rule". In the following dialog, configure Trunks, DID Pattern and Default Destination.

5

Click on "Save" to save the configuration.

14. Click on "Apply Changes" on the upper right of the web page to apply the configuration. The created inbound rule in step 13 will be successfully applied to the PBX. The inbound call to the UCM6102/6104/6108/6116 will be routed to IVR first and users can manually enter the extension number as DTMF to ring the extension number.

The following table shows the configuration information for SIP trunk.

Create New SIP Trunk

Type

Provider Name

Host Name

Username

Password

Select the VoIP trunk type.

 Peer SIP Trunk

 Register SIP Trunk

Configure a unique label to identify this trunk when listed in outbound rules, inbound rules and etc.

Configure the IP address or URL for the VoIP provider’s server of the trunk.

Enter the username to register to the trunk from the provider when

"Register SIP Trunk" type is selected.

Enter the password to register to the trunk from the provider when

"Register SIP Trunk" is selected.

Auth ID

Outbound Proxy

Enter the Authentication ID for "Register SIP Trunk" type.

Enter the IP address or URL of the outbound proxy for "Register SIP

Trunk" type.

6

Codec Preference

Permission

SIP/IAX Password

Select audio and video codec for the VoIP trunk. The available codecs are: PCMU, PCMA, GSM, AAL2-G.726-32, G.726, G.722, G.729, G.723,

ILBC, ADPCM, H.264, H.263, H.263p.

The following table shows the configuration information for extensions.

General

Extension

CallerID Number

The extension number associated with the user.

Configure the CallerID Number that would be applied for outbound calls from this user.

Note:

The ability to manipulate your outbound Caller ID may be limited by your

VoIP provider.

Assign permission level to the user. The available permissions are

"Internal", "Local", "National" and "International" from the lowest level to the highest level. The default setting is "Internal".

Note:

Users need to have the same level as or higher level than an outbound rule's privilege in order to make outbound calls using this rule.

Configure the password for the user. A random secure password will be automatically generated. It is recommended to use this password for security purpose.

Enable Voicemail

Voicemail Password

Call Forward Unconditional

CFU Time Condition

Call Forward No Answer

CFN Time Condition

Enable voicemail for the user. The default setting is "Yes".

Configure voicemail password (digits only) for the user to access the voicemail box. A random numeric password is automatically generated. It is recommended to use the random generated password for security purpose.

Configure the Call Forward Unconditional target number. If not configured, the Call Forward Unconditional feature is deactivated. The default setting is deactivated.

Select time condition for Call Forward Unconditional. CFU takes effect only during the selected time condition. The available time condition are

“Office Time”, “Out of Office Time”, “Holiday”, “Out of Holiday”, “Out of

Office Time or Holiday” and “Specific”.

Note:

 “Specific” has higher priority to “Office Times” if there is a conflict in terms of time period.

 Specific time can be configured on the bottom of the extension configuration dialog. Scroll down the add Time Condition for specific time.

 Office Time and Holiday could be configured on page Settings-

>Time Settings->Office Time/Holiday page.

Configure the Call Forward No Answer target number. If not configured, the Call Forward No Answer feature is deactivated. The default setting is deactivated.

Select time condition for Call Forward No Answer. The available time con dition are “Office Time”, “Out of Office Time”, “Holiday”, “Out of

Holiday”, “Out of Office Time or Holiday” and “Specific”.

7

Call Forward Busy

CFB Time Condition

Ring Timeout

Auto Record

Skip Voicemail Password

Verification

Support Hot-Desking Mode

Disable This Extension

Music On Hold

User Settings

First Name

Note:

 “Specific” has higher priority to “Office Times” if there is a conflict in terms of time period.

 Specific time can be configured on the bottom of the extension configuration dialog. Scroll down the add Time Condition for specific time.

 Office Time and Holiday could be configured on page Settings-

>Time Settings->Office Time/Holiday page.

Configure the Call Forward Busy target number. If not configured, the

Call Forward Busy feature is deactivated. The default setting is deactivated.

Select time condition for Call Forward Busy. The available time condition are “Office Time”, “Out of Office Time”, “Holiday”, “Out of Holiday”, “Out of

Office Time or Holiday” and “Specific”.

Note:

 “Specific” has higher priority to “Office Times” if there is a conflict in terms of time period.

 Specific time can be configured on the bottom of the extension configuration dialog. Scroll down the add Time Condition for specific time.

 Office Time and Holiday could be configured on page Settings-

>Time Settings->Office Time/Holiday page.

Configure the number of seconds to ring the user before the call is forwarded to voicemail (voicemail is enabled) or hang up (voicemail is disabled). If not specified, the default ring timeout is 60 seconds on the

UCM6100, which can be configured in the global ring timeout setting under web GUI->Internal Options->IVR Prompt: General Preference.

The valid range is between 5 seconds and 600 seconds.

Note:

If the end point also has a ring timeout configured, the actual ring timeout used is the shortest time set by either device.

Enable automatic recording for the calls using this extension. The default setting is disabled. The recording files can be accessed under web GUI-

>CDR->Recording Files.

When user dials voicemail code, the password verification IVR is skipped. If enabled, this would allow one-button voicemail access. By default this option is disabled.

If enabled, SIP Password will accept only alphabet characters and digits;

AuthID will be changed to the same as Extension.

If selected, this extension will be disabled on the UCM6100.

Note:

The disabled extension still exists on the PBX but can’t be used on the end device.

Select which Music On Hold class to suggest to extension when putting it on hold.

Configure the first name of the user. The first name can contain characters, letters, digits and _.

8

Last Name

Email Address

Language

SIP Settings

NAT

Can Reinvite

DTMF Mode

Insecure

Enable Keep-alive

Keep-alive Frequency

Auth ID

TEL URI

Other Settings

SRTP

Fax Detection

Configure the last name of the user. The last name can contain characters, letters, digits and _.

Fill in the Email address for the user. Voicemail will be sent to this Email address.

Select the voice prompt language to be used for this extension. The default setting is "Default" which is the selected voice prompt language under web GUI->PBX->Internal Options->Language. The dropdown list shows all the current available voice prompt languages on the UCM6100.

To add more languages in the list, please download voice prompt package by selecting "Check Prompt List" under web GUI->PBX-

>Internal Options->Language.

Use NAT when the UCM6100 is on a public IP communicating with devices hidden behind NAT (e.g., broadband router). If there is one-way audio issue, usually it's related to NAT configuration or Firewall's support of SIP and RTP ports. The default setting is enabled.

By default, the UCM6100 will route the media steams from SIP endpoints through itself. If enabled, the PBX will attempt to negotiate with the endpoints to route the media stream directly. It is not always possible for the UCM6100 to negotiate endpoint-to-endpoint media routing. The default setting is "No".

Select DTMF mode for the user to send DTMF. The default setting is

"RFC2833". If "Info" is selected, SIP INFO message will be used. If

"Inband" is selected, 64-kbit PCMU and PCMA are required. When

"Auto" is selected, RFC2833 will be used if offered, otherwise "Inband" will be used.

 Port: Allow peers matching by IP address without matching port number.

 Very: Allow peers matching by IP address without matching port number. Also, authentication of incoming INVITE messages is not required.

 No: Normal IP-based peers matching and authentication of incoming

INVITE.

The default setting is "Port".

If enabled, empty SDP packet will be sent to the SIP server periodically to keep the NAT port open. The default setting is "Yes".

Configure the Keep-alive interval (in seconds) to check if the host is up.

The default setting is 60 seconds.

Configure the authentication ID for the user. If not configured, the extension number will be used for authentication.

If the end device/phone has an assigned PSTN telephone number, this field should be set to "User=Phone". Then a "User=Phone" parameter will be attached to the Request-Line and TO header in the SIP request to indicate the E.164 number. If set to "Enable", "Tel:" will be used instead of "SIP:" in the SIP request. The default setting is disabled.

Enable SRTP for the call. The default setting is disabled.

Enable to detect Fax signal from the user/trunk during the call and send the received Fax to the Email address configured for this extension. If no

Email address can be found for the user, send the received Fax to the

9

Skip Trunk Auth

Dial Trunk Password

Strategy

Codec Preference default Email address in Fax setting page under web GUI->PBX-

>Internal Options->Fax/T.38.

Note:

If enabled, Fax Pass-through cannot be used.

If enabled, users will not need enter the "PIN Set" required by the outbound rule to make outbound calls. The default setting is "No".

Configure personal password when making outbound calls via trunk.

This option controls how the extension can be used on devices within different types of network.

 Allow All

Device in any network can register this extension.

 Local Subnet Only

Only the user in specific subnet can register this extension. Up to three subnet addresses can be specified.

 A Specific IP Address

Only the device on the specific IP address can register this extension.

The default setting is "Allow All".

Select audio and video codec for the extension. The available codecs are: PCMU, PCMA, GSM, AAL2-G.726-32, G,726, G.722, G.729, G.723,

ILBC, ADPCM, H.264, H.263 and H.263p.

Specific Time

Time Condition Click on add Time Condition to configure specific time for this extension.

The following table shows the configuration information for IVR.

Name

Extension

Dial Other Extensions

Dial Trunk

Permission

Welcome Prompt

Digit Timeout

Configure the name of the IVR. Letters, digits, _ and - are allowed.

Enter the extension number for users to access the IVR.

If enabled, all callers to the IVR can dial other extensions. The default setting is "No".

If enabled, all callers to the IVR is allowed to use trunk. The permission must be configured for the users to use the trunk first. The default setting is "No".

Assign permission level for outbound calls if "Dial Trunk" is enabled. The available permissions are "Internal", "Local", "National" and

"International" from the lowest level to the highest level. The default setting is "Internal". If the user tries to dial outbound calls after dialing into the IVR, the UCM6100 will compared the IVR's permission level with the outbound route's privilege level. If the IVR's permission level is higher than (or equal to) the outbound route's privilege level, the call will be allowed to go through.

Select an audio file to play as the welcome prompt for the IVR. Click on

"Prompt" to add additional audio file under web GUI->Internal Options-

>IVR Prompt.

Configure the timeout between digit entries. After the user enters a digit, the user needs to enter the next digit within the timeout. If no digit is detected within the timeout, the UCM6100 will consider the entries complete. The default timeout is 3 seconds.

10

Response Timeout

Response Timeout Prompt

Invalid Prompt

Response Timeout Repeat

Loops

Invalid Repeat Loops

Language

After playing the prompts in the IVR, the UCM6100 will wait for the DTMF entry within the timeout (in seconds). If no DTMF entry is detected within the timeout, a timeout prompt will be played. The default setting is 10 seconds.

Select the prompt message to be played when timeout occurs.

Select the prompt message to be played when an invalid extension is pressed.

Configure the number of times to repeat the prompt if no DTMF input is detected. When the loop ends, it will go to the timeout destination if configured, or hang up. The default setting is 3.

Configure the number of times to repeat the prompt if the DTMF input is invalid. When the loop ends, it will go to the invalid destination if configured, or hang up. The default setting is 3.

Select the voice prompt language to be used for this IVR. The default setting is "Default" which is the selected voice prompt language under web GUI->PBX->Internal Options->Language. The dropdown list shows all the current available voice prompt languages on the UCM6100.

To add more languages in the list, please download voice prompt package by selecting "Check Prompt List" under web GUI->PBX-

>Internal Options->Language.

Key Press Event

Select the event for each key pressing for 0-9, *, Timeout and Invalid.

The event options are:

 Extension

 Voicemail

 Conference Rooms

 Voicemail Group

 IVR

 Ring Group

 Queues

 Page Group

 Fax

 Custom Prompt

 Hangup

 DISA

 Dial By Name

 External Number

The following table shows the configuration information for outbound route.

Calling Rule Name

Pattern

Password

Configure the name of the calling rule (e.g., local, long_distance, and etc). Letters, digits, _ and - are allowed.

 All patterns are prefixed with the "_".

 Special characters:

X: Any Digit from 0-9.

Z: Any Digit from 1-9.

N: Any Digit from 2-9.

".": Wildcard. Match one or more characters.

"!": Wildcard. Match zero or more characters immediately.

Example: [12345-9] - Any digit from 1 to 9.

Configure the password for users to use this rule when making outbound calls.

11

Call Duration Limit

Maximum Call Duration

Warning Time

Warning Repeat Interval

Privilege Level

Enable Filter on Source Caller

ID

Enable to configure the maximum duration for the call using this outbound route.

Configure the maximum duration of the call (in seconds). The default setting is 0, which means no limite.

Configure the warning time for the call using this outbound route. If set to x seconds, the warning tone will be played to the caller when x seconds are left to end the call.

Configure the warning repeat interval for the call using this outbound route. If set to x seconds, the warning tone will be played every x seconds after the first warning.

Select privilege level for the outbound rule.

 Internal: The lowest level required. All users can use this rule.

 Local: Users with Local, National, or International level are allowed to use this rule.

 National: Users with National or International level are allowed to use this rule.

 International: The highest level required. Only users with international level can use this rule.

The default setting is "Disable". Please be aware of the potential security risks when using "Internal" level, which means all users can use this outbound rule to dial out from the trunk.

When enabled, users could specify extensions allowed to use this outbound route. "Privilege Level" is automatically disabled if using

"Enable Filter on Source Caller ID".

The following two methods can be used at the same time to define the extensions as the source caller ID.

 Select available extensions/extension groups from the left to the right. This allows users to specify arbitrary single extensions available in the PBX.

 Custom Dynamic Route: define the pattern for the source caller ID.

This allows users to define extension range instead of selecting them one by one.

 All patterns are prefixed with the "_".

 Special characters:

X: Any Digit from 0-9.

Z: Any Digit from 1-9.

N: Any Digit from 2-9.

".": Wildcard. Match one or more characters.

"!": Wildcard. Match zero or more characters immediately.

Example: [12345-9] - Any digit from 1 to 9.

Send This Call Through Trunk

Use Trunk

Strip

Select the trunk for this outbound rule.

Allows the user to specify the number of digits that will be stripped from the beginning of the dialed string before the call is placed via the selected trunk.

Example:

The users will dial 9 as the first digit of a long distance calls. However, 9 should not be sent out via analog lines and the PSTN line. In this case, 1

12

digit should be stripped before the call is placed.

Prepend

Specify the digits to be prepended before the call is placed via the trunk.

Those digits will be prepended after the dialing number is stripped.

The following table shows the configuration information for inbound route.

Trunks

DID Pattern

Privilege Level

Default Destination

Strip

Prepend Trunk Name

Dial Trunk

DID Destination

Select the trunk to configure the inbound rule.

 All patterns are prefixed with the "_".

 Special characters:

X: Any Digit from 0-9.

Z: Any Digit from 1-9.

N: Any Digit from 2-9.

".": Wildcard. Match one or more characters.

"!": Wildcard. Match zero or more characters immediately.

Example: [12345-9] - Any digit from 1 to 9.

 The pattern can be composed of two parts, divided by a ‘/’ character.

The first part is used to specify the dialed number the second part is used to specify the caller ID and it is optional, if set it means only the extension with the specific caller ID is allowed to call in or call out.

For example, patter '_2XXX/1234' means the only extension with the caller ID '1234' is allowed to use this rule.

Configure the privilege level for this inbound route.

Select the default destination for the inbound call.

 Extension

 Voicemail

 Conference Room

 Queue

 Ring Group

 Paging/Intercom

 Voicemail Group

 Fax

 DISA

 IVR

 Dial By Name

 External Number

 By DID

When "By DID" is used, the UCM6100 will look for the destination based on the number dialed, which could be local extensions, conference, call queue, ring group, paging/intercom group, IVR, voicemail groups and Fax extension as configured in "DID destination". If the dialed number matches the DID pattern, the call will be allowed to go through.

Configure the number of digits to be stripped from the beginning of the

DID. This option shows up only when "By DID" is selected.

This option shows up only when “By DID” is selected. If enabled, the trunk name will be prepended to the display name.

This option shows up only when "By DID" is selected. If enabled, the external users dialing in to the trunk via this inbound route can dial outbound call using the UCM6100’s trunk.

This option shows up only when "By DID" is selected. This controls the

13

destination that can be reached by the external caller via the inbound route. The DID destination are:

 Extension

 Conference

 Call Queue

 Ring Group

 Paging/Intercom Groups

 IVR

 Voicemail Groups

 Fax Extension

 Dial By Name

Alert-Info

When present in an INVITE request, the Alert-Info header field specifies an alternative ring tone to the UAS.

Note:

For more configuration information, please refer to UCM6100 user manual on our web site: http://www.grandstream.com/products/ucm_series/ucm61xx/documents/ucm61xx_usermanual_english.pd

f

14

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
