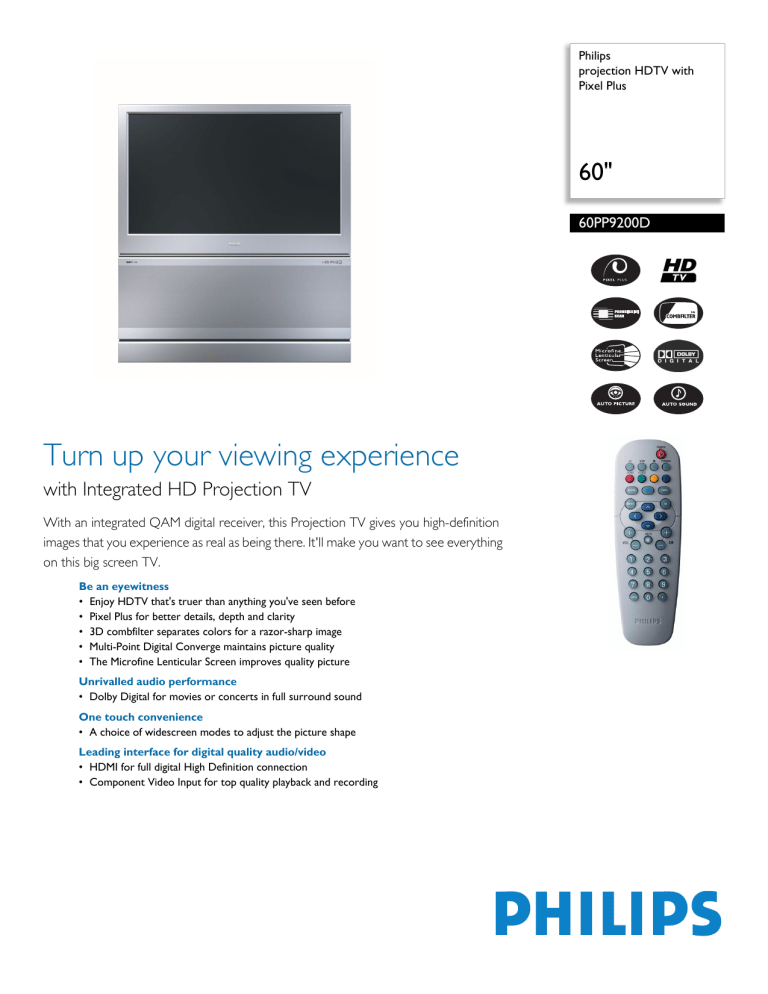

Philips
projection HDTV with
Pixel Plus
60"
60PP9200D
Turn up your viewing experience
with Integrated HD Projection TV
With an integrated QAM digital receiver, this Projection TV gives you high-definition
images that you experience as real as being there. It'll make you want to see everything
on this big screen TV.
Be an eyewitness
• Enjoy HDTV that's truer than anything you've seen before
• Pixel Plus for better details, depth and clarity
• 3D combfilter separates colors for a razor-sharp image
• Multi-Point Digital Converge maintains picture quality
• The Microfine Lenticular Screen improves quality picture
Unrivalled audio performance
• Dolby Digital for movies or concerts in full surround sound
One touch convenience
• A choice of widescreen modes to adjust the picture shape
Leading interface for digital quality audio/video
• HDMI for full digital High Definition connection
• Component Video Input for top quality playback and recording
For preview purpose only
60PP9200D/37
projection HDTV with Pixel Plus
60"
Technical specifications
Picture/Display
• Aspect ratio: 16:9, Widescreen
• Visible screen diagonal (inch): 60 inch
• Display screen type: CRT Rear Projection
TV
• Picture enhancement: AutoPicture (5
modes), Progressive Scan, Color
Temperature Adjustment, Black stretch,
Color Transient Improvement, Color,
Sharpness Adjustment, Tint, Pixel Plus, 3D
Combfilter, Active Control, Contrast Plus,
Luminance Transient Improver, Digital
Noise Reduction
Supported Display Resolution
• Video formats
Resolution
1080i
480i
480p
Refresh rate
60Hz
60Hz
60Hz
Sound
• Output power (RMS): 2 x 10W
• Sound Enhancement: Auto Volume Leveller,
AutoSound (4 modes), Balance, Treble and
Bass Control
• Sound System: AC-3 Dolby Digital
Decoding, Virtual Dolby Surround, Stereo
Convenience
•
•
•
•
•
Ease of Installation: Autostore
Ease of Use: Channel list
Remote control type: RCLU024
Remote Control: TV
Teletext: Closed Captioning Full Text
Product highlights
• Screen Format Adjustments: Super Zoom,
4:3, 4:3 expand, Auto Format, Widescreen,
Subtitle Zoom, Zoom 14:9, Zoom 16:9
• Clock: On/Off event timer
• On-Screen Display languages: American,
French, Spanish
Tuner/Reception/Transmission
•
•
•
•
TV system: ATSC, NTSC
Video Playback: NTSC
Aerial Input: 75 ohm F-type
Cable: Unscrambled Digital Cable -QAM
Connectivity
•
•
•
•
•
•
AV 1: CVBS in, HDMI, CVI
AV 2: CVBS, Component Video in
AV 3: S-Video Y/C, CVBS in
Front / Side connections: CVBS in, S-video in
Output rear: Audio L/R out
Audio Output - Digital: AC3 over S/PDIF
(Optical)
Power
• Consumption: 255 W
• Standby power consumption: < 1 W
• Mains power: AC 90-140V, 60Hz
Dimensions
• Product dimension (WxDxH) inch: 56.65" x
26.89" x 59.37"
• Product weight (lb): 184.8
• Carton dimensions (WxDxH) inch: 61.02" x
31.89" x 62.01"
• Weight incl. Packaging (lb): 217.14
•
HDTV
HDTV delivers exceptional picture quality and real movieviewing experience that makes television more dynamic,
truer than anything you've seen before. It is the latest and
best television signal available. It features picture quality
more than twice that of traditional analog broadcasts. In
order to effectively maximize the HDTV signal, a
television must incorporate advanced signal input
connectivity and circuitry design. To use HDTV the TV
must be connected via its Component Video, DVI or
HDMI inputs to a DTV set-top box and set to operate in
the DTV mode.
Pixel Plus
This set uses the power of the Pixel Plus processor to
increase the number of lines and the number of pixels.
The result is razor sharp pictures with incredible detail
and dept, every time from any source.
3D Combfilter
The 3D comb filter separates brightness and color signals
better in 3D domain to eliminate cross-color, crossluminance and dot-crawl distortion - all of which detract
from your viewing pleasure. The 3D digital comb filter
performs field-by-field comparisons of the television
image to accurately separate the color from the blackand-white information and remove both horizontally and
vertically hanging dots, as well as dot crawl. The result is
a razor sharp image.
Multi-Point Digital Converge
Transporting a projection TV may cause its three picture
tubes to become misaligned. This can result in noticeably
poorer picture quality and color bleeding. Multi-point
digital convergence allow you to use the remote control to
adjust picture convergence electronically at 35 points on
the TV's screen using the 'Convergence' section of the
Picture menu. This optimizes the picture from corner-tocorner to minimize effects from natural or man-made
magnetic fields in the room where you locate your
projection TV. You always get the best possible picture.
Dolby Digital
Because Dolby Digital and DTS, the world's leading digital
multi-channel audio standards, make use of the way the
human ear naturally processes sound, you experience
superb quality surround sound audio with realistic spatial
cues.
HDMI input
HDMI makes an uncompressed digital RGB connection
from the source to the screen. By eliminating conversion
to an analog signal, it delivers an unblemished image. The
non-degraded signal reduces flicker and leads to a clearer
picture. HDMI intelligently communicates the highest
output resolution with the source device. The HDMI input
is fully backward compatible with DVI sources but
includes digital audio. HDMI uses HDCP copy protection.
Component Video Input (YPbPr)
Component Video is the highest quality interconnection
standard for analog video. It is sharper than S-video and
composite video. Philips DVD recorders can record
directly from component video (such as YPbPr) sources
including satellite receivers
Date of issue 2006-08-09
Version: 2.0
12 NC: 8670 000 23093
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
