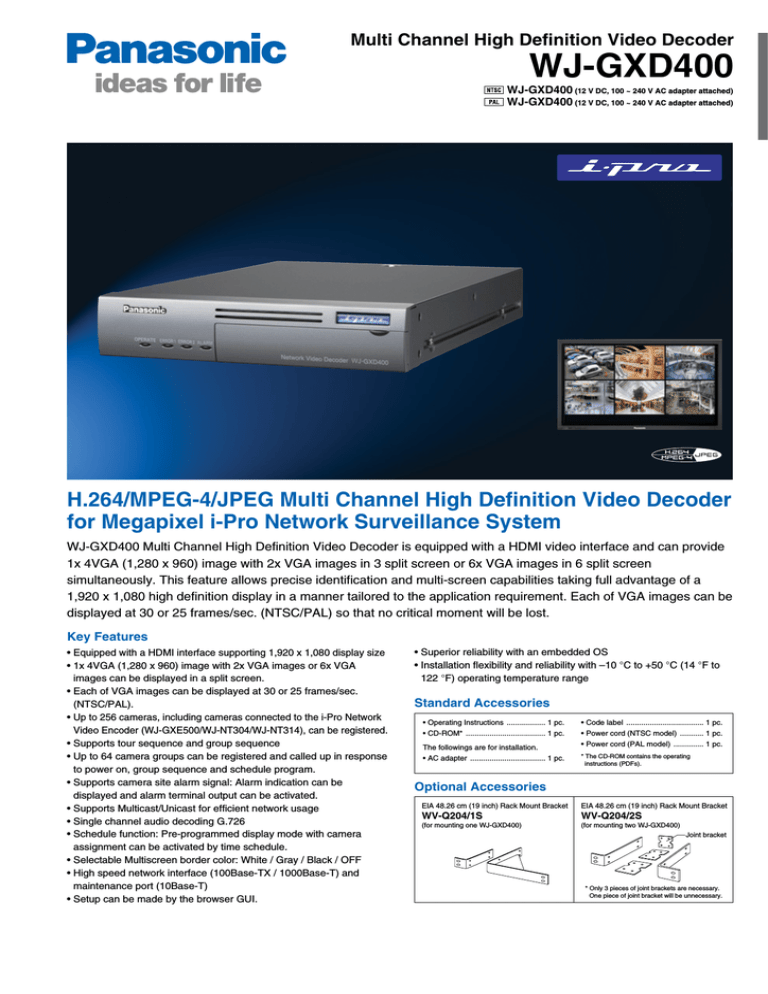

Panasonic WJ-GXD400 decoder Datasheet

Multi Channel High Definition Video Decoder
WJ-GXD400
WJ-GXD400 (12 V DC, 100 ~ 240 V AC adapter attached)
WJ-GXD400 (12 V DC, 100 ~ 240 V AC adapter attached)
H.264/MPEG-4/JPEG Multi Channel High Definition Video Decoder
for Megapixel i-Pro Network Surveillance System
WJ-GXD400 Multi Channel High Definition Video Decoder is equipped with a HDMI video interface and can provide
1x 4VGA (1,280 x 960) image with 2x VGA images in 3 split screen or 6x VGA images in 6 split screen
simultaneously. This feature allows precise identification and multi-screen capabilities taking full advantage of a
1,920 x 1,080 high definition display in a manner tailored to the application requirement. Each of VGA images can be
displayed at 30 or 25 frames/sec. (NTSC/PAL) so that no critical moment will be lost.
Key Features
• Equipped with a HDMI interface supporting 1,920 x 1,080 display size
• 1x 4VGA (1,280 x 960) image with 2x VGA images or 6x VGA
images can be displayed in a split screen.
• Each of VGA images can be displayed at 30 or 25 frames/sec.
(NTSC/PAL).
• Up to 256 cameras, including cameras connected to the i-Pro Network
Video Encoder (WJ-GXE500/WJ-NT304/WJ-NT314), can be registered.
• Supports tour sequence and group sequence
• Up to 64 camera groups can be registered and called up in response
to power on, group sequence and schedule program.
• Supports camera site alarm signal: Alarm indication can be
displayed and alarm terminal output can be activated.
• Supports Multicast/Unicast for efficient network usage
• Single channel audio decoding G.726
• Schedule function: Pre-programmed display mode with camera
assignment can be activated by time schedule.
• Selectable Multiscreen border color: White / Gray / Black / OFF
• High speed network interface (100Base-TX / 1000Base-T) and
maintenance port (10Base-T)
• Setup can be made by the browser GUI.
• Superior reliability with an embedded OS
• Installation flexibility and reliability with –10 °C to +50 °C (14 °F to
122 °F) operating temperature range
Standard Accessories
• Operating Instructions .................. 1 pc.
• CD-ROM* ..................................... 1 pc.
The followings are for installation.
• AC adapter ................................... 1 pc.
• Code label .................................... 1 pc.
• Power cord (NTSC model) ........... 1 pc.
• Power cord (PAL model) .............. 1 pc.
* The CD-ROM contains the operating
instructions (PDFs).
Optional Accessories
EIA 48.26 cm (19 inch) Rack Mount Bracket
EIA 48.26 cm (19 inch) Rack Mount Bracket
WV-Q204/1S
WV-Q204/2S
(for mounting one WJ-GXD400)
(for mounting two WJ-GXD400)
Joint bracket
* Only 3 pieces of joint brackets are necessary.
One piece of joint bracket will be unnecessary.
Specifications
Display ID
Camera Title
Optional Information
Time & Date Display
Information Display
Border Line
User
User Authentification
Management Host Authentification
Browser GUI Setup Menu Language
for SETUP
System Log
and
Supported OS
Maintenance
Supported Browser
Alarm /
Error
Alarm Source
Alarm Action
Alarm Reset
Error
Network Network Interface
Maintenance Port
Supported Protocol
Multicast
External IF Terminal
Network
General
Safety/EMC Standard
Specifications
Maintenance Port
Network Port
Audio Output Connector
Video Output Connector
SIGNAL GND Terminal
HDMI Connector
Alarm/Control Terminals
Power Connector
Cable Clamp
Appearance
25(1") 9.5(3/8")
3.5(1/8") 44(1-3/4")
Power Source /
Consumption
Ambient Operating Temperature
Ambient Operating Humidity
Dimensions
Weight (approx.)
Operation Indicator
Error 1 Indicator
Error 2 Indicator
ALARM Indicator
LINK/ACT Indicator
100BASE-TX Indicator
1000BASE-T Indicator
Reset Switch
Mode Switches
307(12-1/16")
OSD
300(11-13/16")
Audio
Camera Group
Tour Sequence
Group Sequence
Schedule
Display Pattern
7(1/4")
Display
Mode
Rear View
23(7/8") 128(5-1/16")
Composite Video
32(1-1/4")
(Mounting Pitch)
Supported Audio Format
No. of Camera Registration
HDMI
Front View
220(8-11/16")
Audio/
Video
Output
Part Names and Functions
NTSC
PAL
Panasonic i-Pro series Network cameras
Panasonic i-Pro series Encoders
H.264, MPEG-4, JPEG (Multi-decoding)
1,280 x 960, 640 x 480,
1,280 x 960, 640 x 480,
320 x 240
320 x 240, 768 x 576
(trimmed to 640 x 480)
G.726 (ADPCM) 32 kbps / 16 kbps
256
1,920 x 1,080:
1,920 x 1,080:
1x 4VGA (1,280 x 960)
1x 4VGA (1,280 x 960)
with 2x VGA or 6x VGA
with 2x VGA or 6x VGA,
30 frames/sec., Audio supported 25 frames/sec., Audio supported
NTSC composite video,
PAL composite video,
1x BNC connector
1x BNC connector
1x RCA pin jack
Up to 64 Camera groups are available
Up to 64 steps, 10 patterns. Dwell time: 3 / 5 / 10 / 15 / 20 sec.
Up to 64 steps, 10 patterns. Dwell time: 3 / 5 / 10 / 15 / 20 sec.
Up to 6 schedules
Up to 4 display patterns :
Single, 3-Screen (primary screen on the left),
3-Screen (primary screen on the right), 6-Screen
Up to 4 alphanumeric characters
Up to 16 alphanumeric characters
Up to 32 alphanumeric characters x 2 lines
ON/OFF, Time: 12 H/24 H, Date: 5 formats
Alarm information, Error information
OFF/ON (Black / Gray / White)
Up to 32 users, 2 access levels
Up to 32 hosts
English / French / Spanish / German / Italian / Russian / Japanese
Error log (100), Network log (1,000)
Microsoft® Windows Vista® Business 32 bit,
Microsoft® Windows® XP Home/Professional SP2
Windows® Internet Explorer® 7.0 (Microsoft® Windows Vista® Business 32 bit),
Microsoft® Internet Explorer® 6.0 SP2
(Microsoft® Windows® XP Home/Professional SP2)
Panasonic alarm command via network
Alarm message, Alarm frame, Terminal output, Alarm LED
Auto reset, Reset command, Reset terminal input
Error message, Terminal output, Error1 / Error2 LED
100Base-TX / 1000Base-T, RJ-45 Connector
10Base-T, RJ-45 Connector
TCP/IP, UDP/IP, HTTP, RTP, DHCP, DNS, DDNS, NTP
Yes
Alarm reset input, Alarm output, Error output
CGI Command I/F
UL (UL60065),
CE (EN60065, EN55022
FCC (Part15 ClassA),
ClassB, EN55024)
C-UL (CAN/CSA C22.2 No.60065),
DOC (ICES003 ClassA)
12 V DC 1.4 A
(AC adapter for AC 100 ~ 240 V 50/60 Hz attached)
–10 °C ~ +50 °C (14 °F ~ 122 °F)
90 % or less (without condensation)
210 mm x 44 mm x 307 mm (8-1/4" x 1-3/4" x 12-1/16")
2.0 kg (4.4 lbs.)
47(1-7/8")
TV System
Supported Supported Cameras
Cameras Supported Encoders
Supported Image Format
Supported Image
Resolution
480(18-7/8")
465(18-5/16")(Mounting Pitch)
210(8-1/4")
Network Video Decoder WJ-GXD400
160(6-5/16")
Unit: mm (inches)
Trademarks and registered trademarks
– Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries.
– "Super Dynamic", "SDII", "SDIII" and "i-Pro" logos are trademarks or registered trademarks of Panasonic Corporation.
Important
– Safety Precaution: carefully read the operating instructions and installation manual before using this product.
– Panasonic can not be responsible for network performance and/or other manufacturer products that reside on the network.
• All TV pictures are simulated.
• Weights and dimensions are approximate.
• Specifications are subject to change without notice.
• These products may be subject to export control regulations.
• All product pictures are NTSC models.
