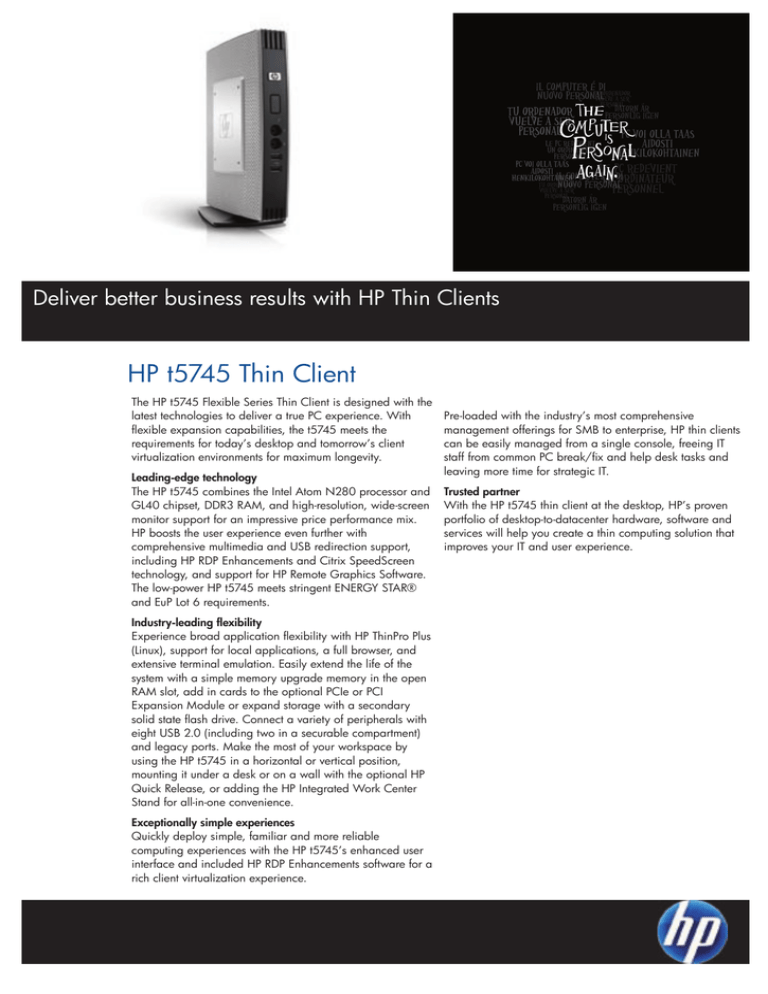

Deliver better business results with HP Thin Clients
HP t5745 Thin Client
The HP t5745 Flexible Series Thin Client is designed with the
latest technologies to deliver a true PC experience. With
flexible expansion capabilities, the t5745 meets the
requirements for today’s desktop and tomorrow’s client
virtualization environments for maximum longevity.
Leading-edge technology
The HP t5745 combines the Intel Atom N280 processor and
GL40 chipset, DDR3 RAM, and high-resolution, wide-screen
monitor support for an impressive price performance mix.
HP boosts the user experience even further with
comprehensive multimedia and USB redirection support,
including HP RDP Enhancements and Citrix SpeedScreen
technology, and support for HP Remote Graphics Software.
The low-power HP t5745 meets stringent ENERGY STAR®
and EuP Lot 6 requirements.
Industry-leading flexibility
Experience broad application flexibility with HP ThinPro Plus
(Linux), support for local applications, a full browser, and
extensive terminal emulation. Easily extend the life of the
system with a simple memory upgrade memory in the open
RAM slot, add in cards to the optional PCIe or PCI
Expansion Module or expand storage with a secondary
solid state flash drive. Connect a variety of peripherals with
eight USB 2.0 (including two in a securable compartment)
and legacy ports. Make the most of your workspace by
using the HP t5745 in a horizontal or vertical position,
mounting it under a desk or on a wall with the optional HP
Quick Release, or adding the HP Integrated Work Center
Stand for all-in-one convenience.
Exceptionally simple experiences
Quickly deploy simple, familiar and more reliable
computing experiences with the HP t5745’s enhanced user
interface and included HP RDP Enhancements software for a
rich client virtualization experience.
Pre-loaded with the industry’s most comprehensive
management offerings for SMB to enterprise, HP thin clients
can be easily managed from a single console, freeing IT
staff from common PC break/fix and help desk tasks and
leaving more time for strategic IT.
Trusted partner
With the HP t5745 thin client at the desktop, HP’s proven
portfolio of desktop-to-datacenter hardware, software and
services will help you create a thin computing solution that
improves your IT and user experience.
HP t5745 Thin Client
Operating system
HP ThinPro
Intel® Atom N280
1.66 GHz
2 GB primary Flash drive, optional 16 GB second Flash drive (sold separately), 1 or 2 GB DDR3 SODIMM (64 MB of system RAM is reserved for
video graphics usage)
Intel GL40 graphics with support for two high-resolution monitors up to 2048 x 1536 or up to 32 bit color depth, 64 MB of graphics memory
Expansion slots
1 optional Expansion Module with X4 PCI-EI or PCI slot including 1 parallel and second serial port
Ports and jacks
USB or PS/2, local and/or network printer support
I/O and peripheral support
8 USB 2.0 ports (two in front, four in rear, two in secure USB compartment), 1 VGA, 1 DisplayPort (to be use with DVI-D connector cable), 2 PS/2,
1 serial, 1 RJ-45
10/100/1000 Gigabit Ethernet (RJ-45), TCP/IP with DNS and DHCP, Point-to-Point Protocol (PPP), Direct Connection through RS-232, Point-to-Point
over Ethernet (PPPoE), Point-to-Point Tunneling Protocol (PPTP), Layer-2 Tunneling Protocol (L2TP), Wake on LAN (WOL), PXE, Server Network Time
Protocol (SNTP), Simple Network Management Protocol (SNMP)
Built in dual monitor support (VGA and DVI-D native)
Networking / communication
Altiris Deployment Solution (must purchase license directly from vendor), HP Device Manager, HP ThinState for image capture and restore, support
for HP Client Automation, HP ezUpdate for automated FTP profile, add-on and image updates
Software included
Citrix ICA 11 with XenDesktop/PNagent, Citrix Desktop Appliance (CDA) mode utility, RDesktop 1.6, XDM/X.11, Sun Java, HP TeemTalk Terminal
Emulator 7.1, Debian Package Manager with simple GUI, IPV6 Capable, HP Screensaver, HP Remote Graphics Software Receiver 5.2 for VMware
View and Microsoft Terminal Services, HP RDP Multimedia and USB Redirection software enhancements for VMware View and Windows Terminal
Server, Citrix HD-X MediaStream support for XenApp and XenDesktop, Citrix HD-X USB Plug-n-Play support for XenApp and XenDesktop
Server OS compatibility / support
Windows 2000/2003 Server families, Windows 2000/2003 Server Terminal Services, Windows Server 2008 Terminal Services, Citrix
Presentation Server 4.0, Citrix XenApp 4.5 and 5.0, Citrix XenDesktop 2.x and 3, VMware View Manager 2.x and 3.1
Dimensions (W x D x H)
4.40 x 22.20 x 26.67 cm with stand
1.58 kg with stand
Worldwide auto-sensing 100-240 VAC, 50-60 Hz energy-saving automatic power-down, surge-tolerant 65-watt power supply
Operating temperature
10 to 40° C
Non-operating temperature
-30 to 60° C
3 years pick-up and return service (Certain restrictions apply)
© 2009 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty
statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Microsoft and Windows are trademarks of the Microsoft group of companies in the U.S. and other countries.
For more information, please visit www.hp.com/eur/thinclients
4AA0-2130EEE. January 2010
HP t5745 Thin Client
Recommended accessories and services
HP t5740/t5745 PCI Express
4x/PCI Expansion Module
Extend the capabilities of your HP Thin Client or HP Streaming Client with this PCIe
x4/PCI Expansion Module. The HP Expansion Module gives you PCIe x4 expansion
capabilities, or it can be configured instead to add a PCI 32-bit expansion slot.
Product number: AZ551AA
HP Quick Release
A secure and easy-to-use mounting solution for your VESA-compliant HP flat panel
monitors, thin clients and other HP desktop products. Attach to any a compatible
stand, bracket or wall mount and make the most of your workspace.
Product number: EM870AA
HP USB Smart Card Keyboard
An innovative full-sized keyboard that uses Smartcard technology to prevent
unauthorised access to your desktop PC and business networks.
Product number: ED707AA
HP DisplayPort to DVI-D
Converts the DisplayPort connector on a HP Compaq Business Desktop computer to a
single link DVI-D port. The adapter has a latching DisplayPort connector on one end
and DVI-D connector on the other for connecting to a DVI-D monitor cable.
Product number: FH973AA
3 years Next Day Exchange,
excluding external Monitor,
HW Support
HP provides quick replacement of your failed hardware unit the day after it goes
down, if the problem can't be resolved remotely. Offers a convenient, cost-saving
alternative to onsite hardware repair for your HP product.
Product number: U4847E
