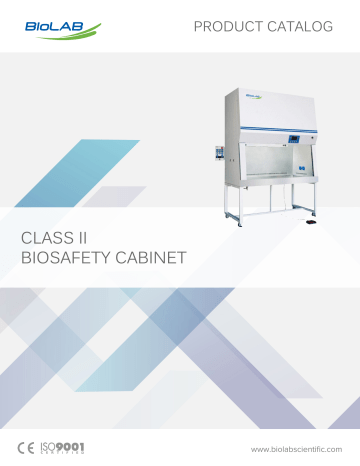

PRODUCT CATALOG
CLASS II
BIOSAFETY CABINET
www.biolabscientific.com
CLASS II BIOSAFETY CABINET
Biolab Biological Safety Cabinet Class II Series is engineered specifically for laboratory operations that require
user and product protection. Operates with a negative air pressure for personnel protection and HEPA filtered
laminar airflow for product protection. Suitable for microbiological and research applications that do not involve
radioactive substances and toxic contaminants.
200 SERIES
BIOLOGICAL
SAFETY
CABINET
CLASS II
Stainless Steel 304 table for operation
Digital VFD display for easy monitoring of
all parameters
Emission of 253.7 nm for highly efficient
decontamination
2 waterproof sockets located in side panel
Air speed adjustable by control panel
Collecting tank (4000 ml) collects spatters of
working area without any leakage
Remote control operation including front
sash movement and fan speed control
Motored front window with timer function
Two-layered marinated toughened glass
(≥5mm) motorized front window
Intrinsic sterilization is achieved after
activating cabinet for 30 min via UV timing
Air drawn into the cabinet through air grill
Negative air pressure provides personnel
protection by constant movement of air in
working area
Foot switch to adjust the height of the
front window
2 waterproof sockets located in side panel
Collecting tank (4000 ml) collects spatters
of working area without any leakage
Air speed adjustable by control panel
Foot switch to adjust the height of the front
window
Filter Life Indicator: Pressure value displayed
to show life utility of main filter
Interlock function: UV lamp and front
window, UV lamp and blower, fluorescent
lamp, blower and front window
Low noise and high energy efficiency for
operational cost savings
Audio and visual alarm for filter replacement,
front window over height and abnormal
airflow
SPECIFICATIONS
Model
BCBS-201
BCBS-202
Type
HEPA Filter
2
HEPA Filter Efficiency
99.999% efficiency at 0.3 µm
Air Circulation
0.3
Exhaust Air
0.7
Minimum Face Velocity
75 linear feet per minute (lfpm)
Inflow Velocity
Down Flow Velocity
0.53±0.025 m/s
0.33±0.025 m/s
0.33±0.025 m/s
Fluorescent Lamp
21Wx2
UV Lamp
40Wx1
Lighting
Inner Dimension (WxDxH)
Overall Dimension (WxDxH)
Caster
Clean Level
Control System
Chamber Material
www.biolabscientific.com
28Wx2
18Wx1
≥1000 lux
Work Surface Height
2
BCBS-203
Class II, Type A2
750 mm
940×600×660 mm
1100×600×660 mm
1300×700×630 mm
1100x750x2250 mm
1300×850×2200 mm
1500×840×2280 mm
Universal Wheel with brake and levelling feet
Class 100
Microprocessor
Cold-rolled steel coated with anti-bacteria powder coating
Socket
2
Noise Level
EN12469≤58dB / NSF≤61dB
255 kg
305 kg
350 kg
Power
760 W
1060 W
1300 W
Power Supply
CLASS II BIOSAFETY CABINET
Weight
100/220V±10%, 50/60Hz
Model
BCBS-204
BCBS-205
Type
Class II, Type A2
HEPA Filter
2
HEPA Filter Efficiency
99.999% efficiency at 0.3 µm
Air Circulation
0.3
Exhaust Air
0.7
Minimum Face Velocity
75 linear feet per minute (lfpm)
Inflow Velocity
0.53±0.025 m/s
Down Flow Velocity
0.33±0.025 m/s
Fluorescent Lamp
40Wx2
40Wx1
UV Lamp
30Wx1
Lighting
≥1000 lux
Work Surface Height
750 mm
Inner Dimension (WxDxH)
1710×600×660 mm
1800×600×660 mm
Overall Dimension (WxDxH)
1870×750×2290 mm
1950×800×2305 mm
Caster
Universal Wheel with brake and levelling feet
Clean Level
Class 100
Control System
Microprocessor
Chamber Material
Cold-rolled steel coated with anti-bacteria powder coating
Socket
2
Noise Level
EN12469≤58dB / NSF≤61dB
Weight
390 kg
420 kg
Power
1350 W
1700 W
Power Supply
100/220V±10%, 50/60Hz
ACCESSORIES
Accessory Code
Name
Accessory Code
Name
BX-103986
Fluorescent Lamp
BX-103990
Foot switch
BX-103987
UV Lampx2
BX-103991
Drain Valve
BX-103988
Base Stand
BX-103992
Waterproof Sockets
BX-103989
Remote Control
www.biolabscientific.com
3
OPTIONAL ACCESSORIES
Accessory
Code
Name
Accessory Code
Name
BX-102690
BX-102683
Digital Sound Level Meter
Infrared Sterilizer
BX-102691
Illumination Meter
BX-102684
Airflow Tester
BX-102692
Air Flow Anemometer
BX-102685
Formalin Fumigation Sterilizer
BX-102693
Protective Garment
BX-102686
Ammonium Hydrogen Carbonate
Neutralizer
BX-102694
Protective Gloves
BX-102687
Armrest
BX-102688
Laboratory Chair
BX-102689
Dust Particle Counter
BCBS-203
300 SERIES
BIOLOGICAL
SAFETY
CABINET
CLASS II
Stainless Steel 304 table for operation
Digital LCD display for easy monitoring of all
parameters
Emission of 253.7 nm for highly efficient
decontamination
Motored front window with timer function
Two-layered marinated toughened glass
(≥5mm) motorized front window
Negative air pressure provides personnel
protection by constant movement of air in
working area
Remote control operation including front
sash movement and fan speed control
Foot switch to adjust the height of the front
window
Centrifugal fan speed adjustable: H14 HEPA
filter
4
www.biolabscientific.com
BCBS-204
Collecting tank (4000 ml) collects spatters of
working area without any leakage
Intrinsic sterilization is achieved after
activating cabinet for 30 min via UV timing
Air drawn into the cabinet through air grill
Filter Life Indicator: Pressure value displayed
to show life utility of main filter
Low noise and high energy efficiency for
operational cost savings
Audio and visual alarm for filter replacement,
front window over height and abnormal
airflow
SPECIFICATIONS
Model
BCBS-301
BCBS-304
BCBS-307
Class II, Type A2
HEPA Filter
2
ULPA Filter 2
HEPA Filter
Efficiency
99.999% efficiency at 0.3 µm
99.999% efficiency at
0.1~0.2 µm
Air Circulation
0.3
-
-
-
Exhaust Air
0.7
-
-
-
Minimum Face
Velocity
75 linear feet per minute (lfpm)
Inflow Velocity
0.65m/s±0.015m/s
Down Flow Velocity
0.37m/s±0.015m/s
Fluorescent Lamp
0.53±0.025m/
0.53±0.025m/s
0.53 m/s
0.35±0.025m/s
14Wx1
30Wx1
0.33 m/s
40Wx2
28Wx2
20Wx1
30Wx1
UV Lamp
18Wx1, 40Wx1
Lighting
800 lux
>850 lux
Working Opening
400 mm
450 mm
Inner Dimension
(WxDxH)
600x500x540 mm
Overall Dimension
(WxDxH)
700x650x1230 mm
1100x740x2308 mm 1886x750x2335 mm
1370x760x2100 mm
Yes
None
Universal Wheel with brake
and levelling feet
Two-layer toughened glass
> 5 mm
Manual, anti UV
-
Work Surface Height
Caster
Front Window
Clean Level
Control System
≥1000 lux
750 mm
Class 100
Microprocessor
Chamber Material
914x600x610 mm
440 mm
1700x600x610 mm
1220x600x630 mm
-
-
-
-
-
Microprocessor
Cold-rolled steel coated with anti-bacteria powder coating
Socket
2
<65dB
Weight
110 kg
260 kg
380 kg
400 kg
Power
800 W
260 W
300 W
700 W
220V~240V/50Hz~60Hz;
110V~130V/60Hz
NSF 49≤61 dB/EN 12469≤58 dB
EN12469≤58dB/NSF49≤ 61
dB
Noise Level
Power Supply
CLASS II BIOSAFETY CABINET
Type
BCBS-306
AC220V/110V, 50Hz/60HZ
AC220V± 10%,50/60HZ;
110V±10%,60HZ
Airflow Volume
Inflow
-
Airflow Volume
Downflow
-
0.61
-
Airflow Volume
Exhaust
-
0.39
-
349 m3 / h
649 m3 / h
-
www.biolabscientific.com
5
ACCESSORIES
Accessory Code Name
For Models
Accessory Code
Name
For Models
BX-103986
Fluorescent Lamp
All
BX-103992
Waterproof Sockets
All
BX-103987
UV Lampx2
All
BX-103993
BX-103989
Remote Control
All
Stainless Steel water & BCBS-304, BCBS-306,
Gas Taps
BCBS-307
BX-103991
Drain Valve
All
BX-103988
Base Stand
BCBS-304, BCBS-306,
BCBS-307
OPTIONAL ACCESSORIES
Accessory
Code
Name
Accessory Code
Name
BX-102683
Infrared Sterilizer
BX-102690
Digital Sound Level Meter
BX-102684
Airflow Tester
BX-102691
Illumination Meter
BX-102692
BX-102685
Air Flow Anemometer
Formalin Fumigation Sterilizer
BX-102693
Protective Garment
BX-102686
Ammonium Hydrogen Carbonate
Neutralizer
BX-102694
Protective Gloves
BX-102687
Armrest
BX-102688
Laboratory Chair
BX-102689
Dust Particle Counter
BCBS-301
6
www.biolabscientific.com
BCBS-307
400 SERIES
Air drawn into the cabinet through air grill
Digital VFD display for easy monitoring of all
parameters
Filter Life Indicator: Pressure value displayed
to show life utility of main filter
Emission of 253.7 nm for highly efficient
decontamination
Foot switch to adjust the height of the front
window
Two-layered marinated toughened glass
(≥5mm) motorized front window
Low noise and high energy efficiency for
operational cost savings
Negative air pressure provides personnel
protection by constant movement of air in
working area
Audio and visual alarm for filter replacement,
front window over height and abnormal
airflow
CLASS II BIOSAFETY CABINET
BIOLOGICAL
SAFETY
CABINET
CLASS II
Stainless Steel 304 table for operation
Remote control operation including front
sash movement and fan speed control
Motored front window with timer function
Collecting tank (4000 ml) collects spatters
of working area without any leakage
Intrinsic sterilization is achieved after
activating cabinet for 30 min via UV timing
SPECIFICATIONS
Model
BCBS-401
BCBS-402
Type
BCBS-403
Class II, Type B2
HEPA Filter
2
HEPA Filter Efficiency
Exhaust Air
99.999% efficiency at 0.3 µm
1
-
Minimum Face Velocity
-
21Wx1
28Wx1
40Wx1
≥1000 lux
Work Surface Height
750 mm
Working Opening
400 mm
Overall Dimension (WxDxH)
35Wx2
18Wx1
Lighting
Inner Dimension (WxDxH)
-
75 linear feet per minute (lfpm)
Fluorescent Lamp
UV Lamp
BCBS-404
940×600×660 mm
1100×600×660 mm
1350×600×620 mm
1600×670×630 mm
1100×750×2250 mm 1300×850×2200 mm 1500×760×2250 mm 1800×840×2275 mm
Caster
Universal Wheel with brake and levelling feet
Front Window
Motorized, two layer laminated toughened glass
Control System
Microprocessor
Chamber Material
Cold-rolled steel coated with anti-bacteria powder coating
Socket
2
Noise Level
≤62dB
Weight
275/350 kg
320/360 kg
350/440 kg
390/470 kg
Power
1050 W
1350 W
1550 W
1900 W
Power Supply
110~240V/50~60Hz
www.biolabscientific.com
7
ACCESSORIES
Accessory Code Name
Description
Accessory Code
Name
BX-103986
Fluorescent Lamp
BX-103995
Exhaust Duct
BX-103987
UV Lampx2
BX-103991
Drain Valve
BX-103989
Remote Control
BX-103992
Waterproof Sockets
BX-103990
Foot switch
BX-103988
Base Stand
BX-103994
Exhaust Blower
Description
4 meter PVC Duct,
300mm Diameter
OPTIONAL ACCESSORIES
Accessory
Code
Name
Accessory Code
Name
BX-102683
Infrared Sterilizer
BX-102690
Digital Sound Level Meter
BX-102684
Airflow Tester
BX-102691
Illumination Meter
BX-102692
BX-102685
Air Flow Anemometer
Formalin Fumigation Sterilizer
BX-102693
Protective Garment
BX-102686
Ammonium Hydrogen Carbonate
Neutralizer
BX-102694
Protective Gloves
BX-102687
Armrest
BX-102688
Laboratory Chair
BX-102689
Dust Particle Counter
Biolab Scientific Limited
3660 Midland Avenue, Suite 300, Toronto, Ontario M1V 0B8, Canada
Email: [email protected] | Phone: +1 416 639 2438 | Website: www.biolabscientific.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
