1. Introduction

USB revolutionized the PC peripheral space by making a very simple plug-and-play interface for users. As a result, many modern computers no longer support RS-232 serial COM ports, opting for the slimmer USB alternative. This can be an issue for the developer who needs a COM port for communication between a peripheral and host PC. A subset of the USB Communication Device Class (CDC) can be used to emulate a serial port providing a virtual

COM port UART interface. This allows developers to use legacy applications with new products using the same

COM port interface as before, with few hardware and software modifications.

Serial Device

Host PC USB cable SiM3U1xx

RS232 cable

End device

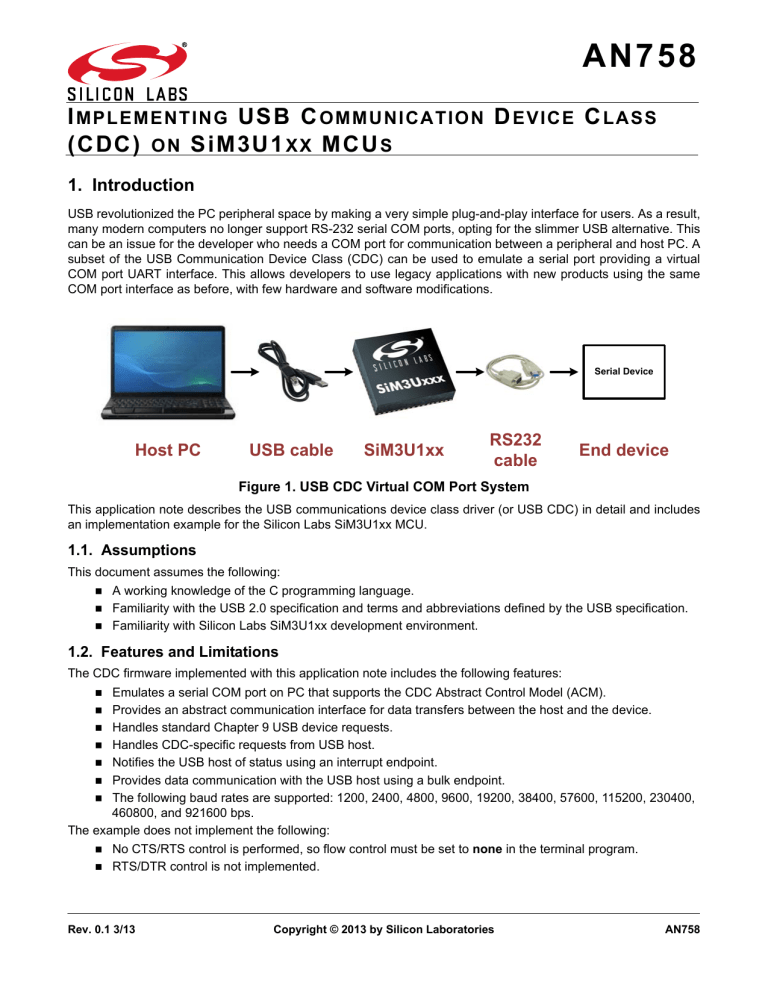

Figure 1. USB CDC Virtual COM Port System

This application note describes the USB communications device class driver (or USB CDC) in detail and includes an implementation example for the Silicon Labs SiM3U1xx MCU.

1.1. Assumptions

This document assumes the following:

 A working knowledge of the C programming language.

 Familiarity with the USB 2.0 specification and terms and abbreviations defined by the USB specification.

 Familiarity with Silicon Labs SiM3U1xx development environment.

1.2. Features and Limitations

The CDC firmware implemented with this application note includes the following features:

 Emulates a serial COM port on PC that supports the CDC Abstract Control Model (ACM).

 Provides an abstract communication interface for data transfers between the host and the device.

 Handles standard Chapter 9 USB device requests.

 Handles CDC-specific requests from USB host.

 Notifies the USB host of status using an interrupt endpoint.

 Provides data communication with the USB host using a bulk endpoint.

 The following baud rates are supported: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400,

460800, and 921600 bps.

The example does not implement the following:

 No CTS/RTS control is performed, so flow control must be set to none in the terminal program.

 RTS/DTR control is not implemented.

Rev. 0.1 3/13 Copyright © 2013 by Silicon Laboratories AN758

2

A N 7 5 8

2. Relevant Documentation

Precision32™ Application Notes are listed on the following website: www.silabs.com/32bit-appnotes .

 AN667: Getting Started with the Silicon Labs Precision32™ IDE—provides a description of the IDE features and environment.

 AN670: Getting Started with the Silicon Labs Precision32™ AppBuilder —provides a description of the

AppBuilder features.

3. USB CDC Class

The USB communications device class (CDC) is a composite USB device class, and the class may include more than one interface. The CDC is used primarily for modems, but also for ISDN, fax machines, and telephony applications for performing regular voice calls.

The Abstract Control Model subclass of CDC and bridges the gap between legacy modem devices and USB devices, enabling the use of application programs designed for older modems.

3.1. Class Requests

The class requests and class notifications supported are listed in Table 1.

Table 1. Abstract Control Model Requests

Request

SET_LINE_CODING

GET_LINE_CODING

SET_CONTROL_LINE_STATE

Code

20h

21h

22h

Description

Configures baud rate, stop-bits, parity, and numberof-character bits.

Requests current DTE rate, stop-bits, parity, and number-of-character bits.

RS232 signal used to tell the DCE device the DTE device is now present.

These class-specific requests are used for device and call management.

3.1.1. Set Line Coding

This request allows the host to specify typical asynchronous line-character formatting properties.

bmRequestType

00100001b

bRequest

SET_LINE_CODING

wValue

0

wIndex

interface

wLength

size of structure

Data

line coding structure

Table 2 defines the line coding properties.

Rev. 0.1

AN758

Offset

0

4

5

Field

dwDTERate bCharFormat bParityType

Table 2. Line Coding Format

Size

4

1

Value

Number

Number

1

1

Number

Number

Description

Data terminal rate, in bits per second.

0: 1 Stop bit

1: 1.5 Stop bits

2: 2 Stop bits

Parity:

0:None

1: Odd

2: Even

3: Mark

4: Space

Data bits (5, 6, 7, 8 or 16).

6 bDataBits

3.1.2. Get Line Coding

This request allows the host to find out the currently configured line coding. Table 2 defines the line coding

properties.

bmRequestType

10100001b

bRequest

GET_LINE_CODING

wValue

0

wIndex

interface

wLength

size of structure

3.1.3. Set Control Line State

This request generates RS-232/V.24 style control signals. Table 3 defines control signal bitmap.

Data

line coding structure

bmRequestType

00100001b

bRequest

SET_LINE_CON-

TROL_STATE

wValue

control signal bitmap

wIndex

interface

wLength

0

Data

none

Table 3. Control Signal Bitmap

Bit Position Description

15:2

1

0

Reserved (Reset to zero).

Carrier control for half duplex modems. This signal corresponds to V.24 signal

105 and RS232 signal RTS.

0: Deactivate carrier.

1: Activate carrier.

The device ignores the value of this bit when operating in full duplex mode.

Indicates to DCE if DTE is present or not. This signal corresponds to V.24 signal

108/2 and RS232 signal DTR.

0: DTE is not present.

1: DTE is present.

Rev. 0.1

3

4

A N 7 5 8

3.2. Class Notifications

Table 4 shows the class notifications supported by the Abstract Control Model.

Table 4. Abstract Control Model Notifications

Notification

SERIAL_STATE

Code

20h

Description

Returns the current state of the carrier detects, DSR, break, and ring signal.

3.2.1. Serial State

This notification sends an asynchronous message containing the current UART status.

bmRequestType

10100001b

bRequest

SERIAL_STATE

wValue

0

wIndex

interface

wLength

2

Data

UART state bitmap

The data field for this notification is a bitmapped value that contains the current state of detects transmission carrier, break, ring signal, and device overrun error. These signals are typically found on a UART and are used for communication status reporting. A state is considered enabled if its respective bit is set to 1.

Note: The firmware example included with this application does not currently support state change.

Table 5. UART State Bitmap

Bit Position

15:7

6

5

2

1

4

3

0

Field Description

Reserved (future use).

bOverRun Received data has been discarded due to overrun in the device.

bParity A parity error occurred.

bFraming A framing error occurred.

bRingSignal State of ring signal detection of the device.

bBreak State of break detection mechanism of the device.

bTxCarrier State of transmission carrier. This signal corresponds to V.24 signal 106 and

RS232 signal DSR.

bRxCarrier State of receiver carrier detection mechanism of device. This signal corresponds to V.24 signal 109 and RS232 signal DCD.

Rev. 0.1

AN758

3.3. Endpoint Configuration

Table 6 illustrates the endpoint configuration for the Abstract Control Model.

Table 6. UART State Bitmap

Endpoint

EP0

EP1

EP2

EP3

Direction

In/Out

In

In

Out

Type

Control

Interrupt

Bulk

Bulk

Max Packet

Size

Description

64

16

Standard requests, class requests.

State notification from device to host.

64

64

Data transfer from device to host.

Data transfer from host to device.

Figure 2 shows a standard CDC communication flow.

Figure 2. USB CDC Communication Flow

Rev. 0.1

5

6

A N 7 5 8

4. Firmware Example Overview

The firmware example included with this application note contains the driver, USB stack for the SiM3U1xx, and PCside application layer code.

4.1. File Organization

The files included in the USB CDC example are as follows:

 generated—directory containing SiM3U1xx hardware initialization files

 VirtualSerial—directory containing the virtual COM demo files



CDC_ACM.inf

USB CDC INF file



Descriptors.c

Virtual COM USB descriptors



LUFAConfig.h

Project configuration



VirtualSerial.c

— primary application file

 LUFA—SiM3L1xx USB stack firmware



Common

— common header files



Drivers

USB driver files



Misc

— miscellaneous files



USB

USB stack files



Class

USB class files



Device

USB device class files



AudioClassDevice.*

USB audio class implementation



CDCClassDevice.*

USB CDC class implementation



HIDClassDevice.*

USB HID class implementation



MassStorageClassDevice.*

USB mass storage class implementation



MIDIClassDevice.*

USB MIDI class implementation



RNDISClassDevice.*

USB RNDIS class implementation



Host

USB host class files, not implemented by the SiM3U1xx



Common

— common driver files



Core

USB Chapter 9 handler files



SiM3U

SiM3U1xx USB hardware control firmware files



Device_SIM3U.*

USB device definitions



Endpoint_SIM3U.*

USB endpoint transition control



EndpointStream_SIM3U.*

USB endpoint stream transition control



USBController_SIM3U.*

USB controller definitions



USBInterrupt_SIM3U.*

USB interrupt handler



USB.h

USB header file



main.c

4.2. LUFA USB Stack

The USB CDC firmware example is based on the LUFA open-source project. LUFA is an open-source complete

USB stack released under the permissive MIT License. It includes support for many USB classes, both for USB

Hosts and USB Devices. For USB Devices, the LUFA stack includes support for Audio Class, CDC Class, HID

Class, Mass Storage Class, MIDI Class, and RNDIS Class.

More information about the LUFA project can be found on the official website: http://www.fourwalledcubicle.com/

LUFA.php

.

Rev. 0.1

AN758

5. Detailed List of Functions

This section discusses the detailed function declarations in the CDC USB stack firmware example.

5.1. CDC Functions

This section focuses on the functions found in the CDCClassDevice.c and CDCClassDevice.h files

(AN758_USB_CDC\src\LUFA\Drivers\USB\Class\Device directory). This file implements the USB CDC device class.

5.1.1. CDC_Device_Process_ControlRequest

Handle USB CDC special class request.

Syntax

void CDC_Device_ProcessControlRequest(USB_ClassInfo_CDC_Device_t* const

CDCInterfaceInfo)

Parameters

CDCInterfaceInfo

: Pointer to CDC Class state structure

Return Value

None

Description

This function parses the USB control request to handle different USB CDC special class request. Update

CDCInterfaceInfo with data from USB host, or send data in CDCInterfaceInfo to USB host.

Example

USB_ClassInfo_CDC_Device_t VirtualSerial_CDC_Interface =

{

.Config =

{

.ControlInterfaceNumber = 0,

.DataINEndpoint =

{

.Address = CDC_TX_EPADDR,

.Size = CDC_TXRX_EPSIZE,

.Banks = 1,

},

.DataOUTEndpoint =

{

.Address = CDC_RX_EPADDR,

.Size = CDC_TXRX_EPSIZE,

.Banks = 1,

},

.NotificationEndpoint =

{

.Address = CDC_NOTIFICATION_EPADDR,

.Size = CDC_NOTIFICATION_EPSIZE,

.Banks = 1,

},

},

};

CDC_Device_ProcessControlRequest(&VirtualSerial_CDC_Interface);

Rev. 0.1

7

8

A N 7 5 8

5.1.2. CDC_Device_ConfigureEndpoints

U

SB CDC device endpoint configuration.

Syntax

bool CDC_Device_ConfigureEndpoints(USB_ClassInfo_CDC_Device_t* const

CDCInterfaceInfo)

Parameters

CDCInterfaceInfo: Pointer to CDC Class state structure

Return Value

True: if configuration success

False: if configuration failure

Description

This functions set data in/out endpoint as bulk type, and set notification endpoint as interrupt type.

Example

bool ConfigSuccess = true;

ConfigSuccess &= CDC_Device_ConfigureEndpoints(&VirtualSerial_CDC_Interface);

5.1.3. CDC_Device_SendData

USB CDC sends data to USB IN FIFO.

Syntax

uint8_t CDC_Device_SendData(USB_ClassInfo_CDC_Device_t* const CDCInter-faceInfo, const char* const Buffer,const uint16_t Length)

Parameters

CDCInterfaceInfo: Pointer to CDC Class state structure

Buffer: Pointer to data buffer

Length: Transmit length

Return Value

Error code: definition can be found in EndpointStream.h

ENDPOINT_RWSTREAM_NoError

ENDPOINT_RWSTREAM_EndpointStalled

ENDPOINT_RWSTREAM_DeviceDisconnected

ENDPOINT_RWSTREAM_BusSuspended

ENDPOINT_RWSTREAM_Timeout

ENDPOINT_RWSTREAM_IncompleteTransfer

Description

This function sends data to USB IN FIFO. Transmit data size specified in Length.

Note: Endpoint_ClearIN() must be called to send data to USB host, otherwise, the data will keep in USB device FIFO.

Example

uint32_t recv_count; recv_count = uart_get_data(in_buff); if(recv_count)

{

CDC_Device_SendData(&VirtualSerial_CDC_Interface, (char *)in_buff, recv_count);

Endpoint_ClearIN();

}

Rev. 0.1

AN758

5.1.4. CDC_Device_SendByte

USB CDC sends one byte to USB IN FIFO.

Syntax

uint8_t CDC_Device_SendByte(USB_ClassInfo_CDC_Device_t* const CDCInterfaceInfo, const uint8_t Data)

Parameters

CDCInterfaceInfo: Pointer to CDC Class state structure

Data: byte data to send

Return Value

Error code: definition can be found in EndpointStream.h

ENDPOINT_RWSTREAM_NoError

ENDPOINT_RWSTREAM_EndpointStalled

ENDPOINT_RWSTREAM_DeviceDisconnected

ENDPOINT_RWSTREAM_BusSuspended

ENDPOINT_RWSTREAM_Timeout

ENDPOINT_RWSTREAM_IncompleteTransfer

Description

This function sends one byte to USB IN FIFO.

Note: Endpoint_ClearIN()must be called to send data to USB host, otherwise, the data will keep in USB device FIFO.

Example

CDC_Device_SendByte(&VirtualSerial_CDC_Interface,0x55);

Endpoint_ClearIN();

5.1.5. CDC_Device_BytesReceived

USB CDC number of bytes received.

Syntax

uint16_t CDC_Device_BytesReceived(USB_ClassInfo_CDC_Device_t* const

CDCInterfaceInfo)

Parameters

CDCInterfaceInfo: Pointer to CDC Class state structure

Return Value

Bytes received in USB endpoint.

Description

This function check how many bytes received in USB data out endpoint

Example

uint32_t recv_count; recv_count = CDC_Device_BytesReceived(&VirtualSerial_CDC_Interface);

Rev. 0.1

9

A N 7 5 8

5.1.6. CDC_Device_ReceiveByte

USB CDC receive one byte from USB OUT FIFO.

Syntax

int16_t CDC_Device_ReceiveByte(USB_ClassInfo_CDC_Device_t* const CDCInterfaceInfo)

Parameters

CDCInterfaceInfo: Pointer to CDC Class state structure

Return Value

-1: if no data received

Data: one byte from USB data out FIFO.

Description

This function receives one byte from USB data out FIFO. It returns -1 if no data received.

Example

uint32_t out_buff; out_buff = CDC_Device_ReceiveByte(&VirtualSerial_CDC_Interface);

5.1.7. CDC_Device_SendControlLineStateChange

USB CDC notification.

Syntax

void CDC_Device_SendControlLineStateChange(USB_ClassInfo_CDC_Device_t* const

CDCInterfaceInfo)

Parameters

CDCInterfaceInfo: Pointer to CDC Class state structure

Return Value

None

Description

This function sends state data to notification endpoint.

Example

CDC_Device_SendControlLineStateChange(CDCInterfaceInfo);

10 Rev. 0.1

AN758

5.2. UART Functions

This section details the functions found in the gUART0.c file (AN758_USB_CDC\src\generated directory). This file contains the hardware configuration for the SiM3U1xx device.

5.2.1. UART0_enter_default_mode_from_reset

UART0 hardware default configuration.

Syntax

void UART0_enter_default_mode_from_reset(void)

Parameters

None

Return Value

None

Description

This function set UART0 TX/RX default configuration as 115200 bps, 8-bit data width, 1 bit stop bit, no-parity

Example

UART0_enter_default_mode_from_reset();

5.2.2. uart_configuration

UART0 configuration setting.

Syntax

void uart_configuration(uint32_t baud_rate,uint8_t stop_bits,uint8_t parity,uint8_t data_bits)

Parameters

baud_rate: baud rate stop_bits: 0 - 1 stop bit; 1 - 1.5 stop bits; 2 - 2 stop bits parity: 0 - none; 1 - odd; 2 - even; 3 - mark; 4 - space data_bits: data bits(5,6,7,8 or 16)

Return Value

None

Description

This function set UART0 TX/RX baud rate, stop bits, parity and data bits.

Example

uart_configuration(115200,0,0,8);

5.2.3. uart_get_data

UART0 get data.

Syntax

uint32_t uart_get_data(uint8_t * data)

Parameters

data: pointer to receive data buffer

Return Value

The number of bytes received from UART

Description

This function gets data from UART FIFO to data buffer and return number of bytes received.

Example

uint32_t recv_count; static uint8_t in_buff[64]; recv_count = uart_get_data(in_buff);

Rev. 0.1

11

A N 7 5 8

5.2.4. uart_send_data

UART0 send data.

Syntax

void uart_send_data(unsigned char *data, unsigned int count)

Parameters

data: pointer to send data buffer count: Number of bytes to send

Return Value

None

Description

This function send data from data buffer to UART FIFO, transmit data bytes specified in count.

Example

uint32_t send_count = 4; static uint8_t out_buff[64]; uart_send_data(out_buff,sendcount);

5.2.5. uart_send_byte

UART0 send one byte.

Syntax

void uart_send_byte(uint8_t data)

Parameters

data: Byte to send

Return Value

None

Description

This function sends one byte data to UART FIFO

Example

uint8_t out_byte = 0x55; uart_send_byte(out_byte);

5.2.6. uart_get_byte

UART0 get one byte.

Syntax

uint8_t uart_get_byte()

Parameters

None

Return Value

Byte received

Description

This function gets one byte data from UART FIFO

Example

uint8_t in_byte;

In_byte = uart_get_byte();

12 Rev. 0.1

AN758

5.3. Application Layer

The application layer for the USB CDC firmware example can be found in the VirtualSerial.c and Descriptors.c files in the AN758_USB_CDC\src\VirtualSerial directory.

5.3.1. vcp_main

Virtual COM port entry function.

Syntax

void vcp_main(void)

Parameters

None

Return Value

None

Description

This function initialize USB stack and execute Echo mode or Bridge mode in endless while loop.

Example

enter_default_mode_from_reset(); vcp_main();

5.3.2. VCOM_echo

It echo input character to USB virtual COM

Syntax

void VCOM_echo(void)

Parameters

None

Return Value

None

Description

This function get byte from USB virtual COM port and send back to virtual COM. User will see echo character in their serial com tool.

Example

VCOM_echo();

5.3.3. VCOM_bridge

It transfer data between USB virtual COM port and UART hardware COM port.

Syntax

void VCOM_bridge(void)

Parameters

None

Return Value

None

Description

This function acts as USB to UART bridge function.

Example

VCOM_bridge();

Rev. 0.1

13

A N 7 5 8

5.3.4. EVENT_USB_Device_ControlRequest

Event handler for control request.

Syntax

void EVENT_USB_Device_ControlRequest(void)

Parameters

None

Return Value

None

Description

This function is event handler for the library USB Control Request reception event. It handlers USB CDC special class request from USB host.

Example

if(Endpoint_IsSETUPReceived())

{ uint8_t* RequestHeader = (uint8_t*)&USB_ControlRequest; for (uint8_t RequestHeaderByte = 0; RequestHeaderByte < sizeof(USB_Request_Header_t); RequestHeaderByte++)

*(RequestHeader++) = Endpoint_Read_8();

}

EVENT_USB_Device_ControlRequest();

5.3.5. EVENT_CDC_Device_LineEncodingChanged

Event handler for the CDC Class driver Line Encoding Changed event.

Syntax

void EVENT_CDC_Device_LineEncodingChanged(USB_ClassInfo_CDC_Device_t* const

CDCInterfaceInfo)

Parameters

CDCInterfaceInfo:Pointer to the CDC class interface configuration structure

Return Value

None

Description

This function change UART configuration according CDC class interface configuration.

Example

CDCInterfaceInfo->State.LineEncoding.BaudRateBPS = Endpoint_Read_32_LE();

CDCInterfaceInfo->State.LineEncoding.CharFormat = Endpoint_Read_8();

CDCInterfaceInfo->State.LineEncoding.ParityType = Endpoint_Read_8();

CDCInterfaceInfo->State.LineEncoding.DataBits = Endpoint_Read_8();

Endpoint_ClearOUT();

Endpoint_ClearStatusStage();

EVENT_CDC_Device_LineEncodingChanged(CDCInterfaceInfo);

14 Rev. 0.1

AN758

5.3.6. EVENT_USB_Device_ConfigurationChanged

Event handler for the library USB Configuration changed event.

Syntax

void EVENT_USB_Device_ConfigurationChanged(void)

Parameters

None

Return Value

None

Description

This function configures endpoint according USB CDC class interface configuration structure.

Example

EVENT_USB_Device_ConfigurationChanged();

5.3.7. CALLBACK_USB_GetDescriptor

Send back descriptor per Get Descriptor request.

Syntax

uint16_t CALLBACK_USB_GetDescriptor(const uint16_t wValue,

const uint8_t wIndex,

const void** const DescriptorAddress)

Parameters

None

Return Value

Descriptor size

Description

When the device receives a Get Descriptor request on the control endpoint, this function is called so that the descriptor details can be passed back and the appropriate descriptor sent back to the USB host.

Example

const void* DescriptorPointer; uint16_t DescriptorSize; if ((DescriptorSize = CALLBACK_USB_GetDescriptor(USB_ControlRequest.wValue,

USB_ControlRequest.wIndex,&DescriptorPointer )) == NO_DESCRIPTOR)

{ return;

}

Endpoint_ClearSETUP();

Endpoint_Write_Control_Stream_LE(DescriptorPointer, DescriptorSize);

Rev. 0.1

15

A N 7 5 8

5.3.8. Macros

#define ENDPOINT_DIR_IN 0x80

#define ENDPOINT_DIR_OUT 0x00

/** Endpoint address of the CDC device-to-host notification IN endpoint. */

#define CDC_NOTIFICATION_EPADDR (ENDPOINT_DIR_IN | 1)

/** Endpoint address of the CDC device-to-host data IN endpoint. */

#define CDC_TX_EPADDR (ENDPOINT_DIR_IN | 2)

/** Endpoint address of the CDC host-to-device data OUT endpoint. */

#define CDC_RX_EPADDR (ENDPOINT_DIR_OUT | 3)

/* Size in bytes of the CDC device-to-host notification IN endpoint*/

#define CDC_NOTIFICATION_EPSIZE 16

/** Size in bytes of the CDC data IN and OUT endpoints. */

#define CDC_TXRX_EPSIZE 64

5.3.9. USB CDC Class Interface Structure

USB_ClassInfo_CDC_Device_t VirtualSerial_CDC_Interface =

{

.Config =

{

.ControlInterfaceNumber = 0,

.DataINEndpoint =

{

.Address = CDC_TX_EPADDR,

.Size = CDC_TXRX_EPSIZE,

.Banks = 1,

},

.DataOUTEndpoint =

{

.Address = CDC_RX_EPADDR,

.Size = CDC_TXRX_EPSIZE,

.Banks = 1,

},

.NotificationEndpoint =

{

.Address = CDC_NOTIFICATION_EPADDR,

.Size = CDC_NOTIFICATION_EPSIZE,

.Banks = 1,

},

},

};

16 Rev. 0.1

AN758

5.3.10. USB CDC Descriptors

Device descriptor structure, this descriptor, located in flash memory, describes the overall device characteristics, including the supported USB version, control endpoint size and the number of device configurations. The descriptor is read out by the USB host when the enumeration process begins.

const USB_Descriptor_Device_t PROGMEM DeviceDescriptor =

{

.Header = {.Size = sizeof(USB_Descriptor_Device_t), .Type =

DTYPE_Device},

.USBSpecification = VERSION_BCD(01.10),

.Class = CDC_CSCP_CDCClass,

.SubClass = CDC_CSCP_NoSpecificSubclass,

.Protocol = CDC_CSCP_NoSpecificProtocol,

.Endpoint0Size = ENDPOINT_CONTROLEP_DEFAULT_SIZE,

.VendorID = 0x10C4,

.ProductID = 0xA003,

.ReleaseNumber = VERSION_BCD(00.01),

.ManufacturerStrIndex = 0x01,

.ProductStrIndex = 0x02,

.SerialNumStrIndex = USE_INTERNAL_SERIAL,

.NumberOfConfigurations = 1

};

Type defines for the device configuration descriptor structure. As the configuration descriptor contains several subdescriptors which vary between devices, and which describe the device's usage to the host. Detail definition can be found in Descriptors.c. typedef struct

{

USB_Descriptor_Configuration_Header_t Config;

// CDC Control Interface

USB_Descriptor_Interface_t CDC_CCI_Interface;

USB_CDC_Descriptor_FunctionalHeader_t CDC_Functional_Header;

USB_CDC_Descriptor_FunctionalACM_t CDC_Functional_ACM;

USB_CDC_Descriptor_FunctionalUnion_t CDC_Functional_Union;

USB_Descriptor_Endpoint_t CDC_NotificationEndpoint;

// CDC Data Interface

USB_Descriptor_Interface_t CDC_DCI_Interface;

USB_Descriptor_Endpoint_t CDC_DataOutEndpoint;

USB_Descriptor_Endpoint_t CDC_DataInEndpoint;

} USB_Descriptor_Configuration_t;

Rev. 0.1

17

A N 7 5 8

Example:

const USB_Descriptor_Configuration_t ConfigurationDescriptor;

String Descriptors

#define STR0LEN 4 static uint8_t const String0Desc[STR0LEN] =

{

STR0LEN, DTYPE_String, 0x09, 0x04

};

#define STR1LEN sizeof("SILICON LABORATORIES INC.")*2 static uint8_t const String1Desc[STR1LEN] ={...}

#define STR2LEN sizeof("SiM3U1xx CDC Class")*2 static uint8_t const String2Desc[STR2LEN] ={...}

18 Rev. 0.1

AN758

5.4. USB Low-Level Functions

The USB hardware access layer functions are in the AN758_USB_CDC\src\LUFA\Drivers\USB\Core\SIM3U directory.

5.4.1. USB_Device_GetFrameNumber

Returns the current USB frame number.

Syntax

static inline uint16_t USB_Device_GetFrameNumber(void)

Parameters

None

Return Value

Current USB frame number from the USB controller

Description

This function returns the current USB frame number, when in device mode. Every millisecond the USB bus is active.

Example

uint16_t PreviousFrameNumber = USB_Device_GetFrameNumber();

5.4.2. USB_Device_SetLowSpeed

Set USB device as low speed.

Syntax

static inline void USB_Device_SetLowSpeed(void)

Parameters

None

Return Value

None

Description

This function set USB device as low speed.

Example

if (USB_Options & USB_DEVICE_OPT_LOWSPEED)

{

USB_Device_SetLowSpeed();

} else

{

USB_Device_SetFullSpeed();

}

Rev. 0.1

19

A N 7 5 8

5.4.3. USB_Device_SetFullSpeed

Set USB device as full speed.

Syntax

static inline void USB_Device_SetFullSpeed(void)

Parameters

None

Return Value

None

Description

This function set USB device as Full speed.

Example

if (USB_Options & USB_DEVICE_OPT_LOWSPEED)

{

USB_Device_SetLowSpeed();

} else

{

USB_Device_SetFullSpeed();

}

5.4.4. USB_Device_SetDeviceAddress

Set USB device address.

Syntax

static inline void USB_Device_SetDeviceAddress(const uint8_t Address)

Parameters

Address: USB address

Return Value

None

Description

This function set USB device address assigned from USB host .

Example

uint8_t DeviceAddress = (USB_ControlRequest.wValue & 0x7F);

USB_Device_SetDeviceAddress(DeviceAddress);

5.4.5. USB_Device_IsAddressSet

Check USB device address assigned or not.

Syntax

static inline bool USB_Device_IsAddressSet(void)

Parameters

None

Return Value

USB device address

Description

This function USB device address assigned or not.

Example

USB_DeviceState = (USB_Device_IsAddressSet()) ? DEVICE_STATE_Configured :

DEVICE_STATE_Powered;

20 Rev. 0.1

AN758

5.4.6. USB_Init

USB hardware initialization.

Syntax

void USB_Init(const uint8_t Options)

Parameters

Options: USB Device Mode Option

Return Value

None

Description

This function initializes USB hardware. Set full or low speed. Turn on USB 48 MHz oscillators. Enable USB interrupt. Configure Endpoint to default state. Enable internal pull up resistor to attach USB device.

Example

USB_Init(USB_DEVICE_OPT_FULLSPEED);

5.4.7. USB0_IRQHandler

USB interrupt handler.

Syntax

void USB0_IRQHandler(void)

Parameters

None

Return Value

None

Description

This function handles all enabled USB device interrupt. Clear interrupt flag. Execute handler function.

Example

When USB interrupt happened, PC will jump to vector table and then jump into this function.

5.4.8. USB0_ep0_handler

Handle endpoint 0 request.

Syntax

void USB0_ep0_handler(void)

Parameters

None

Return Value

None

Description

This function handles all endpoint 0 request.

Example

if (usbEpInterruptMask & SI32_USB_A_IOINT_EP0I_MASK)

{

USB0_ep0_handler(); return;

}

Rev. 0.1

21

A N 7 5 8

5.4.9. USB0_epn_handler

Handle endpoint n request.

Syntax

void USB0_epn_handler(void)

Parameters

None

Return Value

None

Description

This function handles all endpoint n request.

Example

if (usbEpInterruptMask & (SI32_USB_A_IOINT_IN1I_MASK | SI32_USB_A_IOINT_OUT1I_MASK))

{

} if (usbEpInterruptMask & (SI32_USB_A_IOINT_IN2I_MASK | SI32_USB_A_IOINT_OUT2I_MASK))

{

Endpoint_SelectEndpoint(1);

USB0_epn_handler();

Endpoint_SelectEndpoint(2);

USB0_epn_handler();

}

5.4.10. Endpoint_WaitUntilReady

Wait for endpoint ready.

Syntax

uint8_t Endpoint_WaitUntilReady(void)

Parameters

None

Return Value

ENDPOINT_READYWAIT_NoError,

ENDPOINT_READYWAIT_EndpointStalled,

ENDPOINT_READYWAIT_DeviceDisconnected,

ENDPOINT_READYWAIT_BusSuspended,

ENDPOINT_READYWAIT_Timeout

Description

This function will check endpoint ready status. It set 100ms timeout with counting frame number.

Example

if ((ErrorCode = Endpoint_WaitUntilReady()) != ENDPOINT_READYWAIT_NoError)

return ErrorCode;

22 Rev. 0.1

AN758

5.4.11. Endpoint_ConfigureEndpointTable

Configure endpoint.

Syntax

bool Endpoint_ConfigureEndpointTable( const USB_Endpoint_Table_t* const Table,

const uint8_t Entries)

Parameters

Table: pointer to endpoint table

Entries: no use in this software

Return Value

True: if configure successful.

False: if configure failure.

Description

This function configures endpoint.

Example

if (!(Endpoint_ConfigureEndpointTable(&CDCInterfaceInfo->Config.DataINEndpoint, 1)))

return false;

5.4.12. Endpoint_Write_Control_Stream_LE

Write stream data to control endpoint

Syntax

uint8_t Endpoint_Write_Control_Stream_LE(const void* const Buffer, uint16_t Length)

Parameters

Buffer: pointer to data buffer

Length: Transmit length

Return Value

ENDPOINT_RWCSTREAM_NoError

Description

This function writes stream data to control endpoint.

Example

Endpoint_Write_Control_Stream_LE(DescriptorPointer, DescriptorSize);

Rev. 0.1

23

A N 7 5 8

5.4.13. Endpoint_Write_Stream_LE

Write stream data to correspond endpoint.

Syntax

uint8_t Endpoint_Write_Stream_LE(const void* const Buffer, uint16_t Length, uint16_t* const BytesProcessed)

Parameters

Buffer: pointer to data buffer

Length: Transmit length

Return Value

ENDPOINT_RWSTREAM_NoError,

ENDPOINT_READYWAIT_EndpointStalled,

ENDPOINT_READYWAIT_DeviceDisconnected,

ENDPOINT_READYWAIT_BusSuspended,

ENDPOINT_READYWAIT_Timeout

Description

This function writes stream data to correspond endpoint according usb_ep_selected.

Example

Endpoint_SelectEndpoint(CDCInterfaceInfo->Config.DataINEndpoint.Address); return Endpoint_Write_Stream_LE(Buffer, Length, NULL);

5.4.14. Endpoint_ClearIN

Sends an IN packet to the host on the currently selected endpoint.

Syntax

static inline void Endpoint_ClearIN(void)

Parameters

None

Return Value

None

Description

This function Sends an IN packet to the host on the currently selected endpoint. It set IPRDYI = 1 to start USB IN transmits.

Example

CDC_Device_SendData(&VirtualSerial_CDC_Interface, (char *)in_buff, recv_count);

Endpoint_ClearIN();

24 Rev. 0.1

5.4.15. Endpoint_ClearOUT

Acknowledges an OUT packet to the host on the currently selected endpoint

Syntax

static inline void Endpoint_ClearOUT(void)

Parameters

None

Return Value

None

Description

This function acknowledges an OUT packet to the host on the currently selected endpoint.

Example

CDCInterfaceInfo->State.LineEncoding.BaudRateBPS = Endpoint_Read_32_LE();

CDCInterfaceInfo->State.LineEncoding.CharFormat = Endpoint_Read_8();

CDCInterfaceInfo->State.LineEncoding.ParityType = Endpoint_Read_8();

CDCInterfaceInfo->State.LineEncoding.DataBits = Endpoint_Read_8();

Endpoint_ClearOUT();

AN758

Rev. 0.1

25

A N 7 5 8

6. CDC Driver

The CDC class is implemented in all releases of Windows, and the operating system needs an INF file for the CDC driver. This INF file contains the Vendor ID and Product ID. If the VID/PID of the USB devices matches the INF file,

Windows will load the driver described in the file. The CDC_ACM INF file can be found in the

AN758_USB_CDC\src\VirtualSerial directory.

6.1. Installing the Driver

To install the driver on Windows 7:

1. Build the project and download firmware to the SiM3U1xx MCU card.

2. Connect the USB cable between the Device USB connector (J13) and the PC.

3. Open Device Manager. The device will appear under Other devices as the SiM3U1xx CDC Class device.

26

4. Right-click on the SiM3U1xx CDC Class device and select Update Driver Software.

Rev. 0.1

AN758

5. Select Browse my computer for driver software.

Rev. 0.1

27

A N 7 5 8

6. Enter the directory path of the CDC_ACM.inf file (AN758_USB_CDC\src\VirtualSerial directory). If the

Include subfolders option is checked, entering the main sim3u1xx_USB_CDC directory in the workspace is sufficient.

7. Windows will display a warning. Select Install this driver software anyway.

28

8. When the driver finishes installing, Windows will report the installation results.

Rev. 0.1

AN758

9. Open Device Manager and observe the device. It will now appear under Ports (COM & LPT) with an assigned COM port number.

Rev. 0.1

29

Simplicity Studio

One-click access to MCU and wireless tools, documentation, software, source code libraries & more. Available for Windows,

Mac and Linux!

IoT Portfolio

www.silabs.com/IoT

SW/HW

www.silabs.com/simplicity

Quality

www.silabs.com/quality

Support and Community

community.silabs.com

Disclaimer

Silicon Labs intends to provide customers with the latest, accurate, and in-depth documentation of all peripherals and modules available for system and software implementers using or intending to use the Silicon Labs products. Characterization data, available modules and peripherals, memory sizes and memory addresses refer to each specific device, and "Typical" parameters provided can and do vary in different applications. Application examples described herein are for illustrative purposes only. Silicon Labs reserves the right to make changes without further notice and limitation to product information, specifications, and descriptions herein, and does not give warranties as to the accuracy or completeness of the included information. Silicon Labs shall have no liability for the consequences of use of the information supplied herein. This document does not imply or express copyright licenses granted hereunder to design or fabricate any integrated circuits. The products are not designed or authorized to be used within any Life Support System without the specific written consent of

Silicon Labs. A "Life Support System" is any product or system intended to support or sustain life and/or health, which, if it fails, can be reasonably expected to result in significant personal injury or death. Silicon Labs products are not designed or authorized for military applications. Silicon Labs products shall under no circumstances be used in weapons of mass destruction including (but not limited to) nuclear, biological or chemical weapons, or missiles capable of delivering such weapons.

Trademark Information

Silicon Laboratories Inc.® , Silicon Laboratories®, Silicon Labs®, SiLabs® and the Silicon Labs logo®, Bluegiga®, Bluegiga Logo®, Clockbuilder®, CMEMS®, DSPLL®, EFM®, EFM32®,

EFR, Ember®, Energy Micro, Energy Micro logo and combinations thereof, "the world’s most energy friendly microcontrollers", Ember®, EZLink®, EZRadio®, EZRadioPRO®,

Gecko®, ISOmodem®, Precision32®, ProSLIC®, Simplicity Studio®, SiPHY®, Telegesis, the Telegesis Logo®, USBXpress® and others are trademarks or registered trademarks of Silicon

Labs. ARM, CORTEX, Cortex-M3 and THUMB are trademarks or registered trademarks of ARM Holdings. Keil is a registered trademark of ARM Limited. All other products or brand names mentioned herein are trademarks of their respective holders.

Silicon Laboratories Inc.

400 West Cesar Chavez

Austin, TX 78701

USA

http://www.silabs.com

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
