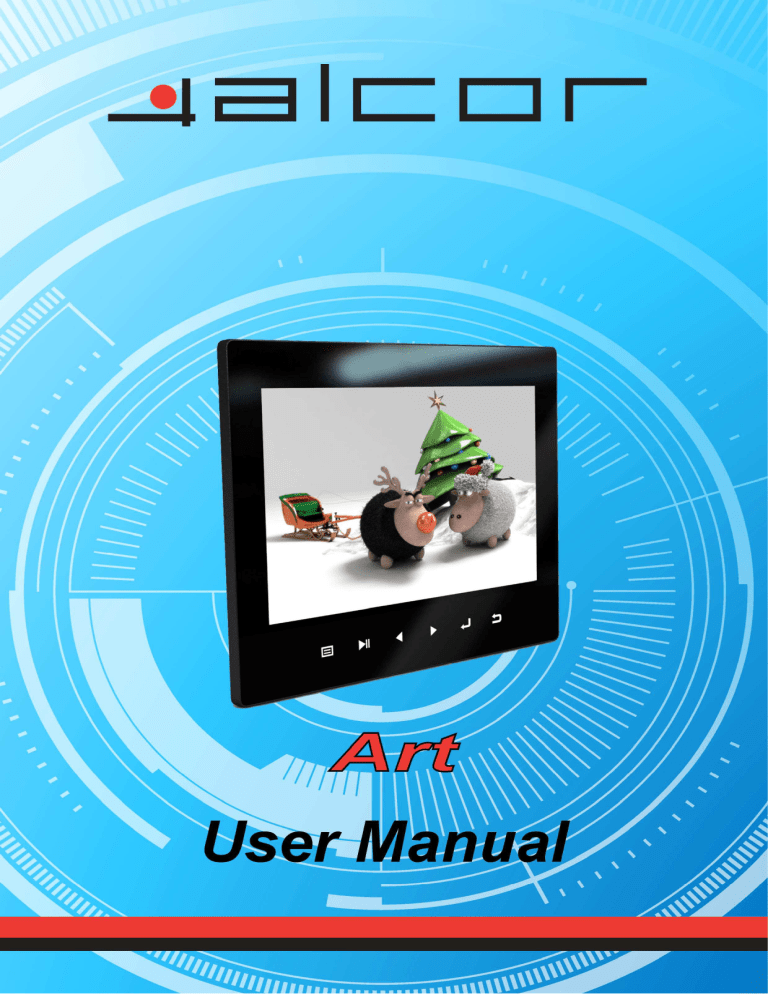

Alcor Art manual
1
Cautions
Precautions and maintenance
● For indoor use only
● To avoid risk of fire or electric shock, do not expose the unit to moisture or
condensation.
● To avoid overheating, do not block the ventilation holes on the back of the
Digital Photo Frame.
● Keep the Digital Photo Frame out of direct sunlight.
● Always use the eject buttons on the memory storage card slots to remove
the storage cards.
● Do not dismantle the Digital Photo Frame. There is a risk of electric shock
and there are no user-serviceable parts inside. Dismantling the Digital
Photo Frame will void your warranty.
Cleaning the LCD Screen
● Treat the screen carefully. Because the screen of the Digital Photo Frame
is made of glass and it would easily be broken or scratched.
● If fingerprints or dust accumulate on the LCD screen, we recommend using
a soft, non-abrasive cloth such as a camera lens cloth to clean the LCD
screen.
● Moisten the cleaning cloth with the cleaning solution and apply the cloth to
the screen.
WARNING:
Please power off the unit before inserting or removing a card or USB
device.
Failure to do so may cause damage to the card/USB and the unit.
To reduce the risk of fire or electric shock, do not expose this
appliance to rain or moisture.
1
Introduction:
Thank you for your purchase of the Digital Photo Frame. It is designed to allow
quick and easy view of photos taken from your digital camera, mobile phone,
or from a memory storage card. Please read this User Manual carefully to
learn the correct way to use the Digital Photo Frame.
Features:
1. Support Photo formats: JPEG,BMP,GIF
2. Support Audio formats: Mp3,WMA
3. Support Video File Formats: MPEG1, MPEG2, MPEG4 (AVI/Xvid),
M-JPEG.
4. Support Memory card: SD/MMC/MS/CF/XD
5. USB Connection: USB2.0 HOST, mini-USB
6. Touch menu for easy navigation of settings and functions with CCFL
backlight
7. Built-in Calendar, Clock, Alarm Clock
8. Schedule Auto On/Off
9. Adjustable brightness, contrast, saturation
10. Support slideshow with background music
11. Built-in stereo speaker (2x2W) and earphone
12. Build in Memory: 128MB up to 1GB (Optional)
13. Adjustable slideshow speed (3s-1Hour) and above 10 kinds of transition
slideshow
14. Include an ultra-slim remote control within 5 meters range.
15. Copy and delete function
16. OSD Language:English and other languages optional
Packaging Check List:
1.
2.
3.
4.
5.
6.
12.1 inch digital photo frame
User manual
Remote Control
AC/DC adapter
Bracket
Long USB Cable (Optional)
1 piece
1 piece
1 piece
1 piece
1 piece
1 piece
Note: If the unit has built-in memory, item 6 will go with the machine, please
refer to the accessories to go with the machine.
2
CONTENTS
1. Product Diagram ------------------------------------------------------------------------------4
1. 1 Remote Control-------------------------------------------------------------------------4
1. 2 Touch Buttons and Right Side of Frame -----------------------------------------5
2. Installing&Replacing the Battery --------------------------------------------------------5
3. Getting Started---------------------------------------------------------------------------------5
4. Operating Instruction------------------------------------------------------------------------6
4. 1 Card and USB --------------------------------------------------------------------------6
4. 2 Picture Mode ----------------------------------------------------------------------------6
4. 3 Music Mode -----------------------------------------------------------------------------7
4. 4 Video Mode------------------------------------------------------------------------------7
4. 5 File -----------------------------------------------------------------------------------------8
5. Setup ----------------------------------------------------------------------------------------------9
5. 1 Language --------------------------------------------------------------------------------9
5. 2 Slideshow Time-------------------------------------------------------------------------9
5. 3 Slideshow Mode------------------------------------------------------------------------9
5. 4 Music Repeat Mode -------------------------------------------------------------------9
5. 5 Movie Repeat Mode-------------------------------------------------------------------9
5. 6 Display Mode ---------------------------------------------------------------------------9
5. 7 Time ---------------------------------------------------------------------------------------9
5. 8 Alarm --------------------------------------------------------------------------------------9
5. 9 Brightness/Contrast/Saturation-----------------------------------------------------9
5.10 Auto Power On/Off Time ------------------------------------------------------------9
5.11 Start Mode select--------------------------------------------------------------------- 10
5.12 Default ---------------------------------------------------------------------------------- 10
6. Calendar ---------------------------------------------------------------------------------------- 10
7. Stand Instruction----------------------------------------------------------------------------- 10
8. PC Connecting-------------------------------------------------------------------------------- 11
9. Technical Parameter ------------------------------------------------------------------------ 11
10. Troubleshooting Guide------------------------------------------------------------------- 12
3
1 Product Diagram
1.1 Remote Control
1. POWER─ Turn on/off
2. 16:9/ 4:3─ Change picture display in these two ratios
3. MUTE─ Press this button to silence the voice temporarily.
4. MENU─Press to enter “Info Bar” when playing pictures or videos, or show
the menu for copy / delete function in file interface.
5. ─ Functional selection button from the bottom to the top cursor.
6. RETURN─ Return to upper page
─ Functional selection button from right to left cursor
7.
8. ─Functional selection button from left to right cursor
9. ─ Functional selection button from the top to the bottom cursor.
10. SETUP─ Enter to the setup menu.
11. BGM─ Press this button, slideshow will play with background music.
12. OK─ Press to confirm; Play/pause: Press OK directly to begin playback
under stop or pause status, and repress it, it will pause again.
13. ZOOM─ In single picture mode, magnify picture display size.
14. VOLUME- ─ Turn down the volume
15. VOLUME+ ─ Turn up the volume
16. ROTATE: In single picture mode, press to revolve the picture 90° in
clockwise
17.
─ Move back to previous picture, music or video file
18.
─ Move forward to next picture, music or video file
4
1.2 Touch Buttons and Right Side of Frame
1.POWER
2.MENU
3.UP
4.DOWN
5.PLAY/PAUSE
6.LEFT
7.RIGHT
8.RETURN
9.ON/OFF
10.DC IN
11.EARPHONE
12. MINI USB
13.USB
14. SD/MMC/MS/XD
15. CF
2. Installing & Replacing the Battery
Place the upside of the remote control down, press down on the ridged area of
the battery cover and pull towards you to remove the tray. Place one CR2025
lithium button-cell battery on the tray with the positive“+”side facing you.
Reinsert the tray.
3. Getting Started
3.1 Extend the digital photo frame bracket on the back of the frame to the
widest position for greatest stability, and then plug one end of the
included AC adapter into a standard 110-240V AC electrical outlet and the
other end into the right side the frame.
Note: There are different positions for the digital photo frame stand. Please
refer to "Stand Instruction".
3.2. Remove the protective film covering the LCD.
3.3. Remove the plastic battery insulator from the battery compartment and
make sure the remote control has a battery inside. Please refer to
5
“Installing & Replacing Battery” if you need a new battery.
3.4. Power on the unit by pressing the Power button on the remote control.
4. Operating Instruction
After turning on the unit, you will
view Setup and Calendar without
inserting any card or USB device.
After turning on the unit, press
RETURN to the main menu. You will
view USB-C/ CARD (SD/ MMC/ MS/
CF/ XD), Setup and Calendar with
inserting a card or USB device.
Note:
1) If the unit has built-in memory, NAND will be shown on the startup interface
2) The startup effect is optional; please consult to 5.11Start Mode select.
(Startup effects: auto slideshow, auto slideshow with background music, auto
video playing, auto music playing, calendar,card select.)
4.1 Card and USB
It supports SD, MMC, MS, CF, XD and
USB 2.0. After inserting a card or
USB device, you can view picture,
music and video files from the card or
USB device. Press OK to enter the
card (SD/MMC/MS/CF/XD) or USB-C,
then select Photo, Music, Video, or
File. Press OK to confirm.
4. 2 Picture Mode
Press RETURN to choose USB-C/
Card (SD/MMC/MS/CF/XD) in the
main menu. Press OK to Photo or File
interface, then press OK to access to
the fifteen-picture mode, then use
to choose the picture you want
to display, press OK to play the
picture.
6
When the picture is playing, press
MENU to enter “Info Bar” and then
press
to choose. Press OK to
operate.
The functions in the Info bar from left to right as follows:
Previous-Move back to previous picture
Play/pause.
Next-Move forward to next picture
Rotate- Press this button,the picture will revolve 90°in clockwise each time.
Return-Press this button,you can browse all the pictures in thumbnail mode
Zoom- When zooming the picture, press MENU to hide "info Bar", then picture
can be moved using
/
.
File name (no operation )
4.3 Music Mode
Press RETURN to choose USB-C/
Card (SD/MMC/MS/CF/XD) in the main
menu. Press OK to Music or File
interface, a list of music files will be
shown. Press
to select the music
you want to play from the playlist, press
OK to play.
4.4Video Mode
Press RETURN to choose USB-C/
Card (SD/MMC/MS/CF/XD) in the main
menu. Press OK to Video or File
interface, a list of video files will be
shown. Use
to highlight the video
you want to play from the playlist, and
you can preview the video with detailed
information on the right, press OK to
play.
7
When the video is playing, press MENU
to enter “Info Bar” and then press
to choose. Press OK to operate.
The functions in the Info bar from left to right as follows:
Previous-Move back to previous video
Fast Rewind.
Play/pause.
Next-Move forward to next video
Fast Forward.
Return-Return to the video playlist
Zoom- When the video is playing, press Zoom and then press MENU to hide
"info Bar", then video can be moved using
/
.
Display playback times(no operation )
4.5 File
Press RETURN to choose USB-C/
Card (SD/MMC/MS/CF/XD) in the main
menu. Press File, and then press OK to
access to file interface. Press
to
select. You can browse all the files in
the memory card.
Copy and Delete Operation
Use
to highlight the file, then press
, a single √will appear on the right.
Press MENU to show the file function
to access
operation items. Press
to copy function. After copying it, it will
show Finished.
8
Use
to highlight the file, then press
, a single √will appear on the right.
Press MENU to show the file function
operation items. Press
to access
to delete function. After deleting it, it will
show Finished.
9
5. Setup
Press SETUP from the main menu, and
then press OK to access to SETUP
interface. Use
to highlight the item
you want to set up. Press
to select,
then press OK to confirm.
5.1. Language (English/French/Deutsch/Spanish/Italian)
Press
to choose the language and press OK to confirm.
5.2. Slideshow Time (3s/5s/15s/1min/15mins/1hour)
Press
to set picture slideshow time interval and press OK to confirm.
5.3.Slideshow Mode
Bottom_To_Top,Top_To_Bottom,Left_To_Right,Right_To_Left,Door_Close,Do
or_Open Hori_Cross,Verti_Cross. Random,Fading, Vexpand_Top, Vexpand_
Bottom, Vexpand_Middle,Off.
to choose Slide show Mode and press OK to confirm.
Press
5.4. Music Repeat Mode (Repeat all, Repeat off and Repeat one).
Press
to choose Music Repeat Mode. Press OK to confirm.
5.5. Movie Repeat Mode (Repeat all, Repeat off and Repeat one)
Press
to choose Movie Repeat Mode. Press OK to confirm.
5.6. Display Mode (Crop, Stretch, Cinema.)
to choose picture Display Mode .Press OK to confirm.
Press
5.7 Time
Press
to the system date and time setup menu, use
set items as follows : year, month, date, hour, minute, press
figures, then press OK to confirm.
5.8 Alarm
Press
to the alarm time ,ring and mode setup menu, use
to choose the
to adjust the
to choose
the set items as follows: hour, minute, ring, mode(Every/Omce/Off), press
to adjust the figures or choose the ring or mode, then press OK to
confirm.
Note: If the unit has built-in memory, you can set your own favorite song (only
MP3) as alarm clock ring. Use the USB cable to rename the song, to ring1 or
ring2, then please consult to the above steps.
5.9 Brightness/Contrast/Saturation
Press
to choose brightness/contrast/saturation figures from 0 to 16, then
press OK to confirm.
10
5.10 Auto Power ON/OFF Time
Press
to the auto power ON/OFF setup menu, use
items as follows: hour, minute, mode(On /Off), press
to choose the set
to adjust the
figures or choose the mode, then press OK to confirm.
5.11Start Mode select(Calendar/picture/Music/Video/Comb/Card Select)
Press
to choose start mode .Press OK to confirm, next time turning on the
unit,the setting will be effected.
Note: Make sure there are supported picture, photo and video files in the card
or USB device,then you can have all the startup effects:auto slideshow, auto
slideshow with background music, auto video playing, auto music playing,
calendar with slideshow,card select.
If there is no card or USB device, only Calendar Start Mode and Main Menu
Mode can be selected.
5.12Default
Use
to highlight , press OK to default values.
6.Calendar
Select CALEDARE in main menu and
press OK to access to the calendar
interface, use
to show the next/
previous year of the calendar, use
to show the last / next month of the
calendar. Time and alarm clock will be
showed on the top, if there are
supported pictures in the memory card,
you can view slideshow on the right.
7.Stand Instruction
Insert the bracket into the slot of the digital photo frame. Please check and
make sure the stand is locked in place before standing the photo frame up.
Please refer to the illustration shown below.
11
12
8. PC Connecting
If the unit has built-in memory and MINI USB, you can connect it to external
equipment by using USB cable:
A. Please turn on the digital photo frame, then connect it with your computer
by using USB cable
B. The unit will be automatically detected and it will display " Copy Files......"
information, when you are using Windows 2000/XP, then you can copy
file between built-in memory and the digital photo frame.
Then you need to restart the digital photo frame when you finished the
copy/delete operation.
IMPORTANT: Never disconnect the USB cable while files are transferring.
Doing so may damage your DPF.
9. Technical Specifications
Adapter: Input AC 100-240V 50/60HZ Output DC 12V/3A
Picture Format: JPEG,BMP,GIF
Audio Format: Mp3&WMA
VideoFormat:MPEG1,MPEG2,MPEG4,M-JPEG,Xvid and AVI
Memory Cards: SD/MS/MMC/XD/CF
USB:USB Host( high speed 2.0connected with the long USB Cable); MINI
USB
Screen Parameter:
Screen Size: 12.1 inch TFT
Resolution : 1280*3 RGB *800
Contrast: 300:1
Aspect Ratio: 16:9
Brightness: 300cd/m2
Response Time: 20ms
Working Temperature: 0℃~40℃, Humidity: 10-85%
13
10.Troubleshooting Guide
If you are having problems with your player, please consult both this guide and
manual.If you need further assistance, please contact Technical Support.
No power:
Please check whether the plug is inserted correctly.
Remote control no function:
Please check whether the battery has power (the battery can be used for
half a year in normal conditions). Replace with new battery if necessary.
Can not read the CARD or USB:
Please confirm whether there is storage in the card or USB device.
Empty devices cannot be read.
Can not play the file:
Please confirm if the file format is compatible with the player.
Display too bright or too dark:
Please adjust the brightness or contrast in the setup menu.
The color is light or no color:
Please adjust the color and contrast setup.
No sound:
Please check whether the volume is correct and the player is not in Mute
mode.
14
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
