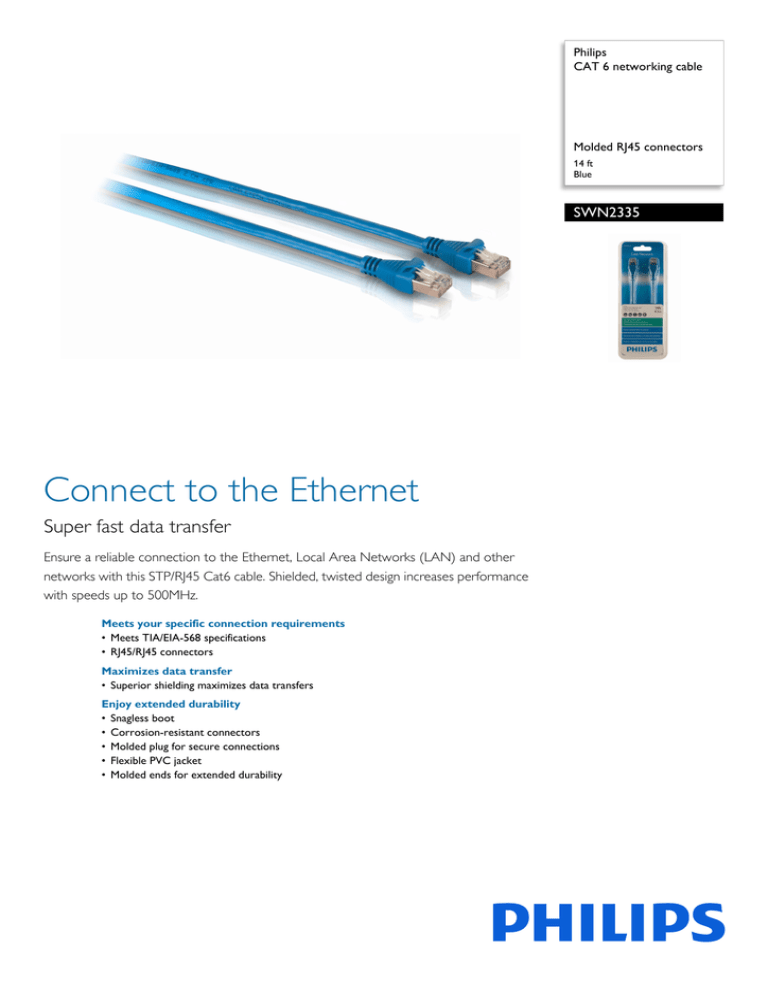

Philips SWN2335/27 Datasheet

Philips SWN2335/27 Datasheet
CAT 6 networking cable
Molded RJ45 connectors
14 ft
Connect to the Ethernet
Super fast data transfer
Ensure a reliable connection to the Ethernet, Local Area Networks (LAN) and other
networks with this STP/RJ45 Cat6 cable. Shielded, twisted design increases performance
with speeds up to 500MHz.
Meets your specific connection requirements
• Meets TIA/EIA-568 specifications
• RJ45/RJ45 connectors
Maximizes data transfer
• Superior shielding maximizes data transfers
Enjoy extended durability
• Snagless boot
• Corrosion-resistant connectors
• Molded plug for secure connections
• Flexible PVC jacket
• Molded ends for extended durability
CAT 6 networking cable
Molded RJ45 connectors 14 ft, Blue
Inner Carton
Gross weight: 2.447 lb
GTIN: 2 06 09585 18835 2
Inner carton (L x W x H): 9.8 x 9.4 x 3.7 inch
Nett weight: 1.675 lb
Number of consumer packagings: 4
Tare weight: 0.772 lb
Outer Carton
Gross weight: 8.003 lb
GTIN: 1 06 09585 18835 5
Outer carton (L x W x H): 12.0 x 10.4 x 10.0 inch
Nett weight: 5.026 lb
• Number of consumer packagings: 12
• Tare weight: 2.976 lb
Packaging dimensions
• Packaging dimensions (W x H x D):
3.5 x 9.4 x 2.2 inch
• Gross weight: 0.529 lb
• Nett weight: 0.419 lb
• Number of products included: 1
• Packaging type: Blister
• Tare weight: 0.110 lb
• UPC: 6 09585 18835 8
Superior shielding
Superior shielding maximizes data transfer by
guarding against external radio frequency noise.
Meets TIA/EIA-568 specs
Meets mandated standard for data transmission.
Snagless boot
The snagless boot prevents the cable from being
accidentally disconnected by protecting the
disconnect tab.
Corrosion-resistant connectors
Compressed brass with 24K gold-electroplated
connectors creates a secure and extremely durable
connection that optimizes signal quality and delivers
the best picture and data transfer.
Molded plug
Molded plugs ensure secure connections between
components and offer extended durability.
Flexible PVC Jacket
Flexible PVC jacket provided protection to the
delicate core of the cable. It also offers extended
durability and ease of installation.
Molded ends
Molded ends prevent fraying and extend the life of
your cable.
Issue date 2014-03-14
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Version: 1.1.6
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
12 NC: 8670 000 61634
UPC: 6 09585 18835 8
