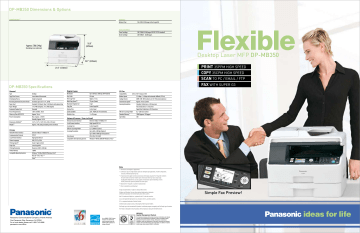

DP-MB350 Dimensions & Options
DIMENSIONS*1
Options
Optional Tray:
DA-LCB350 (520 pages Letter/Legal/A4)
Consumables
Toner Cartridge:
Drum Cartridge:
DQ-TCB008 8,000 pages (ISO/IEC 19752 standard)
DQ-DCB020 20,000 pages
18.8”
(478mm)
Approx. 53lb (24kg)
(Excluding toner and drum)
Desktop Laser MFP DP-MB350
18.1” (459mm)
PRINT 35PPM HIGH SPEED
COPY 35CPM HIGH SPEED
SCAN TO PC / EMAIL / FTP
FAX WITH SUPER G3
21.0” (533mm)
DP-MB350 Specifications
General
Type
Copy/Print Process
Developing Process
Reversing Automatic Document Feeder
Paper Feed
Paper Weight
Automatic Duplex Unit
Power Requirements
Warm-up Time (68˚F/20˚C)
Power Consumption
Dimensions (WxDxH)*1
Weight*1
Printer
Network Printer Interface
Communication Protocol
Local Printer Interface
Printer Language
Printing Speed*2
Paper Size
Printing Resolution
Printer Memory
Compatible Operating Systems
Desktop
Laser Indirect Electrostatic
Single Component
50 sheets (up to 8.5" x 14", 20 lb)
Standard: 520 sheets Max: 1,040 sheets with optional tray
17 to 44lb (Simplex), 17 to 24lb (Duplex)
Standard
120V, 50/60Hz, 10.8A
Approx. 16 sec.
Max.: Approx. 1,150 W
Standby: Approx. 9.0 W
21.0" x 18.1" x 18.8" (533 x 459 x 478 mm)
Approx. 51lb (23kg) (excluding toner and drum)
Ethernet 10Base-T/100Base-TX
TCP/IP
High speed USB 2.0
GDI, PCL®5e, PCL6
Up to 35 ppm (Letter)
Letter/Legal/A4
Maximum 2400 x 1200 dpi
128MB
Windows® 98/Me/2000/XP/Windows Vista®
Mac OS® X 10.3-10.5 *5
Linux®
Digital Copier
Resolution
Gray Scale
First Copy Time
Multi Copy Speed*2
Maximum Original Size
Copy Size
Original Size
Zoom (variable)
Multiple Copy
Up to 600 dpi x 600 dpi (ADF/Flatbed)
64 steps
Approx. 15 sec.
35 cpm (Letter)
Legal
Letter/Legal/A4
Letter/Legal
25% - 400% (in 1% increments)
1 to 99 pages
Network Scanner / Scan-to-Email
Network Scanner Interface
Ethernet 10Base-T/100Base-TX
Local Scanner Interface
High-Speed USB 2.0
Scanning Size
Letter/Legal/A4
Effective Scanning Width
8.2" (208mm) (Letter)
Scanning Resolution
Up to 600 x 2400 dpi (Optical)
Up to 9600 x 9600 dpi (Interpolated)
Data Format
PDF, JPEG, TIFF, BMP
Compatible Client Operating Systems
Windows® 98/Me/2000/XP/Windows Vista®
G3 Fax
Compatibility
G3 Fax: ITU-T Group 3, ECM
Modem Speed
33.6 kbps - 2.4 kbps with automatic fallback (G3 Fax)
Coding Scheme
MMR / MR / MH (Conforms to ITU-T Recommendations)
Transmission Speed*3
Approx. 4.0 sec (Letter)
Scanning Resolution
Standard: 8 dots/mm x 3.85 lines/mm
Fine: 8 dots/mm x 7.7 lines/mm
Super Fine: 8 dots/mm x 15.4 lines/mm
Effective Scanning Width
8.2" (208 mm) (Letter)
Standard Memory*4
10MB (approx. 780 pages)
Speed Dials
300
Note
*1 Dimensions and weights are approximate.
*2 Continuous copy of a single original. Speeds are contingent upon applications, machine configuration,
and status. Individual speeds may vary.
*3 Transmission time applies to memory transmission of text data using only ITU-T Image No.1 between
the same models at maximum modem speed. Transmission time may vary in actual usage.
Usually public telephone lines can only support communication speeds of 28.8 Kbps or lower.
Via PBX, transmission speed may fall back to a lower speed.
*4 Based on ITU-T Image No.1 scanned in Standard mode.
*5 Driver is provided via web download.
Design and specification are subject to change without notice.
Windows and Windows Vista are either registered trademarks or trademarks
of Microsoft Corporation in the United States and/or other countries.
Mac OS is trademark of Apple Inc., registered in the U.S. and other countries.
Linux is the registered trademark of Linus Torvalds in the U.S. and other countries.
PCL is a registered trademark of Hewlett-Packard.
All other brand or product names are the property of their respective holders.
IPv6 Ready Logo is the international IPv6 product’s certification program managed by the IPv6 Ready Logo Committee.
This Product is designed to reduce hazardous chemical substances along with the RoHS directive.
ISO 9001
Quality Management System
Panasonic Communications Company of North America
One Panasonic Way, Secaucus, NJ 07094
For a local dealer, please call 1-800-742-8086
panasonic.com/office
As an ENERGY STAR® Partner,
Panasonic has determined
that this product meets the
ENERGY STAR guidelines for
energy efficiency.
Our business processes which produce document, information and network
products, from manufacturing to marketing, conform to ISO9001 Quality
Management Systems standard. Design, development, manufacture,
installation, repair and maintenance of document, information and network
products, their associated devices and consumables. In addition, the plants
outside Japan have acquired ISO9001 certification.
Simple Fax Preview!
Design and Functionality
Quick & Easy Scanning
The Panasonic DP-MB350 is a high-performance “desktop” Multi-Function-Printer that is an excellent choice for any
The DP-MB350 can quickly and easily convert paper documents into electronic
small to mid-size office workgroup, small office and remote home offices. The Network–ready DP-MB350 is equipped
documents that can be edited or archived. The DP-MB350 is capable of scanning
with 10/100 Base-TX connectivity and is ready to take on any size print or copy job with its large 520-sheet standard capacity
single page documents by utilizing the flatbed scanner or multiple documents
input tray and 50-sheet reversing ADF. The user friendly control panel interface features large, easy to read buttons and a
bright 3.6-inch color LCD (TFT) display. This provides a simple to use interface for adjusting device settings and allows you
FTP
color with image resolutions up to 9600 dpi x 9600 dpi (interpolated). The
standard Scan-to-Email feature allows you to send scanned document directly
from the DP-MB350 as an Email attachment in PDF, JPEG or TIFF formats
Configuration Web Page allows device users and system administrators to easily check device status, toner level, adjust
without needing a PC. To complete your digital document needs, the standard
a robust multifunction printer, that has a rich feature set and is easy to operate.
PC
using the built-in 50-sheet reversing ADF. Documents can be scanned in full
to preview incoming faxes for simple and efficient document management. For simple device management, the built in
system settings and update the device address book. Packed with all the right features in a small footprint, the DP-MB350 is
Send Scanned File to:
Panasonic Quick Image Navigator software allows you to conveniently manage
Email
Original document
or Print
your digital documents and the Readiris OCR software suite (also included)
allows you to easily convert digital documents into text editable documents.
Simple Fax Preview
Preview Incoming Faxes
Easy-to-lift ADF
Send Fax File to:
PC
Equipped with Super G3 fax capabilities, the DP-MB350 offers the added
convenience of a simple fax preview. Utilizing the large 3.6” LCD (TFT)
screen, you can preview incoming faxes before they are printed, thereby
FTP
reducing paper and toner consumption. You can zoom, rotate or scroll to
check the fax contents. Once the document is previewed, you can decide
whether to print, delete or forward the document to a PC, FTP site or as
Email
an Email Attachment. In addition, the DP-MB350 features a Junk Fax
Easy-to-view inner tray
filter to prevent unwanted faxes from being received. Thus providing yet
Incoming Fax
another environmentally friendly feature to help reduce unnecessary
or Print
paper and toner consumption.
High Speed Printing
The DP-MB350 prints up to 35 ppm in B&W with image resolutions up
to 2400 dpi x 1200 dpi. Panasonic's State-of-the-Art image smoothing
technology eliminates unsightly jagged edges on printed documents,
while making text and graphics appear crisp and clear. Environmentally
Convenient Functions
Easily
Delete
Junk
Faxes
N in 1 Functions
Watermark
Overlay
Booklet
A watermark such as “Confidential”
or “Draft” can be printed on the
background or foreground of a
document. The size and angle of the
mark can be adjusted as desired.
A custom image such as a
company logo can be saved and
printed on a document.
By Utilizing the Automatic
Duplex Unit You can produce
brochures or small booklets
in-house and eliminate the use
of an outside print shop.
N in 1
This cost saving feature reduces originals
and prints up to 16 pages onto one sheet.
PRINT
friendly features of the DP-MB350 include standard automatic duplex
printing to help reduce paper consumption, toner save mode to reduce
the amount of toner consumption when printing draft or sample
documents, and N in 1 printing which allows up to 16 pages to be
printed on a single sheet of paper.
Convenient Copy Functions
The DP-MB350 can copy up to 35 cpm and is able to take on
any size copy job, with its standard 520-sheet multipurpose
paper drawer expandable to 1,040 sheets and 50-sheet
Convenient Functions
N in 1 Functions
Poster Copy
Proof Copy
Quick ID Copy
N in 1 & Duplex Copy
Easy Repeat
Copy a normal size image and easily
create a large size poster at 2x2 or
3x3 sizes.
On a large copying job, you can
generate a sample set before
printing the entire job.
Copy both sides of one or more
ID or business cards consecutively,
and then print onto a single page
in the 2 in 1, 4 in 1 or 8 in 1 format.
With N in 1 you can copy up to 8
originals onto one sheet, while
Duplex Copy utilizes both sides of
the paper for reduced paper usage.
Copy one original and
print it repeatedly on a
single page in in the 2 in 1,
4 in 1or 8 in 1 format.
reversing ADF. Advanced copy features of the DP-MB350
PRINT
3.6" color LCD (TFT) display.
N in 1
PRINT
All these features and more can be accessed from the large
PRINT
include Proof Copy, Quick ID Copy, N in 1 and repeat copy.
PRINT
Large 3.6” Color LCD
Duplex Copy
