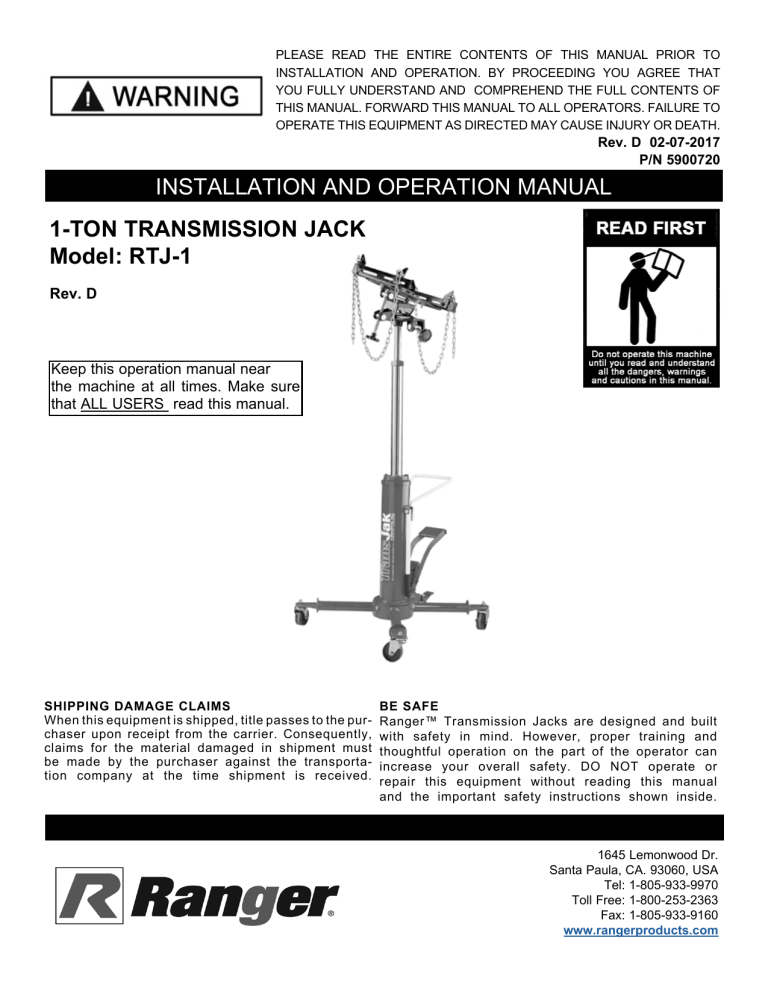

PLEASE READ THE ENTIRE CONTENTS OF THIS MANUAL PRIOR TO
INSTALLATION AND OPERATION. BY PROCEEDING YOU AGREE THAT
YOU FULLY UNDERSTAND AND COMPREHEND THE FULL CONTENTS OF
THIS MANUAL. FORWARD THIS MANUAL TO ALL OPERATORS. FAILURE TO
OPERATE THIS EQUIPMENT AS DIRECTED MAY CAUSE INJURY OR DEATH.
Rev. D 02-07-2017
P/N 5900720
INSTALLATION AND OPERATION MANUAL
1-TON TRANSMISSION JACK
Model: RTJ-1
Rev. D
Keep this operation manual near
the machine at all times. Make sure
that ALL USERS read this manual.
SHIPPING DAMAGE CLAIMS
When this equipment is shipped, title passes to the purchaser upon receipt from the carrier. Consequently,
claims for the material damaged in shipment must
be made by the purchaser against the transportation company at the time shipment is received.
BE SAFE
Ranger™ Transmission Jacks are designed and built
with safety in mind. However, proper training and
thoughtful operation on the part of the operator can
increase your overall safety. DO NOT operate or
repair this equipment without reading this manual
and the important safety instructions shown inside.
1645 Lemonwood Dr.
Santa Paula, CA. 93060, USA
Tel: 1-805-933-9970
Toll Free: 1-800-253-2363
Fax: 1-805-933-9160
www.rangerproducts.com
THIS OPERATING MANUAL CONTAINS
IMPORTANT DETAILS CONCERNING THE SAFE
OPERATION OF THIS EQUIPMENT. THE USER MUST
READ AND UNDERSTAND THESE DETAILS BEFORE
ANY USE OF THE EQUIPMENT. THIS MANUAL MUST
BE RETAINED FOR FUTURE REFERENCE.
OWNER/OPERATOR
RESPONSIBILITY:
•
Slowly and carefully move the jack around corners
because the load could tip. Stay clear of a lifted load.
•
Lower the jack slowly and carefully while watching
the position of the load.
•
Do not modify the jack or use adapters unless
approved or supplied by Ranger.
•
Use only anti-wear hydraulic jack oil with a 215 sus
viscosity rating at 100° f. The use of alcohol,
hydraulic brake fluid, or transmission oil could
damage seals and result in jack failure.
This guide cannot cover every situation, so always do
the job with safety first. Always maintain a clean work
area. Keep visitors and especially children away from the
work area.
The owner and/or operator shall study the product
instructions and retain them for future reference.
The owner and/or operator shall have an understanding
of the product operating instructions and warnings before
operating the transmission jack.
Warning information shall be emphasized and
understood. If the operator is not fluent in English, the
product instructions and warnings shall be read to and
discussed with the operator in the operator’s native
language by the purchaser/ owner or his designee
making sure that the operator comprehends its contents.
INSPECTION
Visual inspection should be made before each use of
the transmission jack. This inspection should check for
abnormal conditions such as cracked welds, leaks, and
damaged, loose or missing parts.
IMPORTANT SAFETY TIPS
Any product that appears to be damaged in any way,
is found to be worn or operated abnormally, must be
removed from service immediately.
Any product that operates abnormally shall be removed
from service until repaired by a qualified repair service
center.
To help prevent personal injury and damage to
equipment,
•
If the product is accidentally subjected to an abnormal
load or shock, it must be taken out of service immediately
and be inspected by a qualified repair or service center.
Study, understand, and follow all safety
precautions and operating instructions before
operating this device.
•
Wear eye protection that meets ANSI z87.1 and
OSHA standards.
•
A load must never exceed rated jack capacity.
•
Do not lift or support the vehicle with this jack
adequately support the vehicle before starting
repairs.
•
Use only on a hard, level surface.
•
Center the load on the jack saddle. Off-center loads
can damage the seals in the ram and cause jack
failure.
•
Use of this product is limited to removal, installation,
and transportation in the lowered position, of
transmissions, transfer cases, and transaxles.
It is recommended that an annual inspection is performed
on the transmission jack and that any damaged or worn
parts, decals or warning labels be replaced with
manufacturer’s specified parts.
ALTERATIONS
Because of potential hazards associated with this type of
equipment, no alterations shall be made to the product.
2
4. Tighten the bolts and nuts attached to the leg
assembly in Step 1.
FOR YOUR SAFETY AND TO PREVENT INJURY:
5. Attach the Tow Handle and the Steering Handle.
6. Attach the angle plate brackets onto the saddle, and
fasten with the hex bolts and nuts.
DO NOT EXCEED RATED CAPACITY.
7. Assemble the stationary plate bracket on the angle
plate bracket and secure with the hook and screw
caps. Assemble chains and chain hardware to the
corner of the stationary plate bracket.
The chains and chain hardware are provided to
secure the transmission, transfer box, or differential
to the saddle assembly by the different shape of their
housing. When using, both ends of the chain should
be anchored to the bracket.
OVERLOADING CAN CAUSE DAMAGE TO OR
FAILURE OF THE TRANSMISSION JACK.
KEEP HANDS AND BODY CLEAR OF ALL
PINCH POINTS.
THIS TRANSMISSION JACK IS DESIGNED FOR USE
ONLY ON HARD LEVEL SURFACES CAPABLE OF
SUSTAINING THE LOAD. USE ON OTHER THAN HARD
LEVEL SURFACES CAN RESULT IN THE INSTABILITY
OF THE TRANSMISSION JACK AND POSSIBLE LOSS
OF LOAD.
READ, STUDY AND UNDERSTAND THE OPERATING
MANUAL PACKED WITH THIS TRANSMISSION JACK
BEFORE OPERATING.
DO NOT RAISE, LOWER, OR TRANSPORT A
TRANSMISSION UNLESS IT IS SECURED BY THE
RESTRAINT SYSTEM. IT IS YOUR RESPONSIBILITY
TO ADJUST THE RESTRAINT SYSTEM TO A
SUITABLE POSITION. BENDPAK / RANGER IS NOT
SUBJECT TO ANY RESPONSIBILITY FOR
INCORRECT SETUPS OF THE RESTRAINT SYSTEM
THAT MAY CAUSE PERSONAL INJURY AND / OR
PROPERTY DAMAGE.
FAILURE TO HEED THESE WARNINGS MAY
RESULT IN LOSS OF LOAD, DAMAGE TO THE
TRANSMISSION JACK , AND/OR FAILURE RESULTING IN PROPERTY DAMAGE, PERSONAL OR FATAL
INJURY.
WARRANTY POLICY
SETUP INSTRUCTIONS
Ranger Products™ are backed by over 40 years of
manufacturing experience. Every product bearing the
Ranger name is sold with the best warranty you can find
in the market. For more information about our
warranty, please read:
www.rangerproducts.com/Ranger-Warranty.pdf
1. To prevent oil leak during shipment, the oil seal screw
is tightened down to ensure the best sealing function.
Before the first use, loosen the oil seal screw 1 full
turn.
2. The reservoir tube is shipped filled with hydraulic
oil. Before using the jack for the first time, press the
release pedal to open the release valve, and operate
the foot pump eight full strokes to distribute the oil.
BLEEDING AIR FROM THE
HYDRAULIC SYSTEM
ASSEMBLY INSTRUCTIONS
Air can accumulate within a hydraulic system during
shipment or after prolonged use. This entrapped air
causes the jack to respond slowly or feel “spongy.” Use
the steps below to bleed the system.
1. Locate the two “leg assemblies” and attach them
together using the three bolts, washers, and nuts
provided. Leave finger tight for now.
2. Attach the casters to the ends of each leg, one at a
time, making sure to snugly tighten them using a
17 mm open end wrench.
1. Pump the jack to the highest point where the first and
the second piston rams are both at maximum height.
2. Get the help of another person to keep the release
pedal depressed, and activate the foot pedal about 20
times.
3. Place the cylinder assembly onto the leg assembly
and bolt in place using the three bolts and washers
provided. Make sure to snugly tighten these bolts.
3
MAINTENANCE
3. Let go of the release pedal; the air in the oil system
should be bled successfully. If not successful, repeat
procedure but first check oil level, or see procedures
under maintenance section, steps 2 through 5.
1. Regularly lubricate all moving parts of the jack. Pay
special attention to the lift screw and related linkages.
A medium weight lubricating grease should be used
on all external moving parts, such as the bearing
surface, pivot points, tilt screws, etc.
OPERATING INSTRUCTIONS
2. Position the jack under the vehicle.
2. Regularly check the oil level. With the saddle fully
lowered, remove the oil seal screw, and check the
oil level. The oil level should be at the bottom of the
screw hole. Add oil if necessary.
3. Raise the jack by operating the foot pump until the
saddle touches the component.
3. Use only hydraulic jack oil. Do not use hydraulic
brake fluid.
4. Adjust the support brackets to fit the component.
4. If the jack fails to operate, check the oil level and/or
bleed unit before seeking service.
1. Follow the vehicle’s recommended service procedure
for removal of the component.
5. Use the tilt crank to align the saddle with the
component.
5. Do not use this jack as a wash rack when washing or
steam cleaning transmissions.
6. Finish raising the jack to the component. Secure the
chain assembly around the component.
TROUBLESHOOTING GUIDE
Trouble
Cause
Solution
Unit fails to extend or extends
partially
1. Low fluid level
1. Refer to Maintenance section and fill to
correct fluid level.
Incomplete or spongy cylinder
response when foot pedal is
pumped
1. Low fluid level
2. Air in system
1. Fill to correct fluid level.
2. Refer to Bleeding Air from the Hydraulic
System.
Abnormal leakage through unit
breather
1. Low fluid level
1. Refer to Maintenance section and fill to
correct fluid level.
Unit fails to extend when foot
pedal is pumped
1. Release valve malfunction
2. Contamination
3. Cylinder packing failure
1. Pump foot pedal with release valve open.
2. Disassemble and clean unit.
3. Install the necessary items from the seal
kit.
Cylinder creeps
1. Load exceeds maximum lifting
capacity
2. Release valve is leaking
1. Reduce load or use jack with sufficient
lifting capacity.
2. Flush release valve by pumping foot pedal
with release valve open.
Cylinder doesn’t retract when
release pedal is activated
1. Light load
2. Cylinder is binding
1. Unit requires 35 lbs. to return.
2. Disassemble unit; replace defective parts.
Cylinder doesn’t extend
1. Contamination
2. Bad packing
1. Disassemble and clean unit.
2. Install new seal kit.
Cylinder extends when foot pedal
1. Release valve malfunction
is pressed, and retracts as foot
2. Contamination
pedal retracts
4
1. Flush release valve by pumping foot pedal
with release valve open.
2. Disassemble and clean unit.
PARTS BREAKDOWN
5
PARTS BREAKDOWN
Item #
Description
Qty.
Item #
Description
Qty.
1
Head
1
38
Steel Ball
1
2
Dust Seal
1
39
O Ring
1
3
O Ring
2
40
Release Valve Lever
1
4
Small Top Cap
1
41
Release Valve Lever Pin
1
5
O Ring
1
42
Spring
1
6
Piston Rod
1
43
Steel Ball
1
7
Dust Seal
1
44
Spring
1
8
O Ring
2
45
Copper Washer
1
9
Big Top Cap
1
46
Inner Hexagon Screw
1
10
O Ring
1
47
Foot Pedal Base
1
11
Rectangle Ring
1
48
Spring Washer
4
12
Middle Cylinder
1
49
Inner Hexagon Bolt
4
13
Spring Plate
1
50
Shaft Pin
1
14
Spring
1
51
R Pin
1
15
Pump Core
1
52
Pump Release Foot Pedal
1
16
Dust Seal
1
53
Locking Block
1
17
O Ring
2
54
Inner Hexagon Screw
1
18
Pump Body
1
55
Connect Rod
2
19
Pump Washer
1
56
Washer
2
20
Steel Ball
1
57
Hexagon Bolt
2
21
Cylinder
1
58
Cotter Pin
2
22
U Style Handle
1
59
Shaft Pin
2
23
Inner Hexagon Screw
2
60
Washer
2
24
Oil Seal Screw
1
61
Foot Pedal Long Pin
1
25
O Ring
1
62
Hexagon Bolt
2
26
Handle
1
63
Foot Pedal
1
27
Washer
1
64
Nut
3
28
R Pin
1
65
Washer
3
29
Shaft Pin
1
66
Hexagon Bolt
3
30
Cylinder Body
1
67
Hexagon Bolt
3
31
Base
1
68
Washer
3
32
O Ring
2
69
Round Nut
4
33
Valve Seat
1
70
Spring Washer
4
34
Spring Washer
4
71
Washer
4
35
Inner Hexagon Bolt
4
72
Foot
2
36
Inner Hexagon Screw
1
73
Caster Wheel
4
37
Steel Ball
1
6
PARTS BREAKDOWN
Item #
Description
Qty.
Item #
Description
Qty.
1
Adjustable Rod - Long
1
11
Pin 16 x 108
1
2
Adjustable Shaft
2
12
Plate
1
3
Ring Gasket
2
13
Headstock Accessories
2
4
Bearing
4
14
Chain
2
5
Adjustable Pin
2
15
Nut M10
2
6
Lock Nut
2
16
Washer ɸ 10
2
7
Screw M8 x 16
1
17
Screw M10 x 25
2
8
Connect Unit
1
18
Shaft 16 x 265
1
9
Adjustable Rod - Short
1
19
Adjustment Assembly
1
10
Circlips for Shaft
4
20
7
8
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
