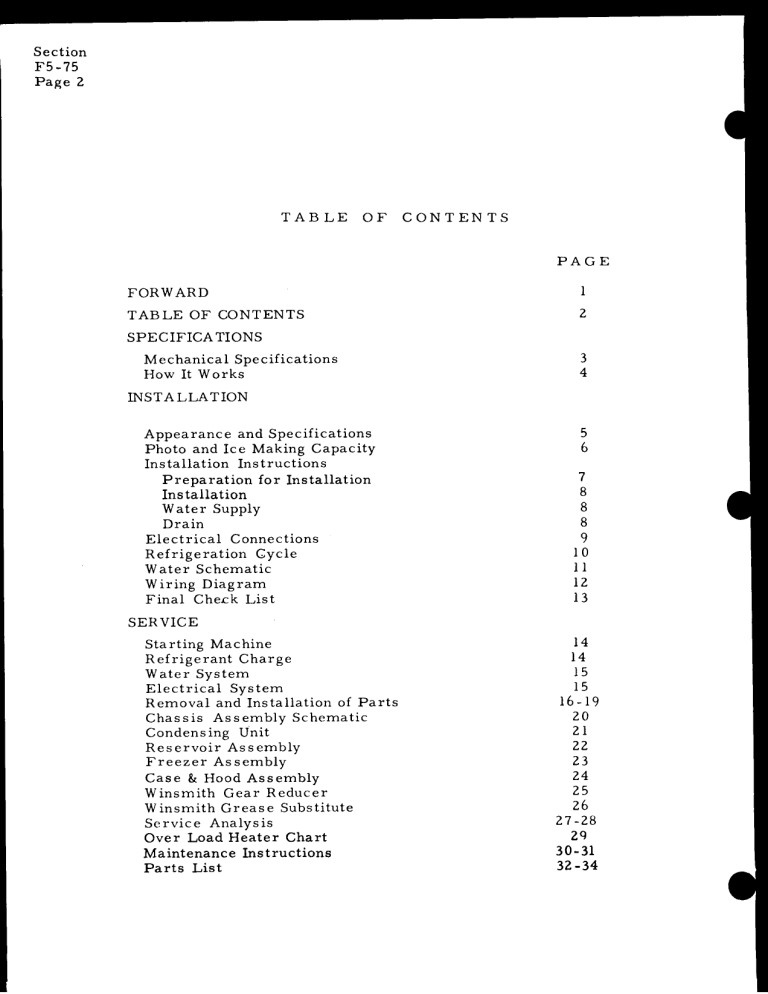

TABLE OF CONTENTS
PAGE
FORWARD
TABLE OF CONTENTS 2
SPECIFICA TIONS
Mechanical Specifications 3
How It Works
INSTALLATION
Appearance and Specifications 5
Photo and Ice Making Capacity 6
Installation Instructions
Preparation for Installation 7
Installation 8
Water Supply 8
Drain 8
Electrical Connections 9
Refrigeration Cycle 10
Water Schematic 11
Wiring Diagram 12
Final Check List 13
SERVICE
Starting Machine 14
Refrigerant Charge 14
Water System 15
Electrical System 15
Removal and Installation of Parts 16-19
Chassis Assembly Schematic 20
Condensing Unit 21
Reservoir Assembly 22
Freezer Assembly 23
Case & Hood Assembly 24
Winsmith Gear Reducer 25
Winsmith Grease Substitute 26
Service Analysis 27-28
Over Load Heater Chart 29
Maintenance Instructions 30-31
Parts List 32-34
co
THIS PAGE
INTENTIONALLY
LEFT BLANK
THIS PAGE
INTENTIONALLY
LEFT BLANK
MECHANICAL SPECIFICATIONS
Compressor
Condenser
Refrigerant
Refrigerant Control
Power Consumption
Current
Worm Drive Motor
Worm - R. P. M.
Water Consumption - Freezer
CABINET DIMENSIONS
Depth
Width
Height
Height with 6' legs
SHIPPING WEIGHT
Uncrated
Crated
Section
F5-75
Page 3
SF 75 WSH <—
1/4 HP Bendix Westinghouse
Air -Cooled
25 oz, R 12
Capillary Tube
10 Amps.
115 V, 60 Cycle, 1 Ph.
1/4 HP NEMA 48 Frame
12
2 Gallons per hour
24 1/2"
32 1/2"
40"!
46"
330
360
Section
F5-75
Page 4
SPECIFICATIONS
SCOTSMAN Super Flakers are designed for restaurants, super markets,
soda fountains, hospitals, bakeries, fish markets, poultry stores, pack-
ing plants, etc. It is the finest Ice Maker on the market today, It will
work 24 hours a day for you, or only as needed. It produces the high-
est quality ice available at any price.
Approximately 225 pounds of SCOTSMAN crushed ice is delivered each 24
hours to the storage bin for immediate use.
SCOTSMAN Super Flakers are easily installed requiring only standard
water, drain and electrical connections.
ATTRACTIVE COMPACT CABINET. Grey hammerloid finish with chrome
trim, rounded corners, and removable panels for easy access to me-
chanical parts. Adjustable and removable legs are under cabinet.
SEALED REFRIGERATION SYSTEM, Provides quiet, efficient operation
of the machine, Compressor motor is spring mounted and the worm
motor is rubber mounted for quiet operation. Compressor motor is cov-
ered by a full 5-Year Warranty,
HOW IT WORKS. An exclusive patented ice-making system, wherein
water in the constant level float reservoir is fed to the bottom end of the
freezing cyclinder and turns to ice on the inside of this cyclinder.
Ice from the refrigerated walls of this cyclinder is extruded past the
ice breaker at the top of the cyclinder through a side opening by means
of a stainless steel auger driven by a motor through a V belt and a gear
reduction drive.
SCOTSMAN Model SF-75WSH is completely automatic. A manual switch
on the front starts the machine, and from then on, produces flakes auto-
matically. When the storage binfills, the machine automatically shuts
off and starts up again when ice is taken from the storage compartment.
Section
SPECIFICATIONS 5-75
| Page 5
MODEL MODEL
SUPER FLAKER SF-75 SERIES (Storage Type) SF-75WSH SF-75WSH-SS
Daily capacity up to 240 lbs. | X a x a
Self contained 100 1b. storage bin } x >
Air cooled condenser N x 1 0 XxX
Heavy duty 14 HP. Compressor X X _
Standard 115 V, 60 cy, 1 ph, AC x _ _X_ _
14” water inlet SAE Flare > _ о X
54” bin drain OD x Xx
Hammerloid grey exterior X a ]
Stainless steel exterior | o — x .
Stainless steel lined storage bin ‘ x I N x | _
46” height (with legs) Ш x x
40" height (without legs) Ш x € x
2210” width . x XL
24 16” depth о x Хх
Approximate shipping weight 360 lbs. " | 360 a 360
32V
Service door
№ .
k—— Y ——————
24% —— 327
Service
door
Vs Flare water inlet: | — —— — Master
= | Switch
=== ee
Se Bin drain | = 1 === == —
Section
F5-75
28 SCOTSMAN.
SUPER FLAKER
SF-75
SERIES
Storage Type
LY
EA
ice making capacity
Air Cooled Models
“NN 8 8 3
5 8 8 8 66
POUNDS OF ICE PER 24 HRS.
o
©
50
100° 90° 80° 70° 60° 50°
WATER TEMP. (°F)
10.
Section
F5-75
Page
SCOTSMAN SUPER FLAKERS
PREPARATION FOR INSTALLATION
Inspect complete unit cabinetry for shipping damage. Notify carrier
of concealed damage claims.
Remove all service doors and panels.
Remove water reservoir cover and take out paper packing around
float ball. Make sure plastic overflow standpipe is securely in
place.
Remove leg packages in compartment base and install 4 legs in
unit base sockets.
Remove water strainer from storage bin for installation on unit
or in water supply line feeding unit.
Open electrical control box and prepare for hook up, use knock
outs, cord connectors etc. Then check unit nameplate voltage
against building source voltage and make sure they correspond.
Caution - Improper voltage supplied to units will void your war-
ranty protection.
Select unit location prior to hook up of water drain and electricals
in accordance with docal and national codes. Minimum room
temperatures is 50 Fahrenheit. Onair cooled models, select
well ventilated location.
Remove warranty card and Users manual from storage bin, then
wipe bin clean with damp cloth.
Fill out warranty card completely including model and serial
numbers as taken from aluminum plate found behind front service
panel and forward to Scotsman Factory using self mailing card.
Level unit with adjustable legs then call your authorized Scotsman
distributor or dealer for proper installation, start up and check
out.
Section
F5-75
Page 8
INSTALLATIONS
UNDER BAR INSTALLATIONS: Locate, if possible, so left end panel
is accessible. Locate so proper circulation can be attained around
the unit and behind it at least four inches.
KITCHEN INSTALLATIONS: As a rule, the kitchen is not the most
practical place to install an air-cooled condensing unit, as grease is
almost always present and makes cleaning of the condensing unit diffi-
cult. Do not locate near range or steam table or other heating devices
that may be used in the kitchen,
STOREROOM INSTALLATIONS: Be sure storeroom is of adequate size
and properly ventilated. A small, poorly ventilated room will greatly
impair the efficiency of the unit. The storeroom must be kept above
50" in the winter months.
BASEMENT INSTALLATIONS: Locate machine in the coolest place.
Locate machine in a dry place. Keep away from furnace and boiler
room. Keep away from service chutes and runways; also coal and
other dust of any kind. If the machine is set over a floor drain, block
the machine up enough to level it, If there is any chance of basement
flooding, block the machine up to eliminate any possible damage to
the machine.
UNCRATING OF MACHINE: The complete machine comes in one crate,
After the crate is removed, inspect for concealed damage. When installing
the machine. Remove the bottom skids by removing all bolts Then check
all refrigerant lines for rubbing or touching other surfaces. Also check
for possible transportation damage. Check for free movement of ice worm.
PRE-INSTALLATION CLEANING: Before machine is in final location,
remove warranty card and other information from machine compartment.
Remove top service door, water reservoir cover, and packing under
float. Then leave cover off for float adjustment after machine is
installed.
WATER SUPPLY. The recommended water supply line is 1/4 inch OD
copper tubing for SF-75WSF. Connect to cold water supply line with
regular plumbing fittings, with shut-off valve installed in an accessible
place between supply line and machine. A water strainer must be installed
with the unit and mounted with clean-out plug down. Locate the
strainer next to the machine with the arrow in the direction of the flow.
Most plumbing codes also call for double check valves in the supply water
line.
The water supply line connects to the 1/4 inch flare fitting on the machine.
Water supply must be installed to conform with local code. In some cases
a licensed plumber and/or a plumbing permit will be required.
DRAIN. The recommended drain from the bin is 5/8 inch OD copper tubing.
Must be run to an open trapped and vented drain. If drain is a long run,
allow a 1/4 inch pitch per foot. Drain must be installed to conform
with local code.
INSTALLATION
ELECTRICAL CONNECTIONS:
SF -75WSH
115 Volts, 60 Cycle, 1 Phase
15 Amp. Circuit
Be certain that the Super Flaker is on its own circuit and individually
fused. The maximum allowable voltage variation should not exceed 10
per cent of the nameplate rating even under starting conditions, Low
voltage can cause erratic operation and may be responsible for serious
damage to the overload switch and motor windings.
All external wiring should conform to the National Underwriters and
local Electrical Code requirements. Usually an electrical permit and
the services of a licensed electrician will be required,
ELECTRICAL INSTALLATION:
SF -75WSH
Compressor HP 1/4 Bendix-Westinghouse
Voltage 115
Amp. rating 5.0
Watts input 450
Cycle 60
Phase Single
Drive Motor HP 1/4 NEMA 48 Frame
` Voltage 115
Amp. rating 4.5
Cycle 60
Phase Single
Section
F5-75
Page 9
Section EVAPORATOR
F5-75
Page 10 a AGCUMUL ATOR
= \ /RESTRICTOR TUBE
“ет |! [UTA LINE
CONDENSER 7 SOMPRESSOR
DRYER
!
\ `
»
NN N
70000000
\
\
FAN MOTOR
FAN BLADE
SF -75WSH
REFRIGERATION CYCLE
я =
O un
T0
y ! 2
ses HSMSL - AS
ILLYWACIS HALV M
NDA ||
HINL YHAddOD 8/S
NOILIANNO2 NIVYO
E
нение DNIGNAIL NIVUC 8/¢
RAPID Y Y Y Y Y Y Y YY Y Y Y Y ZN O Y YX
COITO к Uagand HOVTE
II ANDE III DAA — ДОЗ ;
RENAN A —
Y AE RS Al у К. YX AC A q A! HS
CEN o E VEZIDUL OL
es SAN TY Ue ANTI
2 CAR Ea HH | De
м € ADS NI a e Ne NODAL
SO RER KX] BU
X СО LCA > ©
(X] aK RA
DO В DO IE
O о Сс Кю CN
ON LX) | of o -
CX Q © XC ha
A o E
Poo E o тя Мау М
So > a AUVIS 7/1
CX] Pair
= (
KX oY, |
DO ea
KA x ”
LNOdS TVLIN
ATINASSV YAZHAHUI dHAOI
ATINASSV YUIOAUASHA AATVA LA INI
dA LVM
G3CNNOU 9
38 1SNWN
LINA SIMI
HMS-SLAS
NVEDVYIC DNISIM
20SSIYANO)
yYMNY 0
7
me MA
1n0ds [|
HILIMS
ИИ
VIS UY
Section
Page 12
F5-75
=
ON
TOY. NO? RINILVHIAWNII
AG“
PI YNIWE3.:
asa
a
| BOYLICA INIT
XYWN
350
"dW V
SI
10.
ll.
Section
F5-75
Page 13
FINAL CHECK LIST
Is the unit level? (IMPORTANT)
Have all electrical and piping connections been made ?
Has the voltage been tested and checked against the nameplate rating?
Is the water supply valve open and the electric power on?
Is the water reservoir filled and shut off? All packing removed?
Have unit and bin been wiped clean?
Has owner been given the Operating Instruction Sheet, and has he been
instructed on how to operate the machine?
Have the installation and warranty cards been filled out? This is the
owner's protection.
Check all refrigerant and conduit lines to guard against vibration and
possible failure.
Installed in a well ventilated room where ambient temperatures do not
fall below 50° Fahrenheit.
Is unit installed with a minimum 4' air space around sides and back?
Section
F5-75
Page 14
SERVICE
STARTING THE MACHINE: When the machine is placed and inspected
as per instructions and all plumbing and electrical connections are
completed and tested, turn on the water supply. Be sure the float cover
is removed to check on the float operation and water level in the water
reservoir. Be sure the water reservoir is filled before starting the
machine. Water level should be 1/4 inch below the reservoir overilow.
When this is completed, turn on the manual switch on the front of the
cabinet and the machine is in automatic operation. In two to three
minutes ice will start dropping off the worm shaft and out the ice chute.
Let the machine operate for at least 30 minutes and check for any excess
noise other than the normal compressor noise. Test the ice storage
control bulb by holding a handful of ice around the bulb until the machine
shuts off. One minute should be normal for the control to function.
Within minutes after the ice is removed, the bulb will warm up and the
machine will automatically start up. The control is factory set and should
not be reset until this test is made. Normal setting of this control should
be approximately 35 degrees cut out, 45 degrees cut in.
Check pressure settings at the time of start-up. Head pressure normal
at 135 PSI. The frost line should extend 8' out of the accumulator if
properly charged with refrigerant and suction pressure will range between
15 and 16 PSI with 50° F.inlet water.
Explain the machine to the owner, showing him how the machine works and
go over the owner's instruction sheet with him. Answer all the owner's
questions about the machine, and do not leave with any doubt in the owner's
mind about the machine, how to operate it or where to reach you should
he need service on the machine. Call back the next day to check the
machine again and answer any other questions the owner may have.
Service gauge connection is available on low side service valve. Purge
free of any non-condensable gases before starting any test operation.
REFRIGERANT CHARGE: The below refrigerant charge is approximate.
When charging, set at 135 PSI head pressure and charge so that the frost
line extends 8' out of the accumulator after fifteen minutes of operation.
Factory charge 25 oz. refrigerant 12.
Section
F5-75
Page 15
SERVICE
WATER SYSTEM: A water level is maintained in the water reservoir by
a float operated valve. Water is piped from the water reservoir to the
freezing chamber by a gravity feed line maintaining an equal water level.
A removable overflow pipe is installed in the water reservoir for clean-
ing the reservoir as well as preventing damage should the inlet water
valve fail.
The water reservoir is equipped with a 2 inch air gap to prevent back
siphoning and meet all health codes.
The water level in the water reservoir is adjusted by bending float arm.
The water level should be set 1/4 inch below the overflow pipe. A con-
densate drip pan is connected to the drain circuit to automatically dispose
of condensate moisture,
A water strainer must be installed in the supply line. Use strainer sent
with machine.
ELECTRICAL SYSTEM: The super Flaker Model SF-75 is designed to
work on standard voltage--115/60/1.
Special voltage requirements are available on special order. Therefore,
always check nameplate for this information before checking electrical
supply.
Nameplate voltage should not vary more than plus or minus 10 percent.
The electrical circuit consists of condensing unit, drive motor, storage
bin thermostat, ON and Off switch and micro (safety) switch.
A. CONDENSING UNIT: The starting capacitor and starting relay are
housed and fastened to the motor compressor.
B. DRIVE MOTOR: Model SF-75 Flakers are equipped with standard
1/2" shaft, 1/4 HP, capacitor start, induction motors. These motors
turn counter-clockwise and may be replaced with any standard make
motor corresponding to the nameplate rating. (Be sure motor runs
counter -clockwise viewed from the shaft end.) NEMA 48 Frame.
C. STORAGE BIN THERMOSTAT: White Rodgers control located on
frame assembly. Factory settings 35° cut-out, 45 cut-in. This control
shuts off complete machine when ice in storage bin builds up to control.
D. MICRO SAFETY SWITCH: The micro switch is located in the top of
the ice chute. The switch is operated by a plate in top of the ice chute by
the ice backing up in the chute should the storage bin thermostat fail. Micro
switch will shut off the condensing unit only, when operated.
E. ON-OFF SWITCH: A manual on-off switch with built-in thermal
overload protection to prevent drive motor failures is used. See overload
chart for correct size. (Page No. 29)
Section
F5-75
Page 16
REMOVAL & INSTALLATION OF PARTS
CABINET TOP (HOOD)
Remove two back end screws of chrome strip.
. Pull out tape concealing screws,
. Remove balance of screws in chrome strip.
. Lift off hood.
HOOD SERVICE DCOR, TOP
BW N +
1. Remove screw from front edge.
2. Lift up and back to unhook pin.
CABINET SIDE SERVICE DOOR
1, Remove four screws on edges.
2. Lift out door.
CABINET FRONT SERVICE DOOR
1. Front door pulls out.
CABINET REAR SERVICE DOOR
1. Remove four screws on corners of rear service door.
2, Pull door out.
ICE STORAGE DOOR
l. Lift door up, slide back 6''. Lift up on door underside and pull
forward.
2. Door will now slide out.
ICE STORAGE DOOR FRAME
1. Remove six screws at bottom and sides.
2. Frame will now lift out.
MOTOR COMPRESSOR
1. Remove gas charge.
2. Disconnect wiring from the compressor.
3. Loosen suction line to suction valve and cap off.
4
Remove the compressor hold-down nuts and lift compressor out
of the unit.
5, Reverse steps 1 through 4 in replacing compressor,
Section
F5-75
Page 17
SERVICE
FREEZER ASSEMBLY
1. In most instances, it will be faster toremove freezer by first re-
moving cabinet top or hood. (See Removing & Installing
Cabinet Parts.) Assembly can be changed if necessary
through hood top panel.
д, Shut off water supply and drain water reservoir,
3. Remove refrigerant from system,
4, Remove suction and liquid line connections. (CAUTION: Plug
all connections to prevent moisture from entering system,)
5. Remove tygon tube to water inlet connection at base on freez-
ing chamber,
6. Loosen spout bolt holding spout to freezer and remove,
7. Remove two bolts holding freezer chamber to frame,
8. Lift freezer assembly up and out of unit,
9. Remove rubber drip pan from defective freezer and install
it on new assembly.
10. Reverse above procedure to install new freezer.
FREEZER WORM SHAFT
Turn unit off, before removing worm shaft,
Shut off water supply to unit.
Remove hood service door.
Remove top and bottom straps around insulation pieces,
remove pieces.
Remove two slotted head screws which fit through chamber
wall into ice breaker.
6. Complete worm shaft with ice breaker attached will now come
out by lifting up on freezer cap pull ring. NOTE: Top half
of water seal will come with worm shaft.
DW N —
UT
7. To remove ice breaker from shaft, first remove retainer
ring in top of ice breaker,
8. Remove freezer cap and pull ring from ice breaker.
9. Remove cap screw holding shaft through bearing and
pull worm shaft free from ice breaker and bearing,
10. If shaft is defective, remove water seal top half and put on
new worm shaft before reassembling --when reassembling, by
reversing above, put a small amount of Vaseline on squared
shaft end. This will allow shaft to slide smoothly through
rubber bottom half of water seal without tearing it.
WATER SEAL
1. To replace water seal, follow steps 1 through 6 under Worm
Shaft Removal.
2. Next slide three-jaw drive coupling down on reducer shaft or
else remove top half ‘of coupling.
3. Pull rubber drip pan down,
4, Remove large brass nut holding lower bearing and lower por-
tion of water seal in place.
5. Lightly force lower bearing out.
6. Reach in and pull bottom portion of water seal out.
7. Reassembly is reverse of above,
Section
F5-75
Page 18
SERVICE
STORAGE BIN THERMOSTAT:
1.
2.
Os UT dh WwW
—]
Disconnect electrical supply.
Remove bin thermostat bulb from bin location along with
its capillary tube.
Remove control box cover,
Remove thermostat cover, disconnect two leads.
Loosen two screws in control mounting bracket,
Replace with new control and reassemble in reverse
of above
CAUTION: Always check new control power element
charge before installation to assure receiving an
operative control. A handful of ice on bulb will register
an audible 'click' at cut'off.
WATER RESER VOIR
UT A Lo IV =
a O
Remove service panel in cabinet hood.
Turn off water supply and drain reservoir.
Remove 1/4 inch copper inlet water line.
Remove 1/2 inch plastic feed line to freezer.
Remove two screws holding reservoir bracket
to wall.
Lift out reservoir.
To replace, reverse procedure.
Section
F5-75
Page 19
SERVICE
MICRO SWITCH IN SPOUT
1.
2.
3.
4,
Remove hood service panel.
Remove micro box cover, loosen two screws
at rear of box holding switch in place, lift up.
Disconnect electric leads.
Reassemble with new micro switch.
DRIVE MOTOR
© = OC Ut oh WIV +
Remove case hood - See Cabinet Top Removal Section,
Remove electrical connections.
Remove four base bolts.
Remove drive belt.
Lift out defective motor,
Remove pulley and install on new motor.
To replace, reverse porcedure.
CAUTION: Drive motor rotation is COUNTER -
CLOCKWISE facing shaft end.
MANUAL ON AND OFF SWITCH
VU RU NH
Remove front service door.
Remove two screws holding switch to bracket.
Disconnect electrical leads from switch.
Remove switch.
To replace, reverse procedure.
GEAR REDUCER AND COUPLING
о © =
00 1 ON UT A
Remove rear door.
Remove drive pulley.
Loosen drive coupling set screw and slide down coupling
on gear reducer shaft.
Loosen four mounting bolts.
Lift out from rear of machine.
To replace, reverse procedure.
Check new gear reducer for proper oil level.
Remove shipping plug (brass nail) from air vent
hole in top plug.
Section
SF-75 H CHASSIS
25
24
23
7)
aN
A ae | -
№
\,
I> \ A
7 O CII we
ITEM PART ITEM PART
NO. NO. NAME NO. NO. NAME
НИ A-16233-1 Freezer . Assy. 23, 5-9237 Spout Casting
2. A-15974 Frame 24, 3-207 Screws (2)
3. S-8525 Coupling, top 25, 3-679 Washers (2)
4. 13-131 Insert, rubber 26. 3-671 Screws (2)
5. S-7716 Coupling, lower 27. 2-560 "O'" Ring
6. S-8496 Coupling Clamps (2) 28. A -14254 Front Casting
7. 3-206 Screws (2) 29. A-14256 Nut
8. 3-89 Lock Washers (2) 30. A-14241 Cover
9. 3-385 Set Screw 31. 3-173 Screws (2)
10. S-6035 Key * 32. 12-1018 Switch
11, 13-152 Rubber Shield 33. A-16357 Spout
12. 2-1463 Pulley (large) 34. A-16360 Press. Plate (with spring)*
13. 13-582 Belt 35. 2-1321 Spring *
14. 2-1462 Pulley (small) 36. 12-530A Switch
15. 12-864-1 Motor 115/60/1 37. 12-708 Overload (state mfg. i=
16. 2-350 Drier 38. 12-1308 Terminal Board *
17. A-7387 Tee 39. 11-99-1 Temperature Control
18. 13-79 Tubing (per foot) 40. 2-580 Gear Reducer
19. 2-534 Clamps 41, 3-265 Nut (4)
20. A-8736 Clamps, Insulation 42. 3-371 Washer (4)
21. A-15070 Left Insulation *
22. A -15071 Right Insulation
* Not Shown
** See Overload chart page 29 for correct dash
no.
Section
F5-75
CONDENSING UNIT Page €
4 HP Air Cooled Bendix Westinghouse
Used from Serial No. 8-11-7644 and up.
Thru “H” Models
UB
д < — UE hb
ITEM PART
и
NO. NO. NAME
1, 18-132 Motor Compressor
115/60/1
2 18-133 Relay *
3, 18-134 Starting Capacitor (*)
4 18-135 Klixon (*
5, 18-138 Base Valve (high side)
6. 18-150-1 Fan Motor
7 18-231 Fan Blade (*)
8 A-15621 Condenser Shroud
9 18-140 Condenser Core
(*) Not Shown
Condenser Unit Complete Part A-18-103
Previous to '"H'" Models
18-421 Fan Motor
18-137 Fan Blade
Section
¥5-75
Page 22
RESERVOIR ASSEMBLY SF-75
Thru “H” Models *
ITEM PART
NO. NO. NAME
1. А-8341 Reservoir Cover Ass'y
2. 2-1259 Float Pin
3. 2-1320 Water Deflector
4. 65-8770 Water Inlet
5. S-8772 Valve Seat
6. A-5777 Valve Seat Holder
7. 3-loor Rivet
8. A-12067 Float Ass'y (includes arm)
9, 5-7044 Nut
10. A-12869 Inlet Water Bracket
11, 5-8138 Inlet Water Valve Ass'y
(includes valve seat, holder
and float assembly) 3 (в
12. $-6715 Stand Pipe -
13. A-13408 Reservoir Body Ass'y {
14, A-8055 Bracket Nut 70 \
A-8351 Reservoir Complete y 2 \
(Less Cover) 70
15. A-18418 Water Deflector
* H Model SF-75 use
A-16012 Reservoir Cover
SF-75 WSH FREEZER
Part No. A-16233-1
Use on all models thru “H"
NOTE:
Will fit all model SF -75 thru H.
Will replace A-9618 and A-7782-1.
ITEM PART
NO. NO. NAME
1. 3-553 Snap Ring
2. A-7701 Worm Tube Cap
3. 3-758 Cap Screw
4. A-7699 Worm Tube Washer
5. 2-547 Bearing, Upper
6. 2-386 'O' Ring
7. A-9413 Ice Breaker
8. 2-1470 Worm Shaft
9. A-9619 Worm Tube, Acc., Suc-
tion Line & Cap Tube
10. 13-213 Drip Pan, Rubber
11, $-8817 Worm Tube Nut
12. 2-417 Lower Bearing
13. 2-1300 Water Seal
14, 3-207 Screws (2 required)
15. 3-679 Washer (2 required)
16. A-8162 Cap Hook
17. A-8002 Drain Tube (copper) (*)
A-16233-1 Freezer Complete
Section
F5-75
Page 24
ITEM PART
NO. NO, NAME
l. A-6767 Top Door Assy.
2. A-6530 Top Side Door
3. A-16563 Back Door
4, S5-9405 Left Door
5. 3-1212 Bulb Holder *
6. 13-557 Grommets *
7. 15-156 Emblem
8. 3-271 Nuts
9. A-15574 Storage Bin Assy.
10. A-18088 Drain Assy.
il, 2-1581 Bottom Insulation *
12. A-15573 Insulation Layout *
13. A-6510 Front Moulding
14. 15-324 Insert
15. A-16208 Door Track Assy.=
SF-75 H CASE AND HOOD ASSEMBLY
ITEM PART
NO. NO. NAME
16. A-18090 : Drain Fitting (female)
17. A-6448 Drain Strainer =
18. 2-530 "O' Ring *
19. A-15559 Door Assembly
20, 3-640 Door Glides *
21. 3-1195 Door Glides (hood):
22. A-15599 Hood Assembly
23. А-16561 Right Door
24. A-15789 Front Door
25. A-15803 Leg
26. A-16519 Case Assembly
27. A-16209 Door Catch *
28. 8-522 Leg Leveler
29. A-7714 Left Panel
* Not Shown
Add an "S'" to panel Nos. for stainless steel
Section
F5-75
Page 25
Scotsman Part No. 2-580
Winsmith Part No. (3CT)
IL 474
SF-75 thru “H” Models
ITEM PART
NO. NO. NAME
1. 2-580-28 Slow-Speed Gasket 7
(2 per unit)
2. 2-580-24 Slow-Speed Oil Seal =
3 2-580-26 Slow-Speed Bearing
(2 per unit)
4, 2-580-20 Slow-Speed Gear &
Shaft Assembly
5. 2-768-25 Gasket (high-speed) +”
(2 per unit)
6, 2-768-24 High-Speed Bearing
(2 per unit)
7. 2-768-20 High-Speed Oil Seal ==
8, 2-580-21 High-Speed Worm &
Shaft (integral)
9, 2-580-27 Slow -Speed Spacer
(2 per unit)
is. 2-580 Reducer Complete
% Pa
Q
-OL FiLLERP PLUG - NOTE
SMALL VENT HOLE TO PELIEVE
INTERNAL PRESSURE BUWD-UP
“MEX HEAD OL LEVEL PLUG
HEY WEAD DRAIN PLUG
Section
F5-75
Page 26
In answer to many field requests, we are pleased to release the following
chart showing the companies whose products are acceptable substitutes for
the 600W supplies by Winsmith as factory recommended.
Note the third column which most accurately represents the normal tempera -
Also the Alemite or Zerk fitting to bearing is greased
with Mobilgrease BRB No. 1, or any good grade ball bearing grease as obtained
ture operating range.
from local service stations.
600W oils and equivalents are classified as industrial oils and most likely
will be found in bulk plants rather than local service stations.
WORM GEAR REDUCERS
CB-CT-CV-CBD-CVD-CBX-CTX-CVX-DBI-TSR
Ambient Temperature OF
Maximum Operating
Temperature °F
Viscosity @ 2100F, SUS
Compounded with
AGMA Lubricant
Cities Service Oil Co.
Fiske Bros, Refining Co.
Gulf Oil Corporation
Shell Oil Company
Sinclair Refining Co.
Standard Oil Co.
Sun Oil Company
Socony Mobil Oil Co. , Inc.
The Texas Company
-30 to 15
150
40 to 90
(Op'ional)
Pacemaker
Oil #5
#3Lubriplate
Multipurpose
Gear Lubri-
cant
Vitrea Oil 71
Duro Cil 160
Stanogear
Compound #1
Sunep 70
Vactra Oil
#1
Meropa Lub.
#1
16 to 50
185
90 to 125
3to 10%
Acidless
Tallow or
E.P. Base
#7 Compound
Optimus Oil
#10
#8Lubriplate
E.P. Lubri-
cant #115
Valvata Oil
#J 78
#87 Heavy
Duty Oil
Stanogear
Compound #4
Sunep #110
Mobil Com -
pound DD
Meropa Lub.
#3
51 to 110
225
125 to 190
3 to 10%
Acidless
Tallow or
E.P. Base
#8 Compound
Optimus Oil
#6
#8Lubriplate
E.P. Lubri-
cant #145
Valvata Oil
#J 78
#101 Super-
Heat Valve
Oil
Standard
Worm Gear
Oil
Sunep #150
Mobil Cyl-
inder Oil
#600W
Meropa Lub.
#6
111 to 165
225
190 to 350
3 to 10%
Acidless
Tallow or
E.P. Base
Optimus Oil
#12
APG Lubriplate
E.P. Lubri-
cant #250
Valvata Oil
#J 83
#212 Super -
Heat Valve
Oil
Calumet SH
Cyclinder Oil
HV Cyl. Oil
Mobil Cyl -
inder Oil
# 600W
Meropa Lub.
#6
SERVICE ANALYSIS
Section
F5-75
Page 21
SYMPTOM
POSSIBLE CAUSE
CORRECTION
Jnit will not run
Blown Fuse
Thermostat set too high
Loose electrical connection
Switch in OFF position
Inoperative master switch
Replace fuse and check for
cause of blown fuse.
Adjust thermostat. 35° cut-
out and 459 cut-in.
Check wiring.
Turn switch to ON.
Replace switch.
Compressor cycles
intermittently
Low voltage
Dirty Condenser
Air circulation blocked
Inoperative condenser motor
Non-condensable gases in
system
Check for overloading.
Clean.
Move unit to correct.
Replace.
Purge off.
Making wet ice
Surrounding air temperature
Under or over-charge of
refrigerant
High water level in water
reservoir
Faulty compressor
Correct or move unit.
Recharge with the proper
amount.
Lower to 1/4 inch below over-
flow pipe.
Repair or replace.
Low ice production
Loss of refrigerant, under or
over -charge of refrigerant.
Dirty or plugged condenser
Low water level in water
reservoir
Partial restriction in capil-
lary tube or drier
Inlet water strainer partially
plugged.
Corroded or stained worm
shaft due to water condition
Check and recharge with proper
amount of refrigerant.
Clean condenser
Adjust to 1/4 inch below over-
flow pipe.
Moisture in system. Over-
charge of oil in system. Re-
move charge and drier. Re-
place and recharge system.
Remove screen and clean.
Remove worm shaft and
clean.
Machine runs but
makes no ice
Loss or under-charge of
refrigerant
Drive motor, belts, gear
reducer or drive coupling
inoperative
Pulleys loose on shafts
Water not entering freezing
chamber
Moisture in system
Water seal leaking
Defective manual overload
switch.
Check for leaks and recharge
Check. Repair and/or replace.
Tighten - repair or replace.
Plugged strainer or supply line.
Check and clean. Air lock in
gravity feed line. Check and
remove air lock,
Check and remove charge and
drier. Replace and recharge.
Replace seal.
Replace switch.
Section
F5-75
Page 28
SERVICE ANALYSIS
SYMPTOM POSSIBLE CAUSE CORRECTION
Water Leaks Defective water seal Replace
Gravity feed line leaking
'O' ring in spout casting leaking
Storage bin drain & connecting
fittings
Water level in reservoir too high
Check hose clamps
Remove spout casting
and install new 'O' ring
Check and repair.
Adjust to 1/4 inch below
overflow pipe.
Excessive noise or
chattering
Mineral or scale deposit on
auger and inner freezing chamber
walls.
Low suction
Intermittent water supply
Water level in reservoir too low
Misaligned coupling or worn insert
Gear reducer low on oil charge
Gear reducer loose on frame
Pulleys worn or loose on shaft
Belt cracked or worn
Drive motor end-play or worn
bearings
Remove and manually
polish auger, polish
inner chamber walls of
freezer barrel.
For lighter concentra-
tions use Scotsman Ice
Machine Cleaner periodi.
cally.
Add gas to raise suction
pressure.
Check & clean water
strainer. Check gravity
feed line for air lock.
Remove air lock.
Adjust to 1/4 inch be-
low overflow pipe.
Repair or replace.
Check oil level and re-
fill to oil level plug.
Tighten.
Repair or replace.
Replace belt.
Repair or replace.
Machine continues
to run with full
storage bin
Storage bin thermostat not
properly set
Reset or replace,
359 cut-out, 45° cut-in
Check operation with
handful of ice.
NSZOLSW “ON 1¥vd ISNOHONILSIM ОМУ 1221-21 "ON ldvd NINO “LHLOLYO *ON lUVd 39 “OES-ZL "ON Ldvd N33N0
ae ee
“ON 314ed uaany
l4ed u9any
HOLIMS YILYYLS IYNNWW YOJ LéVHI YV3LVI3H OVOTIIAO
ON
Sin
+ ~~ ©
A
NA
*uOIJEJOIA UL 99 (| IM LUOIJEIASP Auy
* sjuawad INbaJ $193 1 1M19PUN Yam ээчерлоээе ul 2.1 e pals! | se Speo ¡1910 out - 3 LON
V8* GHSW LE-1221-21 VOL" HEZI H2-80/-Z1 1904115 dH €/1 1/09/802 эспоцби | 159М /-6+19-71
YH” £HSW 1Z-1221-21 Von* ÉHEZI 272-80/-Z1 ILE THING dH €/1 1/09/802 *3 "9 [619-21
Wi” £HSW (Z-1221-21 Von CHEZ 27-80L-71 VAIH-9SKSI dH €/1 1/09/8072 Asnqua9 L-619-2 1
Yi" CHSW 12-1221-21 Von' ÉHEZI 227-801-271 290 THMS ан £/1 1/09/0€7 3 2-6179-71
V1 EHSW 0Z-12Z1-2! VZ1* EHEZI [2-80/-71 Va X-99rS9 dH £€/1 1/09/0€7 Ainjud) 2-619-71
YS* HHSW HZ-12Z1-Z1 vot HHETZ | 52-80/-21 1904115 dH £/1 1/09/0€7 esnoybu13 sam 2-649-71
Y9* 9HSW 97-1271-71 VO" 9HEZ 1 05-80/-21 HZOFZHIWS dH €/1 1/09/S1 1 *3 (-6H9-21
YO" 9HSW [Z-1221-21 VSZ° 9HEZI 67-90/-71 Va X-99S9 ЯН €/1 1/09/S11 Asn3ua9 | -6+9-21
Y9* 8HSW 1€-1221-21 VEZ” 9HEZI €€-80L-21 9604115 dH 5/1 1/09/511 asnoybu13S3M | -6179-Z1
VO" ZHSW 61-1221-21 VIE” ZHEZI 07-80/-71 VX4H8159 dH 7 1/09/9807 A1nju29 /-198-7 |
YS* ZHSW Ql-12Z1-21 VL9° ZHEZ1 61-80/-21 +55 46055 dH 7 1/09/9807 asnoybu!3soM L-198-21
Vi” £HSW 12-1221-21 woh CHET! ZZ-80L-Z1 LIEDHSEIH dH 3 1/09/807 *3°9 [-1199-71
VB" ZHSW 61-1221-2l veh" CHEZ 81-80/-21 VH8H4S9 dH 7 1/09/0€7 Ain3ua9 c-t798-€1
Y” ZHSW 61-12Z1-21 VIE” ZHEZI 02-80/-21 +55 46055 dH Y 1/09/0€7 asnoybu|ISaM 2-1198-Z1
Y 1* £HSW 0Z-12Z1=-21 WZ|* £HEZI 12-80/-21 6 LEINSEIHY dH I 1/09/0€7 39 2-198-71
YO" SHSW SZ= 1771-21 v98° HHEZ | 97-90/-71 YXH9+1499 dH 7 1/09/Stl Á4n3u99 1-98-21
YO" 9HSW [Z-1221-21 vez” SHEZI Lz-80L-Z1 0ZSd60ES dH Y 1/09/S11 osnoybu1353M 1-98-21
YO" 9HSW Lz-1221k-21 VSZ®9HEZE 62-80/-21 216905523 dH Ÿ (/09/S11 *3°9 (-H98-21
“ON 1-4 е4 peo |43A0 9snNoy * ON за ед рео [| 1э^ло * ON lied $913S1193952el eu9 dainliosejnuey *ON 1 070
* JNUEW -6U1359M 104 ° JNUEW °3° 95 401] * ON * JNUEW |e914359[|3 uaand
Section
F5-75
Page 30
MAINTENANCE INSTRUCTIONS - FLAKERS
THE FOLLOWING MAINTENANCE MUST BE ACCOMPLISHED
TWO TIMES PER YEAR ON ALL SCOTSMAN SUPER FLAKERS,
CALL YOUR AUTHORIZED SCOTSMAN SERVICE DEPART -
MENT.
1. Check and clean water strainers and float valve, Depress
float valve to insure full stream of water.
2. Check water level and machine level, keep water level be-
low overflow, but as high as possible and still not run out
of spout opening with machine off. Water droplets come out
of spout with ice at all times. Adjust as required.
3. Clean reservoir and interior of freezer using SCOTSMAN
Ice Machine Cleaner,
A. If machine has been cleaned regularly and no problems
such as dry ice or chatter are noticed, clean as per
the following instructions:
Set main switch to OFF,
Remove all ice from storage bin,
Turn off water supply or block float. Drain reservoir
by removing overflow tube (gray plastic tube) in
reservoir. Replace overflow tube.
4. Set main switch to ON and pour cleaning solution
into reservoir. Do not fill above overflow tube.
Models SFl «4 SF75--Use 4 oz. of Scotsman
cleaner and! gt. hot water.
Model SF2 & SF3--Use 6 oz. of Scotsman
cleaner and 11/2 qt. hot water.
Model SF5--Use 8 oz. of Scotsman cleaner &
2 gts. hot water,
Model SF8--Use 160z. of Scotsman cleaner &
4 gts, hot water.
Continue to make ice on solution until the solution is
used up and reservoir is empty.
6. Set main switch to Off. Remove overflow tube, wash
and rinse reservoir, replace overflow tube, turn water
on or remove float block.
œNH
un
7, Turn MAIN SWITCH to ON, Let unit run for at least
(15) minutes to flush out any cleaning fluid. Check
ice for acid taste.-- run until ice tastes sweet,
8. Turn MAIN SWITCH to OFF, Add hot water to ice
bin, using this melt water, thoroughly wash and rinse
all surfaces within the storage bin.
9. Turn MAIN SWITCH to On. Replace Service Door,
Unit is ready for normal operation.
Section
F 5-7
Page 51
MAINTENANCE INSTRUCTIONS (Continued)
B. If heavy mineral deposits on auger and walls, or sedi-
ment at inlet to freezer are encountered, clean by
pouring strong solution {1/2 acid-1/2 water) into res-
ervoir and operate drive motor only for agitation. Al-
low 1/2 hour or longer as required. Drain by dis-
connecting tygon at water inlet to freezer.
NOTE: Cleaning requirements vary according to local water
conditions. Visual inspection of the auger before and after
cleaning will indicate best procedure to be followed in local
areas,
4. Check high and low side pressures. On air-cooled models
head pressures range between 130 and 145 PSI, Suction
pressure should be above 12 PSI and will range up to 16
PSI depending upon water and ambient temperatures.
5. Change oil in gear reducer. Use Mobiloil 600W or equiva-
lent good grade of gear oil with a viscosity of 125 to 190,
For unit with grease fittings use Mobilgrease BRB No. 1
or any good grade ball bearing grease. Particularly im-
portant when there is evidence that water has gotten into
gear housing. Remove gear reducer to facilitate.
6. Oil drive motor, Use SAEIO oil.
7
‚ Check top beariac of freezing tube. hemove retainer ring
around edge of stamped brass cap. If moisture is around
bearing, wipe up and remove grease, Add new grease.
Use Beacon No. 325. Replace cap and retainer ring.
8. Check and adjust V belt tension,
9. Clean air-cooled condenser. Inform customer to clean fre-
quently. Always shut off machine when cleaning,
10. Oil condenser fan motor when possible.
Il, Check for refrigerant leaks and proper frost line. Should
frost out of accumulator at least one-half way to compres -
sor, and in some areas back to service valve,
12. Check for water leaks, Tighten drain line connections,
Run water down bin drain line to make sure it is open.
13. Check quality of ice. Ice should be wet when formed, but
will cure rapidly to normal hardness in bin,
l4. Check thermostat and pressure plate cut off, Micro switch
cuts off only compressor. Bin thermostat should be set at
109 differential and should keep entire machine off at least
twenty minutes in high ambients (longer in low) during norm-
al operation,
Section
F5-75
Page 32
PARTS LIST
SF -75WSH
ELECTRICAL COMPONENTS
Bin Thermostat
Micro Switch-Spout
On/Off Switch
Overload Heater for Switch - See overload chart pg. 29
CONDENSING UNIT (BENDIX -WESTINGHOUSE
Motor -Compressor 115/60/1 1/4 HP)
Dryer
Relay
Starting Capacitor
Fan Motor
Fan Blade
Fan Shroud
MISCELLANEOUS
Spring Clamp Pliers
Worm Tube Nut Wrench
Ice Scoop
Ice Machine Cleaner - 8 oz. bottle
Grey Spray-On Touch-Up Paint
600W Gear Reducer Oil - Pints
Tygon Tubing - 9/16" ID
Tygon Tubing - 1/2" ID
Rubber Tubing - 3/8" ID
Clamp (for 5-179)
Clamp (for 5-186)
Clamp (for 5/8 drain tube)
Clamp (for 11/16 drain tube - Green)
Retainer Ring Plier
11-99-1
12-1018
12-530A
12-708
18-132
2-350
18-133
18-134
18-150-1
18-231
A-15621
50-46
A-8497
2-540
19-343
10-153
19-359
5-179
5-186
13-79
2-536
2-536
2-534
2-535
50-637
PARTS LIST
SF-75 WSH
DRIVE CIRCUIT
Gear Reducer
Gear Reducer Repair Kit
Three Jaw Coupling (bottom)
Three Jaw Coupling (top)
Insert, Coupling
Allen Set Screw
Clamp
Cap Screw
Rubber Drip Shield
"у!" Drive Belt - 48"
Drive Motor - 1/4 HP
Pulley - 2 1/2"
Pulley - 8"
Key
FREEZER ASSEMBLY COMPLETE
Freezer Assembly Complete
Ice Breaker
'O' Ring
Top Bearing
Cap Screw
Worm Tube Washer
Worm Tube Cap
Retainer Ring
Worm Shaft
Water Seal
Bearing, Bottom
Worm Tube Nut
Back Casting
Rubber Drip Pan
Front Casting
Spout only
'O' Ring
2-580
A-6397
S-7716
S-8525
13-131
3-385
S-8496
3-206
13-152
13-582
12-864-1
2-1462
2-1463
S-6035
A-16233-1
A-9413
2-386
2-547
3-758
A-7699
A-7701
3-553
2-1470
2-1300
2-417
S-8817
S-9237
13-213
A-14254
A-16357
2-560
Section
F5-75
Page 33
fr — *
Section
1 5-75
Кар: 34
oS -
PARTS LIST
SF -75WSH
CABINET PARTS
Machine Case (less doors) A -16519
Storage Bin Assembly A-15574
Drain Assembly, Female A -18090
Drain 'O' Ring 2-530
Thermo Bulb Bracket 3-1212
Storage Drain Fitting (male) A-18088
Case Hood Assembly (less doors) A-15559
Door Slide Assembly A-16208
Bin Drain Screen A-6448
Sliding Door A -15599
Front Door A-15789
Right Side Door A -16561
Rear Door А -16563
Left Side Door S-9405
Hood Top Door Assembly A-6767
Hood Side Door Assembly A-6530
Rear Moulding Strip - 24" A-6509
Front Moulding Strip - 87 1/4" A-6510
Emblem 15-156
Leg A-15803
Leg Leveler 8-522
Plywood Crate 1-650
WATER CIRCUIT
Water Reservoir Assembly Complete, less cover A-8351
Water Inlet Valve S-8138
Float Assembly A-12067
Rubber Valve Seats S-6947
Float Pin 2-1254
Water Deflector 2-1320
Stand Pipe S-6715
Reservoir Cover A -16 012
Water Strainer 16-162
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
