Panasonic BB-HNP17CE Datasheet

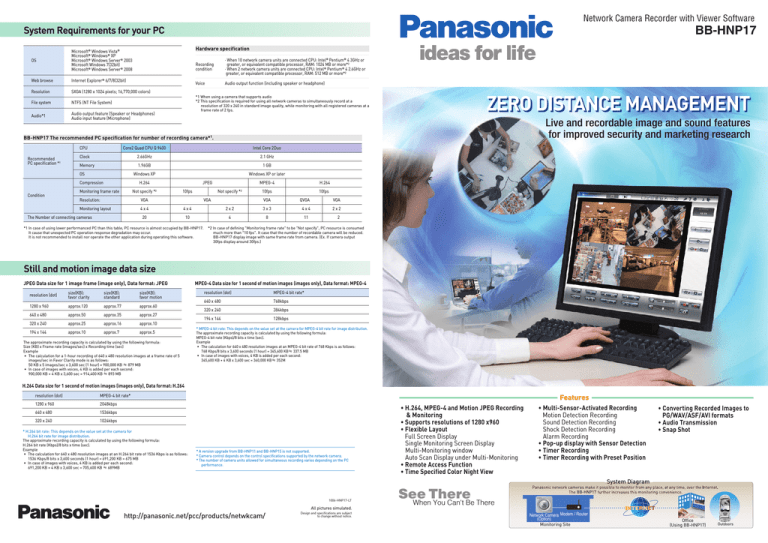

Network Camera Recorder with Viewer Software BB-HNP17 System Requirements for your PC Hardware specification OS Microsoft® Windows Vista® Microsoft® Windows® XP Microsoft® Windows Server® 2003 Microsoft Windows 7(32bit) Microsoft® Windows Server® 2008 Web browse Internet Explorer® 6/7/8(32bit) Resolution SXGA (1280 x 1024 pixels; 16,770,000 colors) File system NTFS (NT File System) Audio*1 Audio output feature (Speaker or Headphones) Audio input feature (Microphone) Recording condition · When 10 network camera units are connected CPU: Intel® Pentium® 4 3GHz or greater, or equivalent compatible processor, RAM: 1024 MB or more*2 · When 2 network camera units are connected CPU: Intel® Pentium® 4 2.6GHz or greater, or equivalent compatible processor, RAM: 512 MB or more*2 Voice Audio output function (including speaker or headphone) *1 When using a camera that supports audio *2 This specification is required for using all network cameras to simultaneously record at a resolution of 320 x 240 in standard image quality, while monitoring with all registered cameras at a frame rate of 2 fps. ZERO DISTANCE MANAGEMENT Live and recordable image and sound features for improved security and marketing research BB-HNP17 The recommended PC specification for number of recording camera*1. Recommended PC specification *1 CPU Core2 Quad CPU Q 9400 Intel Core 2Duo Clock 2.66GHz 2.1 GHz Memory 1.96GB 1 GB OS Windows XP Compression Condition Windows XP or later H.264 Monitoring frame rate Not specify *2 JPEG 10fps MPEG-4 H.264 Not specify *2 10fps 10fps Resolution: VGA VGA QVGA VGA Monitoring layout 4x4 4x4 2x2 3x3 4x4 2x2 20 10 4 8 11 2 The Number of connecting cameras VGA *1 In case of using lower performanced PC than this table, PC resource is almost occupied by BB-HNP17. It cause that unexpected PC operation response degradation may occur. It is not recommended to install nor operate the other application during operating this software. *2 In case of defining "Monitoring frame rate" to be "Not specify", PC resource is consumed much more than "10 fps". It case that the number of recordable camera will be reduced. BB-HNP17 display image with same frame rate from camera. (Ex. If camera output 30fps display around 30fps.) Still and motion image data size JPEG Data size for 1 image frame (image only), Data format: JPEG size(KB): favor clarity size(KB): standard size(KB): favor motion 1280 x 960 approx.120 approx.77 approx.60 640 x 480 approx.50 approx.35 approx.27 320 x 240 approx.25 approx.16 approx.10 resolution (dot) 194 x 144 approx.10 approx.7 approx.5 The approximate recording capacity is calculated by using the following formula: Size (KB) x Frame rate (images/sec) x Recording time (sec) Example • The calculation for a 1-hour recording of 640 x 480 resolution images at a frame rate of 5 images/sec in Favor Clarity mode is as follows: 50 KB x 5 images/sec x 3,600 sec (1 hour) = 900,000 KB ≒ 879 MB • In case of images with voices, 4 KB is added per each second: 900,000 KB + 4 KB x 3,600 sec = 914,400 KB ≒ 893 MB MPEG-4 Data size for 1 second of motion images (images only), Data format: MPEG-4 resolution (dot) MPEG-4 bit rate* 640 x 480 768kbps 320 x 240 384kbps 194 x 144 128kbps * MPEG-4 bit rate: This depends on the value set at the camera for MPEG-4 bit rate for image distribution. The approximate recording capacity is calculated by using the following formula: MPEG-4 bit rate (Kbps)/8 bits x time (sec). Example • The calculation for 640 x 480 resolution images at an MPEG-4 bit rate of 768 Kbps is as follows: 768 Kbps/8 bits x 3,600 seconds (1 hour) = 345,600 KB≒ 337.5 MB • In case of images with voices, 4 KB is added per each second: 345,600 KB + 4 KB x 3,600 sec = 360,000 KB≒ 352M H.264 Data size for 1 second of motion images (images only), Data format: H.264 resolution (dot) MPEG-4 bit rate* 1280 x 960 2048kbps 640 x 480 1536kbps 320 x 240 1024kbps * H.264 bit rate: This depends on the value set at the camera for H.264 bit rate for image distribution. The approximate recording capacity is calculated by using the following formula: H.264 bit rate (Kbps)/8 bits x time (sec). Example • The calculation for 640 x 480 resolution images at an H.264 bit rate of 1536 Kbps is as follows: 1536 Kbps/8 bits x 3,600 seconds (1 hour) = 691,200 KB = 675 MB • In case of images with voices, 4 KB is added per each second: 691,200 KB + 4 KB x 3,600 sec = 705,600 KB ≒ 689MB * A version upgrade from BB-HNP11 and BB-HNP15 is not supported. * Camera control depends on the control specifications supported by the network camera. * The number of camera units allowed for simultaneous recording varies depending on the PC performance. 1006-HNP17-LT All pictures simulated. http://panasonic.net/pcc/products/netwkcam/ Design and specifications are subject to change without notice. • H.264, MPEG-4 and Motion JPEG Recording & Monitoring • Supports resolutions of 1280 x960 • Flexible Layout Full Screen Display Single Monitoring Screen Display Multi-Monitoring window Auto Scan Display under Multi-Monitoring • Remote Access Function • Time Specified Color Night View See There When You Can't Be There Features • Multi-Sensor-Activated Recording Motion Detection Recording Sound Detection Recording Shock Detection Recording Alarm Recording • Pop-up display with Sensor Detection • Timer Recording • Timer Recording with Preset Position • Converting Recorded Images to PG/WAV/ASF/AVI formats • Audio Transmission • Snap Shot System Diagram BB-HNP17 Network Camera Modem / Router (Option) Monitoring Site Office (Using BB-HNP17) Outdoors Feel Safer with Panasonic Clear image and innovative sound recording functions provide excellent monitoring for your business H.264, MPEG-4 and Motion JPEG Recording & Monitoring Even if a user of this system uses his/her PC at any place distant from a site to be recorded, this system enables the user to record and replay, on his/her PC, any image with sound which can be taken through its network camera connected with LAN or the Internet. Under this system, the user can record any image as well as sound with it, and so the user can feel as if he/she was on the spot, even though he/she is actually away from the site. Also, this system enables the user to record several pieces of images through its network cameras at the same time. Corresponding to the existing convenient functions of MPEG-4 and Motion JPEG, this system has also newly corresponded to the H.264 function which is responsible for high-compression and smooth moving image. So, users of this system can select a proper recording mode among multiple choices according to recording uses and environments. H.264 MPEG-4 JPEG Remote Access Function This system enables a user to display images from up to 16 network cameras on one screen for simultaneous monitoring (Multi-Monitoring). In case that the number of network cameras registered in [BB-HNP17] exceeds 16 units, this system can show images from up to 64 network cameras on 128 pages of screens and switch these screens flexibly according to the user's need. Under this system, for example, a user can switch images from its cameras into a Full Screen Display or switch into a single screen display (Single Monitoring Screen Display) by double-clicking a image the user want to check closely, etc. Full Screen Display If you double-click an image from the network camera, the screen display on your PC is switched into Single Monitoring / Multi-Monitoring screen for the user’s convenience. [Motion JPEG] BB-HCM735 /HCM715 /HCM705 /HCM701 /HCM581 /HCM580 /HCM547 /HCM531 /HCM527 /HCM515 /HCM511/ BB-HCM403 /HCM371A /KX-HCM110A BL-C230 /C210 /C160 /C140 /C131 /C111 /C121 /C101 /C1 Supports Resolution of 1280 x 960 This system enables a user to record and monitor, innovatively clearly in such high resolution as 1280 x 960 pixels, any image taken through its camera. If you need to take a clear and detailed image for your convenient use by this system, you can save in your PC your recorded data as high image quality as it is for your convenience. Time Specified Color Night View This function is for setting the timer to turn ON/OFF the Color Night View Mode. This function automatically turns on Normal Mode in daytime and turns on Color Night View Mode in the night or a dark situation, and so this function enables recording / monitoring images taken by the Network camera(s) in a proper mode according the recording situation. This function also memorizes the shutter speed of the normal mode and so recovers the shutter speed of Color Night View Mode into the one of Normal Mode when Timer Setting switching from automatically Color Night View switches image modes. Mode into Normal Mode. Color Night View Mode OFF Color Night View Mode ON Router If a user gets [BB-HNP17] installed on his / her PC, the user can access and / or check any image taken by the network camera on the web browser of his / her PC through the Network. In this use, [BB-HNP17] doesn't need to be installed on the PC on the client's side. Users making access to the image can establish three stages of access rights. The administrator has the right to create new use environmental settings by, for example, adding new recording conditions, etc. Cautions: Before you install the remote client of [BB-HNP17], please be sure to buy the following license fro use. BB-HNP17 (Server) Router Internet Web browser (Client) Network camera For USA: BB-HCA5A and BB-HCA8A For Other Regions: BB-HCA5CE and BB-HCA8CE A camera image is displayed on the full screen of your PC. Single Monitoring Screen Display H.264 Internet MPEG-4 JPEG * Corresponding Model Types Network Cameras [H.264] BB-HCM735 /HCM715 /HCM705 /HCM701 BL-C230 /C210 [MPEG-4] BB-HCM735 /HCM715 /HCM705 /HCM701 /HCM581 /HCM580 /HCM547 /HCM531 /HCM527 /HCM515 /HCM511 BL-C230 /C210 /C160 /C140 /C131 /C111 /C121/C101 Flexible Layout Flexibility of Layout Setup Under this function, you can set up the layout of multi image screen display. For example, you can enlarge an image you want to check closely, you can change the number of images vertically and horizontally for your convenience, etc Auto Scan Display under Multi-Monitoring This function shows different multi-monitoring images at certain intervals and can switch into different pages of those images. Camera1 Camera2 Camera3 Camera4 Camera5 Camera6 Camera9 Camera10 Routine-run Camera7 Camera8 Routine-run Camera11 Camera12 1 / 3 Pages of images through 4 different cameras are displayed for 5 sec. 2 / 3 Pages of images through 4 different cameras are displayed for 5 sec. 3 / 3 Pages of images through 4 different cameras are displayed for 5 sec. Multi-Sensor-Activated Recording/ Timer Recording with Preset Position Timer Recording Recording the inside of your shop or other places at intervals Under this function, different types of sensors (Movement Detector, Shock Detector, Sound Detector, External Sensor Detection) are designed to start recording. Also this system has its timer recording function which starts and ends the recording at user's specified time. Besides, in case of Timer Recording, the direction of the monitoring lens is designed to set at the specified target when the recording starts. Any combination of recording functions is available. For example, Sensor Detection Function combined with Timer Recording Function is possible. Recording to be started by Movement Detector within the specified time frame and Alarm Recording are also possible. Also, Recording Time before and after the sensor detection can be specified for setting. Timer Recording Function is designed to set 10 times of recording per camera. This enables a user to change recording-start /-end times between weekdays and weekend for his/her convenience. Recording starts the moment the system detects any shocks on the camera; someone is trying to damage the camera or something hits the camera, etc. Network Camera Recorder with Viewer Software Internet Sound Detection Recording Recording starts the moment a big sound happens in the place; the sound of collapse of things in a warehouse, etc. Network Camera Recorder with Viewer Software Internet Network Camera Recorder with Viewer Software Recording starts when any movement in the image of the entrance or other place is sensed. Pop-up Display with Sensor Detection Internet This system is designed to enlarge the image (stationary image) at the time of the sensor detection by popping it out on the screen for notifying purpose. Alarm Recording *Only Alarm 1 is available in case of BB-HCM705/HCM701 Internet Shock Detection Recording Motion Detection Recording Recording starts when any movement of the door or other items is sensed. Network Camera Recorder with Viewer Software Door sensor ( Alarm 1 ) Network Camera Recorder with Viewer Software Door sensor ( Alarm 1 ) Internet Routine-run In case of Normal Mode in the night Specifications Camera registration monitoring No. of registerable camera units Up to 64 camera units. Note that the actual number of registerable camera units varies depending on the performance of the PC used. Camera image view Sequential display, Up to 16 multi-camera display, full screen display, layout change Image display size Automatically adjusted to match the camera layout. Camera setup*1 Each camera can be set up individually (camera name, resolution, image quality setting, recording format, timer setting, etc.) Selected camera image display Automatically adjusted to match the camera layout. Image zoom in/out*1 3 types of zoom functions: the camera zoom functions (Ex zoom and digital zoom), as well as the ActiveX control of the computer. Preset Preset functions set in cameras can be used Camera control*1 Control of basic camera functions (pan/tilt/zoom, brightness, resolution, image quality, sound level) Preset Sequence*1 Periodically scans and displays the locations registered in the camera presets. (Only for cameras with preset sequence feature) Time specified color night view*1 Color night view activation/deactivation can be registered in a schedule Image search Recording Recording file format Original file format: Images and voices are recorded continuously in a moving image file. Recording media Hard disk, network drive*2 H.264 : 1280 x 960 / 640 x 480 / 320 x 240 MPEG-4 : 1280 x 960 / 640 x 480 / 320 x 240 / 192 x 144 Recording resolution*1 MotionJPEG : 1280 x 1024 / 1280 x 960 / 640 x 480 / 320 x 240 / 192 x 144 / 160 x 120 Image quality (JPEG only) Favor clarity , Standard , Favor motions Not specified (based on camera's image update interval), Recording interval specified: 5 images/second to 1 image/hour Recording interval designation and sound recording can be done simultaneously. No. of camera units for Dependent on camera type and performance of PC. simultaneous recording See the hardware specifications "System Requirements for your PC". Maximum recording capacity value can be set for individual camera units Recording capacity (Whether to save new data by overwriting or to stop recording when limit function the set capacity is reached can be selected). In addition to a capacity limit for each camera, there is also a capacity limit for the entire storage media. The unit can be set to activate recording when motion is detected (sensitivity Motion detection recording and threshold value can be adjusted) or to record for a certain time length (JPEG only) before and after motion detection.*3 Motion detection can be disabled in specified areas. Motion detection can be confirmed on-screen. Shock detection recording*1 Starts recording with shock detection recording when the camera detects a shock. (JPEG only) The recording time for shock detection recording (and so on) is set using this software. Sound detection recording*1 (JPEG only) The unit can be set to activate recording when sound is detected (Loudness and threshold value can be adjusted) or to record for a certain time length before and after motion detection. Sound detection can be confirmed on-screen. Recorded image search function Timer recording Scheduled start and stop timer based on day of week and time. Key word can also be set for recording. (10 schedules can be registered per camera). Playback of images with voices, playback of image files. Playback speed Continuous play back can be varied. Playback in reverse is possible. Simultaneous playback of images from multiple cameras is also possible. Timer recording with preset position Specifying the display location of timer start/stop times Recorded image view A list of recorded image files, or a graphical list can also be displayed. Image operation Recording is triggered by the reaction of a sensor mounted to the camera. Alarm recording (JPEG only) A certain time length before and after the sensor reaction can also be recorded. Monitors the free space on the specified recording disk, Disk capacity limit function and stops recording when the free space becomes smaller than the set value. *1 Depends on Camera's Spec. *2-1 Folders on the network allotted to the drive can be specified for saving data. *2-2 When a network drive is specified as a folder for saving data, the amount of data flowing over the network increases. This may remarkably degrade the operating performance for watching or recording camera images, watching previously recorded images, etc., and may also result in errors. It is recommended that a folder on a local disk be specified for saving data. Search recorded images in 1-day units using the recording time, or using a key word set before recording. Searching can also be done for particular, desired folders. Operation of recorded images Recorded images can be copied or deleted. Format conversion All or part of the recorded images can be converted to MPEG-1, MPEG-4, or JPEG format files, or only the audio portion can be converted to WAV files. Language BB-HNP17A (For USA): English / Japanese BB-HNP17CE (For Other Regions): English / Germany / Spanish / Italian *3 The detection level varies depending on the camera resolution, image quality setting, subject conditions, network conditions, etc.
