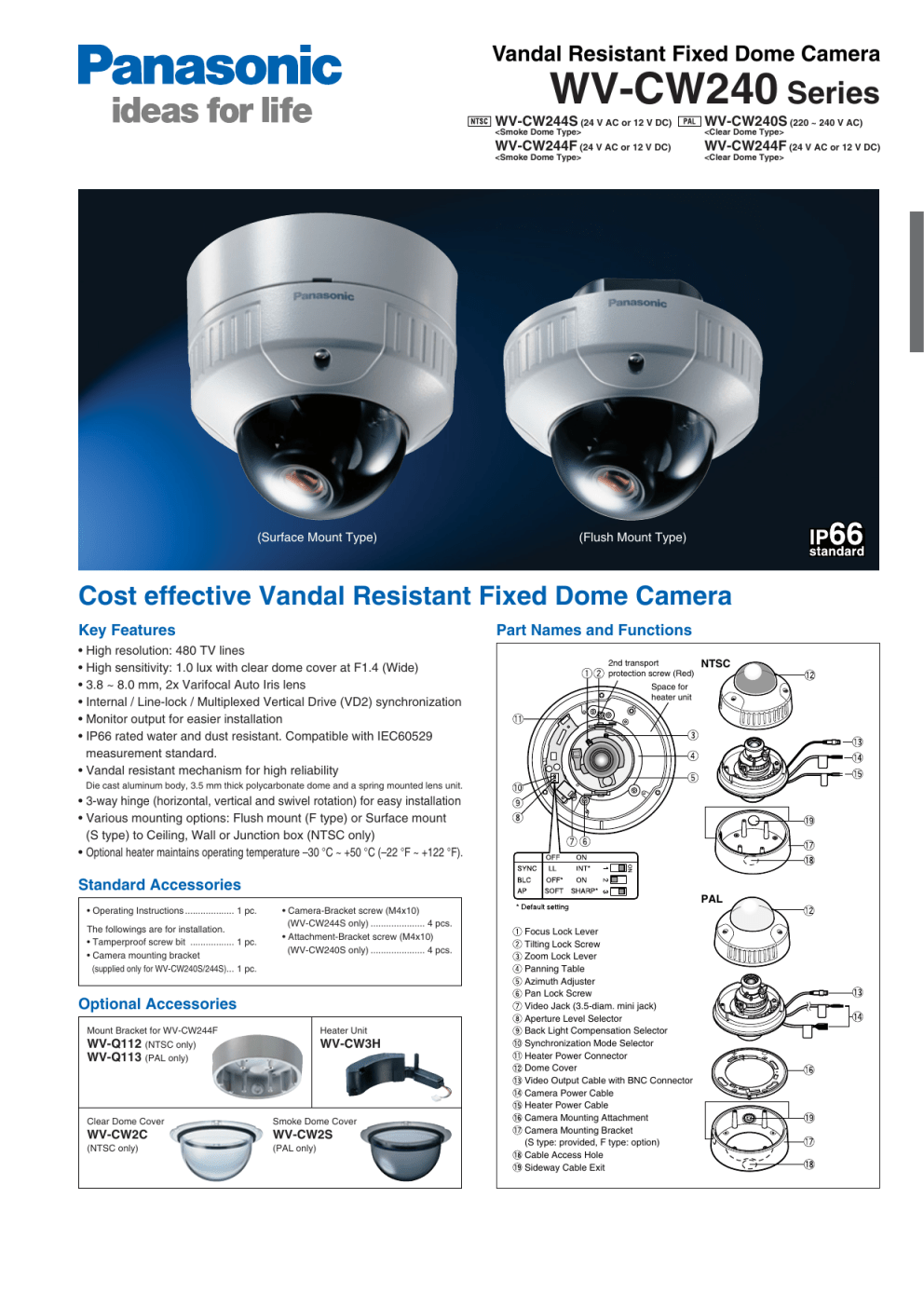

Panasonic WV-Q113 Datasheet

Vandal Resistant Fixed Dome Camera
WV-CW240 Series
(Surface Mount Type)
WV-CW244S (24 V AC or 12 V DC)
WV-CW240S (220 ~ 240 V AC)
<Smoke Dome Type>
<Clear Dome Type>
WV-CW244F (24 V AC or 12 V DC)
WV-CW244F (24 V AC or 12 V DC)
<Smoke Dome Type>
<Clear Dome Type>
(Flush Mount Type)
Cost effective Vandal Resistant Fixed Dome Camera
Part Names and Functions
Key Features
• High resolution: 480 TV lines
• High sensitivity: 1.0 lux with clear dome cover at F1.4 (Wide)
• 3.8 ~ 8.0 mm, 2x Varifocal Auto Iris lens
• Internal / Line-lock / Multiplexed Vertical Drive (VD2) synchronization
• Monitor output for easier installation
• IP66 rated water and dust resistant. Compatible with IEC60529
measurement standard.
• Vandal resistant mechanism for high reliability
2nd transport
protection screw (Red)
NTSC
Space for
heater unit
Die cast aluminum body, 3.5 mm thick polycarbonate dome and a spring mounted lens unit.
• 3-way hinge (horizontal, vertical and swivel rotation) for easy installation
• Various mounting options: Flush mount (F type) or Surface mount
(S type) to Ceiling, Wall or Junction box (NTSC only)
• Optional heater maintains operating temperature –30 °C ~ +50 °C (–22 °F ~ +122 °F).
Standard Accessories
PAL
• Operating Instructions ................... 1 pc.
The followings are for installation.
• Tamperproof screw bit ................. 1 pc.
• Camera mounting bracket
(supplied only for WV-CW240S/244S)... 1 pc.
• Camera-Bracket screw (M4x10)
(WV-CW244S only) ..................... 4 pcs.
• Attachment-Bracket screw (M4x10)
(WV-CW240S only) ..................... 4 pcs.
Optional Accessories
Mount Bracket for WV-CW244F
WV-Q112 (NTSC only)
WV-Q113 (PAL only)
Heater Unit
WV-CW3H
Clear Dome Cover
Smoke Dome Cover
WV-CW2C
WV-CW2S
(NTSC only)
(PAL only)
Focus Lock Lever
Tilting Lock Screw
Zoom Lock Lever
Panning Table
Azimuth Adjuster
Pan Lock Screw
Video Jack (3.5-diam. mini jack)
Aperture Level Selector
Back Light Compensation Selector
Synchronization Mode Selector
Heater Power Connector
Dome Cover
Video Output Cable with BNC Connector
Camera Power Cable
Heater Power Cable
Camera Mounting Attachment
Camera Mounting Bracket
(S type: provided, F type: option)
Cable Access Hole
Sideway Cable Exit
Specifications
* With optional Heater Unit WV-CW3H
** Optional Heater Unit WV-CW3H cannot be used under 12 V DC operation
85(3-3/8")
ø160(ø6-5/16")
270(
10-5
/8")
270(10-5/8")
83.5(3-5/16")
/8")
83.5(3-5/16")
270(10-5/8")
270
(10-5/8")
270
(10-5/8")
PAL
WV-CW240S (Surface mount type)
92(3-5/8")
270(10-5/8")
R47.5
74
(2-15/16")
51.5(2-1/32")
52 (2-1/16")
99(3-7/8")
10(3/8")
90(3-9/16")
161(6-5/16")
WV-CW244F (Flush mount type)
ø154(ø6-1/16")
R47.5
51.5(2-1/32")
51.5 (2-1/32")
99(3-7/8")
10(3/8")
160.5(6-5/16")
Important
– Safety Precaution: carefully read the operating instructions and installation manual before using this product.
Unit: mm (inches)
1,800(70-7/8")
Weight (approx.)
38 (1-1/2")
137(5-3/8")
270(10-5/8")
Ambient Operating
Temperature
Ambient Operating Humidity
Water and Dust Resistance
Dimensions
99(3-7/8")
46(1-13/16")
74
(2-15/16")
270(10-5/8")
Power Source and
Power Consumption
R47.5
77(3-1/16")
Setup Method
Safety/EMC Standard
51.5(2-1/32")
75(2-15/16")
General
WV-CW244F (Flush mount type)
109(4-5/16")
Monitor Output
R47.5
46(1-13/16")
75(2-15/16")
Pan and
Tilt
Input /
Output
Maximum Aperture Ratio
Focusing Range
Panning Range
Tilting Range
Video Output
41.5 (1-5/8")
109(4-5/16")
Lens
Signal-to-Noise Ratio
White Balance
Light Control
AGC
Lens Mount
Back Focus Adjustment
Synchronization
Focal Length
Angular Field of View
140.5(5-9/16")
99(3-7/8")
270(
10-5
Scanning Line
Horizontal Resolution
Minimum Illumination
85(3-3/8")
WV-CW244S (Surface mount type)
72.3(2-7/8")
Image Sensor
Effective Pixels
Scanning Mode
Scanning Area
Scanning Frequency
NTSC
ø152.5(ø6")
Camera
Appearance
NTSC
PAL
WV-CW244S: Surface mount type WV-CW240S: Surface mount type
WV-CW244F: Flush mount type
1/3 inch interline transfer CCD
768 (H) x 494 (V)
752 (H) x 582 (V)
2:1 interlace scan
4.8 (H) x 3.6 (V) mm
Horizontal: 15.734 kHz
Horizontal: 15.625 kHz
Vertical: 59.94 Hz
Vertical: 50 Hz
525 lines
625 lines
480 TV lines
Color (30IRE): 2.4 lux at F1.4
Color (30IRE): 1.0 lux at F1.4
Will be same as PAL spec with
WV-CW2C optional clear dome cover
50 dB (Equivalent to AGC Off, Weight On)
ATW
ALC / ELC (only when monitor output is used)
Always ON
CS-mount
Manual
Internal (INT), Multiplexed Vertical Drive (VD2), Line-Lock (LL)
3.8 ~ 8.0 mm, 2x varifocal
H: 35.6° (Tele) ~ 73.6° (Wide)
V: 26.6° (Tele) ~ 53.4° (Wide)
1:1.4 (Wide) 1:1.8 (Tele)
1.2 m (3.9 ft.) ~ ∞
±175°
±75° Image tilt adjustment range: ±160°
1.0 V [p-p] / NTSC composite 75 Ω / 1.0 V [p-p] / PAL composite 75 Ω /
BNC Connector Multiplexed VD2 BNC Connector Multiplexed VD2
capable
capable
1.0 V [p-p] / 75 Ω /
1.0 V [p-p] / 75 Ω /
NTSC composite signal /
PAL composite signal /
ø3.5 mm mini jack
ø3.5 mm mini jack
Dip SW: Sync mode, BLC, Aperture
CE (EN60065, EN55022 ClassB,
UL (6500),
FCC (Part15 ClassA),
EN55024),
C-UL (E60065),
GOST (GOST R 51558)
DOC (ICES003 ClassA)
24 V AC 60 Hz, 3.0 W, 12.1 W*, WV-CW240S:
12 V DC 265 mA**
220 ~ 240 V AC 50 Hz,
4.1 W, 13 W*
WV-CW244F:
24 V AC 50 Hz, 3.0 W, 12.1 W*,
12 V DC 265 mA**
–10 °C ~ +50 °C (14 °F ~ 122 °F),
–30 °C ~ +50 °C (–22 °F ~ 122 °F)*
90 % or less (without condensation)
IP66, Compatible with IEC60529 measurement standard
WV-CW244S:
WV-CW240S:
ø160 mm x 140.5 mm
ø160 mm x 161 mm
(ø6-5/16" x 5-9/16")
(ø6-5/16" x 6-5/16")
WV-CW244F:
WV-CW244F:
ø152.5 mm x 137 mm
ø154 mm x 160.5 mm
(ø6" x 5-3/8")
(ø6-1/16" x 6-5/16")
WV-CW244S: 1.7 kg (3.8 lbs.) WV-CW240S: 2.1 kg (4.62 lbs.)
WV-CW244F: 1.2 kg (2.7 lbs.) WV-CW244F: 1.4 kg (3.08 lbs.)
ø160(ø6-5/16")
TV System
Type
90(3-9/16")
Unit: mm (inches)
• All TV pictures are simulated.
• Weights and dimensions are approximate.
• Specifications are subject to change without notice.
• These products may be subject to export control regulations.
• All product pictures are NTSC models.
