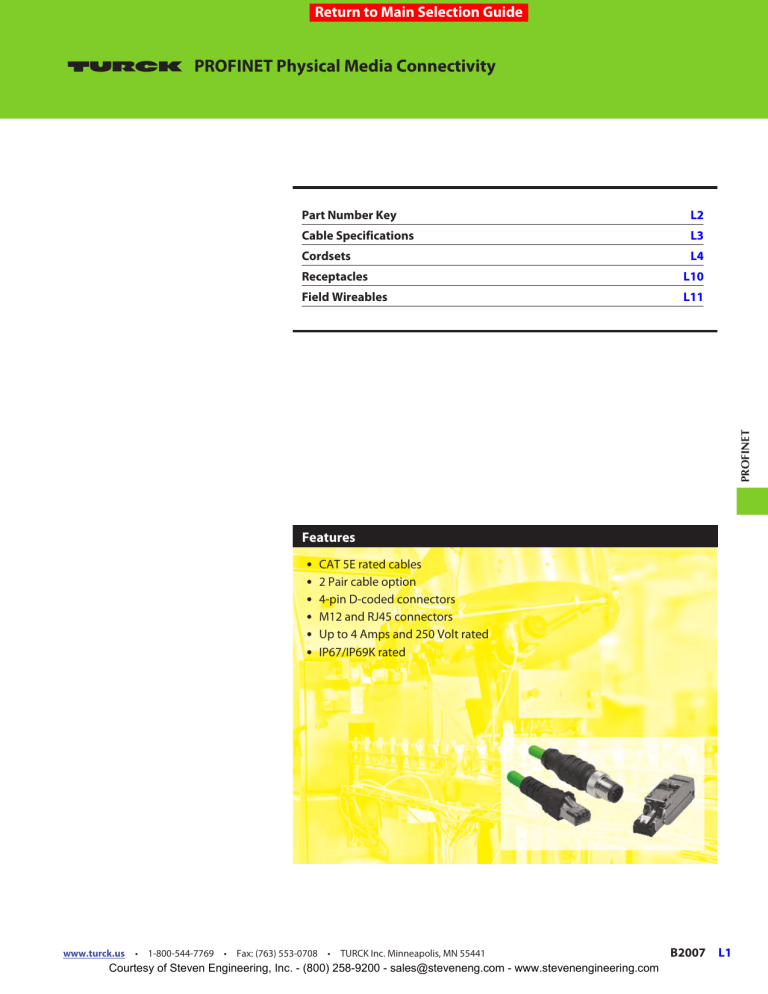

PROFINET Physical Media Connectivity

Part Number Key

Cable Specifications

Cordsets

Receptacles

Field Wireables

L2

L3

L4

L10

L11

Features

CAT 5E rated cables

2 Pair cable option

4-pin D-coded connectors

M12 and RJ45 connectors

Up to 4 Amps and 250 Volt rated

IP67/IP69K rated

www.turck.us

• 1-800-544-7769 • Fax: (763) 553-0708 • TURCK Inc. Minneapolis, MN 55441

Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com

B2007 L1

Return to Main Selection Guide

PROFINET Physical Media Connectivity

eurofast

®

Cordset Part Number Key

Part Number Keys are to assist in IDENTIFICATION ONLY. Consult factory for catalog items not identified.

R S C D V 42x - *M

M12x1 (eurofast)

R = Straight

W = Right Angle

Gender

K = Female Connector, Female Threads

S = Male Connector, Male Threads

Plug Body

C = Large Plug Body

G = Robust Large Plug Body

S = Shielded to Coupling Nut

T = Small Plug Body

Length in Meters (*)

Consult factory for other lengths.

Cable Type (x)

42 = Profinet

Coupling Nut Material

(Blank) = Nickel Plated Brass

K = Nylon

U = PVDF

V = Stainless Steel

Keying Options

(Blank) = Standard Key

D = D-coding Key

W = Reverse Key

eurofast Receptacle Part Number Key

M12x1 (eurofast)

Gender

K = Female Connector, Female Threads

S = Male Connector, Male Threads

Housing Style

(Blank) = Front Mount

F = Standard

FD = Standard Back Panel Mount

S = Shielded to Receptacle Housing

SDE = Shielded Back Panel Mount, Large Body

F S F V 42x - *M

Length in Meters (*)

Consult factory for other lengths.

Cable Type (x)

42 = Profinet

Keying Options

(Blank) = Standard Key

D = D-coding Key

W = Reverse Key

Coupling Nut Material

(Blank) = Nickel Plated Brass

V = Stainless Steel

RJ Network Cordsets Part Number Key

W RJ45 E S M F IP67 42x - *M

Connector Configuration

(blank) = Straight Connector

W= Right Angle Connector

Connection Style

RJ45 = RJ45 Connector, 8 pins - 8 Connections

RJ11 = RJ11 Connector, 6 pins - 4 Connections

RJ25 = RJ25 Connector, 6 pins - 6 Connections

Right Angle Connection Style

E = standards for external tab. Tab is on the outside away from the cable

I = Stands for Internal tab. The tab is to the inside. Towards the cable.

Shielding

(blank) = Unshielded

S = Shielded

Network

42 = PROFINET

Housing

(Blank) = IP20 RJ45

IP67 = IP67 RJ45

Gender

(Blank) = Male

F = Female

Material

(blank) = Plastic (IP67)

M = Metal (IP67)

Length in Meters

L2 B2007 www.turck.us

• 1-800-544-7769 • Fax: (763) 553-0708 • TURCK Inc. Minneapolis, MN 55441

Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com

Return to Main Selection Guide

PROFINET Physical Media Connectivity

PROFINET, Cable Specifications, 4-wire

Compliant with PROFINET Cable Standards

Cable is UL Rated for Sunlight and Oil Resistant

Jacket

Braided Shield Inner Jacket

Aluminum/Poly Foil Shield

Orange

Yellow

Blue

White

Type

420

60°C, 300 V

421

60°C, 300 V

423

70°C, 600 V

Approvals

NEC CMR (ETL)

CEC C (ETL)

NEC CMR (ETL)

CEC C (ETL)

IEC 60332-1

DIN EN 60811-2-1

Data Pair

AWG

Color Code

DCR (/1000 feet)

Insulation

4/22 AWG

Stranded

13.8 Ohm

4/22 AWG

Solid

4/22 AWG

Stranded

16.2 Ohm

Outer Jacket

Material Color

Nominal O.D.

PVC Green/Yellow

7.7 mm

PVC Green/Yellow

8.2 mm

TPU Green/Yellow

6.5 mm

Shields

Type

Foil/Braid

Foil/Braid

Foil/Braid

* Indicates length

Standard spool lengths are 30, 75, 100, 150, 200, 225, 300 meters. Consult factory for other lengths.

† 3 million flex motions at 7.5x cable diameter bend radius.

Bulk Cable

Part Number /

Weight/300 M

RB51603-*M

RB51604*M

RB51216-*M

flexlife † www.turck.us

• 1-800-544-7769 • Fax: (763) 553-0708 • TURCK Inc. Minneapolis, MN 55441

Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com

B2007 L3

Return to Main Selection Guide

PROFINET Physical Media Connectivity

PROFINET, (M12x1) eurofast

®

, RJ45, Cables and Extensions - Unshielded D-coded

1

Pin (Male)

2

Socket (Female)

eurofast

3

Pin (Male)

4

Socket (Female)

RSCD

RSCD 42x-*M

RKCD

RKCD 42x-*M

FSFDD

FSFDD 42x-*M

FKFDD

FKFDD 42x-*M

Bare

1

RSCD RSCD 42x-*M RSCD RKCD 42x-*M RSCD FSFDD 42x-*M RSCD FKFDD 42x-*M

RSCD

2

RKCD RKCD 42x-*M RKCD FSFDD 42x-*M RKCD FKFDD 42x-*M

RKCD

7

RJ45 FSFDD 42x-*M RJ45 FKFDD 42x-*M

RJ45

8

WRJ45E FSFDD 42x-*M WRJ45E FKFDD 42x-*M

WRJ45E

9

RJ45MIP67 FSFDD 42x-*M RJ45MIP67 FKFDD 42x-*M

RJ45MIP67

10

RJ45IP67 FSFDD 42x-*M RJ45IP67 FKFDD 42x-*M

RJ45IP67

See pages L8 - L9 for dimensional drawings.

* Indicates length in meters.

x Indicates cable type.

Standard cable lengths are 1, 2, 4, 6, 8, 10, 15, and in +5 meter increments from there. Consult factory for other lengths.

For stainless steel coupling nuts change part number RSCD … RSCDV, FSFDED … FSFDEDV.

For right angle RJ45, select WRJ45I for internal tab or WRJ45E for external tab.

eurofast

Male

Pinouts

1. Yellow (+ tx)

2. White (+rx)

3. Orange (-tx)

4. Blue (-rx)

eurofast

Female

RJ45 Pinout

1. Yellow

2. Orange

3. White

4. N/C

5. N/C

6. Blue

7. N/C

8. N/C

RJ45 Plug

Male

RJ45 (CR) Pinout

1. Yellow

2. Orange

3. White

4. N/C

5. N/C

6. Blue

7. N/C

8. N/C

L4 B2007 www.turck.us

• 1-800-544-7769 • Fax: (763) 553-0708 • TURCK Inc. Minneapolis, MN 55441

Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com

Return to Main Selection Guide

PROFINET Physical Media Connectivity

PROFINET, (M12x1) eurofast

®

, RJ45, Cables and Extensions - Unshielded D-coded

7

Pin (Male)

8

eurofast

Socket (Female)

9

10

RJ45 Plug

RJ45

RJ45 42x-*M

WRJ45E

WRJ45E 42x-*M

RJ45MIP67

RJ45MIP67 42x-*M

RJ45IP67

RJ45IP67 42x-*M

Bare

5

RSCD RJ45 42x-*M RSCD WRJ45E 42x-*M RSCD RJ45MIP67 42x-*M RSCD RJ45IP67 42x-*M

RSCD

6

RKCD RJ45 42x-*M RKCD WRJ45E 42x-*M RKCD RJ45MIP67 42x-*M RKCD RJ45IP67 42x-*M

RKCD

7

RJ45 RJ45 42x-*M RJ45 RJ45MIP67 42x-*M RJ45RJ45IP67 42x-*M

RJ45

8

WRJ45E RJ45 42x-*M WRJ45E WRJ45E 42x-*M WRJ45E RJ45MIP67 42x-*M WRJ45E RJ45IP67 42x-*M

9

WRJ45E

RJ45MIP67 RJ45 42x-*M RJ45MIP67 WRJ45E 42x-*M RJ45MIP67 RJ45MIP67 42x-*M RJ45MIP67 RJ45IP67 42x-*M

10

RJ45MIP67

RJ45IP67 RJ45 42x-*M RJ45IP67 WRJ45E 42x-*M RJ45IP67 RJ45MIP67 42x-*M RJ45IP67 RJ45IP67 42x-*M

RJ45IP67

See pages L8 - L9 for dimensional drawings.

* Indicates length in meters.

x Indicates cable type.

Standard cable lengths are 1, 2, 4, 6, 8, 10, 15, and in +5 meter increments from there. Consult factory for other lengths.

For stainless steel coupling nuts change part number RSCD … RSCDV, FSFDED … FSFDEDV.

For right angle RJ45, select WRJ45I for internal tab or WRJ45E for external tab.

www.turck.us

• 1-800-544-7769 • Fax: (763) 553-0708 • TURCK Inc. Minneapolis, MN 55441

Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com

B2007 L5

Return to Main Selection Guide

PROFINET Physical Media Connectivity

PROFINET, (M12x1) eurofast

®

, RJ45, Cables and Extensions - Shielded Cable D-coded

Pin (Male)

1

RSSD

RSSD 42x-*M

2

Socket (Female)

RKSD 42x-*M

RKSD

eurofast

Pin (Male)

5

FSSDED

FSSDED 42x-*M

6

Socket (Female)

FKSDED

FKSDED 42x-*M

Bare

1

RSSD RSSD 42x-*M RSSD RKSD 42x-*M RSSD FSSDED 42x-*M RSSD FKSDED 42x-*M

RSSD

2

RKSD RKSD 42x-*M RKSD FSSDED 42x-*M RKSD FKSDED 42x-*M

RKSD

7

RJ45S FSSDED 42x-*M RJ45S FKSDED 42x-*M

RJ45S

8

WRJ45ES FSSDED 42x-*M WRJ45ES FKSDED 42x-*M

9

WRJ45ES

RJ45SMIP67 FSSDED 42x-*M RJ45SMIP67 FKSDED 42x-*M

RJ45SMIP67

See pages L8 - L9 for dimensional drawings.

* Indicates length in meters.

x Indicates cable type.

Standard cable lengths are 1, 2, 4, 6, 8, 10, 15, and in +5 meter increments from there. Consult factory for other lengths.

For stainless steel coupling nuts change part number RSSD … RSSDV, FSSDED … FSSDEDV.

For right angle RJ45, select WRJ45I for internal tab or WRJ45E for external tab.

eurofast

Male

Pinouts

1. Yellow (+ tx)

2. White (+rx)

3. Orange (-tx)

4. Blue (-rx)

eurofast

Female

RJ45 Pinout

1. Yellow

2. Orange

3. White

4. N/C

5. N/C

6. Blue

7. N/C

8. N/C

RJ45 Plug

Male

RJ45 (CR) Pinout

1. Yellow

2. Orange

3. White

4. N/C

5. N/C

6. Blue

7. N/C

8. N/C

L6 B2007 www.turck.us

• 1-800-544-7769 • Fax: (763) 553-0708 • TURCK Inc. Minneapolis, MN 55441

Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com

Return to Main Selection Guide

PROFINET Physical Media Connectivity

PROFINET, (M12x1) eurofast

®

, RJ45, Cables and Extensions - Shielded Cable D-coded

RJ45 Plug

7

RJ45S 42x-*M

RJ45S

8

eurofast

WRJ45 Plug

WRJ45ES

WRJ45ES 42x-*M

9

RJ45 IP67 Plug

RJ45SMIP67

RJ45SMIP67 42x-*M

Bare

1

RSSD RJ45S 42x-*M RSSD WRJ45ES 42x-*M RSSD RJ45SMIP67 42x-*M

RSSD

2

RKSD RJ45S 42x-*M RKSD WRJ45ES 42x-*M RKSD RJ45SMIP67 42x-*M

RKSD

7

RJ45S RJ45S 42x-*M RJ45S RJ45SMIP67 42x-*M

RJ45S

8

WRJ45ES RJ45S 42x-*M WRJ45ES WRJ45ES 42x-*M WRJ45ES RJ45SMIP67 42x-*M

WRJ45ES

9

RJ45SMIP67 RJ45S 42x-*M RJ45SMIP67 WRJ45ES 42x-*M RJ45SMIP67 RJ45SMIP67 42x-*M

RJ45SMIP67

See pages L8 - L9 for dimensional drawings.

* Indicates length in meters.

x Indicates cable type.

Standard cable lengths are 1, 2, 4, 6, 8, 10, 15, and in +5 meter increments from there. Consult factory for other lengths.

For stainless steel coupling nuts change part number RSSD … RSSDV, FSSDED … FSSDEDV.

For right angle RJ45, select WRJ45I for internal tab or WRJ45E for external tab.

eurofast

Male

Pinouts

1. Yellow (+ tx)

2. White (+rx)

3. Orange (-tx)

4. Blue (-rx)

eurofast

Female

RJ45 Pinout

1. Yellow

2. Orange

3. White

4. N/C

5. N/C

6. Blue

7. N/C

8. N/C

RJ45 Plug

Male

RJ45 (CR) Pinout

1. Yellow

2. Orange

3. White

4. N/C

5. N/C

6. Blue

7. N/C

8. N/C

www.turck.us

• 1-800-544-7769 • Fax: (763) 553-0708 • TURCK Inc. Minneapolis, MN 55441

Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com

B2007 L7

Return to Main Selection Guide

PROFINET Physical Media Connectivity

PROFINET, eurofast

®

Cordset Connector Dimensions / Configuration

Specifications

Overmold:

Coupling Nut:

Contact Carrier:

Contacts:

TPU

Nickel Plated CuZn or Stainless Steel

TPU (Polyurethane) or POM (Nylon)

Gold Plated CuZn

Protection:

Rated Voltage:

NEMA 1, 3, 4, 6P and IEC IP 68

250 V

Rated Current:

4 A

Ambient Temperature: -40° to +70°C (32° to +167°F)

1 2

RSCD/RSSD ..

3

Page L4 RKCD/RKSD ..

4

Page L4

FSFDD ..

5

Page L4

FKFDD ..

6

Page L4

FSSDED ..

Page L5 FKSDED ..

Page L5

L8 B2007 www.turck.us

• 1-800-544-7769 • Fax: (763) 553-0708 • TURCK Inc. Minneapolis, MN 55441

Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com

Return to Main Selection Guide

PROFINET Physical Media Connectivity

PROFINET, RJ45 Connector Dimensions / Configuration

Specifications

Overmold:

Plug Material:

Protection:

Rated Voltage:

TPU

Polycarbonate

NEMA 1, 3, 4, 6P and IEC IP 20

42 V

Rated Current:

1.5 A

Ambient Temperature: -25° to +70°C (-22° to +176°F)

7 8

External Tab

RJ45/RJ45S ..

Page L4

WRJ45E/WRJ45ES ..

9

Page L4

WRJ45I/WRJ45IS ..

Internal tab version

RJ45MIP67/RJ45SMIP67 ..

Page L4

10

RJ45IP67 ..

Page L4 www.turck.us

• 1-800-544-7769 • Fax: (763) 553-0708 • TURCK Inc. Minneapolis, MN 55441

Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com

B2007 L9

Return to Main Selection Guide

PROFINET Physical Media Connectivity

PROFINET, Receptacle

Transitions from a RJ45 Connector to a 4-wire

eurofast

®

Connector

Housing Style Part Number

FKSDD RJ45SF 44

Panel mounting clearance hole 19/32" (15 mm). Panel thickness: .060-.120" (1.5-3 mm)

Features

Polyurethane, TPU Overmold, 42 V,

1.5 A, -40° to +75°C

Wiring Diagram

RJ45 Receptacle

Female

Pinouts

1. Yellow (+TX)

2. Orange (-TX)

3. White (+RX)

4. N/C

5. N/C

6. Blue (-RX)

7. N/C

8. N/C

eurofast Female

Female

L10 B2007 www.turck.us

• 1-800-544-7769 • Fax: (763) 553-0708 • TURCK Inc. Minneapolis, MN 55441

Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com

Return to Main Selection Guide

PROFINET Physical Media Connectivity

PROFINET, RJ45 Field Wireable

Allows for Quick Connections in the Field

Fully Shielded

Includes Assembly Instructions

Housing Part Number Features

Connector, RJ45S 42 IDC

22-27 AWG stranded,

22-24 AWG solid, -40° to

+85°C

Pinout

Male

RJ45 Plug

Male

Pinout

1. Yellow (+TX)

2. Orange (-TX)

3. White (+RX)

4. N/C

5. N/C

6. Blue (-RX)

7. N/C

8. N/C

www.turck.us

• 1-800-544-7769 • Fax: (763) 553-0708 • TURCK Inc. Minneapolis, MN 55441

Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com

B2007 L11

Return to Main Selection Guide

PROFINET Physical Media Connectivity

PROFINET, 4-Pin D-coded Field Wireables

Allows for Quick Connections when

Pre-Molded Cables are not Available

Available in Male, Straight and Right Angle

Connector Configurations

Housing Style

CMBD 81..

Female Part Number Male Part Number Features Pinouts

CMBSD 81..

Female

CMBD 8141-0/PG9 CMBSD 8141-0/PG9

CMBD 82..

4 A, 250 V, -40 to +85°C, mates with female 4-pin

D-coded eurofast

® cordsets and receptacles

CMBSD 82..

Male

CMBD 8241-0/PG9 CMBSD 8241-0/PG9

L12 B2007 www.turck.us

• 1-800-544-7769 • Fax: (763) 553-0708 • TURCK Inc. Minneapolis, MN 55441

Courtesy of Steven Engineering, Inc. - (800) 258-9200 - [email protected] - www.stevenengineering.com

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
