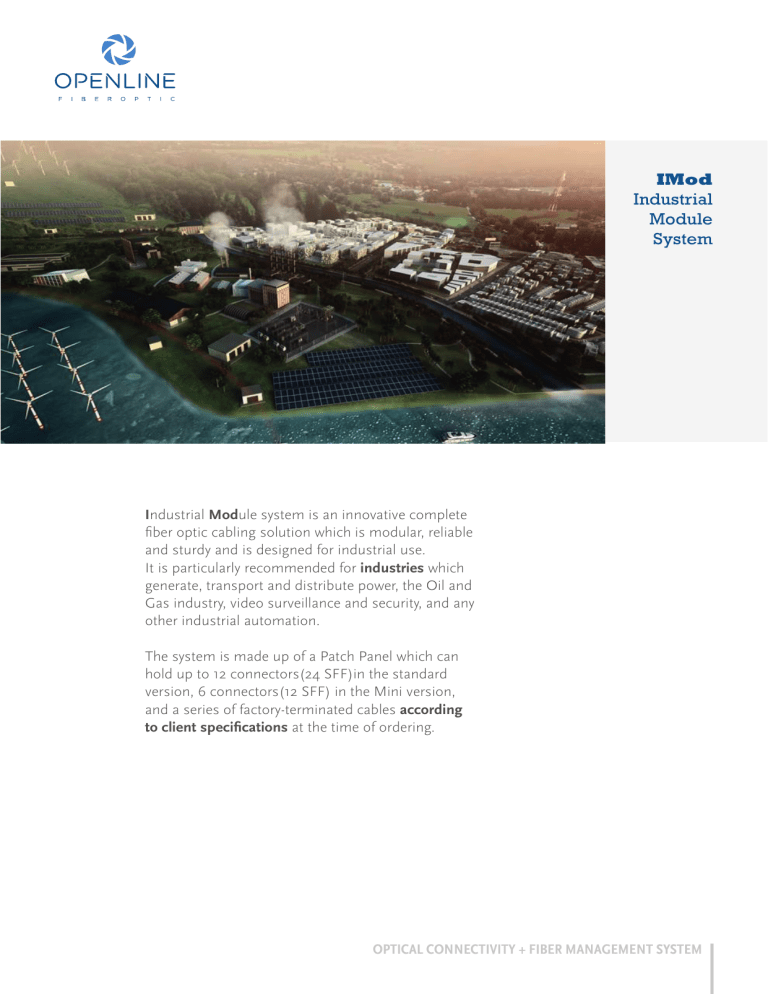

IMod Industrial Module System

IMod Industrial Module System

IMod

Industrial

Module

System

Industrial Module system is an innovative complete

fiber optic cabling solution which is modular, reliable and sturdy and is designed for industrial use.

It is particularly recommended for

industries which

generate, transport and distribute power, the Oil and

Gas industry, video surveillance and security, and any other industrial automation.

The system is made up of a Patch Panel which can hold up to 12 connectors(24 SFF)in the standard version, 6 connectors(12 SFF) in the Mini version, and a series of factory-terminated cables

according

to client specifications at the time of ordering.

OPTICAL CONNECTIVITY + FIBER MANAGEMENT SYSTEM

PATCH PANEL

IMod - Industrial Module System

IMod and Mini-IMod are compact, sturdy panels, designed for managing the termination and/or splicing of fi ber optic cable, mountable on a 35mm

DIN Rail.

The 30 degree slope of the connections allows for reduced installation depth; the DIN Rail clip can also be fi xed to the sides of the panels.

The cable-entry kits, produced according to typology of cable, guarantee an effi cient management of the fi bers.

IMod and Mini-IMod are available with pre-installed adapters and pigtails ready for fusion-splicing, or just with adapters to house the pre-terminated cables, or otherwise in the splice-through version.

Characteristics

Compact and sturdy module for DIN rail

DIN Rail clip fi xable to the sides

Up to 12 fi bers (24 SFF)

Up to 6 fi bers in the Mini version (12 SFF)

Reduced installation depth

Available preloaded with pigtails

Available in splice through version

OPTICAL CONNECTIVITY + FIBER MANAGEMENT SYSTEM

PATCH PANEL

IMod - Industrial Module System

Specifi cations

Material: Anodized aluminium

IMod weight: 300 gr empty

Mini-IMod weight: 200 gr empty

IMod

Mini-IMod

mm mm

Accessories

A

A

170

150

B

B

135

115

C

175

110

D

200

135

S

40

40

C

D E

OPTICAL CONNECTIVITY + FIBER MANAGEMENT SYSTEM

ORDERING CODE

IMod - Industrial Module System

INDUSTRIAL MODULE

I M o d A A B B C C D

MINI-INDUSTRIAL MODULE

M I M o d A A B B C C - D

A A

Select fiber type or adapter type

9

6

S =

S =

5 S =

O S =

O M =

S M =

M M =

S P =

9/125 OS2 semitight yellow

62,5/125 OM1 semitight blue

50/125 OM2 semitight orange

50/125 OM3 semitight aqua

50/125 OM4 semitight aqua

No pigtails only adapter zirconia sleeve

No pigtails only adapter phosphor-bronze sleeve

Splice Through no adapter

B B

Select connectivity type

2 0 = ST

3 0 = FC

4 0 = SC

5 8 = LC Duplex

B B = For a complete list please see jumper cable code

C C

Select number of pigtails or adapters

... ... =

1 2 =

... ... =

2 4 =

….. pigtails or adapter

12 pigtails or adapter

….. pigtails or adapter

24 pigtails or adapter

D

Select cable entry type

A =

B =

C =

D =

E =

Bracket, 1 m miniflex tube with 2 gripper saddle

Bracket with cable ties

Bracket with cable glande PG 13,5

Bracket for Imod Line System with 2 gripper saddle

Bracket for IMod Line System mounting nut PG 16

Features and specifications subject to change without prior notification.

OPTICAL CONNECTIVITY + FIBER MANAGEMENT SYSTEM

IMod Line System

IMod Line system is a cabling platform entirely factoryassembled according to client specifi cations and ready to use: the connectorised ends of the cable, which are protected by a metal tube during the laying, fi t exactly into the Patch Panel IMod and Mini-IMod. The 5mm diameter corrugated tube, which connects the cable to the Patch Panel, allows the fi bers to be installed safely and easily into the cabinets, as well as protecting the fi bers from a tight radius of curvature; the length can be decided by the client.

IMod Line system can be made with a cable which either has dielectric armour and a LSZH jacket or corrugated steel armour and PE jacket.

Installation is quick and easy: there is no need for specialized staff or expensive equipment, therefore installation time and costs are signifi cantly reduced.

This product is shipped in adequate packaging and includes the test report.

OPTICAL CONNECTIVITY + FIBER MANAGEMENT SYSTEM

FEATURES

IMod Line System

Characteristics

Ready to use system

For internal and external applications

Factory-assembled and tested

Quick and easy installation

Reduced installation time and cost

Cable length and connectors defined by the client

FANOUT LEG

FIBER COUNT

IMod Shortest/longest length L2 - L2a [ mm ]

Mini-IMod Shortest/longest length L2 - L2a [ mm ]

Shortest/longest length L1 - L1a [ mm ]

Length H [ mm ]

Tube length [ mm ]

Single fanout leg diameter [ Ø mm ]

Fanout leg jacket material

CABLE TERMINATION

Tube outer diameter [ Ø mm ]

Maximum tensile strength [ N ]

Crush resistance [ N ]

Environmental protection class (with O-RING ) [ IP ]

OPTICAL CONNECTIVITY + FIBER MANAGEMENT SYSTEM

4

55/60

41/44

6 8 10

55/65 55/70

41/47

-

300 / fino a 2500

65

L1 + L2 + 100

1.6 ± 0.1

LSZH Low Smoke Zero Halogen

55/75

-

30 ± 2

1000

1000

67

12

55/80

-

ORDERING CODE

IMod Line System

I M L A B C D D E E F F G - H H H H

A

Select number fibers

2

4

= 2 fiber

= 4 fiber

6 = 6 fiber

8 = 8 fiber

A = 10 fiber

B = 12 fiber

C = 14 fiber

D = 16 fiber

E

F

= 18 fiber

= 20 fiber

G = 22 fiber

H = 24 fiber

B

Select fiber type

9

5

6

O

M =

=

=

=

=

Single mode 9/125 OS1

50/125 OM2

62,5/125 OM1

50/125 OM3

50/125 OM4

C

A

F

Select cable design

=

=

Glass armoured LSZH jacket, 1500 N

Corrugated steel armoured PE Jacket, 1000 N

D D

Select connector type side A

2 0 = ST

3 0 = FC

4 0 = SC

5 8 = LCD

D D = For a complete list please see jumper cable code

E

E

0

E

E

0

Select connector type side B

= Use option from item DD

= No connector

F

...

D

N

X

C

D

E

F

F

Select tube length L1/L1a

C = L1 30cm L1a 30cm

D = L1 40cm L1a 40cm

E = L1 50cm L1a 50cm

F = L1 60cm L1a 60cm

... = L1 ….cm L1a ….cm

F = L1 40cm L1a 60cm

N = No Miniflex tube

X = Specified in note

G

A

B

Fanout leg type L2/L2a

=

=

Fit in IMod

Fit in Mini-Imod

1

1

H H

3

2

H H

Select cable length in meters*

5 = 135 meter

5 3 = 1253 meter

* length tolerance including fanout leg

Up to a 50 m: + / - 50 cm

From 51 to 100 m: + / - 100 cm

Over 101 m: + / - 2 %

Features and specifications subject to change without prior notification.

OPTICAL CONNECTIVITY + FIBER MANAGEMENT SYSTEM

OPTICAL CONNECTIVITY + FIBER MANAGEMENT SYSTEM

IMod Plug and Play

I Mod Plug and Play is a cabling solution particularly suitable for linking racks in the same room or in the same building where the cable ducting system is ample: the connectors are already inserted inside the IMod and

Mini-IMod panels and once fi xed to the DIN rail they are ready to be connected to the equipment.

A tube between the cable and the IMod allows for the safe and easy management of the fi bers in the rack. The length of the tube can be defi ned by the client.

I Mod Plug and Play can be made with a cable which either has dielectric armour and a LSZH jacket or corrugated steel armour and PE jacket.

Installation is quick and easy: there is no need for specialized staff or expensive equipment, therefore signifi cantly reducing installation time and costs.

Characteristics

Ready to use system

For internal and external applications

Factory-assembled and tested

Quick and easy installation

Reduced installation time and cost

Cable length and connectors defi ned by the client

ORDERING CODE

IMod Plug and Play

I M P A B C D D E E F F - G G G G

A

Select number fibers

2

4

= 2 fiber

= 4 fiber

6 = 6 fiber

8 = 8 fiber

A = 10 fiber

B = 12 fiber

C = 14 fiber

D = 16 fiber

E

F

= 18 fiber

= 20 fiber

G = 22 fiber

H = 24 fiber

B

Select fiber type

9

5

6

O

M =

=

=

=

=

Single mode 9/125 OS1

50/125 OM2

62,5/125 OM1

50/125 OM3

50/125 OM4

C

A

F

Select cable design

=

=

Glass armoured LSZH jacket, 1500 N

Corrugated steel armoured PE Jacket, 1000 N

D D

Select connector type side A

2 0 = ST

3 0 = FC

4 0 = SC

5 8 = LCD

D D = For a complete list please see jumper cable code

E

E

0

E

E

0

Select connector type side B

= Use option from item DD

= No connector

F

...

D

X

C

D

E

F

F

Select tube length L1/L2

C = L1 30cm L2 30cm

D = L1 40cm L2 40cm

E = L1 50cm L2 50cm

F = L1 60cm L2 60cm

... = L1 ….cm L2 ….cm

F = L1 40cm L2 60cm

X = Specified in note

G

1

1

G

3

2

G G

Select cable length in meters*

5 = 135 meter

5 3 = 1253 meter

Features and specifications subject to change without prior notification.

OPTICAL CONNECTIVITY + FIBER MANAGEMENT SYSTEM

FEATURES

IMod - Industrial Module System

Glass armoured cable

Steel armoured cable

IEC 60794-1-2 Method

2 - 16 fi ber

18 - 24 fi ber

2 - 16 fi ber

18 - 24 fi ber

-

LSZH 55

LSZH 60

PE

PE

75

80

E1 E3 E11 F1 F1 -

7.5

1500 2000 60

8

8.5

8.5

1500 2000 60

1000

1000

2000

2000

55

55

-15

+40

-15

+40

-40

+70

-40

+70

- 30

+70

1300

-30

+70

-40

+70

-40

+70

1300

-

-

Glass armoured cable U-DQ(ZN)BH

Corrugated steel armoured cable A-DQ(ZN)(SR)2Y

Air ring in cardboard box

50x50x30cm

Cardboard reel-small

Ø 75 x 19 cm

Cardboard reel-small

Ø 75 x 35 cm

Wooden reel

Ø from 60 cm

70 m 300 m 400 m 2000 m

50 m 200 m 260 m 2000 m

OPTICAL CONNECTIVITY + FIBER MANAGEMENT SYSTEM

CONNECTORS

IMod - Industrial Module System

Compliance

Class assemblies

Ferrule Ø

Cable Ø

Cable retention

Colour of housing / boot

SM 0° PC

SM 8° APC

MM

LC

IEC 61754-20

0.1dB / A / B

1.25 mm

0.9 - 3.0 mm

70 N blue green beige / aqua / black

MU

IEC 61754-6

0.1dB / A / B

1.25 mm

0.9 - 2.0 mm

70 N brown green brown

SC

IEC 61754-4

0.1dB / A / B

2.5 mm

0.9 - 3.0 mm

100 N blue green beige / aqua / black

Compliance

Class assemblies

Ferrule Ø

Cable Ø

Cable retention

Colour of housing / boot

SM 0° PC

SM 8° APC

MM

E2000

TM

IEC 61754-15

0.1dB / A / B

2.5 mm

0.9 - 3.0 mm

100 N blue green beige / aqua / black

ST

IEC 61754-13

B

2.5 mm

0.9 - 3.0 mm

100 N yellow nero

FC

IEC 61754-13

0.1dB / A / B

2.5 mm

0.9 - 3.0 mm

100 N black green black

Insertion loss* random mate against ref.

Grade 0.1 dB

single-mode

0.06 dB mean

0.15 dB >97%

0.15 dB max

Return loss

PC

UPC

APC

> 45

> 50

> 70

Grade A

single-mode

0.15 dB mean

0.30 dB >97%

0.30 dB max

> 45

> 50

> 70

Grade B

single-mode std

0.50 dB mean

0.25 dB >97%

0.35 dB max

> 45

> 50

> 70

Grade M

multi-mode std

-

-

0.30 dB mean

0.20 dB max

EN 61300-3-34

> 25

EN 61300-3-4

Method B

EN 61300-3-6

Method 1

*

*

MM ENCIRCLED FLUX LAUNCH CONDITION ON 50um FIBER AND 850nm IEC 61280-4-1

FOR THE PRODUCT CONFORMITY CONTROL: EN 61300-3-4 METHOD C

OPTICAL CONNECTIVITY + FIBER MANAGEMENT SYSTEM

FIBER

IMod - Industrial Module System

FIBER CATEGORY

ISO/IEC 11801 EN 50173

STANDARD AND NORMS

Geometrical characteristics

Core diameter ( μm )

Cladding diameter ( μm )

Coating diameter uncolored ( μm )

Concentricity error core/cladding ( μm )

Attenuation

850 dB/km

1300 dB/km

Bending Loss

850/1300nm 2 tuns

Bandwidth

Overfilled launch (OFL)

Effective laser launch is assured using DMD*

Maximum link length

1Gb/s 850nm (1000 BASE SX)

1Gb/s 1300nm (1000 BASE LX)

10Gb/s 850nm (10 GBASE-SR)

10Gb/s 1300nm (10 GBASE-LX4)

40-100Gb/s 850nm (40/100 GBASE-SR)

* as specified in EN 60793-1-49

FIBER CATEGORY

SINGLE-MODE

STANDARD AND NORMS

Geometrical characteristics

Cladding diameter ( μm )

Coating diameter uncolored ( μm )

Cladding non-circularity ( % )

Concentricity error core/cladding ( μm )

Attenuation

1310nm

1383nm

1460nm

1550nm

1625nm

Bending Loss

1 Turn, r 7.5 mm

1 Turn, r 10 mm

10 Turns, r 15 mm

Cromatic dispersion

1285 - 1330nm ( ps/km*nm )

1440 ( ps/km*nm )

1530 - 1565nm ( ps/km*nm )

1565 - 1625nm ( ps/km*nm )

1550nm ( ps/km*nm )

1625nm ( ps/km*nm )

Mode-field diameter

At 1310 nm ( μm )

At 1550 nm ( μm )

Polarisation mode dispersion

Link value ( ps/√km )

Individual fiber ( ps/√km ) dB/km dB/km dB/km dB/km dB/km

1550nm

1625nm

1550nm

1625nm

1550nm

1625nm

≤ ı3ı

-

-

-

≤ 18.0

≤ 22.0

-

-

-

-

-

-

9.0 ± 0.4

10.1 ± 0.5

125 ± 0.7

242 ± 7

≤ 0.7

≤ 0.5

0.33 - 0.35

0.32 - 0.35

0.25

0.19 - 0.20

0.20 - 0.21

≤ 0.06

≤ 0.1

OM1 OM2 Bend Insensitive OM3 Bend Insensitive OM4 Bend Insensitive

IEC 60793-2-10 A.1b TIA/

EIA 492 AAA

IEC 60793-2-10 A1a.1 TIA/EIA

492 AAAB

IEC 60793-2-10 A1a.2 TIA/EIA

492 AAAC

IEC 60793-2-10 A1a.3 TIA/EIA

492 AAAD

r = 7.5 mm

r = 15 mm

850nm

1300nm

850nm

62.5 ± 2.5

125 ± 1.0

242 ± 7

≤ 1.5

≤ 3.2

≤ 1.0

-

-

≥200 MHz/km

≥600 MHz/km

-

50 ± 2

125 ± 1.0

242 ± 5

≤ 1

≤ 2.7

≤ 0.8

≤ 0.2 dB / ≤ 0.5 dB

≤ 0.1 dB / ≤ 0.3 dB

≥500 MHz/km

≥500 MHz/km

-

50 ± 2

125 ± 1.0

242 ± 5

≤ 1

≤ 2.5

≤ 0.8

≤ 0.2 dB / ≤ 0.5 dB

≤ 0.1 dB / ≤ 0.3 dB

≥1500 MHz/km

≥500 MHz/km

≥2000 MHz/km

275m

95m

33m

300m

-

750m

550m

150m

300m

-

1000m

550m

300m

300m

140m°

° total link attenuation max 1.5 dB

SM SM A1 Bend Insensitive SM A2 Bend Insensitive

IEC 60793-2-50 B.1.3

ITU G.652.D

IEC 60793-2-50 B.1.3 & B.6.A

ITU G.657.A1

IEC 60793-2-50 B.1.3 &

B.6.A&B ITU G.657.A2&B2

50 ± 2

125 ± 1.0

242 ± 5

≤ 1

≤ 2.5

≤ 0.8

≤ 0.2 dB / ≤ 0.5 dB

≤ 0.1 dB / ≤ 0.3 dB

≥3500 MHz/km

≥500 MHz/km

≥4700 MHz/km

1100m

550m

550m

300m

170m°

NZ-DS

IEC 60793-2-50 B4/B5

ITU G.655E/G656

≤ ı3ı

-

-

-

≤ 18.0

≤ 22.0

-

-

≤ 0.75 dB

≤ 1.50 dB

≤ 0.25 dB

≤ 1.00 dB

9.0 ± 0.4

10.1 ± 0.5

125 ± 0.7

242 ± 7

≤ 0.7

≤ 0.5

0.33 - 0.35

0.32 - 0.35

0.25

0.19 - 0.20

0.20 - 0.21

≤ 0.06

≤ 0.1

-

-

-

-

-

-

≤ 0.50 dB

≤ 1.00 dB

≤ 0.10 dB

≤ 0.20 dB

≤ 0.03 dB

≤ 0.10 dB

8.8 ± 0.4

9.8 ± 0.5

125 ± 0.7

242 ± 7

≤ 0.7

≤ 0.5

0.33 - 0.35

0.32 - 0.35

0.25

0.19 - 0.20

0.20 - 0.21

≤ 0.06

≤ 0.1

-10.0 to -3.0

> 0.1

5.5 to 10

7.5 to 13.4

-

-

-

-

-

-

-

-

-

9.2 ± 0.5

125 ± 1

242 ± 7

≤ 1

≤ 0.6

≤ 0.40

≤ 1.0

-

≤ 0.25

≤ 0.28

≤ 0.06

≤ 0.20

OPTICAL CONNECTIVITY + FIBER MANAGEMENT SYSTEM

Via Liguria, 8 - 20068 Peschiera Borromeo (MI) Italy

Phone +39 02 55 30 35 36 Fax +39 02 55 30 35 37

www.openline.it

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
