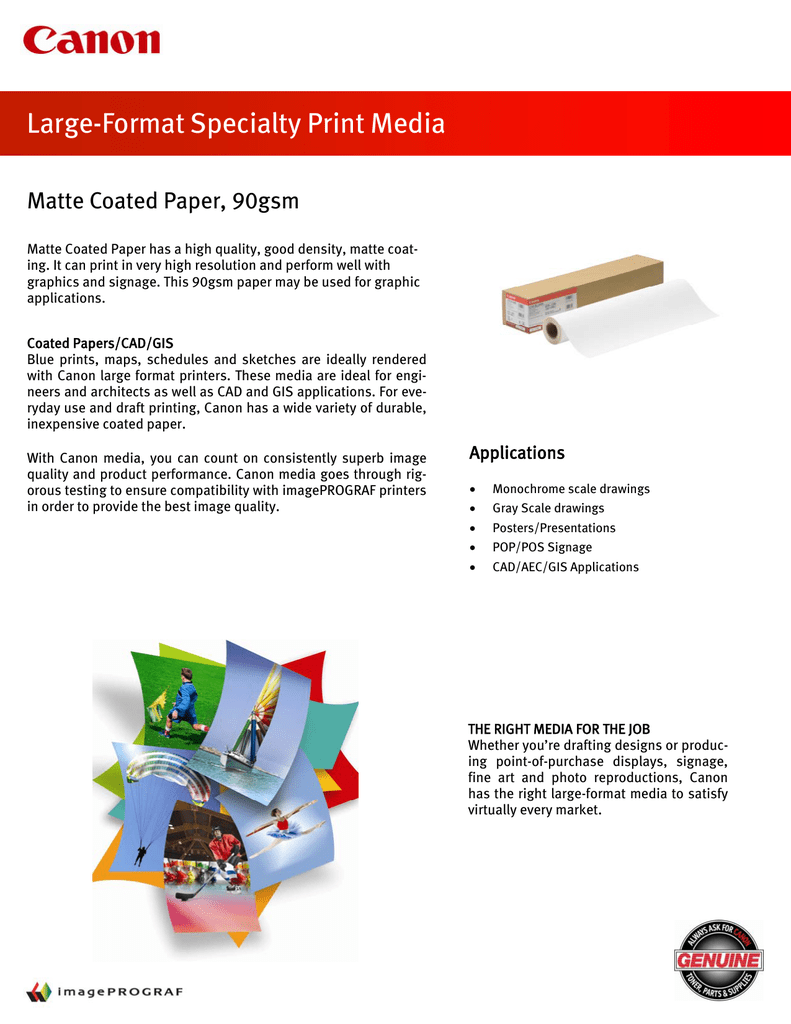

Canon 9171A004AA Datasheet

Large-Format Specialty Print Media
Matte Coated Paper, 90gsm
Matte Coated Paper has a high quality, good density, matte coating. It can print in very high resolution and perform well with
graphics and signage. This 90gsm paper may be used for graphic
applications.
Coated Papers/CAD/GIS
Blue prints, maps, schedules and sketches are ideally rendered
with Canon large format printers. These media are ideal for engineers and architects as well as CAD and GIS applications. For everyday use and draft printing, Canon has a wide variety of durable,
inexpensive coated paper.
With Canon media, you can count on consistently superb image
quality and product performance. Canon media goes through rigorous testing to ensure compatibility with imagePROGRAF printers
in order to provide the best image quality.
Applications
•
Monochrome scale drawings
•
Gray Scale drawings
•
Posters/Presentations
•
POP/POS Signage
•
CAD/AEC/GIS Applications
THE RIGHT MEDIA FOR THE JOB
Whether you’re drafting designs or producing point-of-purchase displays, signage,
fine art and photo reproductions, Canon
has the right large-format media to satisfy
virtually every market.
Large-Format Specialty Print Media
Matte Coated Paper, 90gsm
Product Specifications
Property
Value and test method
Basis weight
Thickness/caliper
Core size
CIE Whiteness (D65/10°)
Opacity
Gloss (60°)
90g/m2 per TAPPI T-410 Test Method
5mil/127 microns per TAPPI T-411 Test Method
2-inch
122 per ASTM E-313 Test Method
Greater than 95% per TAPPI T-425 Test Method
Less than 5 per TAPPI T-480 Test Method
Operating Specifications
Operating Temperature
Operating Humidity
59 to 86° F (15 to 30°C)
25 to 75% RH (non-condensing)
Recommended Driver Setting*
Printer
Printer Driver Setting
Control Panel Setting
iPF9100/8100/6200/6100/5100
iPF9000S/8000S/6000S
iPF9000/8000/5000
iPF8300/6350/6300
iPF8300S/6300S
iPF755/750/655/650
iPF825/820/815/810/720/710/610/605/510
iPF700/600/500
Matte Coated Paper 90gsm
Matte Coated Paper 90gsm
Matte Coated Paper 90gsm
Matte Coated Paper 90gsm
Matte Coated Paper 90gsm
Matte Coated Paper 90gsm
Matte Coated Paper 90gsm
Coated paper
Matte Coated 90
Matte Coated 90
Matte Coated 90
Matte Coated 90
Matte Coated 90
Matte Coated 90
Matte Coated 90
Coated Paper
Ordering Information
Size
Item Code
Packaging
Package Dimensions (L x W x H)
Weight
17" x 100'
24" x 100'
36" x 100'
42" x 100'
0849V353
0849V354
0849V355
0849V356
1 Roll/Box
1 Roll/Box
1 Roll/Box
1 Roll/Box
19.0" x 5.0" x 5.0"
26.0" x 5.0" x 5.0"
38.0" x 5.0" x 5.0"
44.0" x 5.0" x 5.0"
3.6 lb
5.0 lb
7.4 lb
8.7 lb
To purchase large-format specialty print media, contact your local
Authorized Canon Dealer or call 1-800-OK-CANON.
For the latest media information, visit our Web site at
www.usa.canon.com/consumables.
*Please visit www.usa.canon.com/imageprograf to download the latest Media
Configuration Tool
Specifications subject to change without notice. All output images simulated.
CANON, IMAGEPROGRAF and the GENUINE logo are registered trademarks of
Canon Inc. in the United States and may also be registered trademarks or
trademarks in other countries. ©2011 Canon U.S.A., Inc. All rights reserved.
Last Revised 09/2011
1-800-OK-CANON
www.usa.canon.com
Canon U.S.A., Inc.
One Canon Plaza
Lake Success, NY 11042
