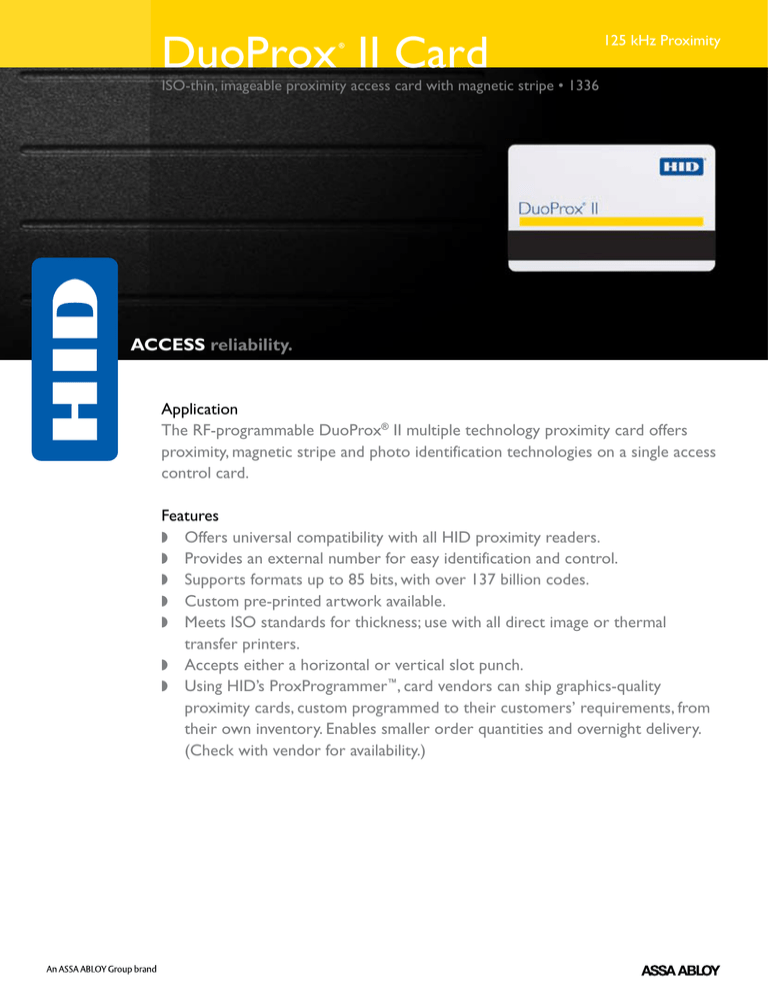

DuoProx II Card
125 kHz Proximity
ISO-thin, imageable proximity access card with magnetic stripe • 1336
ACCESS reliability.
The RF-programmable DuoProx® II multiple technology proximity card offers
proximity, magnetic stripe and photo identification technologies on a single access
control card.
w Offers universal compatibility with all HID proximity readers.
w Provides an external number for easy identification and control.
w Supports formats up to 85 bits, with over 137 billion codes.
w Custom pre-printed artwork available.
w Meets ISO standards for thickness; use with all direct image or thermal
transfer printers.
w Accepts either a horizontal or vertical slot punch.
w Using HID’s ProxProgrammer™, card vendors can ship graphics-quality
proximity cards, custom programmed to their customers’ requirements, from their own inventory. Enables smaller order quantities and overnight delivery.
(Check with vendor for availability.)
Proven, Reliable
Offers extremely consistent read range. Unaffected by body
shielding or variable environmental conditions, even when close
to keys and coins.
Typical Maximum* Read Range
Can be carried with credit cards in a wallet or purse. Use with
a strap and clip as a photo ID badge.
Photo ID
Print directly to the card with a direct image or thermal
transfer printer. Slot punch vertically or horizontally for easy
A cross-reference list correlating the external card number
and the programmed ID number is provided for easy system
Magnetic Stripe
Long Life
Custom Artwork
ProxPoint® Plus reader-up to 2.5” (6.35 cm)
MiniProx® reader-up to 5” (12.7 cm)
ThinLine II® reader-up to 5” (12.7 cm)
ProxPro® reader-up to 7” (17.8 cm)
ProxPro® II reader-up to 8” (20 cm)
Prox80™ Card reader-up to 5” (12.7 cm)
MaxiProx® reader-up to 20” (50.8 cm)
EntryProx™ reader-up to 2.5” (6.35 cm)
pcProx™ Desktop reader-up to 2.5” (6.35 cm)
*Dependent on local installation conditions.
Offers over 137 billion unique codes.
2.125” x 3.370” x 0.030” ± 0.003” nominal
(5.4 x 8.6 x 0.076 ± 0.0076 cm)
Ready to be encoded by the customer. (See card construction.)
Card Construction
Passive, no-battery design allows for an infinite number of reads.
Thin, flexible polyvinyl chloride (PVC) laminate with an
ABA standard, high coercivity magnetic stripe rated
4000 Oersted.
Strong, flexible and resistant to cracking and breaking.
Custom multicolor graphics and text are available.
Note: custom graphics may increase overall card thickness.
Lifetime warranty against defects in materials and
workmanship (see complete sales policy for details).
Operating Temperature
-50° to 160° F (-45° to 70° C)
0.24 oz. (6.8 g)
Part Number
Base Part No.: 1336
RF-programmable, 125 kHz, customer-specified ID numbers,
locations marked for horizontal and vertical slot punch
(8.6 cm)
External card numbering (inkjet or laser engraving)
Slot punch (horizontal or vertical)
Custom artwork (text or graphics)
A variety of magnetic stripe types
0.030" ± 0.003"
see “How
Order Guide” for a description of the
± 0.0076
options and associated part numbers.)
(8.6 cm)
0.030" ± 0.003"
(0.076 ± 0.0076 cm)
