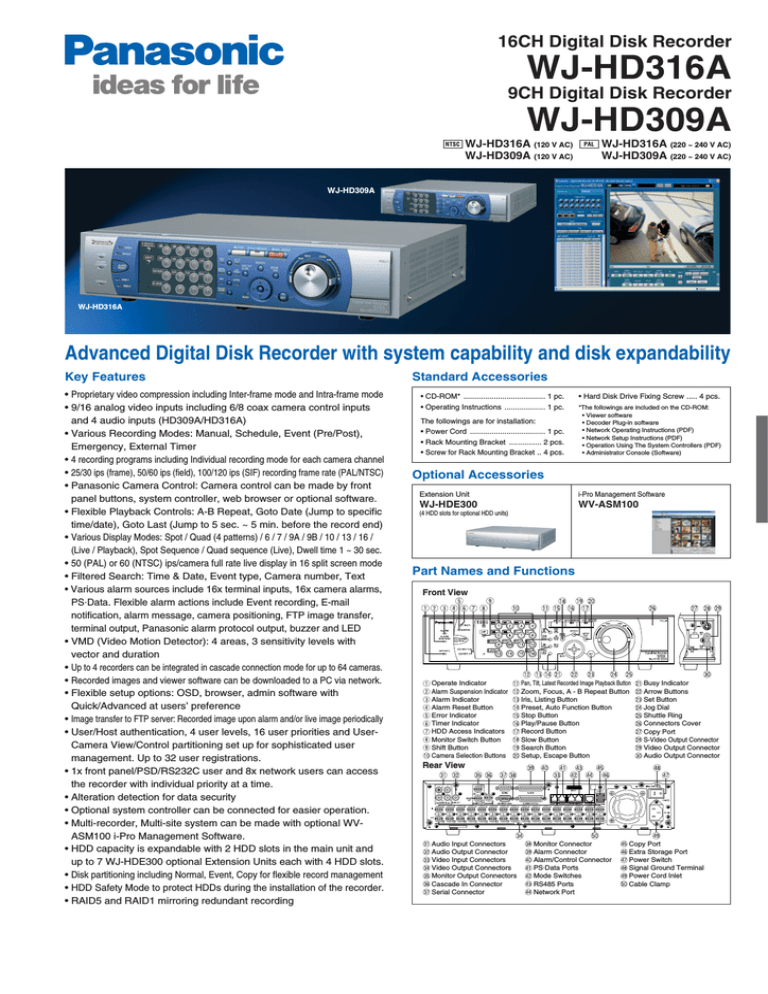

16CH Digital Disk Recorder
WJ-HD316A
9CH Digital Disk Recorder
WJ-HD309A
WJ-HD316A
(120 V AC)
WJ-HD309A
(120 V AC)
WJ-HD316A
(220 ~ 240 V AC)
WJ-HD309A
(220 ~ 240 V AC)
WJ-HD309A
WJ-HD316A
Advanced Digital Disk Recorder with system capability and disk expandability
Standard Accessories Key Features
• Proprietary video compression including Inter-frame mode and Intra-frame mode
• 9/16 analog video inputs including 6/8 coax camera control inputs and 4 audio inputs (HD309A/HD316A)
• Various Recording Modes: Manual, Schedule, Event (Pre/Post),
Emergency, External Timer
• 4 recording programs including Individual recording mode for each camera channel
• 25/30 ips (frame), 50/60 ips (field), 100/120 ips (SIF) recording frame rate (PAL/NTSC)
• Panasonic Camera Control: Camera control can be made by front panel buttons, system controller, web browser or optional software.
• Flexible Playback Controls: A-B Repeat, Goto Date (Jump to specific time/date), Goto Last (Jump to 5 sec. ~ 5 min. before the record end)
• Various Display Modes: Spot / Quad (4 patterns) / 6 / 7 / 9A / 9B / 10 / 13 / 16 /
(Live / Playback), Spot Sequence / Quad sequence (Live), Dwell time 1 ~ 30 sec.
• 50 (PAL) or 60 (NTSC) ips/camera full rate live display in 16 split screen mode
• Filtered Search: Time & Date, Event type, Camera number, Text
• Various alarm sources include 16x terminal inputs, 16x camera alarms,
PS·Data. Flexible alarm actions include Event recording, E-mail notification, alarm message, camera positioning, FTP image transfer, terminal output, Panasonic alarm protocol output, buzzer and LED
• VMD (Video Motion Detector): 4 areas, 3 sensitivity levels with vector and duration
• Up to 4 recorders can be integrated in cascade connection mode for up to 64 cameras.
• Recorded images and viewer software can be downloaded to a PC via network.
• Flexible setup options: OSD, browser, admin software with
Quick/Advanced at users’ preference
• Image transfer to FTP server: Recorded image upon alarm and/or live image periodically
• User/Host authentication, 4 user levels, 16 user priorities and User-
Camera View/Control partitioning set up for sophisticated user management. Up to 32 user registrations.
• 1x front panel/PSD/RS232C user and 8x network users can access the recorder with individual priority at a time.
• Alteration detection for data security
• Optional system controller can be connected for easier operation.
• Multi-recorder, Multi-site system can be made with optional WV-
ASM100 i-Pro Management Software.
• HDD capacity is expandable with 2 HDD slots in the main unit and up to 7 WJ-HDE300 optional Extension Units each with 4 HDD slots.
• Disk partitioning including Normal, Event, Copy for flexible record management
• HDD Safety Mode to protect HDDs during the installation of the recorder.
• RAID5 and RAID1 mirroring redundant recording
• CD-ROM* ...................................... 1 pc.
• Operating Instructions ................... 1 pc.
The followings are for installation:
• Power Cord ................................... 1 pc.
• Rack Mounting Bracket ............... 2 pcs.
• Screw for Rack Mounting Bracket .. 4 pcs.
Optional Accessories
Extension Unit
WJ-HDE300
(4 HDD slots for optional HDD units)
Part Names and Functions
Front View
Operate Indicator
Alarm Suspension Indicator
Alarm Indicator
Alarm Reset Button
Error Indicator
Timer Indicator
HDD Access Indicators
Monitor Switch Button
Shift Button
Camera Selection Buttons
Rear View
Audio Input Connectors
Audio Output Connector
Video Input Connectors
Video Output Connectors
Monitor Output Connectors
Cascade In Connector
Serial Connector
• Hard Disk Drive Fixing Screw ..... 4 pcs.
*The followings are included on the CD-ROM:
• Viewer software
• Decoder Plug-in software
• Network Operating Instructions (PDF)
• Network Setup Instructions (PDF)
• Operation Using The System Controllers (PDF)
• Administrator Console (Software) i-Pro Management Software
WV-ASM100
Pan, Tilt, Latest Recorded Image Playback Button
Zoom, Focus, A - B Repeat Button
Iris, Listing Button
Preset, Auto Function Button
Stop Button
Play/Pause Button
Record Button
Slow Button
Search Button
Setup, Escape Button
Monitor Connector
Alarm Connector
Alarm/Control Connector
PS·Data Ports
Mode Switches
RS485 Ports
Network Port
Busy Indicator
Arrow Buttons
Set Button
Jog Dial
Shuttle Ring
Connectors Cover
Copy Port
S-Video Output Connector
Video Output Connector
Audio Output Connector
Copy Port
Extra Storage Port
Power Switch
Signal Ground Terminal
Power Cord Inlet
Cable Clamp
Specifications
TV System
Audio /
Video IF
Video Inputs
NTSC
WJ-HD316A:
PAL
16x 1.0 V [p-p] / 75 Ω composite video inputs (BNC) with 8x active loop through outputs (1 ~ 8 CH) and
8x auto termination loop through (9 ~ 16 CH).
8x multiplexed control data (1 ~ 8 CH).
Cascade IN: 1x 1.0 V [p-p] / 75 Ω composite video signal (BNC)
WJ-HD309A:
9x 1.0 V [p-p] / 75 Ω NTSC composite video inputs (BNC) with 6x active loop through outputs (1 ~ 6 CH) and
3x auto termination loop through (7 ~ 9 CH).
6x multiplexed control data (1 ~ 6 CH).
Cascade IN: 1x 1.0 V [p-p] / 75 Ω composite video signal (BNC)
Audio /
Video
Format
Video Outputs
Audio Inputs
Monitor 1: 1.0 V [p-p] / 75 Ω composite video signal (BNC)
Monitor 2 / Cascade: 1.0 V [p-p] / 75 Ω composite video signal (BNC)
Monitor (VGA): RGB output (15 pin D-sub), Same video as Monitor 2
S-Video (front): Same video as Monitor 2
Video output (front RCA): Same video as Monitor 2
WJ-HD316A: 4x –10 dBV, 10 KΩ (RCA) (1 ~ 4 CH)
WJ-HD309A: 4x –10 dBV, 51 KΩ (RCA) (1 ~ 4 CH)
Rear: 1x –10 dBV, 600 Ω, Unbalanced (RCA), Audio Outputs
Recording Image
Resolution
Front: 1x RCA (same signal as rear)
Frame (3D ON/OFF) (720 x 480 pixels), Frame (3D ON/OFF) (720 x 576 pixels),
Field (720 x 240 pixels),
SIF (360 x 240 pixels)
Field (720 x 288 pixels),
SIF (360 x 288 pixels)
Proprietary: SFA, FQA, NQA, EXA, SFB, FQB, NQB, EXB, Video
Compression Independent quality for each camera
Color Mode Fine: 4 : 2 : 2, Standard: 4 : 1 :1, B/W
Network Image Resolution Field (720 x 240 pixels) Field (720 x 288 pixels)
Video Compression Proprietary: FQB
Color Mode Standard: 4 : 1 : 1
Audio Compression Method PCM 11.025 kHz, 16 bit (Monaural)
Recording Recording Mode Manual, Event, Schedule, Emergency, External timer
Schedule REC Mode 4 programs, 6 time zone/day, Independent setup for each day of the week.
Frame Rate / Camera 0.1 ~ 60 ips (Depending on the image size), 0.1 ~ 50 ips (Depending on the image size),
Independent frame rate for each camera Independent frame rate for each camera
Frame Rate Total
Pre-Alarm Recording
120 ips at SIF, 60 ips at Field, 30 ips at Frame 100 ips at SIF, 50 ips at Field, 25 ips at Frame
Up to 60 images, Up to 60 min.
Up to 50 images, Up to 60 min. with exclusive HDD in the WJ-HDE300 with exclusive HDD in the WJ-HDE300
Main Unit Camera Control Pan/Tilt, Zoom, Focus, Iris, Preset position call (up to 256), Auto mode
Functions REC / Playback Control REC, PLAY, Rev PLAY, Pause, Stop, FF, REW, Prev Record, Next Record, Prev Image,
Search Mode
Multiscreen Mode
Next Image, A-B Repeat, Goto Date, Goto Last (5 sec. ~ 5 min.), Text display, Jog/Shuttle
Search criteria: Time date, Event type, Camera number, Text ON/OFF
Spot / Quad (4 patterns) / 6 / 7 / 9A / 9B / 10 / 13 / 16 / (Live / Playback),
Spot Sequence / Quad Sequence (Live), Dwell time 1 ~ 30 sec.
Copy to External Media Recorded data of selected cameras and time date range can be copied to external CD, DVD or HDD
Copy to Copy Partition Recorded data of selected cameras and time date range can be copied to the COPY partition
Camera Title
Clock Display
Alarm Control
Digital Zoom
OSD, Alphanumeric, Up to 16 characters
OSD or Image embedded, Time: 12H / 24H, Date: 3 formats
Reset, Suspend
2x, 4x
Text Attachment
System Log
System Setup
OSD Language
VMD
Video Loss Detection
User Registration
User Level
Time Synchronization
Summer Time
Free comment can be attached for each record. Up to 200 characters
Operator access (100), Network error (1,000), Error (100), Event (750)
OSD setup menu in English, French, Italian, Spanish, German, Russian, Chinese, Japanese
English, French, Italian, Spanish, German, Russian, Chinese, Japanese
4 areas, 3 sensitivity levels, with vector and duration setup
Yes
Up to 32 users (Same as NW users)
Admin and 3 user levels (programmable, same as NW user levels)
Terminal (Master or Slave), NTP (Client)
User definable (Menu setup required)
Browser Camera Control
GUI REC/Playback Control
Pan/Tilt, Zoom, Focus, Iris, Preset position call (up to 256), Auto mode
REC, PLAY, Rev PLAY, Pause, Stop, FF, REW, Prev Record, Next Record,
Prev Image, Next Image, Goto Date, Goto Last (5 sec. ~ 5 min.), Text display
Search Mode
Display Mode
Image Download
Search criteria: Time date, Event type, Camera number, Text ON/OFF
Spot / Quad (A, B, C, D) / 9 (A, B) / 16 (Live, Playback), Spot Sequence (Live)
Recorded data of selected camera and time range (up to 99 min 59 sec.) can be downloaded to a PC. Viewer software can be downloaded separately.
Copy to Copy Partition Recorded data of selected cameras and time date range can be copied to the COPY partition
Camera Title
Clock Display
On the browser, Up to 16 characters
On the browser or Image embedded. Time: 12H / 24H, Date: 3 formats
Alarm Control
Digital Zoom
Text Attachment
System Log
System Setup
GUI Language
Supported OS
Supported Browser
Reset, Suspend
Up to 4 times
Free comment can be attached for each record. Up to 200 characters
Operator access (100), Network error (1,000), Error (100), Event (750)
Setup page in English
English
Microsoft ® Windows Vista ® Business 32 bit,
Microsoft ® Windows ® XP Home/Professional SP2
English, German, French, Italian, Spanish
Windows ® Internet Explorer ® 7.0 (Microsoft ® Windows Vista ® Business 32 bit),
Microsoft ® Internet Explorer ® 6.0 SP2 (Microsoft ® Windows ® XP Home/Professional SP2)
DISTRIBUTED BY:
TV System
Network Network Interface
NTSC PAL
10Base-T / 100Base-TX (RJ-45) x1
Bandwidth Limitation
Supported Protocol
32 Kbps ~ Unlimited
TCP/IP, UDP/IP, HTTP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP
Upon Alarm or Warning
No. of Client at a Time 8
Alarm /
Event
User Registration
User Level
Partitioning
Security Method
Alarm Source
Event Mode
Alarm Action
Up to 32 users (Same as main unit users)
Admin and 3 user levels (programmable, same as main unit user levels)
User - Camera (View only, View & Control, No Access)
User authentication (ID 32 digit, PW 32 digit),
Host authentication (IP address), Alteration detection
16x Terminal inputs, 16x Camera alarm, PS·Data
Alarm / Activity / OFF
Alarm Control
Alarm Log
External IF Alarm
Event recording, e-mail notification, Alarm message, Camera positioning,
FTP image transfer, Terminal output, Panasonic alarm protocol output, Buzzer, LED
Reset, Suspend
750
16x Alarm inputs (25 pin D-sub, Make contact, N.O./N.C.) 16x Alarm outputs (25 pin D-sub, Open collector, N.O./N.C) 1x Alarm reset input, 1x Alarm suspend input
HDD
EXT Storage
Error / Warning
Recording
Time Adjustment
1x High-speed serial interface (USB type connector) for WJ-HDE300 Extension Unit.
Disk space warning, HDD error, System error, Camera error
Emergency recording input, External recording mode input
Time adjustment input/output
Controls Sequence switching signal input. Power outage detection output, Shut down ready output
PS-Data (RS-485) Controller 2x RJ-11
RS-485 Camera 2x RJ-11
Copy
Type
Maximum Capacity
2x High-speed serial interface (USB type connector) for external copy device (Front / Rear)
1x 3.5 inch 250 GB HDD (Factory default), Up to 2x 500 GB HDDs (Specific model)
15 TB (with 7x WJ-HDE300 extension units, 4x 500 GB HDDs installed in each unit)
Admin
Software
RAID
Partitioning
RAID5 supported (with WJ-HDE300)
Normal / Event / Copy
Viewer REC / Playback Control Play, Rev Play, Pause, FF, REW, Prev Image, Next Image
Software Additional Functions Alteration detection, Save as JPEG/BMP, Two times zoom, Print
Supported OS
Supported OS
Same as Browser GUI
Same as Browser GUI
General Safety/EMC Standard UL (6500), FCC (Part15 ClassA),
Specifications C-UL (E60065), DOC (ICES003 ClassA)
CE (EN60065, EN55022 ClassB,
EN55024)
Power Source 120 V AC, 60 Hz 220 ~ 240 V AC, 50 Hz
Power Consumption 75 W
Ambient Operating Temperature +5 °C ~ +45 °C (41 °F ~ 113 °F)
Ambient Operating Humidity Less than 85 % (without condensation)
Dimensions 420 mm (W) x 88 mm (H) x 350 mm (D) [16-9/16" (W) x 3-7/16" (H) x 13-3/4" (D)]
Weight
(excluding rubber feet and projections)
9.5 kg (21 lbs.)
Appearance
88(3-7/16")
480(18-7/8")
465(18-5/16")(Mounting Pitch)
420(16-9/16")
320(12-5/8")
Unit: mm (inches)
Trademarks and registered trademarks
– Microsoft, and Windows are registered trademarks of Microsoft Corporation in the U.S. and other countries.
Important
– Safety Precaution: carefully read the operating instructions and installation manual before using this product.
– Panasonic can not be responsible for network performance and/or other manufacturer products that reside on the network.
• All TV pictures are simulated.
• Weights and dimensions are approximate.
• Specifications are subject to change without notice.
• These products may be subject to export control regulations.
• All product pictures are NTSC models.
http://panasonic.net/security/
Printed in Japan (2A-025AA)

Public link updated
The public link to your chat has been updated.
Advertisement
