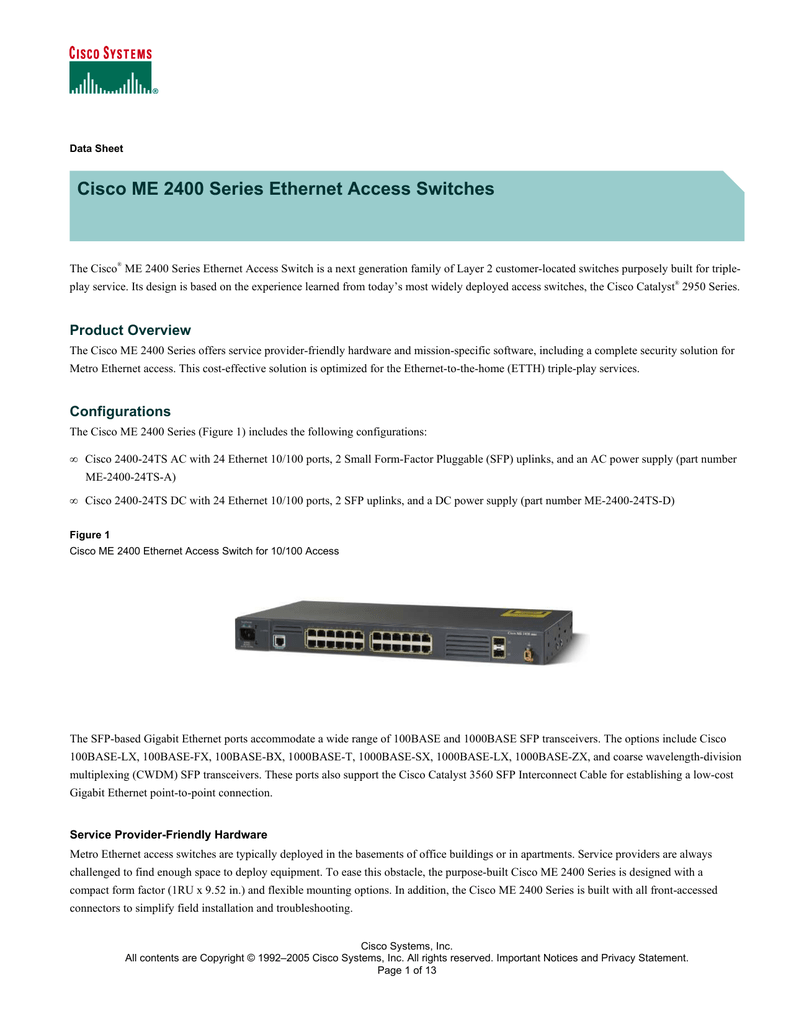

Cisco ME 2400 Datasheet

Data Sheet
Cisco ME 2400 Series Ethernet Access Switches
®
The Cisco ME 2400 Series Ethernet Access Switch is a next generation family of Layer 2 customer-located switches purposely built for triple®
play service. Its design is based on the experience learned from today’s most widely deployed access switches, the Cisco Catalyst 2950 Series.
Product Overview
The Cisco ME 2400 Series offers service provider-friendly hardware and mission-specific software, including a complete security solution for
Metro Ethernet access. This cost-effective solution is optimized for the Ethernet-to-the-home (ETTH) triple-play services.
Configurations
The Cisco ME 2400 Series (Figure 1) includes the following configurations:
• Cisco 2400-24TS AC with 24 Ethernet 10/100 ports, 2 Small Form-Factor Pluggable (SFP) uplinks, and an AC power supply (part number
ME-2400-24TS-A)
• Cisco 2400-24TS DC with 24 Ethernet 10/100 ports, 2 SFP uplinks, and a DC power supply (part number ME-2400-24TS-D)
Figure 1
Cisco ME 2400 Ethernet Access Switch for 10/100 Access
The SFP-based Gigabit Ethernet ports accommodate a wide range of 100BASE and 1000BASE SFP transceivers. The options include Cisco
100BASE-LX, 100BASE-FX, 100BASE-BX, 1000BASE-T, 1000BASE-SX, 1000BASE-LX, 1000BASE-ZX, and coarse wavelength-division
multiplexing (CWDM) SFP transceivers. These ports also support the Cisco Catalyst 3560 SFP Interconnect Cable for establishing a low-cost
Gigabit Ethernet point-to-point connection.
Service Provider-Friendly Hardware
Metro Ethernet access switches are typically deployed in the basements of office buildings or in apartments. Service providers are always
challenged to find enough space to deploy equipment. To ease this obstacle, the purpose-built Cisco ME 2400 Series is designed with a
compact form factor (1RU x 9.52 in.) and flexible mounting options. In addition, the Cisco ME 2400 Series is built with all front-accessed
connectors to simplify field installation and troubleshooting.
Cisco Systems, Inc.
All contents are Copyright © 1992–2005 Cisco Systems, Inc. All rights reserved. Important Notices and Privacy Statement.
Page 1 of 13
Metro-Specific Software
The Cisco ME 2400 Series switches run software specifically designed for the Metro Ethernet market. Many new features are added to make
the Cisco ME 2400 Series the optimal access switch for service providers. Many default behaviors of the Cisco ME 2400 Series are different
from those of traditional Ethernet switches; these differences make the Cisco ME 2400 Series easier to configure, manage, secure, and
troubleshoot.
UNI/NNI
The Cisco ME 2400 Series software introduces the concept of User-Network Interface/Network-Node Interface (UNI/NNI) for Ethernet access
switches. Because the software can identify the application of each port, it can provide many powerful default behaviors. Table 1 lists some of
the primary behaviors and benefits of UNI/NNI.
Table 1.
UNI/NNI Default Behaviors
Default Behaviors
Benefits
UNI Default: Down
Ports are be activated by the service provider before customers can receive service.
UNI Default: No Local Switching
Circuit-like behavior protects customers from each other.
UNI Default: Control Plane
Security Enabled
Control-plane packet ingresses from the UNI are dropped in hardware to protect against denial
of service (DoS).
NNI Default: Up
This feature helps enable automated configuration of the switch through a Dynamic Host
Configuration Protocol (DHCP) or BOOTP server.
Comprehensive Security Solution
As Metro Ethernet networks continue to expand, one of the challenges that service providers face is to provide the same level of security as
other access technologies. To meet this challenge, the Cisco ME 2400 Series switches provide the most comprehensive security solution for
Ethernet access products. By dividing security into three portions and designing features for each, the Cisco ME 2400 can provide complete
solution at the access layer. The three different areas of security the switch addresses are subscriber security, switch security, and network
security.
The subscriber security helps create protection among customers. One of the biggest concerns about using a shared device for multiple
customers is how to prevent customers from affecting each other. The Cisco ME 2400 Series addresses this concern by providing features such
as UNI/NNI, DHCP Snooping, and Private VLAN. The UNI/NNI feature creates a circuit-like behavior to separate customers’ traffic from each
other. DHCP Snooping helps service providers identify each user’s MAC address, IP address, and port information and prevents users from
attempting DHCP based attacks.
The switch security is about protecting the switch itself from attacks. The Cisco ME 2400 Series offers features to protect CPU and
configuration files from attacks. CPU is a critical component of an Ethernet switch; it is responsible for process-control protocols such as
Spanning Tree Protocol and routing updates; if CPU is under DoS attack, those control packets could be dropped, resulting in network outage.
Features such as Control Plane Security and Storm Control protect the CPU against malicious attacks. Port Security is another important
security feature; it allows service providers to control the number of MAC addresses each subscriber is allowed – thereby protecting against
overwhelming the switch memory.
The final area of security is network security. The features designed for this area filter all incoming traffic to help ensure that only valid traffic
is allowed through the switch. The Cisco ME 2400 Series switches have features such as access control lists (ACLs) and 802.1x to identify the
users and packets that are allowed to transmit traffic through the switch.
Cisco Systems, Inc.
All contents are Copyright © 1992–2005 Cisco Systems, Inc. All rights reserved. Important Notices and Privacy Statement.
Page 2 of 13
Table 2 gives the key features of the security solution.
Table 2.
Key Features for Each Area of Complete Security Solution
Subscriber Security
Switch Security
Network Security
UNI Default: No Local Switching
Control Plane Security
UNI default: Port down
DHCP Snooping
Storm Control
ACLs
Configuration File Security
802.1x
Private VLAN
Port Security
Service Management Options
The Cisco ME 2400 Series offers a superior command-line interface (CLI) for detailed configuration. In addition, the switches support
CiscoWorks, the Cisco CNS 2100 Series Intelligence Engine, and the Simple Network Management Protocol (SNMP) for networkwide
management. Service providers can integrate the Cisco ME 2400 Series transparently into their operations support systems (OSSs) and enable
improved flow-through provisioning.
®
The Cisco CNS 2100 Series network device allows service providers to effectively manage a network of Cisco IOS Software devices,
including the Cisco ME 2400 Series. It is a completely self-contained unit that includes a task-oriented Web GUI, a programmable Extensible
Markup Language (XML) interface, configuration template management, and an embedded repository. Network operators can use the Web
GUI to quickly turn existing Cisco IOS CLI configuration files into reusable templates. The Cisco CNS 2100 Series integrates easily into
existing customer OSSs or business support systems (BSSs) and provisioning systems with its external repository support and the event-based
Cisco IOS Software XML interface that effectively “workflow-enables” Cisco device deployment. Service providers also can manage the Cisco
ME 2400 Series using SNMP versions 2 and 3. A comprehensive set of MIBs is provided for service providers to collect traffic information on
the Cisco ME 2400 Series.
Applications
The purpose-built Cisco ME 2400 Series switches help service providers offer a portfolio of profitable, differentiated services such as tripleplay services for the ETTH market.
Triple-Play Service
Triple-play service is a popular choice for service providers. By combining Internet access, voice, and video services, service providers can
generate higher average revenue per unit (ARPU). Triple-play service provides additional value by increasing customer retention. The Cisco
ME 2400 Series switches are optimized for triple-play service. By delivering the primary features in the areas of quality of service (QoS),
multicast, and security, the Cisco ME 2400 Series helps service providers deploy successful triple-play service (Figure 2).
Cisco Systems, Inc.
All contents are Copyright © 1992–2005 Cisco Systems, Inc. All rights reserved. Important Notices and Privacy Statement.
Page 3 of 13
Figure 2
Triple-Play
Key Features and Benefits
Table 3 gives features and benefits of the Cisco ME 2400 Series.
Table 3.
Features and Benefits
Feature
Benefit
Purpose-Built Next-Generation
Ethernet Access Switches for
Metro Ethernet ETTH Market
• All front access provides ease of deployment and troubleshooting in the field.
• Compact form factor (1RU x 9.52 in.) allows for deployment in space-limited areas.
• Dual-speed SFP transceivers support (100 and 1000 MB) provide flexible uplink options.
• Both AC and DC power options are available.
• Software is optimized for triple-play services.
Availability and Scalability
Superior Redundancy for
Fault Backup
• IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) provides rapid spanning-tree convergence
independent of spanning-tree timers and offers the benefit of distributed processing.
• Per-VLAN Rapid Spanning Tree (PVRST+) allows rapid spanning-tree reconvergence on a per-VLAN
spanning-tree basis, without requiring the implementation of spanning-tree instances.
• Unidirectional Link Detection Protocol (UDLD) and Aggressive UDLD allow unidirectional links caused
by incorrect fiber-optic connections or port faults to be detected and disabled on fiber-optic interfaces.
• Switch-port autorecovery (errdisable) automatically attempts to reactivate a link that is disabled
because of a network error.
Cisco Systems, Inc.
All contents are Copyright © 1992–2005 Cisco Systems, Inc. All rights reserved. Important Notices and Privacy Statement.
Page 4 of 13
Feature
Benefit
• Bandwidth aggregation up to 800 Mbps through Cisco Fast EtherChannel® technology enhances fault
tolerance and offers higher-speed aggregated bandwidth between switches and to routers and
individual servers.
Multicast
Efficient Multicast Distribution
• Multicast VLAN Registration provides efficient multicast distribution in ring networks by dedicating a
single VLAN for multicast traffic, thereby removing duplicate multicast traffic in other VLANs.
• Internet Group Management Protocol (IGMP) Snooping helps enable intelligent management of
multicast traffic by examining IGMP messages.
Robust Multicast Control
• IGMP Fast Leave provides a fast channel-changing capability for IPTV services.
• IGMP filtering provides control of groups each user can access.
• IGMP Throttling controls the maximum number of multicast groups each user can access.
QoS and Control
Advanced QoS
• The Cisco Modular QoS CLI (MQC) provides a modular and highly extensible framework for deploying
QoS, by standardizing the CLI and semantics for QoS features across all platforms that are supported
by Cisco IOS Software.
• Standard 802.1p class of service (CoS) and differentiated services code point (DSCP) field
classification are provided, using marking and reclassification on a per-packet basis by source and
destination IP address, source and destination MAC address, or Layer 4 TCP/User Datagram Protocol
(TCP/UDP) port number.
• Cisco control-plane and data-plane QoS ACLs on all ports help ensure proper marking on a per-packet
basis.
• Shaped Round Robin (SRR) scheduling helps ensure differential prioritization of packet flows by
intelligently servicing the ingress and egress queues.
• Weighted Tail Drop (WTD) provides congestion avoidance at the ingress and egress queues before a
disruption occurs.
• Strict priority queuing helps ensure the highest-priority packets are serviced ahead of all other traffic.
• Priority queue rate limiting provides optional protection against queue starvation.
• There is no performance penalty for advanced QoS functionalities.
Granular Rate Limiting
• The Cisco Committed Information Rate (CIR) function provides bandwidth in increments as low as 8
kbps.
• Ingress policing is provided based on source and destination IP address, source and destination MAC
address, Layer 4 TCP/UDP information, or any combination of these fields, using QoS ACLs (IP ACLs
or MAC ACLs), class maps, and policy maps.
• Asynchronous data flows upstream and downstream from the end station or on the uplink are easily
managed using ingress policing and egress shaping.
• Egress shaping for each queue provides smooth traffic control of available bandwidth.
• Egress port rate limiting allows the service provider to control the traffic rate that is transmitted out of
the port.
Network Security
Complete Security Solutions
Subscriber Security
• IEEE 802.1x allows dynamic, port-based security by providing user authentication.
• IEEE 802.1x with VLAN assignment allows a dynamic VLAN assignment for a specific user regardless
of where the user is connected.
• IEEE 802.1x and port security are provided to authenticate the port and manage network access for all
MAC addresses.
• No local switching behavior provides security and isolation between UNIs, helping ensure that users
cannot monitor or access other users’ traffic on the same switch.
• DHCP Snooping prevents malicious users from spoofing a DHCP server and sending out bogus
Cisco Systems, Inc.
All contents are Copyright © 1992–2005 Cisco Systems, Inc. All rights reserved. Important Notices and Privacy Statement.
Page 5 of 13
Feature
Benefit
addresses.
Switch Security
• Control Plane Protection prevents DoS attacks on the CPU.
• Secure Shell (SSH) Protocol, Kerberos, and SNMPv3 provide network security by encrypting
administrator traffic during Telnet and SNMP sessions. SSH, Kerberos, and the cryptographic version
of SNMPv3 require a special cryptographic software image because of U.S. export restrictions.
• Port security secures the access to an access or trunk port based on MAC address. After a specific
timeframe, the aging feature removes the MAC address from the switch to allow another device to
connect to the same port.
• Multilevel security on the console access prevents unauthorized users from altering the switch
configuration.
• TACACS+ and RADIUS authentication facilitate centralized control of the switch and restrict
unauthorized users from altering the configuration.
• Configuration File Protection helps ensure that only authenticated users have access to the
configuration file.
Network Security
• Cisco security VLAN ACLs on all VLANs prevent unauthorized data flows from being bridged within
VLANs.
• Port-based ACLs for Layer 2 interfaces allow for application of security policies on individual switch
ports.
• MAC address notification allows administrators to be notified of users added to or removed from the
network.
• IGMP filtering provides multicast authentication by filtering out nonsubscribers and limits the number
of concurrent multicast streams available per port.
Network Monitoring
• Remote Switched Port Analyzer (RSPAN) allows for remote monitoring of the user interface.
• Bidirectional data support on the Switched Port Analyzer (SPAN) port allows the Cisco Intrusion
Detection System (IDS) to take action when an intruder is detected.
Manageability
Superior Manageability
• The Cisco IOS CLI provides a common user interface and command set with all Cisco routers and
Cisco Catalyst desktop switches.
• Service Assurance Agent (SAA) provides service-level management throughout the LAN.
• VLAN trunks can be created from any port, using standards-based 802.1Q tagging. Up to 1005 VLANs
per switch and up to 128 spanning-tree instances per switch are supported.
• Four thousand VLAN IDs are supported.
• RSPAN allows administrators to remotely monitor ports in a Layer 2 switch network from any other
switch in the same network.
• For enhanced traffic management, monitoring, and analysis, the embedded Remote Monitoring
(RMON) software agent supports four RMON groups (history, statistics, alarms, and events).
• Layer 2 traceroute eases troubleshooting by identifying the physical path that a packet takes from
source to destination.
• All nine RMON groups are supported through a SPAN port, permitting traffic monitoring of a single
port, a group of ports, or the entire stack from a single network analyzer or RMON probe.
• Domain Name System (DNS) provides IP-address resolution with user-defined device names.
• Trivial File Transfer Protocol (TFTP) reduces the cost of administering software upgrades by
downloading from a centralized location.
• Network Timing Protocol (NTP) provides an accurate and consistent time stamp to all intranet
switches.
Cisco Systems, Inc.
All contents are Copyright © 1992–2005 Cisco Systems, Inc. All rights reserved. Important Notices and Privacy Statement.
Page 6 of 13
Feature
Benefit
• The Cisco ME 2400 Series supports the Cisco CNS 2100 Series Intelligence Engine and SNMP for
network-wide management.
CiscoWorks Support
• CiscoWorks network-management software provides management capabilities on a per-port and perswitch basis, providing a common management interface for Cisco routers, switches, and hubs.
• SNMP versions 1, 2c, and 3 and Telnet provide comprehensive in-band management, and a CLIbased management console provides detailed out-of-band management.
• Cisco Discovery Protocol versions 1 and 2 help enable automatic switch discovery for a CiscoWorks
network management station.
• The CiscoWorks 2000 LAN Management Solution is supported.
Product Specifications
Table 4 lists product specifications for the Cisco ME 2400 Series Ethernet access switches.
Table 4.
Product Specifications
Description
Specification
Performance
• Forwarding bandwidth:
– Cisco ME 2400-24TS AC (part number ME-2400-24TS-A): 8.8 Gbps
– Cisco ME 2400-24TS DC (part number ME-2400-24TS-D): 8.8 Gbps
• Forwarding rate:
– Cisco ME 2400-24TS AC (part number ME-2400-24TS-A): 6.5 Mpps
– Cisco ME 2400-24TS DC (part number ME-2400-24TS-D):6.5 Mpps
• 64-MB DRAM and 16-MB flash memory
• Configurable up to 2000 MAC addresses
• Configurable up to 1000 IGMP groups and multicast routes
• Configurable maximum transmission unit (MTU) of up to 9000 bytes, with a maximum Ethernet frame size
of 9018 bytes (jumbo frames) for bridging on Gigabit Ethernet ports, and up to 1546 bytes for bridging and
routing on Fast Ethernet ports
Connectors and Cabling
10/100 Ports:
• 10/100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 unshielded-twisted-pair (UTP) cabling
SFP Ports:
• 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling, 10/100/1000 BASE-T
operation in host systems with SGMII interface
• 100BASE-FX and -LX: Duplex LC receptacle fiber connectors (multimode and single mode)
• 100BASE-BX: Single-fiber LC receptacle connector (single-mode fiber)
• 1000BASE-BX: Single-fiber LC receptacle connector (single-mode fiber)
• 1000BASE-SX, -LX/LH, and -ZX and CWDM: Duplex LC receptacle fiber connectors (multimode and
single-mode fiber)
• Cisco Catalyst 3560 SFP Interconnect Cable
• Management console port: RJ-45-to-DB9 cable for PC connections
Indicators
• Per-port status LEDs: Link integrity, port disabled, and activity indications
• System-status LED
Dimension (H x W x D)
• Cisco ME 2400-24TS AC (part number ME-2400-24TS-A): 1.73 x 17.5 x 9.52 in. (4.4 x 44.5 x 24.2 cm)
• Cisco ME 2400-24TS DC (part number ME-2400-24TS-D): 1.73 x 17.5 x 9.52 in. (4.4 x 44.5 x 24.2 cm)
Weight
• 6.5 lb (2.9 kg) (ME2400-24TS-A)
Cisco Systems, Inc.
All contents are Copyright © 1992–2005 Cisco Systems, Inc. All rights reserved. Important Notices and Privacy Statement.
Page 7 of 13
Description
Specification
Mean Time Between
Failure (MTBF)
• 400,017 hours (ME2400-24TS-A)
• 6.5 lb (2.9 kg) (ME2400-24TS-D)
• 505,646 hours (ME2400-24TS-D)
Power Specifications
Table 5 gives power specifications of the Cisco ME 2400 Series.
Table 5.
Power Specifications
Description
Specification
Power Consumption
• 25W (typical), 30W (maximum), 102 Btus per hour (ME2400-24TS-A)
• 25W (typical), 30W (maximum), 102 Btus per hour (ME2400-24TS-D)
AC Input Voltage and
Frequency
90 to 240 VAC, 0.5 to 1A, 50 to 60 Hz (ME2400-24TS-A)
DC Input Voltages
–40 to 75 VDC, 1 to 2A (ME2400-24TS-D)
Management and Standards
Table 6 gives standards information for the Cisco ME 2400 Series.
Table 6.
Management and Standards
Description
Specification
Management
• BRIDGE-MIB (RFC1493)
• CISCO-BULK-FILE-MIB
• CISCO-CDP-MIB
• CISCO-CONFIG-COPY-MIB
• CISCO-CONF-MAN-MIB
• CISCO-ENVMON-MIB
• CISCO-ETHERNET-ACCESS-MIB
• CISCO-FLASH-MIB
• CISCO-FTP-CLIENT-MIB
• CISCO-IGMP-FILTER-MIB
• CISCO-PAGP-MIB
• CISCO-PAE-MIB
• CISCO-PING-MIB
• CISCO-PRIVATE-VLAN-MIB
• CISCO-PROCESS-MIB
• CISCO-PORT-QOS-MIB
• CISCO-PORT-SECURITY-MIB
• CISCO-PORT-STORM-CONTROL-MIB
• CISCO-IMAGE-MIB
• CISCO-LAG-MIB
• CISCO-L2L3-INTERFACE-CONFIG-MIB
• CISCO-MAC-NOTIFICATION-MIB
Cisco Systems, Inc.
All contents are Copyright © 1992–2005 Cisco Systems, Inc. All rights reserved. Important Notices and Privacy Statement.
Page 8 of 13
Description
Specification
• CISCO-MEMORY-POOL-MIB
• CISCO-RTTMON-MIB
• CISCO-STACK-MIB
• CISCO-STP-EXTENSIONS-MIB
• CISCO-SYSLOG-MIB
• CISCO-TCP-MIB
• CISCO-UDLDP-MIB
• CISCO-VLAN-IFTABLE-RELATIONSHIP-MIB
• CISCO-VLAN-MEMBERSHIP-MIB
• ENTITY-MIB (RFC2737)
• ETHERLIKE-MIB
• IEEE8021-PEA-MIB
• IEEE8023-LAG-MIB
• IF-MIB (RFC 1573)
• IGMP-MIB
• OLD-CISCO-CHASSIS-MIB
• OLD-CISCO-FLASH-MIB
• OLD-CISCO-INTERFACES-MIB
• OLD-CISCO-SYS-MIB
• OLD-CISCO-TCP-MIB
• OLD-CISCO-TS-MIB
• RFC1213-MIB (MIB-II)
• RMON-MIB (RFC 1757)
• RMON2-MIB (RFC 2021)
• SNMP-FRAMEWORK-MIB (RFC2571)
• SNMP-MPD-MIB (RFC 2572)
• SNMP-NOTIFICATION-MIB (RFC 2573)
• SNMP-TARGET-MIB (RFC 2573)
• SNMPv2-MIB (RFC 1907)
• SNMP-USM-MIB (SNMP-USER-BASED-SM-MIB) (RFC2574)
• SNMP-VACM-MIB (SNMP-VIEW-BASED-ACM-MIB) (RFC2575)
• TCP-MIB (RFC 2012)
• UDP-MIB (RFC 2013)
Standards and Protocols
• IEEE 802.1s
• IEEE 802.1w
• IEEE 802.1x
• IEEE 802.3ad
• IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
• IEEE 802.1D Spanning Tree Protocol
• IEEE 802.1p CoS classification
• IEEE 802.1Q VLAN
• IEEE 802.3 10BASE-T
Cisco Systems, Inc.
All contents are Copyright © 1992–2005 Cisco Systems, Inc. All rights reserved. Important Notices and Privacy Statement.
Page 9 of 13
Description
Specification
• IEEE 802.3u 100BASE-T
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3z 1000BASE-X
• Management: SNMP versions 1, 2c, and 3
Safety and Compliance
Table 7 gives safety and compliance information for the Cisco ME 2400 Series.
Table 7.
Safety and Compliance
Type
Standards
Electromagnetic Emissions
Compliance (EMC)
• FCC Part 15 Class A,
• EN 55022B Class A (CISPR22 Class A)
• EN 55024
• EN 300 368
• GR-1089 CORE Class A
• VCCI Class I
• AS/NZS 3548 Class A or AS/NZS CISPR22 Class A
• MIC
• CE Marking
• UL 60950, Third Edition
Safety
• UL to CAN/CSA 22.2 No.60950, Third Edition
• TUV/GS to EN 60950 with Amendment A1-A4 and A11
• CB to IEC 60950 with all country deviations
• NOM to NOM-019-SCFI
• AS/NZS 3260, TS001
• CE Marking
• CLEI Coding
Noise Specifications
• Cisco Office Product Specification: 48 dBA (sound pressure)
–
4.8 bels (sound power)
• EN 300 753
Operating Environment
• Temperature: 0 to +50ºC
• Altitude: Up to 13,000 ft (4000m)
• Relative humidity: 5 to 95% noncondensing
Storage Environment
• Temperature: –40 to 70ºC
• Altitude: 15,000 ft (4570m)
Service and Support
®
Cisco Systems is committed to minimizing total cost of ownership (TCO). Cisco offers a portfolio of technical support services to help ensure
that Cisco products operate efficiently, remain highly available, and benefit from the most up-to-date system software. The services and support
programs described in Table 8 are available as part of the Cisco Desktop Switching Service and Support solution, and are available directly
from Cisco and through resellers.
Cisco Systems, Inc.
All contents are Copyright © 1992–2005 Cisco Systems, Inc. All rights reserved. Important Notices and Privacy Statement.
Page 10 of 13
Table 8.
Service and Support
Service and Support
Features
Benefits
• Project management
• Supplement existing staff
• Site survey, configuration, and deployment
• Help ensure functions meet needs
• Installation, text, and cutover
• Mitigate risk
Advanced Services
• Cisco Total Implementation Solutions
(TIS), Available Directly from Cisco
• Cisco Packaged TIS, Available through
Resellers
• Training
• Major moves, adds, and changes
• Design review and product staging
• Cisco SP Base Support and Service
Provider-Based Onsite Support,
Available Directly from Cisco
• Cisco Packaged Service ProviderBased Support, Available through
Resellers
• 24-hour access to software updates
• Web access to technical repositories
• Telephone support through the Cisco
Technical Assistance Center (TAC)
• Advance Replacement of hardware parts
• Facilitate proactive or expedited issue
resolution
• Lower TCO by taking advantage of Cisco
expertise and knowledge
• Minimize network downtime
Ordering Information
Table 10 lists the ordering information for the Cisco ME 2400 Series. To place an order, visit the Cisco Ordering Home Page at
http://www.cisco.com/en/US/ordering/or13/or8/order_customer_help_how_to_order_listing.html.
Table 9.
Ordering Information
Part Number
Description
ME-2400-24TS-A
• 24 Ethernet 10/100 ports
• 2 SFP-based Gigabit Ethernet and 100BASE-X ports
• AC power supply
• 6.5-Mpps forwarding rate
• 1RU multilayer switch
• Purpose-built Ethernet access switch for the triple-play services
ME-2400-24TS-D
• 24 Ethernet 10/100 ports
• 2 SFP-based Gigabit Ethernet and 100BASE-X ports
• DC power supply
• 6.5-Mpps forwarding rate
• 1RU multilayer switch
• Purpose-built Ethernet access switch for the triple-play services
RCKMNT-1RU=
Spare rack-mount kit for the Cisco Catalyst 3750-24TS, Catalyst 3750-48TS, and Catalyst 3750G-24T
RCKMNT-REC-1RU=
1RU recessed rack-mount kit for the Cisco Catalyst 2970, Catalyst 3550, and Catalyst 3750
RCKMNT-ETSI-1RU=
ETSI rack-mount kit for Cisco ME Series products
RCKMNT-23IN-1RU=
23-in. NEBS rack-mount kit for Cisco ME Series products
GLC-LH-SM=
Gigabit Ethernet SFP, LC connector, and LH transceiver
GLC-SX-MM=
Gigabit Ethernet SFP, LC connector, and SX transceiver
GLC-ZX-SM=
Gigabit Ethernet SFP, LC connector, and ZX transceiver
GLC-BX-D=
1000BASE-BX10 SFP module for single-strand SMF, 1490-nm TX/1310-nm RX wavelength
GLC-BX-U=
1000BASE-BX10 SFP module for single-strand SMF, 1310-nm TX/1490-nm RX wavelength
Cisco Systems, Inc.
All contents are Copyright © 1992–2005 Cisco Systems, Inc. All rights reserved. Important Notices and Privacy Statement.
Page 11 of 13
Part Number
Description
GLC-T=
Gigabit Ethernet SFP, RJ-45 connector, and 10/100/1000BASE-T transceiver
GLC-FE-100FX=
100BASE-FX SFP for Fast Ethernet port
GLC-FE-100LX=
100BASE-LX SFP for Fast Ethernet port
GLC-FE-100BX-U=
100BASE-BX10-U SFP
GLC-FE-100BX-D=
100BASE-BX10-D SFP
GLE-GE-100FX=
100Base-FX (multimode fiber) (works in “multispeed” Gigabit Ethernet SFP ports of other Cisco platforms such as
the Cisco Catalyst 3560, Catalyst 3750 (nonmetro), and Catalyst 2970)
CWDM-SFP-1470=
Cisco CWDM SFP, 1470 nm; Gigabit Ethernet and 1-/2-GB Fibre Channel (gray)
CWDM-SFP-1490=
Cisco CWDM SFP, 1490 nm; Gigabit Ethernet and 1-/2-GB Fibre Channel (violet)
CWDM-SFP-1510=
Cisco CWDM SFP, 1510 nm; Gigabit Ethernet and 1-/2-GB Fibre Channel (blue)
CWDM-SFP-1530=
Cisco CWDM SFP, 1530 nm; Gigabit Ethernet and 1-/2-GB Fibre Channel (green)
CWDM-SFP-1550=
Cisco CWDM SFP, 1550 nm; Gigabit Ethernet and 1-/2-GB Fibre Channel (yellow)
CWDM-SFP-1570=
Cisco CWDM SFP, 1570 nm; Gigabit Ethernet and 1-/2-GB Fibre Channel (orange)
CWDM-SFP-1590=
Cisco CWDM SFP, 1590 nm; Gigabit Ethernet and 1-/2-GB Fibre Channel (red)
CWDM-SFP-1610=
Cisco CWDM SFP, 1610 nm; Gigabit Ethernet and 1-/2-GB Fibre Channel (brown)
CSS5-CABLX-LCSC=
Cisco CSS 11500 Series Content Services Switch, 10m single-mode fiber, LX LC-to-SC connectors
CSS5-CABSX-LC=
Cisco CSS 11500 10m multimode fiber, SX LC connectors
CSS5-CABSX-LCSC=
Cisco CSS 11500 10m multimode fiber, SX LC-to-SC connectors
CAB-SFP-50CM=
Cisco Catalyst 3560 SFP Interconnect Cable (50 cm)
CAB-SM-LCSC-1M
1m single-mode fiber, LC-to-SC connectors
CAB-SM-LCSC-5M
5m single-mode fiber, LC-to-SC connectors
CAB-MCP-LC=
Mode-conditioning patch cable; LC connector
Service and Support
Cisco offers a wide range of services programs to accelerate customer success. These innovative services programs are delivered through a
unique combination of people, processes, tools, and partners, resulting in high levels of customer satisfaction. Cisco services help you protect
your network investment, optimize network operations, and prepare your network for new applications to extend network intelligence and the
power of your business. For more information about Cisco services, refer to Cisco Technical Support Services or Cisco Advanced Services.
Cisco Systems, Inc.
All contents are Copyright © 1992–2005 Cisco Systems, Inc. All rights reserved. Important Notices and Privacy Statement.
Page 12 of 13
Corporate Headquarters
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
www.cisco.com
Tel: 408 526-4000
800 553-NETS (6387)
Fax: 408 526-4100
European Headquarters
Cisco Systems International BV
Haarlerbergpark
Haarlerbergweg 13-19
1101 CH Amsterdam
The Netherlands
www-europe.cisco.com
Tel: 31 0 20 357 1000
Fax: 31 0 20 357 1100
Americas Headquarters
Cisco Systems, Inc.
170 West Tasman Drive
San Jose, CA 95134-1706
USA
www.cisco.com
Tel: 408 526-7660
Fax: 408 527-0883
Asia Pacific Headquarters
Cisco Systems, Inc.
168 Robinson Road
#28-01 Capital Tower
Singapore 068912
www.cisco.com
Tel: +65 6317 7777
Fax: +65 6317 7799
Cisco Systems has more than 200 offices in the following countries and regions. Addresses, phone numbers, and fax numbers are listed on the
Cisco Website at www.cisco.com/go/offices.
Argentina • Australia • Austria • Belgium • Brazil • Bulgaria • Canada • Chile • China PRC • Colombia • Costa Rica
Croatia • Cyprus • Czech Republic • Denmark • Dubai, UAE • Finland • France • Germany • Greece • Hong Kong SAR
Hungary • India • Indonesia • Ireland • Israel • Italy • Japan • Korea • Luxembourg • Malaysia • Mexico
The Netherlands • New Zealand • Norway • Peru • Philippines • Poland • Portugal • Puerto Rico • Romania • Russia
Saudi Arabia • Scotland • Singapore • Slovakia • Slovenia • South Africa • Spain • Sweden • Switzerland • Taiwan
Thailand • Turkey • Ukraine • United Kingdom • United States • Venezuela • Vietnam • Zimbabwe
All contents are Copyright © 1992–2005 Cisco Systems, Inc. All rights reserved. Catalyst, Cisco, Cisco IOS, Cisco Systems, the Cisco Systems logo, and EtherChannel are
registered trademarks or trademarks of Cisco Systems, Inc. and/or its affiliates in the United States and certain other countries.
All other trademarks mentioned in this document or Website are the property of their respective owners. The use of the word partner does not imply a partnership relationship
Cisco Systems, Inc.
between Cisco and any other company. (0502R)
Pa/LW9557 10/05
All contents are Copyright © 1992–2005 Cisco Systems, Inc. All rights reserved. Important Notices and Privacy Statement.
Page 13 of 13
Printed in USA
Cisco Systems, Inc.
All contents are Copyright © 1992–2005 Cisco Systems, Inc. All rights reserved. Important Notices and Privacy Statement.
Page 14 of 13

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
