Panasonic KV-S7075C-U Datasheet

Panasonic KV-S7075C-U Datasheet

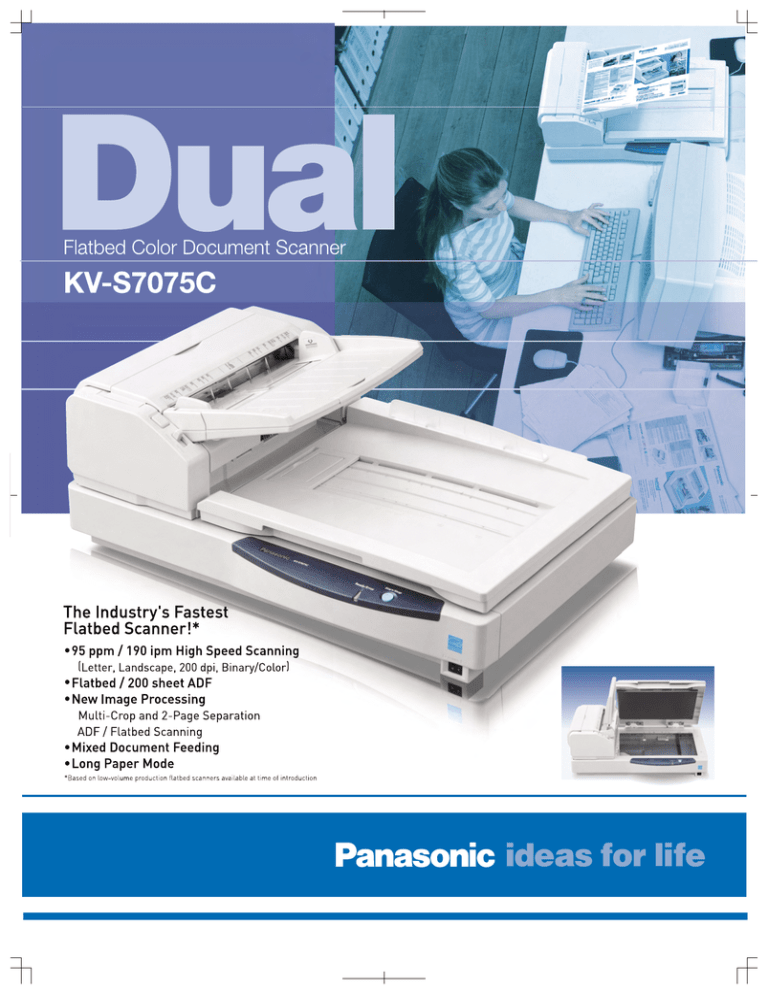

 Flatbed Color Document Scanner
KV-S7075C
pr
= %
Fm,
9
fi
o
4 LA. \ ) ‘
> |...
E, -
L
>
x
IF
; Fras TR
EE A
The Industry's Fastest ©
Flatbed Scanner!*
* 95 ppm / 190 ipm High Speed Scanning
(Letter, Landscape, 200 dpi, Binary/Color)
* Flatbed / 200 sheet ADF
* New Image Processing
Multi-Crop and 2-Page Separation
ADF / Flatbed Scanning
* Mixed Document Feeding
* Long Paper Mode
; ; ; ; ; AT
*Based on low-volume production flatbed scanners available at time of introduction
Panasonic
т
т
т
к" 1
| lace documents in ADF
Е. ce a book on Flatbed = =
Place a book on Flatbed
ace documents in ADF
ABCDEF GHIJKL
000-000-0000
ABCDEF GHIJKL
000-000-0000
ABCDEF GHIJKL
000-000-0000
— A
= = >
Accurately Feed Various Sizes of Documents
Mixed Document Feeding
.—
KV-S7075C Specifications
a
Documents with different sizes and
thicknesses can be fed together.
ABCDEF GHIJKL
EE — =
ABCDEF GHIJKL
770
ADF Scanning Flatbed Scanning
Save Time by Reducing the Number of Scans
Multi-Crop
Place various sized documents on the flatbed and scan them
all at once, then crop whatever parts you need. This 1s
convenient for scanning multiple business cards and thick
documents.
Easily Get the Data You Need from Each Page
2-Page Separation
Use the flatbed to scan 2-page spreads from books, magazines,
etc., and automatically divide the single image into two single
sheets*. Dividing scanned documents saves time and trouble
because it makes complex editing operations unnecessary.
*Divided lengthwise or crosswise. The length of the scanned document is divided in half.
The division is not based on the content of the document.
Hassle-Free Consecutive Scanning
ADF/Flatbed Scanning
Now you can consecutively scan ADF
and flatbed documents in one simple
operation, greatly improving work
efficiency.
High-Speed Scanning for Long Paper
Long Paper Mode
, They can be center, right or left
P| justified. By using left or right -
la justification, there is no more need to i
| spend time organizing documents E Ea
| | according to their size, so scanning is О
i fast and easy. This function greatly
increases your productivity.
The highly reliable paper feed
mechanism quickly and accurately scans
long documents. This function boosts
work efficiency by smoothly scanning
long monitoring sheets, like those used
for EKG documents.
Type
Ledger Flatbed + ADF
Paper Weight (for ADF)*?
10.6 165. - 34 lbs. (40 g/m° - 127 g/m?),
Scanning Face (ADF)
Duplex scanning
External Dimensions (W x D x Н)*3
29.7 in. x 20 in. x 11.4 in. (755 mm x 508 mm x 289 mm)
Scanning Method
ADF: Moving document method
Front and back: CIS
Flatbed: CIS
Selectable black and white background
Weight*3
Power Requirement
Power Consumption
Interface
64 lbs. (29 kg)
AC 100 V - 120 V, 50/60 Hz
Scanning: 1.2 À, Standby: 0.6 À, Sleep: 2.8 W
USB 2.0
Scanning Speed (B/W, Color Letter]*"
Portrait: 80 ppm / 160 ipm (200dpi), 66 ppm / 132 ipm (300 dpi)
Landscape: 95 ppm / 190 ipm (200dpi), 82 ppm / 164 ipm (300 dpi)
Operating Environment
Temperature: 59 °F to 86 °F (15 °C to 30 °C)
Humidity: 30 % RH to 80 % RH (No dewdrop)
Scanning Resolution
Detection
100 dpi - 600 dpi (1 dpi step) (B/W and Color) (Optical 600 dpi)
Ultrasonic double-feed detectio
n
Storage Environment
Temperature: 32 °F to 104 °F (0 °C to 40 °C)
Humidity: 10 % RH to 80 % RH (No dewdrop)
Image Compression
Automatic Document Feeder (Hopper)
Image Output
Binary Mode Halftone
Color Matching
G3, G4 (B/W binary), JPEG (grayscale/color)
200 sheets, 17 lbs. (64 g/m?)
Binary mode, Grayscale mode (8 bit), Color (24 bit),
MultiStream* output
Dither, Error diffusion
SRGB, ICC Profile (TWAIN Driver only)
Accessories
CD-ROM: Operating manual, Installation manual, Maintenance manual,
RTIV™ capture software, RTIV™ reference manual, ISIS®/ TWAIN driver software,
PIE reference manual, User utility software, User utility reference manual,
Control sheet data, MCD utility (Multi Color Drop utility)
Power cord, Blower brush, USB cable
Printed materials: Installation manual
Documents Size ADF
Flatbed
1.9 in. x 2.8 in. (48 mm x 70 mm) to 11.7 in. x 17 in. (297 mm x 432 mm)
Maximum 11.7 in. x 17 in. (297 mm x 432 mm)
Consumables and Options
Roller exchange kit: KV-SS015, Roller cleaning paper: KV-SS03
Imprinter unit: KV-SS014, Ink cartridge: KV-SS021
Scanning Size
Paper Thickness
11.9 in. x 100 in. (302 mm x 2,540 mm)
2.0 mils - 5.9 mils (0.05 mm - 0.
Note: 1 mil = 1/1000 inch
Panasonic
Panasonic Communications Company of North America
One Panasonic Way, Secaucus, NJ 07094
Www. panasonic.com/scanners
15 mm)
ПИЛ
*1 The scanning speed differs depending on the host computer, operating system, application, image data amount, and paper type.
*2 "Weight in pounds" of paper represents the weight of 500 sheets (17 in. x 22 in. / 432 mm x 559 mm)
*3 Dimensions and weights are approximate.
sng
TWA EA
EI USB
CCD
VRS
CIFTHEE
As an ENERGY STAR® Partner,
Panasonic has determined that this product meets
the ENERGY STAR guidelines for energy efficiency.
E PA
ENERGY STARS and the ENERGY STAR certification marks are registered US marks.
MultiStream™, 1SIS® and ISIS-Certified™ are trademarks of EMC Corporation.
All other brand or product names are the property of their respective holders. Design and specifications are subject to change without notice.
KV-S7075C-BR 10/08 Printed in Japan
