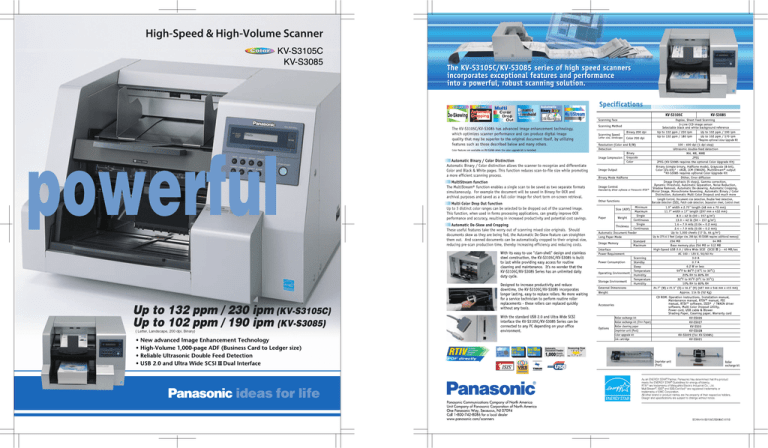

High-Speed & High-Volume Scanner
KV-S3105C
KV-S3085
Up to ЭГ /-53105C)
Up to 102 ppm / 190 ipm (KV-s3085)
( Letter, Landscape, 200 dpi, Binary)
* New advanced Image Enhancement Technology
* High-Volume 1,000-page ADF (Business Card to Ledger size)
e Reliable Ultrasonic Double Feed Detection
* USB 2.0 and Ultra Wide SCSI I Dual Interface
Panasonic
The KV-S3105C/KV-S3085 series of high speed scanners
incorporates exceptional features and performance
into a powerful, robust scanning solution.
Automatic
[6010
The KV-S3105C/KV-S3085 has advanced image enhancement technology,
which optimizes scanner performance and can produce digital image
quality that may be superior to the original document itself, by utilizing
features such as those described below and many others.
ItiStream
y
Color features are available on KV-S3085 when the color upgrade kit is installed.
Automatic Binary / Color Distinction
Automatic Binary / Color distinction allows the scanner to recognize and differentiate
Color and Black & White pages. This function reduces scan-to-file size while promoting
a more efficient scanning process.
MultiStream function
The MultiStream® function enables a single scan to be saved as two separate formats
simultaneously. For example the document will be saved in Binary for OCR and
archival purposes and saved as a full color image for short term on-screen retrieval.
Multi Color Drop Out function
Up to 3 distinct color ranges can be selected to be dropped out of the scanned image.
This function, when used in forms processing applications, can greatly improve OCR
performance and accuracy, resulting in increased productivity and potential cost savings.
Automatic De-Skew and Cropping
These useful features take the worry out of scanning mixed size originals. Should
documents skew as they are being fed, the Automatic De-Skew feature can straighten
them out. And scanned documents can be automatically cropped to their original size,
reducing pre-scan production time, thereby increasing efficiency and reducing costs.
With its easy to use "clam-shell" design and stainless
steel construction, the KV-S3105C/KV-S3085 is built
to last while providing easy access for routine
cleaning and maintenance. It's no wonder that the
KV-S3105C/KV-S3085 Series has an unlimited daily
duty cycle.
Designed to increase productivity and reduce
downtime, the KV-S3105C/KV-S3085 incorporates
longer lasting, easy to replace rollers. No more waiting
for a service technician to perform routine roller
replacements - these rollers can replaced quickly
without any tools.
With the standard USB 2.0 and Ultra Wide SCSI
interface the KV-S3105C/KV-S3085 Series can be
connected to any PC depending on your office
environment.
Panasonic
Panasonic Communications Company of North America
Unit Company of Panasonic Corporation of North America
One Panasonic Way, Secaucus, NJ 07094
Call 1-800-742-8086 for a local dealer
www.panasonic.com/scanners
Automatic Scanning Siz
Document Feeder 1.9" x 2.75"
1 ‚000 es мах 11.7" x 17"
Reliable
Throughput
Imaging
LC
PDF directly
NINO
{1135
Specifications
KV-S3105C KV-S3085
Scanning face
Duplex, Sheet Feed Scanning
Scanning Method
3-Line CCD image sensor
Selectable black and white background reference
Binary 200 dpi
Up to 132 ppm / 230 ipm Up to 102 ppm / 190 ipm
Scanning Speed
Letter size, landscape
Color 200 dpi
Up to 132 ppm / 180 ipm Up to 102 ppm / 170 ipm
*Requires optional Colour Upgrade Kit
Resolution (Color and B/W)
100 - 600 dpi (1 dpi step)
Detection
Ultrasonic double-feed detection
Image Compression
Binary MH, MR, MMR
Grayscale JPEG
Color JPEG (KV-S3085 requires the optional Color Upgrade Kit)
Image Output
Binary (simple binary, Halftone mode), Grayscale (8-bit),
Color (24-bit)* : sRGB, ICM (TWAIN), MultiStream® output
*KV-S3085 requires optional Color Upgrade Kit
Binary Mode Halfton
e
Dither, Error diffusion
Image Control
Executed by driver software or Panasonic RTIV™
Image Emphasis (5 steps), Gamma correction,
Dynamic Threshold, Automatic Separation, Noise Reduction,
Shadow Removal, Automatic De-skewing, Automatic Cropping,
Mirror Image, Monochrome Reversing, Automatic Binary / Color
Distinction, Automatic Multi Color Dropout and much more
Other functions
Length Control, Document size detection, Double feed detection,
Barcode detection (ISIS), Patch code detection, Separation sheet, Control sheet
Size (ADF) Minimum 1.9" width x 2.75" length (48 mm x 70 mm)
Maximum 11.7" width x 17" length (297 mm x 432 mm)
т ~ ~ 2
Paper Weight Single 8.0 ~ 42 |b (30 ~ 157 g/m?)
Continuous 13.0 ~ 42 lb (50 ~ 157 g/m?)
Thickness Single 1.6 ~7.9 mils (0.04 ~ 0.2 mm)
Continuous 2.4 ~ 7.9 mils (0.06 ~ 0.2 mm)
Automatic Document Feeder
Up to 1,000 sheets (17 lb, 64 g/m?)
Long Paper Mode
Up to 275.6.1 feet (Ledger size, 200 dpi, KV-S3085 requires additional memory)
Image Memory | Standard 256 MB | 64 MB
| Maximum Base memory plus 256 MB or 512 MB
Interface High-Speed USB 2.0 / Ultra Wide SCSI (SCSI III ) - 40 MB/sec
Power Requirement AC 100 - 120 V, 50/60 Hz
Scanning 3.0A
Power Consumption Standby 0.7 A
Sleep 6.2 W or less
. . Temperature 59°F to 86°F (15°C to 30°C)
Operating Environment Fig ey 20% RH to 80% RH
Storage Environment Temperature 32°F to 95°F (0°C to 35°C)
Humidity 10% RH to 80% RH
External Dimensions
24.7" (W) x 21.5" (D) x 16.3" (H) (627 mm x 546 mm x 415 mm)
Weight
Approx. 114 lb (52 Kg)
Accessories
CD ROM: Operation instructions, Installation manual,
Maintenance manual, RTIV™ manual, PIE
manual, RTIV™ software, ISIS® / TWAIN driver
software, Multi Color Dropout Utility,
Power cord, USB cable & Blower
Shading Paper, Cleaning paper, Warranty card
Roller exchange kit KV-SS026
Roller exchange kit (Thin Paper) KV-SS027
. Roller cleaning paper KV-SS03
Options Imprinter unit (Post) KV-SS028
Color upgrade kit KV-SS029 (For KV-S3085)
Ink cartridge KV-SS021
Imprinter unit
(Post)
Roller
exchange kit
ENERGY STAR
As an ENERGY STAR® Partner, Panasonic has determined that this product
meets the ENERGY STAR® Guidelines for energy efficiency.
RTIV" are trademarks of Matsushita Electric Industrial Co., Ltd.
MultiStream®, ISIS® and ISIS-Certified™ are registered trademarks or
trademarks of EMC Corporation.
All other brand or product names are the property of their respective holders.
Design and specifications are subject to change without notice.
SCAN-KV-S3105C/S3085C-0703
