VidyoDesktop Audio Setup Guide

VidyoDesktop Audio Setup Guide
VidyoDesktop Audio Setup Guide
: For version3

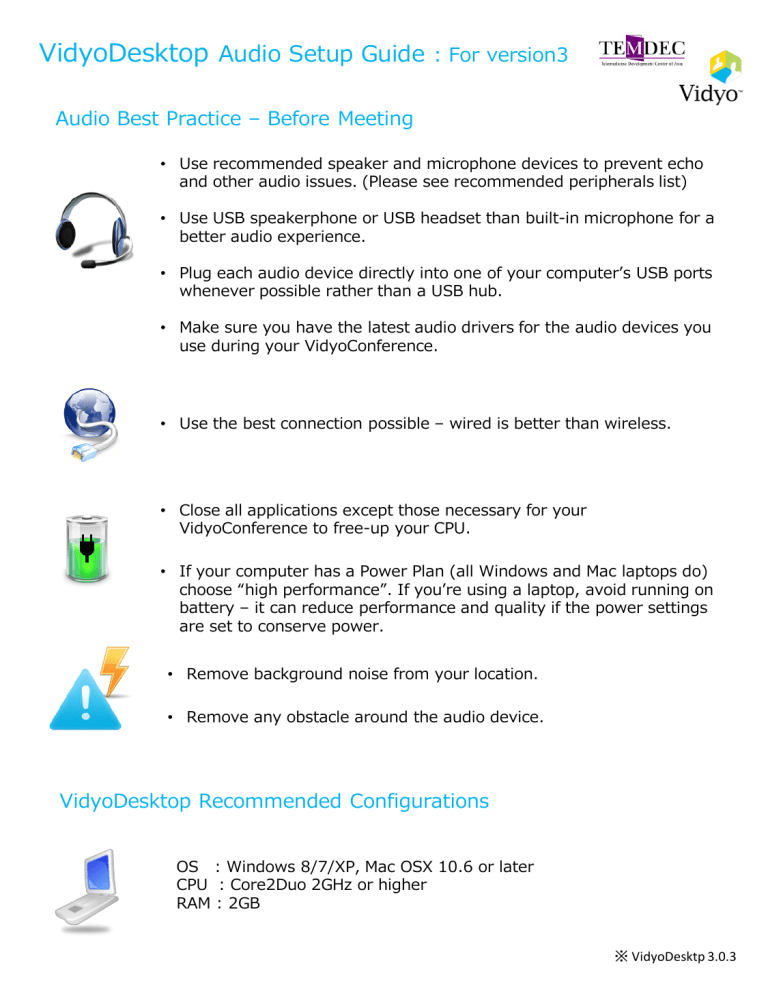

Audio Best Practice – Before Meeting
• Use recommended speaker and microphone devices to prevent echo
and other audio issues. (Please see recommended peripherals list)
• Use USB speakerphone or USB headset than built-in microphone for a
better audio experience.
• Plug each audio device directly into one of your computer’s USB ports
whenever possible rather than a USB hub.
• Make sure you have the latest audio drivers for the audio devices you
use during your VidyoConference.
• Use the best connection possible – wired is better than wireless.
• Close all applications except those necessary for your
VidyoConference to free-up your CPU.
• If your computer has a Power Plan (all Windows and Mac laptops do)
choose “high performance”. If you’re using a laptop, avoid running on
battery – it can reduce performance and quality if the power settings
are set to conserve power.
• Remove background noise from your location.
• Remove any obstacle around the audio device.
VidyoDesktop Recommended Configurations
OS : Windows 8/7/XP, Mac OSX 10.6 or later
CPU : Core2Duo 2GHz or higher
RAM : 2GB
※ VidyoDesktp 3.0.3
VidyoDesktop Audio Setup Guide : For version3
Selecting Your Audio Device for Use
• The first time you join a meeting, the Device window
will automatically appear to enable you to select your
audio device.
• You can also select
on the VidyoDesktop to
access the Device settings. This tab shows the
speaker and microphone devices available on your
computer.
• Disable echo cancellation when you are using devices
which have built-in echo cancellation (headset or
speakerphone). It appears grayed out when you use
a Vidyo recommended device.
• After making a change to a setting, click Save.
Adjust Microphone Level
• Use the drop down arrow ▲ to change the volume level.
• If you find that your voice volume is not changing, clear the Auto
Adjust Microphone checkbox to disable automatic gain control of
microphone.
• Click the Microphone button to mute or unmute the microphone.
The button turns red when you mite yourself.
Local Mute
You can unmute by yourself
Room owner Mute
You can not unmute by yourself
Please mute your microphone
when you’re not actively speaking
Plantronics Calisto420 (For multiple participants)
• Plantronics Calisto420 is available for multiple participants as it is
equipped with a 3.5mm external speaker connector.
1. Connect the USB cable to the USB
port on your computer.
2.Connect the 3.5 mm cable of the
external speaker to the connector on
Calisto420.
• Don’t put external speaker in front of the speakerphone.
• Remove any obstacle around the audio device.
VidyoDesktop Peripheral Devices: Speakerphone (1)
MANUFACTURE
MODEL
R
PLATFORM
TESTED
RECOMMENDED
DRIVER OR
FIRMWARE
VERSION
TESTED
DEVICE DESCRIPTION
ClearOne
Chat 60
Windows,
Mac,
Linux
6.1.7601.17514 Personal speakerphone that provides fullduplex audio.
Konftel
Konftel 300
Windows
Firmware
version: 1.25
Conference phone with microphone, two
additional microphones, and PA system
interface box.
Logitech
BCC950 ConferenceCam
Windows
13.40.840.0
All-in-one webcam and speakerphone.
Phoenix
Duet PCS
MT202
Windows,
Mac OS,
Linux
6.1.7601.17514 USB desktop speakerphone.Notes:
•In order for the audio and volume controls to
operate properly when using this
speakerphone with a Mac, go to System
Preferences > Audio and select Phnx
MT202pcs as the device for Audio Output
and Audio Input.
•If you need an extender with this
speakerphone, Vidyo recom-mends the APC
USB extender, which supports up to 55 feet.
Phoenix
Quattro3
MT304
Windows
6.1.7601.17514 USB and power daisy-chain
speakerphone.Notes:
•If you choose to daisy chain, each
speakerphone can be powered individually
using the supplied power adapters, or if you
want to power all the speakerphones using
PoE, you can purchase the Daisy Chain Power
Kit from Phoenix Audio Technologies.
•If you need an extender with this
speakerphone, Vidyo recommends the APC
USB extender, which supports up to 55 feet.
Plantronics
Calisto 420
Windows
6.1.7601.17514 USB, echo-canceling speakerphone.
Plantronics
Calisto P820
Windows
Firmware
version:
V01.27.00.00
Plantronics
MCD100
Windows,
Mac OS,
Linux
6.1.7601.17514 USB speakerphone for small to medium-sized
work areas.
Multi-device speakerphone system.
VidyoDesktop Peripheral Devices: Speakerphone (2)
MANUFACTURER MODEL
PLATFORM
TESTED
DRIVER OR
DEVICE DESCRIPTION
FIRMWARE
VERSION TESTED
SUPPORTED
Apple
iMac, Macbook Mac OS
Pro, Macbook Air,
and Thunderbolt
Display Built-in
Speaker
ClearOne
Chat 50
Windows,
Mac OS,
Linux
6.1.7601.17514
Personal echo-canceling
speakerphone.
ClearOne
Chat 150
Windows,
Linux
6.1.7601.17514
USB-based, echo-canceling
speakerphone.
Jabra
Jabra SPEAK 410 Windows,
Mac OS,
Linux
Firmware
version: 1.5.0
Personal echo-canceling
speakerphone.
Yamaha
PJP-20UR
Windows,
Mac OS,
Linux
Firmware
version: 1.07
Web conference microphone speaker
with built-in echo
canceller.Recommended cables:
•10 feet: Fontel USB 2.0 Type A-toMini B cable (part number GCUSBM10)
•15 feet: Fontel USB 2.0 Type A-toMini B cable (part number GCUSBM1)
Yamaha
PJP-25UR
Windows,
Mac OS,
Linux
Firmware
version: 1.1.0.9
Conference speakerphone with
movable microphone arms.
Apple devices.
VidyoDesktop Peripheral Devices: Headsets
MANUFACTU
MODEL
RER
PLATFORM
TESTED
DEVICE DESCRIPTION
Headset with noise-canceling microphone and in-line
volume controls.
RECOMMENDED
Microsoft
Lifechat LX-3000
Windows,
Linux
Plantronics
Blackwire C520-M
Windows, Mac Headset with USB audio and noise-control cancelling
OS
microphone
Plantronics
SAVI-740
(wireless)
Windows,
Mac OS
Multi-device wireless headset system.
Plantronics
Voyager Pro UC v2
(wireless)
Windows,
Mac OS
Bluetooth headset system with dual-mic AudioIQ2 DSP for
noise cancellation.
SUPPORTED
Apple
Thunderbolt Display
Built-In Microphone
Mac OS
Built-in display microphone
Cyber
Acoustics
AC-840
Windows,
Linux
USB mono headset with boom microphone.
Cyber
Acoustics
AC-850
Windows,
Linux
USB stereo headset with boom microphone.
Jabra
UC 750 Mono
Windows
Headset with USB audio and noise-cancelling microphone
Logitech
B530 USB Headset
Windows,
Mac OS
Headset with laser-tuned drivers and a built-in equalizer.
Logitech
ClearChat Comfort
USB
Windows,
Linux
Headset with USB audio and noise-canceling microphone.
Logitech
USB Headset H330
Windows,
Linux
Headset with USB audio and noise-canceling microphone.
Logitech
USB Headset H390
Windows
Headset with USB audio, noise-canceling microphone, and
padded headband.
Plantronics
Blackwire C435-M
Windows,
Mac OS
Headset with noise-canceling microphone and in-line
volume controls.
Plantronics
C420
Windows,
Mac OS
Digitally enhanced foldable headset.
Plantronics
DSP-400
Windows,
Mac OS
Digitally enhanced foldable headsets.
Plantronics
Plantronics Headset Windows,
with Plantronics USB Linux
Adapter 01
Analog headset to be used with USB adapter.
Plantronics
Savi W740 Wireless
Headset
Wireless headset
Windows,
Mac OS
