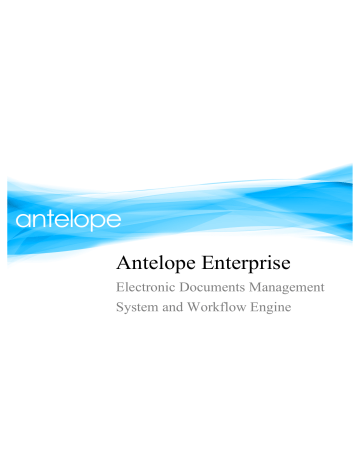

Antelope High Availability

Antelope Enterprise

Electronic Documents Management

System and Workflow Engine

Antelope  Enterprise  v4  High  Availability

Edition

Information in this document applies to the Antelope Enterprise v4 High Availability.

Copyright Notice

©2013 ASR Software (Hong Kong) Limited. All rights reserved.

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written permission of ASR Software (Hong Kong) Limited. ASR Software (Hong Kong) Limited products

Information in this document subject to change without notice. Companies, names, and data used in examples herein are fictitious unless otherwise noted.

Antelope  Enterprise  v4  High  Availability

Table of Contents

About  Antelope  Enterprise  v4  High  Availability

................................................................................... 2

Terms

.................................................................................................................................................... 2

Cluster ..............................................................................................................................................................................2



Cluster Aware Application .............................................................................................................................................2



Failover .............................................................................................................................................................................2



Load Balancing ...............................................................................................................................................................2



Node .................................................................................................................................................................................2



Infrastructure and Networking ......................................................................................................................................3



Servers .............................................................................................................................................................................3



Workstation ......................................................................................................................................................................4



Clustering for Antelope Application Server with web engine and cluster aware backend processes ...............5



Failover based clustering at Antelope Database Server using Microsoft SQL Server cluster services. ..........6



Clustering for file based storage (Antelope Storage Server) using SAN storage with built-in clustering .........6



Configuration  of  Antelope  Enterprise  v4  on  Microsoft  Cluster

............................................................ 7

Antelope Application Server web engine (Active / Active mode or Active / Passive mode) ...............................7



Antelope Application Server backend processes (failover clustering) ...................................................................8



Resources

.............................................................................................................................................. 9

MS SQL Clusters ............................................................................................................................................................9



MS IIS Cluster (Failover) ...............................................................................................................................................9



MS IIS Cluster (Load Balancing) ..................................................................................................................................9



About  ASR

........................................................................................................................................... 10

Antelope Enterprise v4 High Availability 1

About  Antelope  Enterprise  v4  High  Availability



This document describes the Antelope Enterprise options and settings that support redundancy and high availability. See the following sections of specific information:

• Terms

• Overview of Antelope and High Availability

• Configuration of Antelope Enterprise v4 on Microsoft Cluster

Terms

You should understand these terms before proceeding in this documentation:

Cluster

More than one resource with exactly same configuration and requirements connected together as single resource to provide redundancy

Cluster Aware Application

Application with specific alert and process feature that once a node in a cluster is down, it will take corresponding action to avoid data and document lost by shifting the operations to another node in a cluster.

Failover

A cluster strategy that a node in cluster is down, all processes and operations will shift to another node.

Load Balancing

A cluster strategy that more than one node in a cluster are online to share massive operations to two or more nodes.

Node

A server in a cluster environment. An active node is the server which is online and running. A passive node is the server is in standby mode once the active node is down, it will be changed to active and take up the operations.

Antelope Enterprise v4 High Availability 2

Overview  of  Antelope  and  High  Availability

It is a must to provide IT systems with maximum availability to users to avoid stopping critical business operations in enterprise. There are many risk factors that influence the availability of a multi-user, network based application. For IT professionals, to understand and examine all factors is the key to propose an optimal proposal for high availability.

Below lists some of the major factors that may happen for systems fail to operate. In summary, it can be categorized into three categories:-

• Infrastructure and Networking

• Servers

• Workstations

Infrastructure and Networking

Area for failure Failure Reasons Suggested Resolution

Power supply

Internal network

Fire

External network

Building

The building power supply stops accidentally

Failure of gateway, routers, hubs, cabling

Electrical equipment may catch fire that affects all computerized system

Failure of internet access or cross site network

Building of the enterprise is affected by natural or non-natural disasters

Natural or non-natural disasters happens within cities

Backup power supply or uninterrupted power supply is required

Setup a backup network structure

Disaster within a geographical region

Servers

Area for failure

Server Hardware

Non-destructive fire suppression systems are required

Provide a redundant internet access vendors

Setup a disaster recovery site in another location in the same city

Setup a disaster recovery site across cities or regions

File Storage

Database Storage

Failure Reasons

Any hardware component in a server such as CPU or memory or server local hard disk, motherboard, stop functioning

Suggested Resolution

Provide a cluster environment instead of one server for the system

Failure of hard disk such as bad sectors, or whole hard disk broken

Setup RAID or even cluster SAN storage

Failure of database system because Provide cluster database environment

Antelope Enterprise v4 High Availability 3

Software or services of database system bugs

Failure of software or services from running because of system bugs

Software vendors should provide cluster supported applications

Install server-side alert application such that emails or sms messages provided to IT support once software malfunctions

Workstation

Area for failure

Workstation Hardware

Failure Reasons

Any hardware component in a workstation such as CPU or memory or server local hard disk, motherboard, stop functioning

Software or operating system fails operate suddenly

Suggested Resolution

Prepare cold standby backup workstation

Workstation Software Prepare OS level image ready to recover the whole workstation environment

Provide enough backup devices Other devices Failure of operation for other devices such as scanners or printers

Antelope Enterprise is designed for large scale of operation. To ensure high availability, two major strategies are adopted:

Load balancing – spreading tasks across multiple servers.

Clustering – building in redundancy by implementing a failover strategy.

Antelope Enterprise is a cluster compatible application. It supports clustering at different levels, including

• Clustering for Antelope Application Server with web engine and cluster aware backend processes.

• Failover based clustering at Antelope Database Server using Microsoft SQL Server cluster services.

• Clustering for file based storage (Antelope Storage Server) using SAN storage with built in clustering.

Antelope Enterprise Application Server

Antelope Enterprise Database Server

Antelope Enterprise Storage Server

Antelope Enterprise architecture with cluster compatibility

Antelope Enterprise v4 High Availability 4

Clustering for Antelope Application Server with web engine and cluster aware backend processes

Antelope Application Server contains two major levels – web application engine and backend processes. Web application engine, which is based on Microsoft Internet Information Services, support load balance clustering.

Antelope backend processes are running in Microsoft servers, support failover clustering. These two Antelope application levels are directly connected with Antelope Database server (MS SQL) and Antelope Storage server (clustered SAN storage), that means, all Antelope Server data are stored in MS SQL database server, while images and documents are stored in storage server with SAN devices.

It is realized that when connected with Antelope Database Server which supports failover clustering, switching from primary server to backup secondary server, is not instantaneous and may actually take several seconds or more. Before the secondary server takes control over the primary server, the Antelope Application Server backend processes will receive a message from secondary server and stop all operations. Antelope

Application Server will resume its actions until message received from backup server once online. During the down period, Antelope Application Server backend processes will be alert of the situation.

For Antelope Application Server web engine, the failover process is not transparent because all in-process information, such as database lookup, retrieval of indexes, open file actions, upload documents to Antelope

Server, may become invalid during the failover.

Antelope Application Server

- Load balance clustering web engine

- failover clustering backend processes

Primary Secondary

Primary Secondary

Antelope Database Server

Clustered MS SQL Server

Primary Secondary

Antelope Storage Server

Clustered File Server

Antelope Enterprise v4 High Availability 5

Failover based clustering at Antelope Database Server using Microsoft SQL Server cluster services.

All Antelope information, including folder structure, document indexes, user access permission are stored in the Antelope Database Server. Antelope Database Server supports MS SQL clustering by failover, that is, the secondary server acts as a hot standby server.

Clustering for file based storage (Antelope Storage Server) using SAN storage with built-in clustering

Images and documents in Antelope Enterprise are stored in Antelope Storage Server. It is a file-based storage with AES 256-bit encryption. It is highly recommended to use SAN storage with built-in clustering feature for

Antelope Storage Server.

Antelope Enterprise v4 High Availability 6

Configuration  of  Antelope  Enterprise  v4  on  Microsoft  Cluster

Antelope Application Server web engine (Active / Active mode or Active / Passive mode)

Antelope Application Server depends on Microsoft Internet Information Services (IIS) for setting the cluster, therefore to configure clustering, it relies on the Microsoft World Wide Web Publishing Services

This section divides into two sections, configure the Antelope Application Server web engine in Active /

Passive mode (Failover), and configure the Antelope Application Server web engine in Active / Active mode

(Load Balancing)

• Configure the Antelope Application Server web engine in Active / Passive mode (Failover)

Step 1 – Application Server Installation

On all cluster’s nodes, install the Antelope Application Server web engine by selecting the Standard Install option in the installer. Follow the setup wizard and complete the process. Configure the output folder path and database path to clustered file storage server (Antelope Storage Server) and clustered database server

(Antelope Database Server). Configure clustered file storage server is the same as configure local file storage, except that the path is set as \\<server>\<share folder name>. Read the installation guide of Antelope

Enterprise v4 on how to configure the Contentbase path and database path.

Step 2 – Configure IIS World Wide Web Publishing Service failover cluster

The failover cluster is configured based on Microsoft IIS World Wide Web Publishing Service. Follow below link on ( http://support.microsoft.com/kb/970759 ) on how to configure.

Step 3 –Bring the cluster group online

Right-click on the cluster group and select Bring online. Wait until the application server has started, then verify that you can access the system by pointing a web browser to : http://[Virtual Server Name]/service.asmx

• Configure the Antelope Application Server web engine in Active / Active mode (Load Balancing)

Step 1 – Application Server Installation

On all cluster’s nodes, install the Web Capture / Scan component by selecting the Standard Install option in the installer. Follow the setup wizard and complete the process. Configure the output folder path and database log path to clustered file storage server and clustered database server. Configure clustered file storage server is the same as configure local file storage, except that the path is set as \\<server>\<share folder name>. Read the installation guide of Antelope Enterprise v4 on how to configure the Contentbase path and database path.

Antelope Enterprise v4 High Availability 7

Step 2 – Configure IIS World Wide Web Publishing Service load balancing cluster

The load balancing cluster is configured based on Microsoft IIS World Wide Web Publishing Service. Follow below link on ( http://technet.microsoft.com/en-us/library/jj129390.aspx

) on how to configure.

Step 3 –Bring the cluster group online

Right-click on the cluster group and select Bring online. Wait until the application server has started, then verify that you can access the system by pointing a web browser to : http://[Virtual Server Name]/service.asmx

Antelope Application Server backend processes (failover clustering)

Step 1 – Application Server Installation

On one of the cluster’s nodes, install the Antelope Application Server backend processes by selecting the

Standard Install option in the installer. Follow the setup wizard and complete the process of defining templates in the system.

Step 2 – Connect the system over to a clustered external database for log (optional)

The system needs to be configured the log to use a clustered external database as the database will be shared between the instances of the application server. Follow the installation guide for how to connect to external database. The database may be hosted on another system, or inside a cluster.

Step 3 – Setup of 2 nd

Node

Repeat steps 1 and 2 on the second cluster node.

Step 4 – Decouple service management from the nodes

By default the Antelope Application Server backend processes is installed under the management of the node.

It needs to be managed inside the cluster, so the service's start-up type should be set to manual. On each node navigate to Control Panel > Administrative Tools > Services locate all services names start with DMS.

Stop the service and set its start-up type to Manual. Repeat this on both nodes.

Step 5 – Add Antelope Application Server service as a resource under the cluster group

1. Open the Failover Cluster Manager.

2. Right-click on the cluster group hosting the spooler service and select Add a resource -> 4 - Generic

Service.

3. In the new resource wizard, select all names start with DMS and click Next.

4. Click Next at Confirmation.

5. Click Finish at Summary.

6. Right click on the Octopus Server and click Properties. On the Antelope Application Server

Properties page ensure the Use Network Name for computer name option is checked. Click Ok.

Antelope Enterprise v4 High Availability 8

7. Right click on the Antelope Application Server and click Bring this resource online

Step 6 – Bring the cluster group online

Right-click on the cluster group and select Bring online. Wait until the Antelope Application server has started, then verify that one of the nodes has Antelope Application Server running, while another node has Antelope

Application Server stopped.

Resources

MS SQL Clusters

http://msdn.microsoft.com/en-us/library/hh231721.aspx

MS IIS Cluster (Failover)

http://support.microsoft.com/kb/970759

MS IIS Cluster (Load Balancing)

http://technet.microsoft.com/en-us/library/jj129390.aspx

Antelope Enterprise v4 High Availability 9

About  ASR

The group is established since 2002, we are leader in Greater China, focusing in ECM and CRM solutions including transactional content capture, imaging, enterprise content management, record management, e-Forms, collaboration, workflow automation and customer management solutions.

Our suite of hardware, software, and professional support accelerates business processes transforming manual processes into accurate, highly automated systems that deliver information to your business applications. We offer best of breed hardware, software, and value-add services focused on:

• Data Capture Solutions: Document Imaging, Advanced Document Recognition, OCR Data Extraction,

Electronic Forms Management

• Enterprise Content Management: Document Management, Records Management, Line of Business

Integration

• Data Hosting: Hosting of documents and database in our company data center

• Business Process Automation: Graphical Workflow Solutions, Reporting, Notification, Versioning, Audit

Tracking

• Web Content Management: Website Restructure, Content Management

• Customer Management Solution: Sales Force Automation, Contact Management, Customer Support

Management, Leave Management

You can make your office do more... Work with ASR and automate your business!

ASR Software Professional Services

ASR offers unique professionals to provide optimization and support services on imaging and document management solutions.

To learn more:

Visit www.asr-software.net

For further information, please see how to contact us at: http://www.asr-software.net/contactus.html

Antelope Enterprise v4 High Availability 10

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
