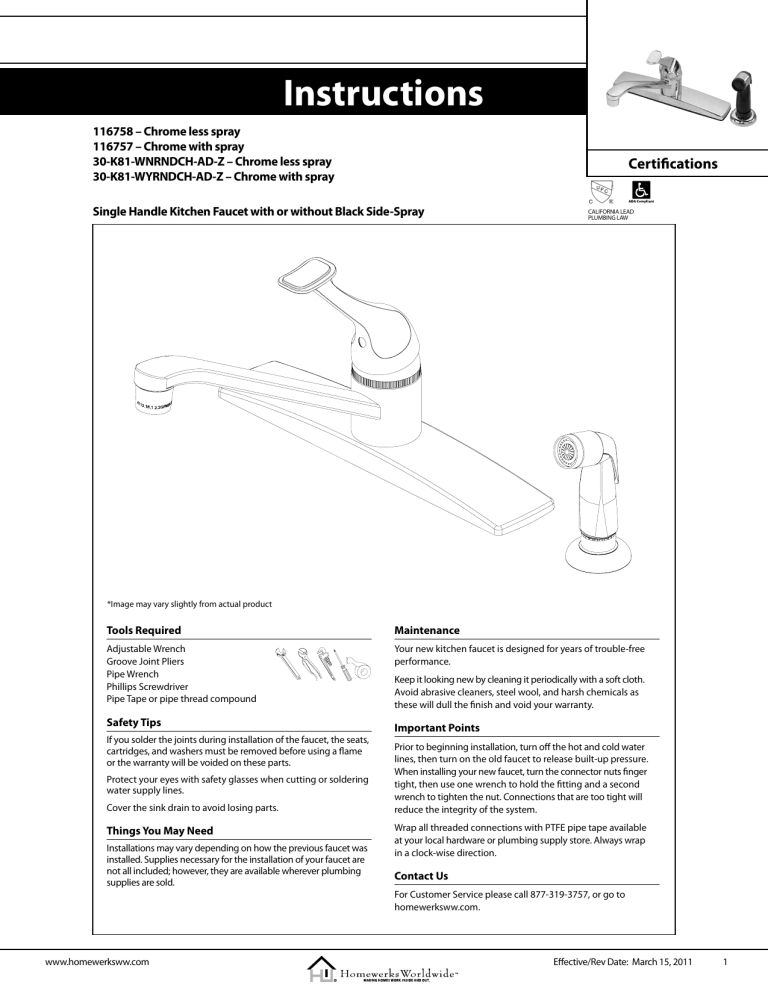

Instructions
Instructions
116758 – Chrome less spray
116757 – Chrome with spray
30-K81-WNRNDCH-AD-Z – Chrome less spray
30-K81-WYRNDCH-AD-Z – Chrome with spray
Certifications
Single Handle Kitchen Faucet with or without Black Side-Spray
CALIFORNIA LEAD
PLUMBING LAW
*Image may vary slightly from actual product
Tools Required
Maintenance
Adjustable Wrench
Groove Joint Pliers
Pipe Wrench
Phillips Screwdriver
Pipe Tape or pipe thread compound
Your new kitchen faucet is designed for years of trouble-free
performance.
Safety Tips
If you solder the joints during installation of the faucet, the seats,
cartridges, and washers must be removed before using a flame
or the warranty will be voided on these parts.
Protect your eyes with safety glasses when cutting or soldering
water supply lines.
Cover the sink drain to avoid losing parts.
Things You May Need
Installations may vary depending on how the previous faucet was
installed. Supplies necessary for the installation of your faucet are
not all included; however, they are available wherever plumbing
supplies are sold.
Keep it looking new by cleaning it periodically with a soft cloth.
Avoid abrasive cleaners, steel wool, and harsh chemicals as
these will dull the finish and void your warranty.
Important Points
Prior to beginning installation, turn off the hot and cold water
lines, then turn on the old faucet to release built-up pressure.
When installing your new faucet, turn the connector nuts finger
tight, then use one wrench to hold the fitting and a second
wrench to tighten the nut. Connections that are too tight will
reduce the integrity of the system.
Wrap all threaded connections with PTFE pipe tape available
at your local hardware or plumbing supply store. Always wrap
in a clock-wise direction.
Contact Us
For Customer Service please call 877-319-3757, or go to
homewerksww.com.
www.homewerksww.com
Effective/Rev Date: March 15, 2011
1
Instructions
116758 – Chrome less spray
116757 – Chrome with spray
30-K81-WNRNDCH-AD-Z – Chrome less spray
30-K81-WYRNDCH-AD-Z – Chrome with spray
Certifications
Single Handle Kitchen Faucet with or without Black Side-Spray
CALIFORNIA LEAD
PLUMBING LAW
Preparation and Assembly
1
Locate water supply inlet and shut off water
supply valve. These are usually found under the
sink or near the water heater. Remove old
faucet. Clean and dry sink surface area where
new faucet will be mounted.
4
Thread on mounting bolts to faucet body.
7
Attach water supply tubes using connecting
nuts provided. Connect 3/8" O.D. inlet tubes to
water supplies with appropriate connections,
left tube to hot water supply and right tube to
cold water supply. Note A and B have to be
purchased separately.
2
If faucet is without side spray skip steps 2 and 3.
Install spray head holder on far right hand hole
of the sink using the mounting nut provided.
5
Apply clear silicone latex caulk to base plate.
8
Apply joint tape to shut off valve threads.
3
Drop threaded end of the spray hose down
through the holder to center of the faucet
body.
6
Install faucet into sink by feeding all tubes down
through center hole. From under sink, thread
mounting nuts onto threaded metal rods and
tighten nuts. Wipe away excess caulk.
9
Attach supply tube to shut off valve. Do not
overtighten.
10
Important: After installation is completed,
remove aerator. Turn on water supply and
allow both hot and cold water to run for at least
one minute. While water is running, check for
leaks. Replace aerator. Tighten nut slightly to
stop minor leaks. If problems persist, refer to
troubleshooting chart.
www.homewerksww.com
Effective/Rev Date: March 15, 2011
2
Troubleshooting
116758 – Chrome less spray
116757 – Chrome with spray
30-K81-WNRNDCH-AD-Z – Chrome less spray
30-K81-WYRNDCH-AD-Z – Chrome with spray
Certifications
Single Handle Kitchen Faucet with or without Black Side-Spray
CALIFORNIA LEAD
PLUMBING LAW
Troubleshooting
PROBLEM: Leaks underneath handle.
CAUSE: Adjusting ring or cap assembly has loosened.
ACTION:
1. Move the handle to the off position. Remove handle by loosening set
screw with Allen wrench (Diagram A).
2. Tighten the adjusting ring by turning it clockwise with a small screwdriver.
Move the ball stem to the on position and continue tightening the
adjusting ring until the leak steps draining out from around the ball stem
(Diagram B)
3. If the leak does not stop, loosen the adjusting ring and tighten the entire
cap assembly by turning it clockwise (Diagram C). Re-tighten the
adjusting ring as before.
4. Replace the handle and tighten the set screw.
PROBLEM: Water does not completely shut off.
CAUSE: Rubber valve seat is dirty or worn, or adjusting ring or cap has
loosened.
ACTION:
1. Remove the handle (Diagram A).
2. Turn of the water under the sink.
3. Unscrew the cap assembly and lift out the stem and ball stem, and the
plastic and rubber cam assembly (Diagram D).
4. Inspect the two rubber valve seats for debris or damage (Diagram E).
Replace with new valve seats if necessary (valve seats are available at
your local hardware or plumbing supply store). Push the rubber valve
seats and springs back in place, smaller end up.
5. Take care when replacing the metal ball to align the metal peg on the
side of the body with the oblong slot on the ball (Diagram F).
6. Reassemble faucet taking care to fit the small alignment tab on the
cam into the slot provided (Diagram G).
7. Re-tighten the adjusting ring (Diagram H). Replace the handle and
tighten the set screw.
8. Turn on the water under the sink.
PROBLEM: Aerator leaks or has an improper water flow pattern.
CAUSE: Aerator incorrectly fitted or aerator assembly is dirty.
ACTION:
Unscrew the aerator by turning it clockwise. Inspect the black rubber
packing and small parts. Clear away any debris. Reassemble aerator and
replace on end of spout.
PROBLEM: Improper water pattern.
CAUSE: Aerator incorrectly fitted or aerator assembly is dirty
ACTION:
1. Remove the aerator from the spout end by turning it clockwise.
2. Gently flush the small parts inside the aerator to clear away any debris.
3. Re-install the small parts as shown in the exploded diagram (Diagram
I). Metal screens must be flat and plastic supporter must be straight.
4. Screw the aerator onto the spout end and tighten
A
B
C
D
E
F
G
H
I
www.homewerksww.com
Effective/Rev Date: March 15, 2011
3
Specifications
Physical Characteristics
•
Description: Single handle kitchen faucet with 8" centerset,
brass waterways, washerless ball design, and with or without
black side-spray
•
Finish: Polished chrome
•
Max. Flow Rate: 2.2 G/min (8.3 L/min)
•
ASME A112.18.1/CSA B125 Certified
•
Meets ANSI/NSF61-9 Low Lead Requirements
•
This product complies with 0.25% weighted average lead
content on wetted surfaces.
Total Weight of Item: 1315g
•
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Part Description
Handle
Set screw
Adjusting ring
Cap
Cam
Cam packing
Cartridge
Seat
Spring
Spout
16
Body
17
18
19
20
21
22
23
24
Escutcheon
Washer
Screw
Base plate
Bolt
Mounting nut
Diverter
Side spray
www.homewerksww.com
Aerator assembly
O-ring
Washer
Certifications
CALIFORNIA LEAD
PLUMBING LAW
116758 – Chrome less spray
116757 – Chrome with spray
30-K81-WNRNDCH-AD-Z –
Chrome less spray
30-K81-WYRNDCH-AD-Z –
Chrome with spray
Material
ZZnA14
SUS302
Brass C37700
ZZnA14
POM
NBR N7008F+Teflon
SUS302/304
NBR
SUS304
H62+C27200+C37700
EPDM E7008F
POM+SUS302
ABS PA727
NBR E7008F
POM
3101+LTN60-2+C37700+
C12200+SUS+NBR+EPDM
ZZnA14
Q235
SUS302/304
PP+40% CaCO3
Q235A
ABS
Brass+POM+NBR N7008F+EPDM
POM+PVC
Effective/Rev Date: March 15, 2011
4
Rough-In
116758 – Chrome less spray
116757 – Chrome with spray
30-K81-WNRNDCH-AD-Z – Chrome less spray
30-K81-WYRNDCH-AD-Z – Chrome with spray
Certifications
Single Handle Kitchen Faucet with or without Black Side-Spray
CALIFORNIA LEAD
PLUMBING LAW
10 7/16"
10 1/32"
8 29/32"
3 11/16"
8"
15/16''-27UNS-2A
6 15 /32"
6 17 /32"
7 17 /32"
8°
2 1/32"
3 3/16 "
4 27 /32"
1 1/2"
2"
1/4''-20UNC-2A
1/2''-14NPSM-2A
27/32"
www.homewerksww.com
Effective/Rev Date: March 15, 2011
5
