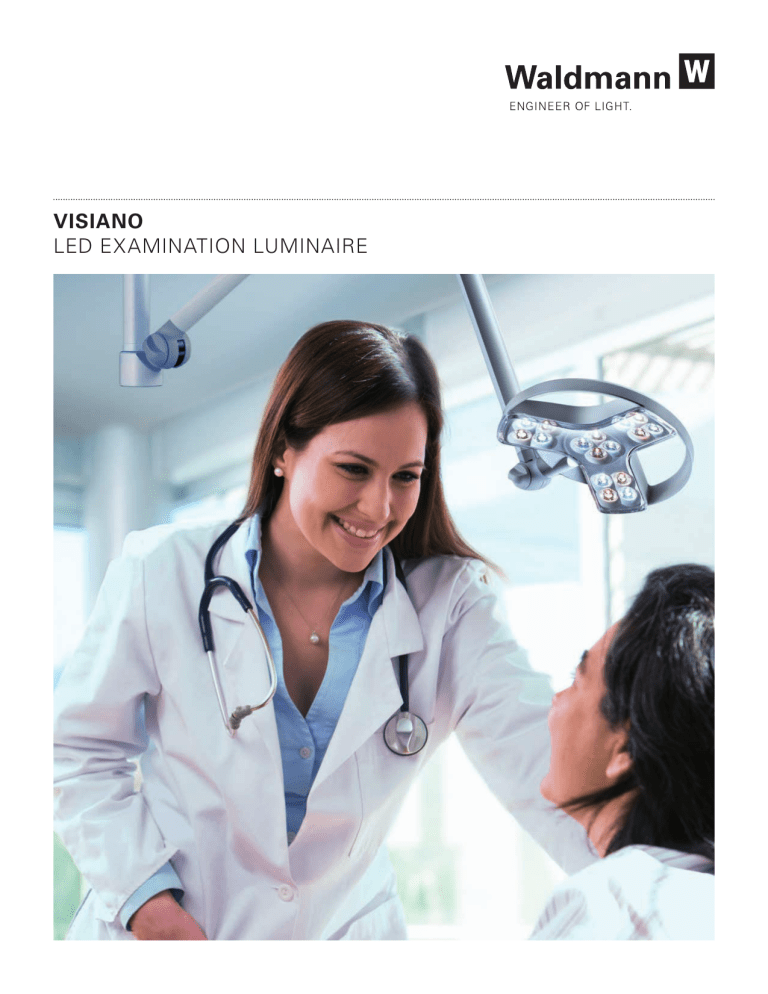

VISIANO
LED EXAMINATION LUMINAIRE
2
THE NEW Dmed ® VISIANO
SHINES THROUGH WITH INNOVATION AND DESIGN
Wherever the highest standards of vision apply, uncompromising lighting is essential. In a family practice or a specialist’s office,
neonatal unit or intensive care, VISIANO is a very helpful tool. With its unique design, state-of-the-art lighting technology and
ergonomic controls, VISIANO provides optimal lighting conditions for exams and procedures.
•
Highest lighting quality:
The unique light head design, diamond optics and premium
LEDs assure an evenly lit light field and high illuminance
level (60,000 lx/0.5 m) as well as excellent color rendering
(CRI>95)
•
Safety approval:
Meets IEC 60601 3rd edition technical standards for the
safety and effectiveness of medical electrical equipment.
ETL/cETL approved
•
Maximum reach and ergonomics:
360° rotational axis at the luminaire head, long 50-inch
arm reach
•
Dimming and color control:
Color temperatures can be switched from 3500K and
4500K and further personalized with four dimming levels
•
Easy cleaning:
Completely enclosed system for safe and easy cleaning
with disinfectant spray (IP43)
•
High quality components:
Aluminum arm for strength and rigidity, friction joints for
ease of motion
•
Integrated low voltage transformer:
For maximum electrical safety and energy efficiency
•
Long service life and maintenance-free:
Low power consumption with 16 premium LEDs and
integrated converter, maintenance-free housing
www.waldmannlighting.com
3
Unique optics:
365 fine slats provide an optimal color
mixing of light
Spring-balanced friction joint:
Can be easily and reliably locked into position
Intuitive control panel:
Ergonomic and intuitive to operate with
one hand
4500K
3500K
Concave light head:
Optimal light focus and uniform
light field for surgical quality performance
Color change:
For optimal contrast sensitivity and
accurate diagnoses
360° head rotation:
Maximum flexibility within reach
800-634-0007
4
DESIGNED FOR SIMPLICITY
EASY TO USE, EASY TO CLEAN
The available mounting options are as diverse as the applications for the new VISIANO, including ceiling installation or mounting
on a wall, table, rail or floor stand. The ergonomic design makes VISIANO easy to maneuver and the enclosed design and antimicrobial sanitized® enhanced materials help to keep the fixture clean and maintenance-free.
KEEPING HYGIENE A PRIORITY
Protection against the spread of bacteria
In a medical setting in particular, inhibiting the spread of harmful bacteria and germs is a critical task. VISIANO is manufactured with a biocidal incorporated into the luminaire material
for the upper luminaire housing, the control panel and the hand
wheels of the joints. Please note: This sanitizing component
does not replace the need for regular cleaning.
The biocidally active component is integrated into the lamp
head during the manufacturing process, inhibiting the growth
and proliferation of microbes and bacteria. This prevents the
cell from breathing and spreading to other areas. In laboratory
testing, 99% of bacteria and germs were destroyed. It has
also been established that this material is not hazardous to the
health or safety of patient and staff.
Bacteria
Moisture
www.waldmannlighting.com
Material with
antimicrobial material
5
MOUNTING OPTIONS
THE PERFECT OPTION FOR EVERY SITUATION
•
•
•
•
Illumination intensity 60,000 lx/0.5 m
Lighting field: 8.3 inches
Color temperatures: 3500K and 4500K
4 dimming levels
•
•
•
•
Diamond optic design reduces shadows
Ergonomic controls allow for one-handed operation
Spring-balanced arm joints lock in position
Pure white / gray
Ceiling mount version
Ceiling pole max. 45 inches (can be cut to length)
Pin-mount version
16 mm pin mount for table, wall, rail
or rolling floor stand
800-634-0007
6
VISIANO
Technical drawing 20-2 C T1
Light distribution
measurements in centimeters
Photometric data -10% / +20% tolerance
Technical drawing 20-2 P TX
measurements in centimeters
www.waldmannlighting.com
7
VISIANO
ORDERING INFORMATION
MOUNTING INCLUDED
PART #
VISIANO 20-2 C T1
MODEL
ceiling
D15 594 000
VISIANO 20-2 P TX
table clamp
D15 461 100
VISIANO 20-2 P TX
floor stand
D15 461 110
VISIANO 20-2 P TX
wall mount
D15 461 120
VISIANO 20-2 P TX
rail mount
D15 461 150
DESCRIPTION
PART #
ACCESSORIES
ITEM
Extension Arm, 15” reach
white
D13 363 000
Table Clamp
black
D14 228 000
Rolling Floor Stand
black/silver
US1 043 019
Wall Mount
white
D13 231 000
Rail Mount
silver
D13 269 000
800-634-0007
